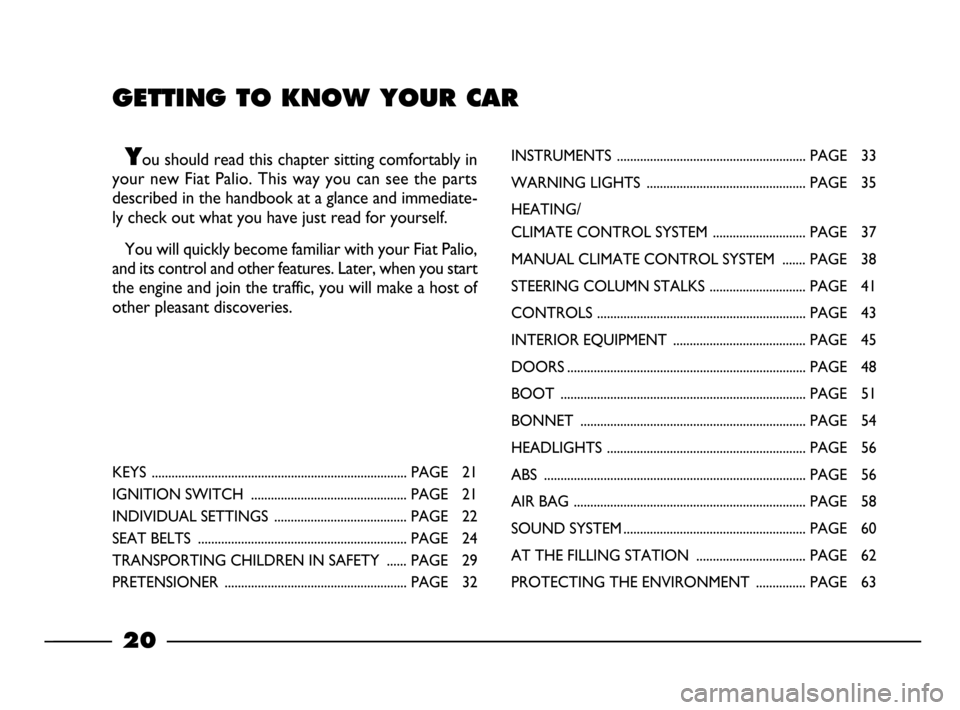

GETTING TO KNOW YOUR CAR
You should read this chapter sitting comfortably in
your new Fiat Palio. This way you can see the parts
described in the handbook at a glance and immediate-
ly check out what you have just read for yourself.
You will quickly become familiar with your Fiat Palio,
and its control and other features. Later, when you start
the engine and join the traffic, you will make a host of
other pleasant discoveries.INSTRUMENTS ......................................................... PAGE 33
WARNING LIGHTS ................................................ PAGE 35
HEATING/
CLIMATE CONTROL SYSTEM ............................ PAGE 37
MANUAL CLIMATE CONTROL SYSTEM ....... PAGE 38
STEERING COLUMN STALKS ............................. PAGE 41
CONTROLS ............................................................... PAGE 43
INTERIOR EQUIPMENT ........................................ PAGE 45
DOORS ........................................................................ PAGE 48
BOOT .......................................................................... PAGE 51
BONNET .................................................................... PAGE 54
HEADLIGHTS ............................................................ PAGE 56
ABS ............................................................................... PAGE 56
AIR BAG ...................................................................... PAGE 58
SOUND SYSTEM ....................................................... PAGE 60
AT THE FILLING STATION ................................. PAGE 62
PROTECTING THE ENVIRONMENT ............... PAGE 63
20
KEYS ............................................................................. PAGE 21
IGNITION SWITCH ............................................... PAGE 21
INDIVIDUAL SETTINGS ........................................ PAGE 22
SEAT BELTS ............................................................... PAGE 24
TRANSPORTING CHILDREN IN SAFETY ...... PAGE 29
PRETENSIONER ....................................................... PAGE 32
20-63 03/03/2003 06:02 PM Page 20
Page 22 of 156
21
IGNITION
SWITCH
The key can turn to 4 different po-
sitions
fig. 2:
–
STOP: engine switched off, ex-
tractable key, steering column lock.
Some electrical devices (e.g. door cen-
tralized lock etc.) remain operational.
–
MAR: ride position. All electrical
devices are operational.
–
AVV: engine starting.
–
PARK: engine switched-off, park-
ing lights switched on, extractable key,
steering column lock. To turn the key
in
PARK position, press the button
A.
In the event of a break-
in (e.g. attempted theft),
have the car checked at a
Fiat Dealership prior to driving
again.
fig. 1
P4E02062
KEYS
Two keys are provided with the car
& (
fig. 1) they are used for:
– the ignition;
– the front doors;
– the boot door.
Together with the keys, a self-stick
label is supplied. On this label is re-
ported the number to be quoted to
Fiat Dealershipwhen ordering du-
plicate keys.
fig. 2
P4E02017
When getting out of the
car, always remove the
key, to avoid someone ac-
cidentally activating the controls.
Remember to engage the hand
brake, ensuring complete lockup
of the car, engage gear and leave
the wheels steered. If the car is
parked on a very sloping road, we
recommend you lock the wheels
also with a wedge or a stone.
Never leave children alone in an
unattended car.
20-63 03/03/2003 06:02 PM Page 21
Page 23 of 156
Once you have released the lever,
check that the seat is firmly locked in
the runners by trying to move it back
and forth. Failure to lock the seat in
place could result the seat moving sud-
denly and the driver losing control of
the car.
Adjusting the reclining seat
back
Turn knob B-fig. 3until the back
reaches the reclination you desire.
Do not remove the seats
nor carry out mainte-
nance and/or repair oper-
ations on them. Improper oper-
ations can compromise safety de-
vice operation. Always go to a Fi-
at Dealership.
22
Moving the seat backwards or
forwards
Lift the lever A-fig. 3and push the
seat forwards or backwards; you are
in the correct position for driving
when your hands are resting on the
steering wheel rim and your arms are
slightly bent.
Only make adjustments
when the car is station-
ary.
STEERING COLUMN LOCK
Engagement:
After turning the key
to position STOP or PARK remove it
and turn the steering wheel till it locks .
To release: Gently move the steer-
ing wheel from side to side as you turn
the ignition key to
MAR.
Never remove the igni-
tion key while the car is
moving. The steering
wheel will automatically lock as
soon as you turn it. This also ap-
plies when the car is being towed.

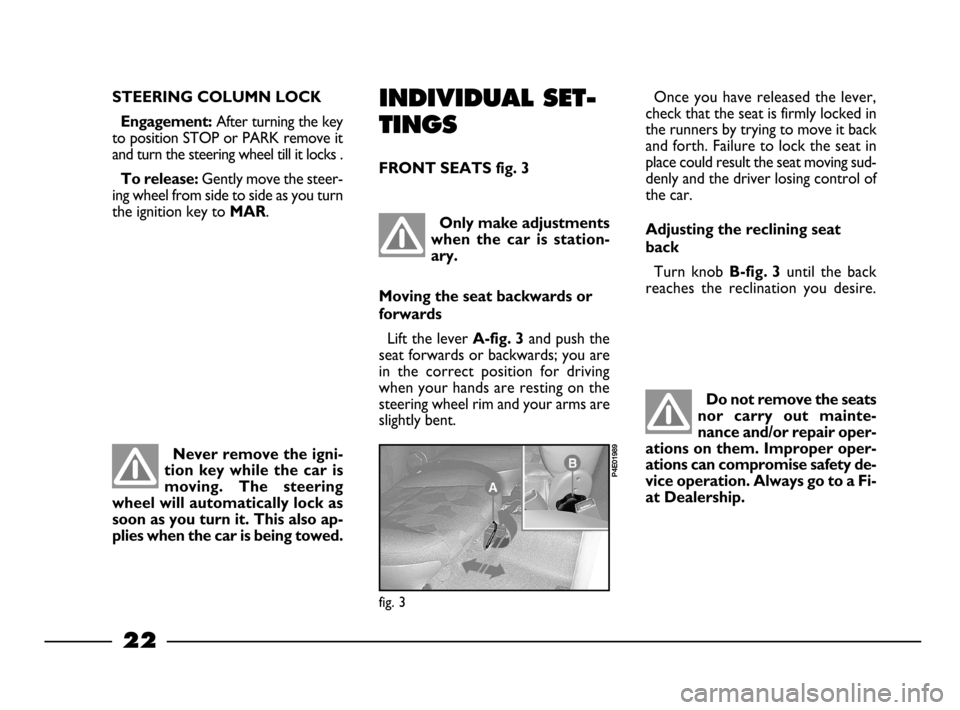

INDIVIDUAL SET-
TINGS
FRONT SEATS fig. 3
fig. 3
P4E01989
20-63 03/03/2003 06:02 PM Page 22
Page 24 of 156
23

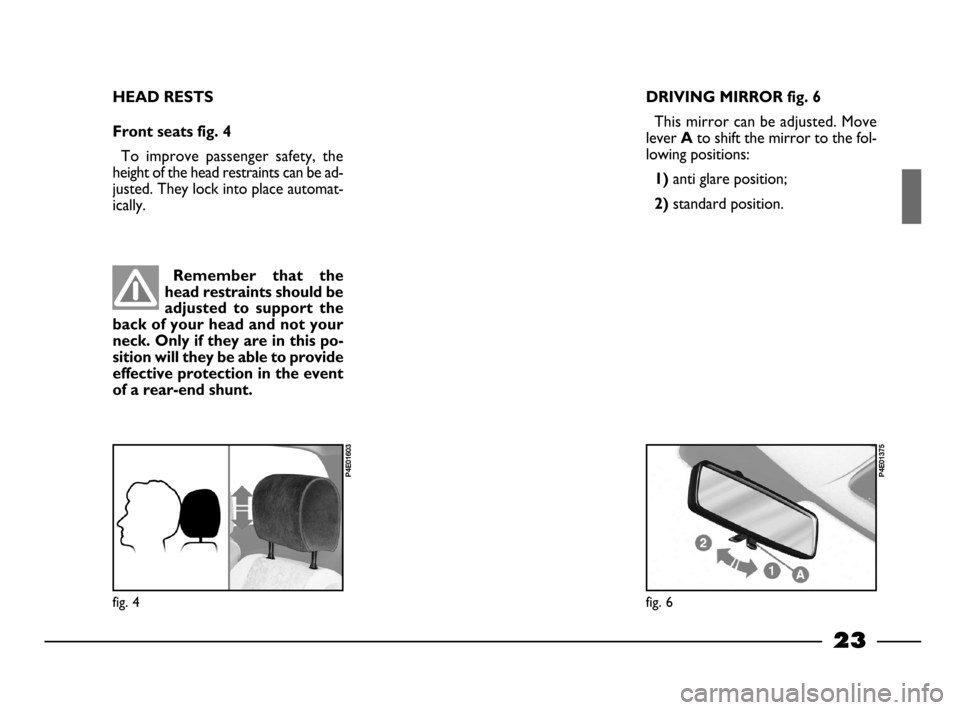

HEAD RESTS
Front seats fig. 4
To improve passenger safety, the
height of the head restraints can be ad-
justed. They lock into place automat-
ically.
fig. 4
P4E01603
Remember that the
head restraints should be
adjusted to support the
back of your head and not your
neck. Only if they are in this po-
sition will they be able to provide
effective protection in the event
of a rear-end shunt.
DRIVING MIRROR fig. 6
This mirror can be adjusted. Move
lever
Ato shift the mirror to the fol-
lowing positions:
1)anti glare position;
2) standard position.
fig. 6
P4E01375
20-63 03/03/2003 06:02 PM Page 23
Page 25 of 156
24
SEAT BELTS
USING THE SEAT BELTS
(for the front seats) fig. 8
To fasten the seat belts, take the
tongue of fastener
A and push it into
buckle
B, until you hear it click.
Pull the seat belt gently. If it jams, let
it rewind a little then pull it out again
without jerking.
fig. 8
P4E01376
DOOR MIRRORS
To adjust, operate the knob inside
the car
A-fig. 7.
Make sure that the car is stationary
and the handbrake is on before you
adjust mirrors.
The reflecting surface
of the left-hand mirror is
parabolic to increase
viewing range. Consequently,
the dimension of the reflected
image is reduced, giving the
impression that the object is
more distant than it really is.
fig. 7
P4E02007
When driving, the door
mirrors must always be in
the extended position 1.
If the mirror makes it
difficult to get through
narrow gaps, fold it from
1-fig. 7 to position 2.
20-63 03/03/2003 06:02 PM Page 24
Page 26 of 156
25
To unfasten the seat belts, press but-
ton
C. Guide the seat belt with your
hand while it is rewinding, to prevent
it from twisting.
The seat belt reel mechanism will
adapt the belt to the body of the per-
son wearing it, offering freedom of
movement.
When the car is parked on a steep
slope the reel mechanism may lock;
this is normal.
The reel mechanism prevents the
webbing coming out when it is jerked
or if the car brakes sharply, as in a col-
lision or when cornering at high speed.
To ensure maximum
protection, keep the
backrest in the upright
position, lean back into the seat
and ensure that the seat belt ad-
heres closely to torso and hips.
Do not use the seat belt when the
seat back is reclined.
Always adjust the height of the seat
belt to fit the person wearing it. This
could greatly reduce the risk of injury
in the case of collision.
The belt is adjusted properly when
the webbing passes approximately
halfway between the edge of the
shoulder and the neck.

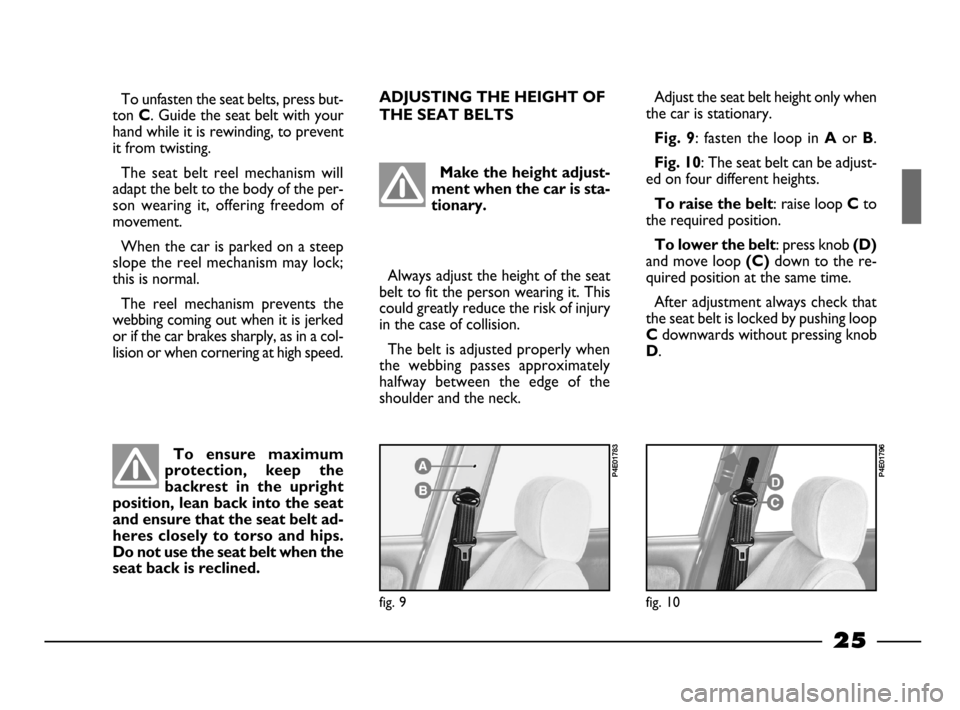

ADJUSTING THE HEIGHT OF
THE SEAT BELTS
Make the height adjust-
ment when the car is sta-
tionary.
fig. 9
P4E01783
Adjust the seat belt height only when
the car is stationary.
Fig. 9: fasten the loop in Aor B.
Fig. 10: The seat belt can be adjust-
ed on four different heights.
To raise the belt: raise loop Cto
the required position.
To lower the belt: press knob (D)
and move loop (C)down to the re-
quired position at the same time.
After adjustment always check that
the seat belt is locked by pushing loop
Cdownwards without pressing knob
D.
fig. 10
P4E01796
20-63 03/03/2003 06:02 PM Page 25
Page 27 of 156
26

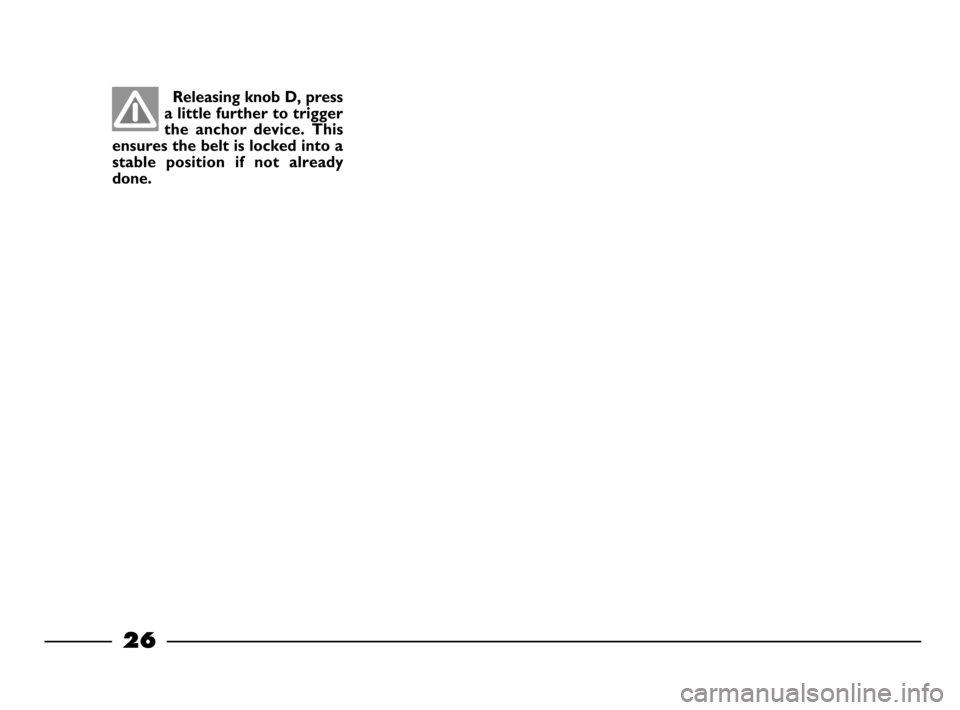

Releasing knob D, press
a little further to trigger
the anchor device. This
ensures the belt is locked into a
stable position if not already
done.
20-63 03/03/2003 06:02 PM Page 26
Page 28 of 156
27

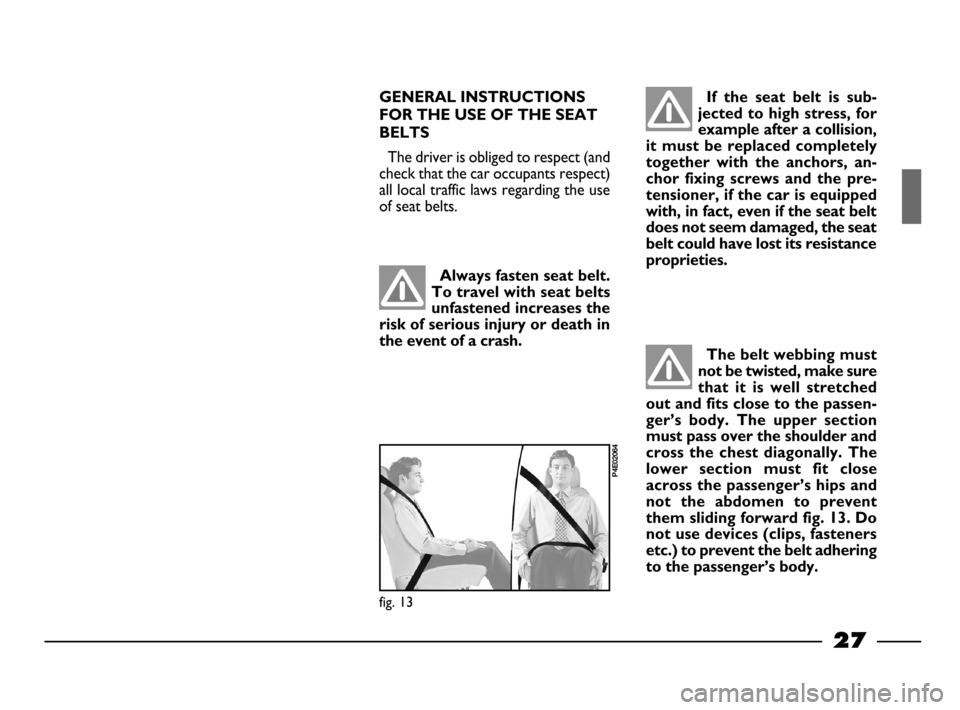

GENERAL INSTRUCTIONS
FOR THE USE OF THE SEAT
BELTS
The driver is obliged to respect (and
check that the car occupants respect)
all local traffic laws regarding the use
of seat belts.
Always fasten seat belt.
To travel with seat belts
unfastened increases the
risk of serious injury or death in
the event of a crash.
fig. 13
P4E02064
If the seat belt is sub-
jected to high stress, for
example after a collision,
it must be replaced completely
together with the anchors, an-
chor fixing screws and the pre-
tensioner, if the car is equipped
with, in fact, even if the seat belt
does not seem damaged, the seat
belt could have lost its resistance
proprieties.
The belt webbing must
not be twisted, make sure
that it is well stretched
out and fits close to the passen-
ger’s body. The upper section
must pass over the shoulder and
cross the chest diagonally. The
lower section must fit close
across the passenger’s hips and
not the abdomen to prevent
them sliding forward fig. 13. Do
not use devices (clips, fasteners
etc.) to prevent the belt adhering
to the passenger’s body.
20-63 03/03/2003 06:02 PM Page 27
Page 29 of 156
28

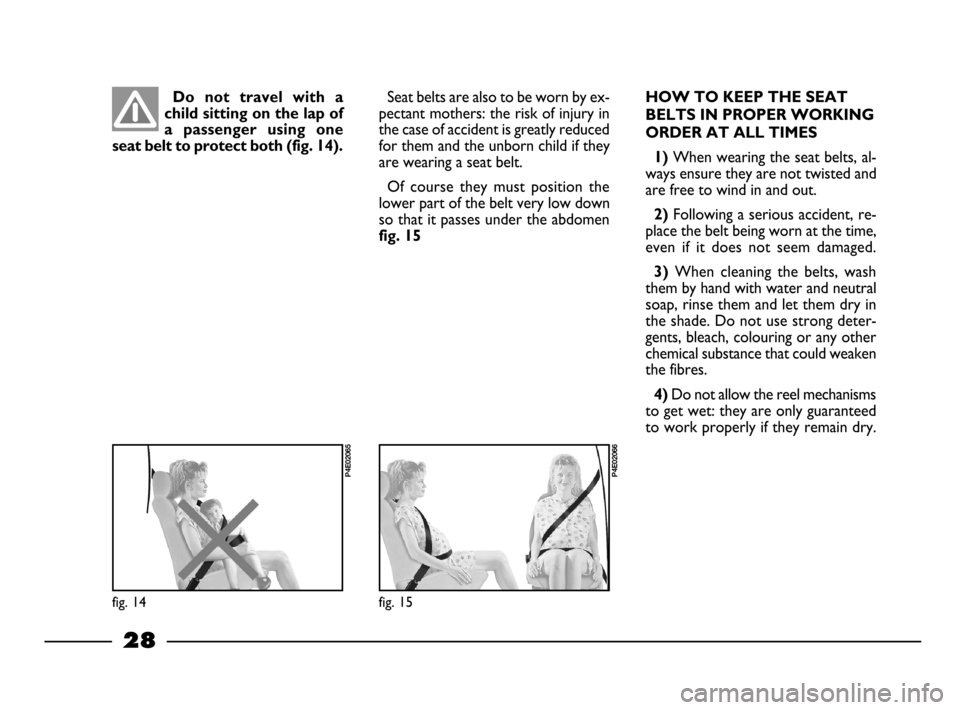

Do not travel with a
child sitting on the lap of
a passenger using one
seat belt to protect both (fig. 14).Seat belts are also to be worn by ex-
pectant mothers: the risk of injury in
the case of accident is greatly reduced
for them and the unborn child if they
are wearing a seat belt.
Of course they must position the
lower part of the belt very low down
so that it passes under the abdomen
fig. 15HOW TO KEEP THE SEAT
BELTS IN PROPER WORKING
ORDER AT ALL TIMES
1)
When wearing the seat belts, al-
ways ensure they are not twisted and
are free to wind in and out.
2)Following a serious accident, re-
place the belt being worn at the time,
even if it does not seem damaged.
3)When cleaning the belts, wash
them by hand with water and neutral
soap, rinse them and let them dry in
the shade. Do not use strong deter-
gents, bleach, colouring or any other
chemical substance that could weaken
the fibres.
4) Do not allow the reel mechanisms
to get wet: they are only guaranteed
to work properly if they remain dry.
fig. 14
P4E02065
fig. 15
P4E02066
20-63 03/03/2003 06:02 PM Page 28
Page 30 of 156
29

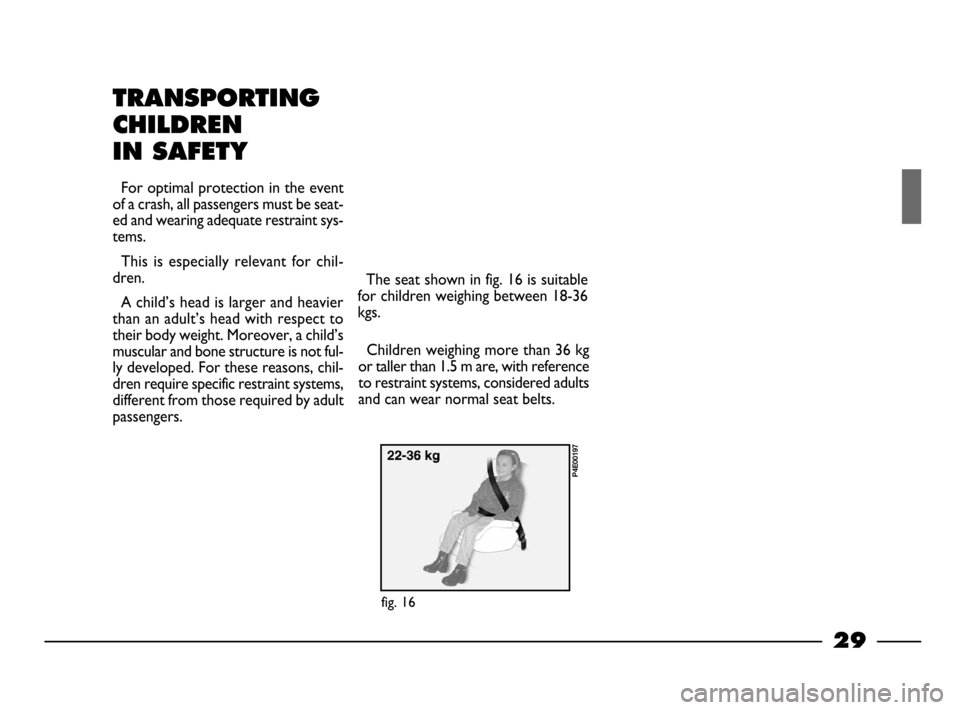

TRANSPORTING
CHILDREN
IN SAFETY
For optimal protection in the event
of a crash, all passengers must be seat-
ed and wearing adequate restraint sys-
tems.
This is especially relevant for chil-
dren.
A child’s head is larger and heavier
than an adult’s head with respect to
their body weight. Moreover, a child’s
muscular and bone structure is not ful-
ly developed. For these reasons, chil-
dren require specific restraint systems,
different from those required by adult
passengers.
Child’s restraint systems are classi-
fied into the following four weight
groups,
fig. 16:
Group 0 weight 0-10 kg
Group 0 weight 9-18 kg
Group 0 weight 15-25 kg
Group 3 22-36 weight kg.
The groups partially overlap. This is
because there are systems which cov-
er more than one weight group.
Children weighing more than 36 kg
or taller than 1.5 m are, with reference
to restraint systems, considered adults
and can wear normal seat belts.
fig. 16
P4E00197
The seat shown in fig. 16 is suitable
for children weighing between 18-36
kgs.
20-63 03/03/2003 06:02 PM Page 29
