FIAT PALIO 2003 178 / 1.G India Version Owner's Guide

30
There are child re-
straints for groups 0 and
1 which are fastened with
the car seat belts by means of an
attachment on the seat back. The
child is then secured to the seat
with specific straps. Due to their
weight, child seats can be dan-
gerous if they are fitted incor-
rectly with a cushion placed be-
tween the seat and the car seat
belts. Always attain carefully to
the specific installation instruc-
tions attached. We recommend seating
children on the rear seat.
This is the most protect-
ed position in the event of a
crash.
GROUP 0
Babies up to 10 Kg are to be seated
in a cot type seat supporting the child’s
head, facing backwards. This ensures
there is no stress on the child’s neck
in sudden decelerations.
The cot is secured with the seat
belts, as shown in
fig. 17. The child
must be strapped to the carrier with
its incorporated straps.
GROUP 1
Children from 9 kg are to be seated
facing forward in child seats with front
cushions. The seat belt secures both
seat and child
fig. 18.
fig. 17
P4E00198
fig. 18
P4E00199
The figure is only an ex-
ample. Follow the in-
structions for fastening
the specific child restraint
system you are using.
The figure is only an ex-
ample. Follow the in-
structions for fastening
the specific child restraint system
you are using.

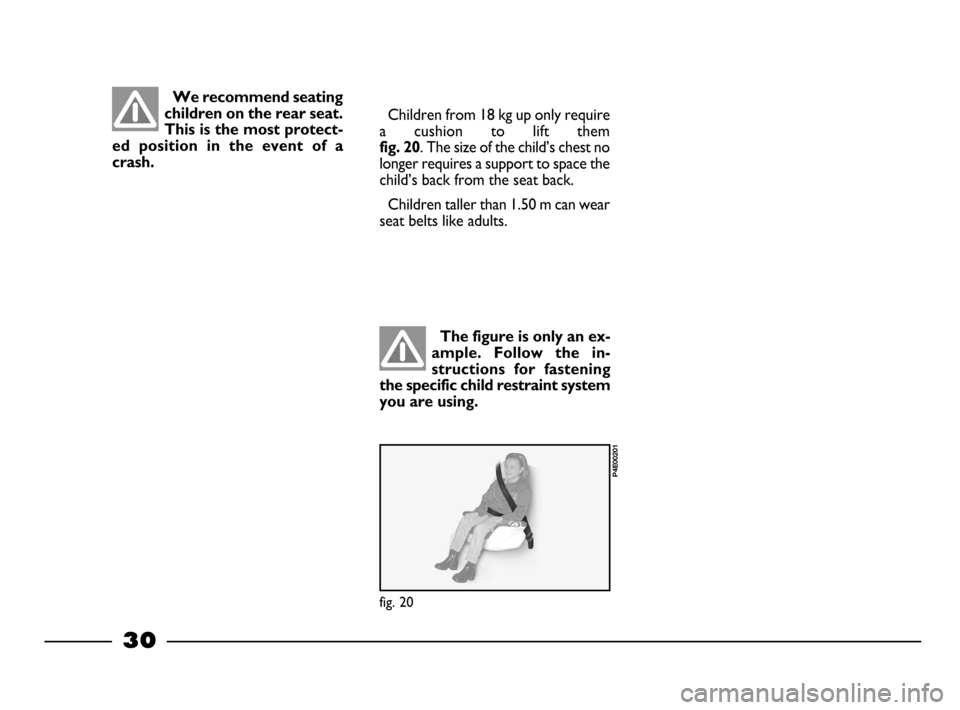

Children from 18 kg up only require
a cushion to lift them
fig. 20. The size of the child’s chest no
longer requires a support to space the
child’s back from the seat back.
Children taller than 1.50 m can wear
seat belts like adults.
fig. 20
P4E00201
The figure is only an ex-
ample. Follow the in-
structions for fastening
the specific child restraint system
you are using.
20-63 03/03/2003 06:02 PM Page 30

The figure is only an ex-
ample. Follow the in-
structions for fastening
the specific child restraint system
you are using.
31
GROUP 2
Children from 15 kg can be secured
directly with the car seat belts. The
child seat has the purpose of posi-
tioning the child correctly with respect
to the seat belt, so that the diagonal
section crosses the child’s chest and
never the throat, and that the hori-
zontal section fits snugly on the child’s
hips and not to the abdomen
fig. 19.
fig. 19
P4E00200
5) Always check the seat belts do
not fit around the child’s throat.
6) While travelling, do not let the
child sit incorrectly or release the
belts.
7) Passengers should never carry
children on their laps. No-one, how-
ever strong they are, can hold a child
in the event of a crash.
8)Replace the child restraint system
after an accident.

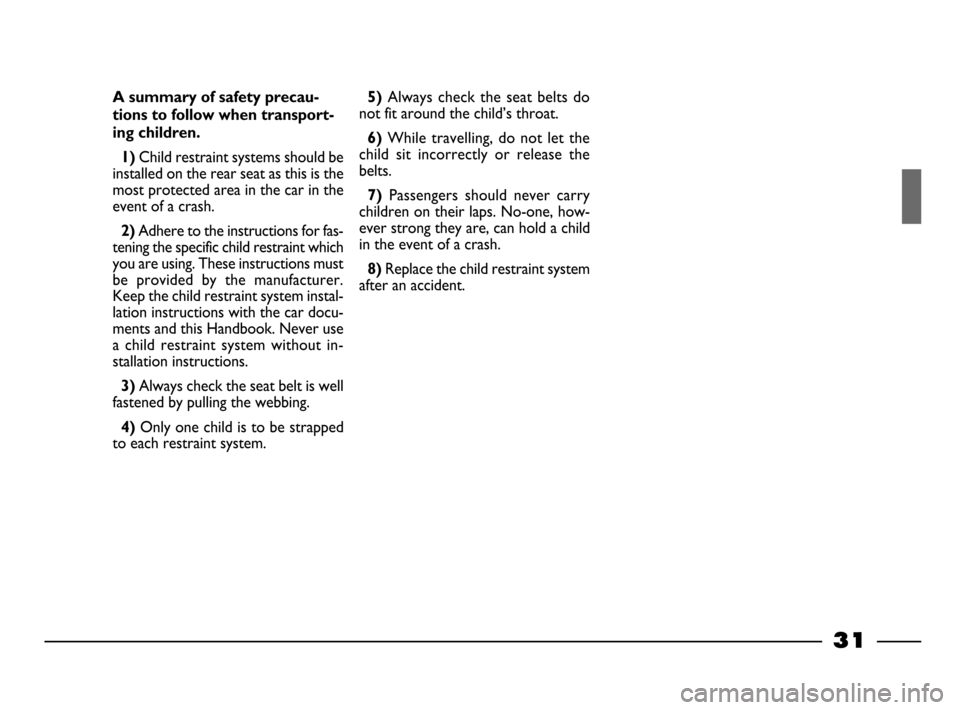

A summary of safety precau-
tions to follow when transport-
ing children.
1)
Child restraint systems should be
installed on the rear seat as this is the
most protected area in the car in the
event of a crash.
2)Adhere to the instructions for fas-
tening the specific child restraint which
you are using. These instructions must
be provided by the manufacturer.
Keep the child restraint system instal-
lation instructions with the car docu-
ments and this Handbook. Never use
a child restraint system without in-
stallation instructions.
3) Always check the seat belt is well
fastened by pulling the webbing.
4)Only one child is to be strapped
to each restraint system.
20-63 03/03/2003 06:02 PM Page 31

32
PRETENSIONERS
The pretensioner does not require
any maintenance or lubrication. Any
modification of its original state inval-
idates its efficiency. If, as the result of
exceptional natural occurrences
(floods, sea storms etc.) the device be-
come soaked through with water and
mud, it is essential that it be replaced.
The pretensioner will give maximum
protection when the seat belt adheres
snugly to the wearer’s chest and hips. To render the protective action of
the front seat belts even more effec-
tive, some versions of Fiat Palio are fit-
ted with pretensioners. These devices
“feel” that a violent collision is in
progress via a sensor, and pull back a
few centimeters of webbing. In this
way the pretensioner ensures that the
belt is adhering perfectly to the body
before the belt begins to hold back the
wearer.
When the pretensioner has been
triggered the retractor will lock.
The seat belt cannot be drawn back
up even when guiding it manually.
When the pretensioner is triggered
a small amount of smoke may be pro-
duced. The smoke is not harmful and
does not indicate the beginning of a
fire.
Under no circumstances
should the components of
the pretensioner be tam-
pered with or removed. Any in-
terventions should be carried out
by qualified and authorized per-
sonnel. Always contact a Fiat
Dealership
20-63 03/03/2003 06:02 PM Page 32

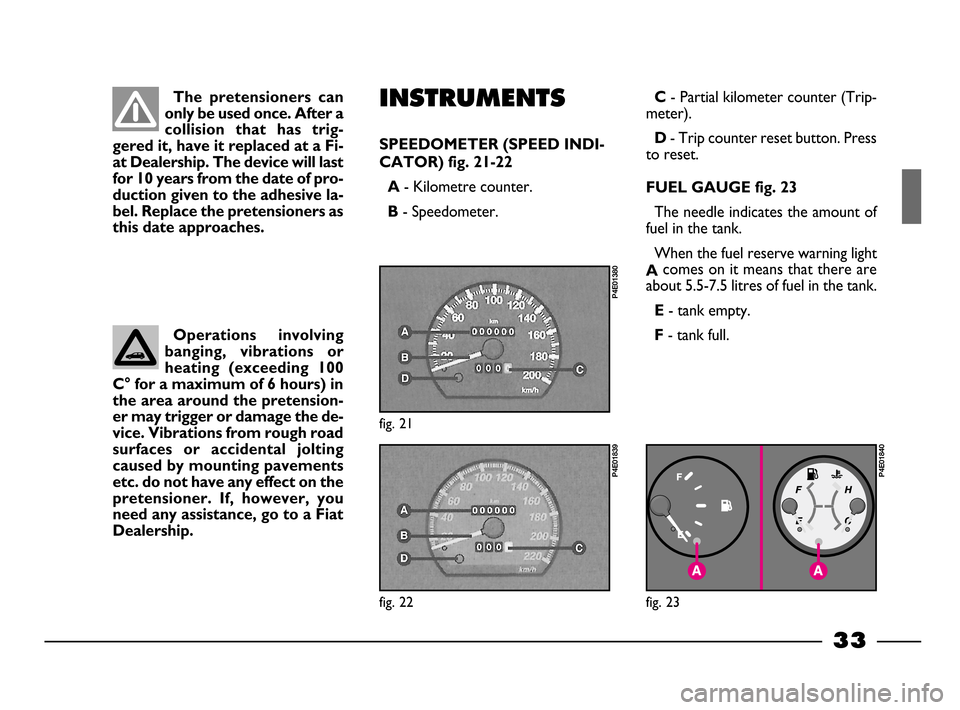

33
The pretensioners can
only be used once. After a
collision that has trig-
gered it, have it replaced at a Fi-
at Dealership. The device will last
for 10 years from the date of pro-
duction given to the adhesive la-
bel. Replace the pretensioners as
this date approaches.INSTRUMENTS
SPEEDOMETER (SPEED INDI-
CATOR) fig. 21-22
A
- Kilometre counter.
B- Speedometer.
fig. 22
P4E01839
Operations involving
banging, vibrations or
heating (exceeding 100
C° for a maximum of 6 hours) in
the area around the pretension-
er may trigger or damage the de-
vice. Vibrations from rough road
surfaces or accidental jolting
caused by mounting pavements
etc. do not have any effect on the
pretensioner. If, however, you
need any assistance, go to a Fiat
Dealership.
C- Partial kilometer counter (Trip-
meter).
D- Trip counter reset button. Press
to reset.
FUEL GAUGE fig. 23
The needle indicates the amount of
fuel in the tank.
When the fuel reserve warning light
Acomes on it means that there are
about 5.5-7.5 litres of fuel in the tank.
E- tank empty.
F - tank full.
fig. 21
P4E01380
fig. 23
P4E01840
20-63 03/03/2003 06:02 PM Page 33

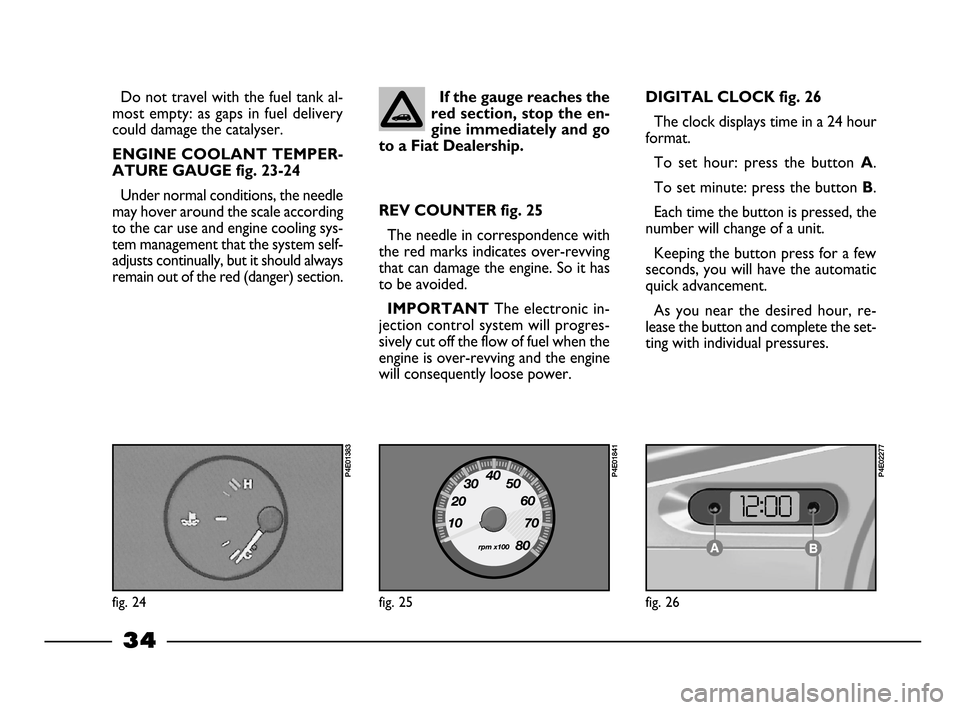

34
If the gauge reaches the
red section, stop the en-
gine immediately and go
to a Fiat Dealership.Do not travel with the fuel tank al-
most empty: as gaps in fuel delivery
could damage the catalyser.
ENGINE COOLANT TEMPER-
ATURE GAUGE fig. 23-24
Under normal conditions, the needle
may hover around the scale according
to the car use and engine cooling sys-
tem management that the system self-
adjusts continually, but it should always
remain out of the red (danger) section.
REV COUNTER fig. 25
The needle in correspondence with
the red marks indicates over-revving
that can damage the engine. So it has
to be avoided.
IMPORTANT The electronic in-
jection control system will progres-
sively cut off the flow of fuel when the
engine is over-revving and the engine
will consequently loose power.
fig. 24
P4E01383
fig. 25
P4E01841
DIGITAL CLOCK fig. 26
The clock displays time in a 24 hour
format.
To set hour: press the button
A.
To set minute: press the button
B.
Each time the button is pressed, the
number will change of a unit.
Keeping the button press for a few
seconds, you will have the automatic
quick advancement.
As you near the desired hour, re-
lease the button and complete the set-
ting with individual pressures.
fig. 26
P4E02277
20-63 03/03/2003 06:02 PM Page 34

35
WARNING
LIGHTS
The warning lights come on in the
following circumstances:
BATTERY NOT
CHARGING PROPER-
LY (red)
When there is
a fault in the current gen-
erating system.
Go to a
Fiat Dealershipand pre-
vent deploying the battery.
When the key is turned to
MAR the
light comes on but should go out the
moment the engine is started.
LOW ENGINE OIL
PRESSURE (red)
When
the engine oil pressure
drops under the normal
value.
When the key is turned to
MARthe
light comes on but should go out the
moment the engine is started.
A delay in the light going out is ac-
ceptable only when the engine is idling.
If the engine has been heavily taxed,
the light may flash when the engine re-
turns to idle. The light should howev-
er go out when you accelerate slight-
ly.
v
w
If the vwarning light
comes on while the car is
moving, stop the engine
immediately and contact a Fiat
Dealership.
INJECTION SYSTEM
FAILURE (red) (petrol
version)
When there is a
fault in the injection system.
When the ignition key is turned to
the
MAR position, the light comes on
but should go out after a few seconds.
The warning light will stay on or
come on when travelling to indicate
imperfect operation of the injection
system with possible loss of perfor-
mance, poor handling and higher con-
sumption.
g
In these conditions, you can contin-
ue driving but you should avoid de-
manding efforts from the engine or
high speeds. Contact a
Fiat Dealer-
ship
as soon as possible.
Using the car for long periods when
the warning light is on may cause dam-
age especially when the engine is run-
ning irregularly or misfiring. The car
should only be used for short periods
at low speeds.
Occasional and brief lighting of the
warning light is meaningless.
HANDBRAKE EN-
GAGED / LOW
BRAKE FLUID (red)
In
two cases:
1.When the handbrake is applied.
2. when the brake fluid level falls be-
low the minimum level.
x
20-63 03/03/2003 06:02 PM Page 35

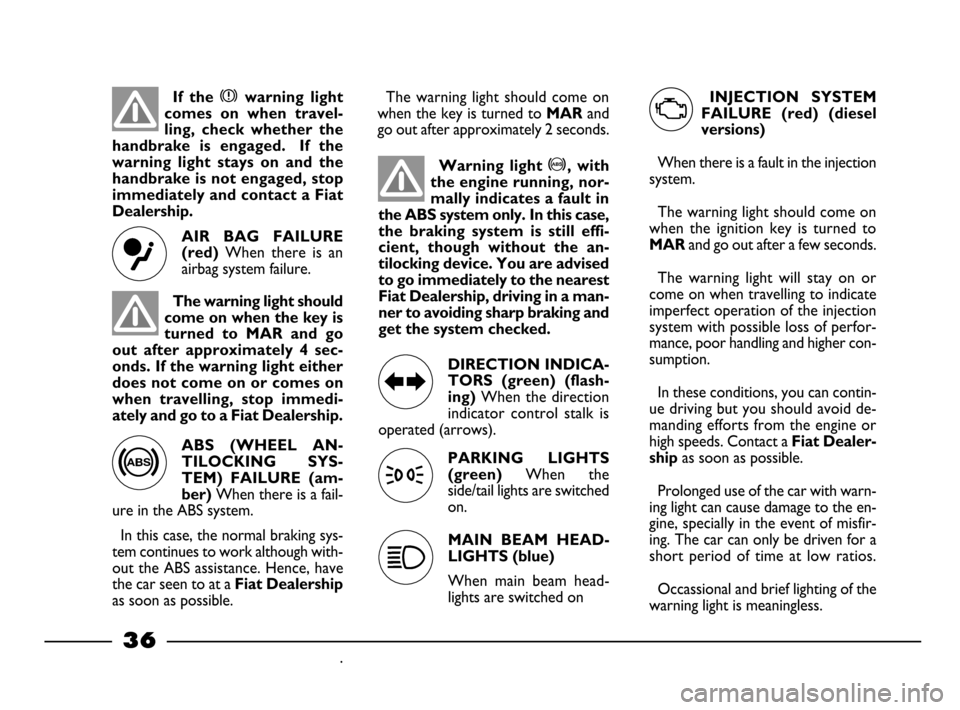

ABS (WHEEL AN-
TILOCKING SYS-
TEM) FAILURE (am-
ber)
When there is a fail-
ure in the ABS system.
In this case, the normal braking sys-
tem continues to work although with-
out the ABS assistance. Hence, have
the car seen to at a
Fiat Dealership
as soon as possible.
The warning light should come on
when the key is turned to
MARand
go out after approximately 2 seconds.
DIRECTION INDICA-
TORS (green) (flash-
ing)
When the direction
indicator control stalk is
operated (arrows).
PARKING LIGHTS
(green)
When the
side/tail lights are switched
on.
RE
3
MAIN BEAM HEAD-
LIGHTS (blue)
When main beam head-
lights are switched on
1
AIR BAG FAILURE
(red)
When there is an
airbag system failure.
If the xwarning light
comes on when travel-
ling, check whether the
handbrake is engaged. If the
warning light stays on and the
handbrake is not engaged, stop
immediately and contact a Fiat
Dealership.
>
Warning light >, with
the engine running, nor-
mally indicates a fault in
the ABS system only. In this case,
the braking system is still effi-
cient, though without the an-
tilocking device. You are advised
to go immediately to the nearest
Fiat Dealership, driving in a man-
ner to avoiding sharp braking and
get the system checked.
û
The warning light should
come on when the key is
turned to MAR and go
out after approximately 4 sec-
onds. If the warning light either
does not come on or comes on
when travelling, stop immedi-
ately and go to a Fiat Dealership.
The warning light should come on
when the key is turned to
MARand
go out after approximately 2 seconds.
36
INJECTION SYSTEM
FAILURE (red) (diesel
versions)
When there is a fault in the injection
system.
The warning light should come on
when the ignition key is turned to
MARand go out after a few seconds.
The warning light will stay on or
come on when travelling to indicate
imperfect operation of the injection
system with possible loss of perfor-
mance, poor handling and higher con-
sumption.
In these conditions, you can contin-
ue driving but you should avoid de-
manding efforts from the engine or
high speeds. Contact a
Fiat Dealer-
ship
as soon as possible.
Prolonged use of the car with warn-
ing light can cause damage to the en-
gine, specially in the event of misfir-
ing. The car can only be driven for a
short period of time at low ratios.
Occassional and brief lighting of the
warning light is meaningless.
20-63 03/03/2003 06:02 PM Page 36

37

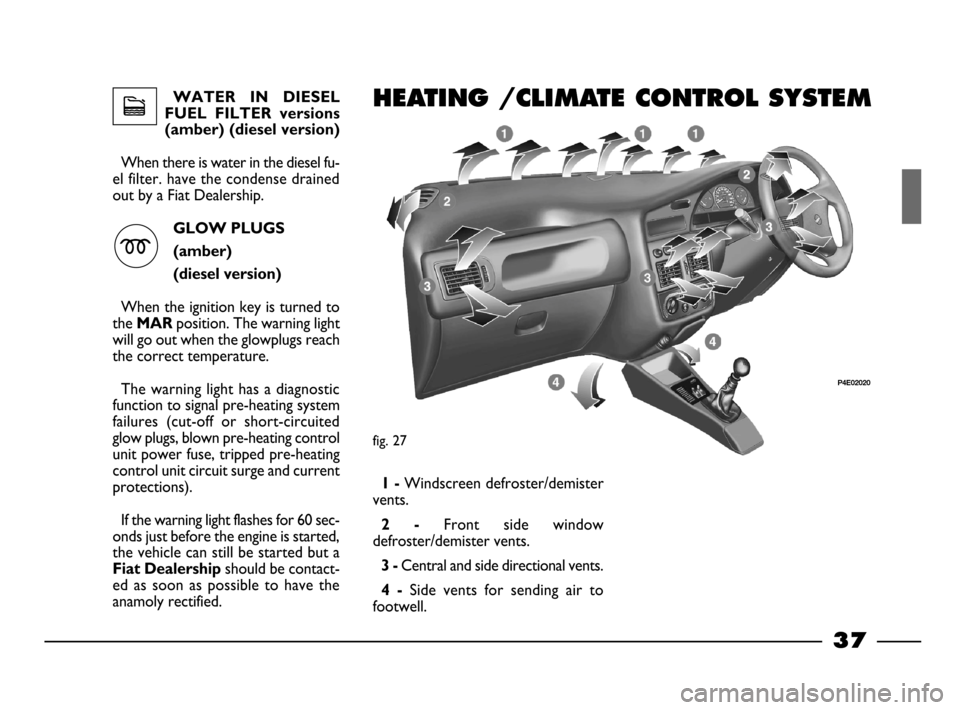

HEATING /CLIMATE CONTROL SYSTEM
1 -Windscreen defroster/demister
vents.
2 -Front side window
defroster/demister vents.
3 -Central and side directional vents.
4 -Side vents for sending air to
footwell.
P4E02020
fig. 27
WATER IN DIESEL
FUEL FILTER versions
(amber) (diesel version)
When there is water in the diesel fu-
el filter. have the condense drained
out by a Fiat Dealership.
GLOW PLUGS
(amber)
(diesel version)
When the ignition key is turned to
the
MARposition. The warning light
will go out when the glowplugs reach
the correct temperature.
The warning light has a diagnostic
function to signal pre-heating system
failures (cut-off or short-circuited
glow plugs, blown pre-heating control
unit power fuse, tripped pre-heating
control unit circuit surge and current
protections).
If the warning light flashes for 60 sec-
onds just before the engine is started,
the vehicle can still be started but a
Fiat Dealershipshould be contact-
ed as soon as possible to have the
anamoly rectified.
20-63 03/03/2003 06:02 PM Page 37

38

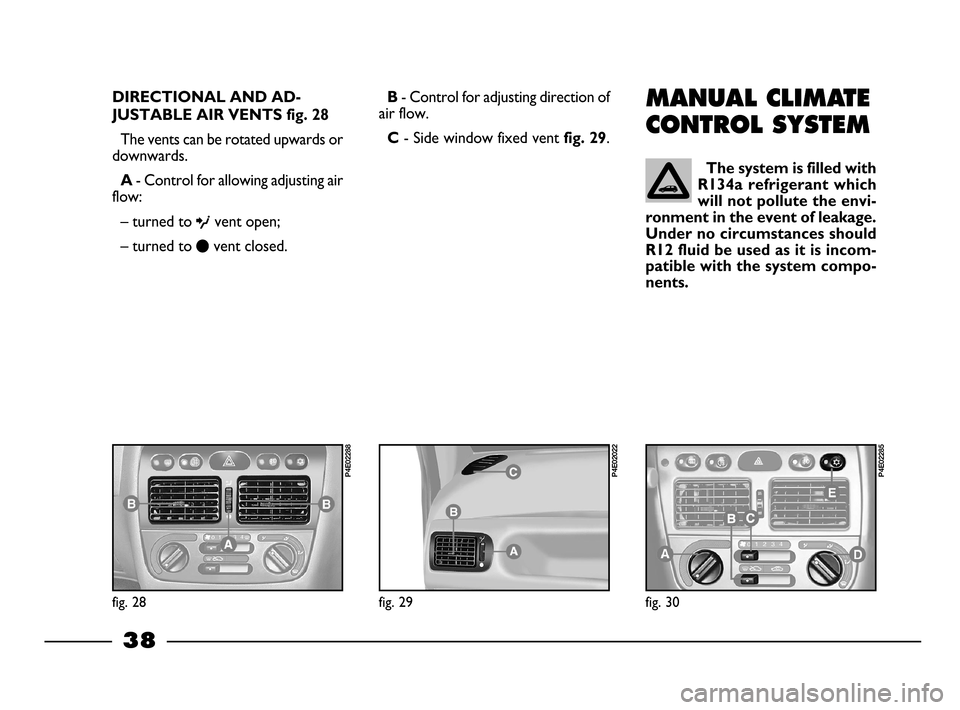

MANUAL CLIMATE
CONTROL SYSTEM
The system is filled with
R134a refrigerant which
will not pollute the envi-
ronment in the event of leakage.
Under no circumstances should
R12 fluid be used as it is incom-
patible with the system compo-
nents.
fig. 30
P4E02285
DIRECTIONAL AND AD-
JUSTABLE AIR VENTS fig. 28
The vents can be rotated upwards or
downwards.
A- Control for allowing adjusting air
flow:
– turned to
Ovent open;
– turned to
ç
vent closed.
B - Control for adjusting direction of
air flow.
C - Side window fixed vent fig. 29.
fig. 28
P4E02288
fig. 29
P4E02022
20-63 03/03/2003 06:02 PM Page 38

39

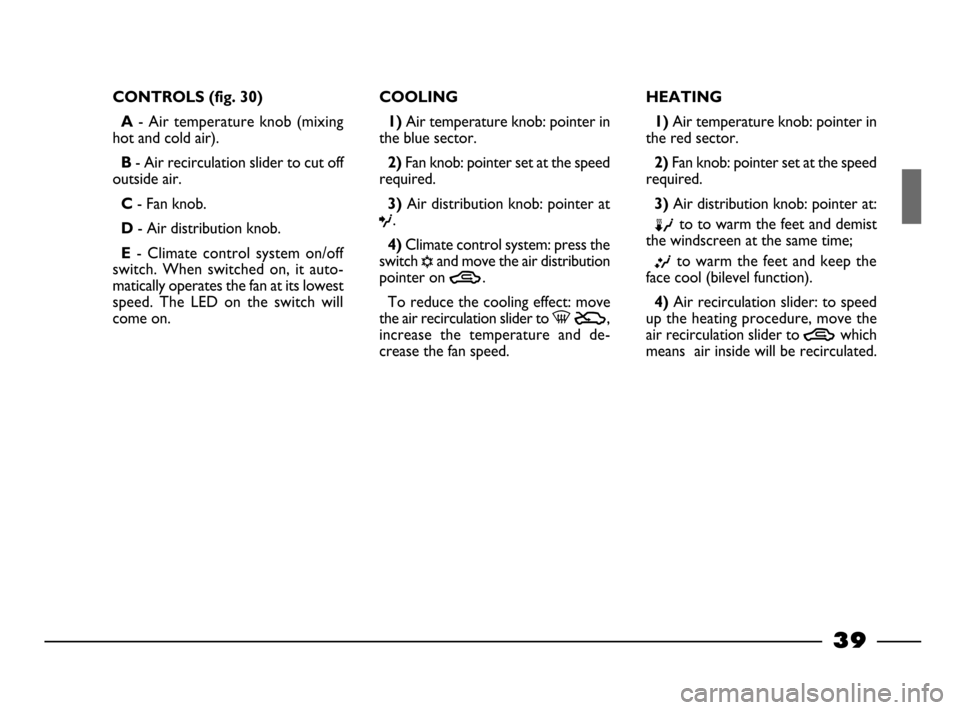

CONTROLS (fig. 30)
A
- Air temperature knob (mixing
hot and cold air).
B- Air recirculation slider to cut off
outside air.
C - Fan knob.
D- Air distribution knob.
E- Climate control system on/off
switch. When switched on, it auto-
matically operates the fan at its lowest
speed. The LED on the switch will
come on.
COOLING
1)
Air temperature knob: pointer in
the blue sector.
2)Fan knob: pointer set at the speed
required.
3)Air distribution knob: pointer at
O.
4)Climate control system: press the
switch
√and move the air distribution
pointer on
T.
To reduce the cooling effect: move
the air recirculation slider to -
U,
increase the temperature and de-
crease the fan speed.
HEATING
1)
Air temperature knob: pointer in
the red sector.
2)Fan knob: pointer set at the speed
required.
3)Air distribution knob: pointer at:
Kto to warm the feet and demist
the windscreen at the same time;
Mto warm the feet and keep the
face cool (bilevel function).
4)Air recirculation slider: to speed
up the heating procedure, move the
air recirculation slider to
Twhich
means air inside will be recirculated.
20-63 03/03/2003 06:02 PM Page 39
