FIAT PANDA 2009 169 / 2.G 100HP Supplement Manual

10
FIAT PANDA 100HP
20 40 60 80 100 120 140 160 180
●● ●
●● ●●●●●●●
●●
●
●●●●
●●●●
●●
●● ●●●●●●●
●● ●
●● ●●●●●●●
Thousands of km
Replace air cleaner cartridge
Top up fluids (engine coolant, brakes, windscreen washer,
battery, etc.)
Check timing belt conditions
Replace timing belt (*)
Change spark plugs
Check engine control system operation
(through diagnosis socket)
Check mechanical transmission oil level
Change engine oil and oil filter
Change brake fluid (or every 2 years)
Change pollen filter (or every year)
(*) Or every 4 years for particularly demanding use (cold climates, driving in the city, idling for a long time)
Or every 5 years, regardless of the km covered
603_97_390 Panda 100 HP GB:603_97_390 Panda 100 HP GB 7-10-2009 17:06 Pagina 10

11
FIAT PANDA 100HP
CHECKING FLUID
LEVELS

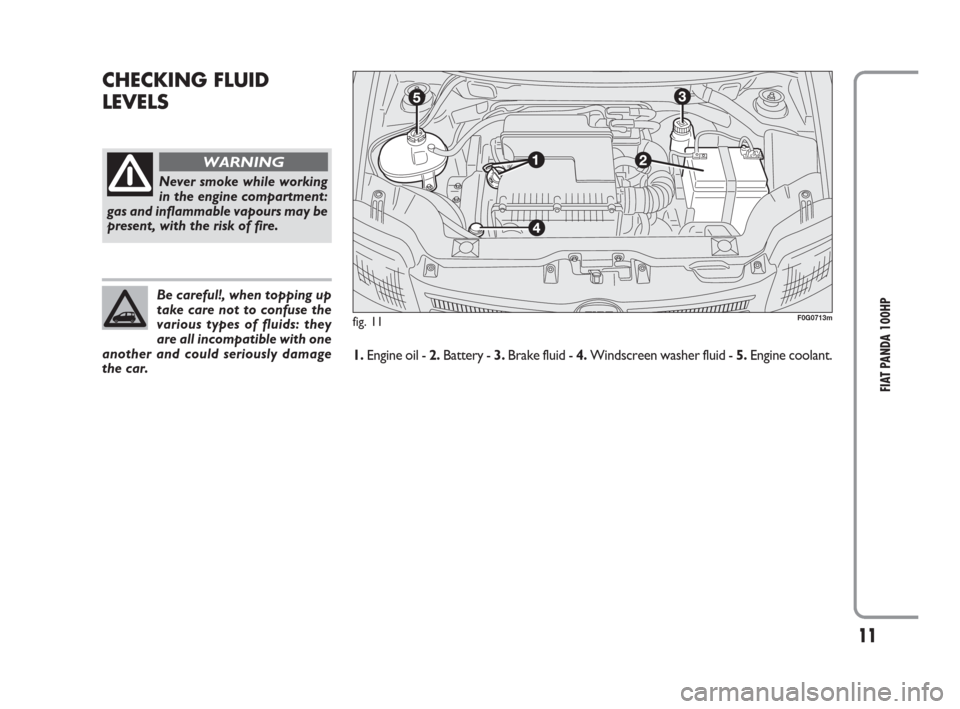

1.Engine oil - 2.Battery - 3.Brake fluid - 4.Windscreen washer fluid - 5.Engine coolant.
fig. 11F0G0713m
Be careful!, when topping up
take care not to confuse the
various types of fluids: they
are all incompatible with one
another and could seriously damage
the car.
Never smoke while working
in the engine compartment:
gas and inflammable vapours may be
present, with the risk of fire.
WARNING
603_97_390 Panda 100 HP GB:603_97_390 Panda 100 HP GB 7-10-2009 17:06 Pagina 11

12
FIAT PANDA 100HP
If the oil level is near or even below the
MINmark, add oil through the filler neck
A, until reaching the MAXmark.
Oil level shall never exceed the MAX
mark.
Use engine oil with specifications de-
scribed in paragraph “Fluids and Lubri-
cants” in section “Technical Specifications”
of the Owner Handbook this Supplement
is attached to.

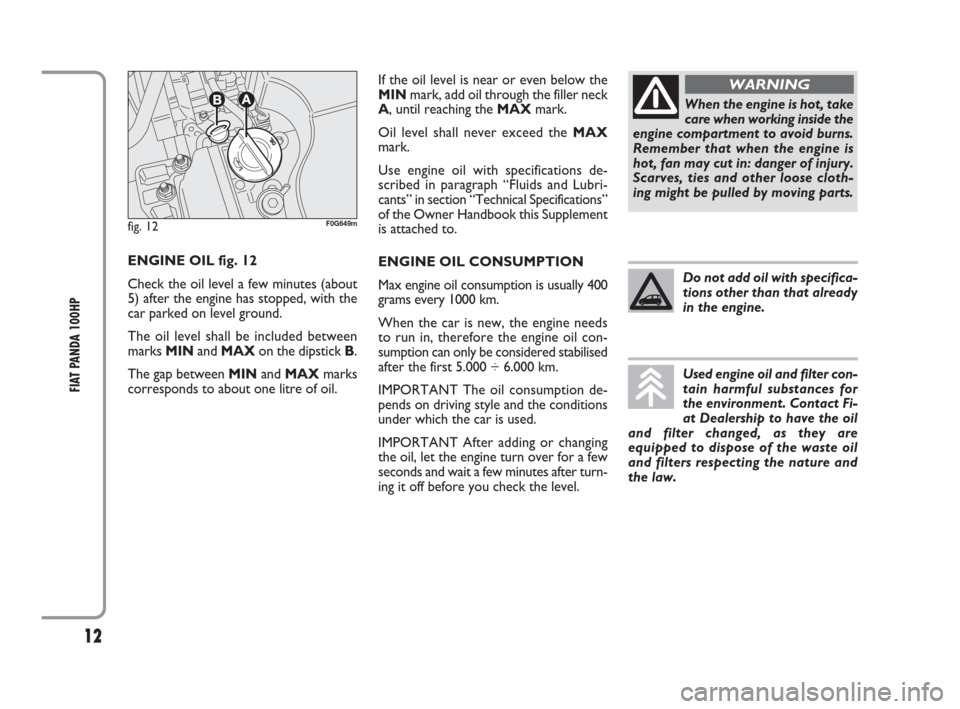

ENGINE OIL CONSUMPTION
Max engine oil consumption is usually 400
grams every 1000 km.
When the car is new, the engine needs
to run in, therefore the engine oil con-
sumption can only be considered stabilised
after the first 5.000 ÷ 6.000 km.
IMPORTANT The oil consumption de-
pends on driving style and the conditions
under which the car is used.
IMPORTANT After adding or changing
the oil, let the engine turn over for a few
seconds and wait a few minutes after turn-
ing it off before you check the level. ENGINE OIL fig. 12
Check the oil level a few minutes (about
5) after the engine has stopped, with the
car parked on level ground.
The oil level shall be included between
marks MINand MAXon the dipstick B.
The gap between MINand MAXmarks
corresponds to about one litre of oil.
fig. 12F0G649m
Do not add oil with specifica-
tions other than that already
in the engine.
Used engine oil and filter con-
tain harmful substances for
the environment. Contact Fi-
at Dealership to have the oil
and filter changed, as they are
equipped to dispose of the waste oil
and filters respecting the nature and
the law.
When the engine is hot, take
care when working inside the
engine compartment to avoid burns.
Remember that when the engine is
hot, fan may cut in: danger of injury.
Scarves, ties and other loose cloth-
ing might be pulled by moving parts.
WARNING
603_97_390 Panda 100 HP GB:603_97_390 Panda 100 HP GB 7-10-2009 17:06 Pagina 12

13
FIAT PANDA 100HP

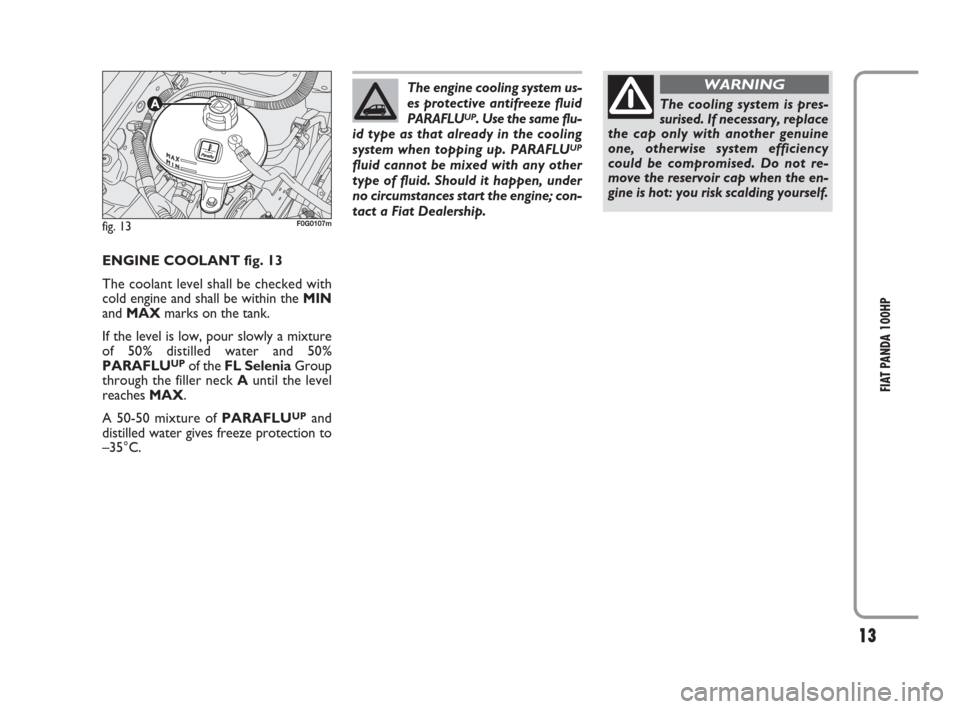

ENGINE COOLANT fig. 13
The coolant level shall be checked with
cold engine and shall be within the MIN
and MAXmarks on the tank.
If the level is low, pour slowly a mixture
of 50% distilled water and 50%
PARAFLU
UPof the FL SeleniaGroup
through the filler neck Auntil the level
reaches MAX.
A 50-50 mixture of PARAFLU
UPand
distilled water gives freeze protection to
–35°C.
fig. 13F0G0107m
The engine cooling system us-
es protective antifreeze fluid
PARAFLU
UP. Use the same flu-
id type as that already in the cooling
system when topping up. PARAFLU
UP
fluid cannot be mixed with any other
type of fluid. Should it happen, under
no circumstances start the engine; con-
tact a Fiat Dealership.
The cooling system is pres-
surised. If necessary, replace
the cap only with another genuine
one, otherwise system efficiency
could be compromised. Do not re-
move the reservoir cap when the en-
gine is hot: you risk scalding yourself.
WARNING
603_97_390 Panda 100 HP GB:603_97_390 Panda 100 HP GB 7-10-2009 17:06 Pagina 13

14
FIAT PANDA 100HP

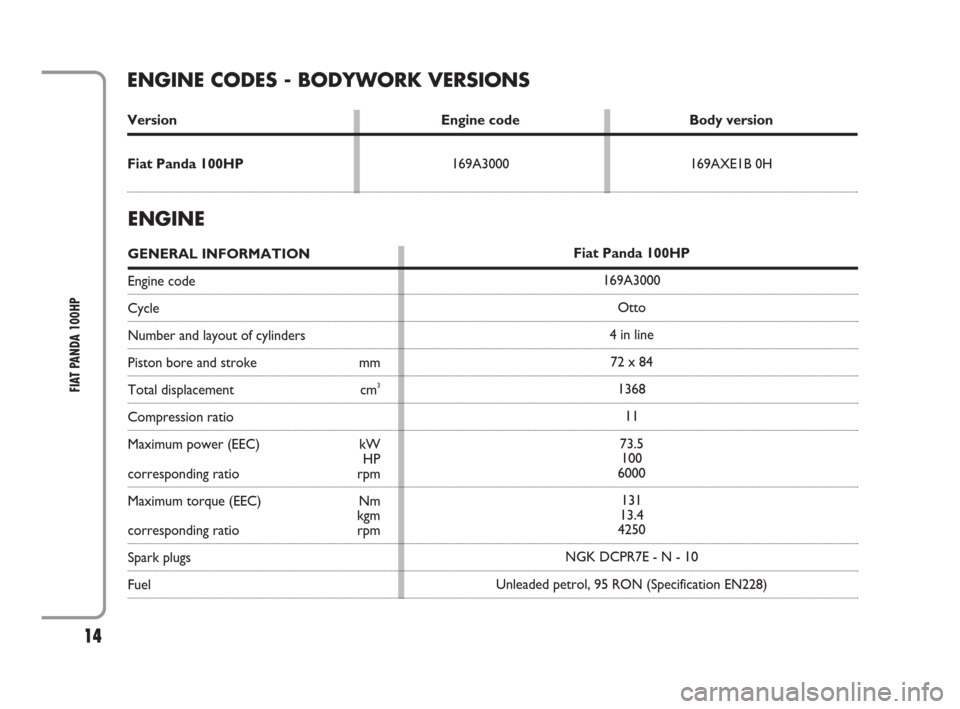

ENGINE CODES - BODYWORK VERSIONS
Version Engine code Body version
Fiat Panda 100HP169A3000 169AXE1B 0H
ENGINE
GENERAL INFORMATION
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Spark plugs
FuelFiat Panda 100HP
169A3000
Otto
4 in line
72 x 84
1368
11
73.5
100
6000
131
13.4
4250
NGK DCPR7E - N - 10
Unleaded petrol, 95 RON (Specification EN228)
603_97_390 Panda 100 HP GB:603_97_390 Panda 100 HP GB 7-10-2009 17:06 Pagina 14

15
FIAT PANDA 100HP

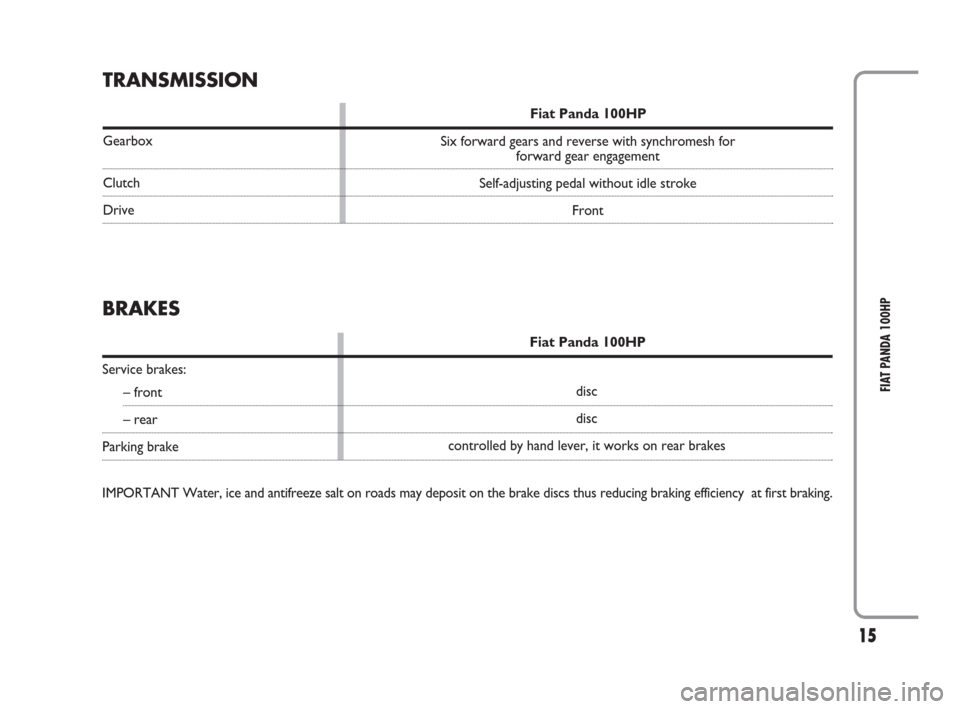

TRANSMISSION
Fiat Panda 100HP
Gearbox
Clutch
DriveSix forward gears and reverse with synchromesh for
forward gear engagement
Self-adjusting pedal without idle stroke
Front
BRAKES
Fiat Panda 100HP
Service brakes:
– front
– rear
Parking brake
IMPORTANT Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency at first braking. disc
disc
controlled by hand lever, it works on rear brakes
603_97_390 Panda 100 HP GB:603_97_390 Panda 100 HP GB 7-10-2009 17:06 Pagina 15

16
FIAT PANDA 100HP
6.5 J x 15 ET304.00B x 15” HET35
195/45 R15 78V (*) Version Rims Standard tyres Space-saver spare wheel (where provided)
Rim Tyre
Fiat Panda
100HP
(*) Tyres that can be fitted with snow chains (snow chains with reduced size: 9 mm)
Note- Available at common retailers: alloy rims 5.5 J x 14ET32 with winter tyres 185/55 R14 80T (M+S).
2.2
2.42.3
2.52.3
2.5 2.1
2.3 195/45 R15 78V
185/55 R14 80T (M+S) 4.2 COLD TYRE INFLATION PRESSURE (bar)
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm.
Recheck pressure value with cold tyres.
Version Tyres Medium load Full load Space-saver
Front Rear Front Rearspare wheel
(where provided)
Fiat Panda
100HP

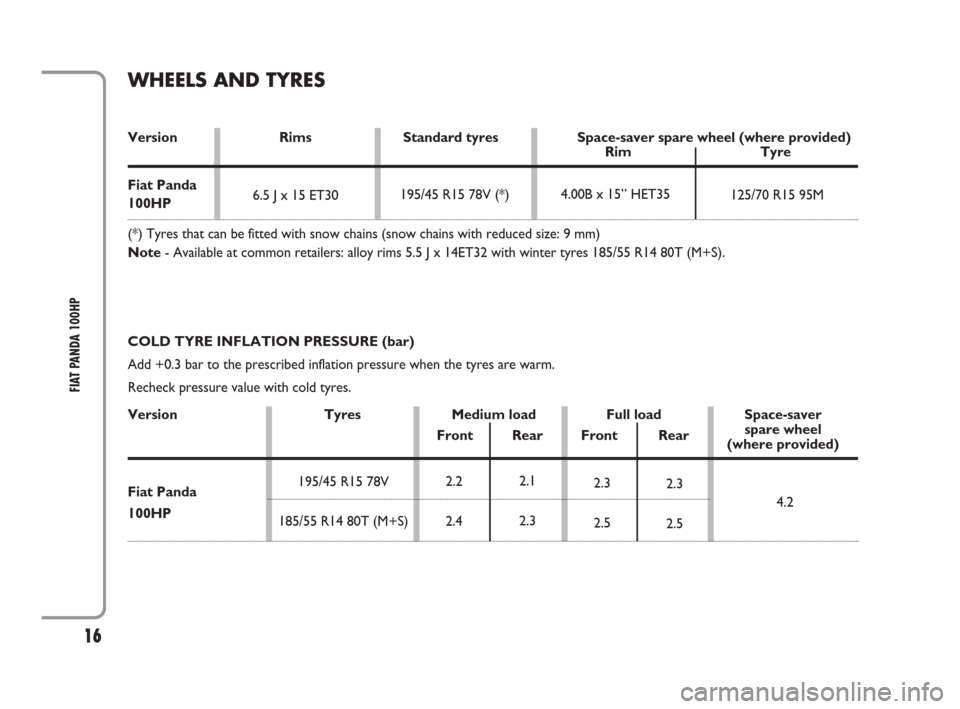

WHEELS AND TYRES
125/70 R15 95M
603_97_390 Panda 100 HP GB:603_97_390 Panda 100 HP GB 7-10-2009 17:06 Pagina 16

17
FIAT PANDA 100HP

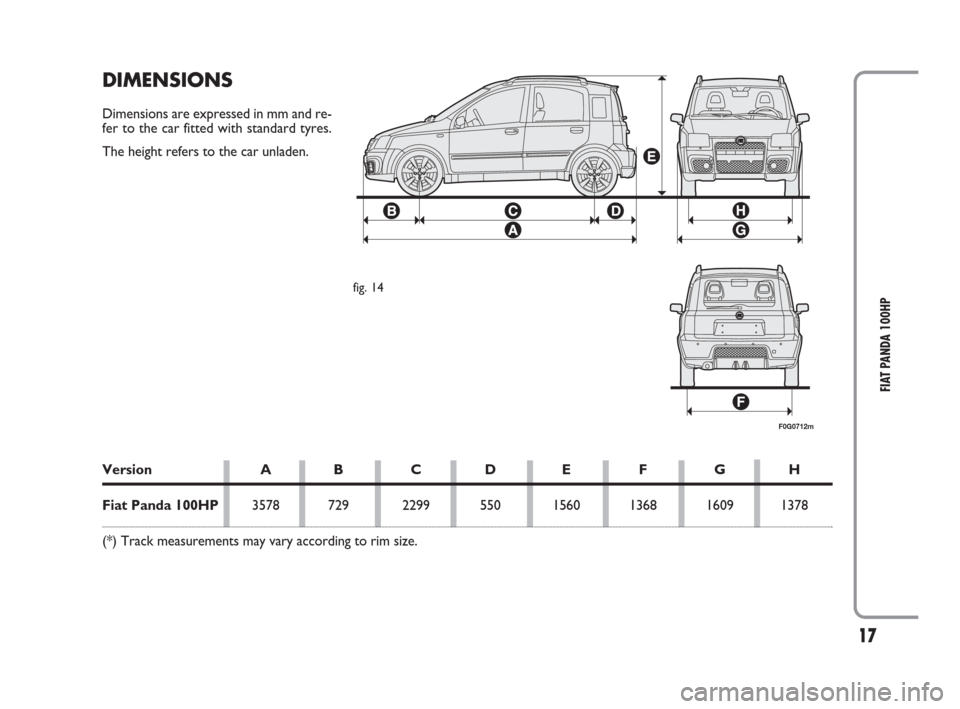

DIMENSIONS
Dimensions are expressed in mm and re-
fer to the car fitted with standard tyres.
The height refers to the car unladen.
F0G0712m
Version A B C D E F G H
Fiat Panda 100HP3578 729 2299 550 1560 1368 1609 1378
(*) Track measurements may vary according to rim size.
fig. 14
603_97_390 Panda 100 HP GB:603_97_390 Panda 100 HP GB 7-10-2009 17:06 Pagina 17

18
FIAT PANDA 100HP
Fiat Panda 100HP
975
390
730
660
1365
800
400
50
60

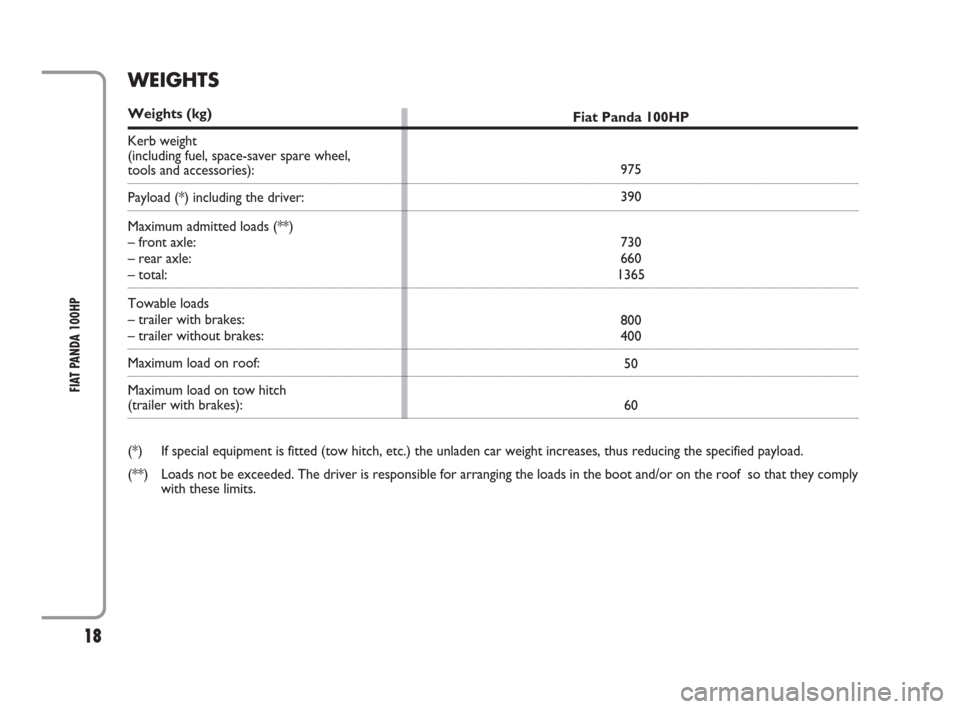

WEIGHTS
