3
QUICK
GUIDE
FUNCTIONS
AND ADJUSTMENTS
RADIO
CD PLAYER
INTRODUCTION
3

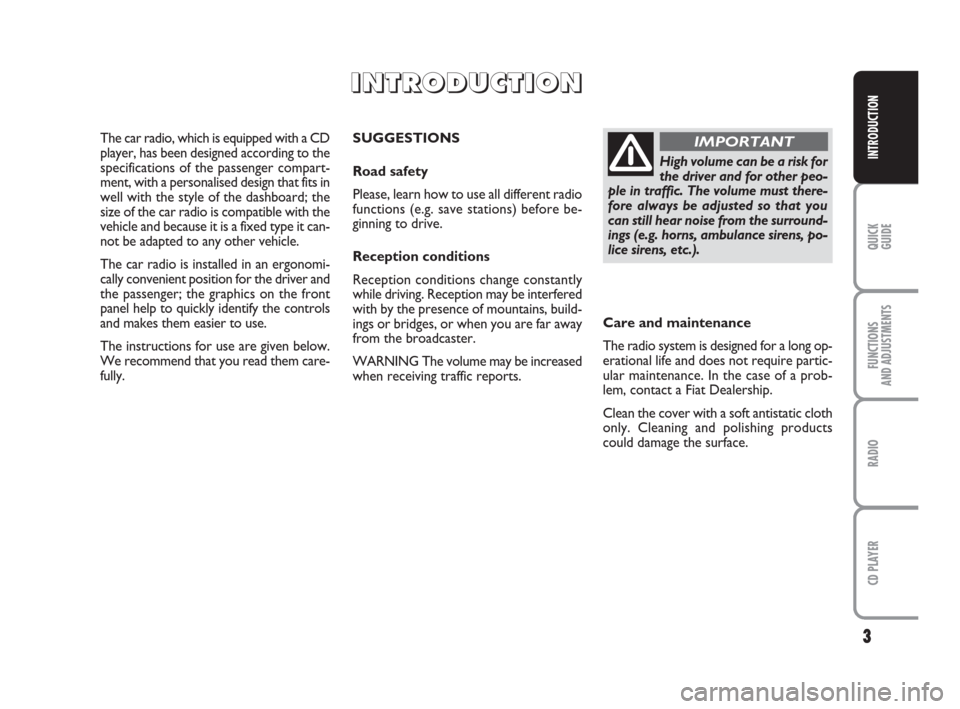

SUGGESTIONS
Road safety
Please, learn how to use all different radio
functions (e.g. save stations) before be-
ginning to drive.
Reception conditions
Reception conditions change constantly
while driving. Reception may be interfered
with by the presence of mountains, build-
ings or bridges, or when you are far away
from the broadcaster.
WARNING The volume may be increased
when receiving traffic reports.
I I
N N
T T
R R
O O
D D
U U
C C
T T
I I
O O
N N
The car radio, which is equipped with a CD
player, has been designed according to the
specifications of the passenger compart-
ment, with a personalised design that fits in
well with the style of the dashboard; the
size of the car radio is compatible with the
vehicle and because it is a fixed type it can-
not be adapted to any other vehicle.
The car radio is installed in an ergonomi-
cally convenient position for the driver and
the passenger; the graphics on the front
panel help to quickly identify the controls
and makes them easier to use.
The instructions for use are given below.
We recommend that you read them care-
fully.
High volume can be a risk for
the driver and for other peo-
ple in traffic. The volume must there-
fore always be adjusted so that you
can still hear noise from the surround-
ings (e.g. horns, ambulance sirens, po-
lice sirens, etc.).
IMPORTANT
Care and maintenance
The radio system is designed for a long op-
erational life and does not require partic-
ular maintenance. In the case of a prob-
lem, contact a Fiat Dealership.
Clean the cover with a soft antistatic cloth
only. Cleaning and polishing products
could damage the surface.
603_97_412 Radio FunPanda EN:MY 09 9-10-2009 13:44 Pagina 3

4
QUICK
GUIDE
INTRODUCTION
FUNCTIONS
AND ADJUSTMENTS
RADIO
CD PLAYER
❒clean every CD carefully to remove fin-
germarks or dust using a soft cloth. Hold
CDs by the outside and clean them from
the middle outwards;
❒never use chemicals (e.g. antistatics or
thinners or sprays) for cleaning as they
could damage the surface of the CDs;
❒after listening to the CDs, replace them
in their boxes to avoid them being
marked or scratched, which could cause
them to skip during playing;To remove fingerprints and dust, use a
soft cloth starting from the centre of the
CD moving outward.
Never use CDs that are very scratched,
cracked, distorted, etc. Their use could
cause damage the player or make it mal-
function.
The use of original CD supports is re-
quired for the best quality audio produc-
tion. Correct operation is not guaranteed
when CD-R/RW media are used that
were not correctly burned and/or with a
maximum capacity above 650 Mb.
WARNING Do not use commercially
available protective sheets for CDs or
discs with stabilisers as these could get
stuck in the internal mechanism and dam-
age the disc. CDs

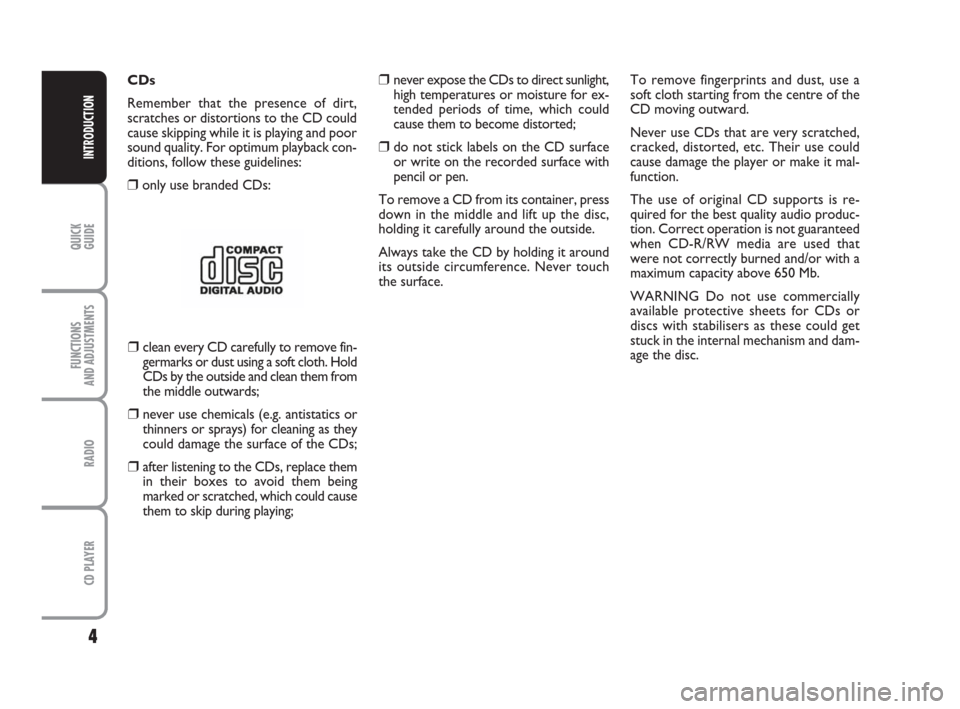

Remember that the presence of dirt,
scratches or distortions to the CD could
cause skipping while it is playing and poor
sound quality. For optimum playback con-
ditions, follow these guidelines:
❒only use branded CDs:
❒never expose the CDs to direct sunlight,
high temperatures or moisture for ex-
tended periods of time, which could
cause them to become distorted;
❒do not stick labels on the CD surface
or write on the recorded surface with
pencil or pen.
To remove a CD from its container, press
down in the middle and lift up the disc,
holding it carefully around the outside.
Always take the CD by holding it around
its outside circumference. Never touch
the surface.
603_97_412 Radio FunPanda EN:MY 09 9-10-2009 13:44 Pagina 4

5
QUICK
GUIDE
FUNCTIONS
AND ADJUSTMENTS
RADIO
CD PLAYER
INTRODUCTION
5
In addition, protected discs often do not
have they identification symbol for audio
discs on the actual disc (and on the casing): WARNING If a copy-protected CD is
used, it may take a few seconds before the
system will start to play it. In addition,
since many new and different protection
methods are continuously being intro-
duced, it is not possible to guarantee that
the CD player will play any protected CD.
The fact that the CD is protected from
being copied is often shown in very small
letters or is difficult to read on the actual
CD cover where it may be, for example,
“COPY CONTROL”, “COPY PRO-
TECTED”, “THIS CD CANNOT BE
PLAYED ON A PC/MAC”, or it may be
identified through the use of symbols, such
as, for example:TECHNICAL SPECIFICATIONS
Power output: 4 x 40 W
WARNING The CD player is capable of
reading most compression systems cur-
rently in use (e.g.: LAME, BLADE, XING,
FRAUNHOFER) but, following the devel-
opment of these systems, the reading of
all compression formats is not guaranteed.
WARNING If a multisession disc is loaded,
only the first session will be played.
603_97_412 Radio FunPanda EN:MY 09 9-10-2009 13:44 Pagina 5

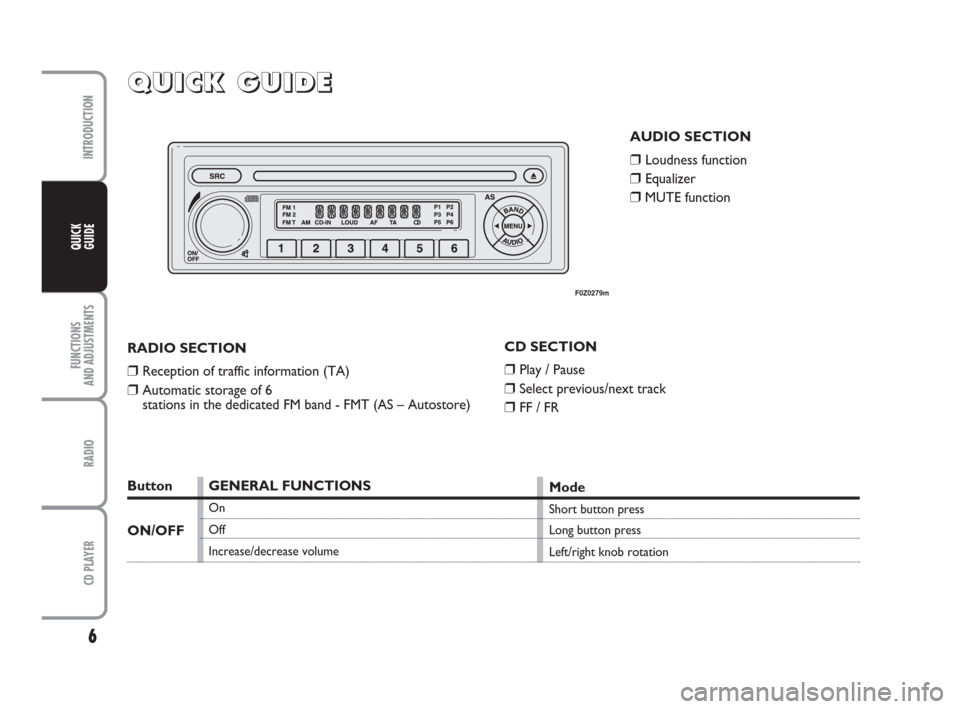

6
FUNCTIONS
AND ADJUSTMENTS
RADIO
CD PLAYER
INTRODUCTION
QUICK
GUIDE
Q Q
U U
I I
C C
K K
G G
U U
I I
D D
E E
AUDIO SECTION
❒Loudness function
❒Equalizer
❒MUTE function
F0Z0279m
Button
ON/OFF
RADIO SECTION
❒Reception of traffic information (TA)
❒Automatic storage of 6
stations in the dedicated FM band - FMT (AS – Autostore)CD SECTION
❒Play / Pause
❒Select previous/next track
❒FF / FR
GENERAL FUNCTIONS
On
Off
Increase/decrease volume
Mode
Short button press
Long button press
Left/right knob rotation
603_97_412 Radio FunPanda EN:MY 09 9-10-2009 13:44 Pagina 6

7
FUNCTIONS
AND ADJUSTMENTS
RADIO
CD PLAYER
INTRODUCTION
QUICK
GUIDE
Tasto
BAND
SRC
AUDIO
MENU
Tasto
ON/OFF
¯˙
1 2 3 4 5 6
Tasto
ON/OFF
¯˙
˚GENERAL FUNCTIONS
FM 1, FM 2, FMT, AM radio source selection
AutoStore (AS) radio source selection
Radio/CD source selection
Audio menu activation: adjustment of low tones (BASS),
high tones (TREBLE), left/right balance (BALANCE),
front/rear balance (FADER), Loudness
Advanced functions menu activation (AF, TA, REG)
Mode
Push button cyclically
Long button press
Short cyclical button press
Short button press
Select type of adjustment: AUDIO button press
Adjustment of values: press
¯or ˙buttons
Short button press
Select type of adjustment: AUDIO button press
Adjustment of values: press
¯or ˙
RADIO FUNCTIONS
Volume activation/deactivation (MUTE)
Radio station search:
- Automatic search
- Manual search
Storing current radio station
Stored station recall
Mode
Short button press
Automatic search: pressing buttons
¯or ˙(long press for fast forward)
Manual search: pressing buttons ¯or ˙(long press for fast forward)
Long button press for memory preset
1 to 6 respectively
Short button press for memory preset
1 to 6 respectively
CD FUNCTIONS
Activation/deactivation CD playback pause (PAUSE)
Play previous/next track
CD track fast forward / rewind
CD ejection
Mode
Short button press
Short button press
¯or ˙
Long button press ¯or ˙
Short button press
603_97_412 Radio FunPanda EN:MY 09 9-10-2009 13:44 Pagina 7

8
FUNCTIONS
AND ADJUSTMENTS
RADIO
CD PLAYER
INTRODUCTION
QUICK
GUIDE
CD section
❒Direct disc selection;
❒Track selection (forward/backward);
❒Fast track search (forward/backward);
❒Mute function;
❒CD playback function: display of track
number and time elapsed since start of
the track;
❒Playing audio CD, CD-R and CD-RW. GENERAL INFORMATION
The equipment offers the following func-
tions:
Radio section
❒PLL tuning with FM/AM frequency
bands;
❒RDS (Radio Data System) with TA
function (traffic information) - EON
(Enhanced Other Network) - REG (re-
gional programmes);
❒HICUT function
❒AF: alternative frequency search selec-
tion in RDS mode;
❒emergency alarm presetting;
❒automatic/manual station tuning;
❒FM Multipath detector;
❒manual programming of 24 stations: 18
on FM band (6 on FM1, 6 on FM2, 6 on
FMT), 6 on AM band;
❒automatic storage (Autostore function)
of 6 stations in the dedicated FM band;
❒automatic Stereo/Mono selection.
On multimedia CDs, besides
audio tracks, there are data
tracks too. Playing this type
of CD could cause hissing at
a volume that could jeopardise road
safety as well as causing damage to the
final stages and the speakers.
Audio section
❒Mute/Pause function;
❒Loudness function;
❒Separate bass/treble adjustment;
❒Right/left channel balancing;
❒Front/rear channel balancing.
603_97_412 Radio FunPanda EN:MY 09 9-10-2009 13:44 Pagina 8

9
RADIO
CD PLAYER
INTRODUCTION
QUICK
GUIDE
FUNCTIONS
AND ADJUSTMENTS
SELECTING THE RADIO
AND CD FUNCTIONS
By pressing the SRC button briefly and re-
peatedly, it is possible to select the Radio
(Tuner) and CD functions cyclically:
❒TUNER (“FM1”, “FM2”, “FMT”, “AM”);
❒CD (only if a CD is inserted).
If the SRC button is pressed when no CD
is present, the display will show NO CD.
The Mute function is automatically acti-
vated during the display of the message.
When this time has elapsed, the radio will
return automatically to Radio mode
(Tuner).AUDIO SOURCE
MEMORY FUNCTION
If the radio function is selected whilst lis-
tening to a CD, playing is interrupted and
is resumed from the same point when re-
turning to the CD source.
If the CD function is selected whilst lis-
tening to the radio, the last station se-
lected is tuned into when returning to the
Radio source.
VOLUME ADJUSTMENT
Turn the ON/OFF button/knob to adjust
the volume (from a minimum level of
0 to a maximum level of 40).
If the volume level is changed during the
transmission of traffic news, the new set-
ting will only be maintained until the up-
date is finished. TURNING THE CAR RADIO ON
The car radio comes on when the ON/OFF
button/knob is pressed.
When the car radio is turned on, the vol-
ume is limited to a setting of 20 if it had
been set higher when previously used.
If the car radio is turned on when the ig-
nition key is in the STOP position, it will
turn off automatically after approx. 20
minutes. After the radio has switched it-
self off automatically it can be turned on
for a further 20 minutes by pressing the
ON/OFF button/knob.
TURNING THE CAR RADIO OFF
Keep the ON/OFF button/knob pressed.
F F
U U
N N
C C
T T
I I
O O
N N
S S
A A
N N
D D
A A
D D
J J
U U
S S
T T
M M
E E
N N
T T
S S
603_97_412 Radio FunPanda EN:MY 09 9-10-2009 13:44 Pagina 9
