Page 11 of 26
10
FIAT PANDA 4 x 4

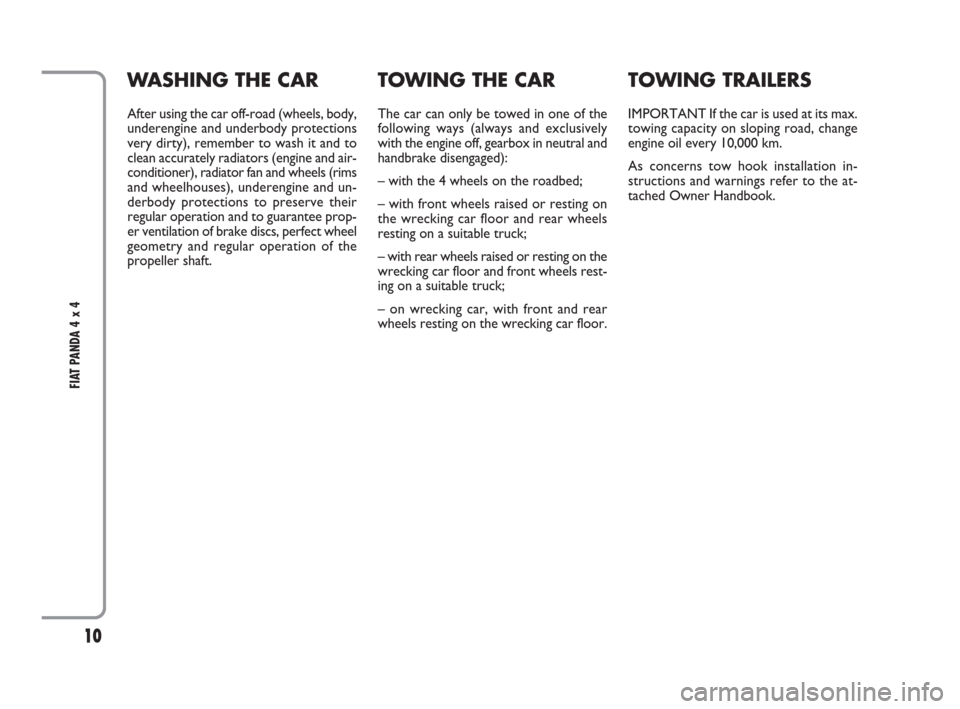

WASHING THE CAR
After using the car off-road (wheels, body,
underengine and underbody protections
very dirty), remember to wash it and to
clean accurately radiators (engine and air-
conditioner), radiator fan and wheels (rims
and wheelhouses), underengine and un-
derbody protections to preserve their
regular operation and to guarantee prop-
er ventilation of brake discs, perfect wheel
geometry and regular operation of the
propeller shaft.
TOWING THE CAR
The car can only be towed in one of the
following ways (always and exclusively
with the engine off, gearbox in neutral and
handbrake disengaged):
– with the 4 wheels on the roadbed;
– with front wheels raised or resting on
the wrecking car floor and rear wheels
resting on a suitable truck;
– with rear wheels raised or resting on the
wrecking car floor and front wheels rest-
ing on a suitable truck;
– on wrecking car, with front and rear
wheels resting on the wrecking car floor.
TOWING TRAILERS
IMPORTANT If the car is used at its max.
towing capacity on sloping road, change
engine oil every 10,000 km.
As concerns tow hook installation in-
structions and warnings refer to the at-
tached Owner Handbook.
603_97_560 PANDA 4X4 Euro 5 GB 11-12-2009 9:31 Pagina 10
Page 12 of 26
11
FIAT PANDA 4 x 4

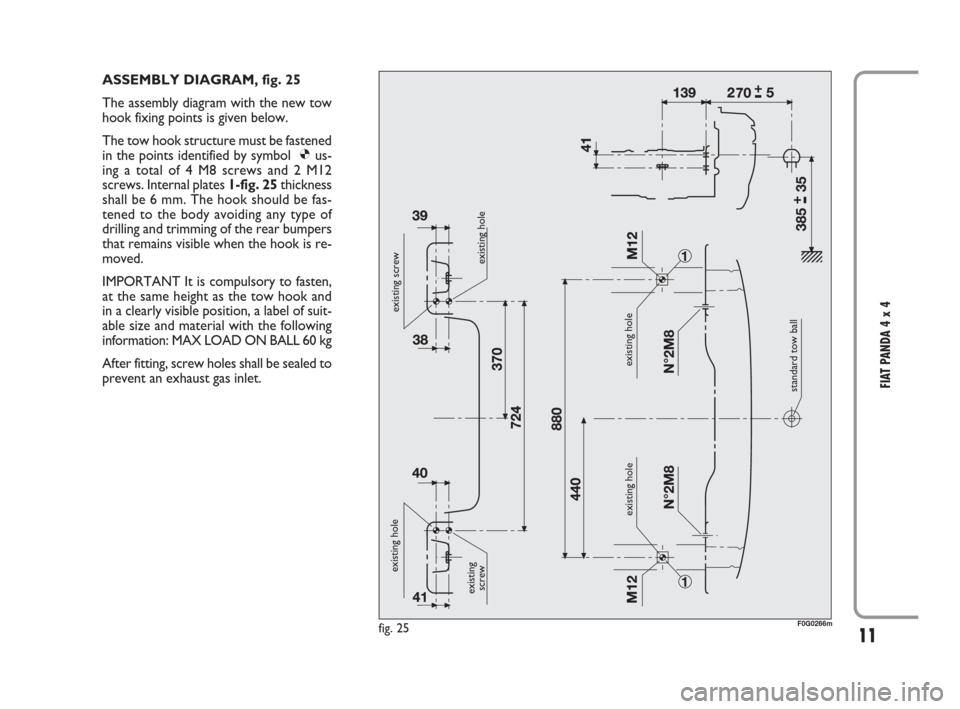

ASSEMBLY DIAGRAM, fig. 25
The assembly diagram with the new tow
hook fixing points is given below.
The tow hook structure must be fastened
in the points identified by symbol Øus-
ing a total of 4 M8 screws and 2 M12
screws. Internal plates 1-fig. 25thickness
shall be 6 mm. The hook should be fas-
tened to the body avoiding any type of
drilling and trimming of the rear bumpers
that remains visible when the hook is re-
moved.
IMPORTANT It is compulsory to fasten,
at the same height as the tow hook and
in a clearly visible position, a label of suit-
able size and material with the following
information: MAX LOAD ON BALL 60 kg
After fitting, screw holes shall be sealed to
prevent an exhaust gas inlet.
fig. 25F0G0266m
existing screw
existing hole
existing hole
standard tow ball existing hole
existing
screw
existing hole
603_97_560 PANDA 4X4 Euro 5 GB 11-12-2009 9:31 Pagina 11
Page 13 of 26
12
FIAT PANDA 4 x 4
20 40 60 80 100 120 140 160 180
●●●●● ●●●●
●●●●● ●●●●
●●●●● ●●●●
●●●●● ●●●●
●●●●● ●●●●
●● ● ●
●●●●● ●●●●
●●●●● ●●●●
●
●● ● ●
●● ● ●
●● ● ●

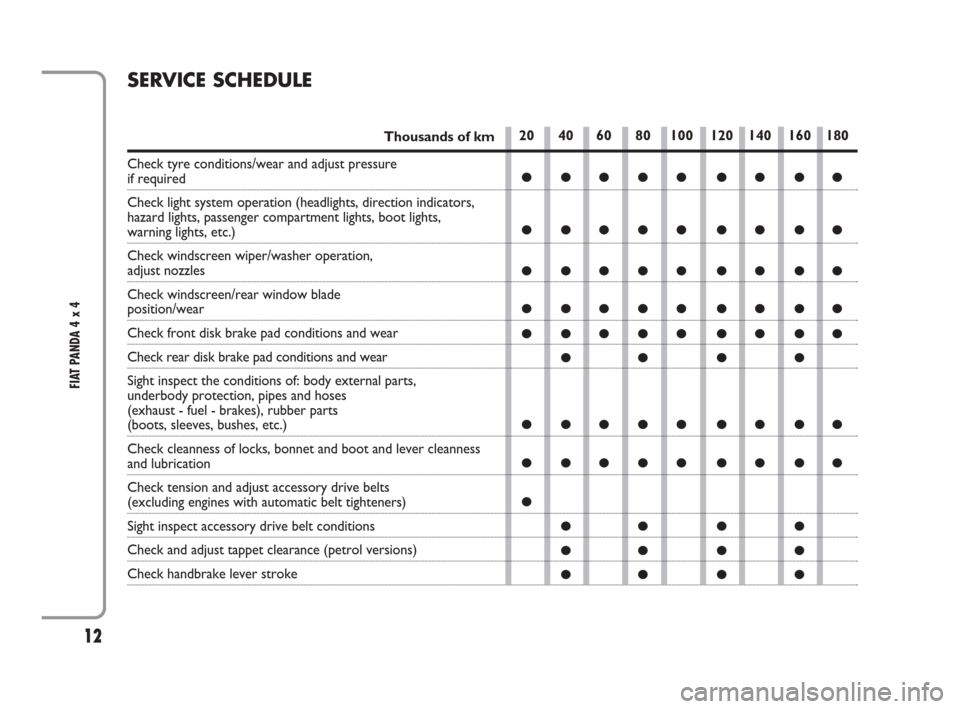

SERVICE SCHEDULE
Thousands of km
Check tyre conditions/wear and adjust pressure
if required
Check light system operation (headlights, direction indicators,
hazard lights, passenger compartment lights, boot lights,
warning lights, etc.)
Check windscreen wiper/washer operation,
adjust nozzles
Check windscreen/rear window blade
position/wear
Check front disk brake pad conditions and wear
Check rear disk brake pad conditions and wear
Sight inspect the conditions of: body external parts,
underbody protection, pipes and hoses
(exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check cleanness of locks, bonnet and boot and lever cleanness
and lubrication
Check tension and adjust accessory drive belts
(excluding engines with automatic belt tighteners)
Sight inspect accessory drive belt conditions
Check and adjust tappet clearance (petrol versions)
Check handbrake lever stroke
603_97_560 PANDA 4X4 Euro 5 GB 11-12-2009 9:31 Pagina 12
Page 14 of 26
13
FIAT PANDA 4 x 4

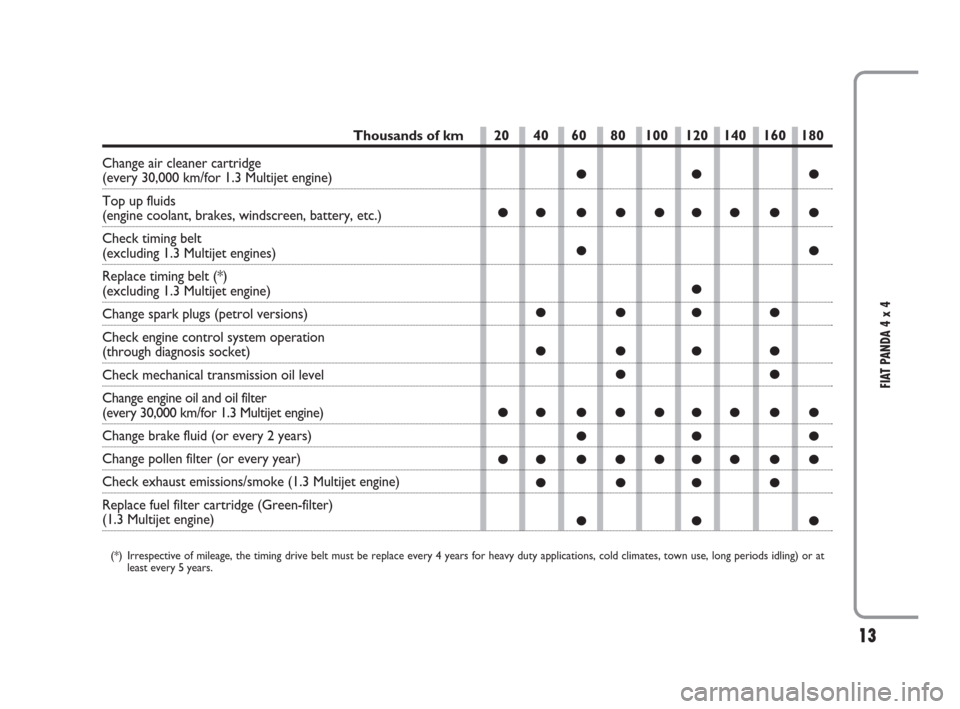

20 40 60 80 100 120 140 160 180
●● ●
●● ●●●●●●●
●●
●
●●●●
●●●●
●●
●● ●●●●●●●
●● ●
●● ●●●●●●●
●●●●
●● ●
Thousands of km
Change air cleaner cartridge
(every 30,000 km/for 1.3 Multijet engine)
Top up fluids
(engine coolant, brakes, windscreen, battery, etc.)
Check timing belt
(excluding 1.3 Multijet engines)
Replace timing belt (*)
(excluding 1.3 Multijet engine)
Change spark plugs (petrol versions)
Check engine control system operation
(through diagnosis socket)
Check mechanical transmission oil level
Change engine oil and oil filter
(every 30,000 km/for 1.3 Multijet engine)
Change brake fluid (or every 2 years)
Change pollen filter (or every year)
Check exhaust emissions/smoke (1.3 Multijet engine)
Replace fuel filter cartridge (Green-filter)
(1.3 Multijet engine)
(*) Irrespective of mileage, the timing drive belt must be replace every 4 years for heavy duty applications, cold climates, town use, long periods idling) or at
least every 5 years.
603_97_560 PANDA 4X4 Euro 5 GB 11-12-2009 9:31 Pagina 13
Page 15 of 26
14
FIAT PANDA 4 x 4
Engine code
169A4000 (*)
188 A 8000
169A4000 (*)
188 A 8000
188 A 8000
Fiat Panda 4 x 4
Fiat Panda 4 x 4 Climbing
Fiat Panda 4 x 4 CROSS

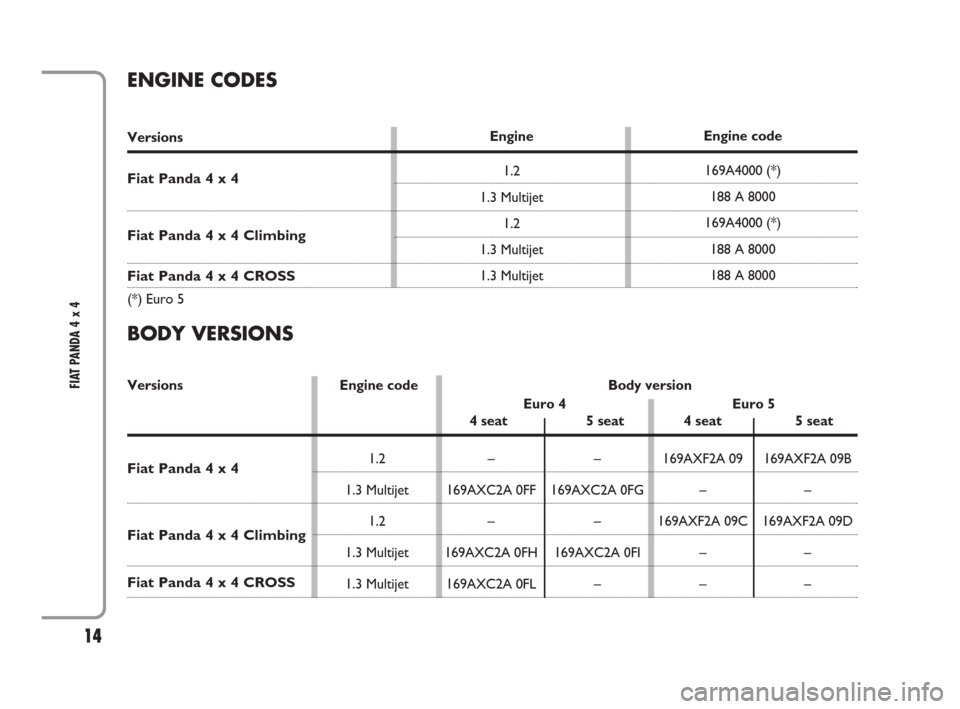

ENGINE CODES
BODY VERSIONS
Fiat Panda 4 x 4
Fiat Panda 4 x 4 Climbing
Fiat Panda 4 x 4 CROSS
Versions Engine code Body version
Euro 4 Euro 5
4 seat 5 seat 4 seat 5 seat
1.2 – – 169AXF2A 09 169AXF2A 09B
1.3 Multijet 169AXC2A 0FF 169AXC2A 0FG – –
1.2 – – 169AXF2A 09C 169AXF2A 09D
1.3 Multijet 169AXC2A 0FH 169AXC2A 0FI – –
1.3 Multijet 169AXC2A 0FL – – –Engine
1.2
1.3 Multijet
1.2
1.3 Multijet
1.3 Multijet
Versions
(*) Euro 5
603_97_560 PANDA 4X4 Euro 5 GB 11-12-2009 9:31 Pagina 14
Page 16 of 26
15
FIAT PANDA 4 x 4

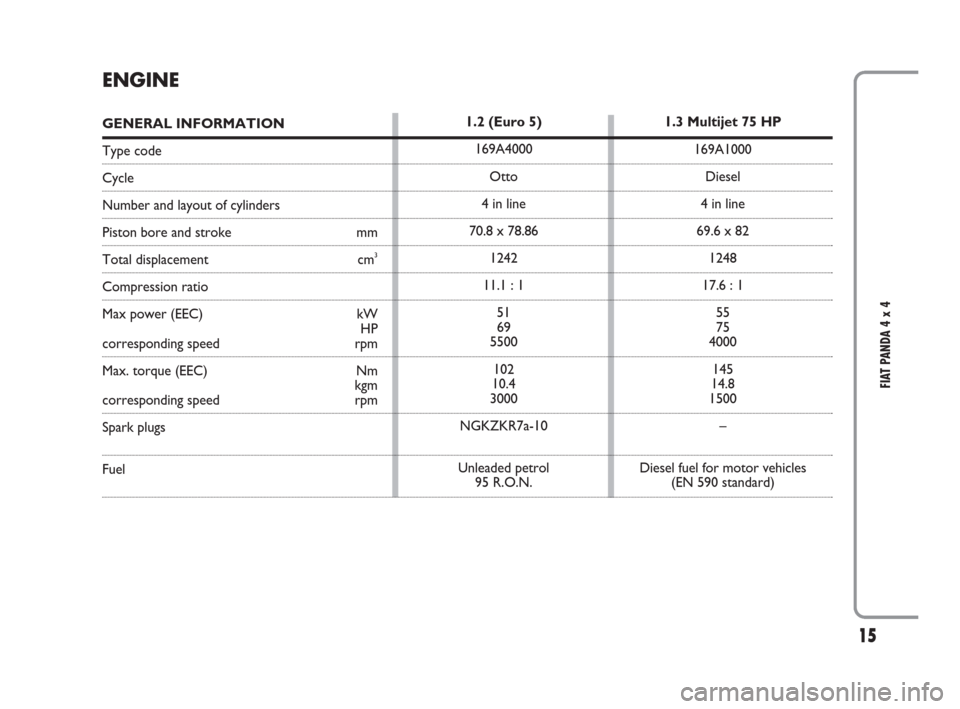

ENGINE
GENERAL INFORMATION
Type code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Max power (EEC) kW
HP
corresponding speed rpm
Max. torque (EEC) Nm
kgm
corresponding speed rpm
Spark plugs
Fuel
1.2 (Euro 5)
169A4000
Otto
4 in line
70.8 x 78.86
1242
11.1 : 1
51
69
5500
102
10.4
3000
NGKZKR7a-10
Unleaded petrol
95 R.O.N.1.3 Multijet 75 HP
169A1000
Diesel
4 in line
69.6 x 82
1248
17.6 : 1
55
75
4000
145
14.8
1500
–
Diesel fuel for motor vehicles
(EN 590 standard)
603_97_560 PANDA 4X4 Euro 5 GB 11-12-2009 9:31 Pagina 15
Page 17 of 26
16
FIAT PANDA 4 x 4
To prevent damages to the
viscous joint do not cover long
distances with underinflated
tyres (tyres partly or com-
pletely flat).

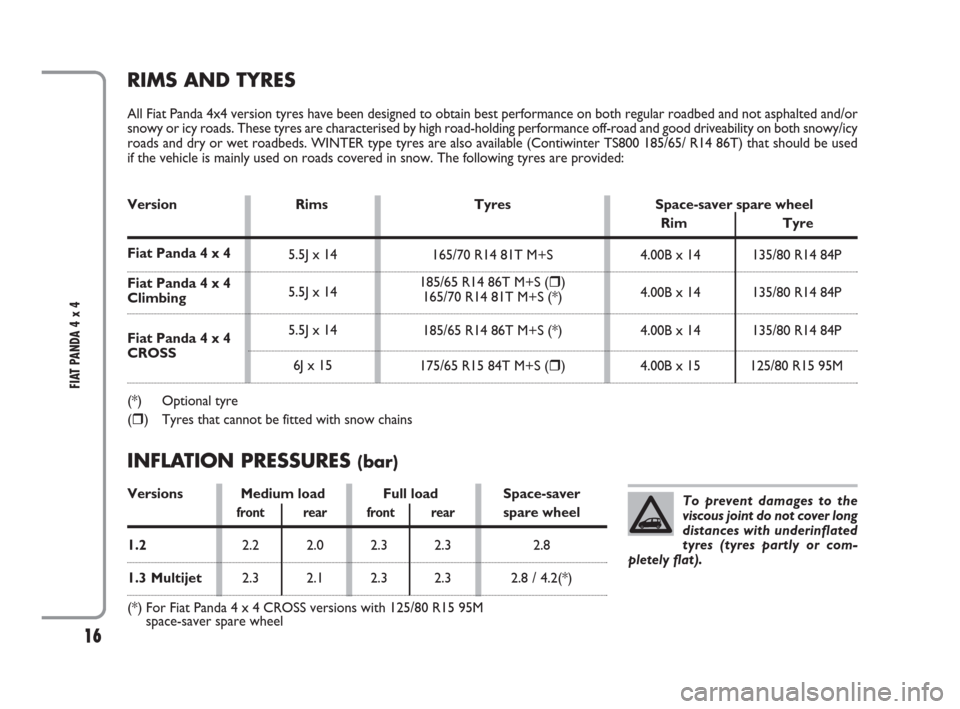

RIMS AND TYRES
All Fiat Panda 4x4 version tyres have been designed to obtain best performance on both regular roadbed and not asphalted and/or
snowy or icy roads. These tyres are characterised by high road-holding performance off-road and good driveability on both snowy/icy
roads and dry or wet roadbeds. WINTER type tyres are also available (Contiwinter TS800 185/65/ R14 86T) that should be used
if the vehicle is mainly used on roads covered in snow. The following tyres are provided:
5.5J x 14
5.5J x 14
5.5J x 14
6J x 15
165/70 R14 81T M+S
185/65 R14 86T M+S ()
165/70 R14 81T M+S (*)
185/65 R14 86T M+S (*)
175/65 R15 84T M+S ()4.00B x 14
4.00B x 14
4.00B x 14
4.00B x 15135/80 R14 84P
135/80 R14 84P
135/80 R14 84P
125/80 R15 95M Fiat Panda 4 x 4
Fiat Panda 4 x 4
Climbing
Fiat Panda 4 x 4
CROSS Version Rims Tyres Space-saver spare wheel
Rim Tyre
(*) Optional tyre
() Tyres that cannot be fitted with snow chains
Versions Medium load Full load Space-saver
front rear front rearspare wheel
1.22.2 2.0 2.3 2.3 2.8
1.3 Multijet2.3 2.1 2.3 2.3 2.8 / 4.2(*)
(*) For Fiat Panda 4 x 4 CROSS versions with 125/80 R15 95M
space-saver spare wheel
INFLATION PRESSURES (bar)
603_97_560 PANDA 4X4 Euro 5 GB 11-12-2009 9:31 Pagina 16
Page 18 of 26
Keep your speed down when
snow chains are fitted. Do
not exceed 50 km/h. Avoid potholes,
steps and pavements and avoid also
to drive for long distances on roads
not covered with snow to prevent
damaging the car and the roadbed.Snow chains shall only be fit-
ted to front wheels.
17
FIAT PANDA 4 x 4

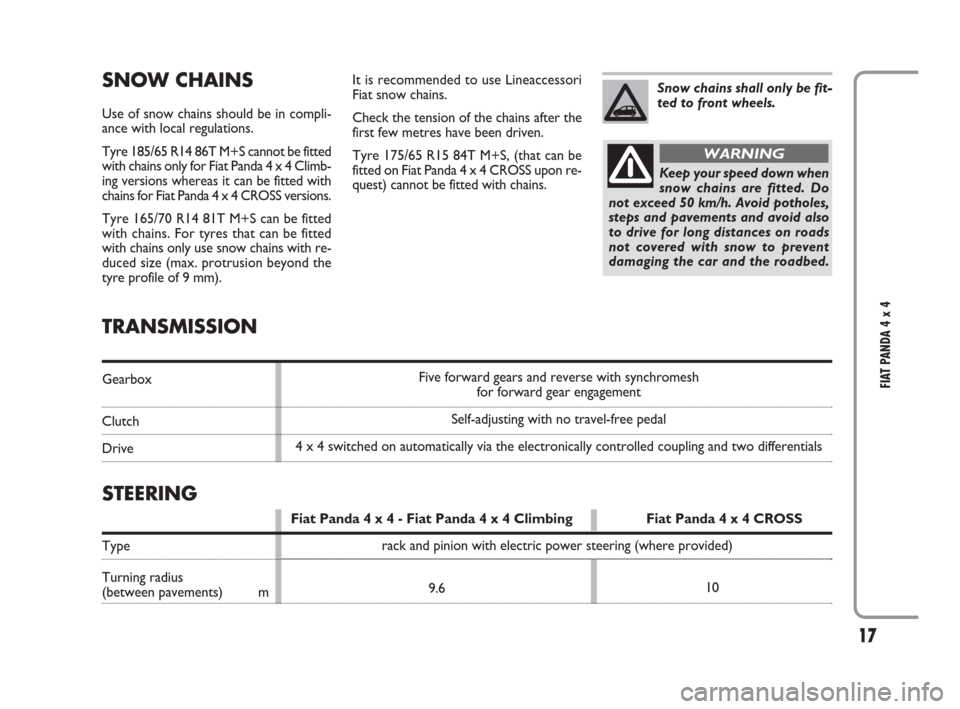

SNOW CHAINS
Use of snow chains should be in compli-
ance with local regulations.
Tyre 185/65 R14 86T M+S cannot be fitted
with chains only for Fiat Panda 4 x 4 Climb-
ing versions whereas it can be fitted with
chains for Fiat Panda 4 x 4 CROSS versions.
Tyre 165/70 R14 81T M+S can be fitted
with chains. For tyres that can be fitted
with chains only use snow chains with re-
duced size (max. protrusion beyond the
tyre profile of 9 mm).
WARNING
It is recommended to use Lineaccessori
Fiat snow chains.
Check the tension of the chains after the
first few metres have been driven.
Tyre 175/65 R15 84T M+S, (that can be
fitted on Fiat Panda 4 x 4 CROSS upon re-
quest) cannot be fitted with chains.
Five forward gears and reverse with synchromesh
for forward gear engagement
Self-adjusting with no travel-free pedal
4 x 4 switched on automatically via the electronically controlled coupling and two differentials
rack and pinion with electric power steering (where provided)
9.610
STEERING
Fiat Panda 4 x 4 - Fiat Panda 4 x 4 Climbing Fiat Panda 4 x 4 CROSS
Type
Turning radius
(between pavements) m
TRANSMISSION
Gearbox
Clutch
Drive
603_97_560 PANDA 4X4 Euro 5 GB 11-12-2009 9:31 Pagina 17
Page 19 of 26
18
FIAT PANDA 4 x 4

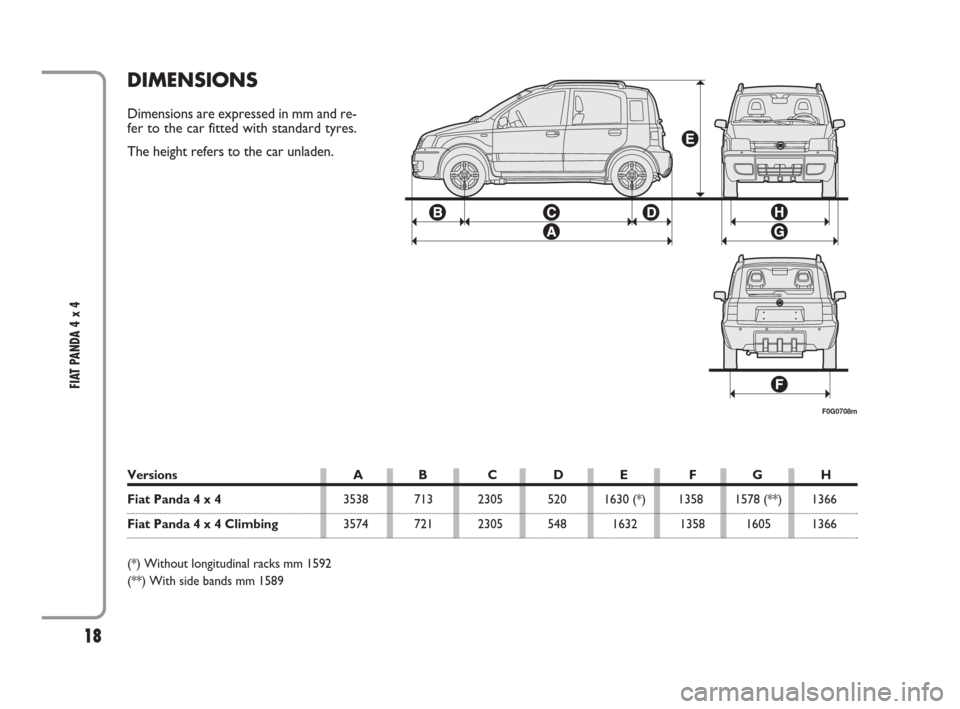

DIMENSIONS
Dimensions are expressed in mm and re-
fer to the car fitted with standard tyres.
The height refers to the car unladen.
Versions A B C D E F G H
Fiat Panda 4 x 43538 713 2305 520 1630 (*) 1358 1578 (**) 1366
Fiat Panda 4 x 4 Climbing3574 721 2305 548 1632 1358 1605 1366
(*) Without longitudinal racks mm 1592
(**) With side bands mm 1589
F0G0708m
603_97_560 PANDA 4X4 Euro 5 GB 11-12-2009 9:31 Pagina 18
Page 20 of 26
19
FIAT PANDA 4 x 4

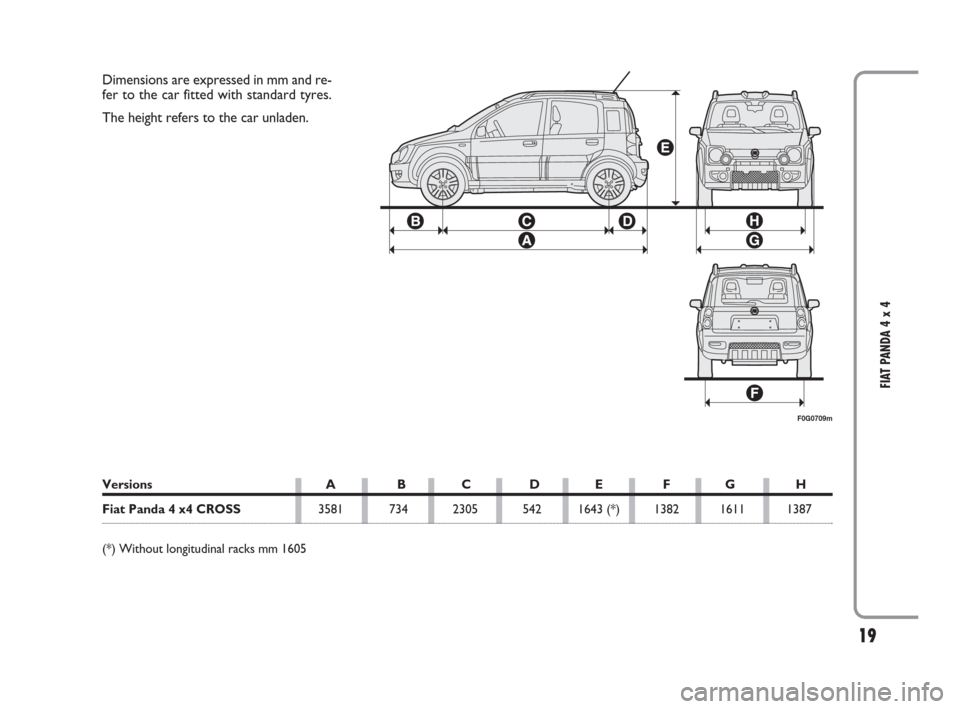

Dimensions are expressed in mm and re-
fer to the car fitted with standard tyres.
The height refers to the car unladen.
Versions A B C D E F G H
Fiat Panda 4 x4 CROSS3581 734 2305 542 1643 (*) 1382 1611 1387
(*) Without longitudinal racks mm 1605
F0G0709m
