FIAT PANDA 2016 319 / 3.G Owners Manual

Use Characteristics SpecificationOriginal fluids and
lubricantsApplications
Lubricants and
greases for drive
transmissionSAE 75W- 85 grade
synthetic lubricant.
9.55550-MX39.55550-MX3TUTELA TRANSMISSION
TECHNYX
Contractual Technical
Reference No. F010.B05Manual gearbox and
differential (0.9 TwinAir and
0.9 TwinAir Turbo versions)
SAE 75W grade synthetic
lubricant.9.55550-MZ6 or
MS.90030-M1TUTELA TRANSMISSION
GEARFORCE
Contractual Technical
Reference no. F002.F10Manual gearbox and
differential (1.3 16V Multijet,
LPG, 1.2 8V 69 HP and
Natural Power versions)
Fully synthetic oil with
dedicated additive.9.55550-SA1 or
MS.90030-H1TUTELA CS SPEED
Contractual Technical
Reference No. F005.F98Dualogic gearbox hydraulic
activation system
Synthetic lubricant grade
SAE 75W-85.9.55550 - DA4TUTELA TRANSMISSION
CROSS
Contractual Technical
Reference No. F001.D12Rear differential(°)
SAE 75W-85 grade
synthetic lubricant, which
exceeds API GL5
specifications.9.55550 - DA3TUTELA TRANSMISSION
MULTIAXLE
Contractual Technical
Reference No. F426.E06Drive transmission idler unit
(PTU)
(°)
Molybdenum disulphide
grease, for use at high
operating temperatures.
N.L.G.I. consistency 1-2.9.55580 - GRASS IITUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Specific grease for
constant velocity joints
with low friction coefficient.
N.L.G.I. consistency 0-1.9.55580 - GRASS IITUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential-side constant
velocity joints
(°) Panda Cross and Panda 4x4 versions.
169

Use Characteristics SpecificationOriginal fluids and
lubricantsApplications
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4
Contractual Technical
Reference No. F001.A93Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsProtective agent with
anti-freeze action and
organic formulation. CUNA
NC 956-16, ASTM D 3306
specifications.9.55523 or MS.90032PARAFLU
UP(*)Contractual Technical
Reference No. F101.M01Cooling circuits proportions
of use: 50% water 50%
PARAFLUUP(**)
Diesel fuel additiveAdditive for diesel with
antifreeze and protective
action for diesel engines-TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel (25
cc per 10 litres)
Windscreen/rear
window washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC 956-11
specifications.9.55522 or MS.90043TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in screen
washer/wiper systems
(*) IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
170
TECHNICAL SPECIFICATIONS

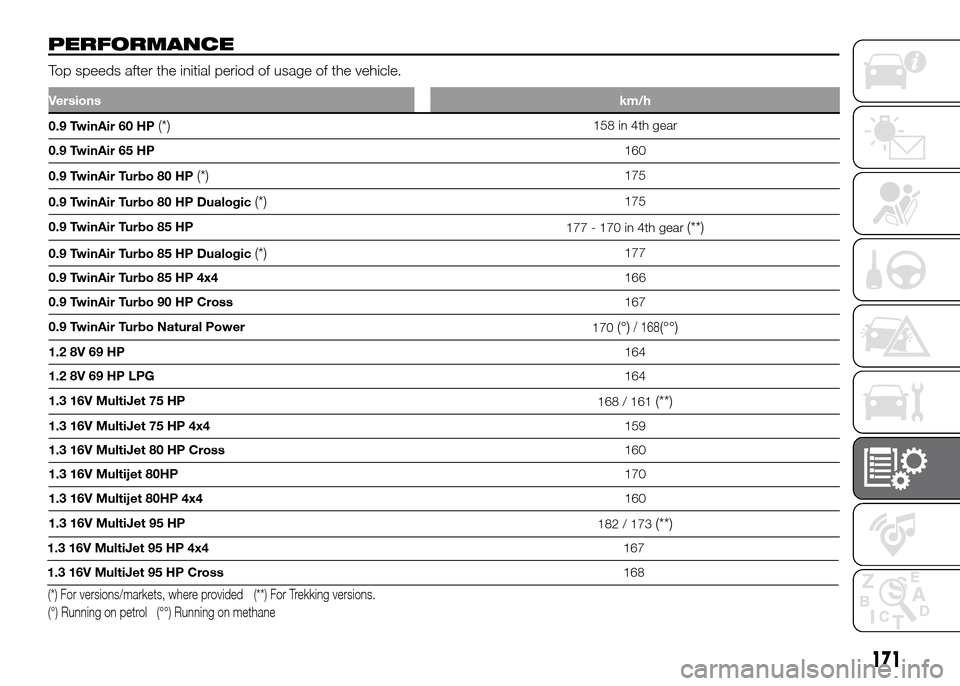

PERFORMANCE
(*) For versions/markets, where provided
(**) For Trekking versions.
(°) Running on petrol
(°°) Running on methane
171
Versionskm/h
0.9 TwinAir 60 HP(*)158 in 4th gear
0.9 TwinAir 65 HP160
0.9 TwinAir Turbo 80 HP
(*)175
0.9 TwinAir Turbo 80 HP Dualogic
(*)175
0.9 TwinAir Turbo 85 HP
177 - 170 in 4th gear
(**)
0.9 TwinAir Turbo 85 HP Dualogic(*)177
0.9 TwinAir Turbo 85 HP 4x4166
0.9 TwinAir Turbo 90 HP Cross167
0.9 TwinAir Turbo Natural Power
170
(°)/ 168(°°)
1.2 8V 69 HP164
1.2 8V 69 HP LPG164
1.3 16V MultiJet 75 HP
168 / 161
(**)
1.3 16V MultiJet 75 HP 4x4159
1.3 16V MultiJet 80 HP Cross160
1.3 16V Multijet 80HP170
1.3 16V Multijet 80HP 4x4160
1.3 16V MultiJet 95 HP
182 / 173
(**) Top speeds after the initial period of usage of the vehicle.
1.3 16V MultiJet 95 HP 4x4167
1.3 16V MultiJet 95 HP Cross168

172
TECHNICAL SPECIFICATIONS
FUEL CONSUMPTION
The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by
specific European Directives.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the vehicle, trim
level/equipment/accessories, use of the climate control system, vehicle load, presence of roof racks and other situations that
adversely affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured. The
fuel consumption will get more regular only after having driven the first 3000 km.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
NOTE Consumption of methane-fuelled Natural Power versions is intended in m
3/100 km.
Euro 5 versions
Versions Urban Extra-urban Combined
1.3 16V MultiJet 75 HP4.7
3.5 / 3.8(**)3.9 / 4.1(**)
1.3 16V MultiJet 75 HP 4x44.9 4.6 4.7
1.3 16V MultiJet 80 HP Cross4.9 4.6 4.7
(**) For Trekking versions.

173

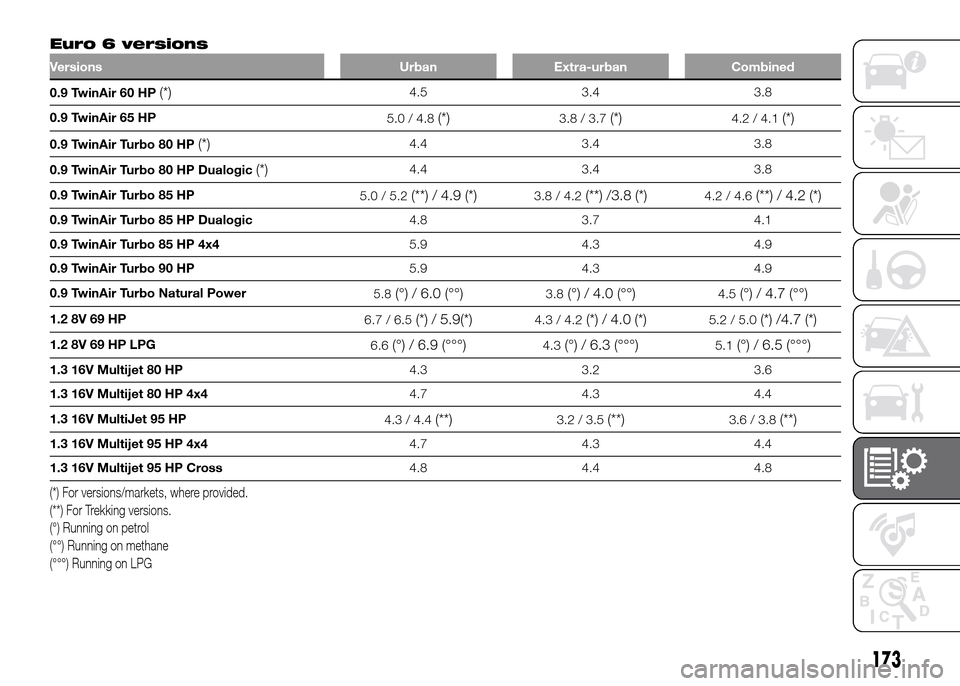

Euro 6 versions
Versions Urban Extra-urban Combined
0.9 TwinAir 60 HP(*)4.5 3.4 3.8
0.9 TwinAir 65 HP
5.0 / 4.8
(*)3.8 / 3.7(*)4.2 / 4.1(*)
0.9 TwinAir Turbo 80 HP(*)4.4 3.4 3.8
0.9 TwinAir Turbo 80 HP Dualogic
(*)4.4 3.4 3.8
0.9 TwinAir Turbo 85 HP
5.0 / 5.2
(**) / 4.9 (*)3.8 / 4.2(**) /3.8 (*)4.2 / 4.6(**) / 4.2 (*)
0.9 TwinAir Turbo 85 HP Dualogic4.8 3.7 4.1
0.9 TwinAir Turbo 85 HP 4x45.9 4.3 4.9
0.9 TwinAir Turbo 90 HP5.9 4.3 4.9
0.9 TwinAir Turbo Natural Power
5.8
(°) / 6.0 (°°)3.8(°) / 4.0 (°°)4.5(°) / 4.7 (°°)
1.2 8V 69 HP
6.7 / 6.5(*) / 5.9(*)4.3 / 4.2(*) / 4.0 (*)5.2 / 5.0(*) /4.7 (*)
1.2 8V 69 HP LPG
6.6(°) / 6.9 (°°°)4.3(°) / 6.3 (°°°)5.1(°) / 6.5 (°°°)
1.3 16V Multijet 80 HP4.3 3.2 3.6
1.3 16V Multijet 80 HP 4x44.7 4.3 4.4
1.3 16V MultiJet 95 HP
4.3 / 4.4
(**)3.2 / 3.5(**)3.6 / 3.8(**)
1.3 16V Multijet 95 HP 4x44.7 4. 4.
1.3 16V Multijet 95 HP Cross4.8 4.4 4.8
(*) For versions/markets, where provided.
(**) For Trekking versions.
(°) Running on petrol
(°°) Running on methane
(°°°) Running on LPG
34

174
TECHNICAL SPECIFICATIONS
CO2EMISSIONS
The CO2emission levels given in the following tables refer to combined consumption.
Euro 5 versions
VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
1.3 16V MultiJet 75 HP
103 / 108(**)
1.3 16V MultiJet 75 HP 4x4124
1.3 16V MultiJet 80 HP Cross124
(**) For Trekking versions.
Euro 6 versions
(*) For versions/markets, where provided.
(**) For Trekking versions.
(°) Running on petrol.
(°°) Running on methane.
VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
0.9 TwinAir 60 HP(*)88
0.9 TwinAir 65 HP
99/95
(*)
0.9 TwinAir Turbo 80 HP(*)88
0.9 TwinAir Turbo 80 HP Dualogic
(*)88
0.9 TwinAir Turbo 85 HP
99 / 105
(**)/97(*)
0.9 TwinAir Turbo 85 HP Dualogic95
0.9 TwinAir Turbo 85 HP 4x4114
0.9 TwinAir Turbo 90 HP Cross114
0.9 TwinAir Turbo Natural Power
106
(°)/85(°°)

175
VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
(*) For versions/markets, where provided.
(**) For Trekking versions.
(°) Running on petrol.
(°°) Running on methane.
(°°°) Running on LPG.

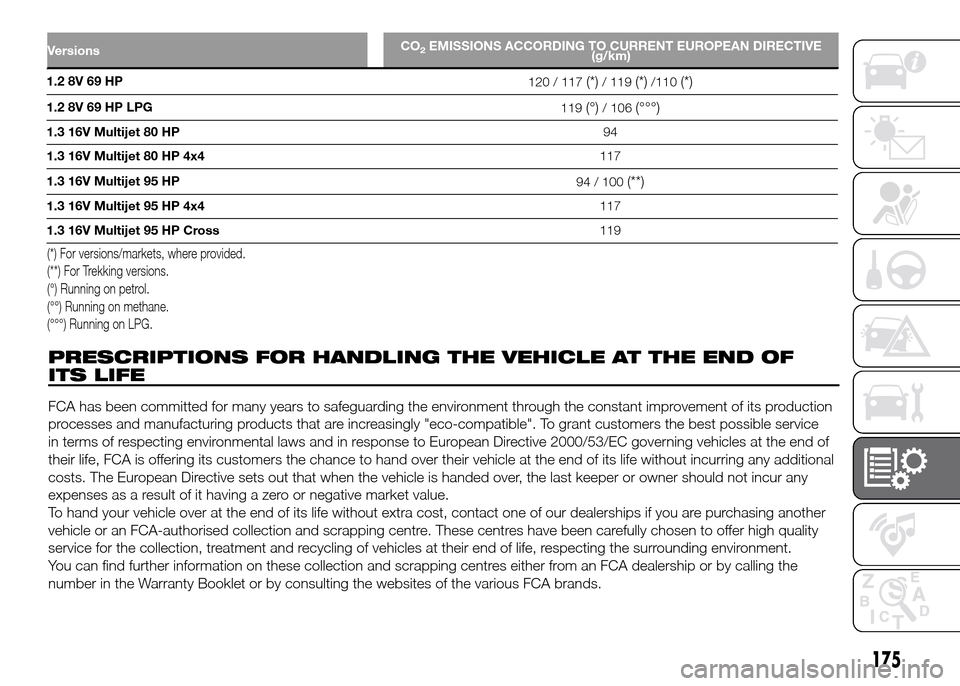

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFE
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service
in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of
their life, FCA is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional
costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality
service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.
1.2 8V 69 HP
120 / 117(*)/ 119(*)/110(*)
1.2 8V 69 HP LPG
119(°)/ 106(°°°)
1.3 16V Multijet 80 HP94
1.3 16V Multijet 80 HP 4x4117
1.3 16V Multijet 95 HP
94 / 100
(**)
1.3 16V Multijet 95 HP 4x4117
1.3 16V Multijet 95 HP Cross119

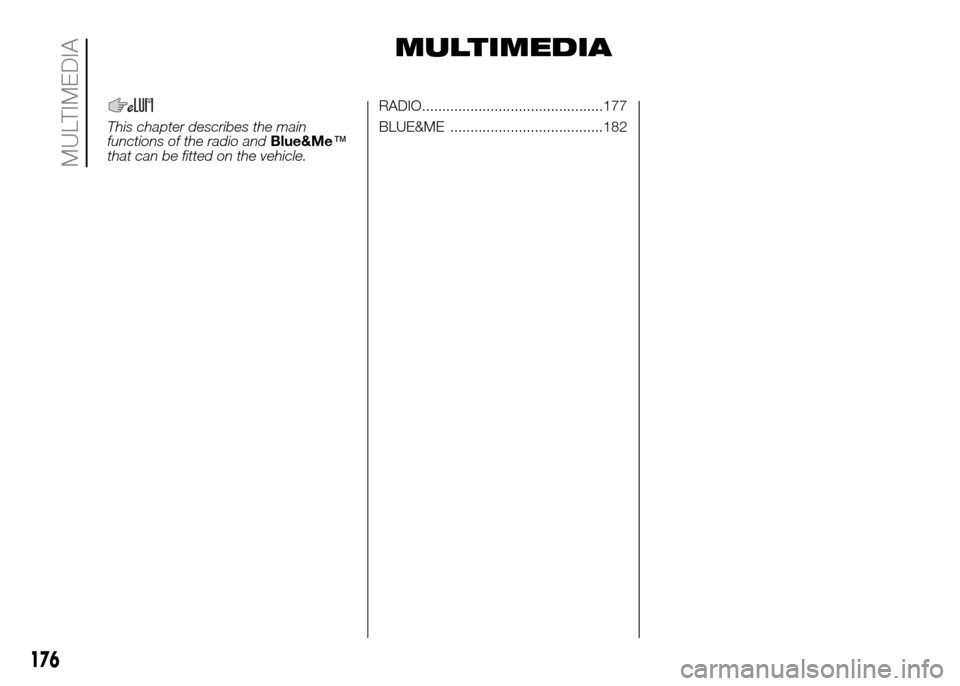

MULTIMEDIA
This chapter describes the main
functions of the radio andBlue&Me™
that can be fitted on the vehicle.RADIO.............................................177
BLUE&ME ......................................18
176
MULTIMEDIA
2

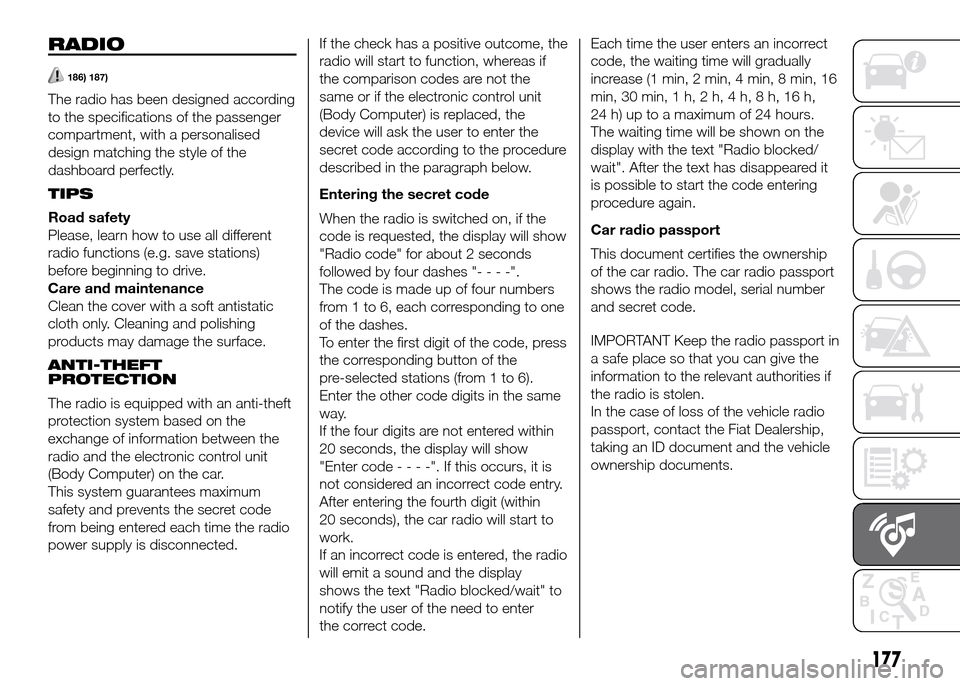

RADIO
186) 187)
The radio has been designed according
to the specifications of the passenger
compartment, with a personalised
design matching the style of the
dashboard perfectly.
TIPS
Road safety
Please, learn how to use all different
radio functions (e.g. save stations)
before beginning to drive.
Care and maintenance
Clean the cover with a soft antistatic
cloth only. Cleaning and polishing
products may damage the surface.
ANTI-THEFT
PROTECTION
The radio is equipped with an anti-theft
protection system based on the
exchange of information between the
radio and the electronic control unit
(Body Computer) on the car.
This system guarantees maximum
safety and prevents the secret code
from being entered each time the radio
power supply is disconnected.If the check has a positive outcome, the
radio will start to function, whereas if
the comparison codes are not the
same or if the electronic control unit
(Body Computer) is replaced, the
device will ask the user to enter the
secret code according to the procedure
described in the paragraph below.
Entering the secret code
When the radio is switched on, if the
code is requested, the display will show
"Radio code" for about 2 seconds
followed by four dashes "----".
The code is made up of four numbers
from 1 to 6, each corresponding to one
of the dashes.
To enter the first digit of the code, press
the corresponding button of the
pre-selected stations (from 1 to 6).
Enter the other code digits in the same
way.
If the four digits are not entered within
20 seconds, the display will show
"Enter code----".Ifthis occurs, it is
not considered an incorrect code entry.
After entering the fourth digit (within
20 seconds), the car radio will start to
work.
If an incorrect code is entered, the radio
will emit a sound and the display
shows the text "Radio blocked/wait" to
notify the user of the need to enter
the correct code.Each time the user enters an incorrect
code, the waiting time will gradually
increase (1 min, 2 min, 4 min, 8 min, 16
min, 30 min, 1 h, 2 h, 4 h, 8 h, 16 h,
24 h) up to a maximum of 24 hours.
The waiting time will be shown on the
display with the text "Radio blocked/
wait". After the text has disappeared it
is possible to start the code entering
procedure again.
Car radio passport
This document certifies the ownership
of the car radio. The car radio passport
shows the radio model, serial number
and secret code.
IMPORTANT Keep the radio passport in
a safe place so that you can give the
information to the relevant authorities if
the radio is stolen.
In the case of loss of the vehicle radio
passport, contact the Fiat Dealership,
taking an ID document and the vehicle
ownership documents.
177

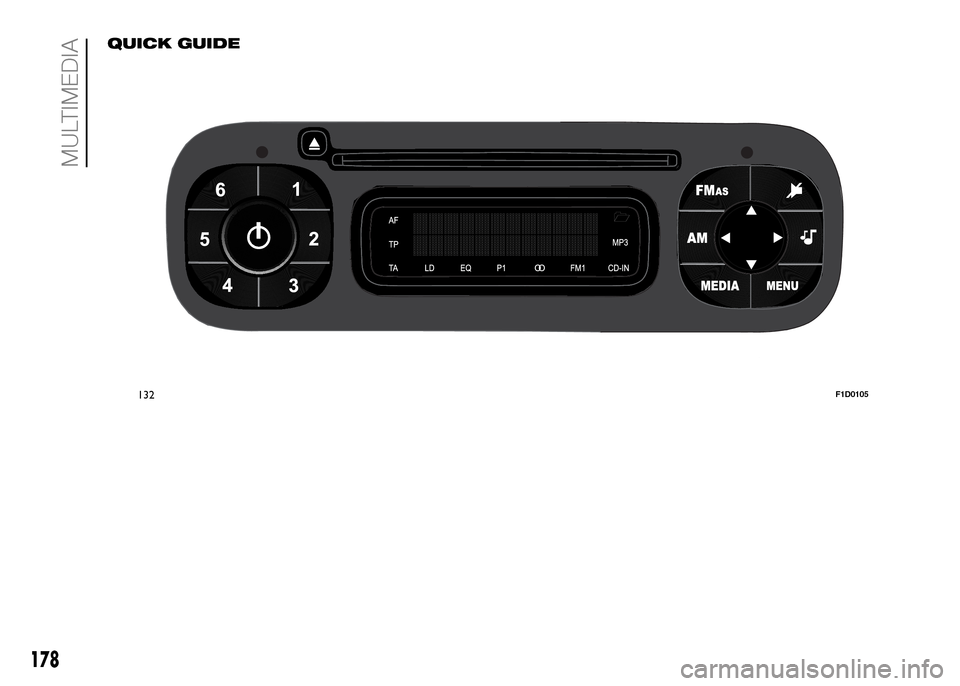

QUICK GUIDE
.
