IMPORTANT In versions with a sun
roof, make sure that the sun roof is
closed before operating the window
washer jets.
Rear window washer
The rear window washer jets are fixed.
The nozzle holder is located above
the rear window.
WARNING
176)Driving with worn windscreen/rear
window wiper blades is a serious hazard,
because visibility is reduced in bad
weather.
WARNING
61)Do not operate the windscreen wiper
with the blades lifted from the windscreen.

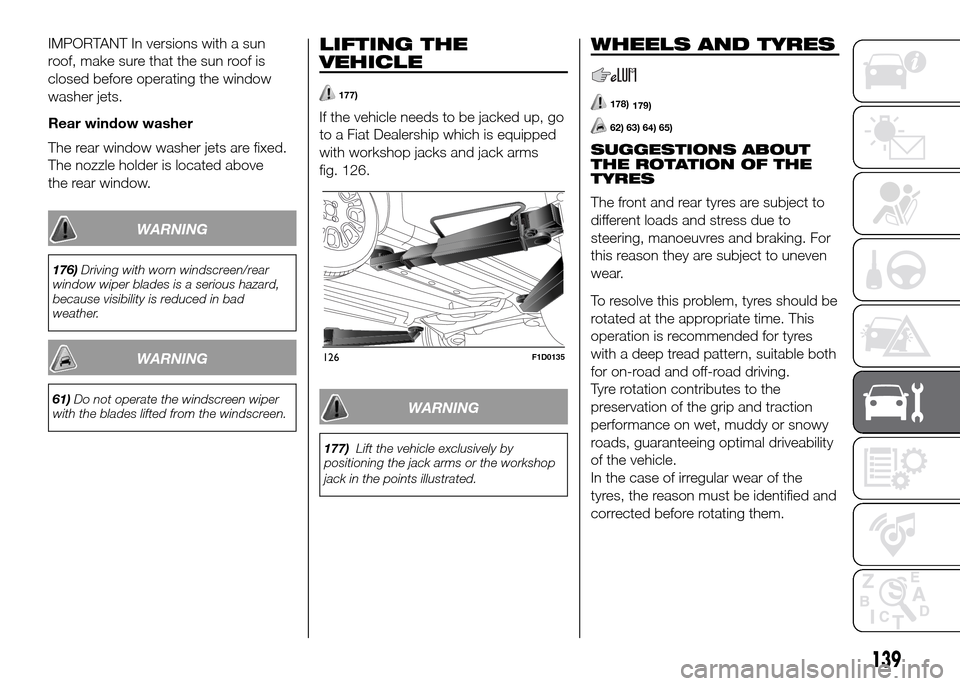

LIFTING THE
VEHICLE
177)
If the vehicle needs to be jacked up, go
to a Fiat Dealership which is equipped
with workshop jacks and jack arms
fig. 126.
WARNING
177)Lift the vehicle exclusively by
positioning the jack arms or the workshop
jack in the points illustrated.
WHEELS AND TYRES
178)
62) 63) 64) 65)
SUGGESTIONS ABOUT
THE ROTATION OF THE
TYRES
The front and rear tyres are subject to
different loads and stress due to
steering, manoeuvres and braking. For
this reason they are subject to uneven
wear.
To resolve this problem, tyres should be
rotated at the appropriate time. This
operation is recommended for tyres
with a deep tread pattern, suitable both
for on-road and off-road driving.
Tyre rotation contributes to the
preservation of the grip and traction
performance on wet, muddy or snowy
roads, guaranteeing optimal driveability
of the vehicle.
In the case of irregular wear of the
tyres, the reason must be identified and
corrected before rotating them.
126F1D0135
139
179)
Page 142 of 204

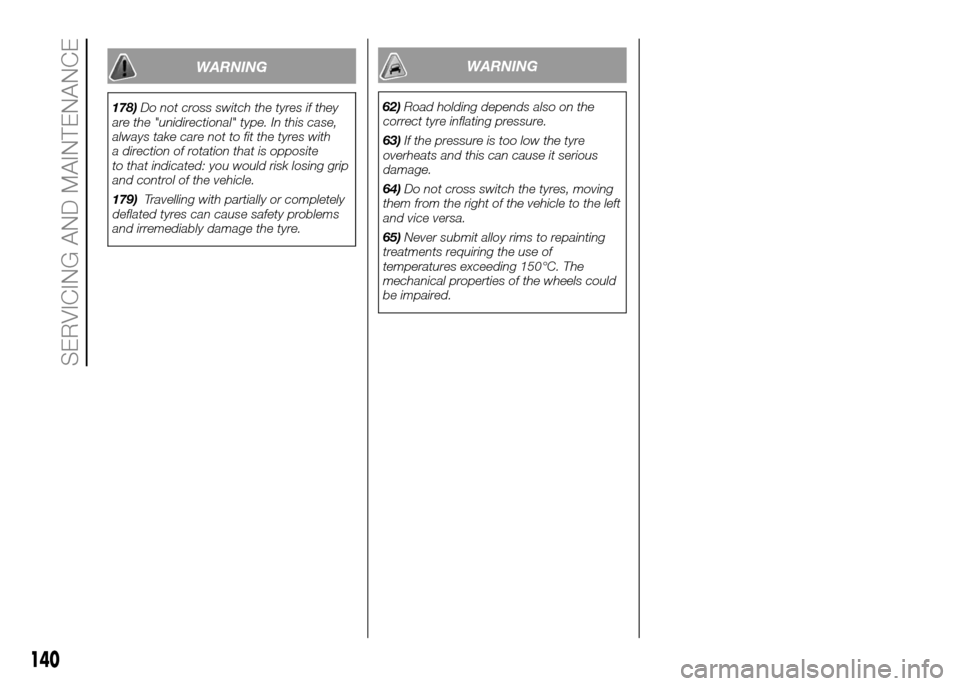

WARNING
178)Do not cross switch the tyres if they
are the "unidirectional" type. In this case,
always take care not to fit the tyres with
a direction of rotation that is opposite
to that indicated: you would risk losing grip
and control of the vehicle.
179)Travelling with partially or completely
deflated tyres can cause safety problems
and irremediably damage the tyre.
WARNING
62)Road holding depends also on the
correct tyre inflating pressure.
63)If the pressure is too low the tyre
overheats and this can cause it serious
damage.
64)Do not cross switch the tyres, moving
them from the right of the vehicle to the left
and vice versa.
65)Never submit alloy rims to repainting
treatments requiring the use of
temperatures exceeding 150°C. The
mechanical properties of the wheels could
be impaired.
140
SERVICING AND MAINTENANCE
Page 143 of 204
TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your vehicle
is made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.IDENTIFICATION DATA....................142
ENGINE ..........................................143
WHEELS .........................................1
DIMENSIONS ..................................155
WEIGHTS........................................1
SUPPLIES .......................................16
FLUIDS AND LUBRICANTS ............168
PERFORMANCE .............................171
FUEL CONSUMPTION ....................172
CO2 EMISSIONS ............................174
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................175
141
48
58
6
Page 144 of 204
IDENTIFICATION
DATA
VIN PLATE
This is applied on the left side of the
luggage compartment fig. 127 (lift the
mat for access) and bears the following
data:
BType-approval number.
CVehicle type identification code.
DChassis serial number.
EMaximum permitted weight of vehicle
fully laden.
FMaximum permitted weight of vehicle
fully laden plus trailer.
GMaximum permitted weight on first
axle (front).
HMaximum permitted weight on
second axle (rear).
IEngine type.
LBodywork version code.
MSpare part number.
NCorrect value of smoke coefficient
(for diesel engines).
BODYWORK PAINT
IDENTIFICATION PLATE
This is applied inside the bonnet (left
side) and bears the following data
fig. 128:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
CHASSIS MARKING
This is located on the right side of the
luggage compartment rear floor and
gives the following identification data:
❒type of vehicle;
❒chassis serial number.ENGINE MARKING
It is stamped on the cylinder block and
includes the type and the engine serial
number.
127F1D0142
128F1D0128
142
TECHNICAL SPECIFICATIONS
Page 145 of 204
ENGINE
EURO 5 VERSIONS
Versions 1.3 16V MultiJet 75 HP
1.3 16V MultiJet 80 HP(*)
Type code 199A9000 312A8000
Cycle Diesel Diesel
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 69.6 x 82 69.6 x 82
Total displacement (cm³) 1248 1248
Compression ratio 16.8 16.8
Maximum power (EC) (kW) 55 59
Maximum power (EC) (HP) 75 80
corresponding engine speed (rpm) 4000 4000
Maximum torque (EC) (Nm) 190 190
Maximum torque (EC) (kgm) 19.4 19.4
corresponding engine speed (rpm) 1500 1500
FuelDiesel for motor vehicles (EN 590
Specification)Diesel for motor vehicles (EN 590
Specification)
(*) For versions/markets, where provided
143
Page 146 of 204
EURO 6 VERSIONS
Versions 1.2 8V 69 HP 1.2 8V 69 HP LPG
Type code 169A4000 169A4000
Cycle Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 70.8 x 78.86 70.8 x 78.86
Total displacement (cm³) 1242 1242
Compression ratio 11,1 11,1
LPG Petrol
Maximum power (EEC) (kW) 51 51 51
Maximum power (EEC) (HP) 69 69 69
corresponding engine speed (rpm) 5500 5500 5500
Maximum torque (EEC) (Nm) 102 102 102
Maximum torque (EEC) (kgm) 10,4 10,4 10,4
corresponding engine speed (rpm) 3000 3000 3000
Spark plugsNGK ZKR7A-10 or
CHAMPION RA8MCX4NGK ZKR7AI-8
FuelUnleaded petrol 95 RON (EN
228 specification)LPG for motor vehiclesUnleaded petrol 95 RON (EN
228 specification)
144
TECHNICAL SPECIFICATIONS
Page 147 of 204
Versions
0.9 TwinAir 60 HP(*)0.9 TwinAir 65 HP
0.9 TwinAir Turbo 80 HP(*)
Type code 312A6000 312A4000 312A5000
Cycle Otto Otto Otto
Number and position of cylinders 2 in line 2 in line 2 in line
Piston bore and stroke (mm) 83.5x88 83.5x88 80.5x86
Total displacement (cm³) 964 964 875
Compression ratio 11.1 : 1 11.1 10
Maximum power (EEC) (kW) 44 48 59
Maximum power (EEC) (HP) 60 65 80
corresponding engine speed (rpm) 6250 6250 5500
Maximum torque (EEC) (Nm) 88 88 145
Maximum torque (EEC) (kgm) 8.9 8.9 14.8
corresponding engine speed (rpm) 3500 3500 1900
Spark plugs NGK T20182U NGK LKR7DI-12 NGK PLKR9C8
FuelUnleaded petrol 95 RON (EN
228 specification)Unleaded petrol 95 RON (EN
228 specification)Unleaded petrol 95 RON (EN
228 specification)
(*) For versions/markets, where provided
145
Page 148 of 204
Versions 0.9 TwinAir Turbo 85 HP 0.9 TwinAir Turbo Natural Power
Type code 312A2000 312A2000
Cycle Otto Otto
Number and position of cylinders 2 in line 2 in line
Piston bore and stroke (mm) 80.5 x 86.0 80.5 x 86.0
Total displacement (cm³) 875 875
Compression ratio 10 10
Methane Petrol
Maximum power (EEC) (kW)
62.5 / 57
(*)59 62.5
Maximum power (EEC) (HP)
85 / 77.5
(*)80 85
corresponding engine speed (rpm) 5500 5500 5500
Maximum torque (EEC) (Nm)
145 / 100
(*)140 145
Maximum torque (EEC) (kgm)
14.8 / 10.2
(*)14.3 14.8
corresponding engine speed (rpm)
1900 / 2000
(*)2500 1900
Spark plugs NGK ILKR9G8 NGK ILKR9G8
FuelUnleaded petrol 95 RON (EN
228 specification)Methane for motor vehiclesUnleaded petrol 95 RON (EN
228 specification)
(*) With ECO button pressed
146
TECHNICAL SPECIFICATIONS
Page 149 of 204
Versions
0.9 TwinAir Turbo 90 HP(*)1.3 16V MultiJet 95 HP 1.3 16V Multijet 80 HP
Type code 312A7000
312B1000 / 330A1000(°)312B2000 / 225A2000(°°)
Cycle Otto Diesel Diesel
Number and position of cylinders 2 in line 4 in line 4 in line
Piston bore and stroke (mm) 80.5 x 86.0 69.6 x 82 69.6 x 82
Total displacement (cm³) 875 1248 1248
Compression ratio 10 16.8 16.8
Maximum power (EC) (kW)
66.2 / 57
(**)70 59
Maximum power (EC) (HP)
90 / 77.5
(**)95 80
corresponding engine speed (rpm) 5500 3750 3750
Maximum torque (EC) (Nm)
145 / 100
(**)200 200
Maximum torque (EC) (kgm)
14.8 / 10.2
(**)20.4 20.4
corresponding engine speed (rpm)
1900 / 2000
(**)1500 1500
Spark plugs NGK ILKR9G8 - -
FuelUnleaded petrol 95 RON (EN
228 specification)Diesel for motor vehicles (EN
590 Specification)Diesel for motor vehicles (EN
590 Specification)
(*) For versions/markets, where provided
(°) Versioni Trekking, 4x4 and Cross
(°°) 4x4 versions
(**) With ECO button pressed
147
Page 150 of 204
148
TECHNICAL SPECIFICATIONS
WHEELS
180) 181) 182)
RIMS AND TYRES PROVIDED
Panda versions
Versions Rims Tyres provided Snow tyres
Space-saver wheel(*)
0.9 TwinAir 60 HP(*)5.5J x 14H2 - ET35
175/65 R14 82T(**)175/65 R14 82Q (M+S) 135/80 R14 84M
0.9 TwinAir 65 HP5.5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 82Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35175/65 R14 82T
Goodyear Duragrip
(**)
(***)175/65 R14 82Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)185/55 R15 82T(°)185/55 R15 82Q (M+S) 135/80 R14 84M
0.9 TwinAir 80 HP
(*)5.5J x 14H2 - ET35
175/65 R14 82T(**)175/65 R14 82Q (M+S) 135/80 R14 84M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with reduced size snow chains: 9 mm.
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(****) Alloy wheel rim.
(°) Not suitable for chains.
