Page 151 of 204
149

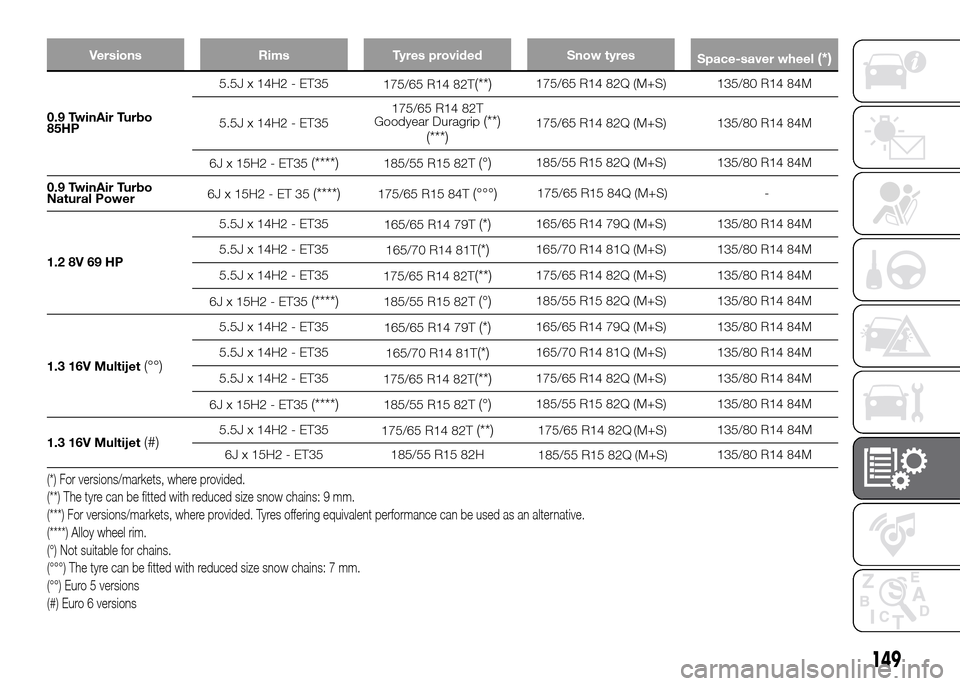

Versions Rims Tyres provided Snow tyres
Space-saver wheel(*)
0.9 TwinAir Turbo5.5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 82Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35175/65 R14 82T
Goodyear Duragrip
(**)
(***)175/65 R14 82Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)185/55 R15 82T(°)185/55 R15 82Q (M+S) 135/80 R14 84M
0.9 TwinAir Turbo
Natural Power6Jx15H2-ET35
(****)175/65 R15 84T(°°°)175/65 R15 84Q (M+S) -
1.2 8V 69 HP5.5J x 14H2 - ET35
165/65 R14 79T
(*)165/65 R14 79Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
165/70 R14 81T
(*)165/70 R14 81Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 82Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)185/55 R15 82T(°)185/55 R15 82Q (M+S) 135/80 R14 84M
1.3 16V Multijet
(°°)
5.5J x 14H2 - ET35
165/65 R14 79T(*)165/65 R14 79Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
165/70 R14 81T
(*)165/70 R14 81Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 82Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)185/55 R15 82T(°)185/55 R15 82Q (M+S) 135/80 R14 84M
1.3 16V Multijet
(#)5.5J x 14H2 - ET35
175/65 R14 82T(**)135/80 R14 84M
6J x 15H2 - ET35 185/55 R15 82H 135/80 R14 84M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with reduced size snow chains: 9 mm.
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(****) Alloy wheel rim.
(°) Not suitable for chains.
(°°°) The tyre can be fitted with reduced size snow chains: 7 mm.
(°°) Euro 5 versions
(#) Euro 6 versions
85HP
175/65 R14 82Q (M+S)
185/55 R15 82Q
(M+S)
Page 152 of 204
150
TECHNICAL SPECIFICATIONS
Panda Trekking versions
Versions Rims Tyres provided Snow tyres
Space-saver wheel(*)
0.9 TwinAir Turbo5.5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35175/65 R14 82T
Goodyear Duragrip
(**)
(***)175/65 R14 84Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)175/65 R15 84T (M+S)(°)125/80 R15 95M
1.3 16V Multijet
(°°)6J x 15H2 - ET35(****)175/65 R15 84T (M+S)(°)125/80 R15 95M
1.3 16V Multijet
(°°°)6J x 15H2 - ET35(****)175/65 R15 84T(°)125/80 R15 95M
6J x 15H2 - ET35
(****)175/65 R15 84T (M+S)(°)125/80 R15 95M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with reduced size snow chains: 9 mm.
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(****) Alloy wheel rim.
(°) The tyre can be fitted with reduced size snow chains: 7 mm.
(°°) Euro 5 versions
(°°°) Euro 6 versions
85HP
175/65 R15 84T (M+S)
175/65 R15 84T (M+S)
175/65 R15 84Q (M+S)
175/65 R15 84T (M+S)
Page 153 of 204
151

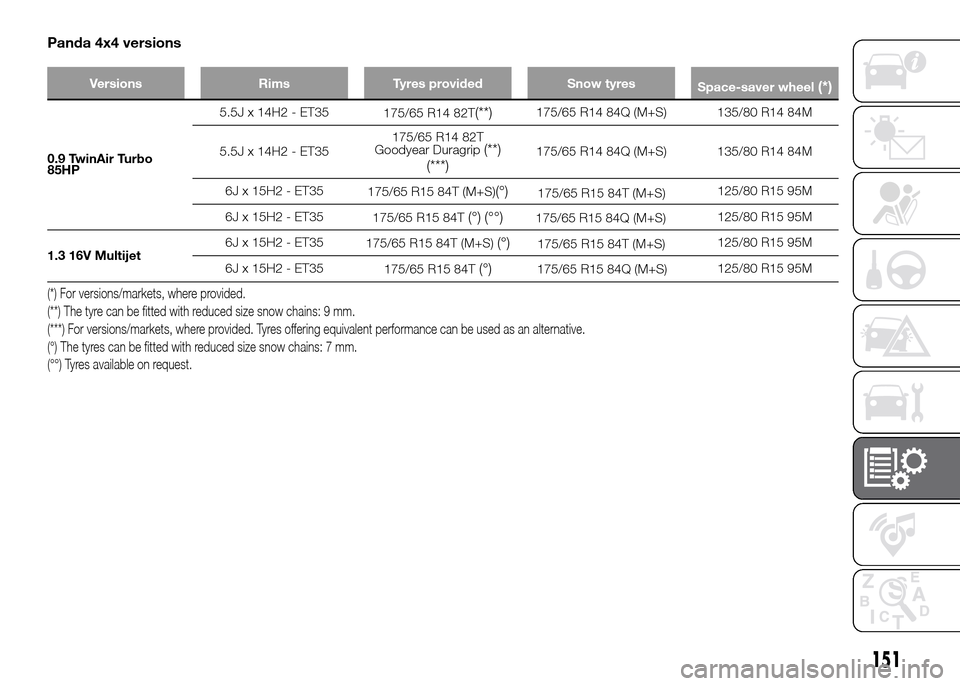

Panda 4x4 versions
Versions Rims Tyres provided Snow tyres
Space-saver wheel(*)
0.9 TwinAir Turbo5.5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35175/65 R14 82T
Goodyear Duragrip
(**)
(***)175/65 R14 84Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
175/65 R15 84T (M+S)
(°)125/80 R15 95M
6J x 15H2 - ET35
175/65 R15 84T
(°) (°°)125/80 R15 95M
1.3 16V Multijet6J x 15H2 - ET35
175/65 R15 84T (M+S)
(°)125/80 R15 95M
6J x 15H2 - ET35
175/65 R15 84T
(°)125/80 R15 95M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with reduced size snow chains: 9 mm.
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(°) The tyres can be fitted with reduced size snow chains: 7 mm.
(°°) Tyres available on request.
85HP
175/65 R15 84T (M+S)
175/65 R15 84Q (M+S)
175/65 R15 84T (M+S)
175/65 R15 84Q (M+S)
Page 154 of 204
15
TECHNICAL SPECIFICATIONS
2
Panda Cross versions
Versions Rims Tyres provided Snow tyres
Space-saver wheel(*)
0.9 TwinAir Turbo
HP6 J x 15H2 ET35175/65 R15 84T (M+S)
(**)125/80 R15 95M
6 J x 15H2 ET35
175/65 R15 84T
(**)125/80 R15 95M
6 J x 15H2 ET30185/65 R15 88H (M+S)
(***)125/80 R15 95M
6 J x 15H2 ET30
185/65 R15 88H
(***)125/80 R15 95M
1.3 16V Multijet6 J x 15H2 ET35175/65 R15 84T (M+S)
(**)125/80 R15 95M
6 J x 15H2 ET35
175/65 R15 84T
(**)125/80 R15 95M
6 J x 15H2 ET30185/65 R15 88H (M+S)
(***)125/80 R15 95M
6 J x 15H2 ET30
185/65 R15 88H
(***)125/80 R15 95M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with chains.
(***) Tyre not suitable for fitting snow chains.
NoteFor Panda Cross and Panda 4x4 versions if the space-saver wheel is used, the control unit for 4x4 drive detects its
presence (via the wheel speed signals) and reduces the intervention of the four-wheel drive to a minimum, while guaranteeing
the agility of the vehicle. No fault/alarm signal is displayed on the instrument panel or on the display.
COLD TYRE INFLATION PRESSURE (bar)
When the tyres are warm, add +0.3 bar to the pressure value prescribed. However, recheck that the value is correct with the
tyre cold. With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
90175/65 R15 84T (M+S)
175/65 R15 84Q (M+S)
185/65 R15 88Q (M+S)
185/65 R15 88Q (M+S)
175/65 R15 84T (M+S)
175/65 R15 84Q (M+S)
185/65 R15 88H (M+S)
185/65 R15 88Q (M+S)
Page 155 of 204

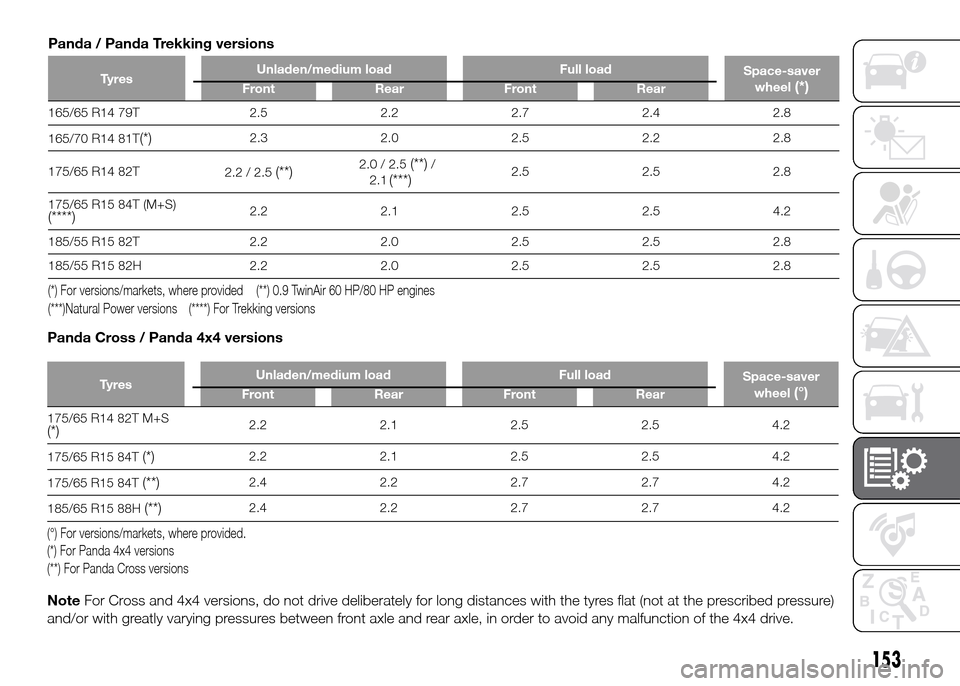

Panda / Panda Trekking versions
Ty r e sUnladen/medium load Full load
Space-saver
wheel(*)Front Rear Front Rear
165/65 R14 79T 2.5 2.2 2.7 2.4 2.8
165/70 R14 81T
(*)2.3 2.0 2.5 2.2 2.8
175/65 R14 82T
2.2 / 2.5
(**)2.0 / 2.5(**)/(***)2.5 2.5 2.8
175/65 R15 84T (M+S)
(****)2.2 2.1 2.5 2.5 4.2
185/55 R15 82T 2.2 2.0 2.5 2.5 2.8
185/55 R15 82H 2.2 2.0 2.5 2.5 2.8
(*) For versions/markets, where provided
(**) 0.9 TwinAir 60 HP/80 HP engines
(***)Natural Power versions
(****) For Trekking versions
153
Panda Cross / Panda 4x4 versions
Ty r e sUnladen/medium load Full load
Space-saver
wheel(°)Front Rear Front Rear
175/65 R14 82T M+S(*)2.2 2.1 2.5 2.5 4.2
175/65 R15 84T
(*)2.2 2.1 2.5 2.5 4.2
175/65 R15 84T
(**)2.4 2.2 2.7 2.7 4.2
185/65 R15 88H
(**)2.4 2.2 2.7 2.7 4.2
(°) For versions/markets, where provided.
(*) For Panda 4x4 versions
(**) For Panda Cross versions
NoteFor Cross and 4x4 versions, do not drive deliberately for long distances with the tyres flat (not at the prescribed pressure)
and/or with greatly varying pressures between front axle and rear axle, in order to avoid any malfunction of the 4x4 drive.
2.1
Page 156 of 204
SNOW CHAINS
183) 184) 185)66)
Important
The use of snow chains should be in compliance with local regulations of each country. In certain countries, tyres marked with
code M+S (Mud and Snow) are considered as winter equipment; therefore their use is equivalent to that of the snow chains.
The snow chains may be applied only to the front wheel tyres.
Check the tension of the snow chains after the first few metres have been driven.
Using snow chains with tyres with non-original dimensions may damage the vehicle.
Using different size or type (M+S, snow, etc.) tyres between front and rear axle may adversely affect vehicle driveability, with the
risk of losing control of the vehicle and resulting accidents.
Snow chains cannot be fitted to the space-saver wheel (for versions/markets, where provided). If a front tyre is punctured,
replace a rear wheel with the space-saver wheel and move the rear wheel to the front axle. In this way, with two normal drive
wheels at the front, snow chains can be fitted.
154
TECHNICAL SPECIFICATIONS
WARNING
180)The maximum speed for snow tyres marked “Q” is 160 km/h, while it is 190 km/h for “T” tyres and 210 km/h for "H" tyres. The highway
code speed limits must however always be complied with.
181)185/55 R15 82T tyres cannot be fitted with chains.
182)175/65 R14 82T tyres can be fitted with reduced size snow chains: 9 mm.
183)175/65 R15 84T tyres can be fitted with reduced size snow chains: 7 mm.
184)Keep your speed down when snow chains are fitted; do not exceed 50 km/h. Avoid potholes, steps and pavements and avoid driving
for long distances on roads not covered with snow to prevent damaging the vehicle and the road surface.
185)DO NOT fit wheel hub caps when using integral hub caps fixed (with springs) to the steel rim and after sale tyres provided with Rim
Protector. Use of unsuitable tyres and wheel caps may cause sudden loss of tyre pressure.
WARNING
66)When the snow chains are on, use the accelerator with extreme care to prevent, or to limit as much as possible, the driving wheels from
skidding. This could cause the chains to break, resulting in damage to the vehicle body or mechanical components.
Page 157 of 204
155

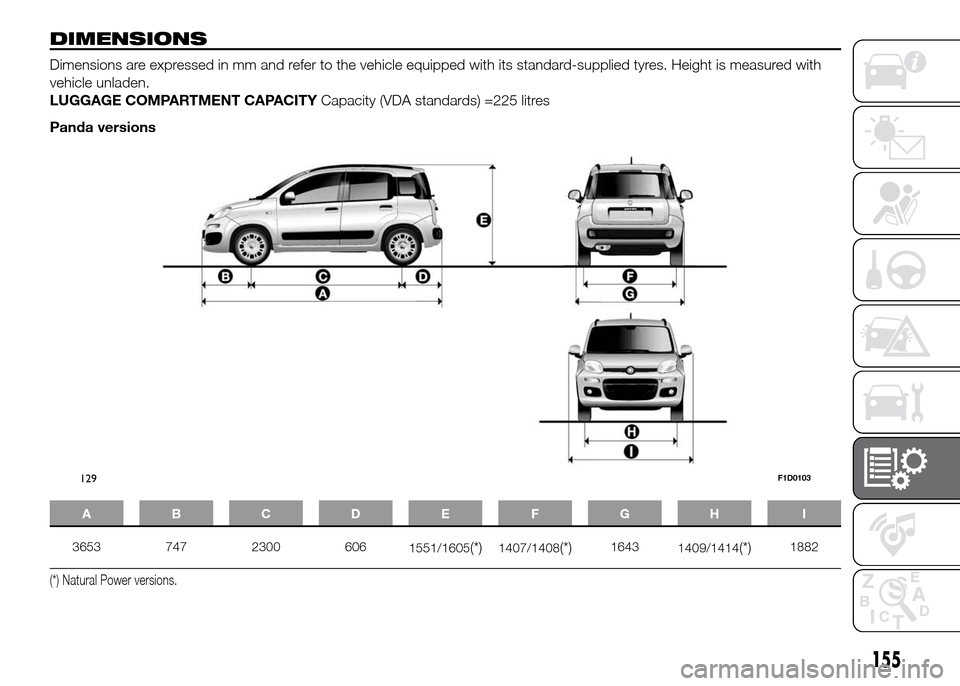

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen.
LUGGAGE COMPARTMENT CAPACITYCapacity (VDA standards) =225 litres
Panda versions
ABCDE FGH I
3653 747 2300 606
1551/1605(*)1407/1408(*)1643
1409/1414(*)1882
(*) Natural Power versions.
129F1D0103
Page 158 of 204
156
TECHNICAL SPECIFICATIONS
Panda Trekking / Panda 4x4 versions
Panda Trekking
ABCDE FGH I
3686 765 2300 621 1605 1408 1672 1414 1882
Panda 4x4
ABCDE FGH I
3686 /
3653(*)765 / 747 2300
621 / 606(*)1605 1408
1672/1643(*)1411 1882
(*) VAN versions.
130F1D0104
Page 159 of 204
157

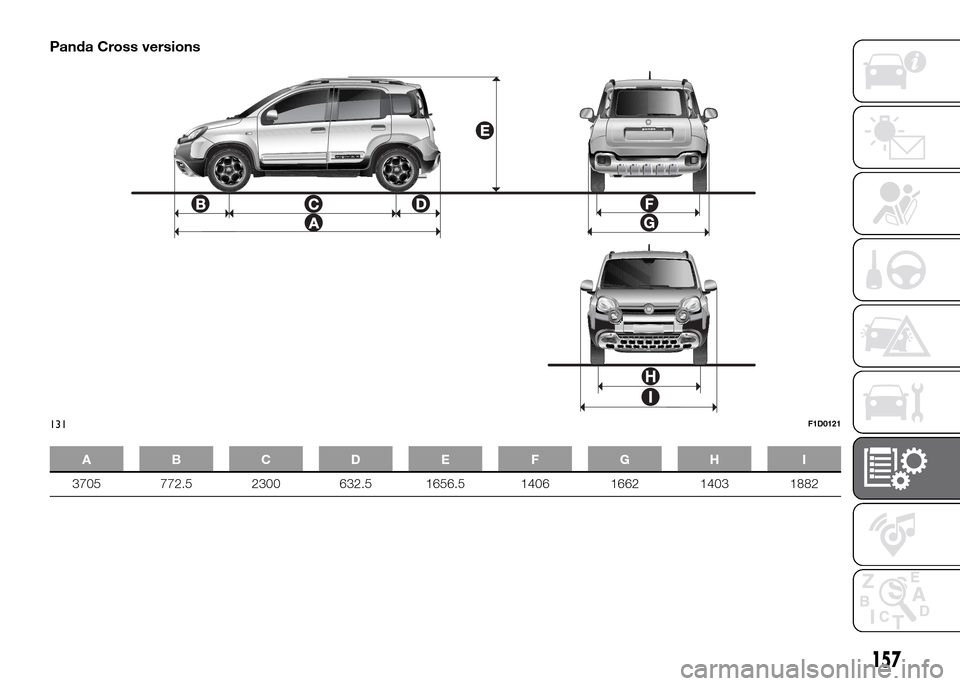

Panda Cross versions
ABCDE FGH I
3705 772.5 2300 632.5 1656.5 1406 1662 1403 1882
131F1D0121
Page 160 of 204
158
TECHNICAL SPECIFICATIONS
WEIGHTS
Panda/Panda Trekking EURO 5 versions
Weights (kg) 1.3 16V MultiJet 75 HP
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1035
Payload including the driver:
(*)480 (4-seater) / 500 (5-seater)
Maximum permitted loads
(**)
– front axle:855
– rear axle:760
– total:1515 (4-seater) / 1535 (5-seater)
Towable loads
– braked trailer:900
– non-braked trailer:400
Maximum load on roof:55
Maximum load on ball joint (braked trailer): 60
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
