FIAT PANDA 2016 319 / 3.G Owner's Manual

FIAT PANDA 2016 319 / 3.G Owner's Manual PANDA 2016 319 / 3.G FIAT FIAT https://www.carmanualsonline.info/img/10/4667/w960_4667-0.png FIAT PANDA 2016 319 / 3.G Owner's Manual

Page 21 of 204

FIAT PANDA 2016 319 / 3.G Owners Manual INTERIOR LIGHTS
FRONT ROOF LIGHT
Singe-bulb roof light
The lens of roof light A fig. 20 can be
set to three positions:
❒right side pressed: light always on
❒left side pressed: light always off
❒

Page 22 of 204

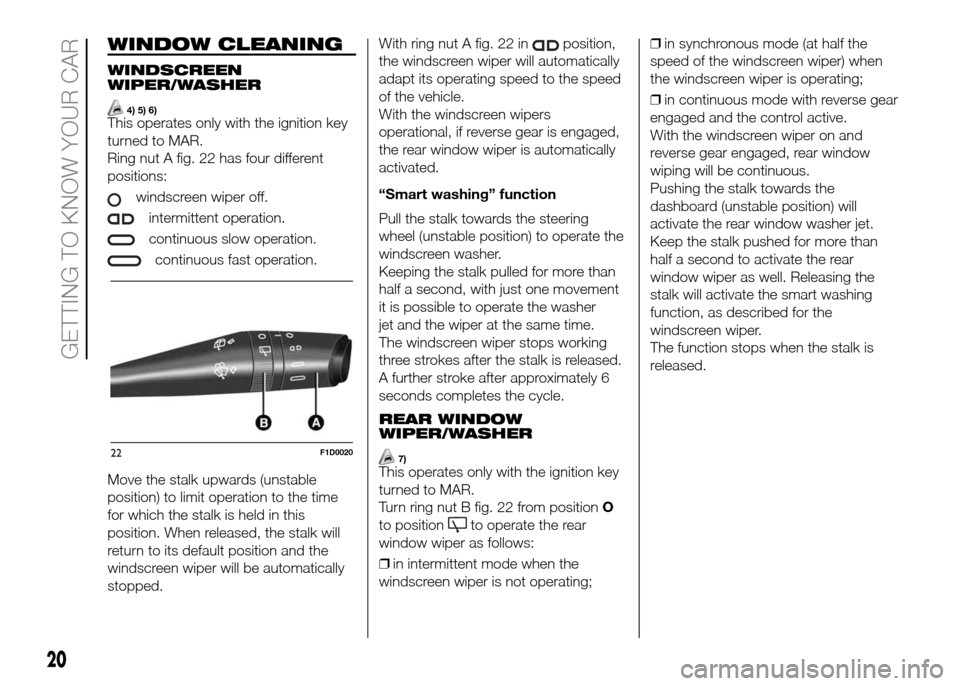

FIAT PANDA 2016 319 / 3.G Owners Manual WINDOW CLEANING
WINDSCREEN
WIPER/WASHER
4) 5) 6)This operates only with the ignition key
turned to MAR.
Ring nut A fig. 22 has four different
positions:
windscreen wiper off.
intermittent operation.
c

Page 23 of 204

FIAT PANDA 2016 319 / 3.G Owners Manual 6)Make sure the device is switched off
whenever the windscreen must be
cleaned.
7)Do not use the rear window wiper to
remove layers of snow or ice. In such
conditions, the wiper may be subjected to
ex

Page 24 of 204

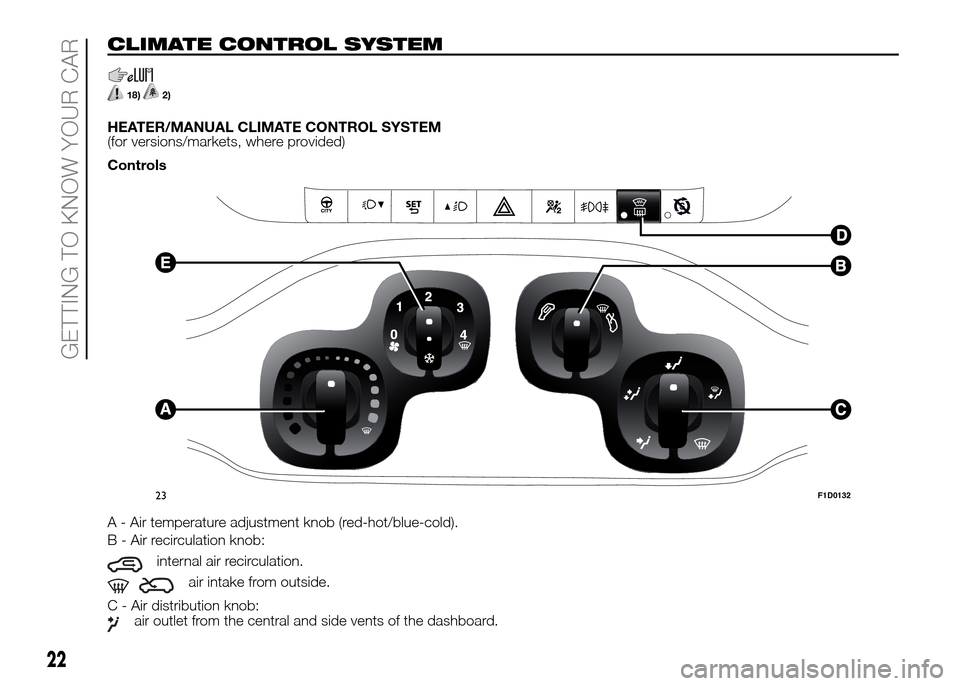

FIAT PANDA 2016 319 / 3.G Owners Manual CLIMATE CONTROL SYSTEM
18)2)
HEATER/MANUAL CLIMATE CONTROL SYSTEM
(for versions/markets, where provided)
Controls
A - Air temperature adjustment knob (red-hot/blue-cold).
B - Air recirculation knob:
i

Page 25 of 204

FIAT PANDA 2016 319 / 3.G Owners Manual air outlet from the footwell and the dashboard vents.
air outlet from footwell vents.
air outlet from footwell, windscreen and front side window vents.
air outlet from windscreen vents.
D - Heated rea

Page 26 of 204

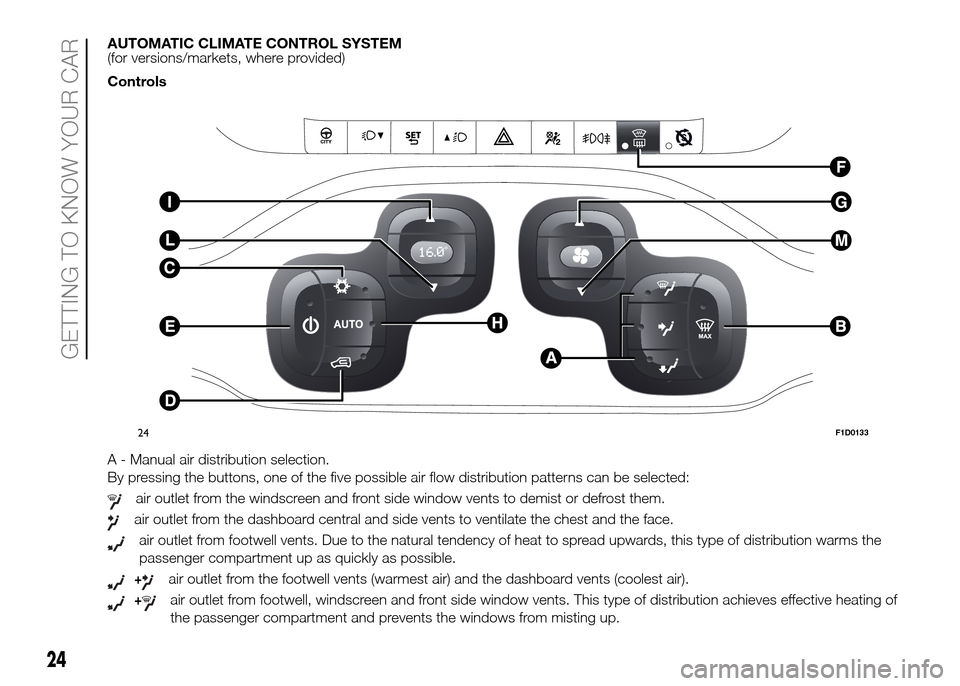

FIAT PANDA 2016 319 / 3.G Owners Manual AUTOMATIC CLIMATE CONTROL SYSTEM
(for versions/markets, where provided)
Controls
A - Manual air distribution selection.
By pressing the buttons, one of the five possible air flow distribution patterns

Page 27 of 204

FIAT PANDA 2016 319 / 3.G Owners Manual B - Activation/deactivation of the MAX-DEF function (fast front window defrosting/demisting).
C - Climate control system compressor activation/deactivation.
D - Internal air recirculation activation/d

Page 28 of 204

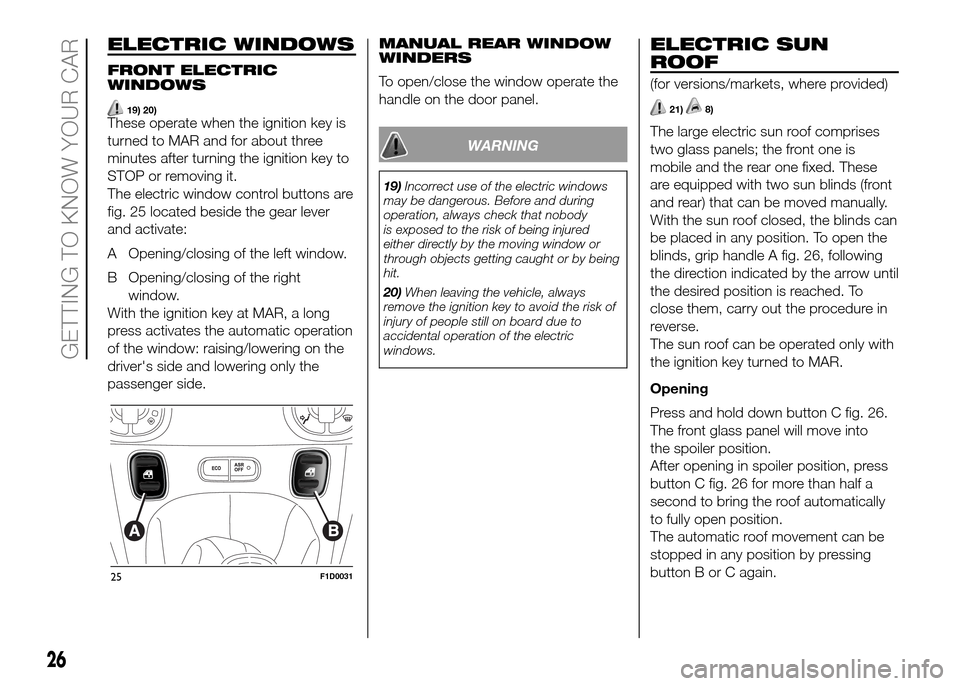

FIAT PANDA 2016 319 / 3.G Owners Manual ELECTRIC WINDOWS
FRONT ELECTRIC
WINDOWS
19) 20)These operate when the ignition key is
turned to MAR and for about three
minutes after turning the ignition key to
STOP or removing it.
The electric wind

Page 29 of 204

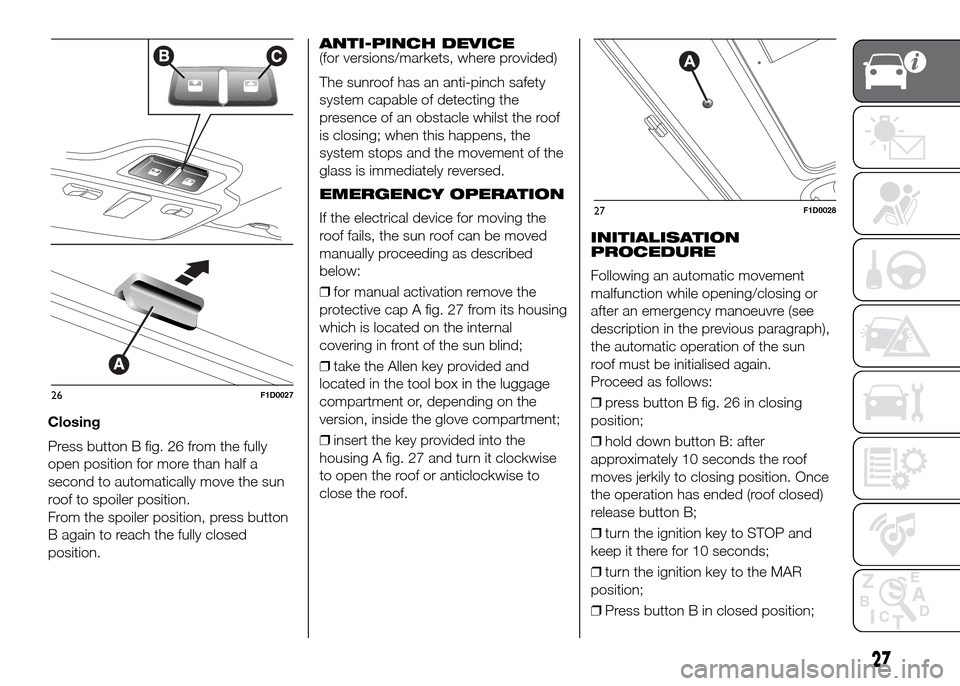

FIAT PANDA 2016 319 / 3.G Owners Manual Closing
Press button B fig. 26 from the fully
open position for more than half a
second to automatically move the sun
roof to spoiler position.
From the spoiler position, press button
B again to reach

Page 30 of 204

FIAT PANDA 2016 319 / 3.G Owners Manual ❒hold down button B until the roof is
completely closed: the initialisation
procedure has ended;
❒press button B again within 3
seconds from the conclusion of the
initialisation procedure;
❒hold
