Page 51 of 204

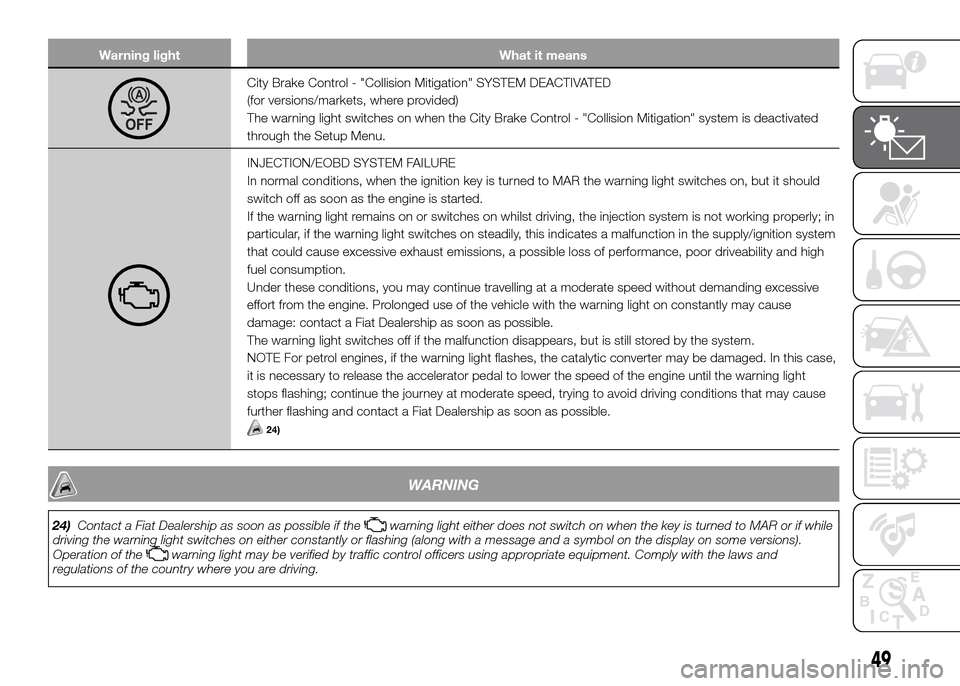

FIAT PANDA 2016 319 / 3.G Workshop Manual Warning light What it means
City Brake Control - "Collision Mitigation" SYSTEM DEACTIVATED
(for versions/markets, where provided)
The warning light switches on when the City Brake Control - "Collision

Page 52 of 204

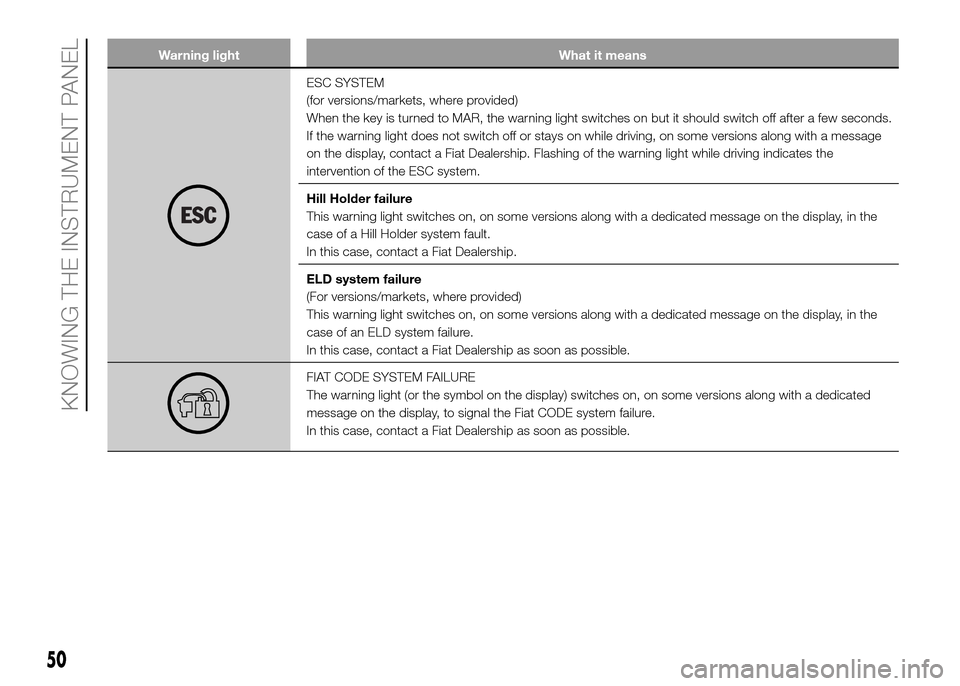

FIAT PANDA 2016 319 / 3.G Workshop Manual Warning light What it means
ESC SYSTEM
(for versions/markets, where provided)
When the key is turned to MAR, the warning light switches on but it should switch off after a few seconds.
If the warning

Page 53 of 204

FIAT PANDA 2016 319 / 3.G Workshop Manual Warning light What it means
GLOW PLUG HEATING/GLOW PLUG HEATING FAILURE (diesel versions)
Plug preheating
This warning light switches on when the key is turned to MAR. It should switch off as soon as

Page 54 of 204

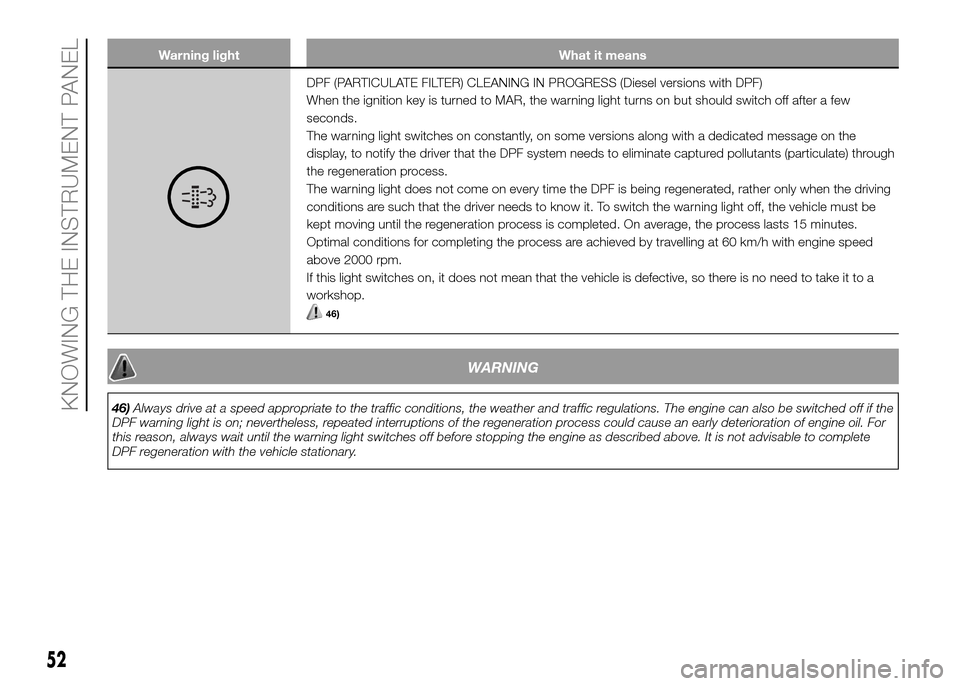

FIAT PANDA 2016 319 / 3.G Workshop Manual Warning light What it means
DPF (PARTICULATE FILTER) CLEANING IN PROGRESS (Diesel versions with DPF)
When the ignition key is turned to MAR, the warning light turns on but should switch off after a fe

Page 55 of 204

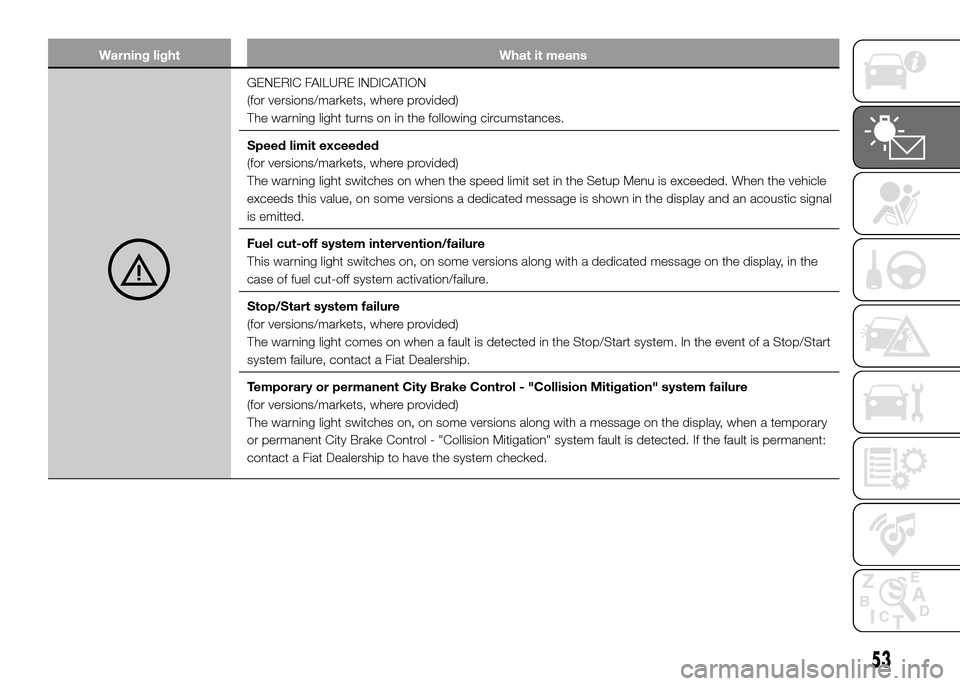

FIAT PANDA 2016 319 / 3.G Workshop Manual Warning light What it means
GENERIC FAILURE INDICATION
(for versions/markets, where provided)
The warning light turns on in the following circumstances.
Speed limit exceeded
(for versions/markets, whe

Page 56 of 204

FIAT PANDA 2016 319 / 3.G Workshop Manual Warning light What it means
Parking sensor failure
(for versions/markets, where provided)
The warning light switches on, on some versions along with a dedicated message on the display, when a
fault is

Page 57 of 204

FIAT PANDA 2016 319 / 3.G Workshop Manual Warning light What it means
iTPMS
(for versions/markets, where provided)
Tyre pressure low
The warning light switches on constantly to indicate that the tyre pressure is lower than the recommended
val

Page 58 of 204

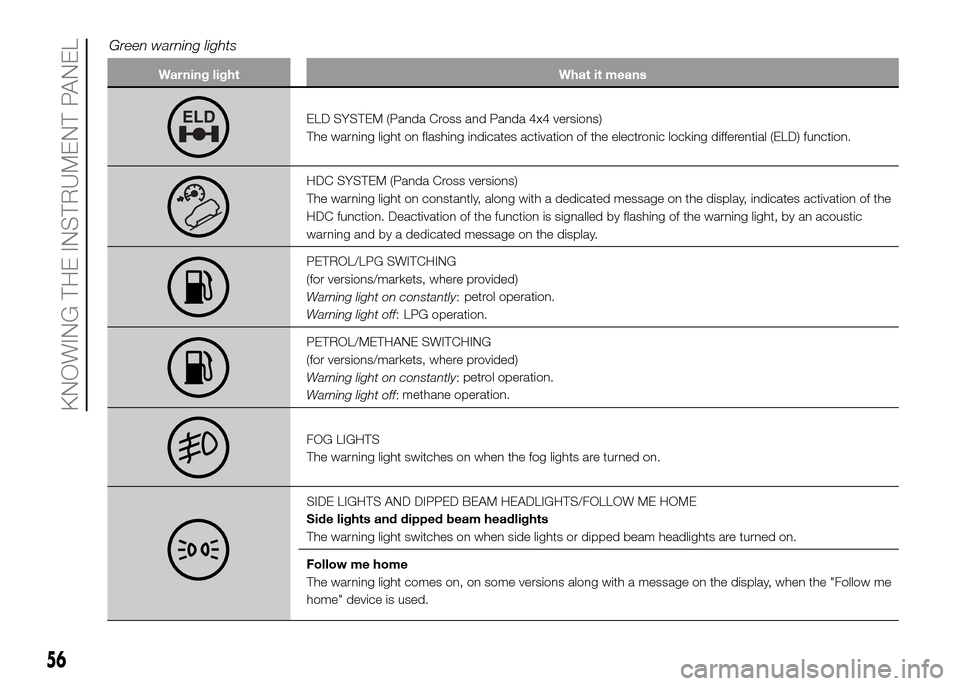

FIAT PANDA 2016 319 / 3.G Workshop Manual Warning light What it means
ELD SYSTEM (Panda Cross and Panda 4x4 versions)
The warning light on flashing indicates activation of the electronic locking differential (ELD) function.
HDC SYSTEM (Panda

Page 59 of 204

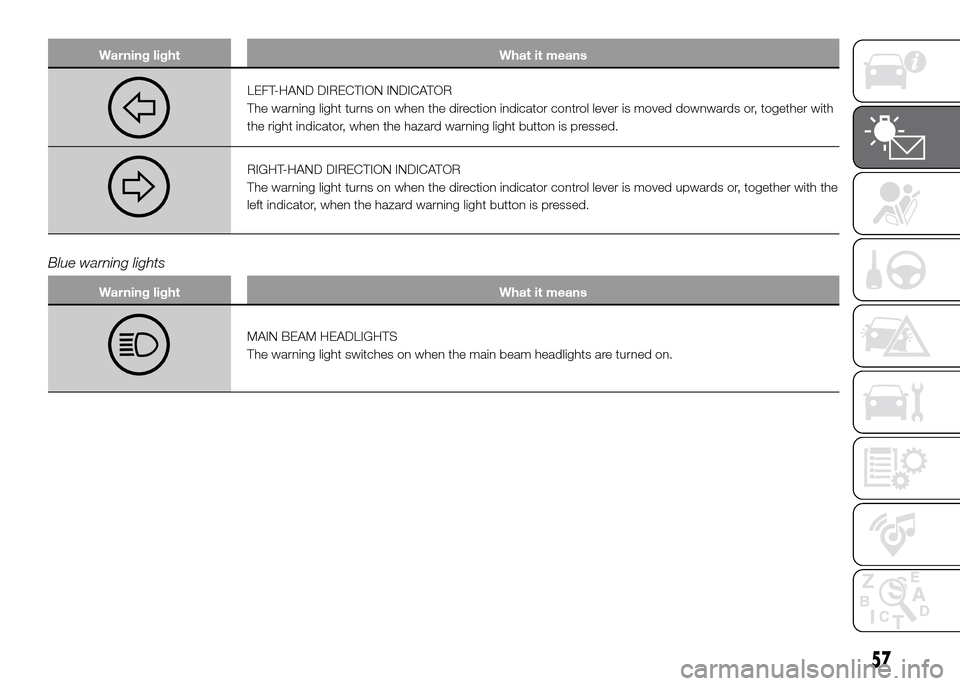

FIAT PANDA 2016 319 / 3.G Workshop Manual Warning light What it means
LEFT-HAND DIRECTION INDICATOR
The warning light turns on when the direction indicator control lever is moved downwards or, together with
the right indicator, when the hazar

Page 60 of 204

FIAT PANDA 2016 319 / 3.G Workshop Manual STOP/START SYSTEM ACTIVATION/
DEACTIVATION
(For versions/markets, where provided)The message is displayed when the Stop/Start system is activated/deactivated by
pressing thebutton in the central part
