Use Features SpecificationOriginal fluids and
lubricantsApplications
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4
Contractual Technical
Reference N° F001.A93
or
TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsProtective agent with
anti-freeze action and
organic formulation. CUNA
NC 956-16, ASTM D 3306
specifications.9.55523 or MS.90032PARAFLU
UP(*)Contractual Technical
Reference N° F101.M01Cooling circuits proportions
of use: 50% water 50%
PARAFLUUP(**)
Diesel fuel additiveAdditive for diesel with
antifreeze and protective
action for diesel engines-PETRONAS DURANCE
DIESEL ART
Contractual Technical
Reference N° F601.C06To be mixed with diesel (25
cc per 10 litres)
Windscreen/rear
window washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC 956-11
specifications.9.55522 or MS.90043PETRONAS DURANCE
SC35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in windscreen
washer/wiper systems
(*) IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
WARNING
71)The use of products with different specifications than those indicated below could cause damage to the engine not covered by the
warranty.
179

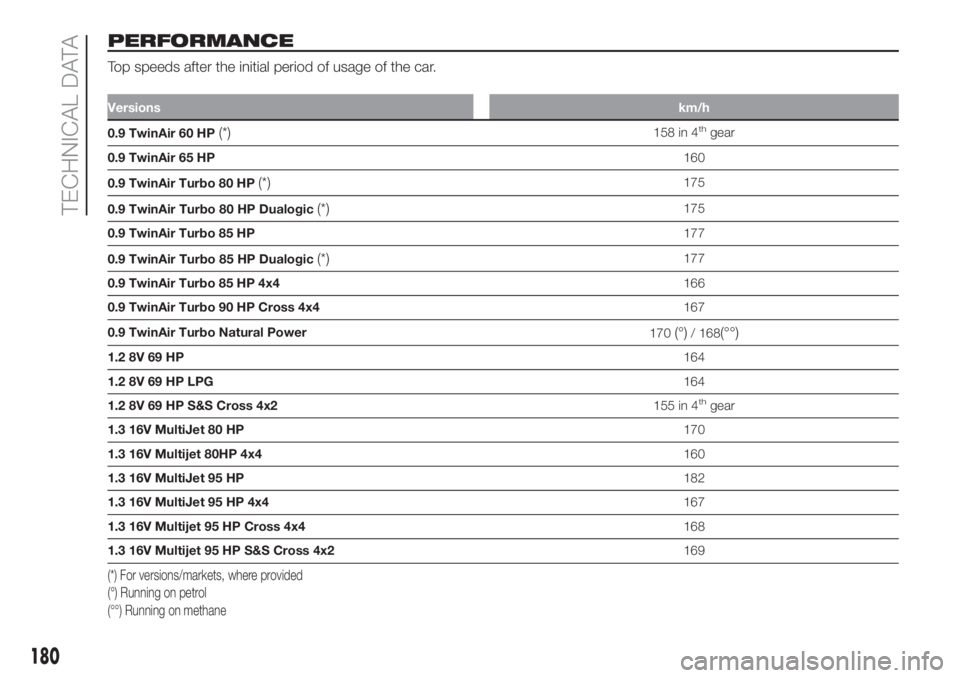

PERFORMANCE
Top speeds after the initial period of usage of the car.
Versionskm/h
0.9 TwinAir 60 HP(*)158 in 4thgear
0.9 TwinAir 65 HP160
0.9 TwinAir Turbo 80 HP
(*)175
0.9 TwinAir Turbo 80 HP Dualogic
(*)175
0.9 TwinAir Turbo 85 HP177
0.9 TwinAir Turbo 85 HP Dualogic
(*)177
0.9 TwinAir Turbo 85 HP 4x4166
0.9 TwinAir Turbo 90 HP Cross 4x4167
0.9 TwinAir Turbo Natural Power
170
(°)/ 168(°°)
1.2 8V 69 HP164
1.2 8V 69 HP LPG164
1.2 8V 69 HP S&S Cross 4x2155 in 4
thgear
1.3 16V MultiJet 80 HP170
1.3 16V Multijet 80HP 4x4160
1.3 16V MultiJet 95 HP182
1.3 16V MultiJet 95 HP 4x4167
1.3 16V Multijet 95 HP Cross 4x4168
1.3 16V Multijet 95 HP S&S Cross 4x2169
(*) For versions/markets, where provided
(°) Running on petrol
(°°) Running on methane
180
TECHNICAL DATA

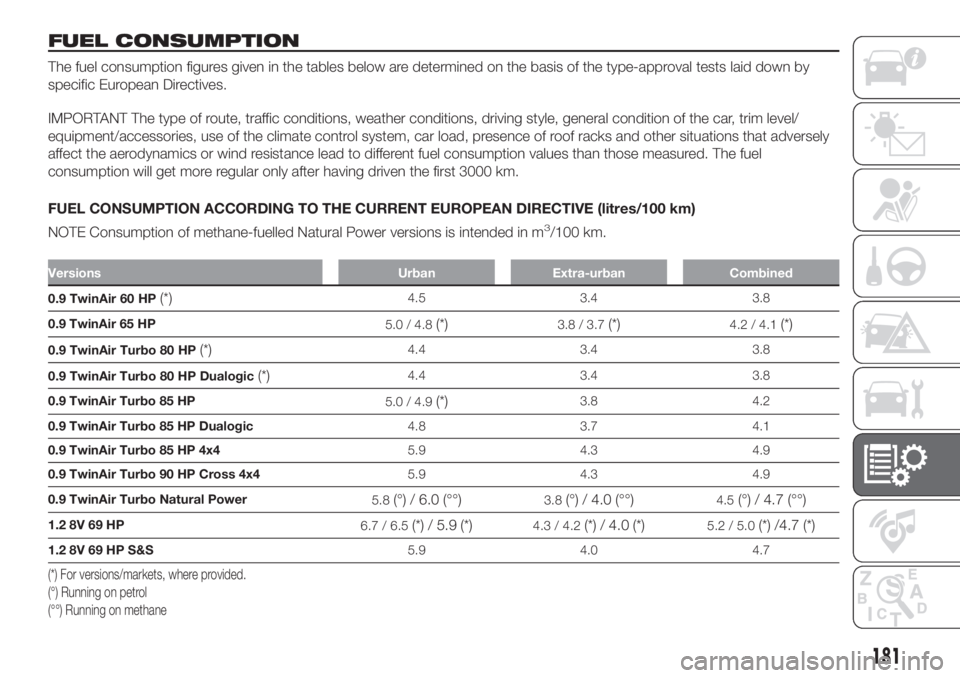

FUEL CONSUMPTION
The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by
specific European Directives.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim level/
equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that adversely
affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured. The fuel
consumption will get more regular only after having driven the first 3000 km.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
NOTE Consumption of methane-fuelled Natural Power versions is intended in m
3/100 km.
Versions Urban Extra-urban Combined
0.9 TwinAir 60 HP(*)4.5 3.4 3.8
0.9 TwinAir 65 HP
5.0 / 4.8
(*)3.8 / 3.7(*)4.2 / 4.1(*)
0.9 TwinAir Turbo 80 HP(*)4.4 3.4 3.8
0.9 TwinAir Turbo 80 HP Dualogic
(*)4.4 3.4 3.8
0.9 TwinAir Turbo 85 HP
5.0 / 4.9
(*)3.8 4.2
0.9 TwinAir Turbo 85 HP Dualogic4.8 3.7 4.1
0.9 TwinAir Turbo 85 HP 4x45.9 4.3 4.9
0.9 TwinAir Turbo 90 HP Cross 4x45.9 4.3 4.9
0.9 TwinAir Turbo Natural Power
5.8
(°) / 6.0 (°°)3.8(°) / 4.0 (°°)4.5(°) / 4.7 (°°)
1.2 8V 69 HP
6.7 / 6.5(*) / 5.9 (*)4.3 / 4.2(*) / 4.0 (*)5.2 / 5.0(*) /4.7 (*)
1.2 8V 69 HP S&S5.9 4.0 4.7
(*) For versions/markets, where provided.
(°) Running on petrol
(°°) Running on methane
181

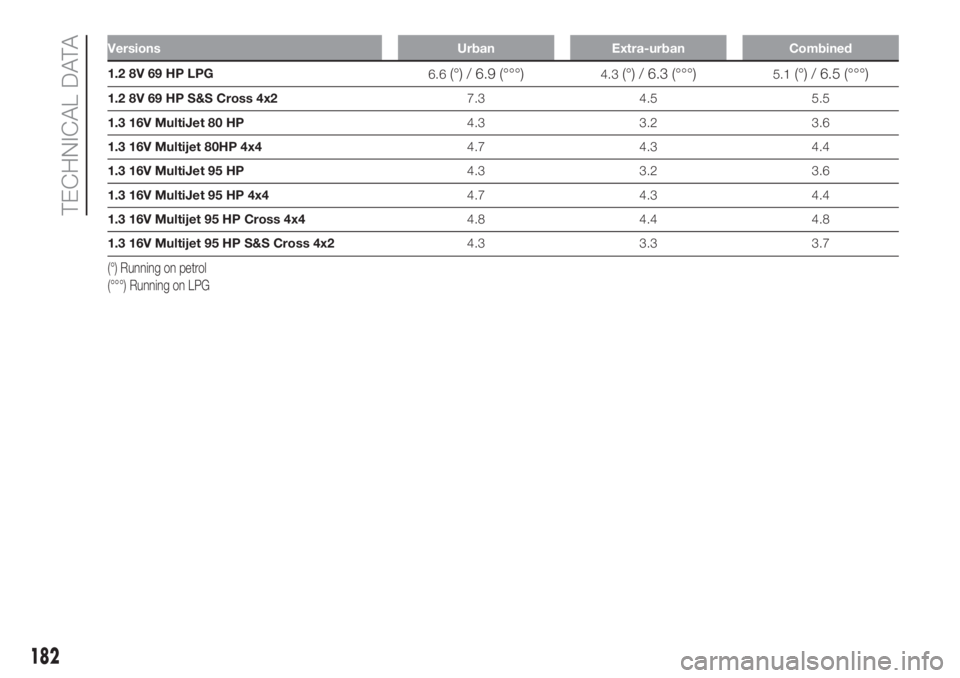

Versions Urban Extra-urban Combined
1.2 8V 69 HP LPG
6.6(°) / 6.9 (°°°)4.3(°) / 6.3 (°°°)5.1(°) / 6.5 (°°°)
1.2 8V 69 HP S&S Cross 4x27.3 4.5 5.5
1.3 16V MultiJet 80 HP4.3 3.2 3.6
1.3 16V Multijet 80HP 4x44.7 4.3 4.4
1.3 16V MultiJet 95 HP4.3 3.2 3.6
1.3 16V MultiJet 95 HP 4x44.7 4.3 4.4
1.3 16V Multijet 95 HP Cross 4x44.8 4.4 4.8
1.3 16V Multijet 95 HP S&S Cross 4x24.3 3.3 3.7
(°) Running on petrol
(°°°) Running on LPG
182
TECHNICAL DATA

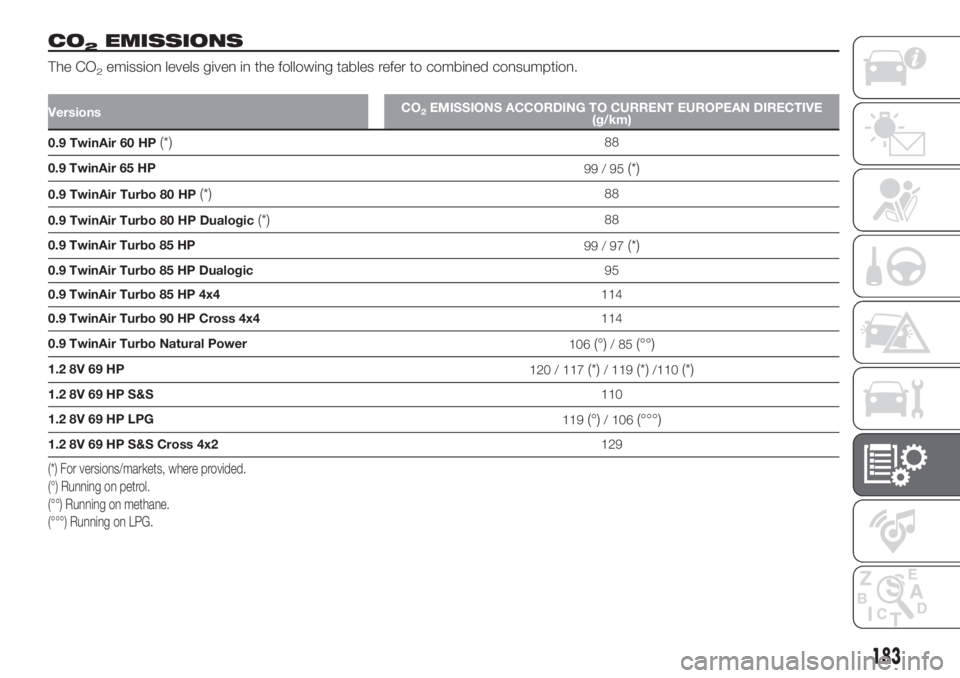

CO2EMISSIONS
The CO2emission levels given in the following tables refer to combined consumption.
VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
0.9 TwinAir 60 HP(*)88
0.9 TwinAir 65 HP
99/95
(*)
0.9 TwinAir Turbo 80 HP(*)88
0.9 TwinAir Turbo 80 HP Dualogic
(*)88
0.9 TwinAir Turbo 85 HP
99/97
(*)
0.9 TwinAir Turbo 85 HP Dualogic95
0.9 TwinAir Turbo 85 HP 4x4114
0.9 TwinAir Turbo 90 HP Cross 4x4114
0.9 TwinAir Turbo Natural Power
106
(°)/85(°°)
1.2 8V 69 HP
120 / 117(*)/ 119(*)/110(*)
1.2 8V 69 HP S&S110
1.2 8V 69 HP LPG
119
(°)/ 106(°°°)
1.2 8V 69 HP S&S Cross 4x2129
(*) For versions/markets, where provided.
(°) Running on petrol.
(°°) Running on methane.
(°°°) Running on LPG.
183

VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
1.3 16V MultiJet 80 HP94
1.3 16V Multijet 80HP 4x4117
1.3 16V MultiJet 95 HP94
1.3 16V MultiJet 95 HP 4x4117
1.3 16V Multijet 95 HP Cross 4x4119
1.3 16V Multijet 95 HP S&S Cross 4x297
184
TECHNICAL DATA

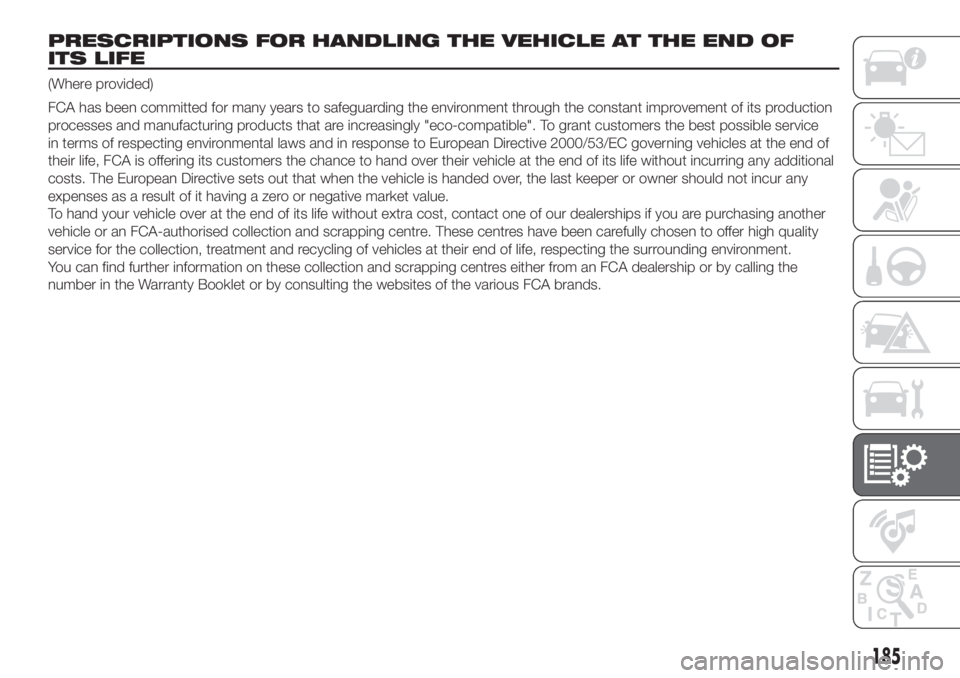

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFE
(Where provided)
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service
in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of
their life, FCA is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional
costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality
service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.
185

MULTIMEDIA
This chapter describes the main
functions of the Radio, Uconnect
Mobile system and Uconnect Bluetooth
system that can be fitted on the
vehicle.RADIO.............................................187
UCONNECT MOBILE –
UCONNECT BLUETOOTH ..............195
OFFICIAL TYPE APPROVALS .........210
186
MULTIMEDIA

Radio
183) 184) 185) 186) 187) 188)
The radio has been designed according
to the specifications of the passenger
compartment, with a personalised
design to match the style of the
dashboard.
TIPS
Road safety
Learn how to use the various radio
functions (for example, by storing
stations) before beginning to drive.
Care and maintenance
Clean the cover with a soft anti-static
cloth only. Cleaning and polishing
products may damage the surface.
ANTITHEFT PROTECTION
The radio is equipped with an anti-theft
protection system based on an
exchange of information between the
radio and the electronic control unit
(Body Computer) on the vehicle.
This system guarantees maximum
safety and prevents the secret code
from being entered each time the radio
power supply is disconnected.If the check has a positive outcome, the
radio will start to operate, whereas if
the comparison codes are not the
same or if the electronic control unit
(Body Computer) is replaced, the
device will ask the user to enter the
secret code according to the procedure
described in the paragraph below.
Entering the secret code
If the password is required when the
radio is switched on, the display will
show "Radio code" for about 2
seconds, followed by four dashes "- - -
-".
The code is made up of four digits from
1 to 6, each corresponding to one of
the dashes.
To enter the first digit, press the
corresponding button of the preset
stations (from 1 to 6). Enter the other
code digits in the same way.
If the four digits are not entered within
20 seconds, the display will show
"Enter code----".Ifthis occurs, it is
not considered an incorrect code entry.
After entering the fourth digit (within
20 seconds), the radio will start to
operate.
If an incorrect code is entered, the radio
will emit a sound and the display will
show "Radio blocked/wait" to notify the
user of the need to enter the correct
code.Each time the user enters an incorrect
code, the waiting time gradually
increases (1 min, 2 min, 4 min, 8 min,
16 min, 30 min, 1h, 2h, 4h, 8h, 16h,
24h) to a maximum of 24 hours.
The waiting time will be shown on the
display with the text "Radio blocked/
wait". After the text has disappeared it
is possible to start the code entering
procedure again.
Vehicle radio passport
This document certifies ownership of
the radio. The radio passport shows the
radio model, serial number and secret
code.
IMPORTANT Keep the radio passport in
a safe place so that you can give the
information to the relevant authorities if
the radio is stolen.
In the case of loss of the vehicle radio
passport, contact the Fiat Dealership,
taking an ID document and the vehicle
ownership documents.
187

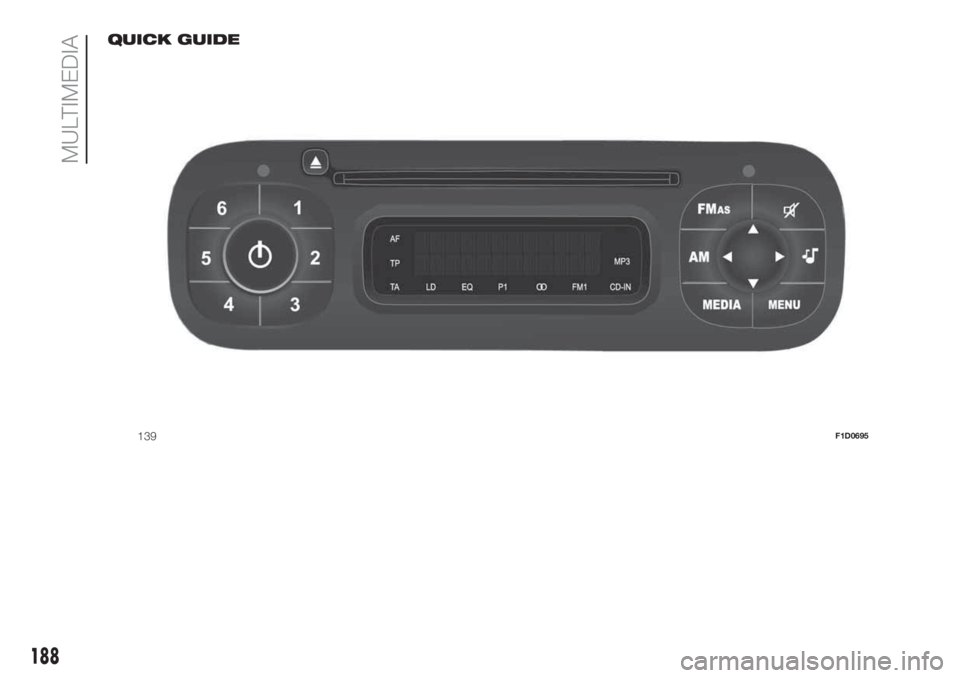

QUICK GUIDE
139F1D0695
188
