FIAT PANDA 2018 Owner handbook (in English)

Panda 4x4 versions
Versions Wheels Tyres provided Winter tyresSpace saver spare
wheel(*)
0.9 TwinAir Turbo 85
HP5.5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35175/65 R14 82T
Goodyear Duragrip
(**)
(***)175/65 R14 84Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
175/65 R15 84T (M+S)
(°)175/65 R15 84T (M+S) 125/80 R15 95M
6J x 15H2 - ET35
175/65 R15 84T
(°) (°°)175/65 R15 84Q (M+S) 125/80 R15 95M
1.3 16V MultiJet6J x 15H2 - ET35
175/65 R15 84T (M+S)
(°)175/65 R15 84T (M+S) 125/80 R15 95M
6J x 15H2 - ET35
175/65 R15 84T
(°)175/65 R15 84Q (M+S) 125/80 R15 95M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with size 9 mm snow chains.
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(°) Tyres to which reduced size snow chains can be fitted: 7 mm.
(°°) Tyres available on request.
159

Panda Cross 4x4 versions
Versions Wheels Tyres provided Winter tyresSpace saver spare
wheel(*)
0.9 TwinAir Turbo 90
HP6 J x 15H2 ET35
175/65 R15 84T (M+S)
(**)175/65 R15 84T (M+S) 125/80 R15 95M
6 J x 15H2 ET35
175/65 R15 84T
(**)175/65 R15 84Q (M+S) 125/80 R15 95M
6 J x 15H2 ET30185/65 R15 88H
(M+S)
(***)185/65 R15 88Q (M+S) 125/80 R15 95M
6 J x 15H2 ET30
185/65 R15 88H
(***)185/65 R15 88Q (M+S) 125/80 R15 95M
1.3 16V MultiJet6 J x 15H2 ET35
175/65 R15 84T (M+S)
(**)175/65 R15 84T (M+S) 125/80 R15 95M
6 J x 15H2 ET35
175/65 R15 84T
(**)175/65 R15 84Q (M+S) 125/80 R15 95M
6 J x 15H2 ET30185/65 R15 88H
(M+S)
(***)185/65 R15 88H (M+S) 125/80 R15 95M
6 J x 15H2 ET30
185/65 R15 88H
(***)185/65 R15 88Q (M+S) 125/80 R15 95M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with chains.
(***) Tyre not suitable for fitting snow chains.
NOTE For Panda Cross 4x4 and Panda 4x4 versions if the space-saver wheel is used, the control unit for 4x4 drive detects its
presence (via the wheel speed signals) and reduces the intervention of the four-wheel drive to a minimum, while guaranteeing
the agility of the vehicle. No fault/alarm signal is displayed on the instrument panel or on the display.
160
TECHNICAL DATA

Panda Cross 4x2 versions
Versions Wheels Tyres provided Winter tyresSpace saver spare
wheel(*)
1.3 16V Multijet 95 HP
S&S6 J x 15H2 ET35
175/65 R15 84T(**)– 125/80 R15 95M
6 J x 15H2 ET30 185/65 R15 88H (M+S) 185/65 R15 88H (M+S) 125/80 R15 95M
1.2 8V 69 HP S&S6J x 15H2 ET35
175/65 R15 84T
(**)– 125/80 R15 95M
6J x 15H2 ET30 185/65 R15 88H (M+S) 185/65 R15 88H (M+S) 125/80 R15 95M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with chains.
161

COLD TYRE INFLATION PRESSURE (bar)
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck
that the value is correct with the tyre cold. With winter tyres the pressure should be +0.2 bar compared with the recommended
figure for the tyres that comes with the vehicle.
Panda versions
TyresUnladen/medium load Full load
Space saver spare
wheel(*)Front Rear Front Rear
175/65 R14 82T
2.2 / 2.5(**)2.0 / 2.5(**)/ 2.1
(***)2.5 2.5 2.8
185/55 R15 82T 2.2 2.0 2.5 2.5 2.8
185/55 R15 82H 2.2 2.0 2.5 2.5 2.8
(*) For versions/markets, where provided
(**) 0.9 TwinAir 60 HP/80 HP engines
(***)Natural Power versions
162
TECHNICAL DATA

Panda Cross 4x2 / Panda Cross 4x4 / Panda 4x4 versions
TyresUnladen/medium load Full load
Space saver spare
wheel(°)Front Rear Front Rear
175/65 R14 82T M+S(*)2.2 2.1 2.5 2.5 4.2
175/65 R15 84T
(*)2.2 2.1 2.5 2.5 4.2
175/65 R15 84T
(**)2.4 2.2 2.7 2.7 4.2
185/65 R15 88H
(**)2.4 2.2 2.7 2.7 4.2
(°) For versions/markets, where provided. (*) For Panda 4x4 versions
(**) For Panda Cross versions
NOTE For Panda Cross 4x4 and Panda 4x4 versions, do not drive deliberately for long distances with the tyres flat (not at the
prescribed pressure) and/or with greatly varying pressures between front axle and rear axle, in order to avoid any malfunction of
the 4x4 drive.
.
163

WARNING
177)The top speed for winter tyres marked “Q” is 160 km/h, while it is 190 km/h for “T” tyres and 210 km/h for "H" tyres. The highway code
speed limits must however always be complied with.
178)185/55 R15 82T tyres cannot be fitted with chains.
179)175/65 R14 82T tyres can be fitted with reduced size snow chains: 9 mm.
180)175/65 R15 84T tyres can be fitted with reduced size snow chains: 7 mm.
181)Keep the vehicle's speed down when snow chains are fitted; never exceed 50 km/h. Avoid potholes, do not drive over steps or
pavements and do not drive long distances over roads without snow, to avoid damaging both your vehicle and the road surface.
182)DO NOT fit wheel hub caps when using integral hub caps fixed (with springs) to the steel rim and after sale tyres provided with Rim
Protector. Use of unsuitable tyres and wheel caps may cause sudden decrease of tyre pressure.
WARNING
70)With snow chains, use the accelerator with extreme care to prevent, or to limit as much as possible, slipping of the drive wheels that
could cause chain breakage, resulting in damage to the car body or mechanical components.
164
TECHNICAL DATA

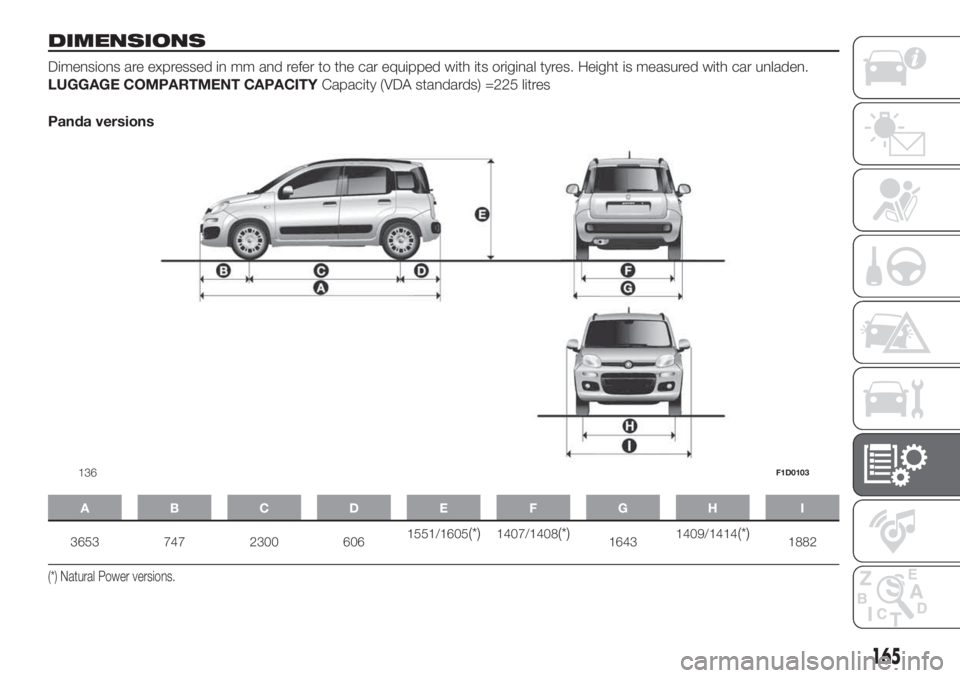

DIMENSIONS
Dimensions are expressed in mm and refer to the car equipped with its original tyres. Height is measured with car unladen.
LUGGAGE COMPARTMENT CAPACITYCapacity (VDA standards) =225 litres
Panda versions
ABCDE FGH I
3653 747 2300 6061551/1605(*)1407/1408(*)16431409/1414(*)1882
(*) Natural Power versions.
136F1D0103
165

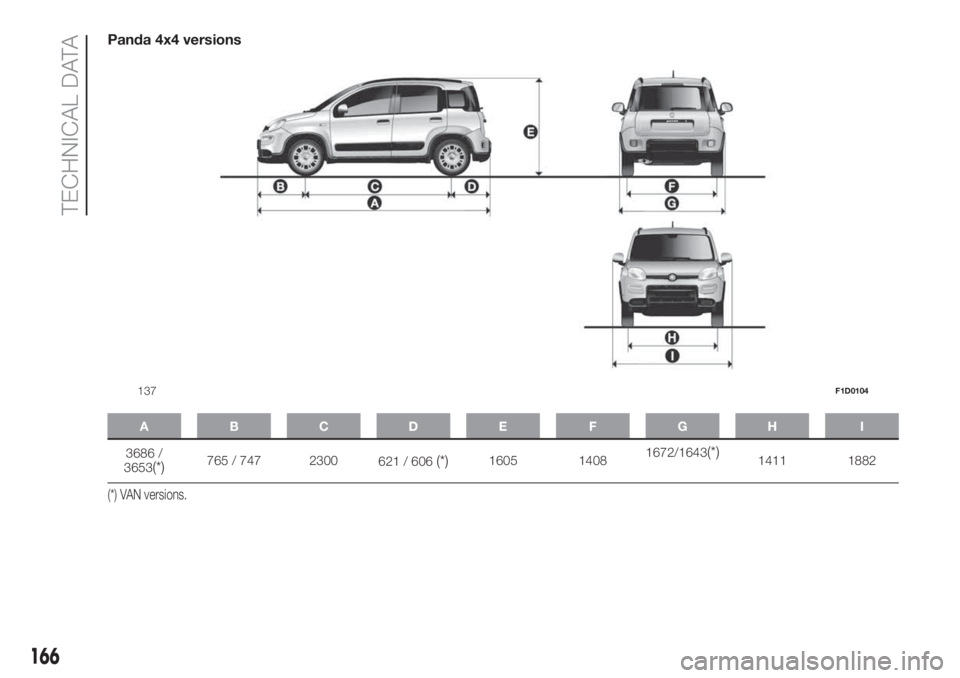

Panda 4x4 versions
ABCDE FGH I
3686 /
3653(*)765 / 747 2300
621 / 606(*)1605 14081672/1643(*)1411 1882
(*) VAN versions.
137F1D0104
166
TECHNICAL DATA

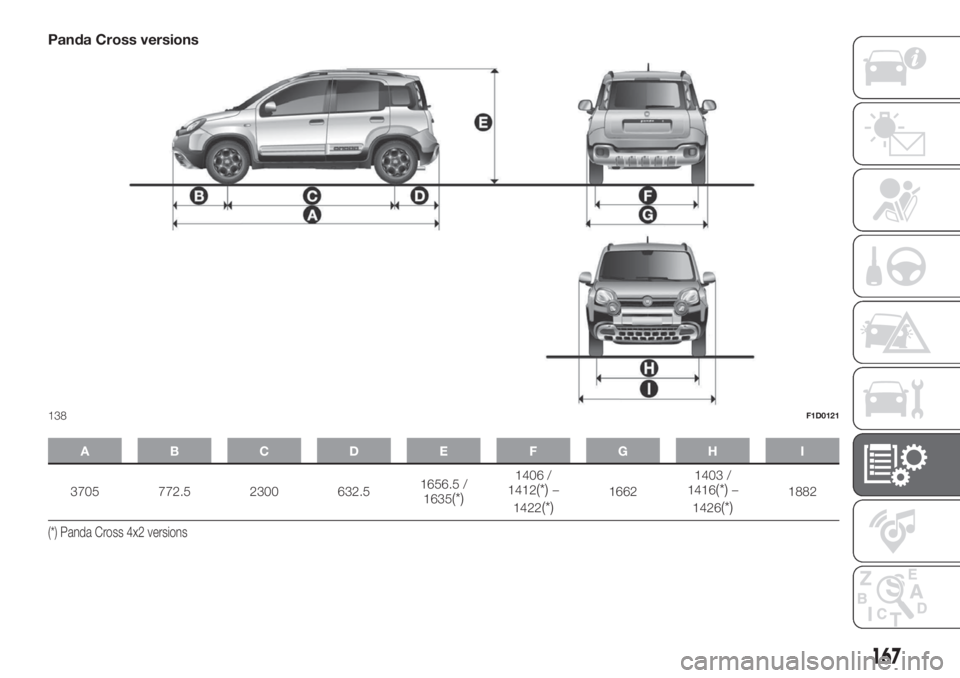

Panda Cross versions
ABCDE FGH I
3705 772.5 2300 632.51656.5 /
1635(*)
1406 /
1412(*)–
1422
(*)16621403 /
1416(*)–
1426
(*)1882
(*) Panda Cross 4x2 versions
138F1D0121
167

WEIGHTS
Panda versions
Weights (kg) 0.9 TwinAir 60HP / 65HP0.9 TwinAir Turbo 80HP
/ 85HP0.9 TwinAir Turbo
Natural Power
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):955 975 / 980
1080/1090(***)
Payload including the driver:(*)480 (4-seater) / 500
(5-seater)480 (4-seater) / 500
(5-seater)460 (4-seater) /450(***)
(4-seater) / 470 (5-seater)
/ 460
(***)(5-seater)
Maximum permitted loads
(**)
- front axle: 770 855 875
– rear axle: 760 760 810
- total:1435 (4-seater) / 1455
(5-seater)1455 (4 seats) / 1460 (4
seats)
(°)/ 1475 (5-seater)
/ 1480 (5-seater)
(°)
1540 (4-seater) / 1550
(5-seater)
Towable loads
– braked trailer: 800 800
(°°)
– non-braked trailer: 400 400(°°)
Maximum load on roof: 55 55 55
Maximum load on ball joint (braked trailer): 60 60
(°°)
(***) For versions/markets, where foreseen (*) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted
loads.
(°) Versions equipped with the "Dualogic" gearbox
(°°)IMPORTANT A trailer cannot be towed so there are no provisions for fitting a tow hook.
168
TECHNICAL DATA
