FIAT PANDA 2018 Owner handbook (in English)

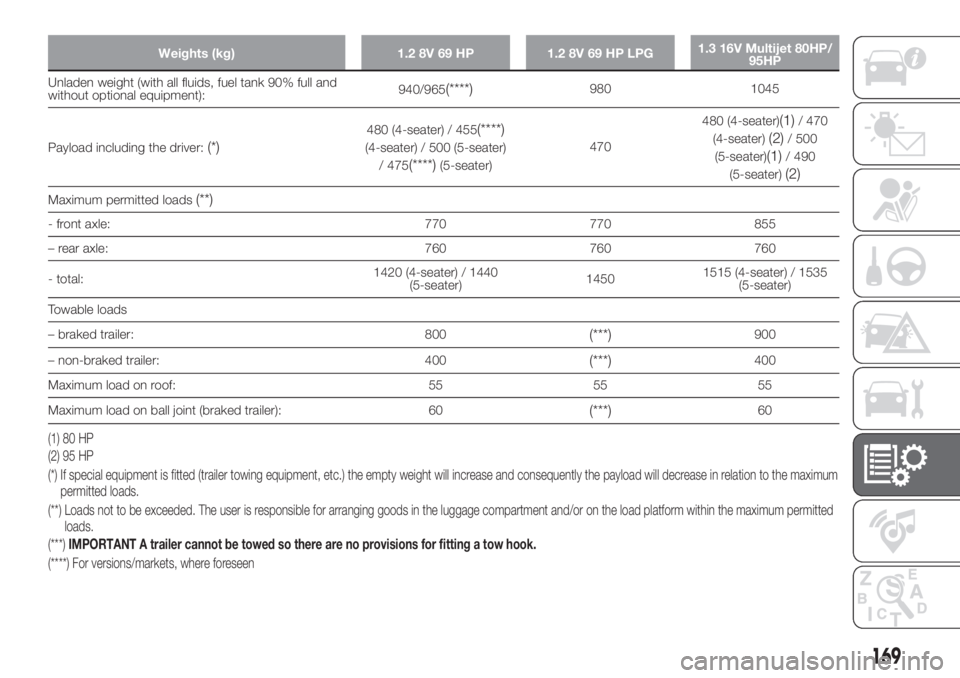

Weights (kg) 1.2 8V 69 HP 1.2 8V 69 HP LPG1.3 16V Multijet 80HP/
95HP
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):940/965(****)980 1045
Payload including the driver:
(*)
480 (4-seater) / 455(****)
(4-seater) / 500 (5-seater)
/ 475
(****)(5-seater)470480 (4-seater)
(1)/ 470
(4-seater)
(2)/ 500
(5-seater)
(1)/ 490
(5-seater)
(2)
Maximum permitted loads(**)
- front axle: 770 770 855
– rear axle: 760 760 760
- total:1420 (4-seater) / 1440
(5-seater)14501515 (4-seater) / 1535
(5-seater)
Towable loads
– braked trailer: 800
(***)900
– non-braked trailer: 400
(***)400
Maximum load on roof: 55 55 55
Maximum load on ball joint (braked trailer): 60
(***)60
(****) For versions/markets, where foreseen (*) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the maximum
permitted loads. (1) 80 HP
(2) 95 HP
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted
loads.
(***)IMPORTANT A trailer cannot be towed so there are no provisions for fitting a tow hook.
169

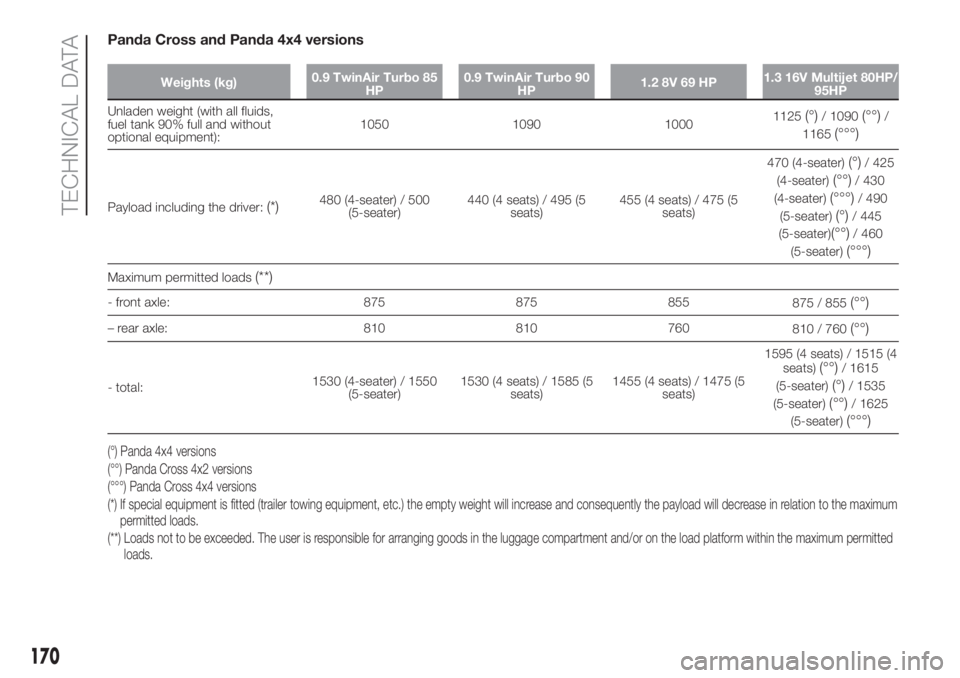

Panda Cross and Panda 4x4 versions
Weights (kg)0.9 TwinAir Turbo 85
HP0.9 TwinAir Turbo 90
HP1.2 8V 69 HP1.3 16V Multijet 80HP/
95HP
Unladen weight (with all fluids,
fuel tank 90% full and without
optional equipment):1050 1090 10001125(°)/ 1090(°°)/
1165
(°°°)
Payload including the driver:(*)480 (4-seater) / 500
(5-seater)440 (4 seats) / 495 (5
seats)455 (4 seats) / 475 (5
seats)470 (4-seater)
(°)/ 425
(4-seater)
(°°)/ 430
(4-seater)
(°°°)/ 490
(5-seater)
(°)/ 445
(5-seater)
(°°)/ 460
(5-seater)
(°°°)
Maximum permitted loads(**)
- front axle: 875 875 855
875 / 855(°°)
– rear axle: 810 810 760
810 / 760(°°)
(°) Panda 4x4 versions
(°°) Panda Cross 4x2 versions
(°°°) Panda Cross 4x4 versions
(*) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted
loads.
170
TECHNICAL DATA
- total:1530 (4-seater) / 1550
(5-seater)1530 (4 seats) / 1585 (5
seats)1455 (4 seats) / 1475 (5
seats)1595 (4 seats) / 1515 (4
seats)
(°°)/ 1615
(5-seater)
(°)/ 1535
(5-seater)
(°°)/ 1625
(5-seater)
(°°°)

Weights (kg)0.9 TwinAir Turbo 85
HP0.9 TwinAir Turbo 90
HP1.2 8V 69 HP1.3 16V Multijet 80HP/
95HP

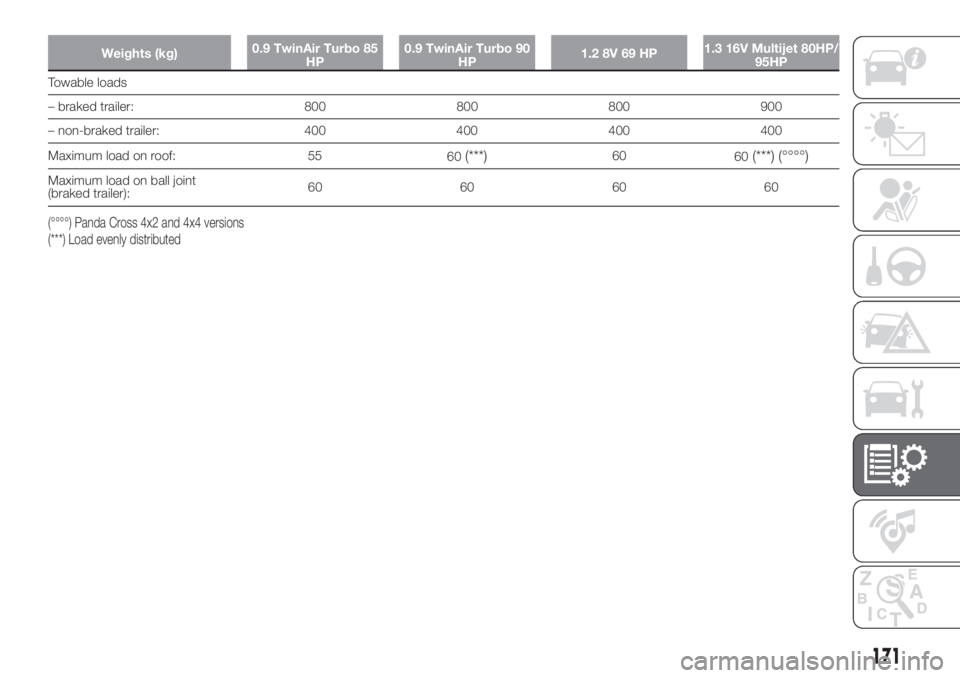

Towable loads
– braked trailer: 800 800 800 900
– non-braked trailer: 400 400 400 400
Maximum load on roof: 55
60
(***)60
60(***) (°°°°)
Maximum load on ball joint
(braked trailer):60 60 60 60
(***) Load evenly distributed (°°°°) Panda Cross 4x2 and 4x4 versions
171

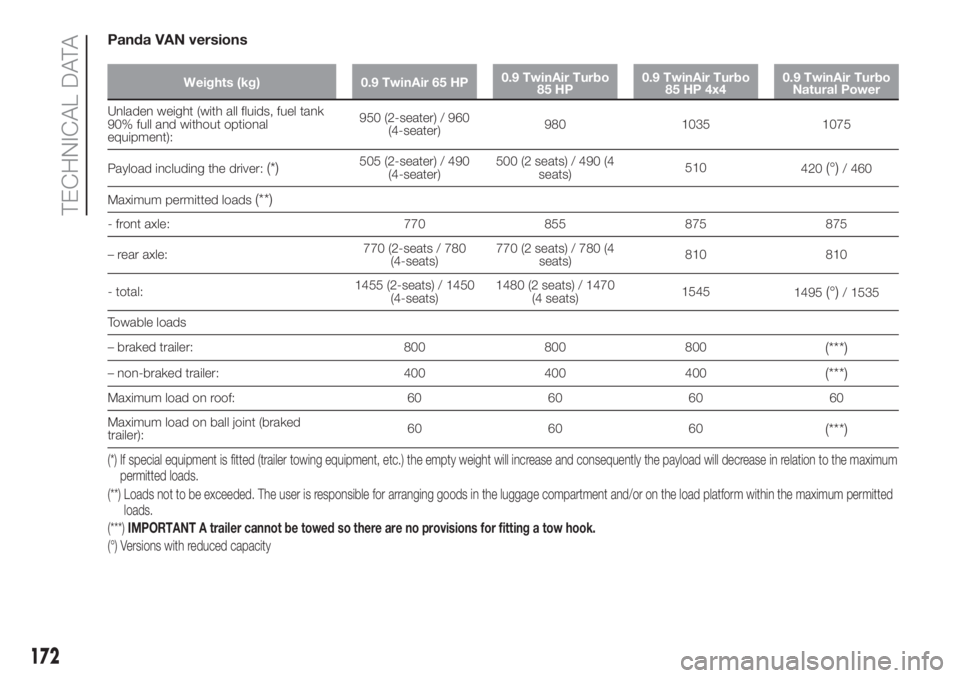

Panda VAN versions
Weights (kg) 0.9 TwinAir 65 HP0.9 TwinAir Turbo
85 HP0.9 TwinAir Turbo
85 HP 4x40.9 TwinAir Turbo
Natural Power
Unladen weight (with all fluids, fuel tank
90% full and without optional
equipment):950 (2-seater) / 960
(4-seater)980 1035 1075
Payload including the driver:
(*)505 (2-seater) / 490
(4-seater)500 (2 seats) / 490 (4
seats)510
420(°)/ 460
Maximum permitted loads
(**)
- front axle: 770 855 875 875
– rear axle:770 (2-seats / 780
(4-seats)770 (2 seats) / 780 (4
seats)810 810
- total:1455 (2-seats) / 1450
(4-seats)1480 (2 seats) / 1470
(4 seats)1545
1495
(°)/ 1535
Towable loads
– braked trailer: 800 800 800
(***)
– non-braked trailer: 400 400 400(***)
Maximum load on roof: 60 60 60 60
Maximum load on ball joint (braked
trailer):60 60 60
(***)
(*) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the maximum
permitted loads.
(°) Versions with reduced capacity (**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted
loads.
(***)IMPORTANT A trailer cannot be towed so there are no provisions for fitting a tow hook.
172
TECHNICAL DATA

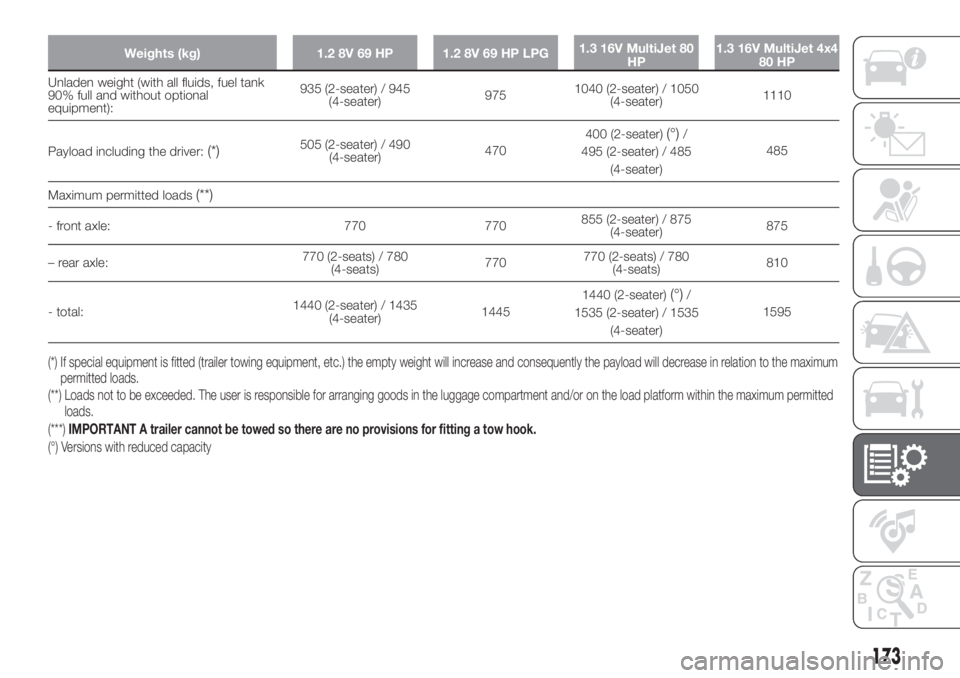

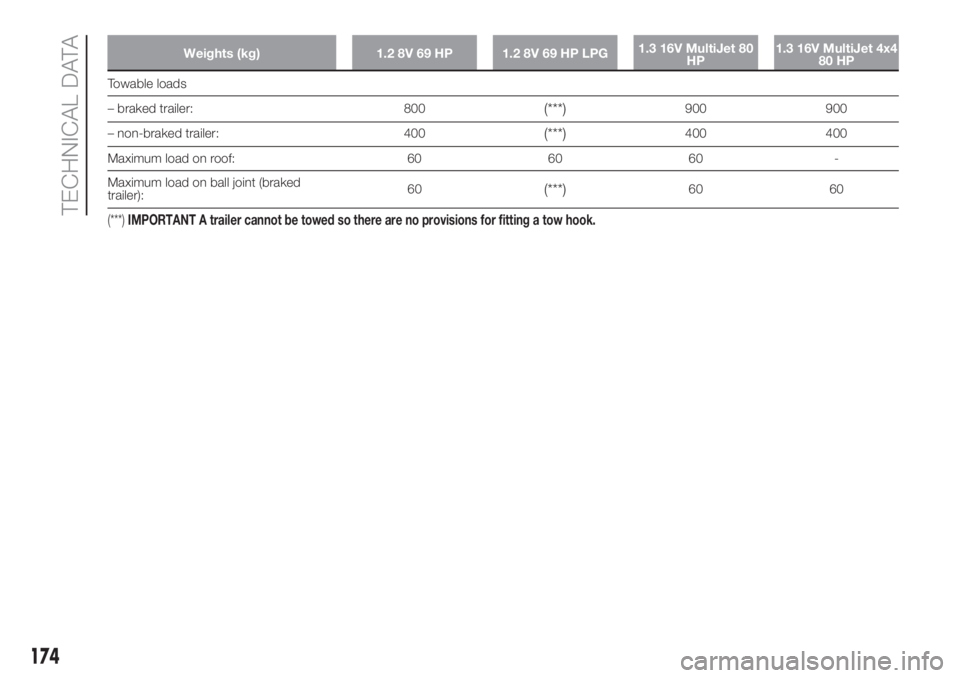

Weights (kg) 1.2 8V 69 HP 1.2 8V 69 HP LPG1.3 16V MultiJet 80
HP1.3 16V MultiJet 4x4
80 HP
Unladen weight (with all fluids, fuel tank
90% full and without optional
equipment):935 (2-seater) / 945
(4-seater)9751040 (2-seater) / 1050
(4-seater)1110
Payload including the driver:
(*)505 (2-seater) / 490
(4-seater)470400 (2-seater)(°)/
495 (2-seater) / 485
(4-seater)485
Maximum permitted loads
(**)
- front axle: 770 770855 (2-seater) / 875
(4-seater)875
– rear axle:770 (2-seats) / 780
(4-seats)770770 (2-seats) / 780
(4-seats)810
- total:1440 (2-seater) / 1435
(4-seater)14451440 (2-seater)
(°)/
1535 (2-seater) / 1535
(4-seater)1595
(*) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the maximum
permitted loads.
(°) Versions with reduced capacity (**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted
loads.
(***)IMPORTANT A trailer cannot be towed so there are no provisions for fitting a tow hook.
173

Weights (kg) 1.2 8V 69 HP 1.2 8V 69 HP LPG1.3 16V MultiJet 80
HP1.3 16V MultiJet 4x4
80 HP
– non-braked trailer: 400(***)400 400
Maximum load on roof: 60 60 60 -
Maximum load on ball joint (braked
trailer):60
(***)60 60
(***)IMPORTANT A trailer cannot be towed so there are no provisions for fitting a tow hook.
174
TECHNICAL DATA
Towable loads
– braked trailer: 800
(***)900 900

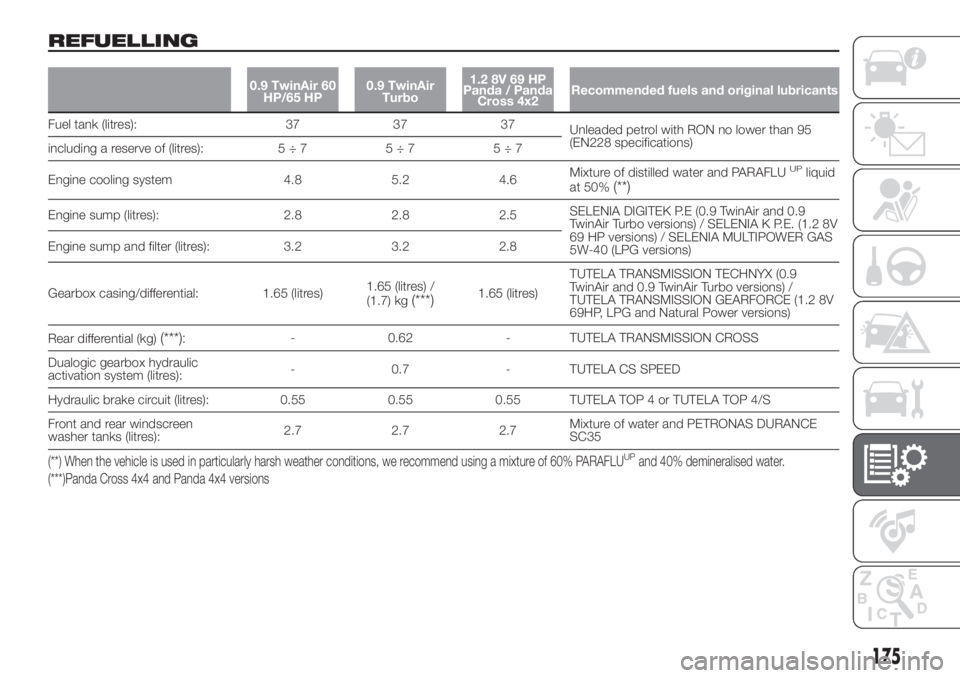

REFUELLING
0.9 TwinAir 60
HP/65 HP0.9 TwinAir
Turbo1.2 8V 69 HP
Panda / Panda
Cross 4x2Recommended fuels and original lubricants
Fuel tank (litres): 37 37 37
Unleaded petrol with RON no lower than 95
(EN228 specifications)
including a reserve of (litres): 5 ÷ 7 5 ÷ 7 5 ÷ 7
Engine cooling system 4.8 5.2 4.6Mixture of distilled water and PARAFLU
UPliquid
at 50%(**)
Engine sump (litres): 2.8 2.8 2.5SELENIA DIGITEK P.E (0.9 TwinAir and 0.9
TwinAir Turbo versions) / SELENIA K P.E. (1.2 8V
69 HP versions) / SELENIA MULTIPOWER GAS
5W-40 (LPG versions) Engine sump and filter (litres): 3.2 3.2 2.8
Gearbox casing/differential: 1.65 (litres)1.65 (litres) /
(1.7) kg
(***)1.65 (litres)TUTELA TRANSMISSION TECHNYX (0.9
TwinAir and 0.9 TwinAir Turbo versions) /
TUTELA TRANSMISSION GEARFORCE (1.2 8V
69HP, LPG and Natural Power versions)
Rear differential (kg)
(***):- 0.62 - TUTELA TRANSMISSION CROSS
Dualogic gearbox hydraulic
activation system (litres):- 0.7 - TUTELA CS SPEED
Hydraulic brake circuit (litres): 0.55 0.55 0.55 TUTELA TOP 4 or TUTELA TOP 4/S
Front and rear windscreen
washer tanks (litres):2.7 2.7 2.7Mixture of water and PETRONAS DURANCE
SC35
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUPand 40% demineralised water.
(***)Panda Cross 4x4 and Panda 4x4 versions
175

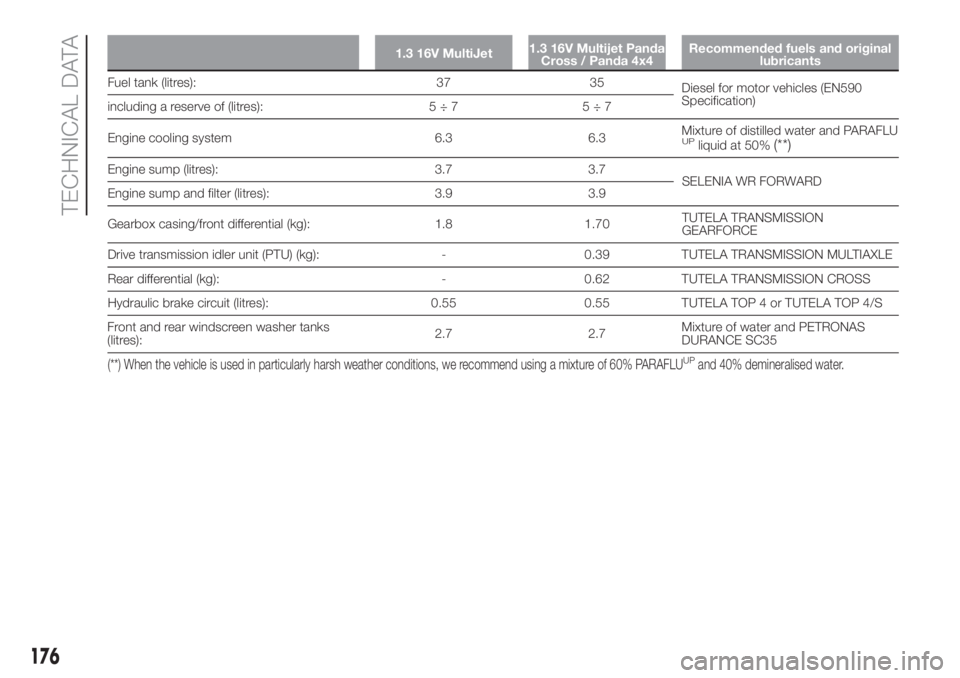

1.3 16V MultiJet1.3 16V Multijet Panda
Cross / Panda 4x4Recommended fuels and original
lubricants
Fuel tank (litres): 37 35
Diesel for motor vehicles (EN590
Specification)
including a reserve of (litres): 5 ÷ 7 5 ÷ 7
Engine cooling system 6.3 6.3Mixture of distilled water and PARAFLU
UPliquid at 50%(**)
Engine sump (litres): 3.7 3.7
SELENIA WR FORWARD
Engine sump and filter (litres): 3.9 3.9
Gearbox casing/front differential (kg): 1.8 1.70TUTELA TRANSMISSION
GEARFORCE
Drive transmission idler unit (PTU) (kg): - 0.39 TUTELA TRANSMISSION MULTIAXLE
Rear differential (kg): - 0.62 TUTELA TRANSMISSION CROSS
Hydraulic brake circuit (litres): 0.55 0.55 TUTELA TOP 4 or TUTELA TOP 4/S
Front and rear windscreen washer tanks
(litres):2.7 2.7Mixture of water and PETRONAS
DURANCE SC35
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUPand 40% demineralised water.
176
TECHNICAL DATA

FLUIDS AND LUBRICANTS
Your car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the
Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration. If lubricants conforming to the required
specifications are not available, products that meet the indicated specifications can be used to top up; in this case optimal
performance of the engine is not guaranteed.
71)
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricants for petrol
engines and 1.2 8V
69HPSAE 5W-40 ACEA C3 /
API SN.9.55535-S2SELENIA K P.E.
Contractual Technical
Reference N° F603.C07According to Service
Schedule
Lubricants for petrol
engines 0.9 TwinAir
and 0.9 TwinAir
TurboSAE 0W-30 ACEA C2 /
API SN.9.55535-GS1SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12According to Service
Schedule
Lubricant for petrol/
methane enginesSAE 0W-30 ACEA C2 /
API SN.9.55535-GS1SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12According to Service
Schedule
Lubricant for petrol/
LPG enginesSAE 5W-40 ACEA C3 /
API SM.9.55535-T2SELENIA MULTIPOWER
GAS 5W-40
Contractual Technical
Reference No. F922.E09According to Service
Schedule
Diesel engine
lubricantsSAE 0W-30 ACEA C2.9.55535-DS1 or
MS.90047SELENIA WR FORWARD
Contractual Technical
Reference N° F842.F13According to Service
Schedule
177

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and
greases for drive
transmissionSAE 75W- 85 grade
synthetic lubricant.
9.55550-MX39.55550-MX3TUTELA TRANSMISSION
TECHNYX
Contractual Technical
Reference N° F010.B05Manual gearbox and
differential (0.9 TwinAir and
0.9 TwinAir Turbo versions)
SAE 75W grade synthetic
lubricant.9.55550-MZ6TUTELA TRANSMISSION
GEARFORCE
Contractual Technical
Reference N° F002.F10Manual gearbox and
differential (1.3 16V Multijet,
LPG, and 1.2 8V 69HP and
Natural Power versions)
Fully synthetic oil with
dedicated additive.9.55550-SA1TUTELA CS SPEED
Contractual Technical
Reference N° F005.F98Dualogic gearbox hydraulic
activation system
SAE 75W-85 grade
synthetic lubricant.9.55550 - DA4TUTELA TRANSMISSION
CROSS
Contractual Technical
Reference N° F001.D12Rear differential(°)
SAE 75W-85 grade
synthetic lubricant, which
exceeds API GL5
specifications.9.55550 - DA3TUTELA TRANSMISSION
MULTIAXLE
Contractual Technical
Reference N° F426.E06Drive transmission idler unit
(PTU)
(°)
Molybdenum disulphide
grease, for use at high
temperatures. N.L.G.I.
consistency 1-2.9.55580 - GRASS IITUTELA ALL STAR
Contractual Technical
Reference N° F702.G07Wheel side constant
velocity joints
Low friction coefficient
grease for constant
velocity joints. N.L.G.I.
consistency 0-1.9.55580 - GRASS IITUTELA STAR 700
Contractual Technical
Reference N° F701.C07Differential side constant
velocity joints
(°) Panda Cross 4x4 and Panda 4x4 versions.
178
TECHNICAL DATA
