FIAT PUNTO EVO 2009 1.G Owners Manual

120
F0U0108mfig. 125

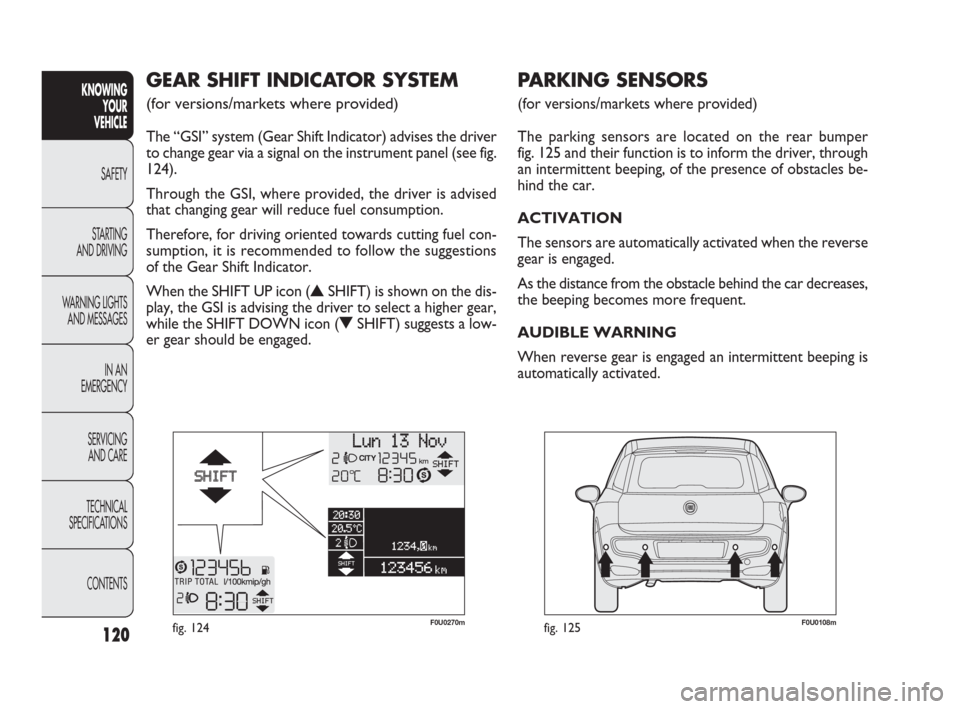

PARKING SENSORS
(for versions/markets where provided)
The parking sensors are located on the rear bumper
fig. 125 and their function is to inform the driver, through
an intermittent beeping, of the presence of obstacles be-
hind the car.
ACTIVATION
The sensors are automatically activated when the reverse
gear is engaged.
As the distance from the obstacle behind the car decreases,
the beeping becomes more frequent.
AUDIBLE WARNING
When reverse gear is engaged an intermittent beeping is
automatically activated. KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
GEAR SHIFT INDICATOR SYSTEM
(for versions/markets where provided)
The “GSI” system (Gear Shift Indicator) advises the driver
to change gear via a signal on the instrument panel (see fig.
124).
Through the GSI, where provided, the driver is advised
that changing gear will reduce fuel consumption.
Therefore, for driving oriented towards cutting fuel con-
sumption, it is recommended to follow the suggestions
of the Gear Shift Indicator.
When the SHIFT UP icon (
NSHIFT) is shown on the dis-
play, the GSI is advising the driver to select a higher gear,
while the SHIFT DOWN icon (
OSHIFT) suggests a low-
er gear should be engaged.
F0U0270mfig. 124
082-128 PUNTO FL EN 3ed 9-12-2009 13:43 Pagina 120

121

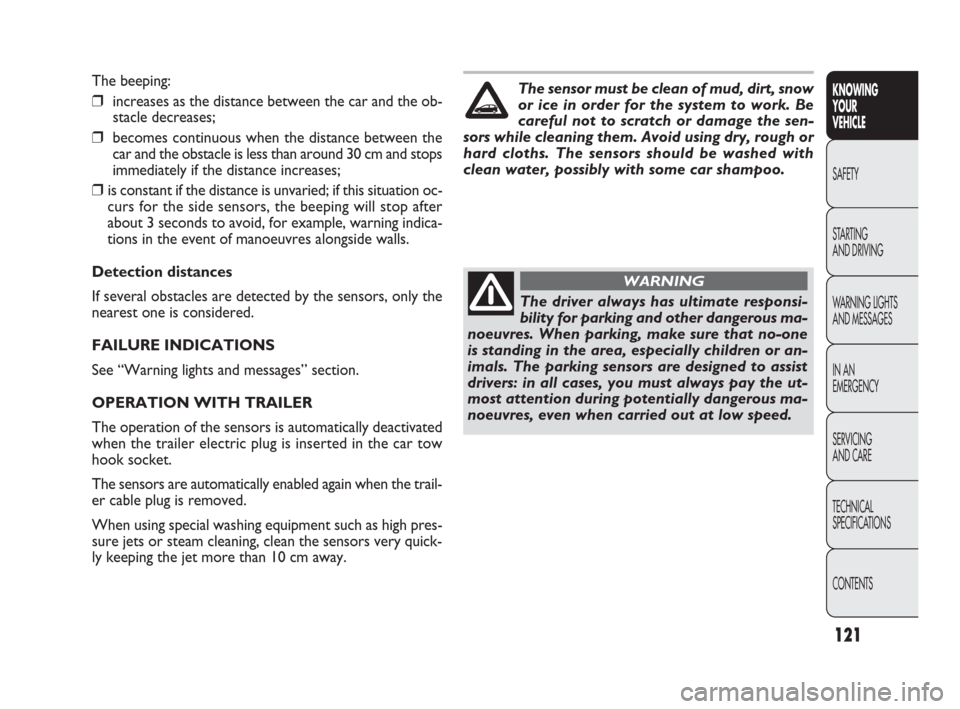

The beeping:
❒increases as the distance between the car and the ob-
stacle decreases;
❒becomes continuous when the distance between the
car and the obstacle is less than around 30 cm and stops
immediately if the distance increases;
❒is constant if the distance is unvaried; if this situation oc-
curs for the side sensors, the beeping will stop after
about 3 seconds to avoid, for example, warning indica-
tions in the event of manoeuvres alongside walls.
Detection distances
If several obstacles are detected by the sensors, only the
nearest one is considered.
FAILURE INDICATIONS
See “Warning lights and messages” section.
OPERATION WITH TRAILER
The operation of the sensors is automatically deactivated
when the trailer electric plug is inserted in the car tow
hook socket.
The sensors are automatically enabled again when the trail-
er cable plug is removed.
When using special washing equipment such as high pres-
sure jets or steam cleaning, clean the sensors very quick-
ly keeping the jet more than 10 cm away.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The driver always has ultimate responsi-
bility for parking and other dangerous ma-
noeuvres. When parking, make sure that no-one
is standing in the area, especially children or an-
imals. The parking sensors are designed to assist
drivers: in all cases, you must always pay the ut-
most attention during potentially dangerous ma-
noeuvres, even when carried out at low speed.
WARNING
The sensor must be clean of mud, dirt, snow
or ice in order for the system to work. Be
careful not to scratch or damage the sen-
sors while cleaning them. Avoid using dry, rough or
hard cloths. The sensors should be washed with
clean water, possibly with some car shampoo.
082-128 PUNTO FL EN 3ed 9-12-2009 13:43 Pagina 121

122F0U0109mfig. 126

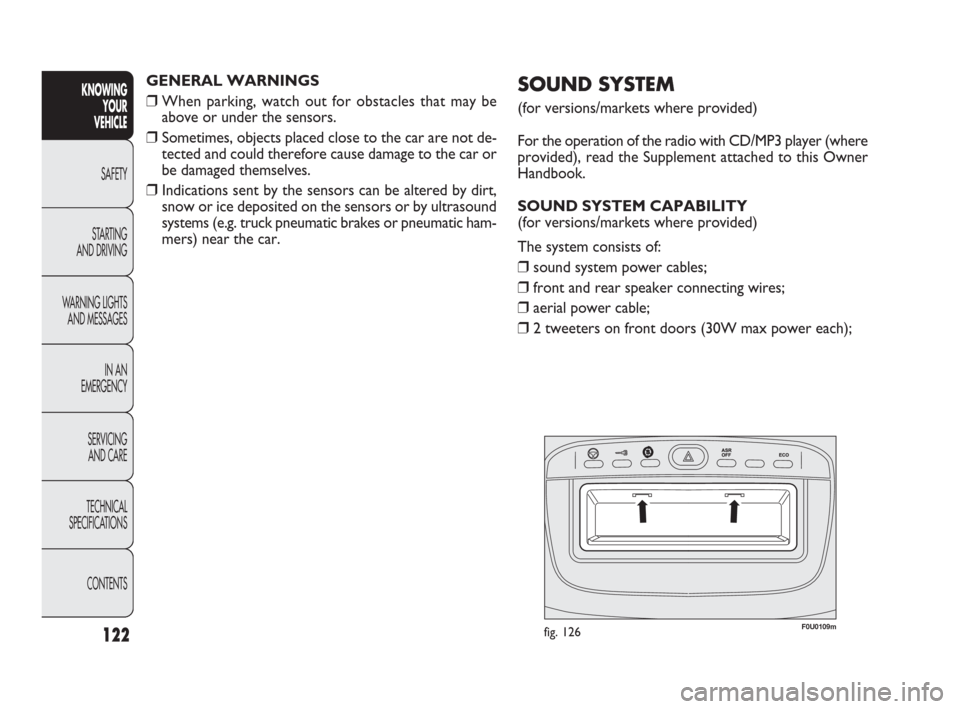

SOUND SYSTEM
(for versions/markets where provided)
For the operation of the radio with CD/MP3 player (where
provided), read the Supplement attached to this Owner
Handbook.
SOUND SYSTEM CAPABILITY
(for versions/markets where provided)
The system consists of:
❒sound system power cables;
❒front and rear speaker connecting wires;
❒aerial power cable;
❒2 tweeters on front doors (30W max power each);
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
GENERAL WARNINGS
❒When parking, watch out for obstacles that may be
above or under the sensors.
❒Sometimes, objects placed close to the car are not de-
tected and could therefore cause damage to the car or
be damaged themselves.
❒Indications sent by the sensors can be altered by dirt,
snow or ice deposited on the sensors or by ultrasound
systems (e.g. truck pneumatic brakes or pneumatic ham-
mers) near the car.
082-128 PUNTO FL EN 3ed 9-12-2009 13:43 Pagina 122

123

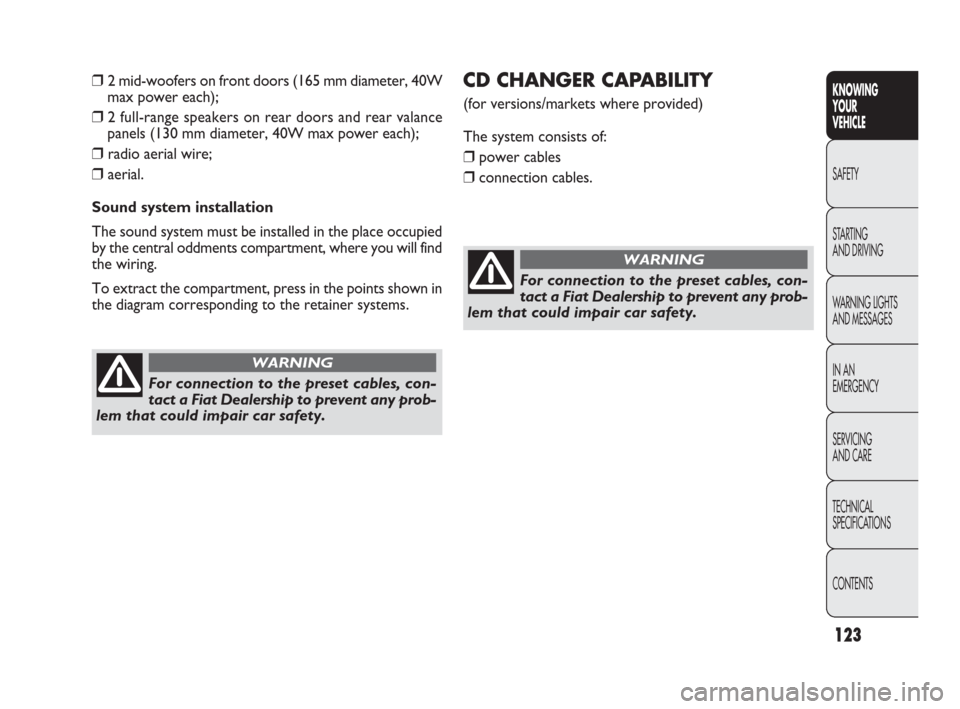

CD CHANGER CAPABILITY
(for versions/markets where provided)
The system consists of:
❒power cables
❒connection cables. ❒2 mid-woofers on front doors (165 mm diameter, 40W
max power each);
❒2 full-range speakers on rear doors and rear valance
panels (130 mm diameter, 40W max power each);
❒radio aerial wire;
❒aerial.
Sound system installation
The sound system must be installed in the place occupied
by the central oddments compartment, where you will find
the wiring.
To extract the compartment, press in the points shown in
the diagram corresponding to the retainer systems.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
For connection to the preset cables, con-
tact a Fiat Dealership to prevent any prob-
lem that could impair car safety.
WARNING
For connection to the preset cables, con-
tact a Fiat Dealership to prevent any prob-
lem that could impair car safety.
WARNING
082-128 PUNTO FL EN 3ed 9-12-2009 13:43 Pagina 123

124
ACCESSORIES PURCHASED
BY THE OWNER
If, after buying the vehicle, you decide to install electrical
accessories that require a permanent electrical supply
(sound system, satellite anti-theft system, etc.) or ones that
drain the battery, contact a Fiat Dealership, whose quali-
fied personnel, besides suggesting the most suitable de-
vices from Lineaccessori Fiat, will also check whether the
vehicle’s electrics are able to withstand the load required,
or whether they need to be integrated with a more pow-
erful battery.
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Take care when fitting additional spoilers,
alloy wheels or non-standard wheel hubs:
they could reduce the ventilation of the brakes
and affect efficiency under sharp, repeated brak-
ing or on long descents. Make sure that nothing
obstructs the pedals (mats, etc.)
WARNING

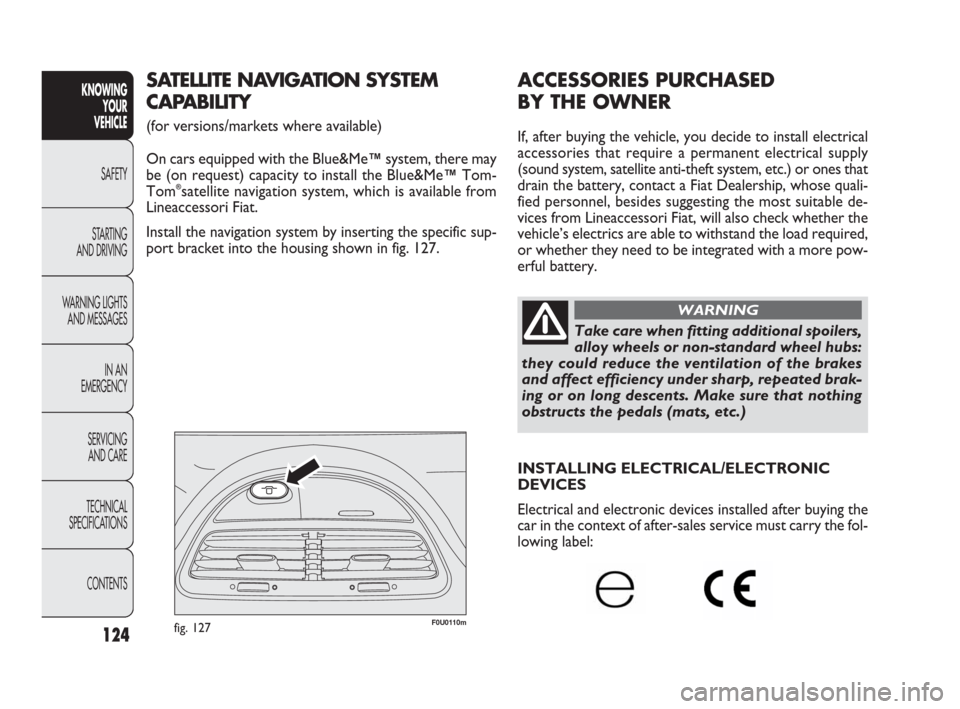

INSTALLING ELECTRICAL/ELECTRONIC
DEVICES
Electrical and electronic devices installed after buying the
car in the context of after-sales service must carry the fol-
lowing label:
F0U0110mfig. 127
SATELLITE NAVIGATION SYSTEM
CAPABILITY
(for versions/markets where available)
On cars equipped with the Blue&Me
™system, there may
be (on request) capacity to install the Blue&Me
™Tom-
Tom®satellite navigation system, which is available from
Lineaccessori Fiat.
Install the navigation system by inserting the specific sup-
port bracket into the housing shown in fig. 127.
082-128 PUNTO FL EN 3ed 9-12-2009 13:43 Pagina 124

Fiat Auto S.p.A. authorises the installation of transceiving
devices provided that they are installed by a specialised
centre according to rules of good engineering practice in
compliance with the manufacturer’s instructions.
IMPORTANT Traffic police may not allow the car on the
road if devices have been installed which modify the features
of the car. This may also cause invalidation of warranty in
relation to faults caused by the change or either directly
or indirectly related to it.
Fiat Auto S.p.A. shall not be liable for damage caused by
the installation of accessories either not supplied or rec-
ommended by Fiat Auto S.p.A. and/or not installed in com-
pliance with the provided instructions.
RADIOTRANSMITTERS AND MOBILE
PHONES
Radio transmitter equipment (vehicle mobile phones, CB
radios, amateur radio etc.) shall not be used inside the
car unless a separate aerial is mounted on the roof.
IMPORTANT The use of these devices inside the pas-
senger compartment (without a separate aerial) may cause
the vehicle electrical systems to malfunction. This could
compromise safety in addition to constituting a potential
hazard for passengers’ health.
In addition, transmission and reception of these devices
may be affected by the shielding effect of the car body.
As far as the use of EC-approved mobile phones is con-
cerned (GSM, GPRS, UMTS), follow the instructions for
use provided by the mobile phone manufacturer.
125
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
REFUELLING THE CAR
PETROL ENGINES
Use only unleaded petrol.
To avoid mistakes, the diameter of the fuel tank opening is
too small to insert the nozzle of a leaded petrol pump. The
petrol octane rating (RON) must not be lower than 95.
IMPORTANT An inefficient catalytic converter leads to
harmful exhaust emissions, thus contributing to air pol-
lution.
IMPORTANT Never use leaded petrol, even in small
amounts or in an emergency, as this would damage the
catalytic converter beyond repair.
DIESEL ENGINES
If the outside temperature is very low, the diesel thick-
ens due to the formation of paraffin clots and could clog
the diesel filter. In order to avoid these problems, differ-
ent types of diesel are distributed according to the season:
summer type, winter type and arctic type (cold, moun-
tainous areas).
If refuelling with diesel fuel whose specifications are not
suitable for the usage temperature, it is advisable to mix
TUTELA DIESEL ART additive in the proportions shown
on the container with the fuel. Pour the additive into the
tank before the fuel.
082-128 PUNTO FL EN 3ed 9-12-2009 13:43 Pagina 125

126F0U0111mfig. 128

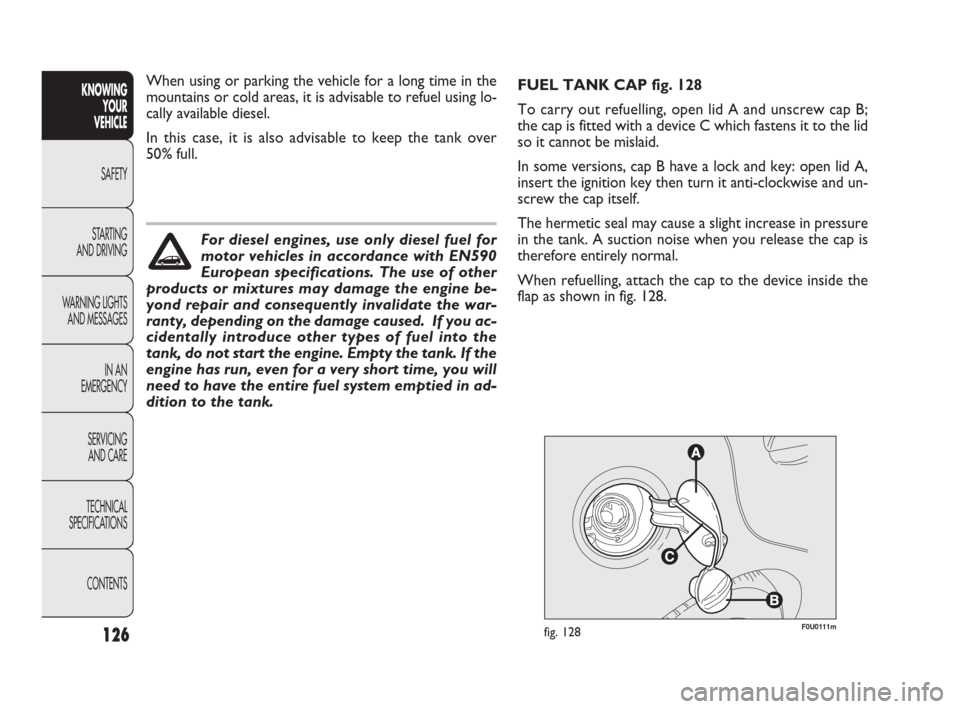

FUEL TANK CAP fig. 128
To carry out refuelling, open lid A and unscrew cap B;
the cap is fitted with a device C which fastens it to the lid
so it cannot be mislaid.
In some versions, cap B have a lock and key: open lid A,
insert the ignition key then turn it anti-clockwise and un-
screw the cap itself.
The hermetic seal may cause a slight increase in pressure
in the tank. A suction noise when you release the cap is
therefore entirely normal.
When refuelling, attach the cap to the device inside the
flap as shown in fig. 128.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
When using or parking the vehicle for a long time in the
mountains or cold areas, it is advisable to refuel using lo-
cally available diesel.
In this case, it is also advisable to keep the tank over
50% full.
For diesel engines, use only diesel fuel for
motor vehicles in accordance with EN590
European specifications. The use of other
products or mixtures may damage the engine be-
yond repair and consequently invalidate the war-
ranty, depending on the damage caused. If you ac-
cidentally introduce other types of fuel into the
tank, do not start the engine. Empty the tank. If the
engine has run, even for a very short time, you will
need to have the entire fuel system emptied in ad-
dition to the tank.
082-128 PUNTO FL EN 3ed 9-12-2009 13:43 Pagina 126

127
PROTECTING THE ENVIRONMENT
The devices for reducing petrol engine emissions are the
following:
❒three-way catalytic converter;
❒Lambda sensors;
❒fuel evaporation prevention system.
In addition, do not let the engine run, even for a test, with
one or more spark plugs disconnected. The following de-
vices are used for reducing diesel fuel engine emissions:
❒oxidising catalytic converter;
❒exhaust gas recirculation system (EGR.);
❒diesel particulate filter (DPF) (for versions/markets
where provided). Filling the tank
To fill the tank completely, top up twice after the first click
of the trigger. Further top ups could cause faults in the
fuel supply system.
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Do not bring naked flames or lit cigarettes
near to the fuel tank opening: fire risk.
Keep your face away from the fuel tank opening
to avoid breathing in harmful vapours.
WARNING
082-128 PUNTO FL EN 3ed 9-12-2009 13:43 Pagina 127

128
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
DIESEL PARTICULATE FILTER (DPF)
(for versions/markets where provided)
The Diesel Particulate Filter is a mechanical filter, inte-
gral to the exhaust system, that physically traps particu-
lates present in the exhaust gases of diesel engines.
It is needed to eliminate almost all particulates in compli-
ance with current/future legislation.
During normal use of the vehicle, the engine control unit
records a set of data (e.g. travel time, type of route, tem-
peratures, etc.) and it will then calculate how much par-
ticulate has been trapped by the filter.
Since this filter physically traps particulate, it should be re-
generated (cleaned) at regular intervals by burning the car-
bon particles.
The regeneration procedure is handled automatically by
the engine control unit according to the filter conditions
and vehicle use conditions.
During regeneration, the following may occur: a limited in-
crease in the engine speed, activation of the fan, a limited
increase in fumes and high temperatures at the exhaust.
These are not faults; they do not impair vehicle perfor-
mance or damage the environment.
If the dedicated message is displayed, refer to the “Warn-
ing lights and messages” section.
The diesel particulate filter (DPF) (for ver-
sions/markets where required) reaches
high temperatures during normal operation.
Therefore do not therefore park the vehicle on in-
flammable materials (grass, dry leaves, pine nee-
dles, etc.): fire hazard.
WARNING
The catalytic converter also reaches high
temperatures during normal operation.
Do not park the vehicle on grass, dry leaves, pine
needles or other flammable material: fire hazard.
WARNING
082-128 PUNTO FL EN 3ed 9-12-2009 13:43 Pagina 128

129
CONOSCENZA
DELLA
VETTURA
AVVIAMENTO
E GUIDA
SPIE E
MESSAGGI
IN EMERGENZA
MANUTENZIONE
E CURA
DATI TECNICI
INDICE
F0U0112mfig. 129F0U0113mfig. 130
The reel may lock when the car is parked on a steep slope:
this is perfectly normal. Furthermore, the reel mechanism
locks the belt if it is pulled sharply or in the event of sud-
den braking, collisions and high-speed bends.
The rear seat is fitted with inertia seat belts with three an-

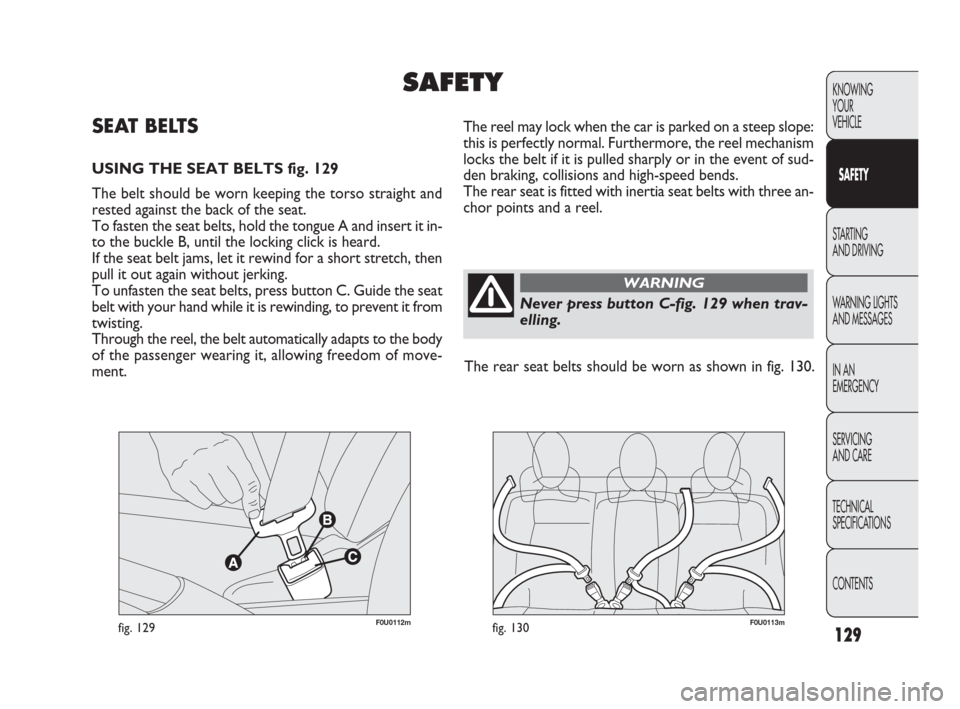

chor points and a reel.SEAT BELTS
USING THE SEAT BELTS fig. 129
The belt should be worn keeping the torso straight and
rested against the back of the seat.
To fasten the seat belts, hold the tongue A and insert it in-
to the buckle B, until the locking click is heard.
If the seat belt jams, let it rewind for a short stretch, then
pull it out again without jerking.
To unfasten the seat belts, press button C. Guide the seat
belt with your hand while it is rewinding, to prevent it from
twisting.
Through the reel, the belt automatically adapts to the body
of the passenger wearing it, allowing freedom of move-
ment.
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
SAFETY
Never press button C-fig. 129 when trav-
elling.
WARNING
The rear seat belts should be worn as shown in fig. 130.
129-148 PUNTO FL EN 3ed 9-12-2009 13:39 Pagina 129
