FIAT PUNTO EVO 2010 1.G Owners Manual
Manufacturer: FIAT, Model Year: 2010, Model line: PUNTO EVO, Model: FIAT PUNTO EVO 2010 1.GPages: 270, PDF Size: 8.34 MB
Page 201 of 270
F0U0172mfig. 189
F0U0173mfig. 190200
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
FUSE LOCATION

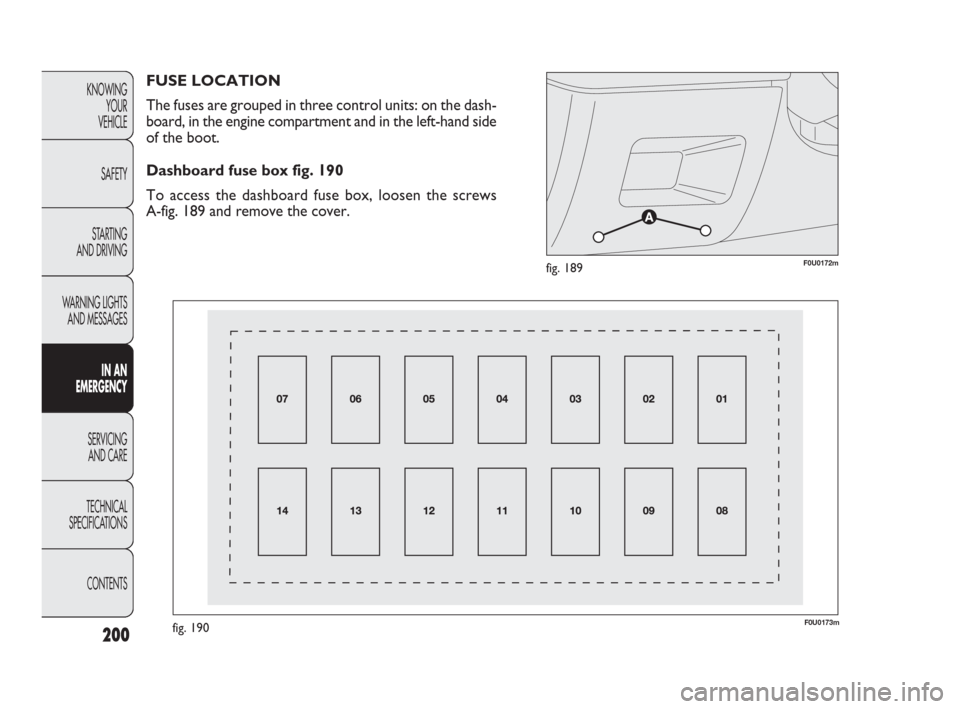

The fuses are grouped in three control units: on the dash-
board, in the engine compartment and in the left-hand side
of the boot.
Dashboard fuse box fig. 190
To access the dashboard fuse box, loosen the screws
A-fig. 189 and remove the cover.
175-210 PUNTO FL EN 4ed 20-01-2010 15:09 Pagina 200
Page 202 of 270
201
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U0174mfig. 191

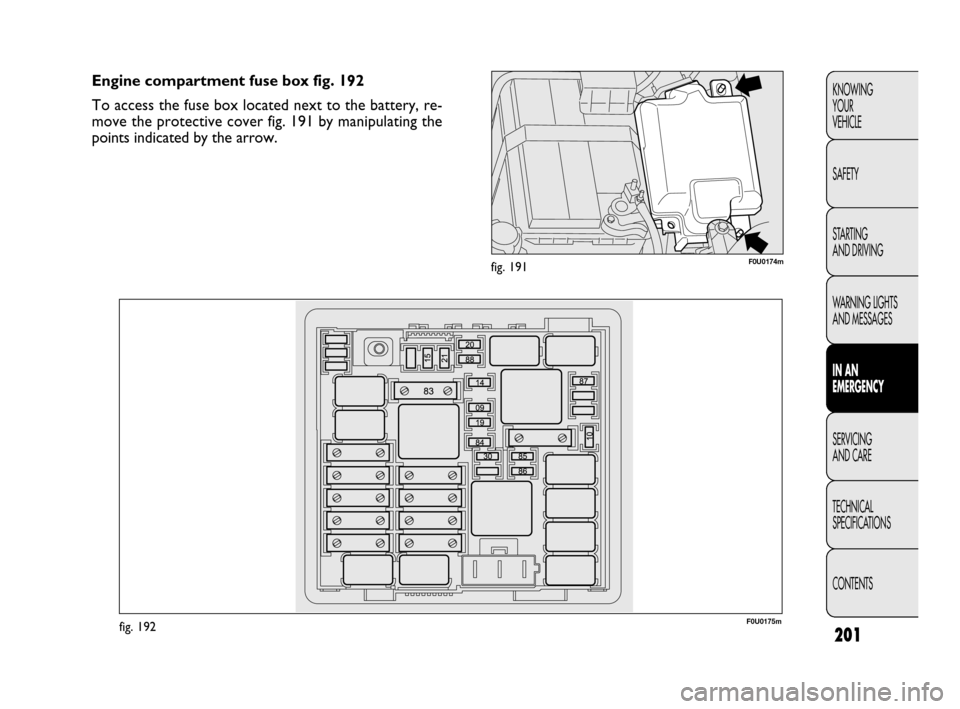

Engine compartment fuse box fig. 192
To access the fuse box located next to the battery, re-
move the protective cover fig. 191 by manipulating the
points indicated by the arrow.
F0U0175mfig. 192
175-210 PUNTO FL EN 4ed 2-02-2010 14:05 Pagina 201
Page 203 of 270
F0U0176mfig.193
F0U0177mfig. 194

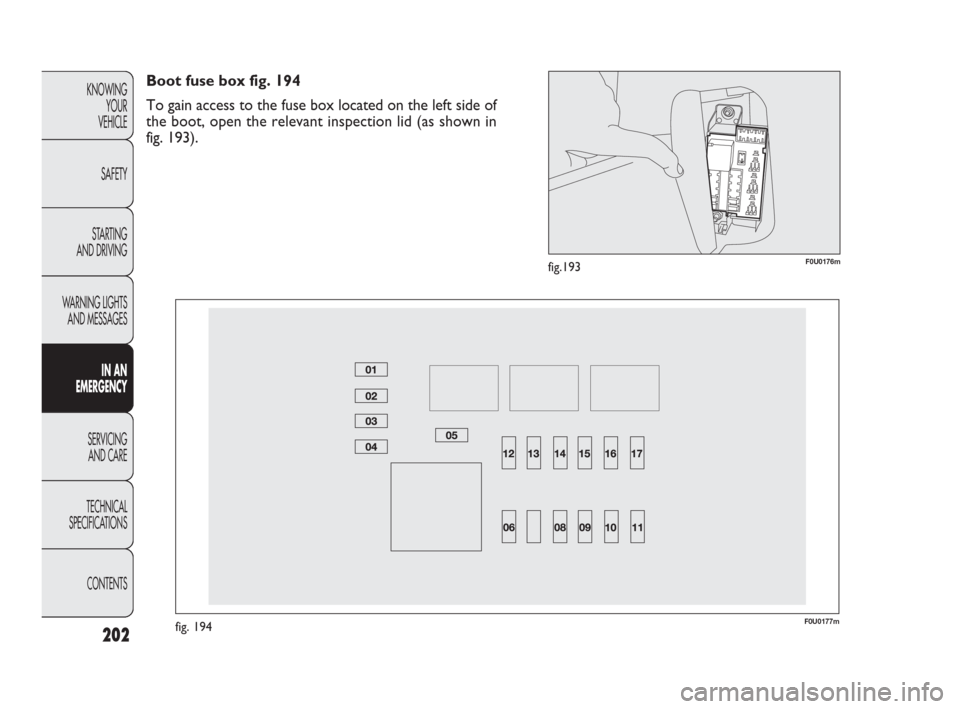

Boot fuse box fig. 194
To gain access to the fuse box located on the left side of
the boot, open the relevant inspection lid (as shown in
fig. 193).
202
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
175-210 PUNTO FL EN 4ed 20-01-2010 15:09 Pagina 202
Page 204 of 270
203
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
7.5
7.5
5
5
10
5
20
20
20
20
5
5
7.5 1
8
13
2
5
11
4
6
14
7
12
3
10
FUSE TABLE
Dashboard fuse box fig. 190
DEVICESFUSE AMPS
Right dipped beam headlight
Lift dipped beam headlight, headlamp alignment corrector
INT/A supply for switch coils on engine fuse box
and switch coils on body computer control unit
Front ceiling light, rear ceiling light, visor lights,
door marker lights, boot light, glove box light
Supply and battery for EOBD diagnostic plug, automatic climate
control system control unit, alarm, sound system, convergence control unit
INT supply for instrument panel, switch on brake pedal
(N.O. contact), third brake light
Door locking/unlocking motors, dead lock activation motors, boot
unlocking motor
Windscreen/rear window washer pump
Electric window motor on driver-side front door
Electric window motor on passenger-side front door
INT supply for dashboard control lights, parking control unit,
tyre pressure measurement control unit, electric wing mirror movement,
rain sensor, sunroof control unit, My Port infotelematic system socket,
electric rear view mirror
Instrument panel
INT supply for brake pedal switch (NC contact), clutch pedal switch,
interior heating unit, convergence control unit, sound system capabilities,
voltage stabiliser control unit, reverse light on rear bumper,
water sensor on diesel filter, glow plug heating control unit, airflow meter,
brake booster sensor, switch coils on engine compartment fuse box
175-210 PUNTO FL EN 4ed 20-01-2010 15:09 Pagina 203
Page 205 of 270
09
10
14
15
19
20
21
30
84
85
86
87
8820
10
15
30
7.5
30
15
15
7.5
–
15
5
7.5
204
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Engine compartment fuse box fig. 192
DEVICESFUSE AMPS
Hi-Fi sound system with control unit and subwoofer
Single tone horn
Left main beam headlight, right main beam headlight
Additional heater PTC1
Air conditioning compressor
Heated rear window
Fuel pump on tank
Left fog light, right fog light
CNG methane system management solenoid valves
Socket (ready for use)
Passenger compartment socket, cigarette lighter
Battery charge status sensor
De-mister on driver-side wing mirror, de-mister on passenger-side wing mirror
175-210 PUNTO FL EN 4ed 20-01-2010 15:09 Pagina 204
Page 206 of 270
205
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
17
14
01
03
04
15
10
16
08
07
05
11
13
09
06
0220
7.5
–
–
10
–
20
–
10
–
15
20
5
10
–

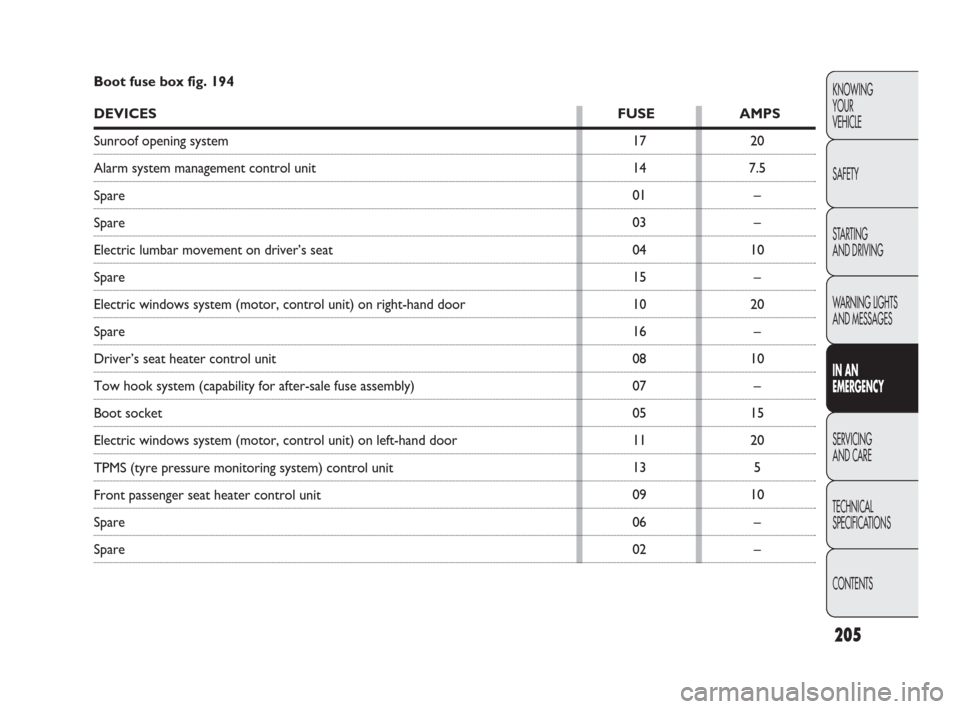

– Boot fuse box fig. 194
DEVICESFUSE AMPS
Sunroof opening system
Alarm system management control unit
Spare
Spare
Electric lumbar movement on driver’s seat
Spare
Electric windows system (motor, control unit) on right-hand door
Spare
Driver’s seat heater control unit
Tow hook system (capability for after-sale fuse assembly)
Boot socket
Electric windows system (motor, control unit) on left-hand door
TPMS (tyre pressure monitoring system) control unit
Front passenger seat heater control unit
Spare
Spare
175-210 PUNTO FL EN 4ed 20-01-2010 15:10 Pagina 205
Page 207 of 270
206
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
RECHARGING THE BATTERY
IMPORTANT The battery recharging procedure is pro-
vided for information purposes only. You are recom-
mended to go to a Fiat Dealership to have this operation
performed.
We recommend recharging the battery slowly for ap-
proximately 24 hours at low amperage. Rapid charging with
high currents could damage the battery.
VERSIONS WITHOUT Start&Stop SYSTEM
(for versions/markets, where provided)
Charge the battery as follows:
❒disconnect the battery negative terminal;
❒connect the charger leads to the battery terminals, ob-
serving the polarity;
❒turn on the charger;
❒when you have finished, turn the charger off before dis-
connecting the battery;
❒reconnect battery negative terminal.
VERSIONS WITH Start&Stop SYSTEM
(with dummy pole) fig. 195a
(for versions/markets, where provided)
To charge, proceed as follows:
❒disconnect the quick-release negative terminal A from
the negative dummy pole B because the battery nega-
tive pole C has a sensor D monitoring the battery con-
ditions, that should never be disconnected from the neg-
ative pole C (unless the battery is replaced);
❒connect the battery charger positive cable to the bat-
tery positive pole E and the negative cable to the dum-
my pole B;
❒switch on the battery charger. At the end of the charging
process, switch the charger off before disconnecting it;
❒after disconnecting the battery charger, reconnect the
quick-release negative terminal A to the dummy pole B.
fig. 195aF0U0547m
175-210 PUNTO FL EN 4ed 20-01-2010 15:10 Pagina 206
Page 208 of 270
207
❒turn on the battery charger. At the end of the charg-
ing process, switch the battery charger off;
❒after disconnecting the battery charger, reconnect the
connector A to the sensor C according to figure. VERSIONS WITH Start&Stop SYSTEM
(without dummy pole) fig.195b
(for versions/markets, where provided)
To charge, proceed as follows:
❒disconnect the connector A (pressing the button B)
from the sensor C monitoring the battery conditions,
on the negative pole D of the battery;
❒connect the battery charger positive cable E and the
negative cable to the terminal of sensor D, according to
figure;
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
fig. 195bF0U0548m
175-210 PUNTO FL EN 4ed 20-01-2010 15:10 Pagina 207
Page 209 of 270
208
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Battery fluid is poisonous and corrosive:
avoid contact with your skin and eyes. The
battery recharging operation must be performed
in a ventilated place, away from naked flames or
possible sources of sparks to avoid the risk of ex-
plosion and fire.
WARNING
Don’t try to recharge a frozen battery: de-
frost it first or it might explode. If the bat-
tery was frozen, have it inspected by specialised
personnel before recharging to check that the in-
ternal elements are not damaged and that the cas-
ing is not cracked, which could cause poisonous,
corrosive acid to leak.
WARNING

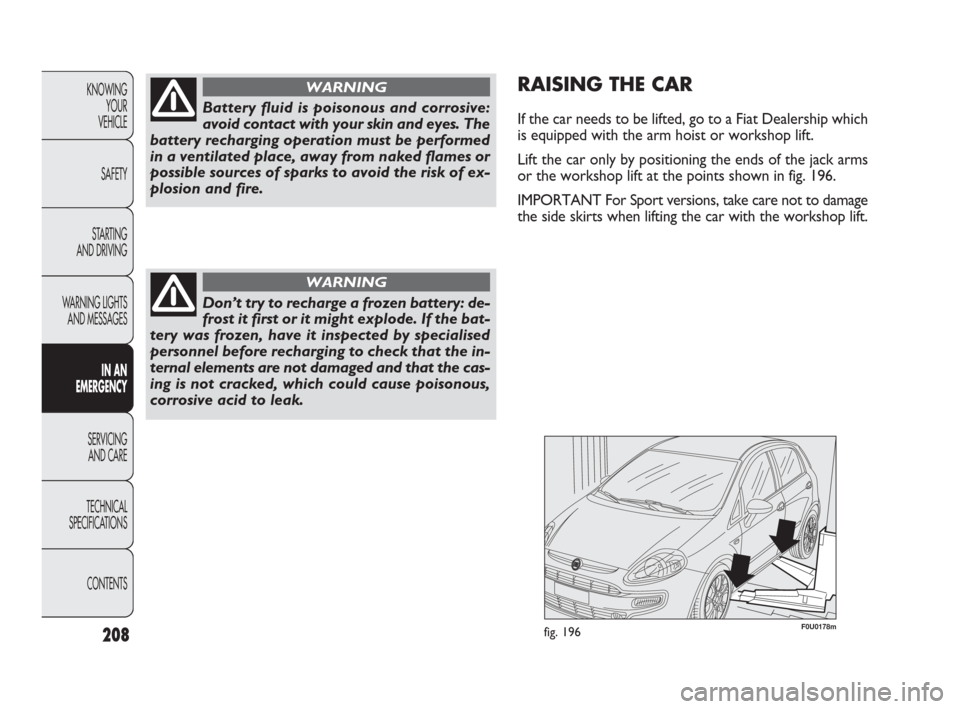

RAISING THE CAR
If the car needs to be lifted, go to a Fiat Dealership which
is equipped with the arm hoist or workshop lift.
Lift the car only by positioning the ends of the jack arms
or the workshop lift at the points shown in fig. 196.
IMPORTANT For Sport versions, take care not to damage
the side skirts when lifting the car with the workshop lift.
fig. 196F0U0178m
175-210 PUNTO FL EN 4ed 20-01-2010 15:10 Pagina 208
Page 210 of 270
209
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
TOWING THE CAR
The tow ring provided with the car is housed in the tool
box under the boot carpet.
fig. 197aF0U0179m
F0U0180mfig. 197b

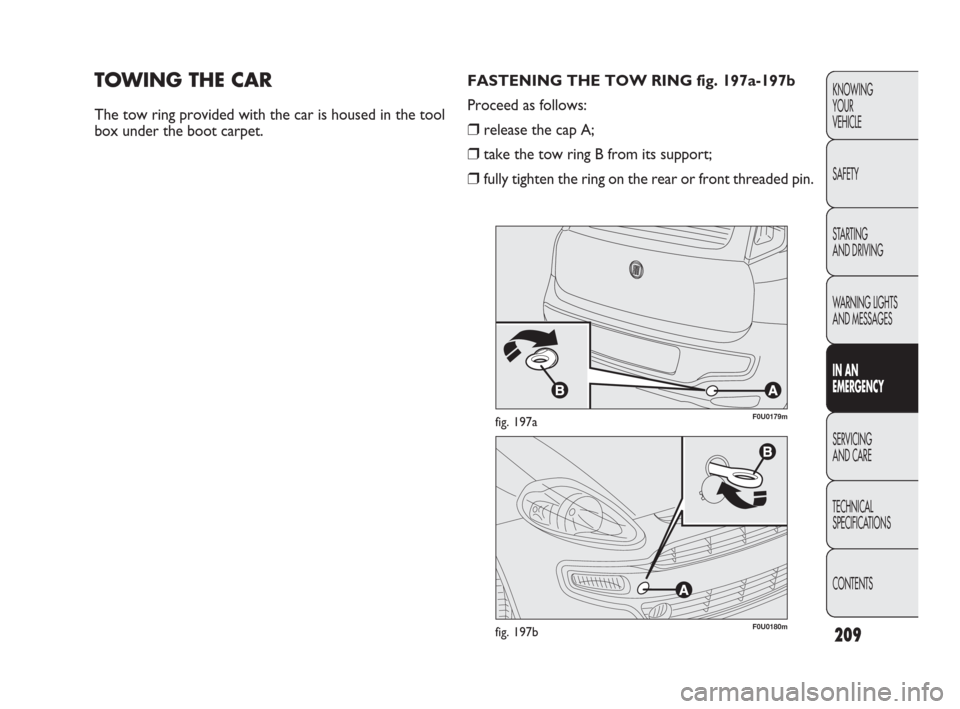

FASTENING THE TOW RING fig. 197a-197b
Proceed as follows:
❒release the cap A;
❒take the tow ring B from its support;
❒fully tighten the ring on the rear or front threaded pin.
175-210 PUNTO FL EN 4ed 20-01-2010 15:10 Pagina 209
