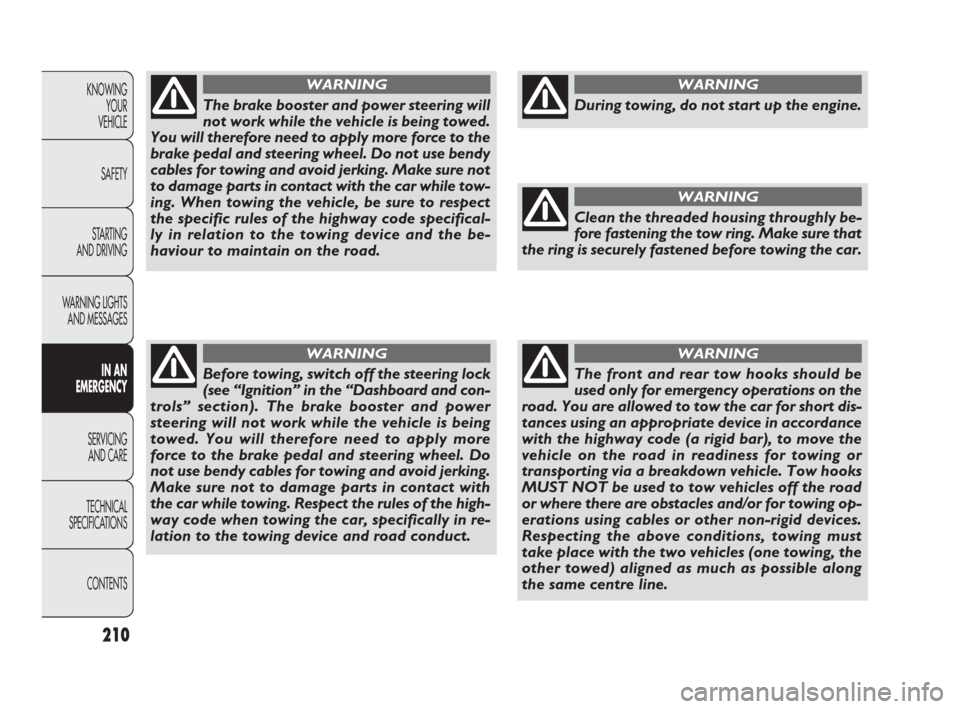

The brake booster and power steering will
not work while the vehicle is being towed.
You will therefore need to apply more force to the
brake pedal and steering wheel. Do not use bendy
cables for towing and avoid jerking. Make sure not
to damage parts in contact with the car while tow-
ing. When towing the vehicle, be sure to respect
the specific rules of the highway code specifical-
ly in relation to the towing device and the be-
haviour to maintain on the road.
WARNING
Clean the threaded housing throughly be-
fore fastening the tow ring. Make sure that
the ring is securely fastened before towing the car.
WARNING
During towing, do not start up the engine.
WARNING
Before towing, switch off the steering lock
(see “Ignition” in the “Dashboard and con-
trols” section). The brake booster and power
steering will not work while the vehicle is being
towed. You will therefore need to apply more
force to the brake pedal and steering wheel. Do
not use bendy cables for towing and avoid jerking.
Make sure not to damage parts in contact with
the car while towing. Respect the rules of the high-
way code when towing the car, specifically in re-
lation to the towing device and road conduct.
WARNING
The front and rear tow hooks should be
used only for emergency operations on the
road. You are allowed to tow the car for short dis-
tances using an appropriate device in accordance
with the highway code (a rigid bar), to move the
vehicle on the road in readiness for towing or
transporting via a breakdown vehicle. Tow hooks
MUST NOT be used to tow vehicles off the road
or where there are obstacles and/or for towing op-
erations using cables or other non-rigid devices.
Respecting the above conditions, towing must
take place with the two vehicles (one towing, the
other towed) aligned as much as possible along
the same centre line.
WARNING
175-210 PUNTO FL EN 4ed 20-01-2010 15:10 Pagina 210

211
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

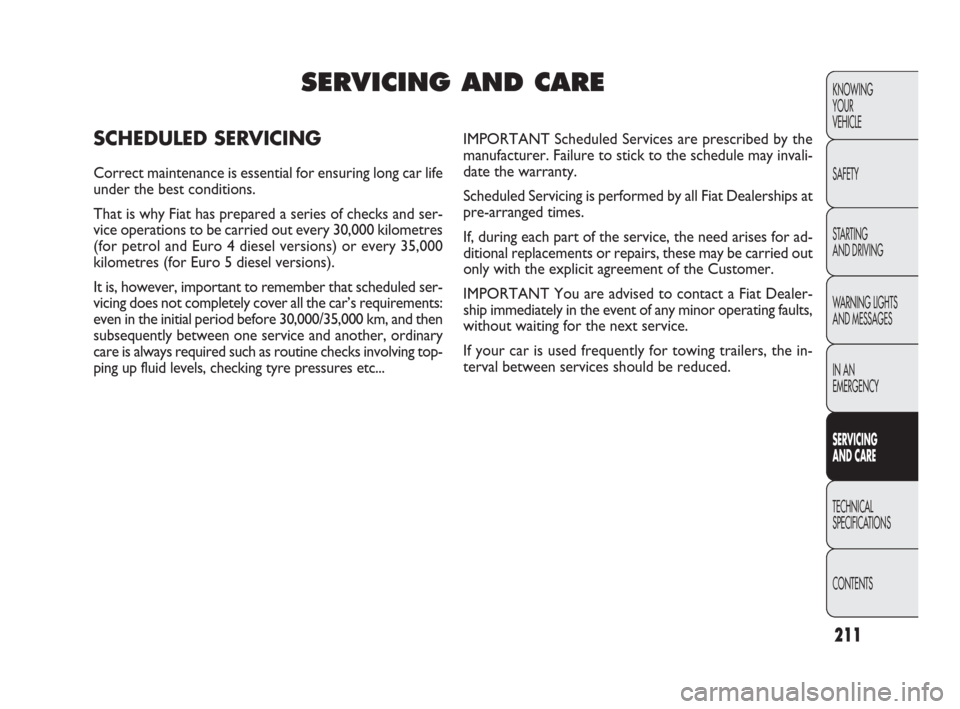

SERVICING AND CARE
SCHEDULED SERVICING
Correct maintenance is essential for ensuring long car life
under the best conditions.
That is why Fiat has prepared a series of checks and ser-
vice operations to be carried out every 30,000 kilometres
(for petrol and Euro 4 diesel versions) or every 35,000
kilometres (for Euro 5 diesel versions).
It is, however, important to remember that scheduled ser-
vicing does not completely cover all the car’s requirements:
even in the initial period before 30,000/35,000 km, and then
subsequently between one service and another, ordinary
care is always required such as routine checks involving top-
ping up fluid levels, checking tyre pressures etc...IMPORTANT Scheduled Services are prescribed by the
manufacturer. Failure to stick to the schedule may invali-
date the warranty.
Scheduled Servicing is performed by all Fiat Dealerships at
pre-arranged times.
If, during each part of the service, the need arises for ad-
ditional replacements or repairs, these may be carried out
only with the explicit agreement of the Customer.
IMPORTANT You are advised to contact a Fiat Dealer-
ship immediately in the event of any minor operating faults,
without waiting for the next service.
If your car is used frequently for towing trailers, the in-
terval between services should be reduced.
211-234 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 211

●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●●
●●
●●
●● ●
●● ●● ● ●
212
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

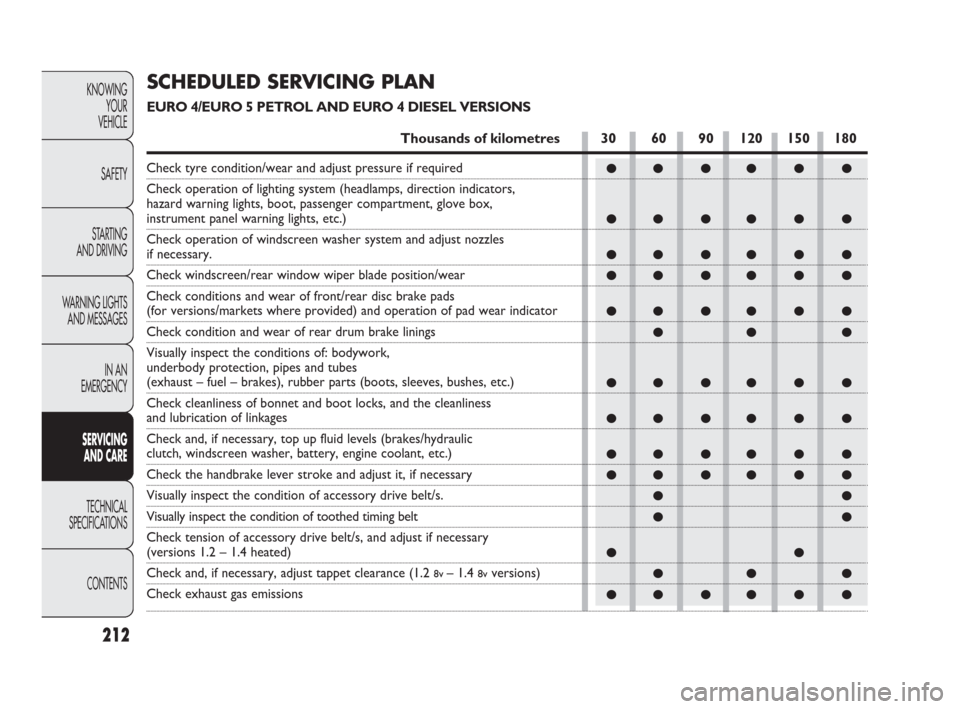

SCHEDULED SERVICING PLAN
EURO 4/EURO 5 PETROL AND EURO 4 DIESEL VERSIONS
Thousands of kilometres 30 60 90 120 150 180
Check tyre condition/wear and adjust pressure if required
Check operation of lighting system (headlamps, direction indicators,
hazard warning lights, boot, passenger compartment, glove box,
instrument panel warning lights, etc.)
Check operation of windscreen washer system and adjust nozzles
if necessary.
Check windscreen/rear window wiper blade position/wear
Check conditions and wear of front/rear disc brake pads
(for versions/markets where provided) and operation of pad wear indicator
Check condition and wear of rear drum brake linings
Visually inspect the conditions of: bodywork,
underbody protection, pipes and tubes
(exhaust – fuel – brakes), rubber parts (boots, sleeves, bushes, etc.)
Check cleanliness of bonnet and boot locks, and the cleanliness
and lubrication of linkages
Check and, if necessary, top up fluid levels (brakes/hydraulic
clutch, windscreen washer, battery, engine coolant, etc.)
Check the handbrake lever stroke and adjust it, if necessary
Visually inspect the condition of accessory drive belt/s.
Visually inspect the condition of toothed timing belt
Check tension of accessory drive belt/s, and adjust if necessary
(versions 1.2 – 1.4 heated)
Check and, if necessary, adjust tappet clearance (1.2 8v – 1.4 8vversions)
Check exhaust gas emissions
211-234 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 212

213
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
●● ●● ● ●
●
●
●● ●● ● ●
●● ●
●● ●
●● ●● ● ●
●● ●● ● ●
●● ●
●● ●● ● ●
Thousands of kilometres 30 60 90 120 150 180
Check engine management system operation (via diagnostic socket)
Replace accessory drive belt/s
Replace toothed timing belt (*)
Replace spark plugs (petrol versions) (1)
Replace fuel filter (diesel versions)
Replace air filter cartridge (petrol versions) (❏)
Change engine oil and replace oil filter (petrol versions)
(or every 24 months) (2)
Change engine oil and replace oil filter
(EURO 4 diesel versions without DPF) (or every 24 months)
Change engine oil and oil filter (diesel EURO 4 versions with DPF) (Õ) (3)
Change brake fluid (or every 24 months)
Replace pollen filter (or every 15 months)
(*) Regardless of the distance covered, the timing belt should be replaced every 4 years for particularly demanding use (cold climates, city dri-
ving, idling for a long time, dusty areas) or, in any case, every 5 years.
(❏) For Euro 4 diesel versions, the air filter cartridge should be replaced every 30,000 km.
(Õ) The engine oil and the filter must be replaced when the warning light on the dashboard comes on (see the “Warning lights and messages”
section) or at least every 24 months.
(1)For 1.4 Turbo Multi Air versions, in order to guarantee correct operation and prevent serious damage to
the engine, it is essential to observe the following:
– only use spark plugs specifically certified for 1.4 Turbo Multi Air engines; all spark plugs should be of the
same type and brand (see the “Engine” paragraph);
– adhere strictly to the spark plug replacement intervals detailed in the Scheduled Servicing Plan;
– it is advisable to have this performed at a Fiat Dealership.
(2)If the car is mainly used in towns and cities, change the engine oil and filter every 12 months.
(3)If the car is mainly used in cities or travels less than 10,000 km a year, change the engine oil and filter every 12 months.
211-234 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 213

214
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●●
●● ● ● ●
●● ● ● ●
●

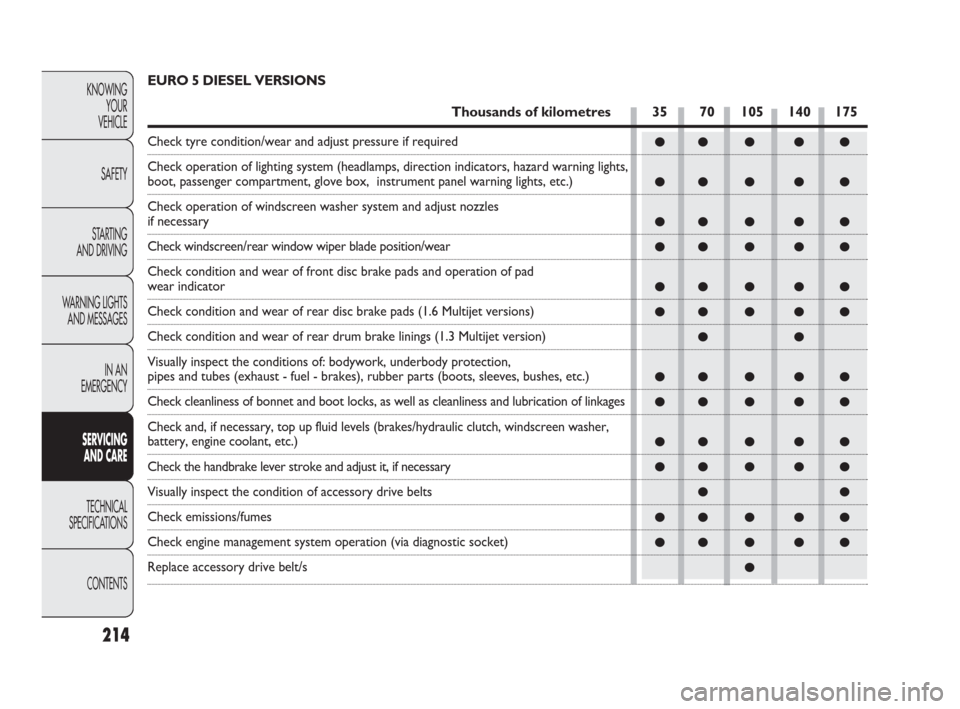

EURO 5 DIESEL VERSIONS
Thousands of kilometres 35 70 105 140 175
Check tyre condition/wear and adjust pressure if required
Check operation of lighting system (headlamps, direction indicators, hazard warning lights,
boot, passenger compartment, glove box, instrument panel warning lights, etc.)
Check operation of windscreen washer system and adjust nozzles
if necessary
Check windscreen/rear window wiper blade position/wear
Check condition and wear of front disc brake pads and operation of pad
wear indicator
Check condition and wear of rear disc brake pads (1.6 Multijet versions)
Check condition and wear of rear drum brake linings (1.3 Multijet version)
Visually inspect the conditions of: bodywork, underbody protection,
pipes and tubes (exhaust - fuel - brakes), rubber parts (boots, sleeves, bushes, etc.)
Check cleanliness of bonnet and boot locks, as well as cleanliness and lubrication of linkages
Check and, if necessary, top up fluid levels (brakes/hydraulic clutch, windscreen washer,
battery, engine coolant, etc.)
Check the handbrake lever stroke and adjust it, if necessary
Visually inspect the condition of accessory drive belts
Check emissions/fumes
Check engine management system operation (via diagnostic socket)
Replace accessory drive belt/s
211-234 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 214

215
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
●
●●
●●●● ●
●●
●●●● ●
Thousands of kilometres 35 70 105 140 175
Replace toothed timing belt (*) (1.6 Multijet version)
Replace fuel filter
Replace air filter cartridge
Change engine oil and replace oil filter (**)
Change brake fluid (or every 24 months)
Change pollen filter (or every 15 months)
(*) Regardless of distance covered, the timing belt must be replaced every four years in for particularly demanding use (cold
climates, city driving, long periods of idling) or at least every five years in all other cases.
(**) The engine oil and the filter must be replaced when the warning light on the dashboard comes on (see the “Warning lights
and messages” section) or at least every 24 months.
If the car is mainly used in towns and cities, change the engine oil and filter every 12 months.
211-234 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 215

216

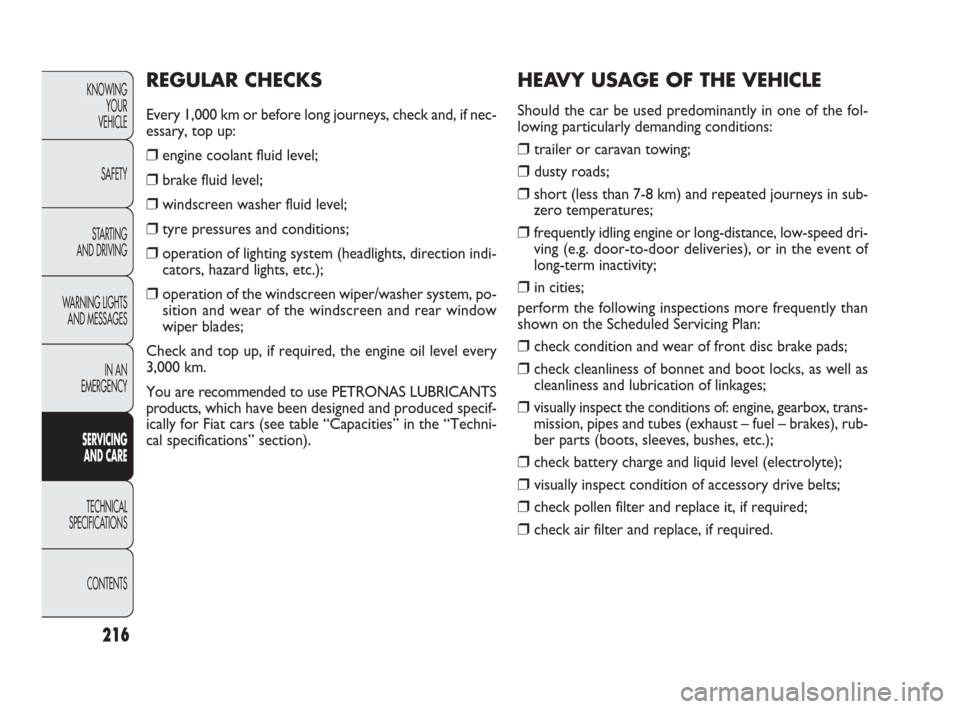

HEAVY USAGE OF THE VEHICLE
Should the car be used predominantly in one of the fol-
lowing particularly demanding conditions:
❒ trailer or caravan towing;
❒ dusty roads;
❒short (less than 7-8 km) and repeated journeys in sub-
zero temperatures;
❒frequently idling engine or long-distance, low-speed dri-
ving (e.g. door-to-door deliveries), or in the event of
long-term inactivity;
❒ in cities;
perform the following inspections more frequently than
shown on the Scheduled Servicing Plan:
❒ check condition and wear of front disc brake pads;
❒check cleanliness of bonnet and boot locks, as well as
cleanliness and lubrication of linkages;
❒visually inspect the conditions of: engine, gearbox, trans-
mission, pipes and tubes (exhaust – fuel – brakes), rub-
ber parts (boots, sleeves, bushes, etc.);
❒check battery charge and liquid level (electrolyte);
❒ visually inspect condition of accessory drive belts;
❒ check pollen filter and replace it, if required;
❒ check air filter and replace, if required.
REGULAR CHECKS
Every 1,000 km or before long journeys, check and, if nec-
essary, top up:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer fluid level;
❒tyre pressures and conditions;
❒operation of lighting system (headlights, direction indi-
cators, hazard lights, etc.);
❒operation of the windscreen wiper/washer system, po-
sition and wear of the windscreen and rear window
wiper blades;
Check and top up, if required, the engine oil level every
3,000 km.
You are recommended to use PETRONAS LUBRICANTS
products, which have been designed and produced specif-
ically for Fiat cars (see table “Capacities” in the “Techni-
cal specifications” section).
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
211-234 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 216

217
CHECKING LEVELSKNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

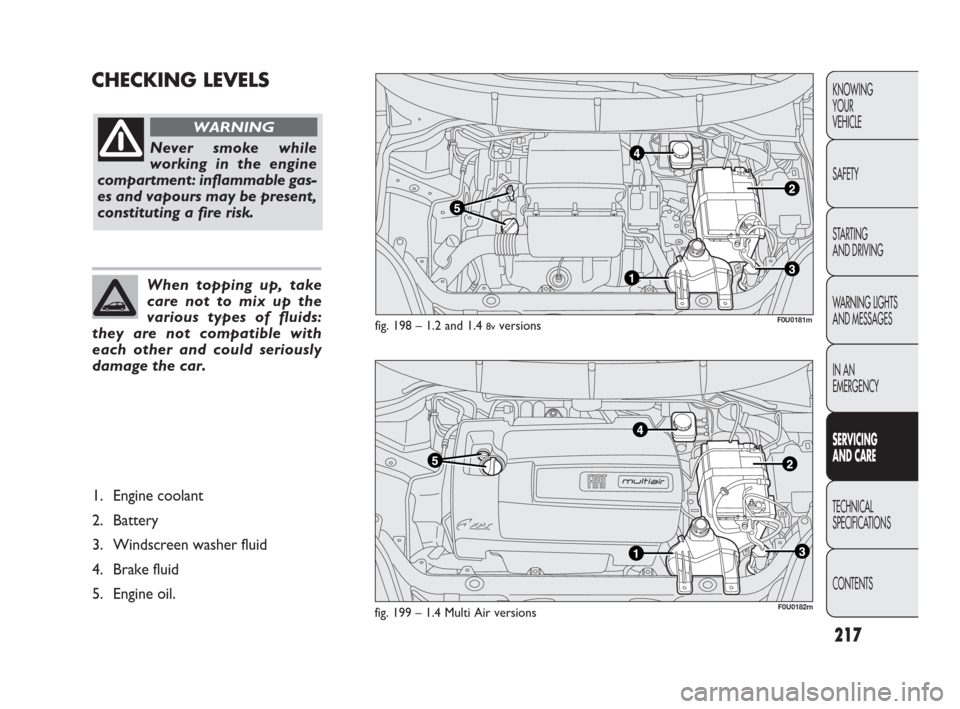

fig. 198 – 1.2 and 1.4 8vversions
fig. 199 – 1.4 Multi Air versions
Never smoke while
working in the engine
compartment: inflammable gas-
es and vapours may be present,
constituting a fire risk.
WARNING
When topping up, take
care not to mix up the
various types of fluids:
they are not compatible with
each other and could seriously
damage the car.
1. Engine coolant
2. Battery
3. Windscreen washer fluid
4. Brake fluid
5. Engine oil.
F0U0181m
F0U0182m
211-234 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 217

218
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
1. Engine coolant
2. Battery
3. Windscreen washer fluid
4. Brake fluid
5. Engine oil.

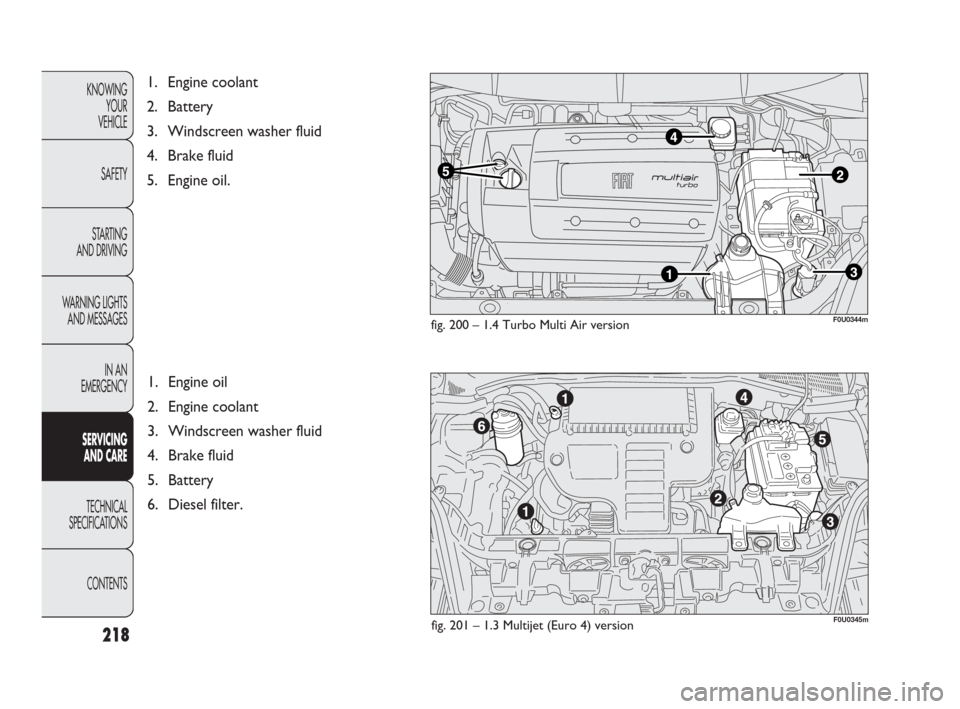

fig. 200 – 1.4 Turbo Multi Air version F0U0344m
1. Engine oil
2. Engine coolant
3. Windscreen washer fluid
4. Brake fluid
5. Battery
6. Diesel filter.
fig. 201 – 1.3 Multijet (Euro 4) versionF0U0345m
211-234 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 218

219
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
1. Engine oil
2. Engine coolant
3. Windscreen washer fluid
4. Brake fluid
5. Battery
6. Diesel filter.

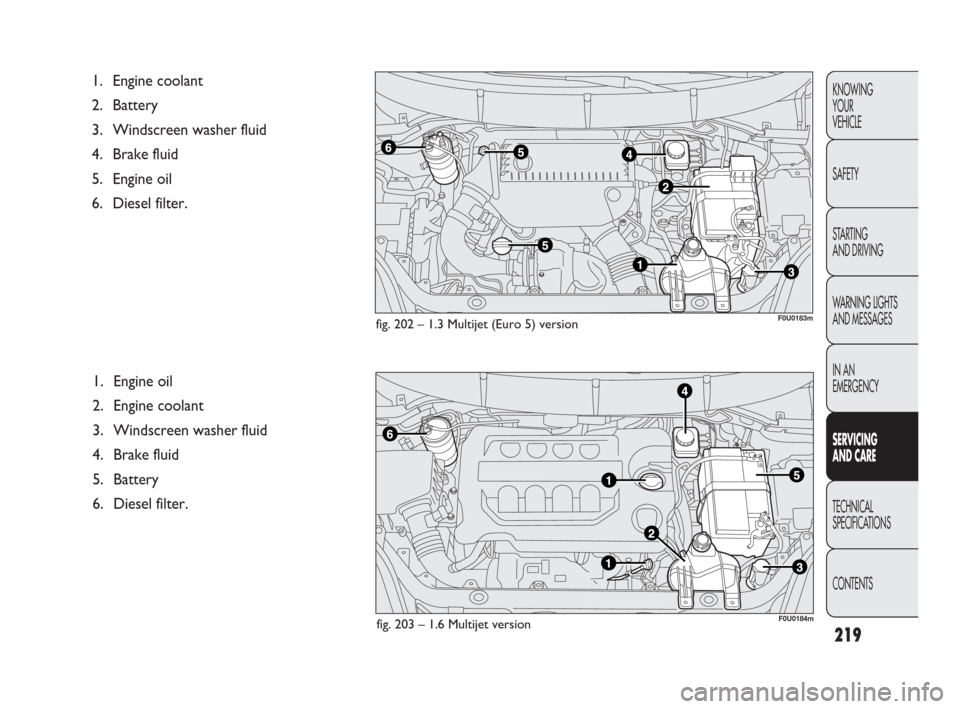

fig. 203 – 1.6 Multijet version F0U0184m
1. Engine coolant
2. Battery
3. Windscreen washer fluid
4. Brake fluid
5. Engine oil
6. Diesel filter.
fig. 202 – 1.3 Multijet (Euro 5) versionF0U0183m
211-234 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 219
