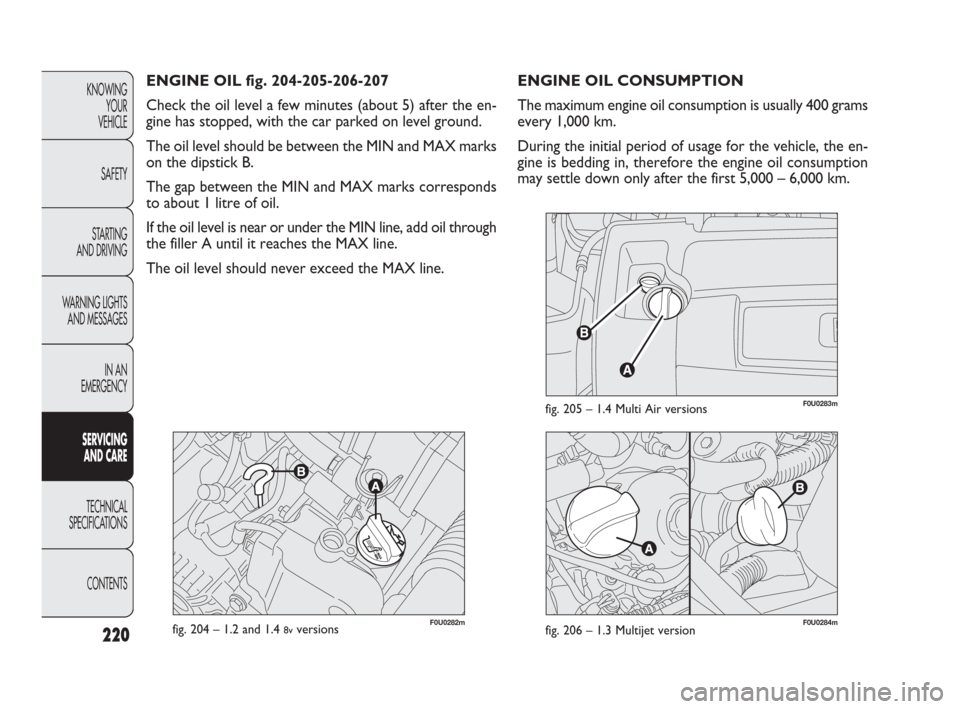

ENGINE OIL fig. 204-205-206-207
Check the oil level a few minutes (about 5) after the en-
gine has stopped, with the car parked on level ground.
The oil level should be between the MIN and MAX marks
on the dipstick B.
The gap between the MIN and MAX marks corresponds
to about 1 litre of oil.
If the oil level is near or under the MIN line, add oil through
the filler A until it reaches the MAX line.
The oil level should never exceed the MAX line.
F0U0284mfig. 206 – 1.3 Multijet version
F0U0283mfig. 205 – 1.4 Multi Air versions
ENGINE OIL CONSUMPTION
The maximum engine oil consumption is usually 400 grams
every 1,000 km.
During the initial period of usage for the vehicle, the en-
gine is bedding in, therefore the engine oil consumption
may settle down only after the first 5,000 – 6,000 km.
211-234 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 220
Page 222 of 270

221

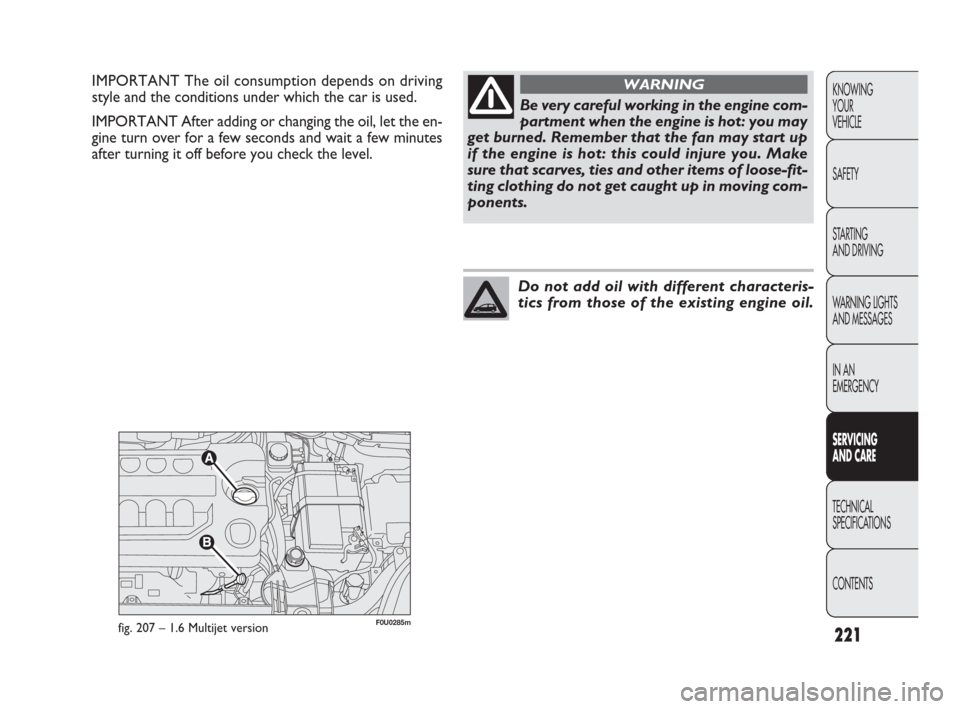

F0U0285mfig. 207 – 1.6 Multijet version
IMPORTANT The oil consumption depends on driving
style and the conditions under which the car is used.
IMPORTANT After adding or changing the oil, let the en-
gine turn over for a few seconds and wait a few minutes
after turning it off before you check the level.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Be very careful working in the engine com-
partment when the engine is hot: you may
get burned. Remember that the fan may start up
if the engine is hot: this could injure you. Make
sure that scarves, ties and other items of loose-fit-
ting clothing do not get caught up in moving com-
ponents.
WARNING
Do not add oil with different characteris-
tics from those of the existing engine oil.
211-234 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 221
Page 223 of 270

222

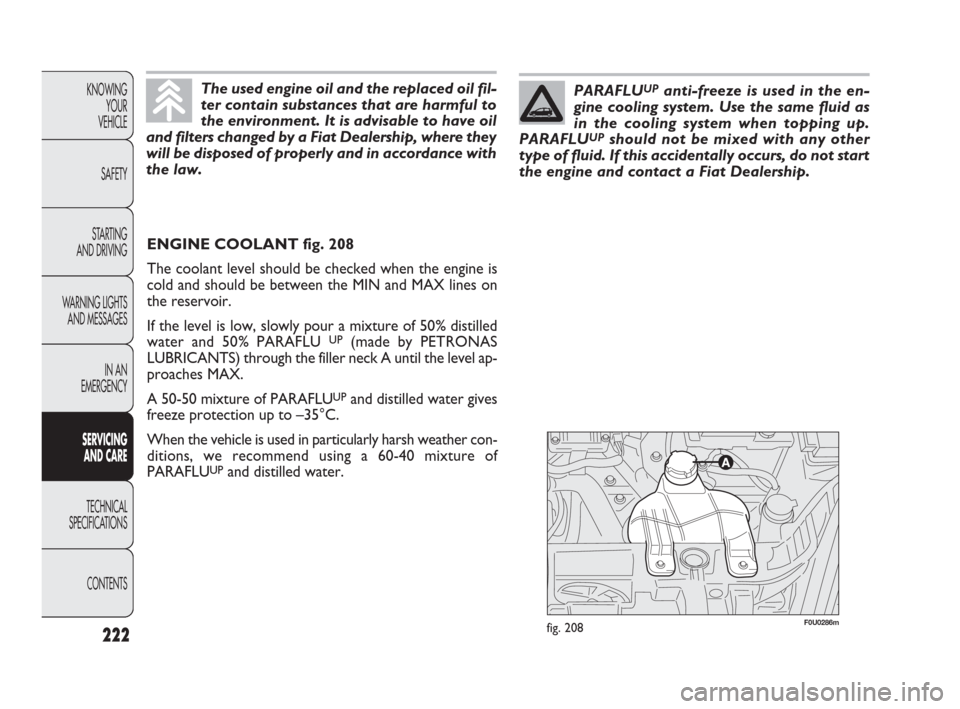

F0U0286mfig. 208
ENGINE COOLANT fig. 208
The coolant level should be checked when the engine is
cold and should be between the MIN and MAX lines on
the reservoir.
If the level is low, slowly pour a mixture of 50% distilled
water and 50% PARAFLU
UP(made by PETRONAS
LUBRICANTS) through the filler neck A until the level ap-
proaches MAX.
A 50-50 mixture of PARAFLU
UPand distilled water gives
freeze protection up to –35°C.
When the vehicle is used in particularly harsh weather con-
ditions, we recommend using a 60-40 mixture of
PARAFLU
UPand distilled water.
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The used engine oil and the replaced oil fil-
ter contain substances that are harmful to
the environment. It is advisable to have oil
and filters changed by a Fiat Dealership, where they
will be disposed of properly and in accordance with
the law.PARAFLUUPanti-freeze is used in the en-
gine cooling system. Use the same fluid as
in the cooling system when topping up.
PARAFLU
UPshould not be mixed with any other
type of fluid. If this accidentally occurs, do not start
the engine and contact a Fiat Dealership.
211-234 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 222
Page 224 of 270

223
F0U0287mfig. 209
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The engine cooling system is pressurized.
If the cap needs replacing, do so with an-
other original or the effectiveness of the system
may be compromised. Do not remove the cap
from the reservoir when the engine is hot: you may
get burned
WARNING
WINDSCREEN/REAR WINDOW WASHER/
HEADLIGHT WASHER FLUID fig. 209
To top up, remove the cap A.
Pour in a mixture of water and TUTELA PROFESSION-
AL SC35 liquid, in the following concentrations:
30% TUTELA PROFESSIONAL SC35 and 70% water in
summer.
50% TUTELA PROFESSIONAL SC35 and 50% water in
winter.
At temperatures below –20°C, use undiluted TUTELA
PROFESSIONAL SC35 fluid.
Check the level through the reservoir.
Do not travel if the windscreen washer
reservoir is empty: using the windscreen
washer is essential for improving visibility.
WARNING
Some commercial additives for wind-
screen washing are flammable. The en-
gine compartment contains hot parts which could
cause a fire if they come into contact with these
additives.
WARNING
211-234 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 223
Page 225 of 270

224

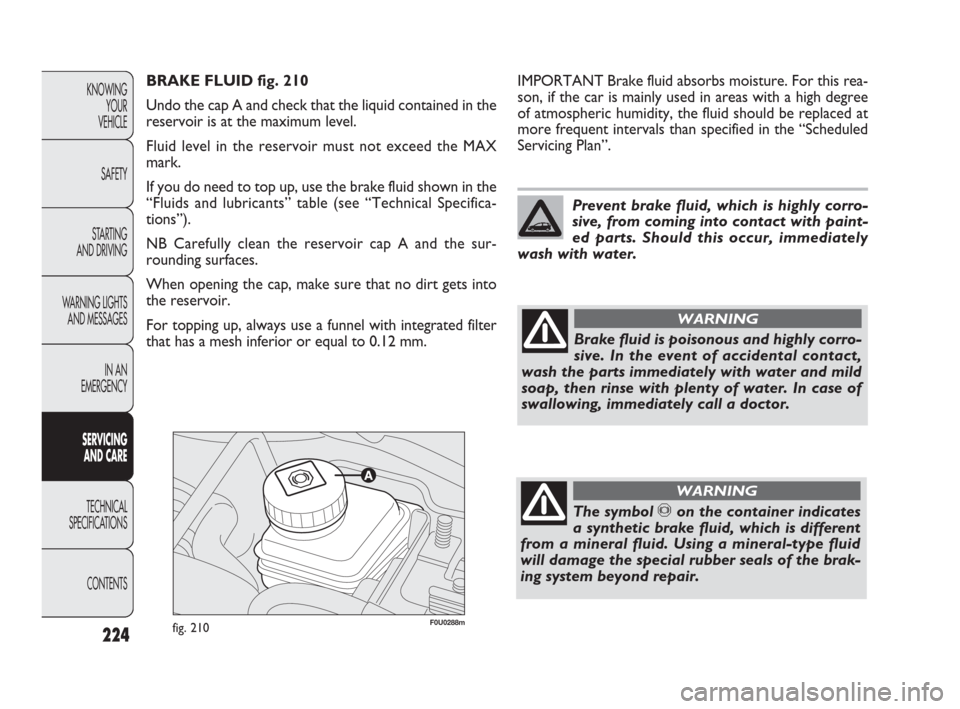

F0U0288mfig. 210
IMPORTANT Brake fluid absorbs moisture. For this rea-
son, if the car is mainly used in areas with a high degree
of atmospheric humidity, the fluid should be replaced at
more frequent intervals than specified in the “Scheduled
Servicing Plan”. BRAKE FLUID fig. 210
Undo the cap A and check that the liquid contained in the
reservoir is at the maximum level.
Fluid level in the reservoir must not exceed the MAX
mark.
If you do need to top up, use the brake fluid shown in the
“Fluids and lubricants” table (see “Technical Specifica-
tions”).
NB Carefully clean the reservoir cap A and the sur-
rounding surfaces.
When opening the cap, make sure that no dirt gets into
the reservoir.
For topping up, always use a funnel with integrated filter
that has a mesh inferior or equal to 0.12 mm.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Prevent brake fluid, which is highly corro-
sive, from coming into contact with paint-
ed parts. Should this occur, immediately
wash with water.
Brake fluid is poisonous and highly corro-
sive. In the event of accidental contact,
wash the parts immediately with water and mild
soap, then rinse with plenty of water. In case of
swallowing, immediately call a doctor.
WARNING
The symbol πon the container indicates
a synthetic brake fluid, which is different
from a mineral fluid. Using a mineral-type fluid
will damage the special rubber seals of the brak-
ing system beyond repair.
WARNING
211-234 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 224
Page 226 of 270

225
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

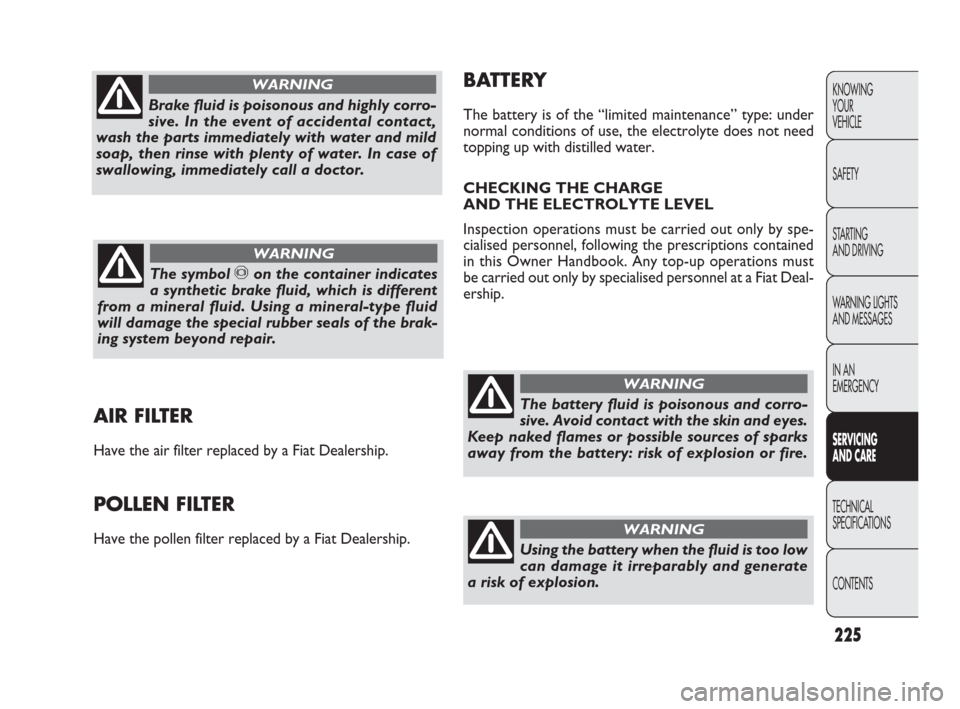

AIR FILTER
Have the air filter replaced by a Fiat Dealership.
POLLEN FILTER
Have the pollen filter replaced by a Fiat Dealership.
Brake fluid is poisonous and highly corro-
sive. In the event of accidental contact,
wash the parts immediately with water and mild
soap, then rinse with plenty of water. In case of
swallowing, immediately call a doctor.
WARNING
The symbol πon the container indicates
a synthetic brake fluid, which is different
from a mineral fluid. Using a mineral-type fluid
will damage the special rubber seals of the brak-
ing system beyond repair.
WARNING
BATTERY
The battery is of the “limited maintenance” type: under
normal conditions of use, the electrolyte does not need
topping up with distilled water.
CHECKING THE CHARGE
AND THE ELECTROLYTE LEVEL
Inspection operations must be carried out only by spe-
cialised personnel, following the prescriptions contained
in this Owner Handbook. Any top-up operations must
be carried out only by specialised personnel at a Fiat Deal-
ership.
The battery fluid is poisonous and corro-
sive. Avoid contact with the skin and eyes.
Keep naked flames or possible sources of sparks
away from the battery: risk of explosion or fire.
WARNING
Using the battery when the fluid is too low
can damage it irreparably and generate
a risk of explosion.
WARNING
211-234 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 225
Page 227 of 270

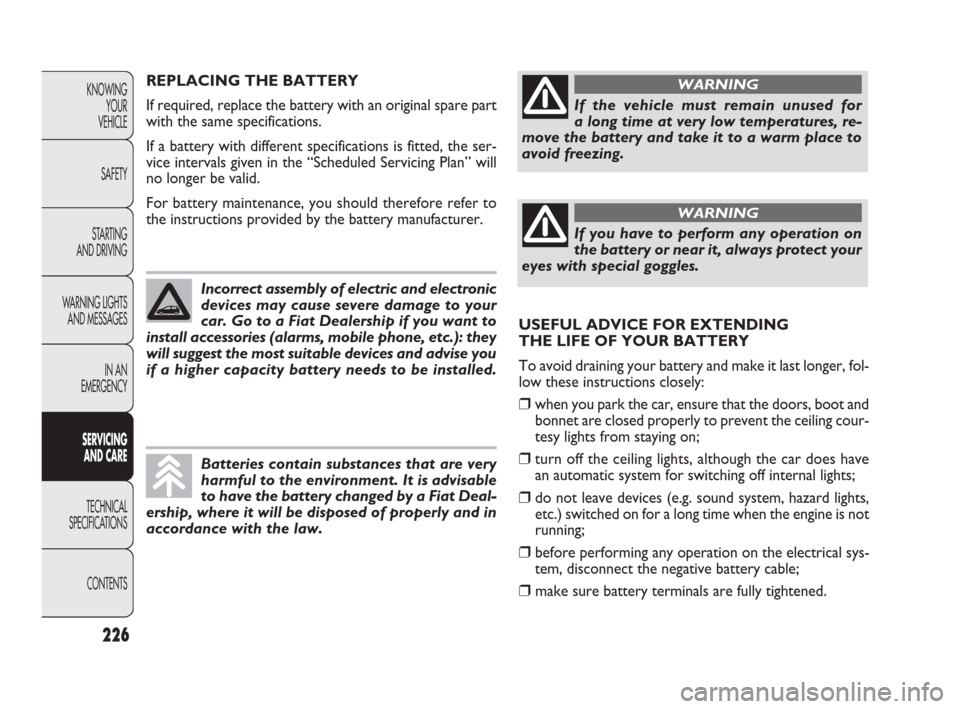

REPLACING THE BATTERY
If required, replace the battery with an original spare part
with the same specifications.
If a battery with different specifications is fitted, the ser-
vice intervals given in the “Scheduled Servicing Plan” will
no longer be valid.
For battery maintenance, you should therefore refer to
the instructions provided by the battery manufacturer.
226
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Incorrect assembly of electric and electronic
devices may cause severe damage to your
car. Go to a Fiat Dealership if you want to
install accessories (alarms, mobile phone, etc.): they
will suggest the most suitable devices and advise you
if a higher capacity battery needs to be installed.
Batteries contain substances that are very
harmful to the environment. It is advisable
to have the battery changed by a Fiat Deal-
ership, where it will be disposed of properly and in
accordance with the law.
If the vehicle must remain unused for
a long time at very low temperatures, re-
move the battery and take it to a warm place to
avoid freezing.
WARNING
If you have to perform any operation on
the battery or near it, always protect your
eyes with special goggles.
WARNING
USEFUL ADVICE FOR EXTENDING
THE LIFE OF YOUR BATTERY
To avoid draining your battery and make it last longer, fol-
low these instructions closely:
❒when you park the car, ensure that the doors, boot and
bonnet are closed properly to prevent the ceiling cour-
tesy lights from staying on;
❒turn off the ceiling lights, although the car does have
an automatic system for switching off internal lights;
❒do not leave devices (e.g. sound system, hazard lights,
etc.) switched on for a long time when the engine is not
running;
❒before performing any operation on the electrical sys-
tem, disconnect the negative battery cable;
❒ make sure battery terminals are fully tightened.
211-234 PUNTO FL EN 4ed 18-01-2010 12:28 Pagina 226
Page 228 of 270

227
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
IMPORTANT If the battery remains with the charge be-
low 50% for a long time it becomes damaged through sul-
phation and its starting capacity is reduced.
The battery will also be more at risk of freezing (this can
happen as early as -10°C). Refer to “Car inactivity” in
“Starting and driving” if the car is left parked for a long
time.
If, after buying the car, you want to install electrical devices
that require a permanent electric supply (alarm, etc.) or
devices that use a lot of electricity, contact a Fiat Dealer-
ship. Their qualified personnel, in addition to suggesting
the most suitable devices from the Lineaccessori Fiat range,
will evaluate the overall electricity consumption, check-
ing whether the car’s electrical system is capable of with-
standing the load required, or whether it should be inte-
grated with a more powerful battery.
Since these devices continue to consume energy even
when the engine is switched off, they gradually run down
the battery.WHEELS AND TYRES

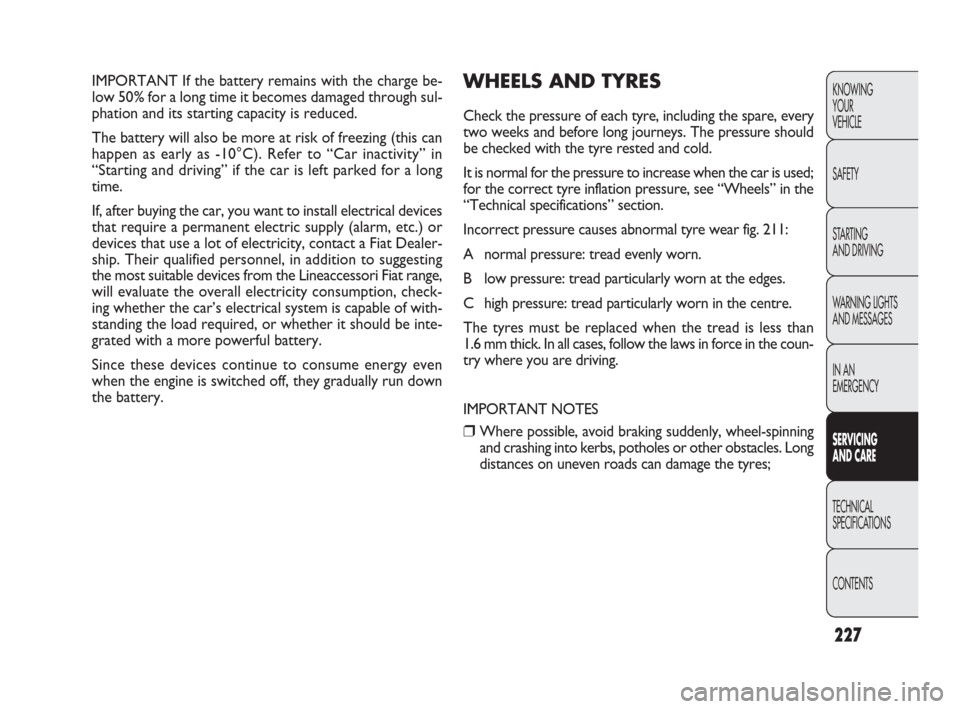

Check the pressure of each tyre, including the spare, every
two weeks and before long journeys. The pressure should
be checked with the tyre rested and cold.
It is normal for the pressure to increase when the car is used;
for the correct tyre inflation pressure, see “Wheels” in the
“Technical specifications” section.

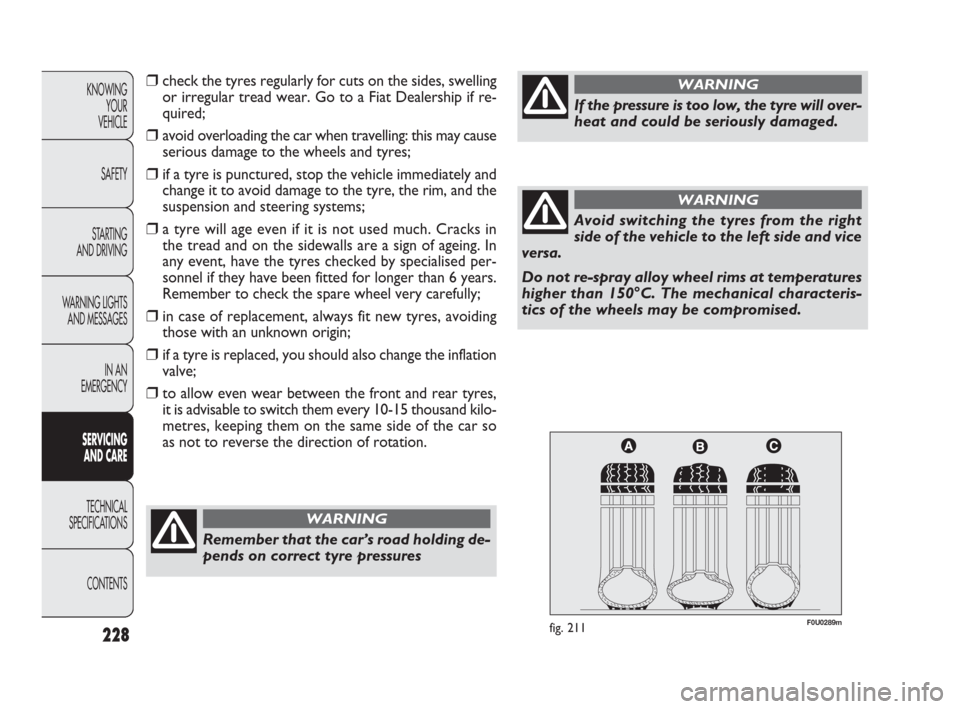

Incorrect pressure causes abnormal tyre wear fig. 211:
A normal pressure: tread evenly worn.
B low pressure: tread particularly worn at the edges.
C high pressure: tread particularly worn in the centre.
The tyres must be replaced when the tread is less than
1.6 mm thick. In all cases, follow the laws in force in the coun-
try where you are driving.
IMPORTANT NOTES
❒Where possible, avoid braking suddenly, wheel-spinning
and crashing into kerbs, potholes or other obstacles. Long
distances on uneven roads can damage the tyres;
211-234 PUNTO FL EN 4ed 18-01-2010 12:28 Pagina 227
Page 229 of 270

228
F0U0289mfig. 211
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Remember that the car’s road holding de-
pends on correct tyre pressures
WARNING
If the pressure is too low, the tyre will over-
heat and could be seriously damaged.
WARNING
Avoid switching the tyres from the right
side of the vehicle to the left side and vice
versa.
Do not re-spray alloy wheel rims at temperatures
higher than 150°C. The mechanical characteris-
tics of the wheels may be compromised.
WARNING
❒check the tyres regularly for cuts on the sides, swelling
or irregular tread wear. Go to a Fiat Dealership if re-
quired;
❒avoid overloading the car when travelling: this may cause
serious damage to the wheels and tyres;
❒if a tyre is punctured, stop the vehicle immediately and
change it to avoid damage to the tyre, the rim, and the
suspension and steering systems;
❒a tyre will age even if it is not used much. Cracks in
the tread and on the sidewalls are a sign of ageing. In
any event, have the tyres checked by specialised per-
sonnel if they have been fitted for longer than 6 years.
Remember to check the spare wheel very carefully;
❒in case of replacement, always fit new tyres, avoiding
those with an unknown origin;
❒if a tyre is replaced, you should also change the inflation
valve;
❒to allow even wear between the front and rear tyres,
it is advisable to switch them every 10-15 thousand kilo-
metres, keeping them on the same side of the car so
as not to reverse the direction of rotation.
211-234 PUNTO FL EN 4ed 18-01-2010 12:28 Pagina 228
Page 230 of 270

229

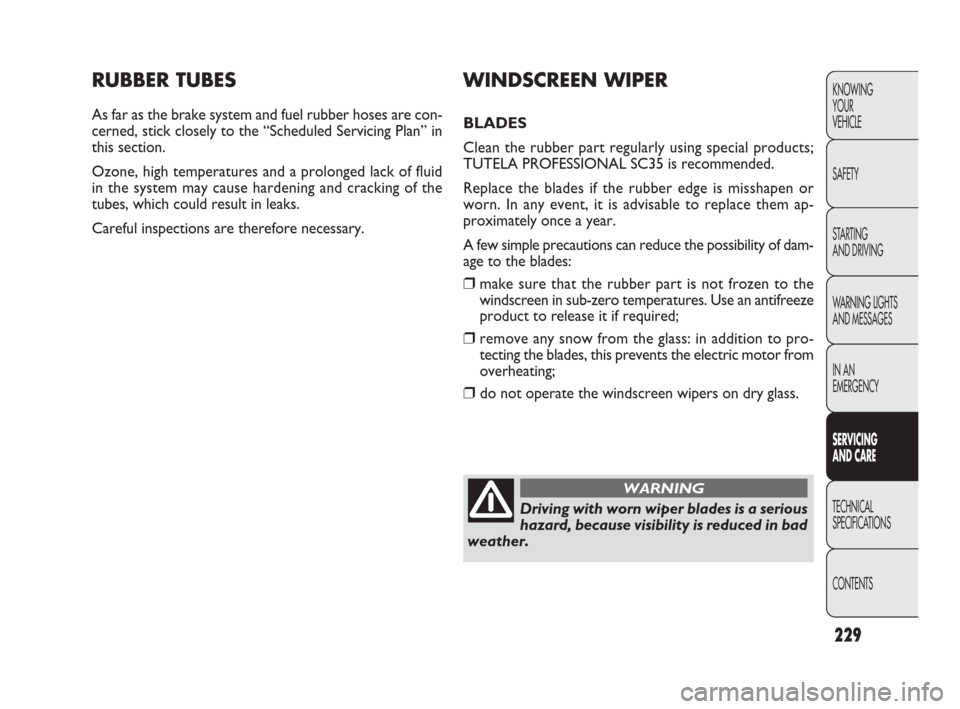

RUBBER TUBES
As far as the brake system and fuel rubber hoses are con-
cerned, stick closely to the “Scheduled Servicing Plan” in
this section.
Ozone, high temperatures and a prolonged lack of fluid
in the system may cause hardening and cracking of the
tubes, which could result in leaks.
Careful inspections are therefore necessary.
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
WINDSCREEN WIPER
BLADES
Clean the rubber part regularly using special products;
TUTELA PROFESSIONAL SC35 is recommended.
Replace the blades if the rubber edge is misshapen or
worn. In any event, it is advisable to replace them ap-
proximately once a year.
A few simple precautions can reduce the possibility of dam-
age to the blades:
❒make sure that the rubber part is not frozen to the
windscreen in sub-zero temperatures. Use an antifreeze
product to release it if required;
❒remove any snow from the glass: in addition to pro-
tecting the blades, this prevents the electric motor from
overheating;
❒ do not operate the windscreen wipers on dry glass.
Driving with worn wiper blades is a serious
hazard, because visibility is reduced in bad
weather.
WARNING
211-234 PUNTO FL EN 4ed 18-01-2010 12:28 Pagina 229
