SBR SYSTEM
The vehicle is equipped with the SBR (Seat Belt
Reminder) system, which warns the driver and the
front passenger if their seat belt is not fastened,
as follows:
❒warning light
comes on and the buzzer sounds
continuously for the first 6 seconds;
❒warning light
blinks and intermittent activation
of the beeper for the next 90 seconds.
For permanent deactivation, contact a Fiat
Dealership.
The SBR system can also be reactivated through the
setup menu.
PRETENSIONERS
To increase the protective efficiency of the front seat
belts, the vehicle is fitted with pretensioners. These
devices, in the event of a violent head-on crash or
side impact, rewind the seat belts a few centimetres.
In this way, they ensure that the belts fit tightly to
the wearer before the restraining action begins.
The seat belt reel locks to indicate that the
pretensioner has cut in; the seat belt cannot be
drawn back up even when guided manually.
IMPORTANT To obtain the highest degree of
protection from the action of the pretensioners,
wear the seat so it fits snugly over the chest and
hips.
A small amount of smoke may be produced when the
pretensioners cut in. This smoke is not toxic and
does not indicate a fire.
The pretensioner does not require any maintenance
or lubrication. Anything that modifies its original
conditions invalidates its efficiency. If, due to unusual
natural events (floods, sea storms, etc.), the device
has been affected by water and mud, it absolutely
must be replaced.
93
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
W
ARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
The pretensioner can be used only once.
G
o to a Fiat Dealership to have it
replaced after it has been deployed. Consult the
card in the glove box to check the status of
the pretensioners. Go to a Fiat Dealership to
have the device replaced when the expiration
date approaches.
Operations which lead to knocks,
vibrations or localised heating (over 100°C
for a maximum of 6 hours) in the area
around the pretensioners may cause damage or
trigger them.These devices are not affected by
vibrations caused by irregularities of the road
surface or low obstacles such as kerbs, etc .
Contact a Fiat Dealership for any assistance.
LOAD LIMITERS
(for versions/markets, where provided)
To increase passenger safety, the front and rear (for
versions/markets where provided) seat belt reels
contain a load limiter which controls the force acting
on the chest and shoulders during the belt
restraining action in the event of a head-on collision.GENERAL INSTRUCTIONS FOR USING
THE SEAT BELTS
The driver is responsible for respecting (and ensuring
that all the other passengers also respect) the local
laws in force regarding the use of seat belts. Always
fasten the seat belts before setting off.
Seat belts must also be worn by expectant mothers:
the risk of injury in the event of an accident is greatly
reduced for them and the unborn child if they are
wearing a seat belt. Pregnant women must position
the lower part of the belt very low down so that
it passes over the hips and under the abdomen (see
fig. 99).
IMPORTANT The belt must not be twisted. The
upper part must cross the shoulder and the chest
diagonally. The lower part must fit over the hips (as
shown in fig. 100) rather than the abdomen of the
passenger. Do not use devices (clips, etc.) to hold the
seat belt away from your body.
fig. 99F0T0003
94
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
W
ARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
For maximum safety, keep the back of
y
our seat upright , lean back into it
and make sure the seat belt fits closely across
your chest and hips. Always fasten the seat belts
on both the front and the rear seats! Travelling
without seat belts will increase the risk of
severe injury and even death in the event of an
accident .
WARNING
Never disassemble or tamper with the
seat
belt or pretensioner components. All
operations must be performed by qualified and
authorised personnel. Always go to a Fiat
Dealership.IMPORTANT Each seat belt must be used by only
one person. Never travel with a child sitting on the
passenger's lap and a single belt to protect them
both fig. 101. In general, do not place any objects
between the person and the belt.
WARNING
If the belt has been subjected to heavy
s
tress, for example after an accident ,
it should be changed completely together with
the anchors, anchor fastening screws and the
pretensioner. In fact , even if the belt has no
visible defects, it could have lost its resilience.
fig. 100F0T0004fig. 101F0T0005
95
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
W
ARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SEAT BELTS MAINTENANCE
Observe the following precautions for correct seat
belt maintenance:
❒always use the belt with the tap taut and never
twisted; make sure that it is free to run without
impediments;
❒replace the belt after an accident of a certain
severity even if it does not appear damaged.
Always replace the seat belt if the pretensioners
were deployed;
❒to clean the belt, wash by hand with water and
mild soap, rinse and leave to dry in the shade.
Do not use strong detergents, bleach, paints or
any other chemicals which could damage the belt
fibres;
❒prevent the reels from getting wet: their correct
operation is guaranteed only if water does not
get inside;
❒replace the seat belt if it shows significant signs of
wear and tear.CARRYING CHILDREN SAFELY
For optimum protection in the event of a crash, all
passengers must be seated and wearing adequate
restraint systems.
This is even more important for children.
This prescription is compulsory in all EC countries
according to EC Directive 2003/20/EC.
Compared with an adult, a child's head is larger and
heavier in proportion to his/her body and the child's
muscular and bone structures are not fully
developed. For this reason, they require restraint
systems which are different from those used by
adults to protect them in the event of an accident.
The research results in relation to the best
protection for children is illustrated in European
Regulation ECE-R44 which divides the restraint
systems into five groups in addition to making their
use compulsory:
Group Weight range
Group0 upto10kg
Group 0+ up to 13 kg
Group 1 9-18 kg
Group 2 15-25 kg
Group 3 22-36 kg
As you can see, the groups overlap partly and, in fact,
there are devices on sale that cover more than one
weight group.
96
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
W
ARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

All restraint devices must bear the type-approval
data along with the control mark on a label firmly
secured to the child seat which must never be
removed.
Over 1.50 m in height, from the point of view of
restraint systems, children are considered as adults
and wear seat belts normally.
Lineaccessori Fiat has child seats for each weight
group. These devices are recommended, having been
specifically designed for Fiat cars.WARNING
DANGER: Do not put cradle seats facing
backw
ards on the front seat if the front
passenger air bag is enabled.
Deployment of the air bag in an
accident could cause fatal injuries to the child.
It is advisable to carry children on the rear seat ,
which is the most protected position in the
event of an accident . Child seats must not be
fitted on the front seat of vehicles with a
passenger air bag; their deployment in
an accident , however serious, could cause fatal
injuries to the child. If necessary, children can
travel in the front seat , if the front passenger air
bag can be disabled. In this case, check that
the air bag is actually deactivated by making
sure the “ warning light appears on the
instrument panel (see “Front passenger air bag”
in the “Front air bags” section). Also, the
passenger seat should be as far back as possible
to avoid contact between the child seat and
the dashboard.
97
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
W
ARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

GROUPS 0 and 0+
Babies up to 13 kg must be carried facing backwards
on a cradle seat, which, by supporting the head,
does not induce stress on the neck in the event of
sharp deceleration.
The cradle is restrained by the vehicle seat belts, as
shown in fig. 102 and, in turn, it must restrain the
child with its own belts.
GROUP 1
Children from 9 kg to 18 kg in weight can be carried
facing forwards if the child seat is fitted with a front
cushion, through which the car seat belt restrains
both child and seat fig. 103.WARNING
The diagrams are indicative and
pro
vided for assembly purposes only. For
assembly, refer to the instructions supplied with
the child seat by low.
WARNING
Some child restraint systems for weight
groups
0 and 1 have a rear attachment
to the car seat belts and their own seat belts for
securing the child. Due to their weight , they
may be dangerous if incorrectly mounted (e.g.
if fastened to the vehicle seat belts placing a
cushion in between). Follow the assembly
instructions carefully.
fig. 102F0T0006fig. 103F0T0007
98
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
W
ARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

GROUP 2
Children from 15 to 25 kg can be secured using the
car seat belts directly fig. 104.
The child seat is needed only to position the child
correctly with respect to the belts so that the
diagonal section crosses the child's chest and never
the neck, and the lower part is snug on the hips
not the abdomen.
WARNING
The diagrams are indicative and
pro
vided for assembly purposes only. For
assembly, refer to the instructions supplied with
the child seat by law.GROUP 3
For children from 22 kg to 36 kg, the size of the
child's chest no longer requires a support to distance
the child's back from the back of the seat.
The figure fig. 105 shows proper child seat
positioning on the rear seat.
Children over 1.50 m in height can wear seat belts
like adults.
WARNING
The diagrams are indicative and
pro
vided for assembly purposes only. For
assembly, refer to the instructions supplied with
the child seat by law.
fig. 104F0T0008fig. 105F0T0009
99
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
W
ARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

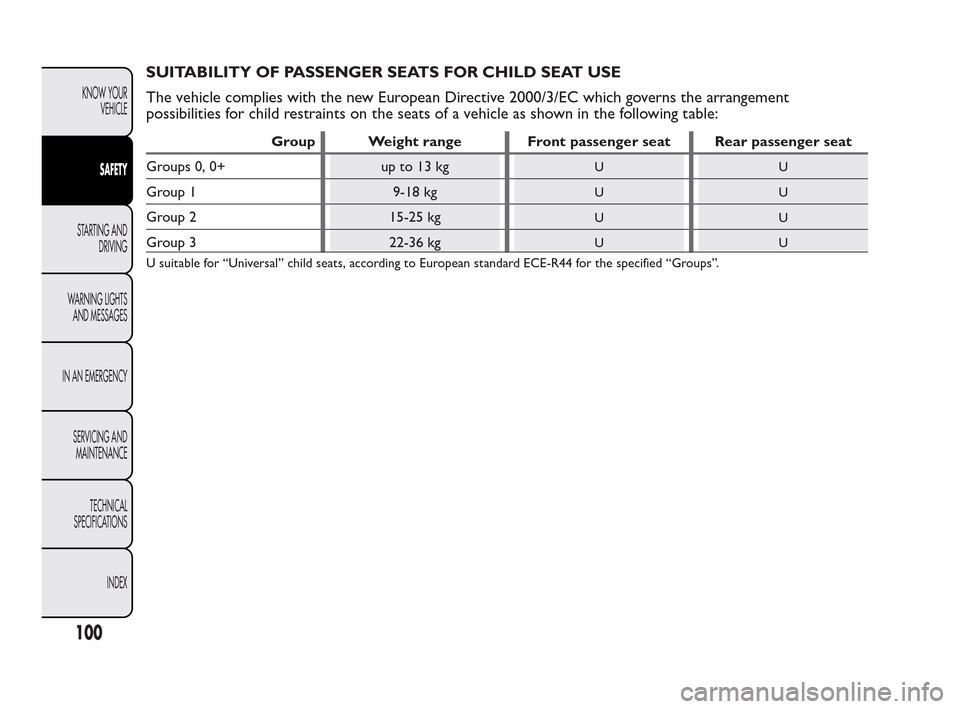

SUITABILITY OF PASSENGER SEATS FOR CHILD SEAT USE
The vehicle complies with the new European Directive 2000/3/EC which governs the arrangement
possibilities for child restraints on the seats of a vehicle as shown in the following table:
Group Weight range Front passenger seat Rear passenger seat
Groups 0, 0+ up to 13 kg
UU
Group 1 9-18 kgUU
Group 2 15-25 kgUU
Group 3 22-36 kgUU
U suitable for “Universal” child seats, according to European standard ECE-R44 for the specified “Groups”.
100
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
W
ARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

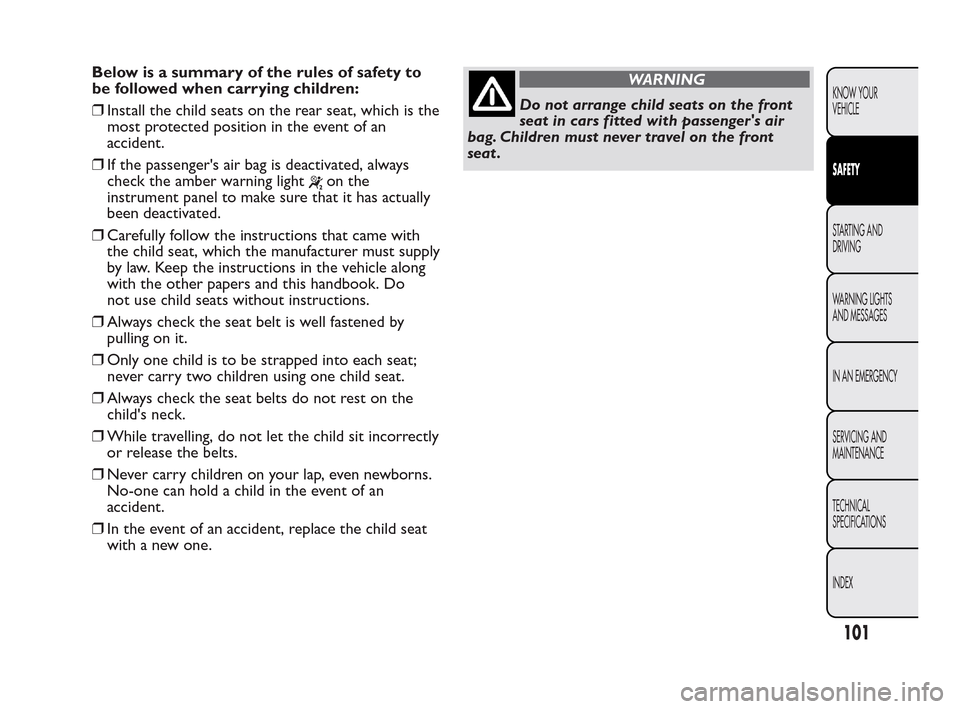

Below is a summary of the rules of safety to
be followed when carrying children:
❒Install the child seats on the rear seat, which is the
most protected position in the event of an
accident.
❒If the passenger's air bag is deactivated, always
check the amber warning light
on the
instrument panel to make sure that it has actually
been deactivated.
❒Carefully follow the instructions that came with
the child seat, which the manufacturer must supply
by law. Keep the instructions in the vehicle along
with the other papers and this handbook. Do
not use child seats without instructions.
❒Always check the seat belt is well fastened by
pulling on it.
❒Only one child is to be strapped into each seat;
never carry two children using one child seat.
❒Always check the seat belts do not rest on the
child's neck.
❒While travelling, do not let the child sit incorrectly
or release the belts.
❒Never carry children on your lap, even newborns.
No-one can hold a child in the event of an
accident.
❒In the event of an accident, replace the child seat
with a new one.
WARNING
Do not arrange child seats on the front
seat
in cars fitted with passenger's air
bag. Children must never travel on the front
seat .
101
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
W
ARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

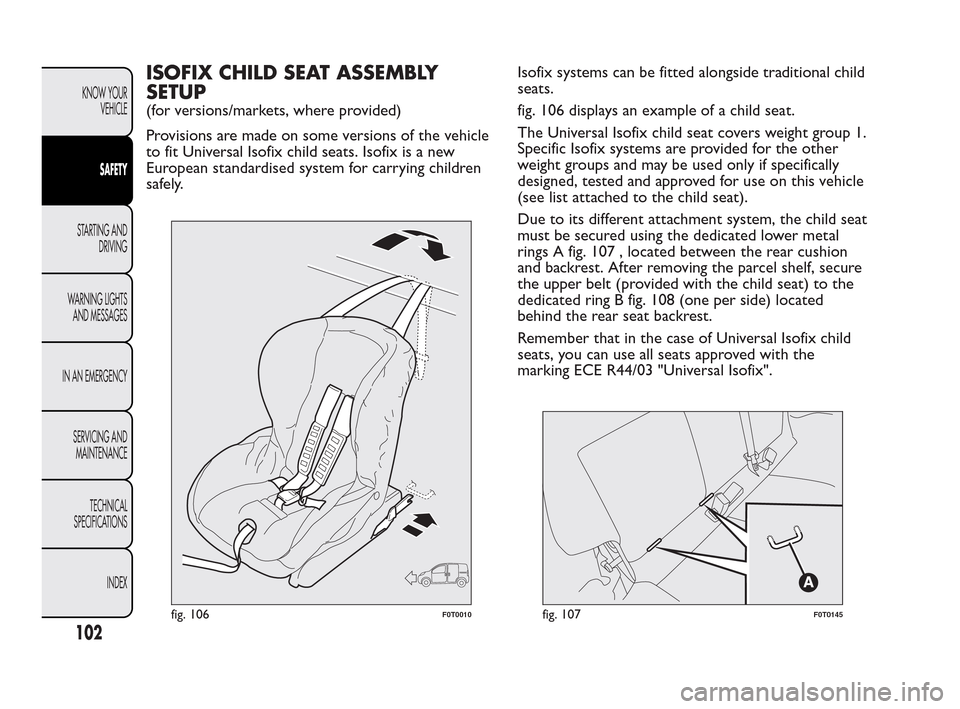

ISOFIX CHILD SEAT ASSEMBLY
SETUP
(for versions/markets, where provided)
Provisions are made on some versions of the vehicle
to fit Universal Isofix child seats. Isofix is a new
European standardised system for carrying children
safely.Isofix systems can be fitted alongside traditional child
seats.
fig. 106 displays an example of a child seat.
The Universal Isofix child seat covers weight group 1.
Specific Isofix systems are provided for the other
weight groups and may be used only if specifically
designed, tested and approved for use on this vehicle
(see list attached to the child seat).
Due to its different attachment system, the child seat
must be secured using the dedicated lower metal
rings A fig. 107 , located between the rear cushion
and backrest. After removing the parcel shelf, secure
the upper belt (provided with the child seat) to the
dedicated ring B fig. 108 (one per side) located
behind the rear seat backrest.
Remember that in the case of Universal Isofix child
seats, you can use all seats approved with the
marking ECE R44/03 "Universal Isofix".
fig. 106F0T0010fig. 107F0T0145
102
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
W
ARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
