Side lights
To change the bulb, proceed as follows:
operate the lens A fig. 149 to press in the internal
catch B fig. 150, then pull the unit outwards;
turn the bulb holder C anti-clockwise, extract
bulb D and replace it;
refit the bulb holder C in the lens and turn it
clockwise;
refit the unit making sure that the internal catch B
clips into position.FOG LIGHTS
(for versions/markets, where provided)
IMPORTANT Contact Fiat Dealership to replace the
front fog lights.
fig. 149F0T0097fig. 150F0T0098
162
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

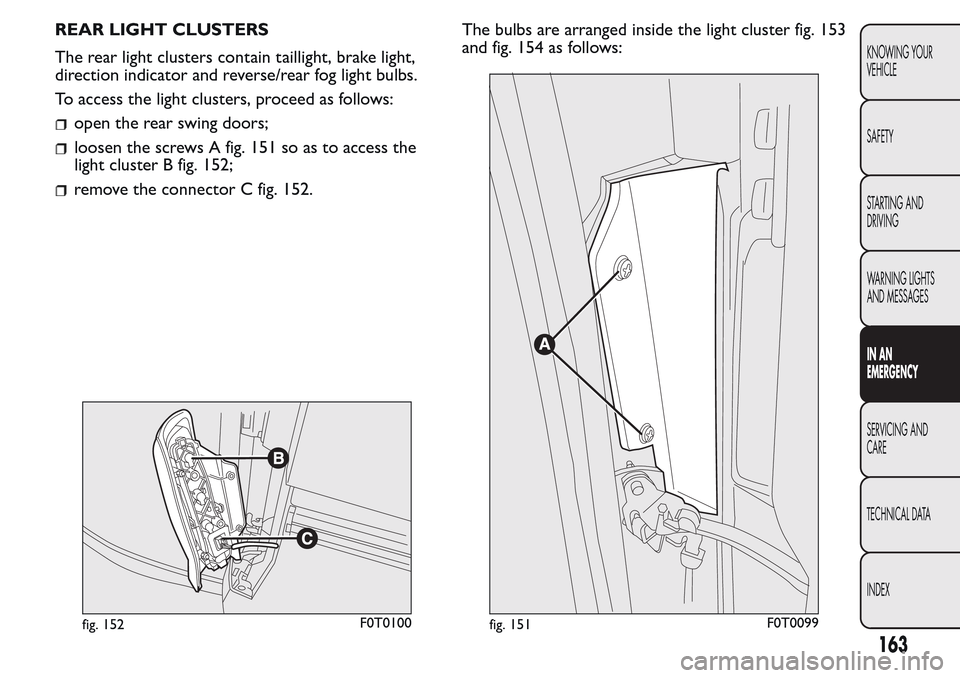

REAR LIGHT CLUSTERS
The rear light clusters contain taillight, brake light,
direction indicator and reverse/rear fog light bulbs.
To access the light clusters, proceed as follows:
open the rear swing doors;
loosen the screws A fig. 151 so as to access the
light cluster B fig. 152;
remove the connector C fig. 152.The bulbs are arranged inside the light cluster fig. 153
and fig. 154 as follows:
fig. 152F0T0100fig. 151F0T0099
163
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

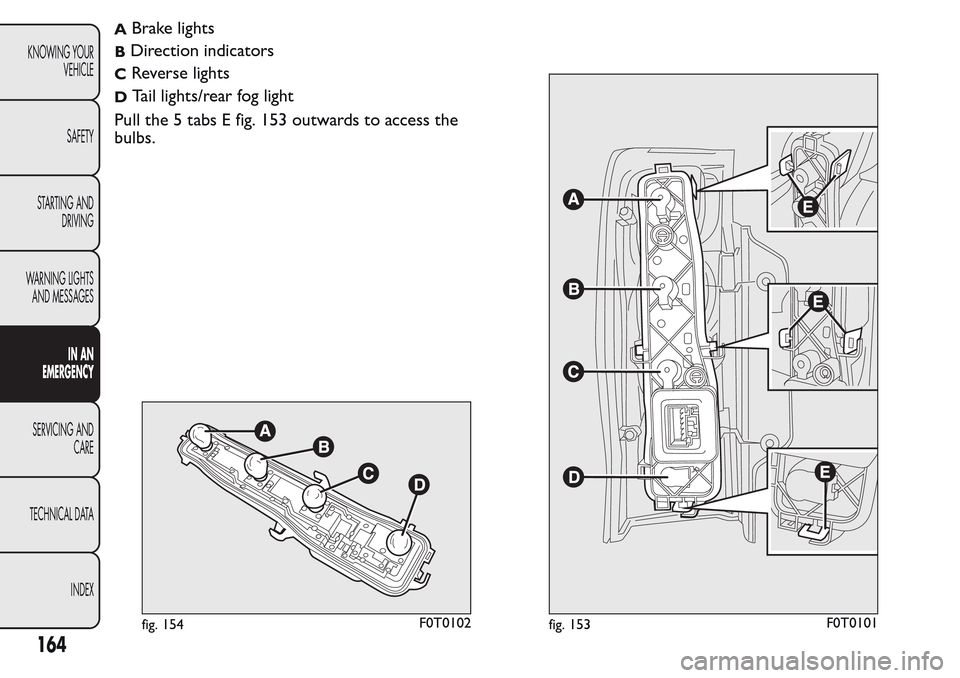

ABrake lights
BDirection indicators
CReverse lights
DTail lights/rear fog light
Pull the 5 tabs E fig. 153 outwards to access the
bulbs.
fig. 154F0T0102fig. 153F0T0101
164
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

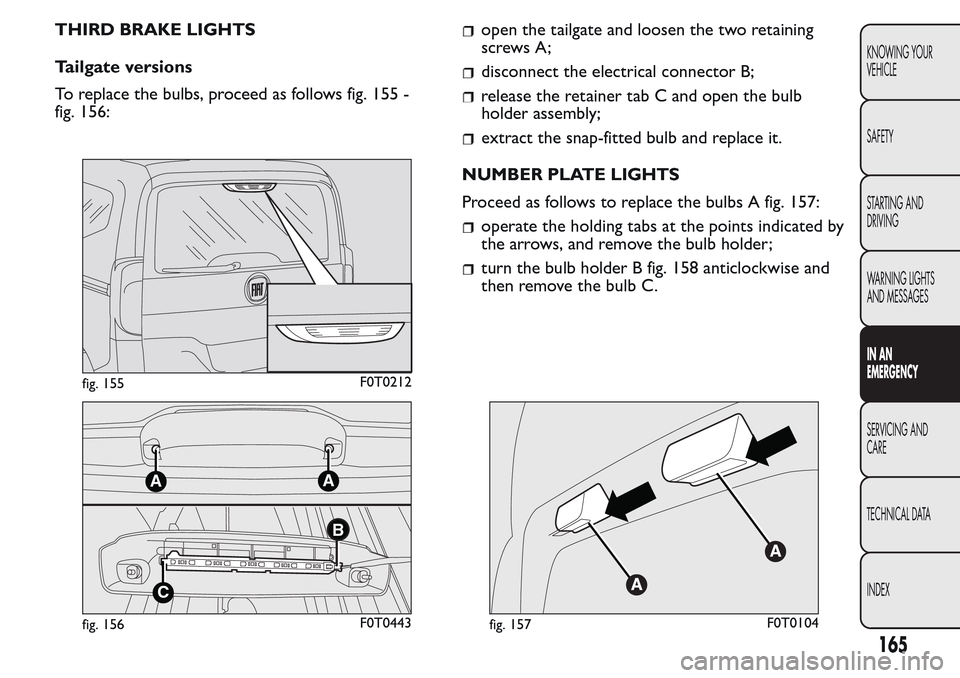

THIRD BRAKE LIGHTS
Tailgate versions
To replace the bulbs, proceed as follows fig. 155 -
fig. 156:open the tailgate and loosen the two retaining
screws A;
disconnect the electrical connector B;
release the retainer tab C and open the bulb
holder assembly;
extract the snap-fitted bulb and replace it.
NUMBER PLATE LIGHTS
Proceed as follows to replace the bulbs A fig. 157:
operate the holding tabs at the points indicated by
the arrows, and remove the bulb holder;
turn the bulb holder B fig. 158 anticlockwise and
then remove the bulb C.
fig. 155F0T0212
A
C
A
B
fig. 156F0T0443fig. 157F0T0104
165
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

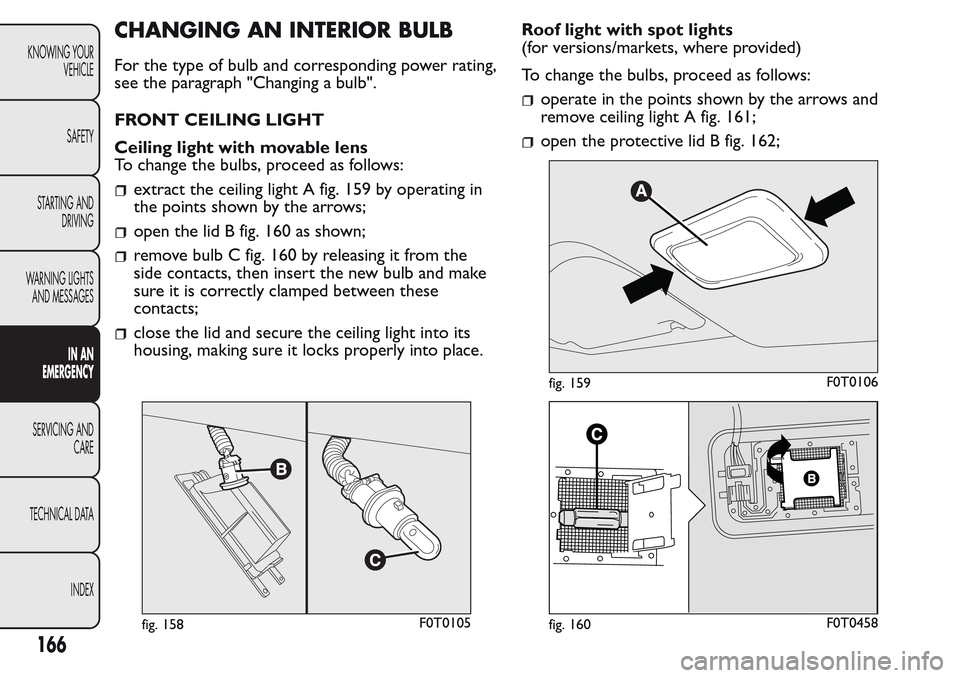

CHANGING AN INTERIOR BULB
For the type of bulb and corresponding power rating,
see the paragraph "Changing a bulb".
FRONT CEILING LIGHT
Ceiling light with movable lens
To change the bulbs, proceed as follows:
extract the ceiling light A fig. 159 by operating in
the points shown by the arrows;
open the lid B fig. 160 as shown;
remove bulb C fig. 160 by releasing it from the
side contacts, then insert the new bulb and make
sure it is correctly clamped between these
contacts;
close the lid and secure the ceiling light into its
housing, making sure it locks properly into place.Roof light with spot lights
(for versions/markets, where provided)
To change the bulbs, proceed as follows:
operate in the points shown by the arrows and
remove ceiling light A fig. 161;
open the protective lid B fig. 162;
fig. 158F0T0105
fig. 159F0T0106
fig. 160F0T0458
166
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

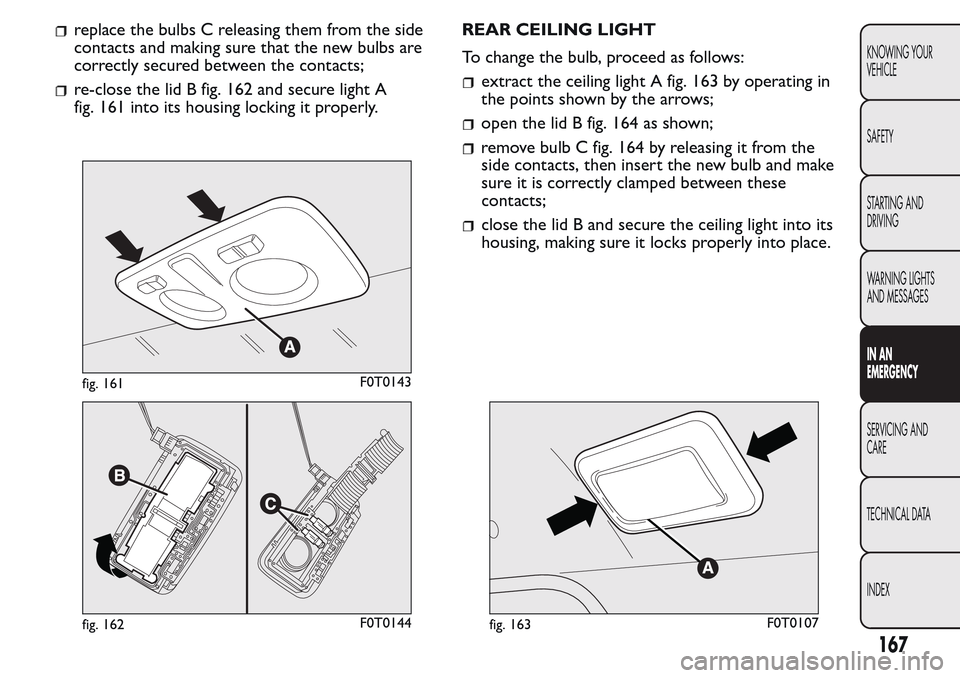

replace the bulbs C releasing them from the side
contacts and making sure that the new bulbs are
correctly secured between the contacts;
re-close the lid B fig. 162 and secure light A
fig. 161 into its housing locking it properly.REAR CEILING LIGHT
To change the bulb, proceed as follows:extract the ceiling light A fig. 163 by operating in
the points shown by the arrows;
open the lid B fig. 164 as shown;
remove bulb C fig. 164 by releasing it from the
side contacts, then insert the new bulb and make
sure it is correctly clamped between these
contacts;
close the lid B and secure the ceiling light into its
housing, making sure it locks properly into place.
fig. 161F0T0143
fig. 162F0T0144fig. 163F0T0107
167
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

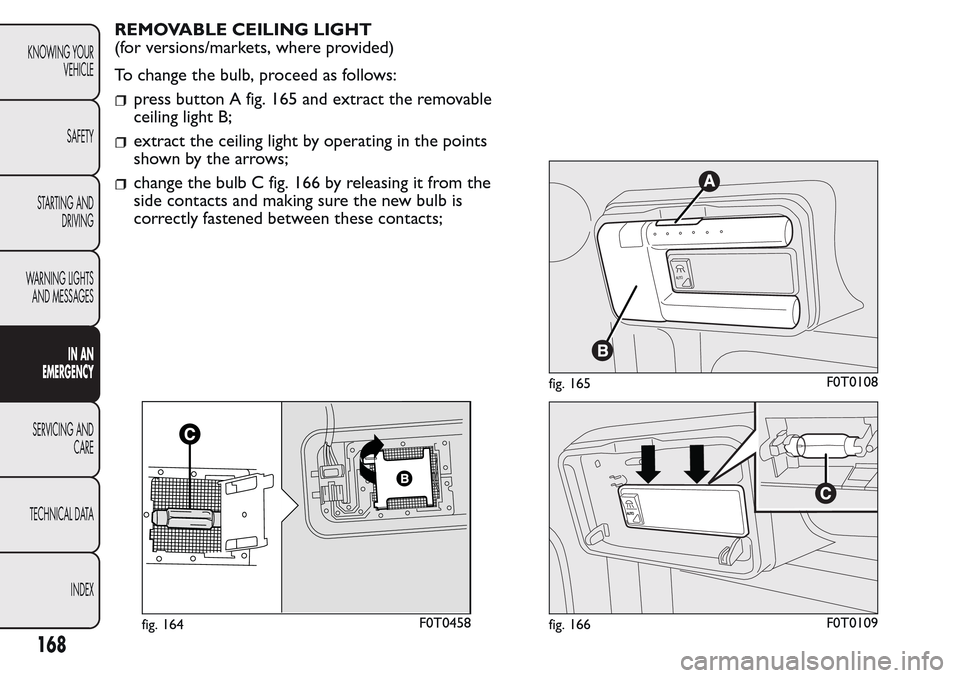

REMOVABLE CEILING LIGHT
(for versions/markets, where provided)
To change the bulb, proceed as follows:
press button A fig. 165 and extract the removable
ceiling light B;
extract the ceiling light by operating in the points
shown by the arrows;
change the bulb C fig. 166 by releasing it from the
side contacts and making sure the new bulb is
correctly fastened between these contacts;
fig. 164F0T0458
A
UT
O
fig. 165F0T0108
A
U
T
O
fig. 166F0T0109
168
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

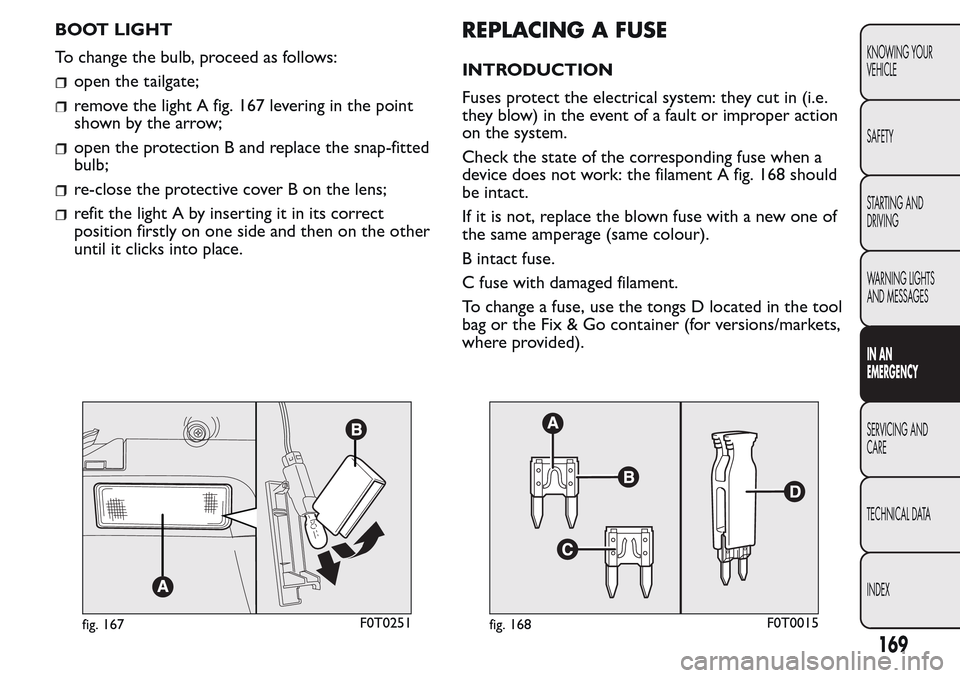

BOOT LIGHT
To change the bulb, proceed as follows:
open the tailgate;
remove the light A fig. 167 levering in the point
shown by the arrow;
open the protection B and replace the snap-fitted
bulb;
re-close the protective cover B on the lens;
refit the light A by inserting it in its correct
position firstly on one side and then on the other
until it clicks into place.
REPLACING A FUSE
INTRODUCTION
Fuses protect the electrical system: they cut in (i.e.
they blow) in the event of a fault or improper action
on the system.
Check the state of the corresponding fuse when a
device does not work: the filament A fig. 168 should
be intact.
If it is not, replace the blown fuse with a new one of
the same amperage (same colour).
B intact fuse.
C fuse with damaged filament.
To change a fuse, use the tongs D located in the tool
bag or the Fix & Go container (for versions/markets,
where provided).
fig. 167F0T0251fig. 168F0T0015
169
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

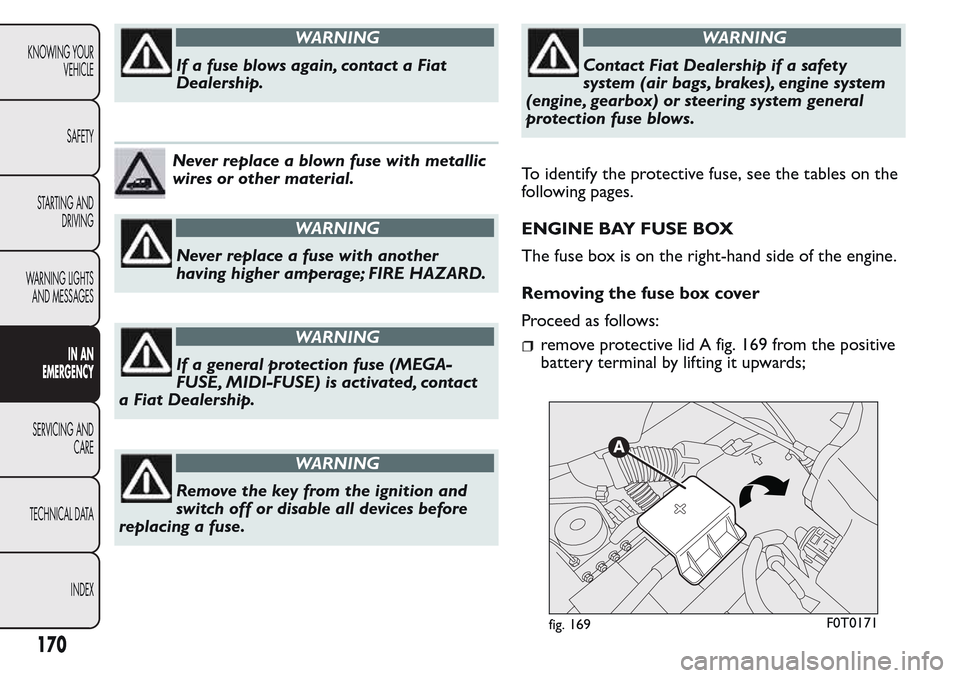

WARNING
If a fuse blows again, contact a Fiat
Dealership.
Never replace a blown fuse with metallic
wires or other material.
WARNING
Never replace a fuse with another
having higher amperage; FIRE HAZARD.
WARNING
If a general protection fuse (MEGA-
FUSE, MIDI-FUSE) is activated, contact
a Fiat Dealership.
WARNING
Remove the key from the ignition and
switch off or disable all devices before
replacing a fuse.
WARNING
Contact Fiat Dealership if a safety
system (air bags, brakes), engine system
(engine, gearbox) or steering system general
protection fuse blows.
To identify the protective fuse, see the tables on the
following pages.
ENGINE BAY FUSE BOX
The fuse box is on the right-hand side of the engine.
Removing the fuse box cover
Proceed as follows:
remove protective lid A fig. 169 from the positive
battery terminal by lifting it upwards;
fig. 169F0T0171
170
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

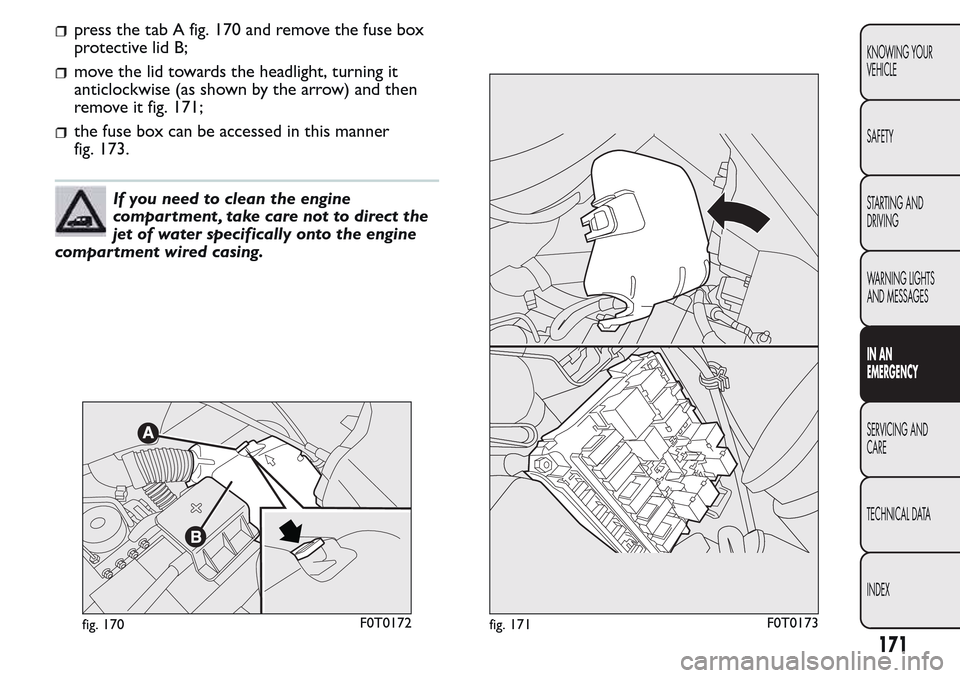

press the tab A fig. 170 and remove the fuse box
