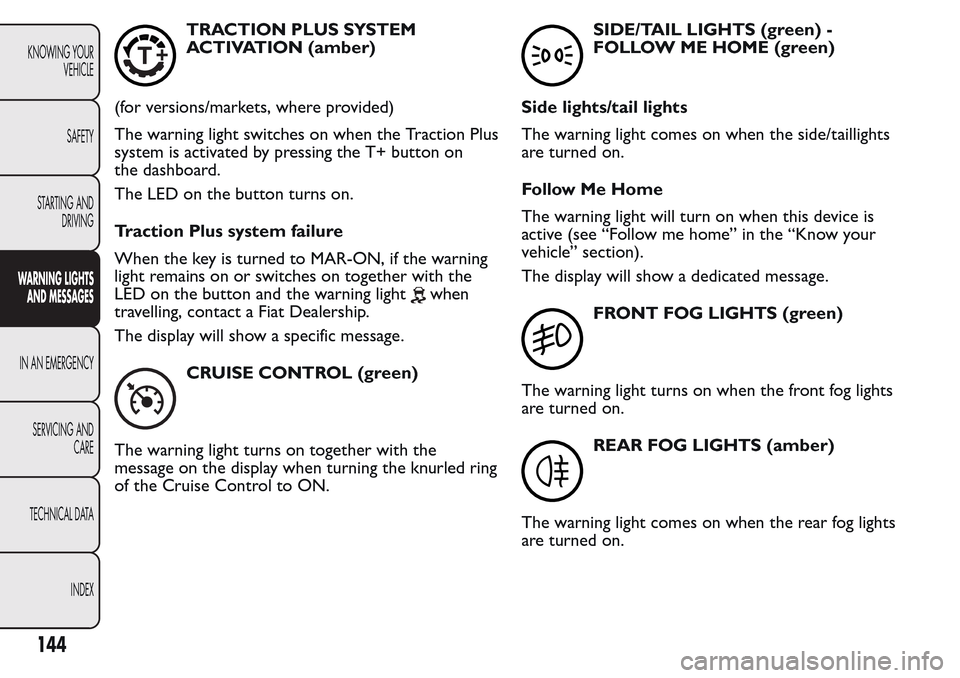

TRACTION PLUS SYSTEM
ACTIVATION (amber)
(for versions/markets, where provided)
The warning light switches on when the Traction Plus
system is activated by pressing the T+ button on
the dashboard.
The LED on the button turns on.
Traction Plus system failure
When the key is turned to MAR-ON, if the warning
light remains on or switches on together with the
LED on the button and the warning light
when
travelling, contact a Fiat Dealership.
The display will show a specific message.
CRUISE CONTROL (green)
The warning light turns on together with the
message on the display when turning the knurled ring
of the Cruise Control to ON.
SIDE/TAIL LIGHTS (green) -
FOLLOW ME HOME (green)
Side lights/tail lights
The warning light comes on when the side/taillights
are turned on.
Follow Me Home
The warning light will turn on when this device is
active (see “Follow me home” in the “Know your
vehicle” section).
The display will show a dedicated message.
FRONT FOG LIGHTS (green)
The warning light turns on when the front fog lights
are turned on.
REAR FOG LIGHTS (amber)
The warning light comes on when the rear fog lights
are turned on.
144
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

LEFT-HAND DIRECTION
INDICATOR (green - intermittent)
The light (arrow) comes on when the direction
indicator control lever is moved downwards
or, together with the right-hand arrow, when the
hazard warning light button is pressed.
RIGHT-HAND DIRECTION
INDICATOR (green - intermittent)
The light (arrow) comes on when the direction
indicator control lever is moved upwards or,
together with the left-hand arrow, when the hazard
warning light button is pressed.
MAIN BEAMS (blue)
The warning light switches on when the main beams
are activated.
GEAR SHIFT INDICATION
(for versions/markets, where provided)
On vehicles with a manual gearbox, the gear shift
indicator suggests gear changes to the driver (SHIFT
UP or SHIFT DOWN) via a special display on the
control panel. This suggestion to change gear is
designed to improve consumption and ensure the
best driving style.
NoteThe indication in the instrument panel remains
on until the driver makes a gear change or until the
driving conditions return to a situation where a
gear change is not required to improve consumption
145
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

Left direction indicator
warning light.............................. 145
Lifting the vehicle....................... 180
Light beam direction .................. 70
Low battery charge warning
light ............................................. 135
Low engine oil level ................... 138
Low engine oil pressure
warning light.............................. 137
Luggage Compartment.............. 59
Main beam headlights................. 42
Main beam warning light .......... 145
Maintenance and care -
regular checks........................... 189
Maintenance and care -
Scheduled Servicing ................. 183
Maintenance and care -
scheduled servicing plan......... 184
Manual climate control
system ......................................... 39
Manually deactivating the
front airbag and side bag ........ 115
MSR system.................................. 76
Multifunction display
– Control buttons .................... 16
– Setup menu............................. 17
– Standard screen ..................... 15
Number plate lights................... 165Number plate lights (bulb
replacement) ............................. 165
On-board instruments............... 13
Ordering additional remote
controls ....................................... 9
Parking .......................................... 125
Parking lights ................................ 42
Parking sensor fault warning
light ............................................. 143
Parking sensors ........................... 84
Parking sensors (warning
light) ............................................ 143
Particulate filter (DPF) .............. 96
Partition ........................................ 30
Passenger compartment
fuse box ..................................... 175
Passenger compartment
fuse box table ........................... 177
Performance................................ 223
Pollen filter .................................. 197
Power steering fluid .................. 196
Power supply............................... 212
Pre-tensioners ............................ 100
pressure restoring...................... 156
Prolonged vehicle inactivity ..... 132
Protecting the environment ..... 96
Radio.............................................. 91Radio transmitters and
mobile phones ........................... 92
Rear ceiling light ......................... 167
Rear fog lights .............................. 51
– Warning light ......................... 144
Rear fog lights (changing a
bulb) ............................................ 163
Rear fog lights warning light .... 144
Rear light clusters ...................... 163
Rear light clusters (changing
a bulb)......................................... 163
Rear side windows ..................... 54
Rear window washer ................. 45
Rear window wiper .................... 45
Rear-view mirrors
– Interior rear-view mirror..... 33
– Wing mirrors ......................... 33
Refuelling...................................... 226
Refuelling the vehicle ................. 93
Removable ceiling light ............. 168
Replacing the battery ................ 198
Replacing the rear window
wiper blade................................ 202
Replacing the windscreen
wiper blades .............................. 202
Rev counter.................................. 13
