compression ratio FIAT QUBO 2017 1.G Owners Manual

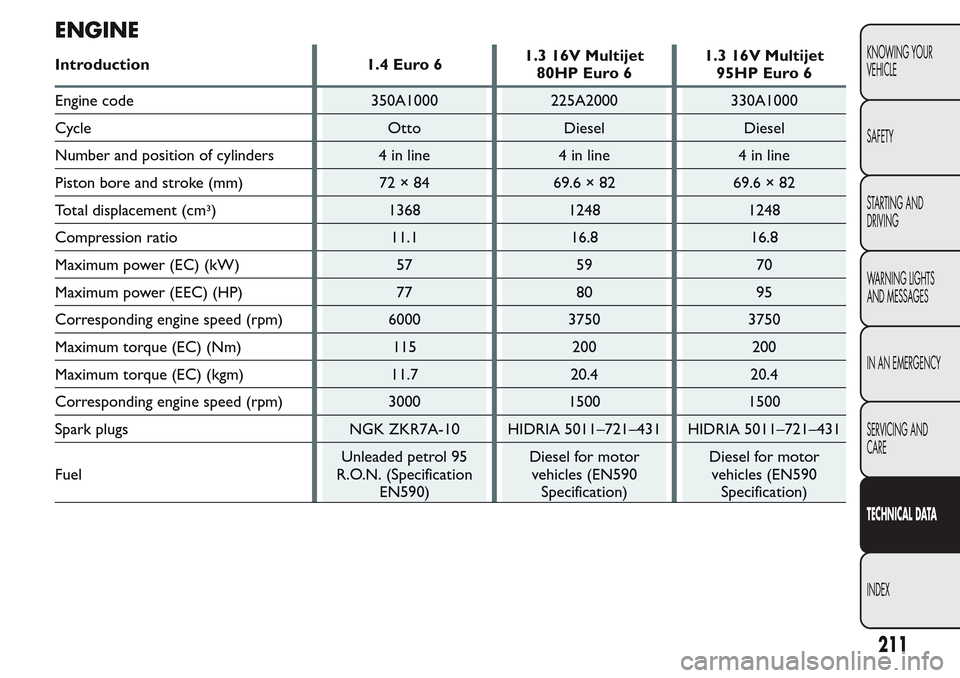

ENGINE
Introduction 1.4 Euro 61.3 16V Multijet
80HP Euro 61.3 16V Multijet
95HP Euro 6
Engine code 350A1000 225A2000 330A1000
Cycle Otto Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 72 × 84 69.6 × 82 69.6 × 82
Total displacement (cm3) 1368 1248 1248
Compression ratio 11.1 16.8 16.8
Maximum power (EC) (kW) 57 59 70
Maximum power (EEC) (HP) 77 80 95
Corresponding engine speed (rpm) 6000 3750 3750
Maximum torque (EC) (Nm) 115 200 200
Maximum torque (EC) (kgm) 11.7 20.4 20.4
Corresponding engine speed (rpm) 3000 1500 1500
Spark plugs NGK ZKR7A-10 HIDRIA 5011–721–431 HIDRIA 5011–721–431
FuelUnleaded petrol 95
R.O.N. (Specification
EN590)Diesel for motor
vehicles (EN590
Specification)Diesel for motor
vehicles (EN590
Specification)
