PNEUMATIC
SUSPENSIONS
In some versions the tires rear suspen-
sions self-leveling may be included as an
optional.
According to versions suspensions can be
adjusted manually or automatically.
MANUAL ADJUSTMENT
The controls fig.109are located in the
rear right of the vehicle.
Height adjustment
The height adjustment varies from a max-
imum alignmentto an intermediate
alignmentto a minimum alignment.
The reaching of the two stabilities, maxi-
mum or minimum is signalled by 3 “beeps”.
By pressing down twice on one of the A
buttons (starting from the minimum align-
ment position) or one of the Bbuttons
(starting from the maximum alignment po-
sition), the system will automatically ad-
just the setting to the intermediate align-
ment.
fig. 109F0P0102m
Before starting the manual
adjustment procedure with
doors open, make sure there
is enough space around the
vehicle.
First-time use
To initialize the system, keep pushbutton
C-fig.109pressed for 2 seconds
Operating faults
If, when acting on the controls, the sus-
pensions do not adjust, 3 acoustic warn-
ings indicate a system malfunction.
This malfunction could be due to one of
these causes:
❒the brake pedal is pressed and the ig-
nition key is in Mposition
❒excessive use of the system manual ad-
justment;
❒the battery is low (or completely dis-
charged);
❒a tire suspension system error.
If the acoustic warning persists, contact
the Fiat Dealership. The required height level should be set
with vehicle at a standstill and engine run-
ning or off.
With engine off, manual adjustment is on-
ly possible for a restricted number of
times.
IMPORTANT Only make adjustments
with vehicle stationary and:
❒front and side doors closed;
❒handbrake engaged;
❒without pressing the brake pedal.
018-080 SCUDO LUM GB:018-080 Nuovo ScudoG9 GB 9-10-2012 9:27 Pagina 78

Fiat Group Automobiles S.p.A. - Parts & Services - Technical Services - Service Engineering
Largo Senatore G. Agnelli, 3 - 10040 Volvera - Torino (Italia)
Print N. 603.99.291 - 10/2012 - 1 Edition

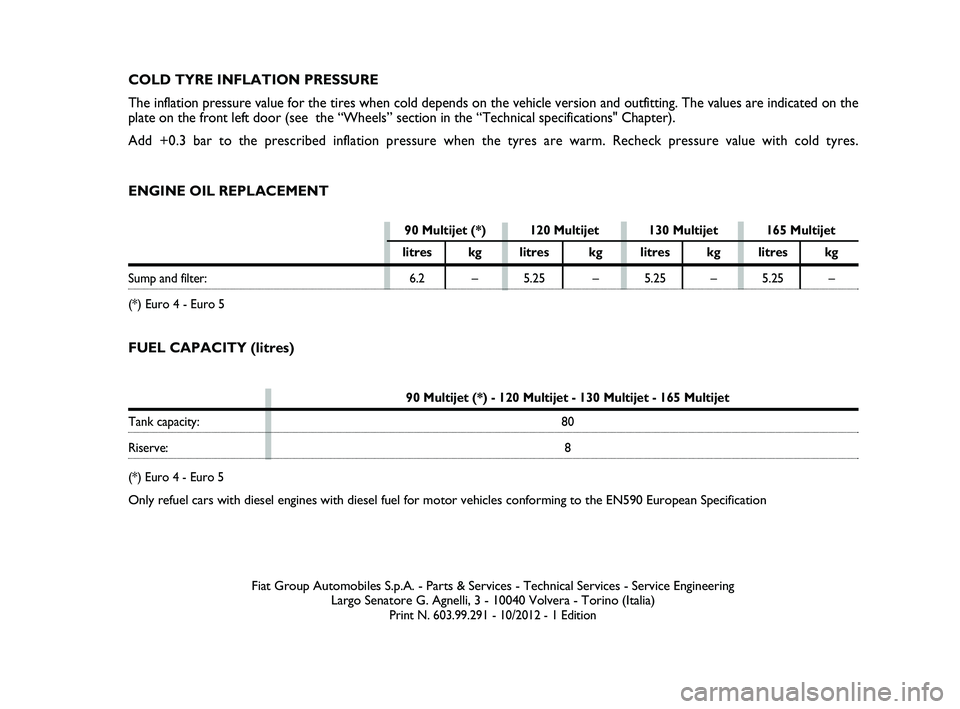

ENGINE OIL REPLACEMENT
FUEL CAPACITY (litres) COLD TYRE INFLATION PRESSURE
The inflation pressure value for the tires when cold depends on the vehicle version and outfitting. The values are indicated on the
plate on the front left door (see the “Wheels” section in the “Technical specifications" Chapter).
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
90 Multijet (*) - 120 Multijet - 130 Multijet - 165 Multijet
Tank capacity: 80
Riserve: 8
(*) Euro 4 - Euro 5
Only refuel cars with diesel engines with diesel fuel for motor vehicles conforming to the EN590 European Specification
90 Multijet (*) 120 Multijet 130 Multijet 165 Multijet
litres kg litres kg litres kg litres kg
Sump and filter: 6.2 – 5.25 – 5.25 – 5.25 –
(*) Euro 4 - Euro 5
211-218 SCUDO LUM GB.qxd:200-208 Nuovo ScudoG9 ING 18-10-2012 8:30 Pagina 216
