FIAT SCUDO 2016 Owner handbook (in English)

27
SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS

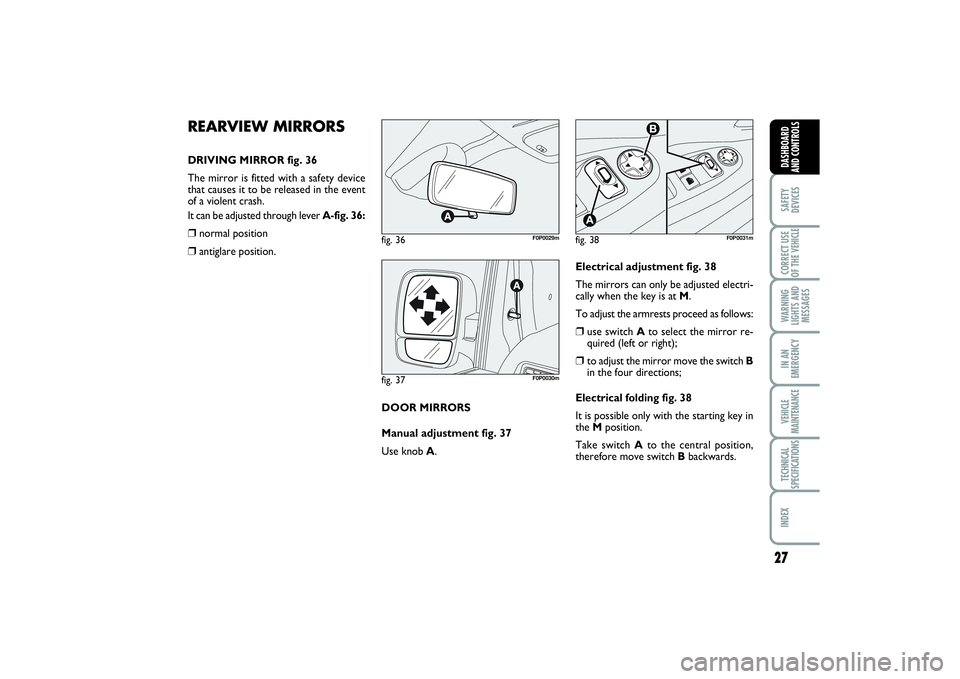

REARVIEW MIRRORSDRIVING MIRROR fig. 36
The mirror is fitted with a safety device
that causes it to be released in the event
of a violent crash.
It can be adjusted through lever A-fig. 36:❒
normal position
❒
antiglare position.
fig. 36
F0P0029m
fig. 37
F0P0030m
DOOR MIRRORS
Manual adjustment fig. 37
Use knob A.
fig. 38
F0P0031m
Electrical adjustment fig. 38
The mirrors can only be adjusted electri-
cally when the key is at M.
To adjust the armrests proceed as follows:❒
use switch Ato select the mirror re-
quired (left or right);
❒
to adjust the mirror move the switch B
in the four directions;
Electrical folding fig. 38
It is possible only with the starting key in
the Mposition.
Take switch Ato the central position,
therefore move switch Bbackwards.
020-082 SCUDO LUM GB 19/11/13 09.54 Pagina 27

28SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
DASHBOARD
AND
CONTROLS

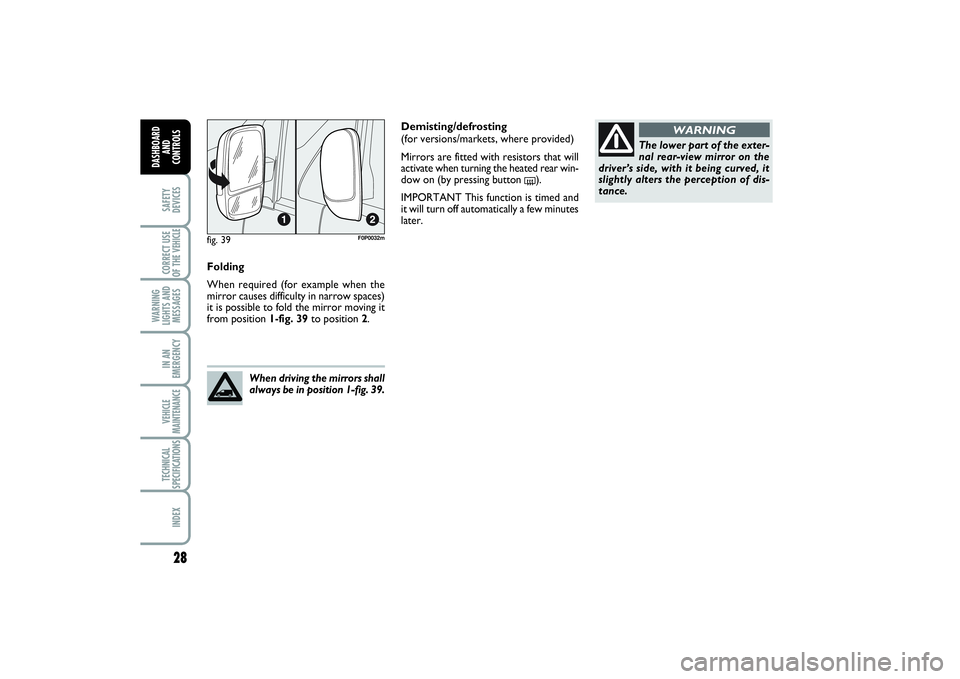

Folding
When required (for example when the
mirror causes difficulty in narrow spaces)
it is possible to fold the mirror moving it
from position 1-fig. 39to position 2.
When driving the mirrors shall
always be in position 1-fig. 39.
The lower part of the exter-
nal rear-view mirror on the
driver’s side, with it being curved, it
slightly alters the perception of dis-
tance.
WARNING
Demisting/defrosting
(for versions/markets, where provided)
Mirrors are fitted with resistors that will
activate when turning the heated rear win-
dow on (by pressing button
(
).
IMPORTANT This function is timed and
it will turn off automatically a few minutes
later.
fig. 39
F0P0032m
020-082 SCUDO LUM GB 19/11/13 09.54 Pagina 28

29
SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS

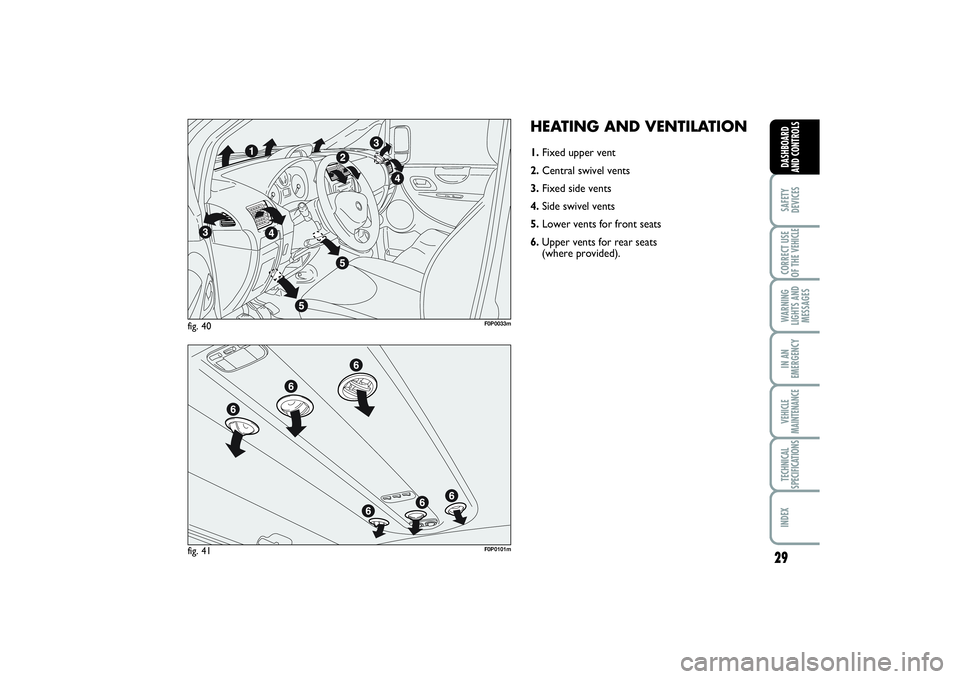

HEATING AND VENTILATION1.Fixed upper vent
2.Central swivel vents
3.Fixed side vents
4.Side swivel vents
5. Lower vents for front seats
6.Upper vents for rear seats
(where provided).
fig. 40
F0P0033m
fig. 41
F0P0101m
020-082 SCUDO LUM GB 19/11/13 09.54 Pagina 29

30SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
DASHBOARD
AND
CONTROLS
CONTROLS fig. 44
Air distribution slider Aμ
to convey air to the centre and side
vents;
∑
to warm the feet and convey cooler
air to the dashboard vents, in inter-
mediate temperature conditions;
∂
to heat with outside harsh tempera-
ture: to convey as much air as possi-
ble to the feet;
∏
to warm the feet and at the same time
demist the windscreen;
-
for quick windscreen demisting.
fig. 44
F0P0036m
fig. 42
F0P0034m
fig. 43
F0P0035m

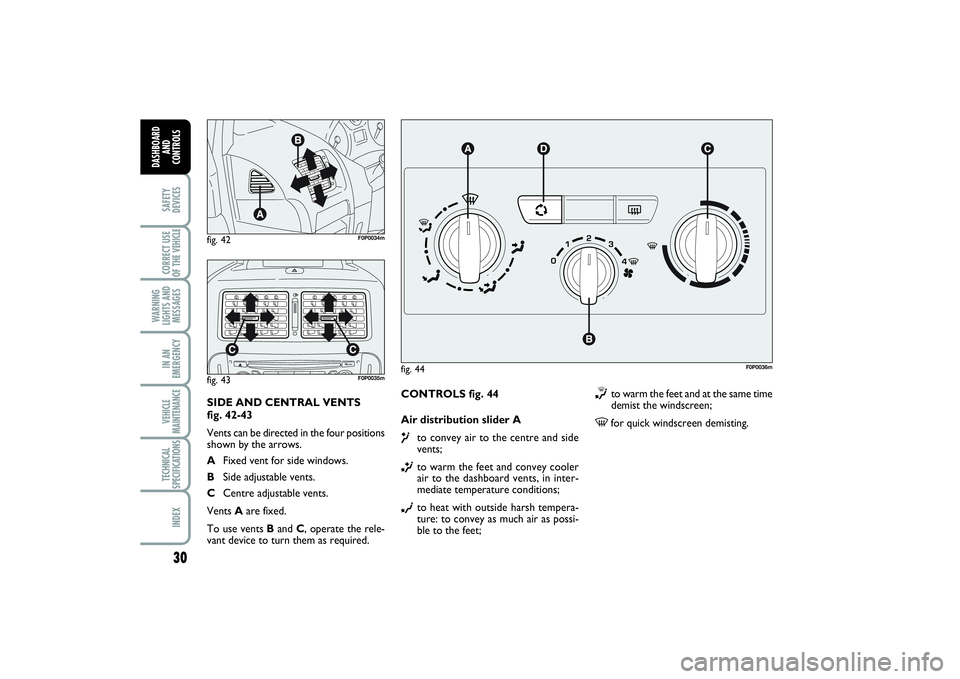

SIDE AND CENTRAL VENTS
fig. 42-43
Vents can be directed in the four positions
shown by the arrows.
AFixed vent for side windows.
BSide adjustable vents.
CCentre adjustable vents.
Vents Aare fixed.
To use vents Band C, operate the rele-
vant device to turn them as required.
020-082 SCUDO LUM GB 19/11/13 09.54 Pagina 30

31
SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS

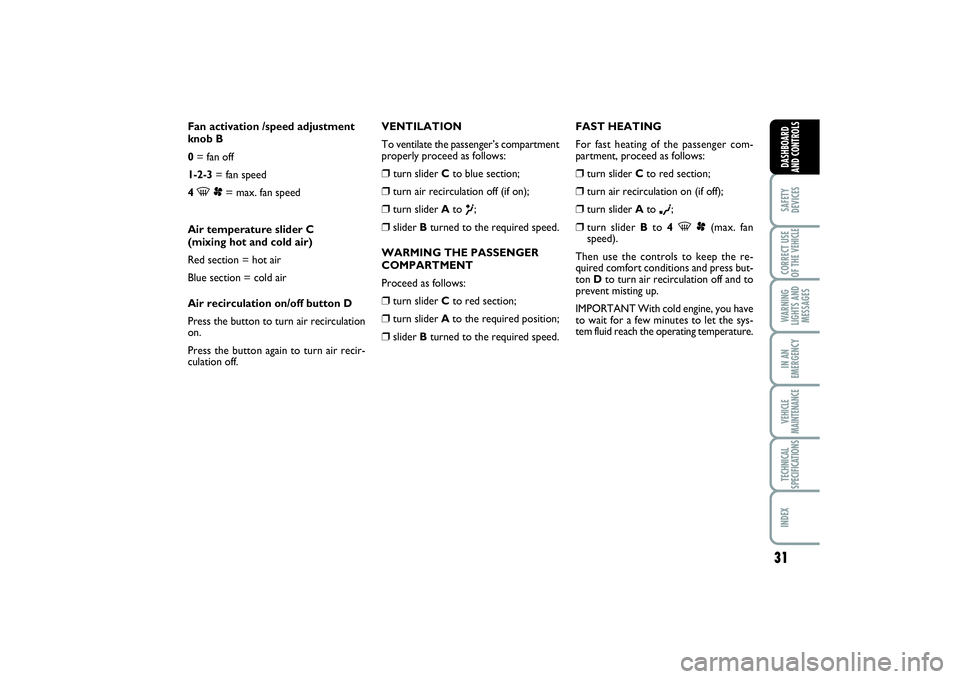

Fan activation /speed adjustment
knob B
0= fan off
1-2-3= fan speed
4 -
p
= max. fan speed
Air temperature slider C
(mixing hot and cold air)
Red section = hot air
Blue section = cold air
Air recirculation on/off button D
Press the button to turn air recirculation
on.
Press the button again to turn air recir-
culation off.FAST HEATING
For fast heating of the passenger com-
partment, proceed as follows:
❒
turn slider Cto red section;
❒
turn air recirculation on (if off);
❒
turn slider Ato
∂
;
❒
turn slider Bto 4
-
p(max. fan
speed).
Then use the controls to keep the re-
quired comfort conditions and press but-
ton Dto turn air recirculation off and to
prevent misting up.
IMPORTANT With cold engine, you have
to wait for a few minutes to let the sys-
tem fluid reach the operating temperature. VENTILATION
To ventilate the passenger’s compartment
properly proceed as follows:
❒
turn slider Cto blue section;
❒
turn air recirculation off (if on);
❒
turn slider Ato
μ;
❒
slider Bturned to the required speed.
WARMING THE PASSENGER
COMPARTMENT
Proceed as follows:
❒
turn slider Cto red section;
❒
turn slider Ato the required position;
❒
slider Bturned to the required speed.
020-082 SCUDO LUM GB 19/11/13 09.54 Pagina 31

32SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
DASHBOARD
AND
CONTROLS

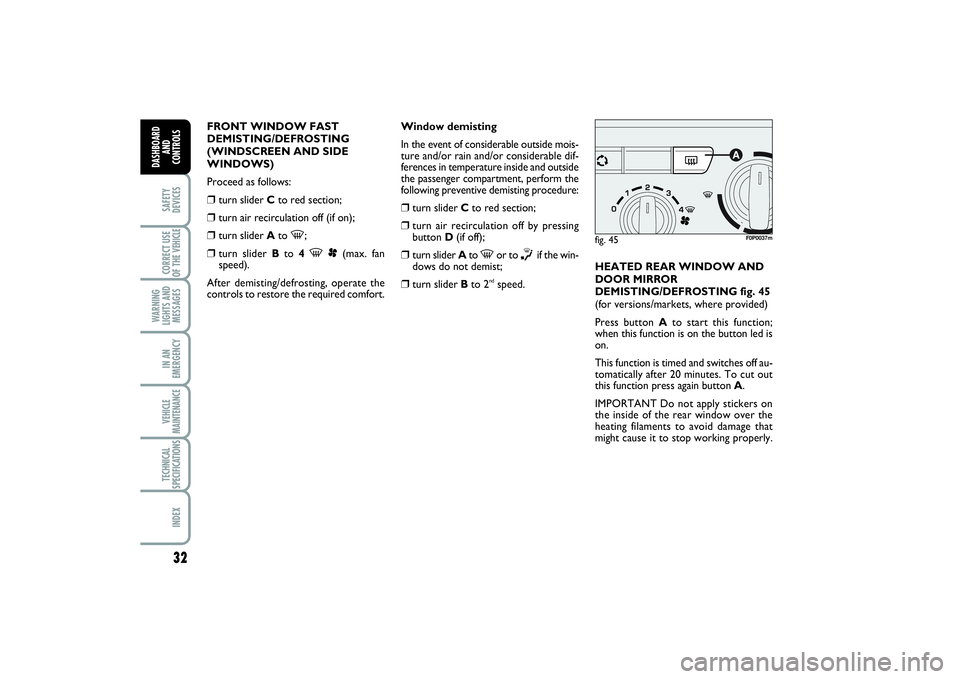

FRONT WINDOW FAST
DEMISTING/DEFROSTING
(WINDSCREEN AND SIDE
WINDOWS)
Proceed as follows:❒
turn slider Cto red section;
❒
turn air recirculation off (if on);
❒
turn slider Ato
-;
❒
turn slider Bto 4
-
p(max. fan
speed).
After demisting/defrosting, operate the
controls to restore the required comfort.Window demisting
In the event of considerable outside mois-
ture and/or rain and/or considerable dif-
ferences in temperature inside and outside
the passenger compartment, perform the
following preventive demisting procedure:
❒
turn slider Cto red section;
❒
turn air recirculation off by pressing
button D(if off);
❒
turn slider Ato
-
or to
∏
if the win-
dows do not demist;
❒
turn slider Bto 2
ndspeed.HEATED REAR WINDOW AND
DOOR MIRROR
DEMISTING/DEFROSTING fig. 45
(for versions/markets, where provided)
Press button Ato start this function;
when this function is on the button led is
on.
This function is timed and switches off au-
tomatically after 20 minutes. To cut out
this function press again button A.
IMPORTANT Do not apply stickers on
the inside of the rear window over the
heating filaments to avoid damage that
might cause it to stop working properly.
fig. 45
F0P0037m
020-082 SCUDO LUM GB 19/11/13 09.54 Pagina 32

33
SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS
MANUAL CLIMATE
CONTROL SYSTEM (for versions/markets, where provided)
CONTROLS fig. 46
Air distribution slider A μ
to convey air to the centre and side
vents;
∑
to warm the feet and convey cooler
air to the dashboard vents, in inter-
mediate temperature conditions;
∂
to heat with outside harsh tempera-
ture: to convey as much air as possi-
ble to the feet;
∏
to warm the feet and at the same time
demist the windscreen;
-
for quick windscreen demisting.
Fan activation /speed adjustment
knob B
0= fan off
1-2-3= fan speed
4 -
p

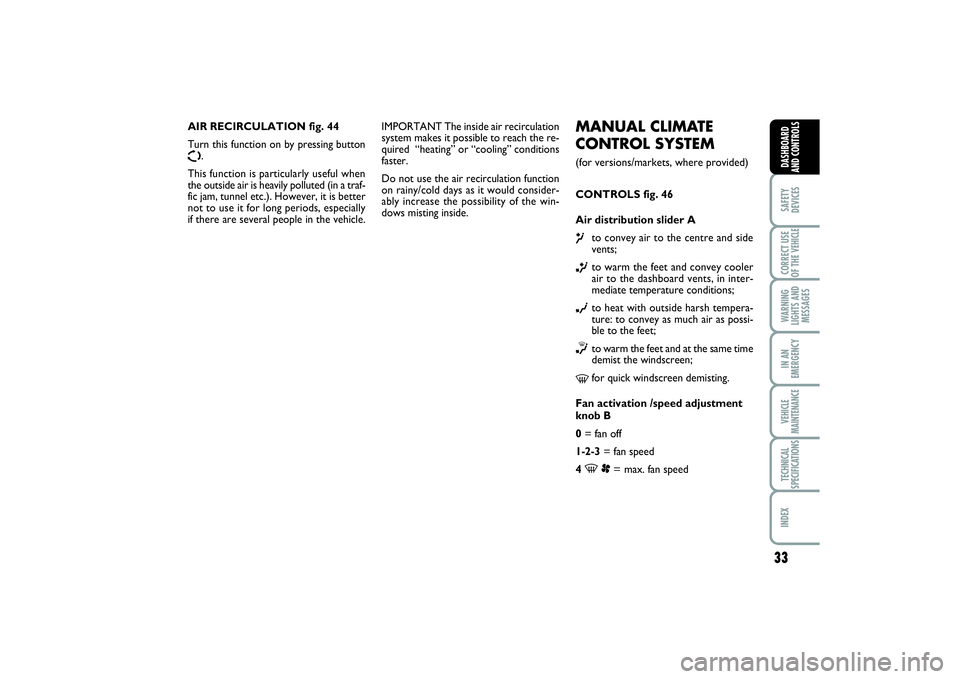

= max. fan speed AIR RECIRCULATION fig. 44
Turn this function on by pressing button
Ω
.
This function is particularly useful when
the outside air is heavily polluted (in a traf-
fic jam, tunnel etc.). However, it is better
not to use it for long periods, especially
if there are several people in the vehicle.IMPORTANT The inside air recirculation
system makes it possible to reach the re-
quired “heating” or “cooling” conditions
faster.
Do not use the air recirculation function
on rainy/cold days as it would consider-
ably increase the possibility of the win-
dows misting inside.
020-082 SCUDO LUM GB 19/11/13 09.54 Pagina 33

34SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
DASHBOARD
AND
CONTROLS

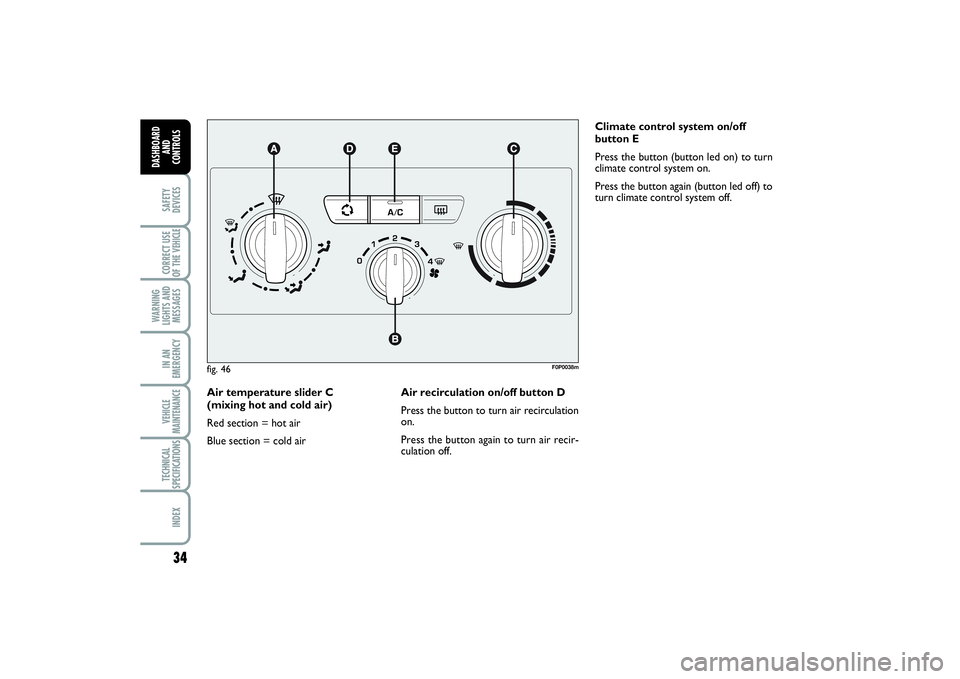

Air temperature slider C
(mixing hot and cold air)
Red section = hot air
Blue section = cold airClimate control system on/off
button E
Press the button (button led on) to turn
climate control system on.
Press the button again (button led off) to
turn climate control system off.fig. 46
F0P0038m
Air recirculation on/off button D
Press the button to turn air recirculation
on.
Press the button again to turn air recir-
culation off.
020-082 SCUDO LUM GB 19/11/13 09.54 Pagina 34

35
SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS

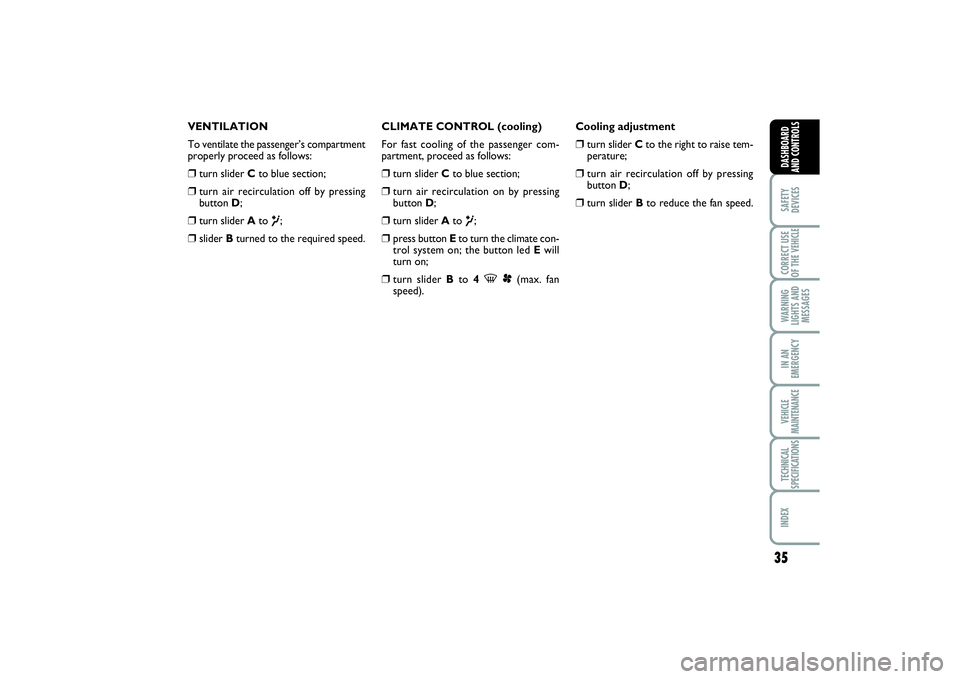

VENTILATION
To ventilate the passenger’s compartment
properly proceed as follows:❒
turn slider Cto blue section;
❒
turn air recirculation off by pressing
button D;
❒
turn slider Ato
μ;
❒
slider Bturned to the required speed.CLIMATE CONTROL (cooling)
For fast cooling of the passenger com-
partment, proceed as follows:
❒
turn slider Cto blue section;
❒
turn air recirculation on by pressing
button D;
❒
turn slider Ato
μ;
❒
press button Eto turn the climate con-
trol system on; the button led Ewill
turn on;
❒
turn slider Bto 4
-
p(max. fan
speed).Cooling adjustment
❒
turn slider Cto the right to raise tem-
perature;
❒
turn air recirculation off by pressing
button D;
❒
turn slider Bto reduce the fan speed.
020-082 SCUDO LUM GB 19/11/13 09.54 Pagina 35

36SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
DASHBOARD
AND
CONTROLS

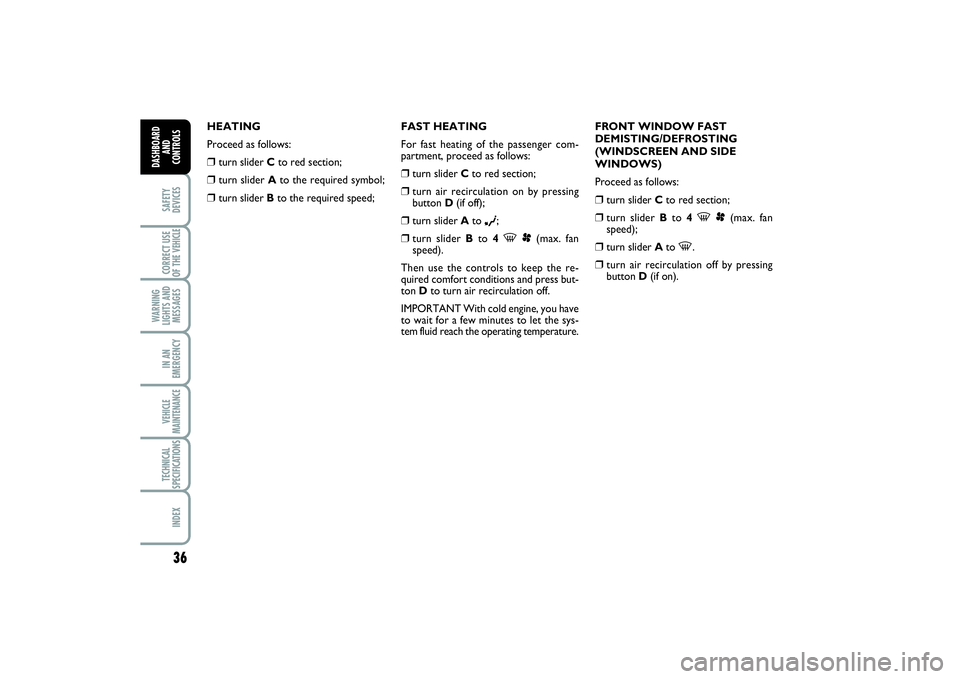

HEATING
Proceed as follows:❒
turn slider Cto red section;
❒
turn slider Ato the required symbol;
❒
turn slider Bto the required speed;FAST HEATING
For fast heating of the passenger com-
partment, proceed as follows:
❒
turn slider Cto red section;
❒
turn air recirculation on by pressing
button D (if off);
❒
turn slider Ato
∂
;
❒
turn slider Bto 4
-
p(max. fan
speed).
Then use the controls to keep the re-
quired comfort conditions and press but-
ton Dto turn air recirculation off.
IMPORTANT With cold engine, you have
to wait for a few minutes to let the sys-
tem fluid reach the operating temperature.FRONT WINDOW FAST
DEMISTING/DEFROSTING
(WINDSCREEN AND SIDE
WINDOWS)
Proceed as follows:
❒
turn slider Cto red section;
❒
turn slider Bto 4
-
p(max. fan
speed);
❒
turn slider Ato
-
.
❒
turn air recirculation off by pressing
button D(if on).
020-082 SCUDO LUM GB 19/11/13 09.54 Pagina 36
