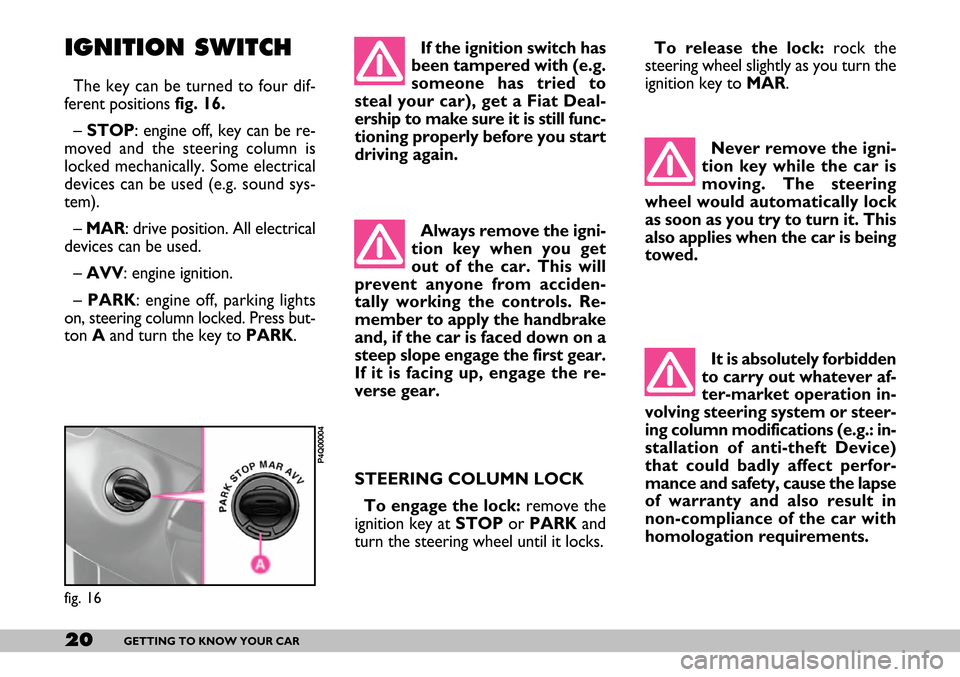

IGNITION SWITCH
The key can be turned to four dif-
ferent positions fig. 16.
– STOP: engine off, key can be re-
moved and the steering column is
locked mechanically. Some electrical
devices can be used (e.g. sound sys-
tem).
– MAR: drive position. All electrical
devices can be used.
– AVV: engine ignition.
– PARK: engine off, parking lights
on, steering column locked. Press but-
ton Aand turn the key to PARK.
STEERING COLUMN LOCK
To engage the lock: remove the
ignition key at STOPor PARKand
turn the steering wheel until it locks. If the ignition switch has
been tampered with (e.g.
someone has tried to
steal your car), get a Fiat Deal-
ership to make sure it is still func-
tioning properly before you start
driving again.
Always remove the igni-
tion key when you get
out of the car. This will
prevent anyone from acciden-
tally working the controls. Re-
member to apply the handbrake
and, if the car is faced down on a
steep slope engage the first gear.
If it is facing up, engage the re-
verse gear.
Never remove the igni-
tion key while the car is
moving. The steering
wheel would automatically lock
as soon as you try to turn it. This
also applies when the car is being
towed.
fig. 16
P4Q00004
To release the lock: rock the
steering wheel slightly as you turn the
ignition key to MAR.
It is absolutely forbidden
to carry out whatever af-
ter-market operation in-
volving steering system or steer-
ing column modifications (e.g.: in-
stallation of anti-theft Device)
that could badly affect perfor-
mance and safety, cause the lapse
of warranty and also result in
non-compliance of the car with
homologation requirements.

21GETTING TO KNOW YOUR CAR
DASHBOARD
Left-hand drive versions
The presence and position of the instruments and warning and indicator lights may vary according to the version of the car.

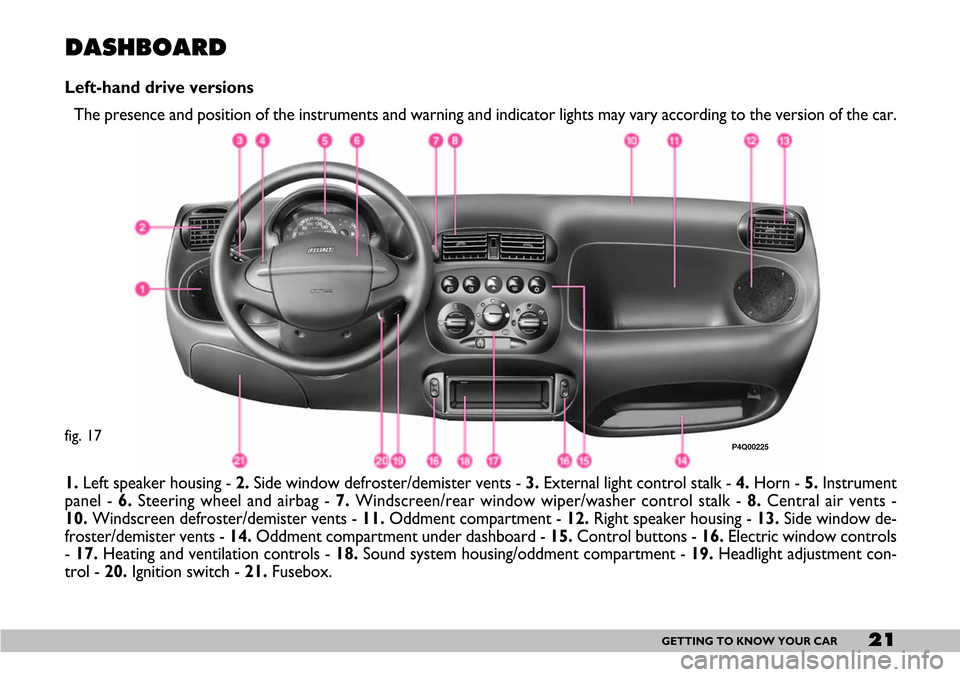

1.Left speaker housing - 2.Side window defroster/demister vents - 3.External light control stalk - 4.Horn - 5.Instrument
panel - 6.Steering wheel and airbag - 7.Windscreen/rear window wiper/washer control stalk - 8.Central air vents -
10.Windscreen defroster/demister vents - 11.Oddment compartment - 12.Right speaker housing - 13.Side window de-
froster/demister vents - 14.Oddment compartment under dashboard - 15.Control buttons - 16.Electric window controls
- 17.Heating and ventilation controls - 18.Sound system housing/oddment compartment - 19.Headlight adjustment con-
trol - 20.Ignition switch - 21.Fusebox.
P4Q00225fig. 17

22GETTING TO KNOW YOUR CAR
INSTRUMENT PANEL

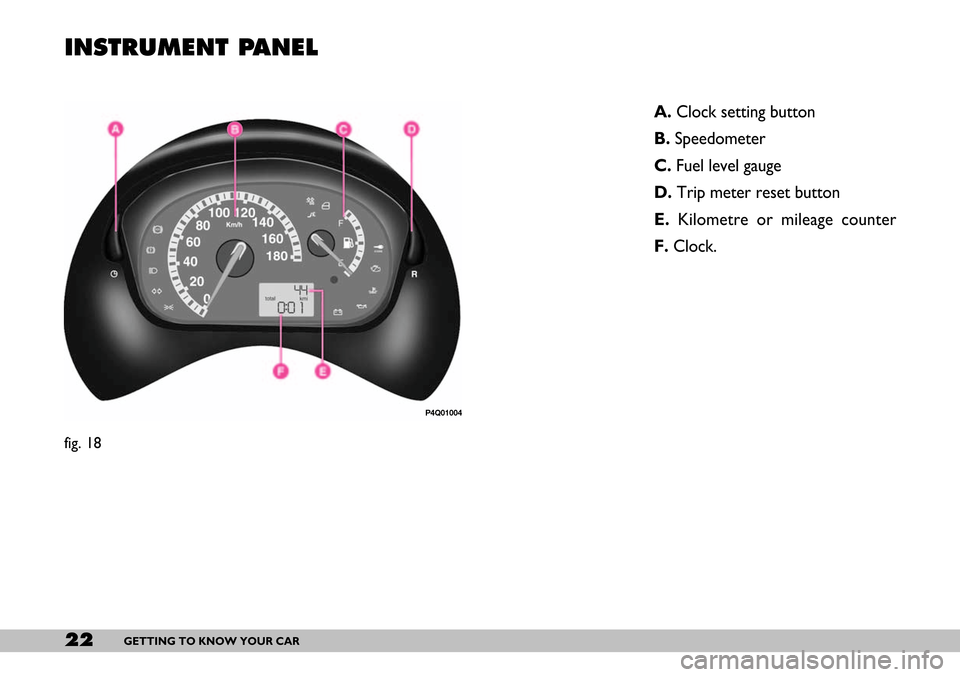

A.Clock setting button
B.Speedometer
C.Fuel level gauge
D.Trip meter reset button
E. Kilometre or mileage counter
F. Clock.
P4Q01004
fig. 18

23GETTING TO KNOW YOUR CAR
INSTRUMENTS

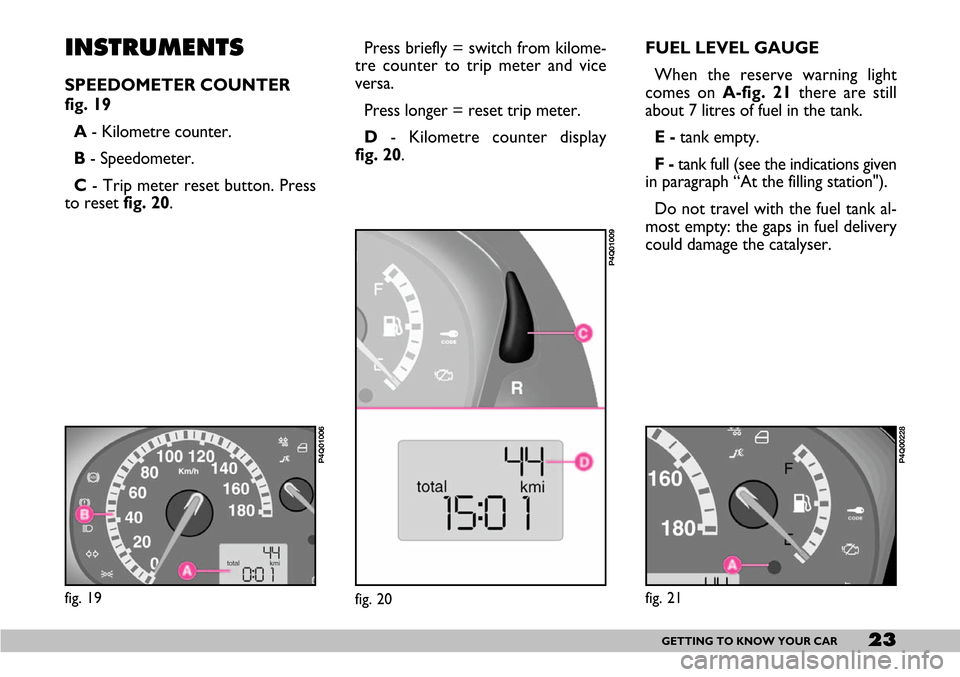

SPEEDOMETER COUNTER
fig. 19
A- Kilometre counter.
B- Speedometer.
C- Trip meter reset button. Press
to reset fig. 20.FUEL LEVEL GAUGE
When the reserve warning light
comes on A-fig. 21 there are still
about 7 litres of fuel in the tank.
E -tank empty.
F -tank full (see the indications given
in paragraph “At the filling station").
Do not travel with the fuel tank al-
most empty: the gaps in fuel delivery
could damage the catalyser.
fig. 19
P4Q01006
P4Q01009
fig. 20fig. 21
P4Q00228
Press briefly = switch from kilome-
tre counter to trip meter and vice
versa.
Press longer = reset trip meter.
D- Kilometre counter display
fig. 20.

24GETTING TO KNOW YOUR CAR

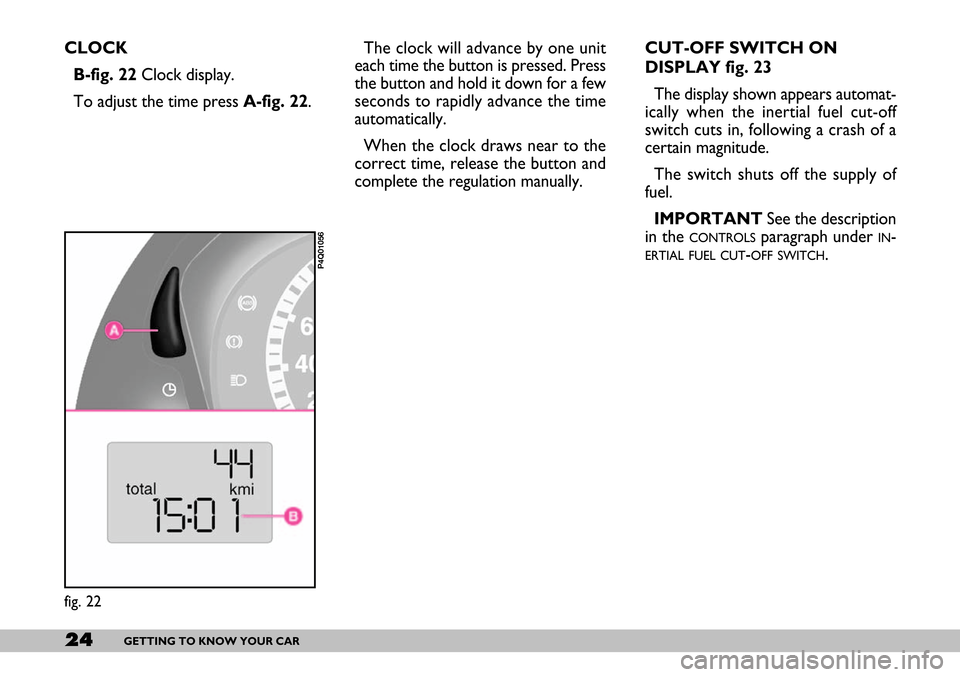

CLOCK
B-fig. 22 Clock display.
To adjust the time press A-fig. 22.
P4Q01056
fig. 22
CUT-OFF SWITCH ON
DISPLAY fig. 23
The display shown appears automat-
ically when the inertial fuel cut-off
switch cuts in, following a crash of a
certain magnitude.
The switch shuts off the supply of
fuel.
IMPORTANTSee the description
in the
CONTROLSparagraph under IN-
ERTIAL FUEL CUT-OFF SWITCH. The clock will advance by one unit
each time the button is pressed. Press
the button and hold it down for a few
seconds to rapidly advance the time
automatically.
When the clock draws near to the
correct time, release the button and
complete the regulation manually.

25GETTING TO KNOW YOUR CAR
If after the display of the
message the smell of fuel
or leaks from the supply
system are noted,do not re-en-
gage the switch to avoid the risk
of fire.
fig. 23
P4Q01058

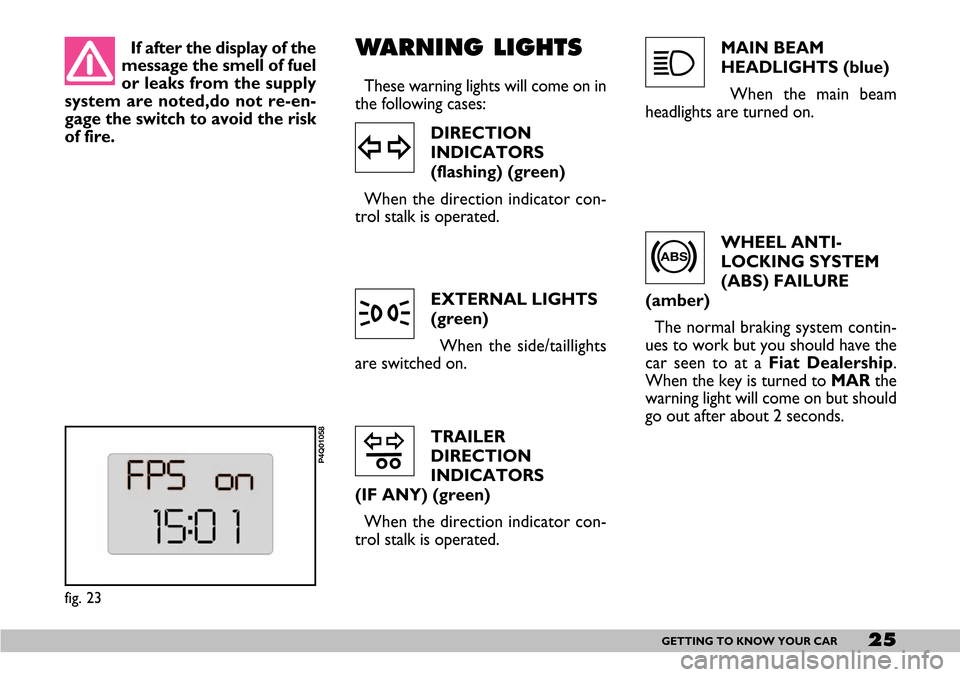

WARNING LIGHTS
These warning lights will come on in
the following cases:
DIRECTION
INDICATORS
(flashing) (green)
When the direction indicator con-
trol stalk is operated.
EXTERNAL LIGHTS
(green)
When the side/taillights
are switched on.
TRAILER
DIRECTION
INDICATORS
(IF ANY) (green)
When the direction indicator con-
trol stalk is operated.
y
l
3
MAIN BEAM
HEADLIGHTS (blue)
When the main beam
headlights are turned on.
1
WHEEL ANTI-
LOCKING SYSTEM
(ABS) FAILURE
(amber)
The normal braking system contin-
ues to work but you should have the
car seen to at a Fiat Dealership.
When the key is turned to MAR the
warning light will come on but should
go out after about 2 seconds.
>

26GETTING TO KNOW YOUR CAR

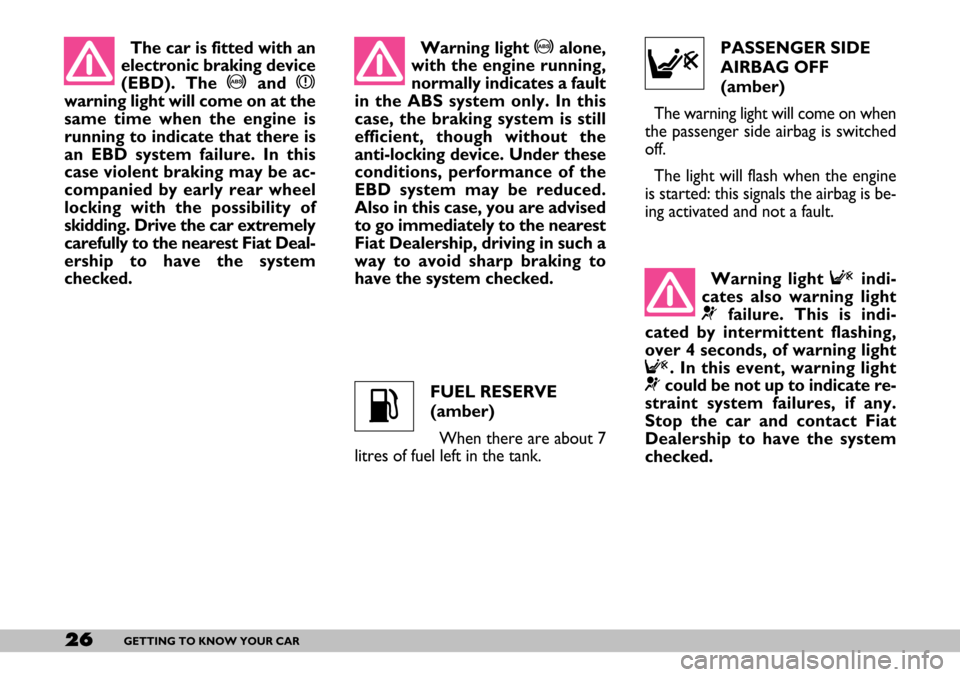

The car is fitted with an
electronic braking device
(EBD). The >and x
warning light will come on at the
same time when the engine is
running to indicate that there is
an EBD system failure. In this
case violent braking may be ac-
companied by early rear wheel
locking with the possibility of
skidding. Drive the car extremely
carefully to the nearest Fiat Deal-
ership to have the system
checked. Warning light >alone,
with the engine running,
normally indicates a fault
in the ABS system only. In this
case, the braking system is still
efficient, though without the
anti-locking device. Under these
conditions, performance of the
EBD system may be reduced.
Also in this case, you are advised
to go immediately to the nearest
Fiat Dealership, driving in such a
way to avoid sharp braking to
have the system checked.
FUEL RESERVE
(amber)
When there are about 7
litres of fuel left in the tank.
K
PASSENGER SIDE
AIRBAG OFF
(amber)
The warning light will come on when
the passenger side airbag is switched
off.
The light will flash when the engine
is started: this signals the airbag is be-
ing activated and not a fault.
F
Warning light Findi-
cates also warning light
¬failure. This is indi-
cated by intermittent flashing,
over 4 seconds, of warning light
F. In this event, warning light
¬could be not up to indicate re-
straint system failures, if any.
Stop the car and contact Fiat
Dealership to have the system
checked.

27GETTING TO KNOW YOUR CAR

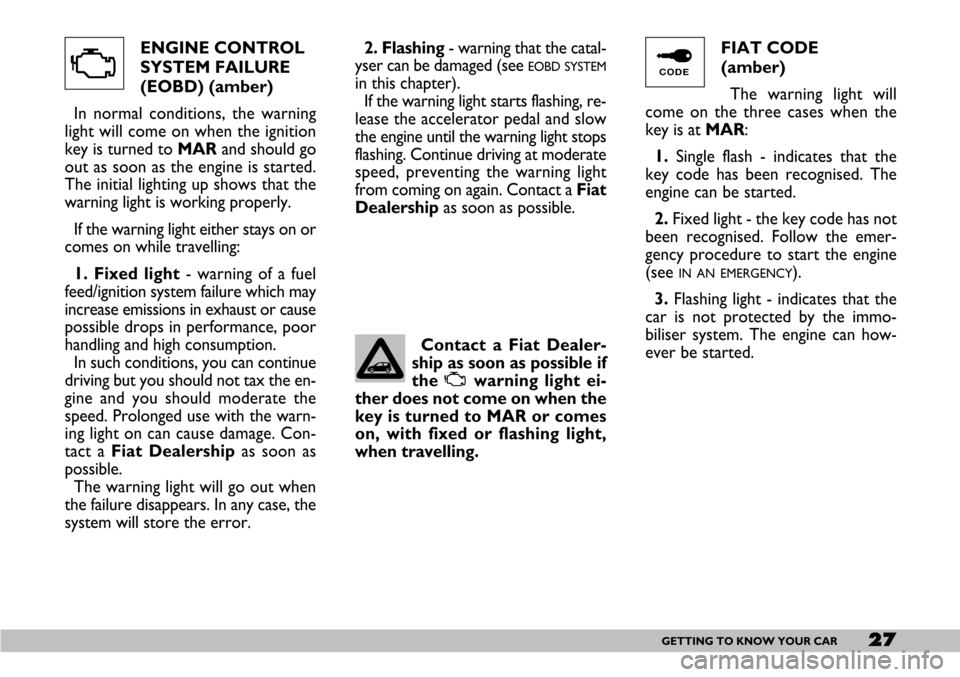

ENGINE CONTROL
SYSTEM FAILURE
(EOBD) (amber)
In normal conditions, the warning
light will come on when the ignition
key is turned to MARand should go
out as soon as the engine is started.
The initial lighting up shows that the
warning light is working properly.
If the warning light either stays on or
comes on while travelling:
1. Fixed light- warning of a fuel
feed/ignition system failure which may
increase emissions in exhaust or cause
possible drops in performance, poor
handling and high consumption.
In such conditions, you can continue
driving but you should not tax the en-
gine and you should moderate the
speed. Prolonged use with the warn-
ing light on can cause damage. Con-
tact a Fiat Dealershipas soon as
possible.
The warning light will go out when
the failure disappears. In any case, the
system will store the error.
U
2. Flashing- warning that the catal-
yser can be damaged (see
EOBD SYSTEM
in this chapter).
If the warning light starts flashing, re-
lease the accelerator pedal and slow
the engine until the warning light stops
flashing. Continue driving at moderate
speed, preventing the warning light
from coming on again. Contact a Fiat
Dealershipas soon as possible.
Contact a Fiat Dealer-
ship as soon as possible if
the
Uwarning light ei-
ther does not come on when the
key is turned to MAR or comes
on, with fixed or flashing light,
when travelling.
FIAT CODE
(amber)
The warning light will
come on the three cases when the
key is at MAR:
1.Single flash - indicates that the
key code has been recognised. The
engine can be started.
2.Fixed light - the key code has not
been recognised. Follow the emer-
gency procedure to start the engine
(see
IN AN EMERGENCY).
3.Flashing light - indicates that the
car is not protected by the immo-
biliser system. The engine can how-
ever be started.
¢

28GETTING TO KNOW YOUR CAR
If the ¬warning light
does not turn on when
turning the ignition key
to MAR or if it stays on when
travelling, this could indicate a
failure in safety retaining sys-
tems; under this condition air
bags or pretensioners could not
trigger in the event of collision
or, in a restricted number of
cases, they could trigger acci-
dentally. Stop the car and con-
tact Fiat Dealership to have the
system checked immediately.ELECTRICAL
POWER STEERING
FAILURE (red)
In the following two cases:
1- When the power steering elec-
trical motor is overheated by repeat-
ed, complete steering. In this case,
hold the steering wheel still and wait
for the light to go out.
2- When there is an electrical
power steering system failure.
When the key is turned to MARthe
warning light should come on for ap-
proximately four seconds only. If the
warning lights stays on, the power
steering system will not be working.
The effort on the steering wheel will
increase without compromising steer-
ability. Contact a Fiat Dealership.
g

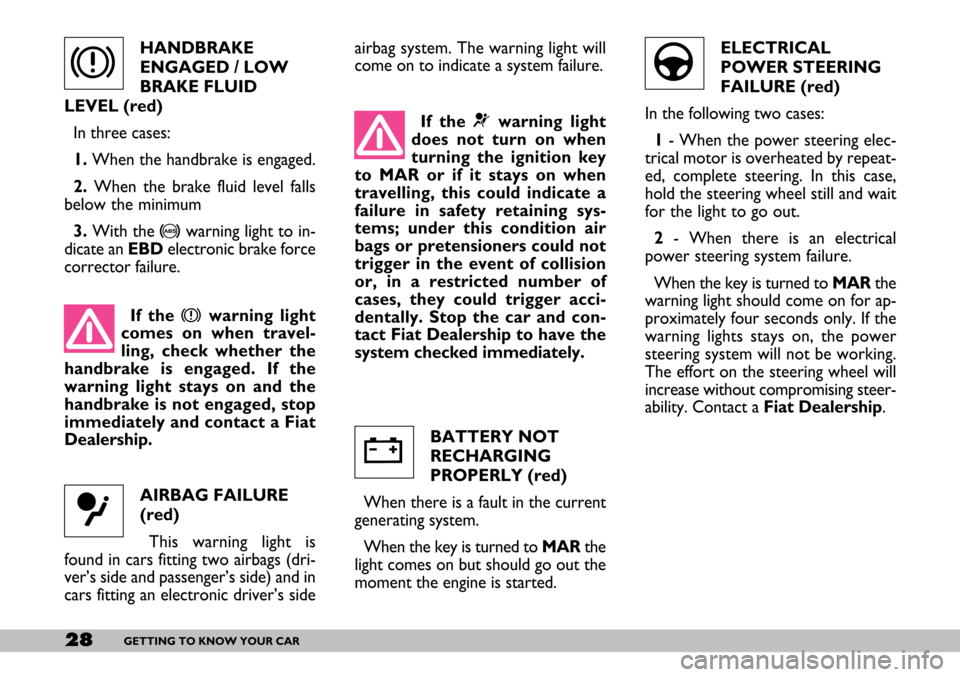

HANDBRAKE
ENGAGED / LOW
BRAKE FLUID
LEVEL (red)
In three cases:
1.When the handbrake is engaged.
2.When the brake fluid level falls
below the minimum
3. With the
>warning light to in-
dicate an EBDelectronic brake force
corrector failure.
x
If the xwarning light
comes on when travel-
ling, check whether the
handbrake is engaged. If the
warning light stays on and the
handbrake is not engaged, stop
immediately and contact a Fiat
Dealership.
AIRBAG FAILURE
(red)
This warning light is
found in cars fitting two airbags (dri-
ver’s side and passenger’s side) and in
cars fitting an electronic driver’s side
û
BATTERY NOT
RECHARGING
PROPERLY (red)
When there is a fault in the current
generating system.
When the key is turned to MAR the
light comes on but should go out the
moment the engine is started.
w
airbag system. The warning light will
come on to indicate a system failure.

29GETTING TO KNOW YOUR CAR

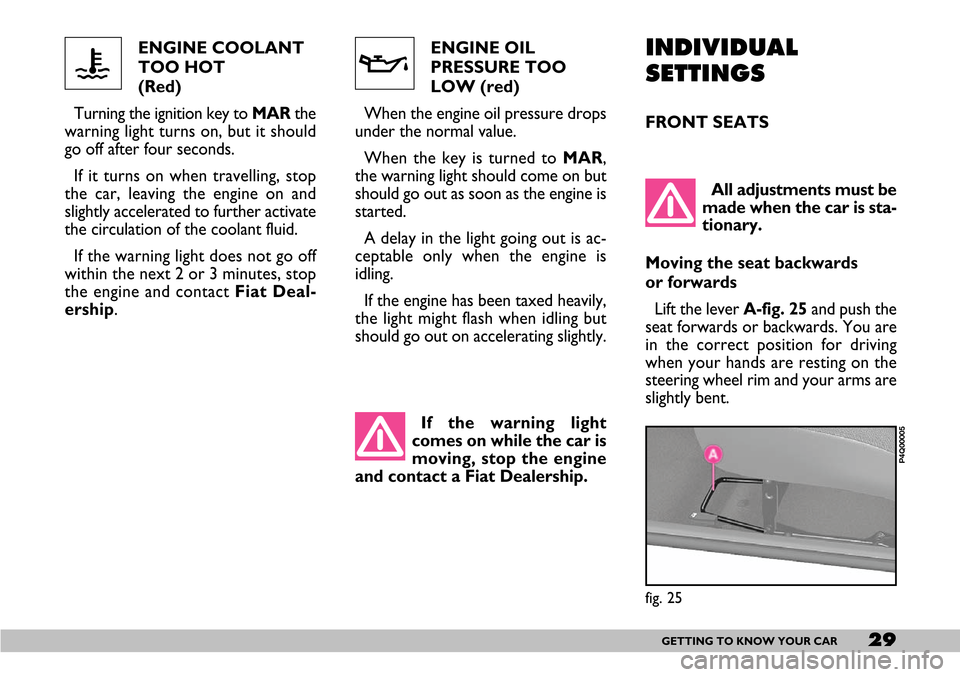

ENGINE COOLANT
TOO HOT
(Red)
Turning the ignition key to MARthe
warning light turns on, but it should
go off after four seconds.
If it turns on when travelling, stop
the car, leaving the engine on and
slightly accelerated to further activate
the circulation of the coolant fluid.
If the warning light does not go off
within the next 2 or 3 minutes, stop
the engine and contact Fiat Deal-
ership.
u
ENGINE OIL
PRESSURE TOO
LOW (red)
When the engine oil pressure drops
under the normal value.
When the key is turned to MAR,
the warning light should come on but
should go out as soon as the engine is
started.
A delay in the light going out is ac-
ceptable only when the engine is
idling.
If the engine has been taxed heavily,
the light might flash when idling but
should go out on accelerating slightly.
If the warning light
comes on while the car is
moving, stop the engine
and contact a Fiat Dealership.
v
INDIVIDUAL
SETTINGS
FRONT SEATS
All adjustments must be
made when the car is sta-
tionary.
Moving the seat backwards
or forwards
Lift the lever A-fig. 25and push the
seat forwards or backwards. You are
in the correct position for driving
when your hands are resting on the
steering wheel rim and your arms are
slightly bent.
fig. 25
P4Q00005
