8.Slippery road.
9.Ice / snow.
10.Fog.
11.Wind.
12.Procession, protest.
13.Danger of explosions.
14.Slow down.
15.Traffic sings out of order.
16.Parking.
17.Forecast.RDS-TMC
Select this function by rotating the
encoder 14-fig. 1and press “ENTER”
to confirm 15-fig. 1.
The display shows the following op-
tions
fig. 127:
– Near car;
– Near address.
“RDS-TMC” icon allows the user to
select a geographical point to get re-
lated RDS-TMC information: RDS-
TMC events are pictured through
dedicated icons on the map. A TMC
event cannot be used to identify a des-
tination.Here follow the icons (constantly up-
dated) shown on map:
1.Queue.
2.Accident.
3.Generic danger.
4.Works in progress.
5.Closed road.
6.Narrow road.
7.No entry road.

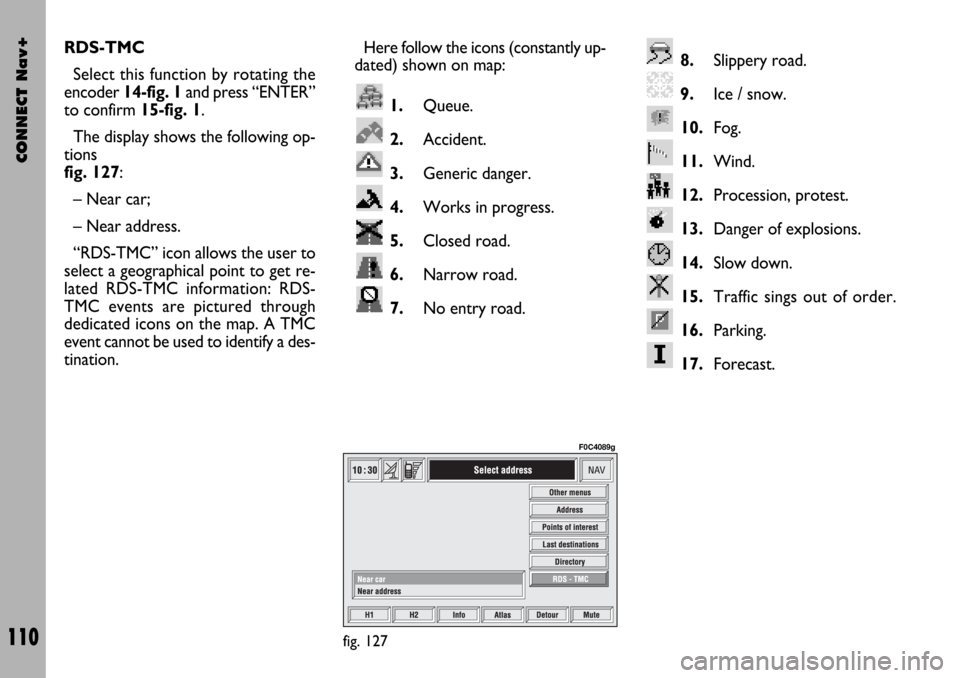

fig. 127
F0C4089g

CONNECT Nav+
111
“Near car”
“Near car” option enables to get in-
formation on events near the current
car position.
The menu fig. 128includes the fol-
lowing keys:
“Category”: specifies the event cat-
egory: “Traffic”, “Weather”, “Info”,
“All”.
“List of events”: to open the event
list and to choose the event of inter-
est.
“Info”: press 17-fig. 1to get info
about the selected event. To select the required function, ro-
tate the encoder 14-fig. 1and press
“ENTER” 15-fig. 1to confirm.

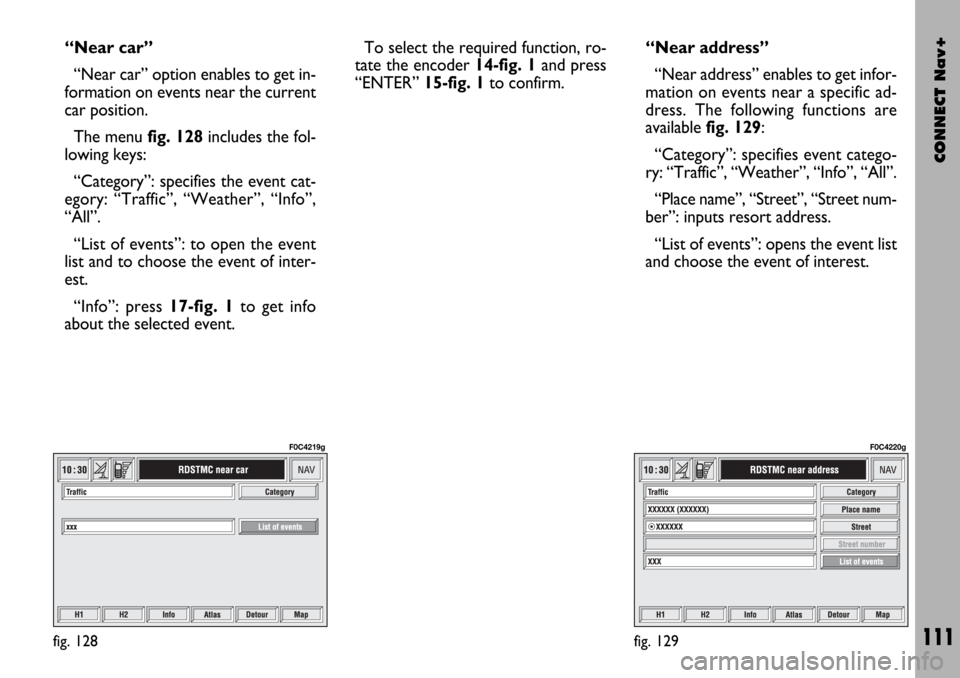

fig. 128
F0C4219g
“Near address”
“Near address” enables to get infor-
mation on events near a specific ad-
dress. The following functions are
available fig. 129:
“Category”: specifies event catego-
ry: “Traffic”, “Weather”, “Info”, “All”.
“Place name”, “Street”, “Street num-
ber”: inputs resort address.
“List of events”: opens the event list
and choose the event of interest.
fig. 129
F0C4220g

CONNECT Nav+
112
The following options are available
for both functions:
– “Calculate route”: to start route
calculation to the point in Home 1
(Home 2);
– “Delete”: to delete from Home 1
(Home 2) the selected point.
To select the required function, ro-
tate the encoder 14-fig. 1and press
“ENTER” 15-fig. 1to confirm. “Info”: press 17-fig. 1to get info
about the selected event.
To select the required function, ro-
tate the encoder14-fig. 1and press
“ENTER” 15-fig. 1to confirm.Home 1 - Home 2
From screen in fig. 109: selecting
“Other menus” will display the screen
in fig. 130with the options “Home 1”
and “Home 2”.
Selecting “Home 1” or “Home 2” by
rotating the encoder 14-fig. 1and
pressing “ENTER” to confirm 15-fig.
1, will display information about the
points stored as “Home 1” or “Home
2”.
fig. 131
F0C4222g

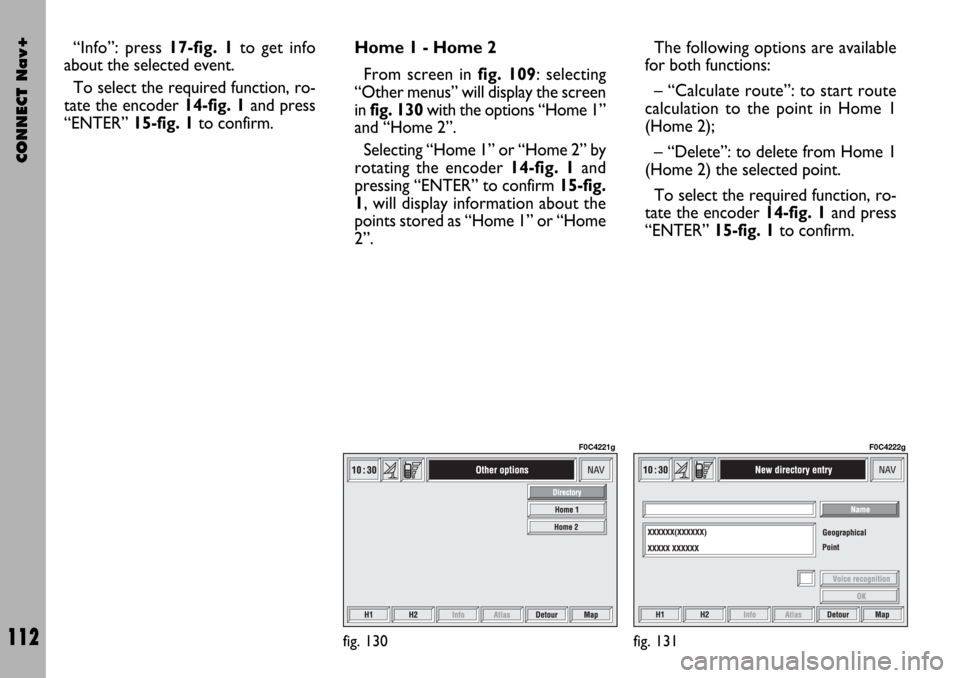

fig. 130
F0C4221g

CONNECT Nav+
113
Map orientation (North or car di-
rection) and scale are those active on
the navigation screen.
When a geographical point is select-
ed on the map, by moving the cross-
shaped cursor and pressing “ENTER”
15-fig. 1, a screen is displayed where
the available keys are the same as
those described in paragraph “Select
address”: Destination, Directory, Ser-
vice Info, Locate, RDS-TMC, Home 1
and Home 2.SET ROUTE
“Set route” allows to define the
route calculation parameters.
When selecting this function by ro-
tating the encoder 14-fig. 1and press-
ing “ENTER” 15-fig. 1to confirm, the
display shows the following options fig.
133:
Route type
Selecting “Route type” by rotating
the encoder 14-fig. 1and pressing
“ENTER” 15-fig. 1to confirm, makes
it possible to set the route calculation
criteria according to two different
modes: “Shortest time” or “Shortest
distance”.
fig. 133
F0C4223g
ATLAS
Pressing one of the two multifunction
keys 17-fig. 1corresponding to “At-
las” takes to a screen with the map
centred in the point where the car is
located (identified by cross-shaped cur-
sor)fig. 132.
RE: press key 17-fig. 1, the rotation
of the encoder 14-fig. 1will move
horizontally the cross cursor;
Q
Z: press key 17-fig. 1, the rotation
of the encoder 14-fig. 1will move
vertically the cross cursor;
ZOOM: press one of the two cor-
responding multifunction keys 17-fig.
1, the display will show the list of the
available zoom scales; to select the re-
quired scale, rotate the encoder 14-
fig. 1and press “ENTER” 15-fig. 1to
confirm.
fig. 132
F0C4077g

CONNECT Nav+
114
Highway Info: provides information
about next two gas stations and high-
way exits fig. 136. This option is en-
abled only if the car is on a highway
and a route has been previously cal-
culated. If the car gets out from the
highway, the system gets back to
“Map” view.
fig. 136
F0C4097g
fig. 135
F0C4096g
Highway
Select “Highway” by rotating the en-
coder 14-fig. 1and pressing “ENTER”
to confirm 15-fig. 1, to define if route
can include highway segments or not.
OK
This key activates the previously set
calculation parameters.
To select the required function ro-
tate the encoder 14-fig. 1and press
“ENTER” to confirm 15-fig. 1.CHANGE DISPLAY
To select “Change display”, rotate
the encoder 14-fig. 1and press “EN-
TER” 15-fig. 1to confirm.
This function allows to choose the
desired map display by means of the
following options fig. 134:
Map: displays the map centered with
respect to the car position (standard
map).
Whole route: displays the entire
calculated route from the present po-
sition to the destination fig. 135. This
option is available only if a route is ac-
tive.
fig. 134
F0C4095g

CONNECT Nav+
115
Graphic symbols: displays naviga-
tion icons only fig. 137and not the
map. This option is enabled only if a
route has been previously calculated.
To select the required function, ro-
tate the encoder 14-fig. 1and press
“ENTER” 15-fig. 1to confirm.DELETE
DESTINATION
Select “Delete destination”, by ro-
tating the encoder 14-fig. 1and press-
ing “ENTER” to confirm 15-fig. 1,to
delete a destination (or all destina-
tions) from the calculated route and
to calculate a new route fig. 138.
Rotate the encoder 14-fig. 1and
press “ENTER” 15-fig. 1to display
the following options:

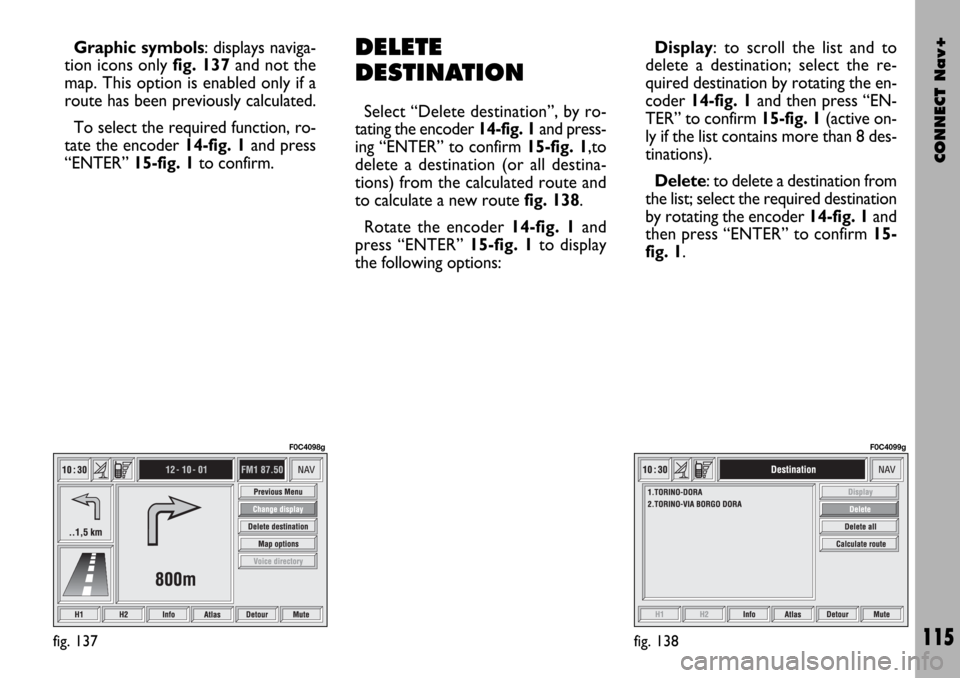

fig. 137
F0C4098g
fig. 138
F0C4099g
Display: to scroll the list and to
delete a destination; select the re-
quired destination by rotating the en-
coder 14-fig. 1 and then press “EN-
TER” to confirm 15-fig. 1(active on-
ly if the list contains more than 8 des-
tinations).
Delete: to delete a destination from
the list; select the required destination
by rotating the encoder 14-fig. 1and
then press “ENTER” to confirm 15-
fig. 1.

CONNECT Nav+
116
Draw map: to set map orientation:
– “Oriented towards north”: map is
displayed North-oriented, cursor (car)
moves accordingly;
– “Oriented automatically”: cursor
(car) is displayed in central position
and the map is oriented automatically
according to the car.
Draw areas: allows to set the map
through three different options:
– “2D”: the map is shown by seg-
ments and coloured areas;
– “3D”: the map is shown by seg-
ments, coloured areas and 3D images;
– “NO”: the map is shown by graph-
ic segments only. Delete all: to delete all destinations.
Calculate route: starts route cal-
culation to the first destination in the
list; when the destination is reached,
the system will calculate the route to
the next destination (if present in the
list), after the user confirmation.
Select the required destination by ro-
tating the encoder 14-fig. 1and then
press “ENTER” to confirm 15-fig. 1.MAP OPTIONS
To select “Map options”, rotate the
encoder 14-fig. 1and press “ENTER”
15-fig. 1to confirm.
This function allows set up of map
displaying with the following options
fig. 139:
fig. 139
F0C4100g

CONNECT Nav+
117
Draw icon: enables (“YES”) or dis-
ables (“NO”) the display of icon cat-
egory (e.g.: hotels, restaurants, service
stations, etc.) on the map;
Draw RDS-TMC: enables (“YES”)
or disables (“NO”) the display of the
icons related to RDS-TMC category
(if available): Traffic, Weather, Info
etc..., on the map ;
Draw wording: enables (“YES”) or
disables (“NO”) the indications of the
places names (town, streets, etc..) on
the map;
Zoom intersection: enables
(“YES”) or disables (“NO”) the zoom
intersection option, i.e. whether to
zoom the map when car approaches
an intersection;
OK: activates settings.VOICE DIRECTORY
To select “Voice directory”, rotate
the encoder 14-fig. 1and press “EN-
TER” 15-fig. 1to confirm.
This function enables to control nav-
igator voice directory.The following options are available
fig. 140:
“Hear voice directory”: allows play-
back of all the previously recorded
voice samples associated to navigator
directory items. Press “ESCAPE”13-
fig. 1to stop playback.
fig. 140
F0C4203g

CONNECT Nav+
118
GENERAL
INFORMATION
The on-board computer provides a
series of helpful data relevant to cur-
rent travel (e.g.: times, distances,
speed, fuel consumption). Certain in-
formation is only available with navi-
gation function on and depends on set
navigation route.
IMPORTANTCertain informa-
tion/operations hereafter described
are available/possible only with ignition
key turned to MAR.
TRIP menu allows to set the desired
distance and fuel consumption mea-
sure unit.
TRIP menu also allows to input a
number of events (e.g. Tyre replace-
ment..., Birthday …) that can be trig-
gered both on set date or mileage.To display on-board computer
screen, press “TRIP” key 23-fig. 1.
To perform new settings or to have
information about TRIP settings, press
keypad 17-fig. 1buttons: “TRIP”,
“TRIP B”, “SPEED”, “SETUP”, “IN-
FO” or “RESET”.
“GENERAL TRIP” and “TRIP B”
FUNCTION
Press TRIP key 23-fig. 1on CON-
NECT Nav+ front panel to open the
“General Trip” screen fig. 144.
With “General Trip” screen open,
pushing one of the keypad buttons 17-
fig. 1on “TRIP B” will open the rele-
vant screen.
O O
N N
- -
B B
O O
A A
R R
D D
C C
O O
M M
P P
U U
T T
E E
R R
( (
T T
R R
I I
P P
) )
fig. 144
F0C4105g

CONNECT Nav+
119
Information displayed on “General
Trip” fig. 144and “Trip B” fig. 145
screen are the following:
– ETA (Estimated Time of Arrival)
– Distance to destination
– Speed limit
– km/miles to empty
– Inst. fuel consumpt.
(instantaneous fuel consumption)
– Trip time (*)
– Distance traveled (*)
– Average speed (*)
– Average fuel consum (*)
Information marked with (*) are re-
settable (refer to paragraph “TRIP: Re-
set”).With “General Trip” screen open,
push on one of keypad keys 17-fig. 1
on “RESET” will reset data marked
with (*) present on both General Trip
and Trip B.
With “Trip B” screen open, push on
one of keypad keys 17-fig. 1on “RE-
SET” will reset only data marked with
(*) present on Trip B.
“ETA”
(Estimated Time of Arrival)
This information is present only
when the navigation function is on and
indicates the expected time of arrival
to destination. Time is expressed
“hh:mm” (hours and minutes).“Distance to destination”
This information is present only
when the navigation function is on and
indicates the distance between current
position and the destination set. Dis-
tance value is expressed in “km” (kilo-
metres) unless otherwise set by the
user (see paragraph “TRIP: SETUP”).
“Speed limit”
This function is used to set car speed
limit; if this is exceeded the driver is
warn by a buzzer and a display warn-
ing message on the instrument panel.
“km/miles to empty”
This shows the distance that the car
can still cover before needing fuel. This
value is the same for both “General
Trip” and “Trip B”. Value is expressed
in “km” (kilometres) unless otherwise
set by the user (see paragraph “TRIP:
SETUP”).
fig. 145
F0C4106g
