RADIO WITH CASSETTE PLAYER
36
TECHNICAL INFORMATION

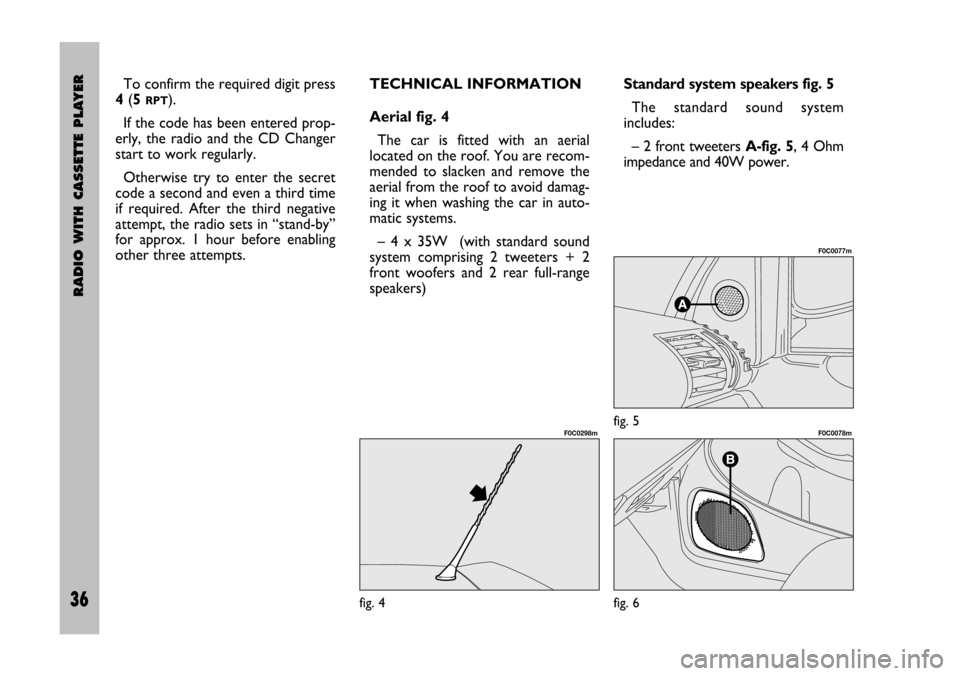

Aerial fig. 4
The car is fitted with an aerial
located on the roof. You are recom-
mended to slacken and remove the
aerial from the roof to avoid damag-
ing it when washing the car in auto-
matic systems.
– 4 x 35W (with standard sound
system comprising 2 tweeters + 2
front woofers and 2 rear full-range
speakers)Standard system speakers fig. 5
The standard sound system
includes:
– 2 front tweeters A-fig. 5, 4 Ohm
impedance and 40W power.
fig. 4
F0C0298mfig. 5
F0C0077m
fig. 6
F0C0078m
To confirm the required digit press
4(5
RPT).
If the code has been entered prop-
erly, the radio and the CD Changer
start to work regularly.
Otherwise try to enter the secret
code a second and even a third time
if required. After the third negative
attempt, the radio sets in “stand-by”
for approx. 1 hour before enabling
other three attempts.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 36

44 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
44
GENERAL
The set possesses the following
functions:
RADIO SECTION
– PLL tuning with FM/AM/MW/LW
frequency bands
– RDS (Radio Data System) with
TA (traffic information) - PTY
(Program Type) - EON (Enhanced
Other Network) - REG (Regional
programmes) functions
– Alternative frequency search
selection in RDS mode (AF function)
– Automatic/manual station tuning
– Manual storage of 42 stations: 24
in the FM band (6 in FM1, 6 in FM2,
6 in FMT and 6 in FMAST), 6 in the
MW band, 6 in the LW band and 6 in
the AM (MW+LW) band, with auto-
matic storage (AutoSTore function)
in the AMAST band
– Automatic storage (AutoSTore
function) of 6 stations in FM band
and 6 stations in the AM band– SENS DX/LO function (sensitivity
adjusting in searching radio stations)
– Scan function (scanning stored
stations), lasting approx. 10 seconds
for each station
– Automatic Stereo/Mono switch-
ing.
COMPACT DISC SECTION
– Disc select (disc no.)
– Track select (forward/backward)
– Fast forward/backward
– Track Repeat function (repetition
of last track)
– Track Scan function (scanning the
tracks on the Compact Disc, about
10 seconds for each track)
– RaNDom function (random play-
ing).
– TPM function (storing CD track
playing sequence)
– CD Naming Function (allocating a
name to a CD)For installation and
connection of the CD-
Changer apply only to
Fiat Dealership.
– CD Compression function (vol-
ume reduction according to signal
input level from CD)
– Stored CD loading and ejecting
On multimedia CDs in ad-
dition to sound tracks also
data tracks are recorded. Playing
one of these CDs may cause
rustling and such a volume as to
compromise road safety, as well as
causing damage to the final stages
and speakers.
WARNING
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 44

RADIO WITH COMPACT DISC PLAYER
49 Nero- Testo 603.46.306 Radio Stilo gb
49
FUNCTIONS AND
ADJUSTMENTS
Switching on
The set is switched on pressing the
button/knob 10(VOL PUSH ON/
OFF). Switching on may be connect-
ed to engine starting: turning the igni-
tion key toMAR, the radio turns on;
turning the ignition key to STOP
the radio turns off. If the radio was
on before the engine was turned off,
it will turn on again automatically the
next time the engine is started.
If the radio is turned on with the
ignition key at STOP, it will turn off
automatically after about 20 minutes.
Turning the radio off
To turn the radio off press button/
knob 10(VOL PUSH ON/ OFF).Pause function
If while listening to a Compact Disc
another function is selected (e.g. the
radio), playing is stopped and when
the Compact Disc mode is resumed,
it starts again from the point in
which it was stopped.
If while listening to the radio anoth-
er function is selected, when the
Radio mode is resumed, it is tuned
to the last station selected.
Volume adjustment
Adjust volume through
button/knob 10(VOL PUSH
ON/OFF).
Turn the knob rightwards to
increase volume and leftwards to
decrease it.
The display shows: “VOLUME
00” … “VOLUME 12” Selecting Radio/Compact Disc/
CD Changer
Pressing briefly and repeatedly the
14(SRC) button it is possible to
select the following functions in
sequence:
– TUNER (Radio)
– CD (Compact Disc)
– CDC (CD Changer) (only if the
CD Changer is connected).
After each change of the listening
source, the display shows the func-
tion selected: TUNER(Radio), CD
(Compact Disc), CDC(CD
Changer).
The functions that cannot be
selected (e.g. “CD” when the CD is
not inserted) are automatically dis-
abled.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 49

52 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
52

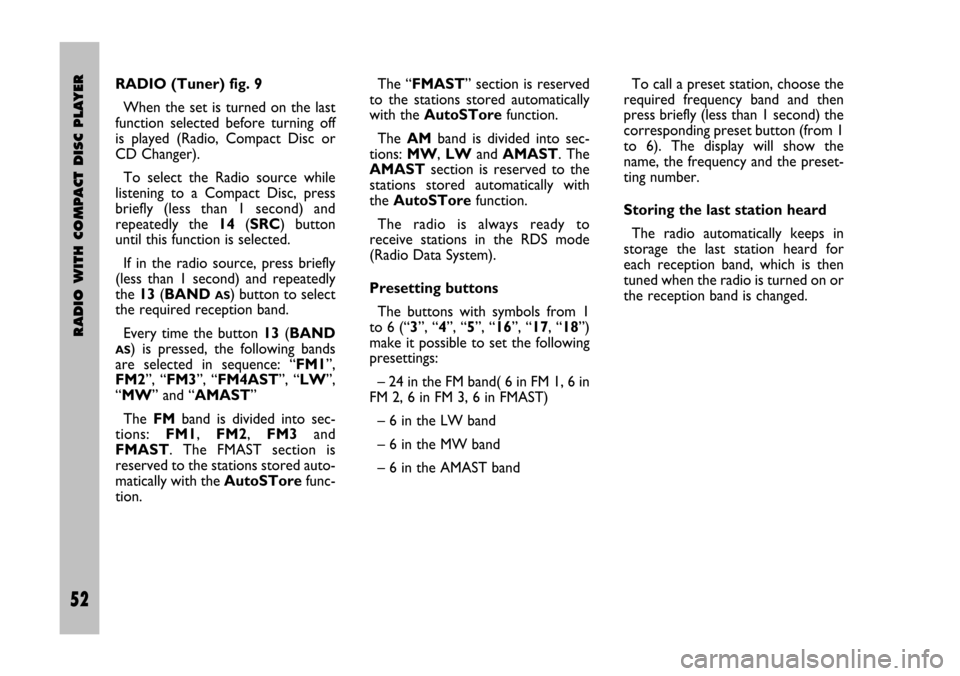

RADIO (Tuner) fig. 9
When the set is turned on the last
function selected before turning off
is played (Radio, Compact Disc or
CD Changer).
To select the Radio source while
listening to a Compact Disc, press
briefly (less than 1 second) and
repeatedly the 14(SRC) button
until this function is selected.
If in the radio source, press briefly
(less than 1 second) and repeatedly
the 13(BAND
AS) button to select
the required reception band.
Every time the button 13(BAND
AS) is pressed, the following bands
are selected in sequence: “FM1”,
FM2”, “FM3”, “FM4AST”, “LW”,
“MW” and “AMAST”
The FMband is divided into sec-
tions: FM1, FM2, FM3and
FMAST. The FMAST section is
reserved to the stations stored auto-
matically with the AutoSTorefunc-
tion.The “FMAST” section is reserved
to the stations stored automatically
with the AutoSTorefunction.
The AMband is divided into sec-
tions: MW, LWand AMAST. The
AMASTsection is reserved to the
stations stored automatically with
the AutoSTorefunction.
The radio is always ready to
receive stations in the RDS mode
(Radio Data System).
Presetting buttons
The buttons with symbols from 1
to 6 (“3”, “4”, “5”, “16”, “17, “18”)
make it possible to set the following
presettings:
– 24 in the FM band( 6 in FM 1, 6 in
FM 2, 6 in FM 3, 6 in FMAST)
– 6 in the LW band
– 6 in the MW band
– 6 in the AMAST bandTo call a preset station, choose the
required frequency band and then
press briefly (less than 1 second) the
corresponding preset button (from 1
to 6). The display will show the
name, the frequency and the preset-
ting number.
Storing the last station heard
The radio automatically keeps in
storage the last station heard for
each reception band, which is then
tuned when the radio is turned on or
the reception band is changed.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 52

56 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
56

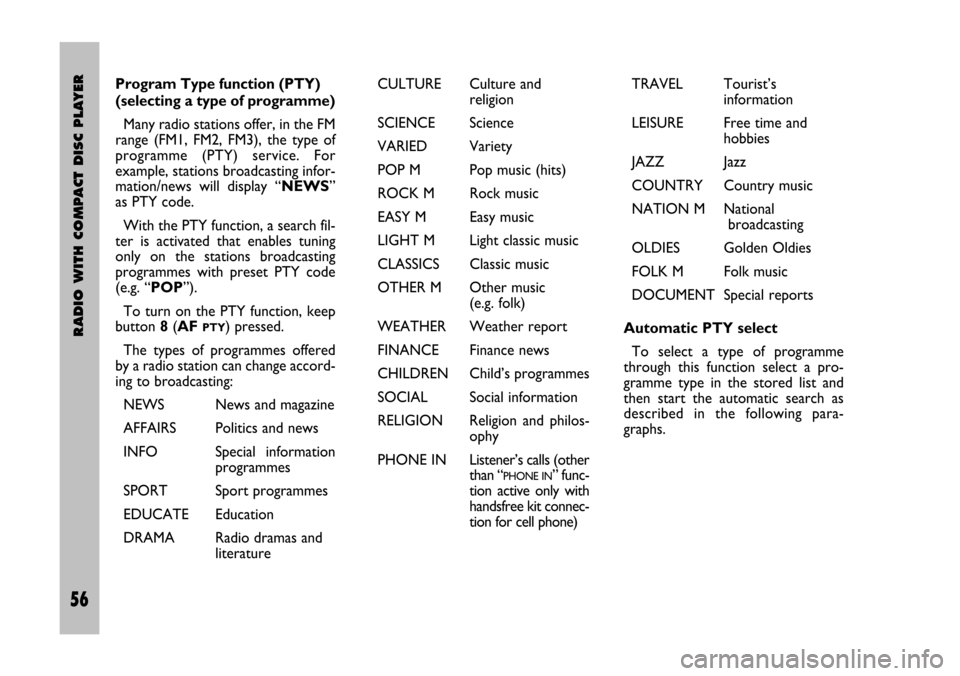

Program Type function (PTY)
(selecting a type of programme)
Many radio stations offer, in the FM
range (FM1, FM2, FM3), the type of
programme (PTY) service. For
example, stations broadcasting infor-
mation/news will display “NEWS”
as PTY code.
With the PTY function, a search fil-
ter is activated that enables tuning
only on the stations broadcasting
programmes with preset PTY code
(e.g. “POP”).
To turn on the PTY function, keep
button 8(AF
PTY) pressed.
The types of programmes offered
by a radio station can change accord-
ing to broadcasting:
NEWS News and magazine
AFFAIRS Politics and news
INFO Special information
programmes
SPORT Sport programmes
EDUCATE Education
DRAMA Radio dramas and
literatureCULTURE Culture and
religion
SCIENCE Science
VARIED Variety
POP M Pop music (hits)
ROCK M Rock music
EASY M Easy music
LIGHT M Light classic music
CLASSICS Classic music
OTHER M Other music
(e.g. folk)
WEATHER Weather report
FINANCE Finance news
CHILDREN Child’s programmes
SOCIALSocial information
RELIGION Religion and philos-
ophy
PHONE IN Listener’s calls (other
than “
PHONE IN” func-
tion active only with
handsfree kit connec-
tion for cell phone)TRAVELTourist’s
information
LEISURE Free time and
hobbies
JAZZ Jazz
COUNTRY Country music
NATION M National
broadcasting
OLDIES Golden Oldies
FOLK M Folk music
DOCUMENT Special reports
Automatic PTY select
To select a type of programme
through this function select a pro-
gramme type in the stored list and
then start the automatic search as
described in the following para-
graphs.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 56

58 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
58

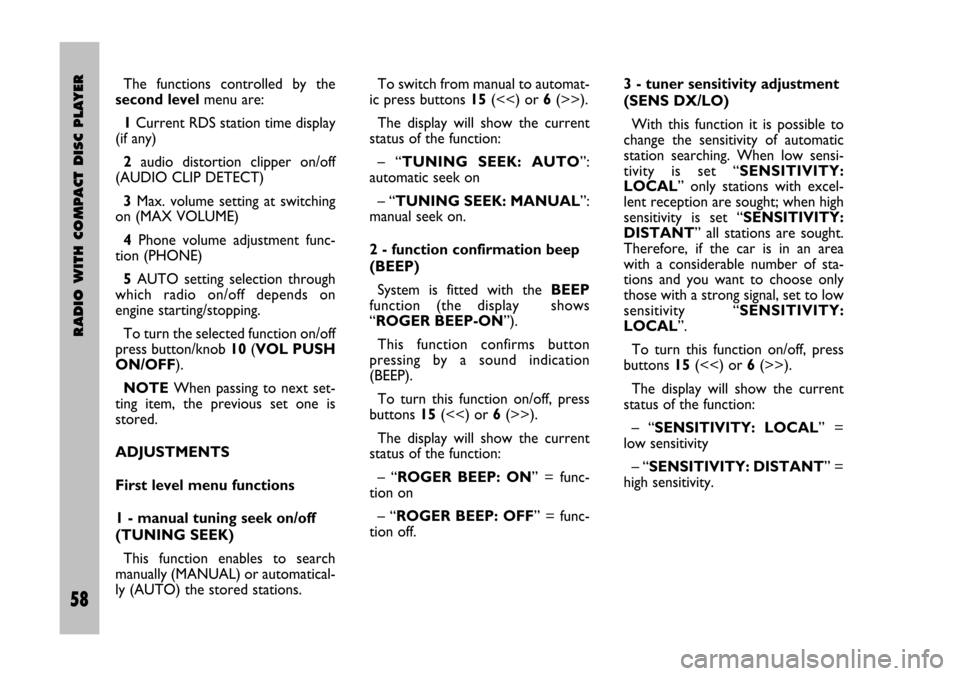

The functions controlled by the
second levelmenu are:
1Current RDS station time display
(if any)
2audio distortion clipper on/off
(AUDIO CLIP DETECT)
3Max. volume setting at switching
on (MAX VOLUME)
4Phone volume adjustment func-
tion (PHONE)
5AUTO setting selection through
which radio on/off depends on
engine starting/stopping.
To turn the selected function on/off
press button/knob 10(VOL PUSH
ON/OFF).
NOTEWhen passing to next set-
ting item, the previous set one is
stored.
ADJUSTMENTS
First level menu functions
1 - manual tuning seek on/off
(TUNING SEEK)
This function enables to search
manually (MANUAL) or automatical-
ly (AUTO) the stored stations.To switch from manual to automat-
ic press buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “TUNING SEEK: AUTO”:
automatic seek on
– “TUNING SEEK: MANUAL”:
manual seek on.
2 - function confirmation beep
(BEEP)
System is fitted with the BEEP
function (the display shows
“ROGER BEEP-ON”).
This function confirms button
pressing by a sound indication
(BEEP).
To turn this function on/off, press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “ROGER BEEP: ON” = func-
tion on
– “ROGER BEEP: OFF” = func-
tion off.3 - tuner sensitivity adjustment
(SENS DX/LO)
With this function it is possible to
change the sensitivity of automatic
station searching. When low sensi-
tivity is set “SENSITIVITY:
LOCAL” only stations with excel-
lent reception are sought; when high
sensitivity is set “SENSITIVITY:
DISTANT” all stations are sought.
Therefore, if the car is in an area
with a considerable number of sta-
tions and you want to choose only
those with a strong signal, set to low
sensitivity “SENSITIVITY:
LOCAL”.
To turn this function on/off, press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “SENSITIVITY: LOCAL” =
low sensitivity
– “SENSITIVITY: DISTANT” =
high sensitivity.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 58

RADIO WITH COMPACT DISC PLAYER
65 Nero- Testo 603.46.306 Radio Stilo gb
65

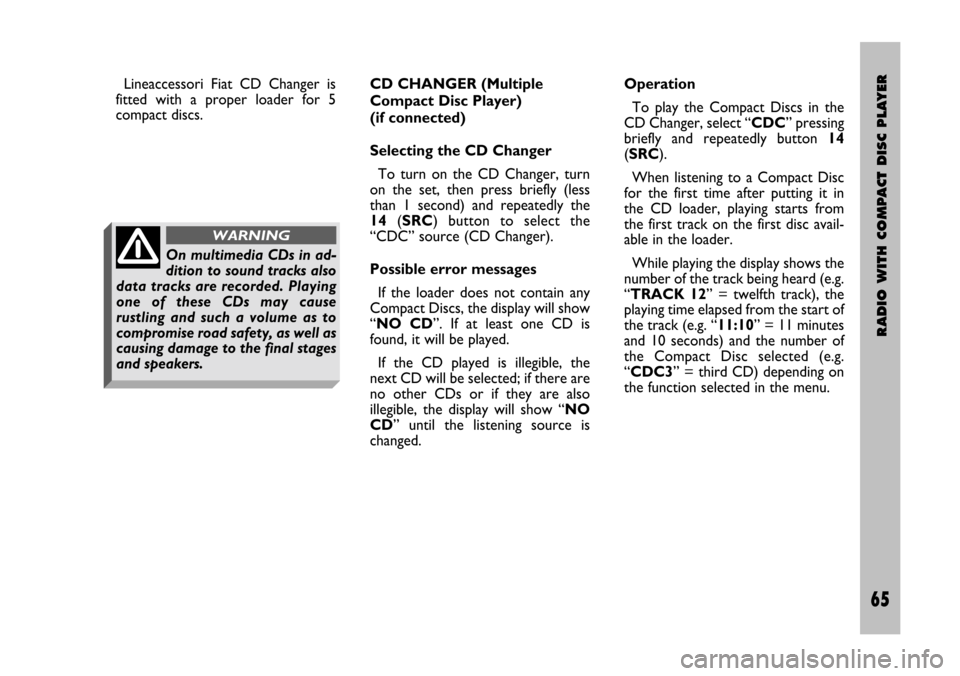

CD CHANGER (Multiple
Compact Disc Player)
(if connected)
Selecting the CD Changer
To turn on the CD Changer, turn
on the set, then press briefly (less
than 1 second) and repeatedly the
14(SRC) button to select the
“CDC” source (CD Changer).
Possible error messages
If the loader does not contain any
Compact Discs, the display will show
“NO CD”. If at least one CD is
found, it will be played.
If the CD played is illegible, the
next CD will be selected; if there are
no other CDs or if they are also
illegible, the display will show “NO
CD” until the listening source is
changed. Lineaccessori Fiat CD Changer is
fitted with a proper loader for 5
compact discs.Operation
To play the Compact Discs in the
CD Changer, select “CDC” pressing
briefly and repeatedly button 14
(SRC).
When listening to a Compact Disc
for the first time after putting it in
the CD loader, playing starts from
the first track on the first disc avail-
able in the loader.
While playing the display shows the
number of the track being heard (e.g.
“TRACK 12” = twelfth track), the
playing time elapsed from the start of
the track (e.g. “11:10” = 11 minutes
and 10 seconds) and the number of
the Compact Disc selected (e.g.
“CDC3” = third CD) depending on
the function selected in the menu.
On multimedia CDs in ad-
dition to sound tracks also
data tracks are recorded. Playing
one of these CDs may cause
rustling and such a volume as to
compromise road safety, as well as
causing damage to the final stages
and speakers.
WARNING
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 65

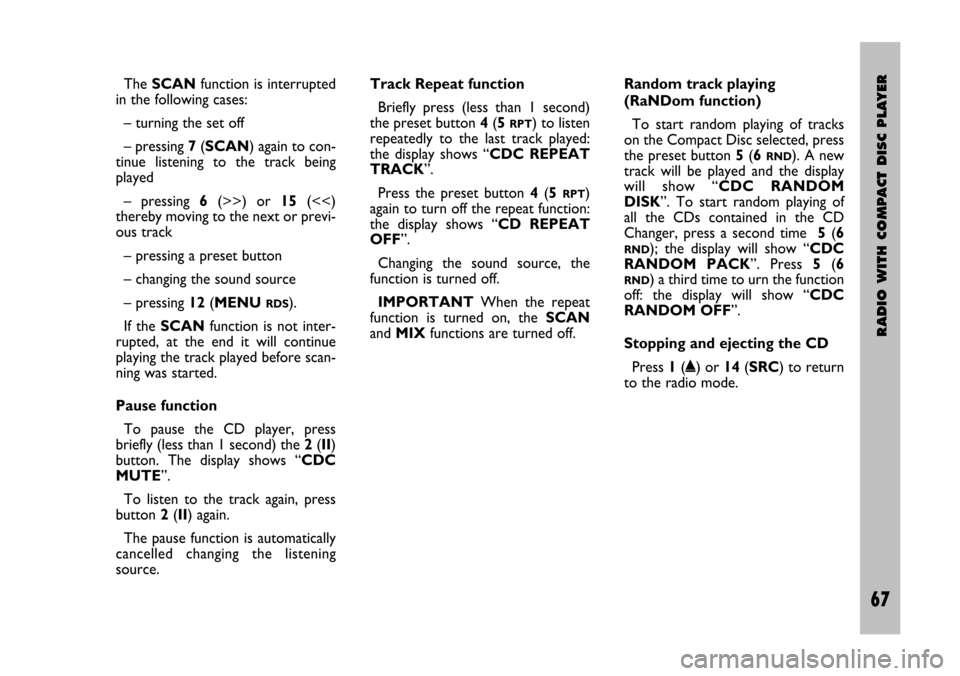

RADIO WITH COMPACT DISC PLAYER
67 Nero- Testo 603.46.306 Radio Stilo gb
67
The SCANfunction is interrupted
in the following cases:
– turning the set off
– pressing 7(SCAN) again to con-
tinue listening to the track being
played
– pressing 6(>>) or 15(<<)
thereby moving to the next or previ-
ous track
– pressing a preset button
– changing the sound source
– pressing 12(MENU
RDS).
If the SCANfunction is not inter-
rupted, at the end it will continue
playing the track played before scan-
ning was started.
Pause function
To pause the CD player, press
briefly (less than 1 second) the 2(II)
button. The display shows “CDC
MUTE”.
To listen to the track again, press
button 2(II) again.
The pause function is automatically
cancelled changing the listening
source.Track Repeat function
Briefly press (less than 1 second)
the preset button 4(5
RPT) to listen
repeatedly to the last track played:
the display shows “CDC REPEAT
TRACK”.
Press the preset button 4(5
RPT)
again to turn off the repeat function:
the display shows “CD REPEAT
OFF”.
Changing the sound source, the
function is turned off.
IMPORTANTWhen the repeat
function is turned on, the SCAN
and MIXfunctions are turned off.Random track playing
(RaNDom function)
To start random playing of tracks
on the Compact Disc selected, press
the preset button 5(6
RND). A new
track will be played and the display
will show “CDC RANDOM
DISK”. To start random playing of
all the CDs contained in the CD
Changer, press a second time 5(6
RND); the display will show “CDC
RANDOM PACK”. Press 5(6
RND) a third time to urn the function
off: the display will show “CDC
RANDOM OFF”.
Stopping and ejecting the CD
Press 1(˚) or 14(SRC) to return
to the radio mode.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 67

RADIO WITH COMPACT DISC PLAYER
69 Nero- Testo 603.46.306 Radio Stilo gb
69
Entering the secret code
of the CD Changer
Should the control code between
the radio and the CD Changer be
not recognised, to reset CD
Changer proper operation the four-
digit secret code must be entered
manually.
When entering the secret code,
the display shows: “CDC M --
CODE ----”.
The secret code comprises four fig-
ures, each corresponding to one of
the dashes and is different for each
CD Changer.
To enter the first digit of the code,
press the corresponding button of
the preset stations (from 1 to 4).
Press repeatedly the preset buttons
1-4(16, 17, 18and 3) to enter the
secret code digits (from 0to 9).TECHNICAL INFORMATION

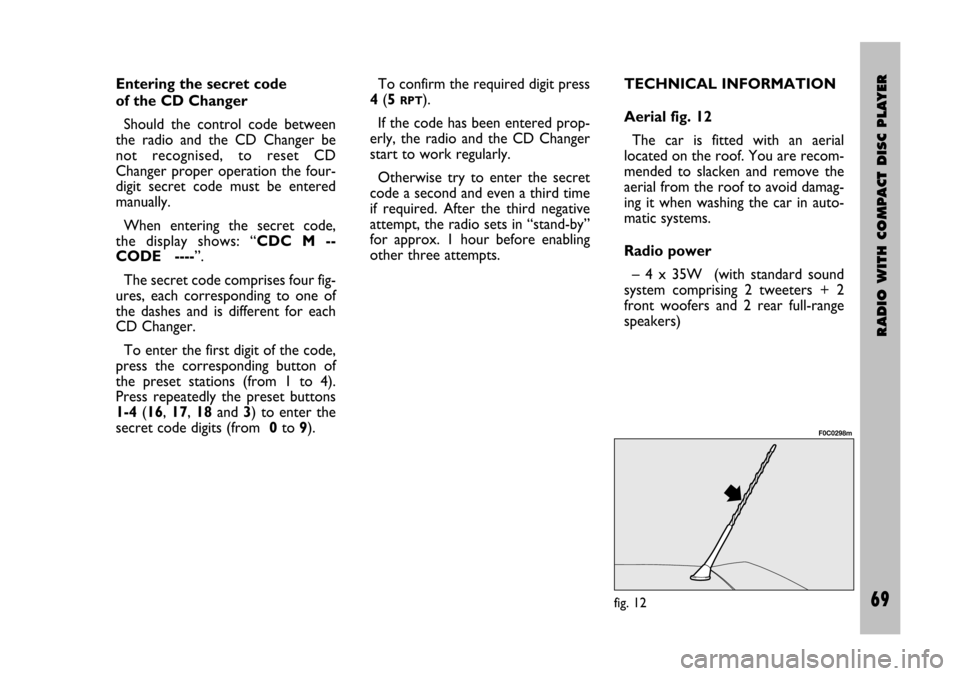

Aerial fig. 12
The car is fitted with an aerial
located on the roof. You are recom-
mended to slacken and remove the
aerial from the roof to avoid damag-
ing it when washing the car in auto-
matic systems.
Radio power
– 4 x 35W (with standard sound
system comprising 2 tweeters + 2
front woofers and 2 rear full-range
speakers)
fig. 12
F0C0298m
To confirm the required digit press
4(5
RPT).
If the code has been entered prop-
erly, the radio and the CD Changer
start to work regularly.
Otherwise try to enter the secret
code a second and even a third time
if required. After the third negative
attempt, the radio sets in “stand-by”
for approx. 1 hour before enabling
other three attempts.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 69

78 Nero Testo 603.46.306 Radio Stilo gb

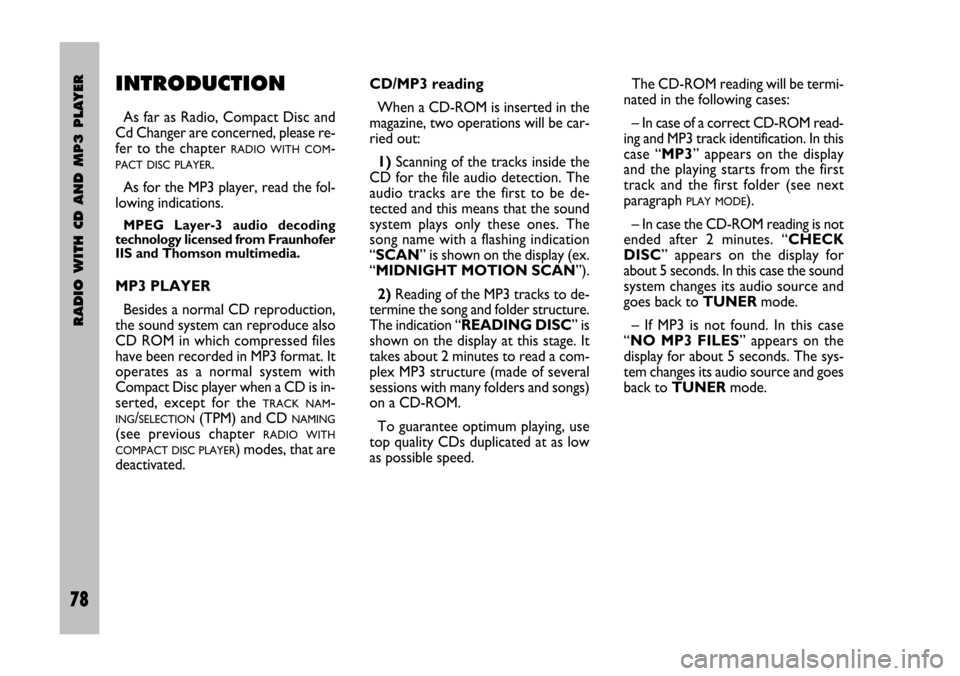

RADIO WITH CD AND MP3 PLAYER
78
INTRODUCTION
As far as Radio, Compact Disc and
Cd Changer are concerned, please re-
fer to the chapter
RADIO WITH COM-
PACT DISC PLAYER.
As for the MP3 player, read the fol-
lowing indications.
MPEG Layer-3 audio decoding
technology licensed from Fraunhofer
IIS and Thomson multimedia.
MP3 PLAYER
Besides a normal CD reproduction,
the sound system can reproduce also
CD ROM in which compressed files
have been recorded in MP3 format. It
operates as a normal system with
Compact Disc player when a CD is in-
serted, except for the
TRACK NAM-
ING/SELECTION(TPM) and CD NAMING
(see previous chapter RADIO WITH
COMPACT DISC PLAYER
) modes, that are
deactivated.CD/MP3 reading
When a CD-ROM is inserted in the
magazine, two operations will be car-
ried out:
1)Scanning of the tracks inside the
CD for the file audio detection. The
audio tracks are the first to be de-
tected and this means that the sound
system plays only these ones. The
song name with a flashing indication
“SCAN” is shown on the display (ex.
“MIDNIGHT MOTION SCAN”).
2) Reading of the MP3 tracks to de-
termine the song and folder structure.
The indication “READING DISC” is
shown on the display at this stage. It
takes about 2 minutes to read a com-
plex MP3 structure (made of several
sessions with many folders and songs)
on a CD-ROM.
To guarantee optimum playing, use
top quality CDs duplicated at as low
as possible speed.The CD-ROM reading will be termi-
nated in the following cases:
– In case of a correct CD-ROM read-
ing and MP3 track identification. In this
case “MP3” appears on the display
and the playing starts from the first
track and the first folder (see next
paragraph
PLAY MODE).
– In case the CD-ROM reading is not
ended after 2 minutes. “CHECK
DISC” appears on the display for
about 5 seconds. In this case the sound
system changes its audio source and
goes back to TUNERmode.
– If MP3 is not found. In this case
“NO MP3 FILES” appears on the
display for about 5 seconds. The sys-
tem changes its audio source and goes
back to TUNERmode.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 78
