RADIO WITH CASSETTE PLAYER
13 Nero- Testo 603.46.306 Radio Stilo gb
13

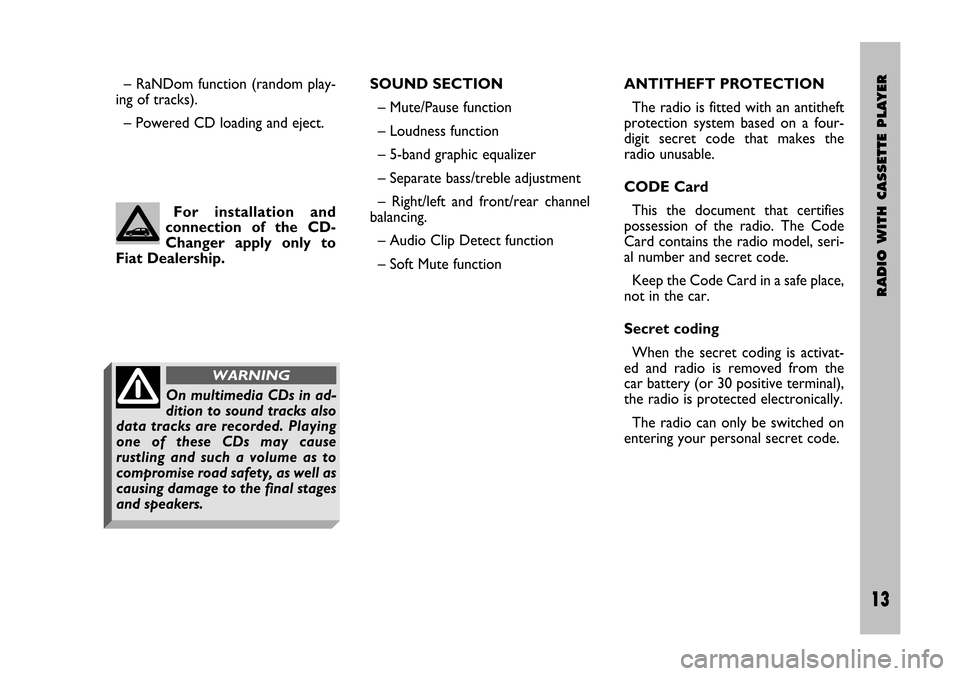

ANTITHEFT PROTECTION
The radio is fitted with an antitheft
protection system based on a four-
digit secret code that makes the
radio unusable.
CODE Card
This the document that certifies
possession of the radio. The Code
Card contains the radio model, seri-
al number and secret code.
Keep the Code Card in a safe place,
not in the car.
Secret coding
When the secret coding is activat-
ed and radio is removed from the
car battery (or 30 positive terminal),
the radio is protected electronically.
The radio can only be switched on
entering your personal secret code. For installation and
connection of the CD-
Changer apply only to
Fiat Dealership.– RaNDom function (random play-
ing of tracks).
– Powered CD loading and eject.SOUND SECTION
– Mute/Pause function
– Loudness function
– 5-band graphic equalizer
– Separate bass/treble adjustment
– Right/left and front/rear channel
balancing.
– Audio Clip Detect function
– Soft Mute function
On multimedia CDs in ad-
dition to sound tracks also
data tracks are recorded. Playing
one of these CDs may cause
rustling and such a volume as to
compromise road safety, as well as
causing damage to the final stages
and speakers.
WARNING
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 13

RADIO WITH CASSETTE PLAYER
17 Nero- Testo 603.46.306 Radio Stilo gb
17

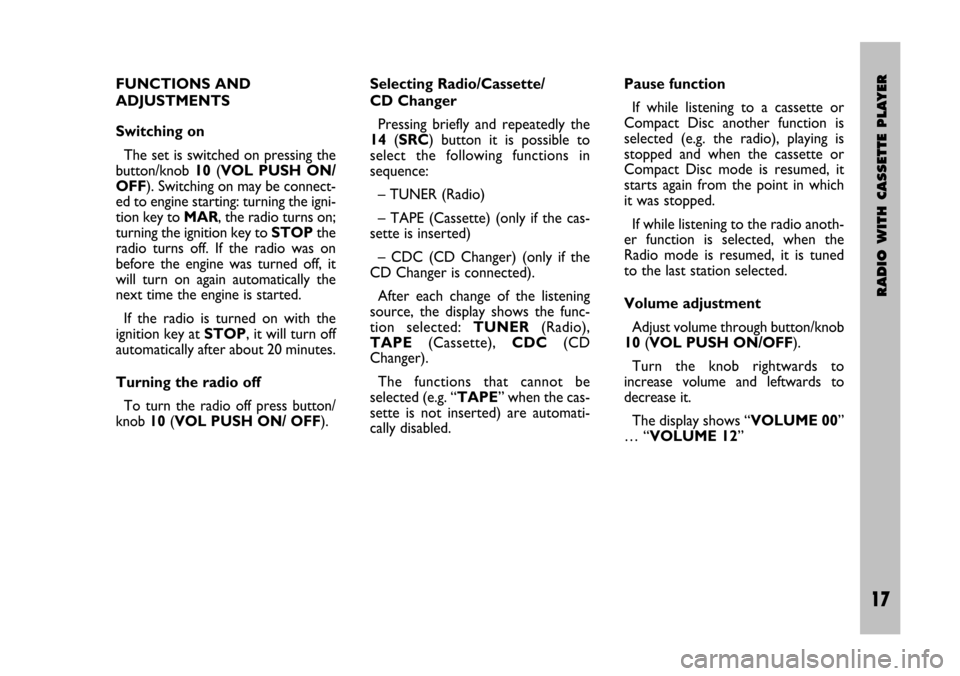

FUNCTIONS AND
ADJUSTMENTS
Switching on
The set is switched on pressing the
button/knob 10(VOL PUSH ON/
OFF). Switching on may be connect-
ed to engine starting: turning the igni-
tion key to MAR, the radio turns on;
turning the ignition key to STOPthe
radio turns off. If the radio was on
before the engine was turned off, it
will turn on again automatically the
next time the engine is started.
If the radio is turned on with the
ignition key at STOP, it will turn off
automatically after about 20 minutes.
Turning the radio off
To turn the radio off press button/
knob 10(VOL PUSH ON/ OFF).
Selecting Radio/Cassette/
CD Changer
Pressing briefly and repeatedly the
14(SRC) button it is possible to
select the following functions in
sequence:
– TUNER (Radio)
– TAPE (Cassette) (only if the cas-
sette is inserted)
– CDC (CD Changer) (only if the
CD Changer is connected).
After each change of the listening
source, the display shows the func-
tion selected: TUNER(Radio),
TAPE(Cassette), CDC(CD
Changer).
The functions that cannot be
selected (e.g. “TAPE” when the cas-
sette is not inserted) are automati-
cally disabled.Pause function
If while listening to a cassette or
Compact Disc another function is
selected (e.g. the radio), playing is
stopped and when the cassette or
Compact Disc mode is resumed, it
starts again from the point in which
it was stopped.
If while listening to the radio anoth-
er function is selected, when the
Radio mode is resumed, it is tuned
to the last station selected.
Volume adjustment
Adjust volume through button/knob
10(VOL PUSH ON/OFF).
Turn the knob rightwards to
increase volume and leftwards to
decrease it.
The display shows “VOLUME 00”
… “VOLUME 12”
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 17

20 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
20
The “FMAST” reception band is
reserved to the stations stored auto-
matically with the AutoSTorefunc-
tion.
The AMband is divided into sec-
tions: MW, LWand AMAST. The
AMASTsection is reserved to the
stations stored automatically with
the AutoSTorefunction.
The radio is always ready to
receive stations in the RDS mode
(Radio Data System).
Presetting buttons
The buttons with symbols from 1
to 6 (“3”, “4”, “5”, “16”, “17, “18”)
make it possible to set the following
presettings:
– 24 in the FM band (6 in FM 1, 6 in
FM 2, 6 in FM 3, 6 in FMAST)
– 6 in the LW band
– 6 in the MW band
– 6 in the AMAST bandTo call a preset station, choose the
required frequency band and then
press briefly (less than 1 second) the
corresponding preset button (from 1
to 6). The display will show the name
and the presetting number.
Storing the last station heard
The radio automatically keeps in
storage the last station heard for
each reception band, which is then
tuned when the radio is turned on or
the reception band is changed. RADIO (Tuner) fig. 1
When the set is turned on the last
function selected before turning off
is played (Radio, Cassette or CD
Changer).
To select the Radio source while
listening to a cassette or Compact
Disc, press briefly (less than 1 sec-
ond) and repeatedly the 14(SRC)
button until this function is selected.
If in the radio source, press briefly
(less than 1 second) and repeatedly
the 13(BAND
AS) button to select
the required reception band.
Every time the button 13 (BAND
AS) is pressed, the following bands
are selected in sequence: “FM1”,
FM2”, “FM3”, “FM4AST”, “LW”,
“MW” and “AMAST”.
The FMband is divided into sec-
tions: FM1, FM2, FM3and
FMAST. The FMASTsection is
reserved to the stations stored auto-
matically with the AutoSTorefunc-
tion.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 20

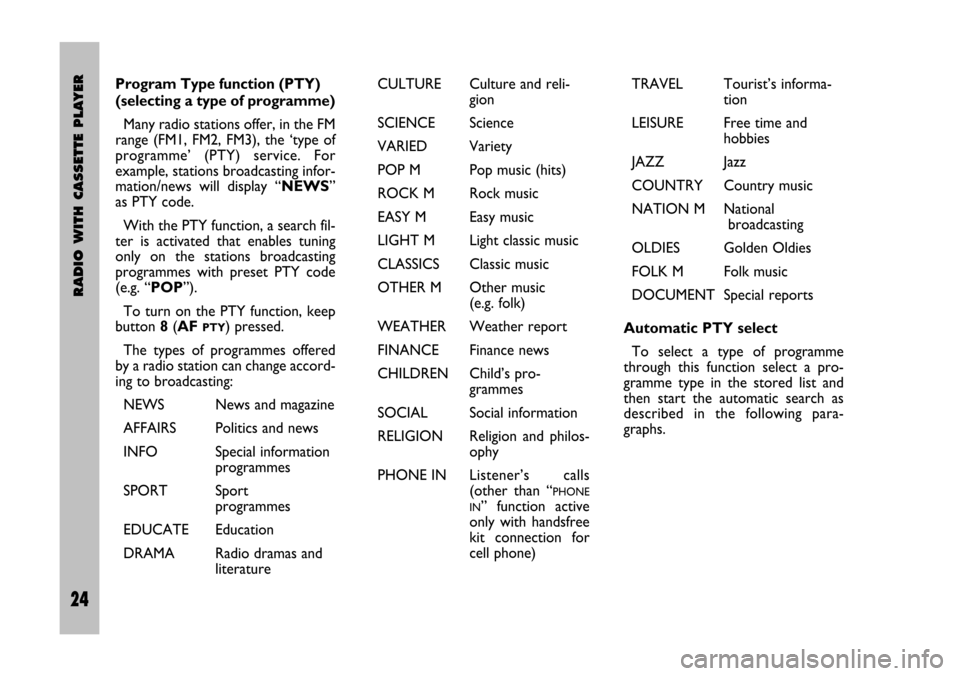

24 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
24
CULTURE Culture and reli-
gion
SCIENCE Science
VARIED Variety
POP M Pop music (hits)
ROCK M Rock music
EASY M Easy music
LIGHT M Light classic music
CLASSICS Classic music
OTHER M Other music
(e.g. folk)
WEATHER Weather report
FINANCE Finance news
CHILDREN Child’s pro-
grammes
SOCIALSocial information
RELIGION Religion and philos-
ophy
PHONE IN Listener’s calls
(other than “
PHONE
IN
” function active
only with handsfree
kit connection for
cell phone)TRAVELTourist’s informa-
tion
LEISURE Free time and
hobbies
JAZZ Jazz
COUNTRY Country music
NATION M National
broadcasting
OLDIES Golden Oldies
FOLK M Folk music
DOCUMENT Special reports
Automatic PTY select
To select a type of programme
through this function select a pro-
gramme type in the stored list and
then start the automatic search as
described in the following para-
graphs. Program Type function (PTY)
(selecting a type of programme)
Many radio stations offer, in the FM
range (FM1, FM2, FM3), the ‘type of
programme’ (PTY) service. For
example, stations broadcasting infor-
mation/news will display “NEWS”
as PTY code.
With the PTY function, a search fil-
ter is activated that enables tuning
only on the stations broadcasting
programmes with preset PTY code
(e.g. “POP”).
To turn on the PTY function, keep
button 8(AF
PTY) pressed.
The types of programmes offered
by a radio station can change accord-
ing to broadcasting:
NEWS News and magazine
AFFAIRS Politics and news
INFO Special information
programmes
SPORT Sport
programmes
EDUCATE Education
DRAMA Radio dramas and
literature
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 24

RADIO WITH CASSETTE PLAYER
25 Nero- Testo 603.46.306 Radio Stilo gb
25

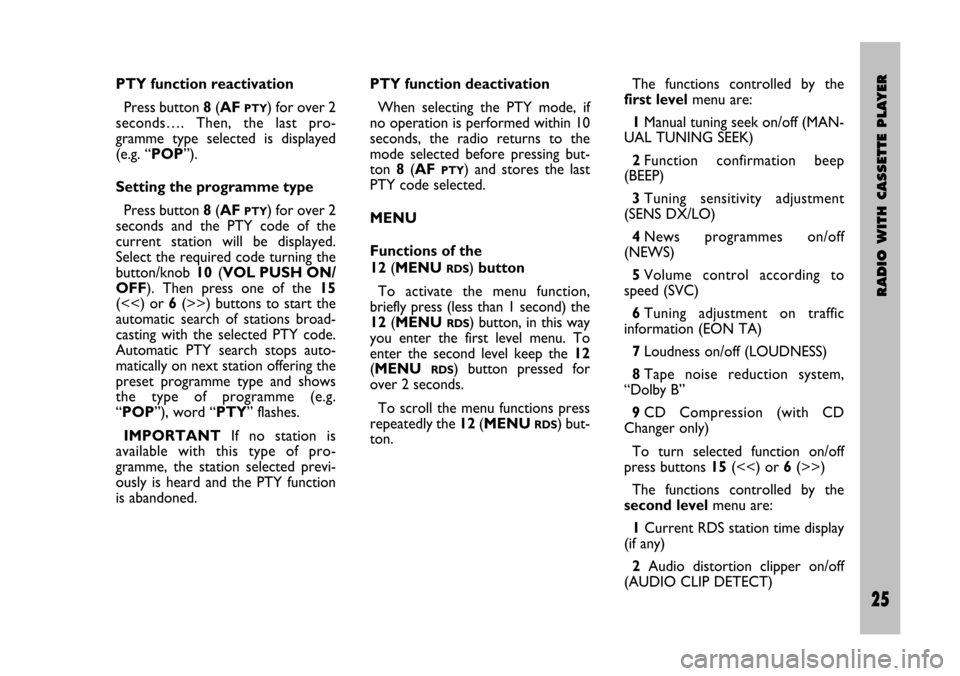

PTY function reactivation
Press button 8(AF
PTY) for over 2
seconds…. Then, the last pro-
gramme type selected is displayed
(e.g. “POP”).
Setting the programme type
Press button 8(AF
PTY) for over 2
seconds and the PTY code of the
current station will be displayed.
Select the required code turning the
button/knob 10 (VOL PUSH ON/
OFF). Then press one of the 15
(<<) or 6(>>) buttons to start the
automatic search of stations broad-
casting with the selected PTY code.
Automatic PTY search stops auto-
matically on next station offering the
preset programme type and shows
the type of programme (e.g.
“POP”), word “PTY” flashes.
IMPORTANTIf no station is
available with this type of pro-
gramme, the station selected previ-
ously is heard and the PTY function
is abandoned.PTY function deactivation
When selecting the PTY mode, if
no operation is performed within 10
seconds, the radio returns to the
mode selected before pressing but-
ton 8(AF
PTY) and stores the last
PTY code selected.
MENU
Functions of the
12(MENU
RDS)button
To activate the menu function,
briefly press (less than 1 second) the
12(MENU
RDS) button, in this way
you enter the first level menu. To
enter the second level keep the 12
(MENU
RDS) button pressed for
over 2 seconds.
To scroll the menu functions press
repeatedly the 12(MENU
RDS) but-
ton.The functions controlled by the
first levelmenu are:
1Manual tuning seek on/off (MAN-
UAL TUNING SEEK)
2Function confirmation beep
(BEEP)
3Tuning sensitivity adjustment
(SENS DX/LO)
4News programmes on/off
(NEWS)
5Volume control according to
speed (SVC)
6Tuning adjustment on traffic
information (EON TA)
7Loudness on/off (LOUDNESS)
8Tape noise reduction system,
“Dolby B”
9CD Compression (with CD
Changer only)
To turn selected function on/off
press buttons 15(<<) or 6(>>)
The functions controlled by the
second levelmenu are:
1Current RDS station time display
(if any)
2Audio distortion clipper on/off
(AUDIO CLIP DETECT)
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 25

RADIO WITH CASSETTE PLAYER
31 Nero- Testo 603.46.306 Radio Stilo gb
31

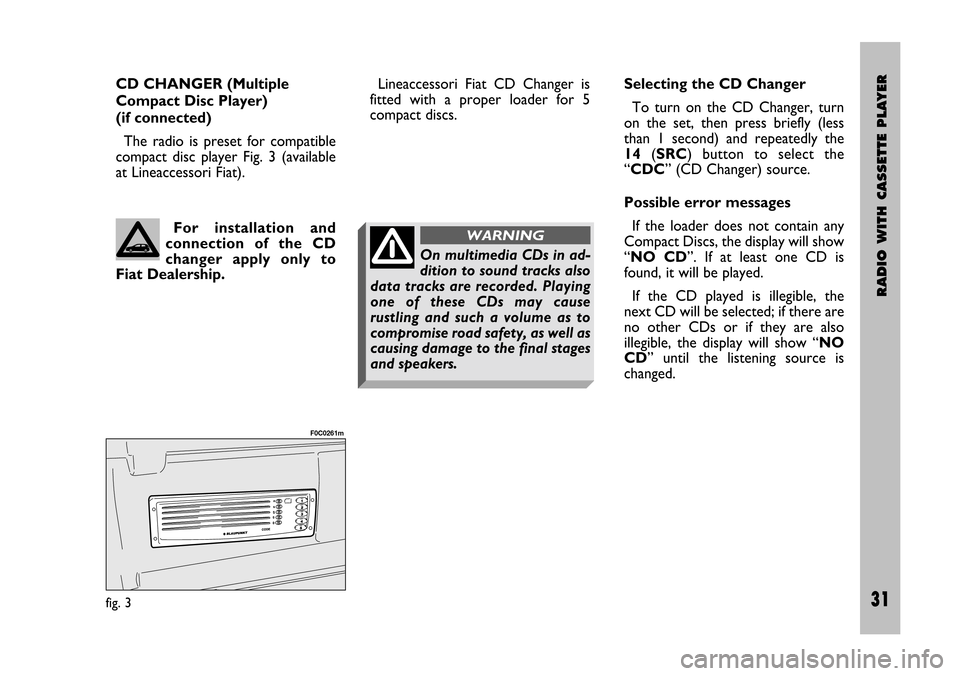

CD CHANGER (Multiple
Compact Disc Player)
(if connected)
The radio is preset for compatible
compact disc player Fig. 3 (available
at Lineaccessori Fiat).Lineaccessori Fiat CD Changer is
fitted with a proper loader for 5
compact discs.Selecting the CD Changer
To turn on the CD Changer, turn
on the set, then press briefly (less
than 1 second) and repeatedly the
14(SRC) button to select the
“CDC” (CD Changer) source.
Possible error messages
If the loader does not contain any
Compact Discs, the display will show
“NO CD”. If at least one CD is
found, it will be played.
If the CD played is illegible, the
next CD will be selected; if there are
no other CDs or if they are also
illegible, the display will show “NO
CD” until the listening source is
changed. For installation and
connection of the CD
changer apply only to
Fiat Dealership.
fig. 3
F0C0261m
On multimedia CDs in ad-
dition to sound tracks also
data tracks are recorded. Playing
one of these CDs may cause
rustling and such a volume as to
compromise road safety, as well as
causing damage to the final stages
and speakers.
WARNING
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 31

32 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
32

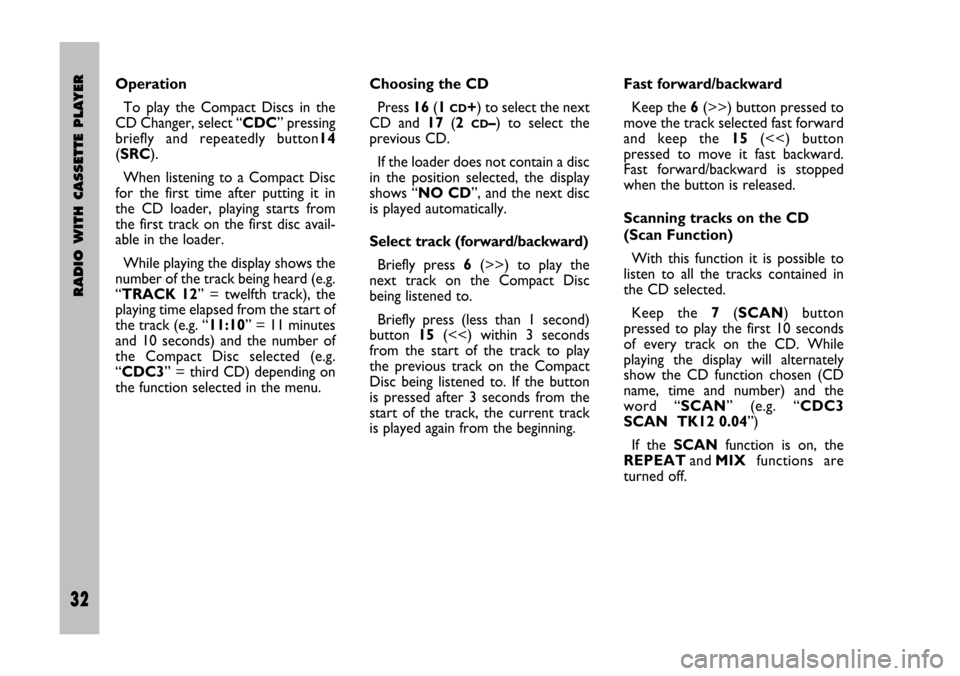

Choosing the CD
Press 16(1
CD+) to select the next
CD and 17(2
CD–) to select the
previous CD.
If the loader does not contain a disc
in the position selected, the display
shows “NO CD”, and the next disc
is played automatically.
Select track (forward/backward)
Briefly press 6(>>) to play the
next track on the Compact Disc
being listened to.
Briefly press (less than 1 second)
button 15(<<) within 3 seconds
from the start of the track to play
the previous track on the Compact
Disc being listened to. If the button
is pressed after 3 seconds from the
start of the track, the current track
is played again from the beginning.Fast forward/backward
Keep the 6(>>) button pressed to
move the track selected fast forward
and keep the 15(<<) button
pressed to move it fast backward.
Fast forward/backward is stopped
when the button is released.
Scanning tracks on the CD
(Scan Function)
With this function it is possible to
listen to all the tracks contained in
the CD selected.
Keep the 7(SCAN) button
pressed to play the first 10 seconds
of every track on the CD. While
playing the display will alternately
show the CD function chosen (CD
name, time and number) and the
word “SCAN” (e.g. “CDC3
SCAN TK12 0.04”)
If the SCANfunction is on, the
REPEATandMIXfunctions are
turned off. Operation
To play the Compact Discs in the
CD Changer, select “CDC” pressing
briefly and repeatedly button14
(SRC).
When listening to a Compact Disc
for the first time after putting it in
the CD loader, playing starts from
the first track on the first disc avail-
able in the loader.
While playing the display shows the
number of the track being heard (e.g.
“TRACK 12” = twelfth track), the
playing time elapsed from the start of
the track (e.g. “11:10” = 11 minutes
and 10 seconds) and the number of
the Compact Disc selected (e.g.
“CDC3” = third CD) depending on
the function selected in the menu.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 32

RADIO WITH CASSETTE PLAYER
33 Nero- Testo 603.46.306 Radio Stilo gb
33

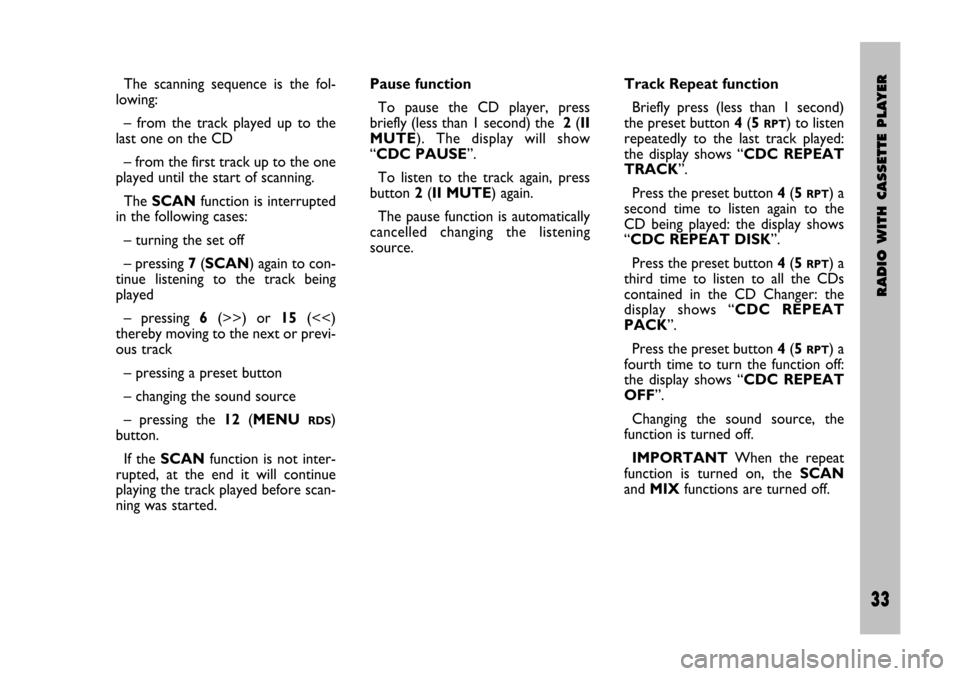

The scanning sequence is the fol-
lowing:
– from the track played up to the
last one on the CD
– from the first track up to the one
played until the start of scanning.
The SCANfunction is interrupted
in the following cases:
– turning the set off
– pressing 7 (SCAN) again to con-
tinue listening to the track being
played
– pressing 6(>>) or 15(<<)
thereby moving to the next or previ-
ous track
– pressing a preset button
– changing the sound source
– pressing the 12(MENU
RDS)
button.
If the SCANfunction is not inter-
rupted, at the end it will continue
playing the track played before scan-
ning was started.Pause function
To pause the CD player, press
briefly (less than 1 second) the 2(II
MUTE). The display will show
“CDC PAUSE”.
To listen to the track again, press
button 2(II MUTE) again.
The pause function is automatically
cancelled changing the listening
source.Track Repeat function
Briefly press (less than 1 second)
the preset button 4(5
RPT) to listen
repeatedly to the last track played:
the display shows “CDC REPEAT
TRACK”.
Press the preset button 4(5
RPT) a
second time to listen again to the
CD being played: the display shows
“CDC REPEAT DISK”.
Press the preset button 4(5
RPT) a
third time to listen to all the CDs
contained in the CD Changer: the
display shows “CDC REPEAT
PACK”.
Press the preset button 4(5
RPT) a
fourth time to turn the function off:
the display shows “CDC REPEAT
OFF”.
Changing the sound source, the
function is turned off.
IMPORTANTWhen the repeat
function is turned on, the SCAN
and MIXfunctions are turned off.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 33

34 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
34

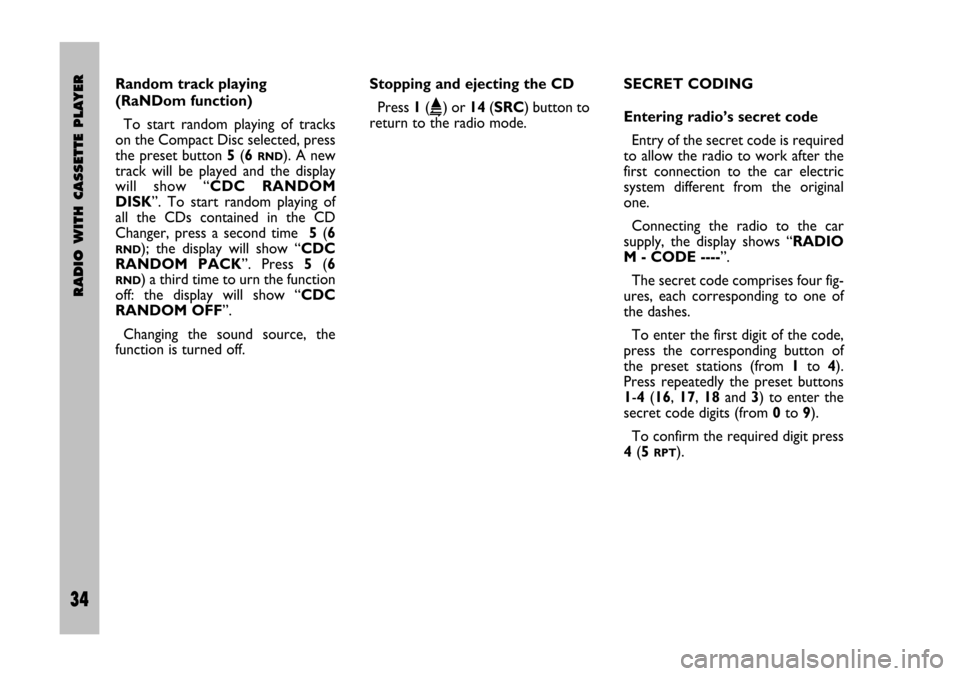

Random track playing
(RaNDom function)
To start random playing of tracks
on the Compact Disc selected, press
the preset button 5(6
RND). A new
track will be played and the display
will show “CDC RANDOM
DISK”. To start random playing of
all the CDs contained in the CD
Changer, press a second time 5(6
RND); the display will show “CDC
RANDOM PACK”. Press 5(6
RND) a third time to urn the function
off: the display will show “CDC
RANDOM OFF”.
Changing the sound source, the
function is turned off.Stopping and ejecting the CD
Press 1(Ä
) or 14(SRC) button to
return to the radio mode.SECRET CODING
Entering radio’s secret code
Entry of the secret code is required
to allow the radio to work after the
first connection to the car electric
system different from the original
one.
Connecting the radio to the car
supply, the display shows “RADIO
M - CODE ----”.
The secret code comprises four fig-
ures, each corresponding to one of
the dashes.
To enter the first digit of the code,
press the corresponding button of
the preset stations (from 1to 4).
Press repeatedly the preset buttons
1-4(16, 17, 18and 3) to enter the
secret code digits (from 0to 9).
To confirm the required digit press
4(5
RPT).
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 34

RADIO WITH CASSETTE PLAYER
35 Nero- Testo 603.46.306 Radio Stilo gb
35

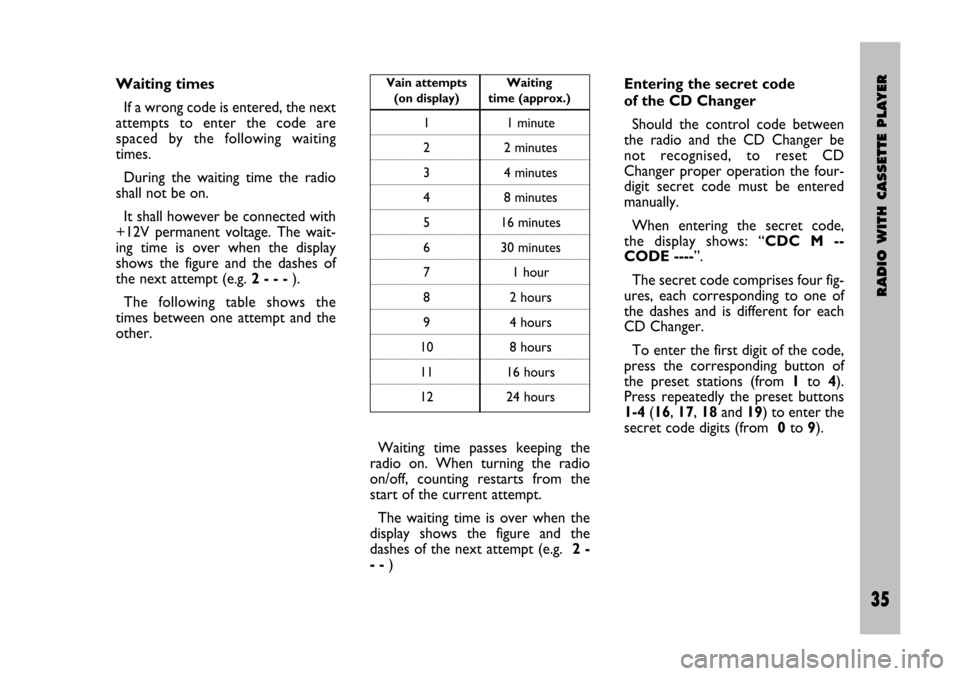

Vain attempts Waiting
(on display) time (approx.)
1 1 minute
2 2 minutes
3 4 minutes
4 8 minutes
5 16 minutes
6 30 minutes
7 1 hour
8 2 hours
9 4 hours
10 8 hours
11 16 hours
12 24 hours
Entering the secret code
of the CD Changer
Should the control code between
the radio and the CD Changer be
not recognised, to reset CD
Changer proper operation the four-
digit secret code must be entered
manually.
When entering the secret code,
the display shows: “CDC M --
CODE ----”.
The secret code comprises four fig-
ures, each corresponding to one of
the dashes and is different for each
CD Changer.
To enter the first digit of the code,
press the corresponding button of
the preset stations (from 1to 4).
Press repeatedly the preset buttons
1-4(16, 17, 18and 19) to enter the
secret code digits (from 0to 9). Waiting times
If a wrong code is entered, the next
attempts to enter the code are
spaced by the following waiting
times.
During the waiting time the radio
shall not be on.
It shall however be connected with
+12V permanent voltage. The wait-
ing time is over when the display
shows the figure and the dashes of
the next attempt (e.g. 2 - - - ).
The following table shows the
times between one attempt and the
other.
Waiting time passes keeping the
radio on. When turning the radio
on/off, counting restarts from the
start of the current attempt.
The waiting time is over when the
display shows the figure and the
dashes of the next attempt (e.g. 2 -
- - )
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 35
