RADIO WITH COMPACT DISC PLAYER
71 Nero- Testo 603.46.306 Radio Stilo gb
71

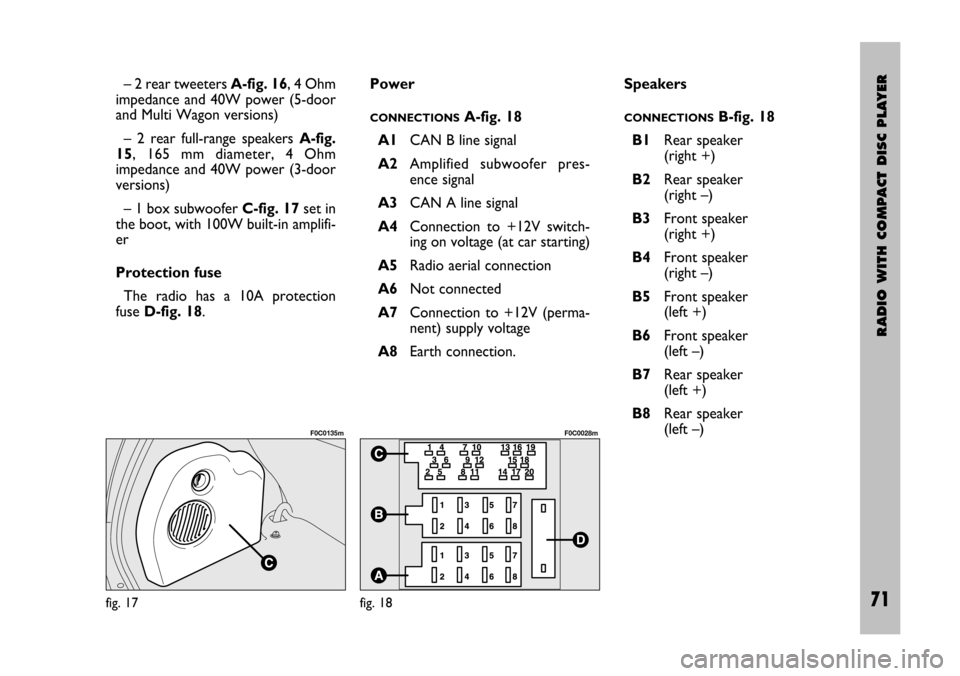

– 2 rear tweeters A-fig. 16, 4 Ohm
impedance and 40W power (5-door
and Multi Wagon versions)
– 2 rear full-range speakers A-fig.
15, 165 mm diameter, 4 Ohm
impedance and 40W power (3-door
versions)
– 1 box subwoofer C-fig. 17set in
the boot, with 100W built-in amplifi-
er
Protection fuse
The radio has a 10A protection
fuse D-fig. 18.
fig. 17
F0C0135m
fig. 18
F0C0028m
Power
CONNECTIONSA-fig. 18
A1CAN B line signal
A2Amplified subwoofer pres-
ence signal
A3CAN A line signal
A4Connection to +12V switch-
ing on voltage (at car starting)
A5Radio aerial connection
A6Not connected
A7Connection to +12V (perma-
nent) supply voltage
A8Earth connection.Speakers CONNECTIONSB-fig. 18
B1Rear speaker
(right +)
B2Rear speaker
(right –)
B3Front speaker
(right +)
B4Front speaker
(right –)
B5Front speaker
(left +)
B6Front speaker
(left –)
B7Rear speaker
(left +)
B8Rear speaker
(left –)
