display FIAT STILO 2006 1.G Workshop Manual

163
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
INCOMPLETE DOOR
LOCKING (red)
The warning light turns on
when one or more doors, the
boot or the bonnet are not properly shut.
The display will show the dedicated mes-
sage.
The buzzer will sound when one or more
doors are open and the car is moving.GENERIC FAILURE
INDICATION
(amber)
The warning light turns on in the
following circumstances.
Inertial fuel cut-off switch
intervened
The warning light turns on when the in-
ertial fuel cut-off switch is triggered. The
display will show the dedicated message.
Sensor failure
The warning light turns on when a fault
is detected to one of the following sensors
(where provided):
❒window anti-pinch sensors;
❒engine oil pressure sensor;
❒twilight sensor;
❒rain sensor;
❒parking sensors;
The display will show the dedicated mes-
sage (excluding in the event of engine oil
pressure sensor failure).
Contact Fiat Dealership as soon as possi-
ble to have the fault removed.
´è
DIESEL PARTICULATE
FILTER CLOGGED
(amber)
(Multijet versions)
The warning light turns on when the diesel
particulate filter is clogged and the driving
conditions do not enable to activate au-
tomatically the reclaiming procedure.
To enable the cleaning procedure, keep
the car running until the warning light
turns off.
The display will show the dedicated mes-
sage.
h

164
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
FUEL RESERVE
(amber)
Turning the ignition key to
MARthe warning light turns on,
but it should go off after few seconds.
The warning light turns on when about 8
litres fuel are left in the tank. The display
will show the dedicated message.
IMPORTANT The warning light flashes to
indicate a failure, contact Fiat Dealership
as soon as possible to have the system
checked.ENGINE CONTROL
SYSTEM FAILURE
(EOBD) (amber)
In normal conditions, turning the
ignition key to MAR, the warning light
turns on, but it should go off when the en-
gine has started. The initial turning on in-
dicates that the warning light is working
properly. If the warning light stays on or
turns on when travelling:
❒glowing steadily: means a fault in the sup-
ply/ignition system which could cause
high emissions at the exhaust, possible
lack of performance, poor handling and
high consumption levels.
The display will show the dedicated mes-
sage.
In these conditions it is possible to con-
tinue driving without however requiring
heavy effort or high speed from the en-
gine. Prolonged use of the car with the
warning light on may cause damages. Con-
tact Fiat Dealership as soon as possible.
çU
If, turning the ignition key to
MAR, the warning light Udoes not turn on or if it turns
on glowing steadily or flashing
when travelling, contact Fiat Dealer-
ship. Warning light
Uoperation can
be checked by traffic agents by prop-
er equipments, therefore comply with
laws and regulations of the country
where you are driving.
The warning light turns off if the fault dis-
appears, but it is still stored by the system.
❒flashing: indicates the possibility of dam-
age to the catalyst (see “EOBD system”
in section “Dashboard and controls”).
If the light flashes, it is necessary to release
the accelerator pedal to lower the speed
of the engine until the warning light stops
flashing; continue the journey at moder-
ate speed, trying to avoid driving condi-
tions that may cause further flashing and
contact Fiat Dealership as soon as possi-
ble.

165
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
ESP SYSTEM (amber)
Turning the ignition key to
MARthe warning light turns
on, but it should go off after few
seconds.
If the warning light does not turn off or
stays on when travelling together with the
button led ASR, contact Fiat Dealership.
The display will show the dedicated mes-
sage.
Disconnecting the battery will make the
warning light turn on (together with the
message on the display) to indicate that
the system shall be realigned. To make the
warning light turn off carry out the initial-
isation procedure described at paragraph
“ESP system” in section “Dashboard and
controls”.
Warning light flashing when driving indi-
cates that the ESP system is active.GLOW PLUG
WARMING FAILURE
(Multijet versions)
(amber)
GLOW PLUGS
(Multijet versions)
(amber)
Glow plug warming
Turning the ignition key to MARthe
warning light turns on and it will go off
when glow plugs reach the preset tem-
perature. Start the engine immediately af-
ter warning light turning off.
IMPORTANT With hot ambient temper-
ature, warning light stays on for very short
time.
ám
Glow plug warming failure
The warning light flashes when there is a
failure in the glow plug warming system.
Contact Fiat Dealership as soon as possi-
ble.
The display will show the dedicated mes-
sage.

INEFFICIENT
EBD
(ELECTRONIC
BRAKING
DISTRIBUTOR) (red) (amber)
The turning on at the same time of warn-
ing lights
xand >with the engine run-
ning indicates an EBD system failure or
that the system is unavailable; in this case
heavy braking may cause the rear wheels
to lock before time, with the possibility of
skidding.
Drive with the utmost care to the near-
est Fiat Dealership to have the system
checked.
The display will show the dedicated mes-
sage.
166
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
WATER IN DIESEL
FUEL FILTER
(Multijet versions)
(amber)
Turning the ignition key to MARthe
warning light turns on, but it should go off
after few seconds.
The warning light turns on when there is
water in the diesel fuel filter.
The display will show the dedicated mes-
sage.INEFFICIENT ABS
SYSTEM (amber)
Turning the ignition key to
MARthe warning light turns on,
but it should go off after few seconds.
The warning light turns on when the sys-
tem is inefficient or unavailable. In this case
the braking system keeps its effectiveness
unchanged, but without the potential of-
fered by the ABS system.
Caution is advisable and it is necessary to
contact Fiat Dealership.
The display will show the dedicated mes-
sage.
c
The presence of water in the
fuel circuit may cause serious
damage to the entire injection
system and cause irregular en-
gine operation. If the warning light
cturns on (together with the message on
the display), contact Fiat Dealership as
soon as possible to have the system re-
lieved. If the above indications come on
immediately after refuelling, water has
probably been poured into the tank:
turn the engine off immediately and
contact Fiat Dealership.
>x>

167
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR PROTECTION
SYSTEM FAILURE-FIAT
CODE (amber)
ALARM FAILURE
(where provided) (amber)
BREAK-IN ATTEMPT
(amber)
Car protection system failure
Turning the key to MARthe warning light
shall flash only once and then go off.
The turning on of the warning light glow-
ing steadily, with the ignition key at MAR,
indicates a probable failure (see “Fiat Code
system” in section “Dashboard and con-
trols”).
IMPORTANT The turning on at the same
time of the
Uand Ywarning lights in-
dicates a failure of the Fiat CODE system.
If with the engine running the warning light
Yflashes (together with the message on
the display), this means that the car is not
protected by the engine immobilising de-
vice (see “Fiat Code system” in section
“Dashboard and controls”). Contact Fiat
Dealership to have all the keys memo-
rised.Alarm failure (where provided)
The turning on of the warning light indi-
cates a failure in the alarm system. Con-
tact Fiat Dealership as soon as possible.
The display will show the dedicated mes-
sage.
Break-in attempt
The turning on of the warning light indi-
cates an attempt of break-in. Contact Fi-
at Dealership as soon as possible.
The display will show the dedicated mes-
sage.EXTERNAL LIGHT
FAILURE (amber)
The warning light turns on
when one of the following lights
is failing:
❒side/taillights
❒brake lights or relevant fuse
❒rear fog lights
❒direction indicators
❒number plate lights.
The failure referring to these lights could
be: one or more blown bulbs, a blown
protection fuse or an electric connection
cut-off.
The display will show the dedicated mes-
sage.
YW
REAR FOG LIGHTS
(amber)
The warning light turns on
when the rear fog lights are
turned on.
4
FRONT FOG LIGHTS
(green)
The warning light turns on
when the front fog lights are
turned on.
5

168
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
LEFT-HAND DIRECTION
INDICATOR
(green - intermittent)
The warning light turns on when
the direction indicator stalk is moved
downwards or, together with the right in-
dicator, when the hazard warning light
button is pressed.
RIGHT-HAND
DIRECTION INDICATOR
(green - intermittent)
The warning light turns on when
the direction indicator stalk is moved up-
wards or, together with the left indicator,
when the hazard warning light button is
pressed.
SIDELIGHTS AND
LOW BEAMS (green)
FOLLOW ME HOME
Side/taillights and low beams
The warning light turns on when side/tail-
lights, parking lights or low beams are
turned on.MAIN BEAMS (blue)
The warning light turns on
when the main beams are
turned on.
F
D
3
1
CRUISE CONTROL
(where provided) (green)
Turning the ignition key to
MARthe warning light turns on,
but it should go off after few seconds.
The warning light turns on when turning
the Cruise Control knurled ring to ON.
The display will show the dedicated mes-
sage.
Ü
POSSIBLE PRESENCE OF ICE
ON THE ROAD
The outside temperature indication starts
flashing and symbol
❄appears on the dis-
play when the outside temperature reach-
es or falls below 3°C to warn the driver
of the possible presence of ice on the
road.
The display will show the dedicated mes-
sage.
LIMITED RANGE
The display will show the dedicated mes-
sage to warn the driver that the cruising
range is less than 50 km.
ASR SYSTEM
The ASR system can be turned off by
pressing the ASR button. The display will
show the dedicated message to warn the
driver that the system is off; at the same
time the button led will turn on.
Pressing again the ASR button will turn off
the button led and the display will show
the dedicated message to warn the dri-
ver that the system is active again.
SPEED LIMIT EXCEEDED
The warning light turns on when the car
exceeds the speed limit set previously (see
“Multifunction Display” in section “Dash-
board and controls”). The display will
show the dedicated message. Follow me home
The warning light turns on when activat-
ing the “Follow me home” device (see sec-
tion “Dashboard and controls”). The dis-
play will show the dedicated message.

212
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
30 60 90 120 150 180
●●
●●
●●●●●●
●
●
●
●
●●●
●●●●●●
●●●
●●●
●●●●●●
●●●●●●
●●●
●●●●●●
Thousands of km
Check timing belt conditions
(1.616V excluding version)
Check timing belt conditions
(1.616V version)
Check engine control system operation
(through diagnostic socket)
Replace accessory drive belt/s
(excluding 1.616V version)
Replace accessory drive belt/s (1.616V version)
Replace timing belt
(excluding Multijet and 1.616V versions) (*)
Replace timing belt
(Multijet and 1.616V versions) (*)
Change spark plugs (1.616V version)
Change spark plugs (petrol versions - excluding 1.616V)
Replace diesel fuel filter (Multijet versions)
Replace air cleaner cartridge
Change engine oil and oil filter
(petrol versions) (or every year)
Change engine oil and oil filter
(Multijet versions without DPF) (or every 2 years)
Change engine oil and oil filter
(Multijet versions with DPF) (**)
Change brake fluid (or every 2 years)
Change pollen filter (or every year)
(*) Regardless of the km covered, the timing belt shall be replaced every 3 years for particularly demanding use (cold climates, driving in the
city, idling for a long time) or in any case every 5 years
(**) Engine oil and oil filter shall be changed when the relevant warning light/message on the display turn on and in any case every 2 years.

214
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
IMPORTANT - Engine oil
(petrol and Multijet versions
without DPF)
Should prevailing use of the car be under
one of the following specially heavy con-
ditions:
❒ trailer or caravan towing;
❒dusty roads;
❒short distances (less than 7-8 km) re-
peated and with external temperatures
below zero;
❒frequently idling engines or long dis-
tance low speed driving (e.g. taxis or
door-to-door deliveries) or in case of
a long term inactivity;
replace engine oil more frequently than
required on “Service schedule”.IMPORTANT - Engine oil
(Multijet versions with DPF)
Engine oil and oil filter shall be changed
when the relevant warning light, togeth-
er with the message on the display, turn
on (see section “Warning lights and mes-
sages”) or in any case every 2 years.
Should prevailing use of the car be in the
city, engine oil will waste faster.
Oil topping up, even signifi-
cant ones, do not replace the
engine oil change procedure
required when warning light
vturns on. Engine oil shall be
changed at a Fiat Dealership that will
also turn off the warning light on the
instrument panel.
IMPORTANT - Air cleaner
If the car is used on dusty roads change
the air cleaner more frequently than the
indications in the “Service schedule”.
If in doubt as to how often the engine oil
and air cleaner should be changed ac-
cording to how you use the car, contact
a Fiat Dealership.

265
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Gearbox
– using manual gearbox .................. 140
– using Selespeed gearbox ............. 141
Glass holder .......................................... 73
Glove box light
(bulb replacement) ............................ 194
Glove box/oddment
compartments ................................... 71
Handbrake ........................................... 139
Hazard lights ......................................... 68
Head restraints ..................................... 41
Headlight washer .................................. 65
Headlights ............................................... 94
Heating and ventilation system ..44-46
Identification data ............................... 238
If an exterior light burns out ............. 184
If an interior light burns out .............. 192
Ignition switch ...................................... 20
In an emergency............................. 169
Independent additional heater ......... 56
Installation of electric/
electronic devices .............................. 101
Instrument panel ................................. 6
Instruments ........................................... 21
Interior fittings ..................................... 70
Interiors ................................................. 235Isofix (child restraint system) ........... 121
Jacking the car ..................................... 206
Keys ....................................................... 10
Load limiters ....................................... 113
Main beam headlights......................... 59
MSR (system) ....................................... 99
Multifunction display ........................... 23
Number plate lights
(bulb replacement) ............................ 191
OCS
(Occupant Classification System) .. 129
Oddment compartments .................. 73
Paint ...................................................... 233
Parking ................................................... 139
Parking lights ......................................... 69
Parking sensors .................................... 103
Performance ......................................... 253
Pollen filter ............................................ 225
Power windows ................................... 80
Presetting for mounting the
“Isofix ” child restraint system ...... 121 Electric power steering “Dualdrive” .. 102
Electronic alarm ................................... 17
Engine
– identification code ........................ 240
– technical data ......................... 241-242
Engine compartment
– washing ............................................ 234
Engine oil
– consumption .................................. 220
Environment protection .................... 108
EOBD (system) .................................... 99
ESP (system) ......................................... 97
External lights ....................................... 59
Fiat CODE (system) .......................... 8
Fire extinguisher .................................. 208
Fix&Go automatic ............................... 177
Flashing the headlights ........................ 59
Fluid level checks ................................. 216
Fluids and lubricants ........................... 259
Follow me home (device) ................. 60
Front fog lights ............................... 68-69
– (bulb replacement)......................... 186
Fuel consumption ................................. 261
Fuel feed/ignition ................................. 241
Fuel filler cap ........................................ 106
Fuses (replacement) ........................... 196

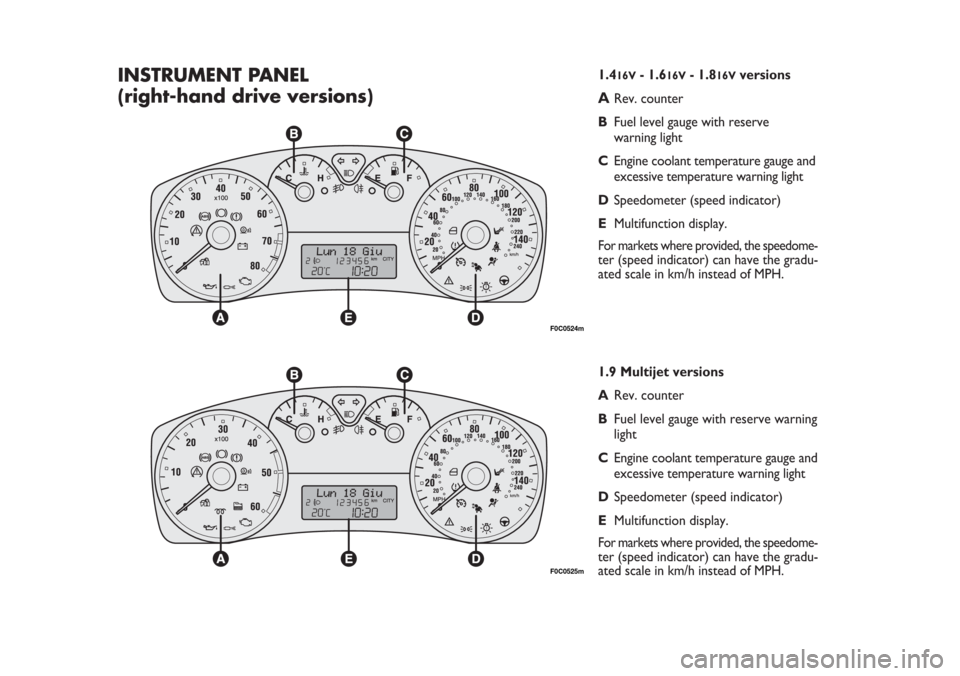

INSTRUMENT PANEL
(right-hand drive versions)1.416V- 1.616V- 1.816Vversions
ARev. counter
BFuel level gauge with reserve
warning light
CEngine coolant temperature gauge and
excessive temperature warning light
DSpeedometer (speed indicator)
EMultifunction display.
For markets where provided, the speedome-ter (speed indicator) can have the gradu-
ated scale in km/h instead of MPH.
1.9 Multijet versions
ARev. counter
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DSpeedometer (speed indicator)
EMultifunction display.
For markets where provided, the speedome-ter (speed indicator) can have the gradu-
ated scale in km/h instead of MPH.
F0C0524m
F0C0525m
