FIAT ULYSSE 2008 2.G Connect NavPlus Manual

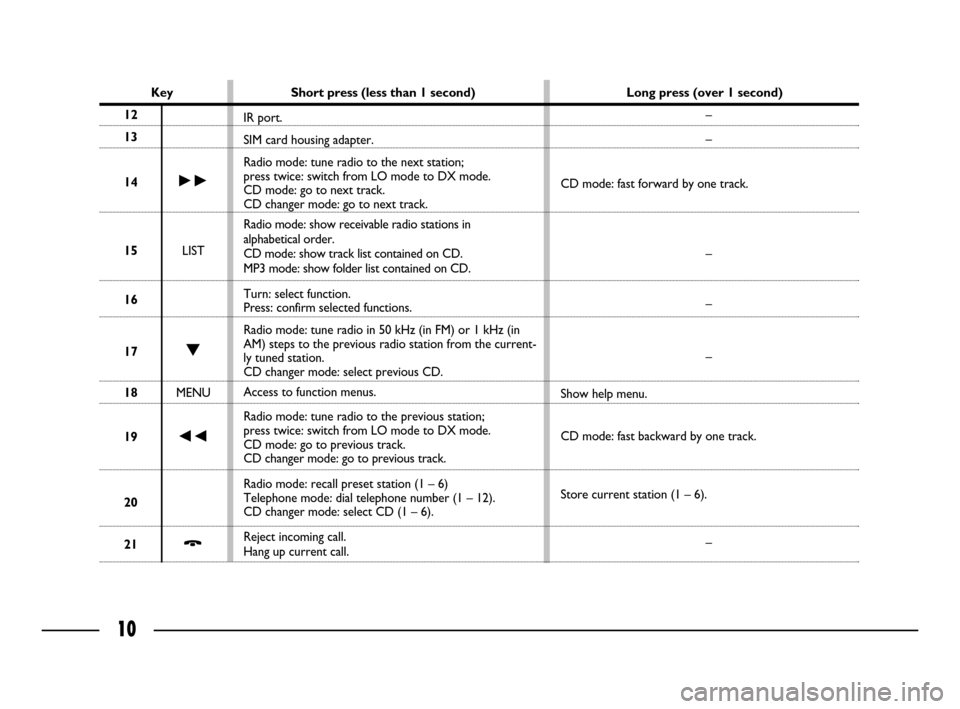

10
Key Short press (less than 1 second) Long press (over 1 second)
12
13
14
˜
15LIST
16
17O
18MENU
19
÷
20
21Ô
–
–
CD mode: fast forward by one track.
–
–
–
Show help menu.
CD mode: fast backward by one track.
Store current station (1 – 6).
– IR port.
SIM card housing adapter.
Radio mode: tune radio to the next station;
press twice: switch from LO mode to DX mode.
CD mode: go to next track.
CD changer mode: go to next track.
Radio mode: show receivable radio stations in
alphabetical order.
CD mode: show track list contained on CD.
MP3 mode: show folder list contained on CD.
Turn: select function.
Press: confirm selected functions.
Radio mode: tune radio in 50 kHz (in FM) or 1 kHz (in
AM) steps to the previous radio station from the current-
ly tuned station.
CD changer mode: select previous CD.
Access to function menus.
Radio mode: tune radio to the previous station;
press twice: switch from LO mode to DX mode.
CD mode: go to previous track.
CD changer mode: go to previous track.
Radio mode: recall preset station (1 – 6)
Telephone mode: dial telephone number (1 – 12).
CD changer mode: select CD (1 – 6).
Reject incoming call.
Hang up current call.
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 10

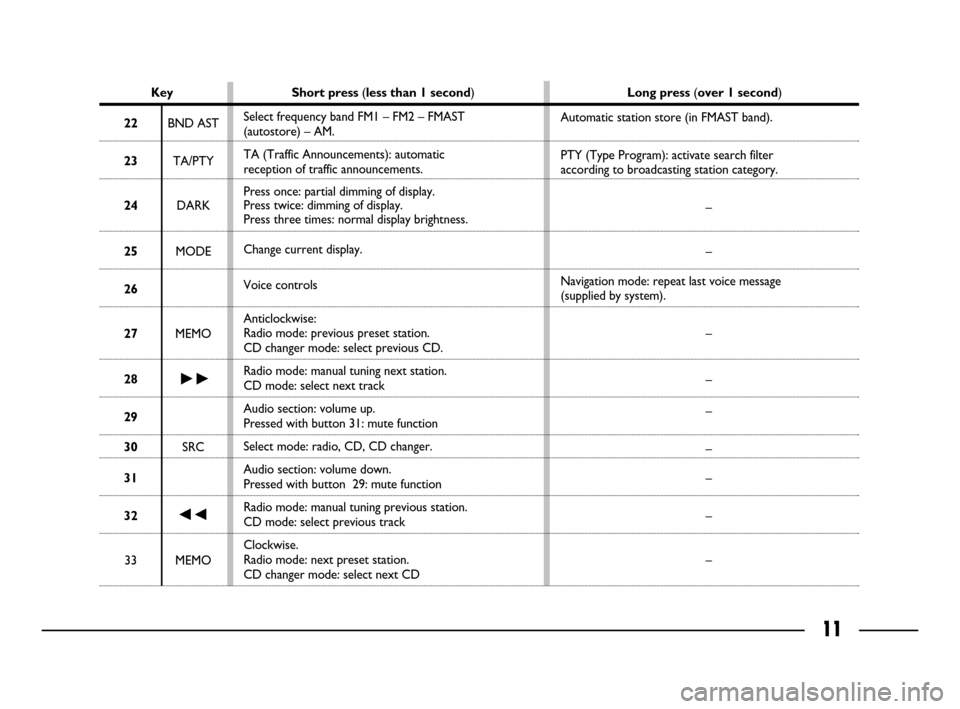

11
Key Short press (less than 1 second)Long press (over 1 second)
22BND AST
23TA/PTY
24DARK
25MODE
26
27MEMO
28˜
29
30SRC
31
32÷
33 MEMO
Automatic station store (in FMAST band).
PTY (Type Program): activate search filter
according to broadcasting station category.
–
–
Navigation mode: repeat last voice message
(supplied by system).
–
–
–
–
–
–
– Select frequency band FM1 – FM2 – FMAST
(autostore) – AM.
TA (Traffic Announcements): automatic
reception of traffic announcements.
Press once: partial dimming of display.
Press twice: dimming of display.
Press three times: normal display brightness.
Change current display.
Voice controls
Anticlockwise:
Radio mode: previous preset station.
CD changer mode: select previous CD.
Radio mode: manual tuning next station.
CD mode: select next track
Audio section: volume up.
Pressed with button 31: mute function
Select mode: radio, CD, CD changer.
Audio section: volume down.
Pressed with button 29: mute function
Radio mode: manual tuning previous station.
CD mode: select previous track
Clockwise.
Radio mode: next preset station.
CD changer mode: select next CD
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 11

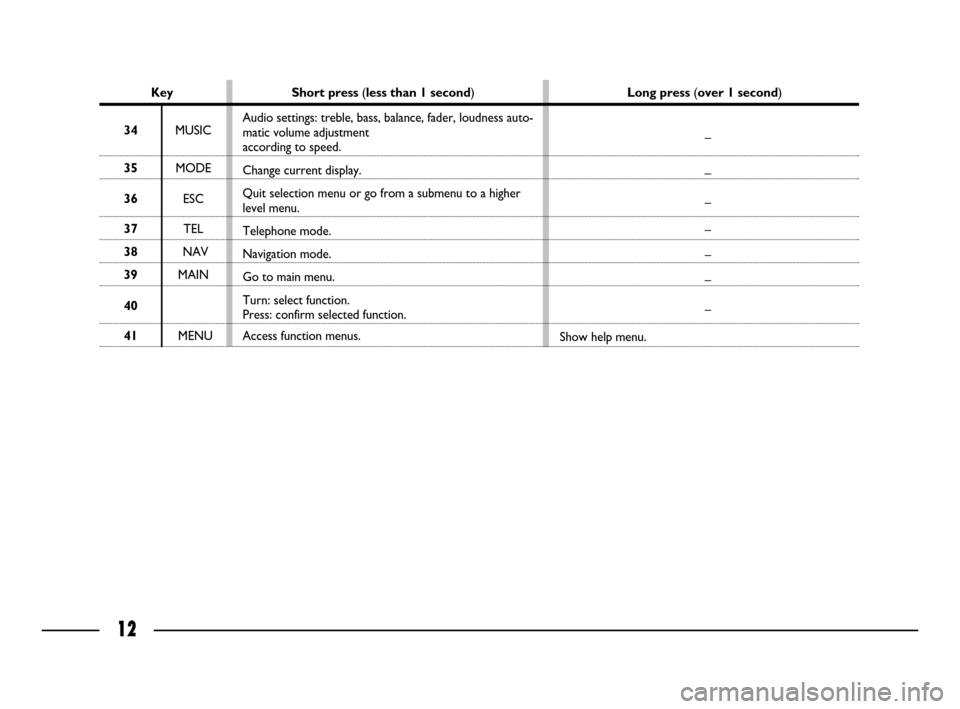

12
Key Short press (less than 1 second)Long press (over 1 second)
34MUSIC
35MODE
36ESC
37TEL
38NAV
39MAIN
40
41MENUAudio settings: treble, bass, balance, fader, loudness auto-
matic volume adjustment
according to speed.
Change current display.
Quit selection menu or go from a submenu to a higher
level menu.
Telephone mode.
Navigation mode.
Go to main menu.
Turn: select function.
Press: confirm selected function.
Access function menus.–
–
–
–
–
–
–
Show help menu.
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 12

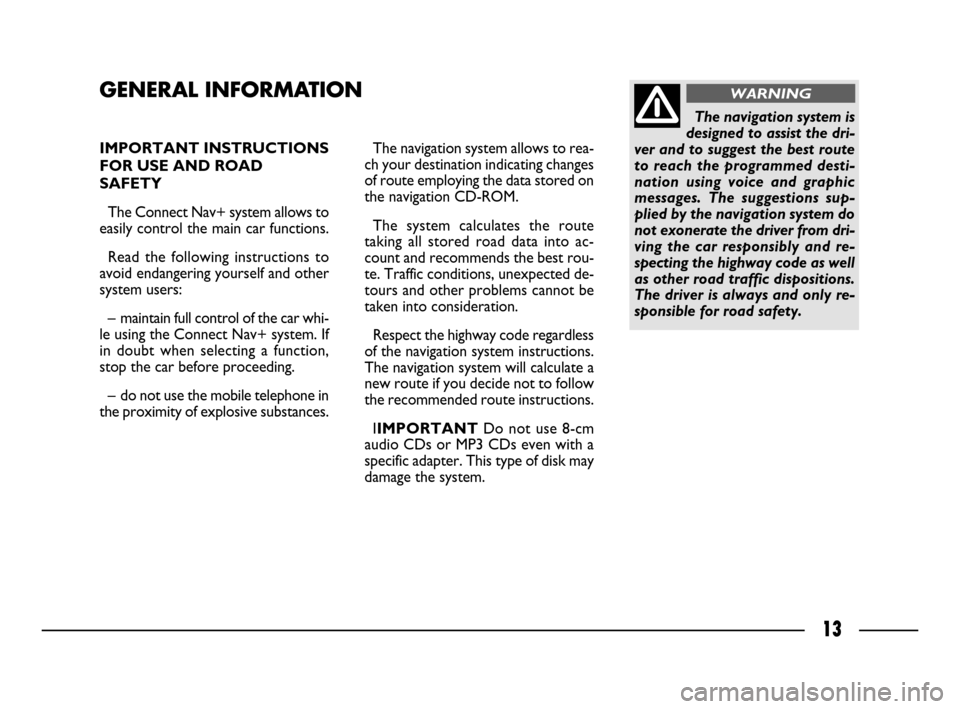

13
IMPORTANT INSTRUCTIONS
FOR USE AND ROAD
SAFETY
The Connect Nav+ system allows to
easily control the main car functions.
Read the following instructions to
avoid endangering yourself and other
system users:
– maintain full control of the car whi-
le using the Connect Nav+ system. If
in doubt when selecting a function,
stop the car before proceeding.
– do not use the mobile telephone in
the proximity of explosive substances.
GENERAL INFORMATION
The navigation system allows to rea-
ch your destination indicating changes
of route employing the data stored on
the navigation CD-ROM.
The system calculates the route
taking all stored road data into ac-
count and recommends the best rou-
te. Traffic conditions, unexpected de-
tours and other problems cannot be
taken into consideration.
Respect the highway code regardless
of the navigation system instructions.
The navigation system will calculate a
new route if you decide not to follow
the recommended route instructions.
IIMPORTANT Do not use 8-cm
audio CDs or MP3 CDs even with a
specific adapter. This type of disk may
damage the system.
The navigation system is
designed to assist the dri-
ver and to suggest the best route
to reach the programmed desti-
nation using voice and graphic
messages. The suggestions sup-
plied by the navigation system do
not exonerate the driver from dri-
ving the car responsibly and re-
specting the highway code as well
as other road traffic dispositions.
The driver is always and only re-
sponsible for road safety.
WARNING
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 13

14
fig. 2
F0B1005g

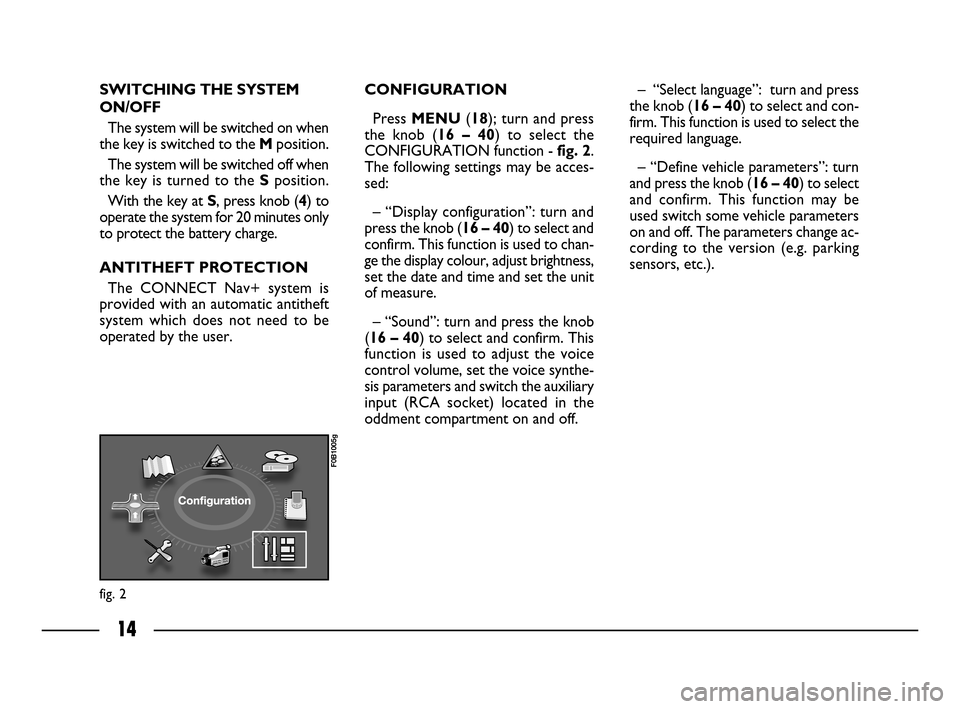

SWITCHING THE SYSTEM
ON/OFF
The system will be switched on when
the key is switched to the Mposition.
The system will be switched off when
the key is turned to the Sposition.
With the key at S, press knob (4) to
operate the system for 20 minutes only
to protect the battery charge.
ANTITHEFT PROTECTION
The CONNECT Nav+ system is
provided with an automatic antitheft
system which does not need to be
operated by the user. CONFIGURATION
Press MENU(18); turn and press
the knob (16 – 40) to select the
CONFIGURATION function - fig. 2.
The following settings may be acces-
sed:
– “Display configuration”: turn and
press the knob (16 – 40) to select and
confirm. This function is used to chan-
ge the display colour, adjust brightness,
set the date and time and set the unit
of measure.
– “Sound”: turn and press the knob
(16 – 40) to select and confirm. This
function is used to adjust the voice
control volume, set the voice synthe-
sis parameters and switch the auxiliary
input (RCA socket) located in the
oddment compartment on and off.– “Select language”: turn and press
the knob (16 – 40) to select and con-
firm. This function is used to select the
required language.
– “Define vehicle parameters”: turn
and press the knob (16 – 40) to select
and confirm. This function may be
used switch some vehicle parameters
on and off. The parameters change ac-
cording to the version (e.g. parking
sensors, etc.).
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 14

15

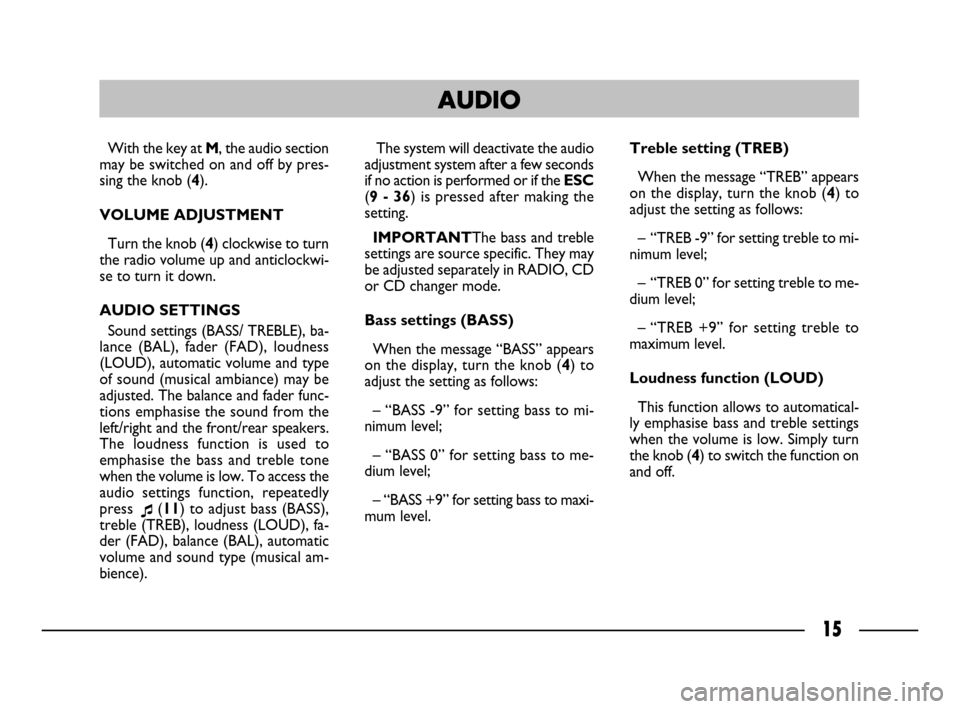

With the key at M, the audio section
may be switched on and off by pres-
sing the knob (4).
VOLUME ADJUSTMENT
Turn the knob (4) clockwise to turn
the radio volume up and anticlockwi-
se to turn it down.
AUDIO SETTINGS
Sound settings (BASS/ TREBLE), ba-
lance (BAL), fader (FAD), loudness
(LOUD), automatic volume and type
of sound (musical ambiance) may be
adjusted. The balance and fader func-
tions emphasise the sound from the
left/right and the front/rear speakers.
The loudness function is used to
emphasise the bass and treble tone
when the volume is low. To access the
audio settings function, repeatedly
press
(11) to adjust bass (BASS),
treble (TREB), loudness (LOUD), fa-
der (FAD), balance (BAL), automatic
volume and sound type (musical am-
bience).The system will deactivate the audio
adjustment system after a few seconds
if no action is performed or if the ESC
(9 - 36) is pressed after making the
setting.
IMPORTANTThe bass and treble
settings are source specific. They may
be adjusted separately in RADIO, CD
or CD changer mode.
Bass settings (BASS)
When the message “BASS” appears
on the display, turn the knob (4) to
adjust the setting as follows:
– “BASS -9” for setting bass to mi-
nimum level;
– “BASS 0” for setting bass to me-
dium level;
– “BASS +9” for setting bass to maxi-
mum level.Treble setting (TREB)
When the message “TREB” appears
on the display, turn the knob (4) to
adjust the setting as follows:
– “TREB -9” for setting treble to mi-
nimum level;
– “TREB 0” for setting treble to me-
dium level;
– “TREB +9” for setting treble to
maximum level.
Loudness function (LOUD)
This function allows to automatical-
ly emphasise bass and treble settings
when the volume is low. Simply turn
the knob (4) to switch the function on
and off.
AUDIO
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 15

16

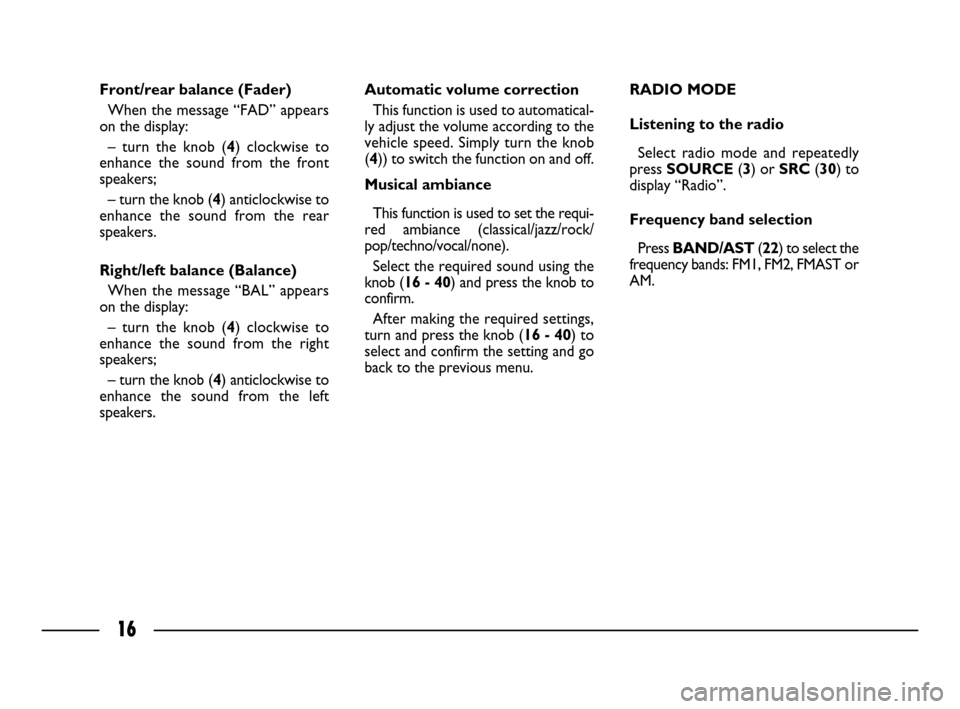

Front/rear balance (Fader)
When the message “FAD” appears
on the display:
– turn the knob (4) clockwise to
enhance the sound from the front
speakers;
– turn the knob (4) anticlockwise to
enhance the sound from the rear
speakers.
Right/left balance (Balance)
When the message “BAL” appears
on the display:
– turn the knob (4) clockwise to
enhance the sound from the right
speakers;
– turn the knob (4) anticlockwise to
enhance the sound from the left
speakers.Automatic volume correction
This function is used to automatical-
ly adjust the volume according to the
vehicle speed. Simply turn the knob
(4)) to switch the function on and off.
Musical ambiance
This function is used to set the requi-
red ambiance (classical/jazz/rock/
pop/techno/vocal/none).
Select the required sound using the
knob (16 - 40) and press the knob to
confirm.
After making the required settings,
turn and press the knob (16 - 40) to
select and confirm the setting and go
back to the previous menu.RADIO MODE
Listening to the radio
Select radio mode and repeatedly
press SOURCE (3) or SRC(30) to
display “Radio”.
Frequency band selection
Press BAND/AST(22) to select the
frequency bands: FM1, FM2, FMAST or
AM.
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 16

17

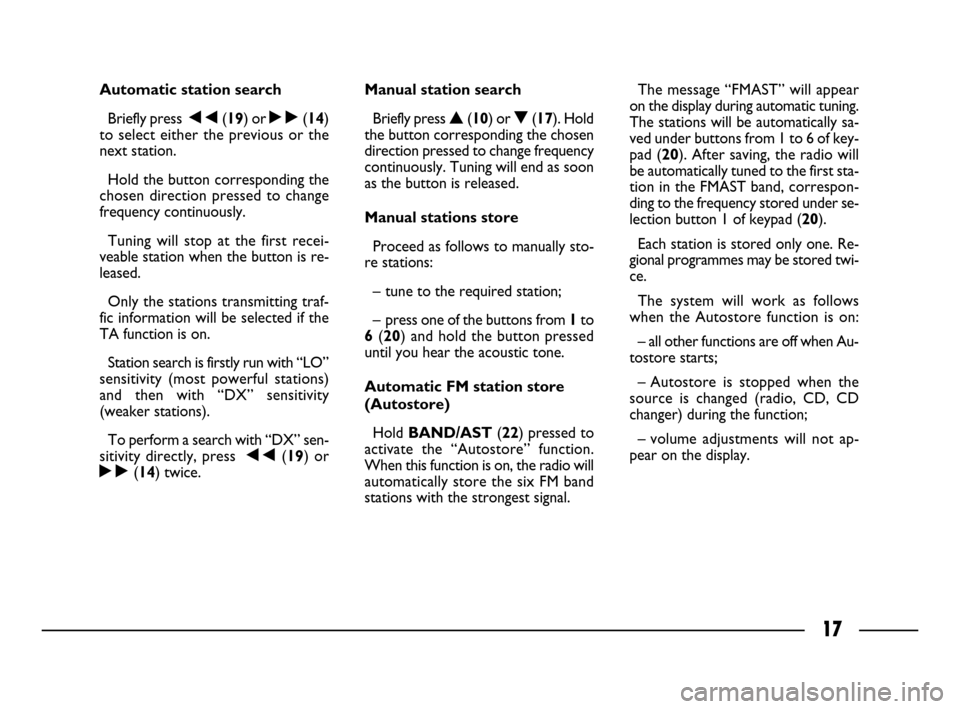

Automatic station search
Briefly press ÷(19) or ˜(14)
to select either the previous or the
next station.
Hold the button corresponding the
chosen direction pressed to change
frequency continuously.
Tuning will stop at the first recei-
veable station when the button is re-
leased.
Only the stations transmitting traf-
fic information will be selected if the
TA function is on.
Station search is firstly run with “LO”
sensitivity (most powerful stations)
and then with “DX” sensitivity
(weaker stations).
To perform a search with “DX” sen-
sitivity directly, press ÷(19) or
˜(14) twice.Manual station search
Briefly press
▲ (10) or ▼(17). Hold
the button corresponding the chosen
direction pressed to change frequency
continuously. Tuning will end as soon
as the button is released.
Manual stations store
Proceed as follows to manually sto-
re stations:
– tune to the required station;
– press one of the buttons from 1to
6(20) and hold the button pressed
until you hear the acoustic tone.
Automatic FM station store
(Autostore)
Hold BAND/AST(22) pressed to
activate the “Autostore” function.
When this function is on, the radio will
automatically store the six FM band
stations with the strongest signal.The message “FMAST” will appear
on the display during automatic tuning.
The stations will be automatically sa-
ved under buttons from 1 to 6 of key-
pad (20). After saving, the radio will
be automatically tuned to the first sta-
tion in the FMAST band, correspon-
ding to the frequency stored under se-
lection button 1 of keypad (20).
Each station is stored only one. Re-
gional programmes may be stored twi-
ce.
The system will work as follows
when the Autostore function is on:
– all other functions are off when Au-
tostore starts;
– Autostore is stopped when the
source is changed (radio, CD, CD
changer) during the function;
– volume adjustments will not ap-
pear on the display.
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 17

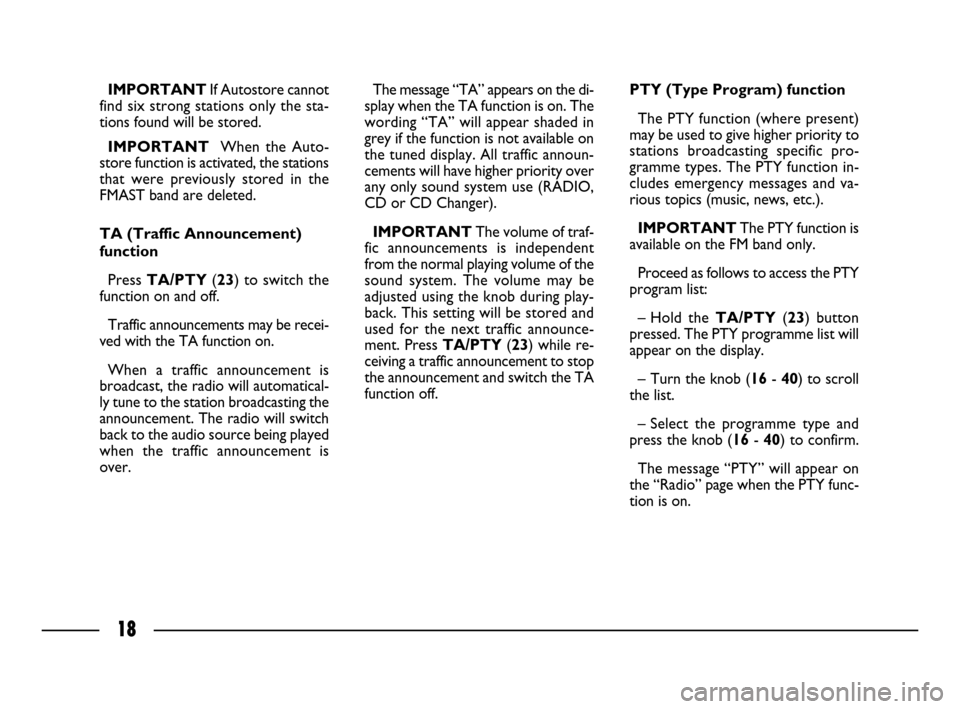

18
IMPORTANTIf Autostore cannot
find six strong stations only the sta-
tions found will be stored.
IMPORTANTWhen the Auto-
store function is activated, the stations
that were previously stored in the
FMAST band are deleted.
TA (Traffic Announcement)
function
Press TA/PTY(23) to switch the
function on and off.
Traffic announcements may be recei-
ved with the TA function on.
When a traffic announcement is
broadcast, the radio will automatical-
ly tune to the station broadcasting the
announcement. The radio will switch
back to the audio source being played
when the traffic announcement is
over.The message “TA” appears on the di-
splay when the TA function is on. The
wording “TA” will appear shaded in
grey if the function is not available on
the tuned display. All traffic announ-
cements will have higher priority over
any only sound system use (RADIO,
CD or CD Changer).
IMPORTANTThe volume of traf-
fic announcements is independent
from the normal playing volume of the
sound system. The volume may be
adjusted using the knob during play-
back. This setting will be stored and
used for the next traffic announce-
ment. Press TA/PTY(23) while re-
ceiving a traffic announcement to stop
the announcement and switch the TA
function off. PTY (Type Program) function
The PTY function (where present)
may be used to give higher priority to
stations broadcasting specific pro-
gramme types. The PTY function in-
cludes emergency messages and va-
rious topics (music, news, etc.).
IMPORTANTThe PTY function is
available on the FM band only.
Proceed as follows to access the PTY
program list:
– Hold the TA/PTY(23) button
pressed. The PTY programme list will
appear on the display.
– Turn the knob (16- 40) to scroll
the list.
– Select the programme type and
press the knob (16- 40) to confirm.
The message “PTY” will appear on
the “Radio” page when the PTY func-
tion is on.
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 18

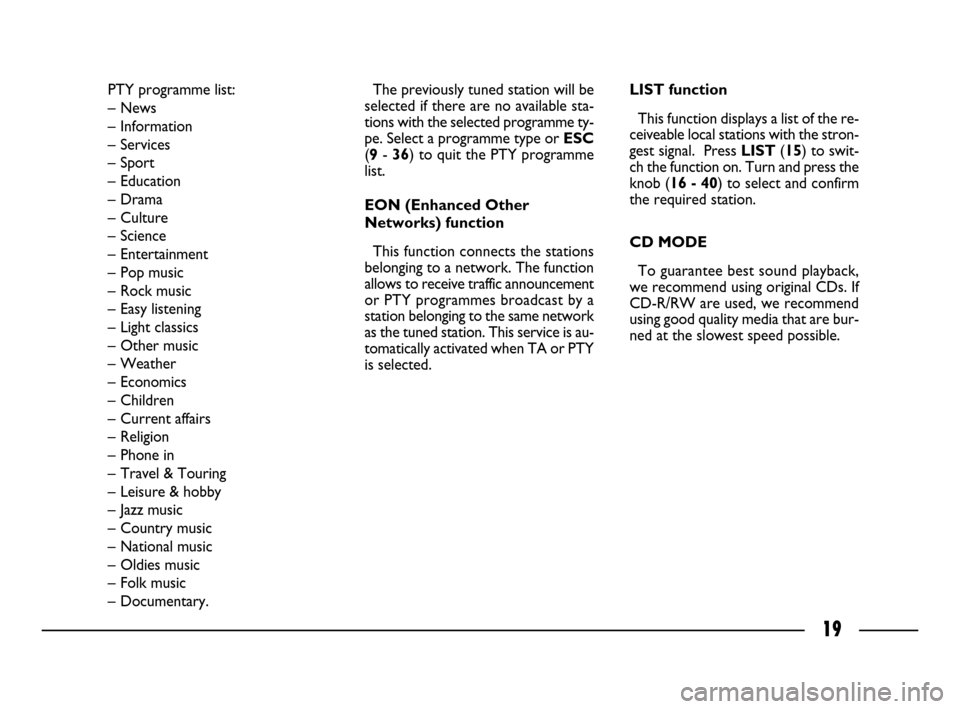

19
PTY programme list:
– News
– Information
– Services
– Sport
– Education
– Drama
– Culture
– Science
– Entertainment
– Pop music
– Rock music
– Easy listening
– Light classics
– Other music
– Weather
– Economics
– Children
– Current affairs
– Religion
– Phone in
– Travel & Touring
– Leisure & hobby
– Jazz music
– Country music
– National music
– Oldies music
– Folk music
– Documentary.The previously tuned station will be
selected if there are no available sta-
tions with the selected programme ty-
pe. Select a programme type or ESC
(9- 36) to quit the PTY programme
list.
EON (Enhanced Other
Networks) function
This function connects the stations
belonging to a network. The function
allows to receive traffic announcement
or PTY programmes broadcast by a
station belonging to the same network
as the tuned station. This service is au-
tomatically activated when TA or PTY
is selected.LIST function
This function displays a list of the re-
ceiveable local stations with the stron-
gest signal. Press LIST(15) to swit-
ch the function on. Turn and press the
knob (16 - 40) to select and confirm
the required station.
CD MODE
To guarantee best sound playback,
we recommend using original CDs. If
CD-R/RW are used, we recommend
using good quality media that are bur-
ned at the slowest speed possible.
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 19
