FIAT ULYSSE 2008 2.G Connect NavPlus Manual

30

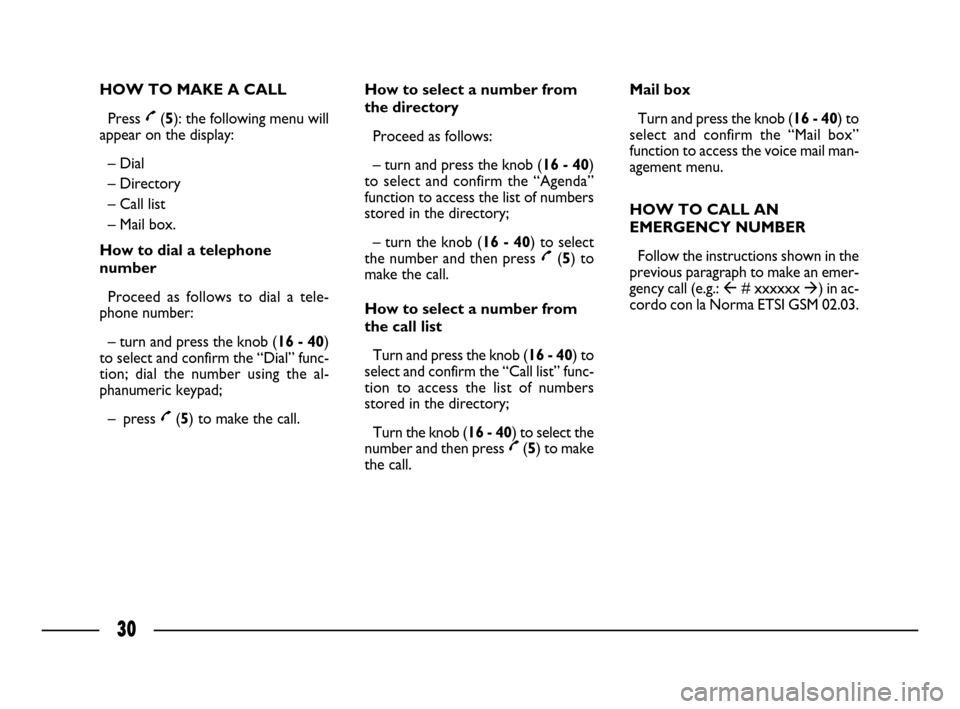

HOW TO MAKE A CALL
Press £(5): the following menu will
appear on the display:
– Dial
– Directory
– Call list
– Mail box.
How to dial a telephone
number
Proceed as follows to dial a tele-
phone number:
– turn and press the knob (16 - 40)
to select and confirm the “Dial” func-
tion; dial the number using the al-
phanumeric keypad;
– press £(5) to make the call.How to select a number from
the directory
Proceed as follows:
– turn and press the knob (16 - 40)
to select and confirm the “Agenda”
function to access the list of numbers
stored in the directory;
– turn the knob (16 - 40) to select
the number and then press £(5) to
make the call.
How to select a number from
the call list
Turn and press the knob (16 - 40) to
select and confirm the “Call list” func-
tion to access the list of numbers
stored in the directory;
Turn the knob (16 - 40) to select the
number and then press £(5) to make
the call.Mail box
Turn and press the knob (16 - 40) to
select and confirm the “Mail box”
function to access the voice mail man-
agement menu.
HOW TO CALL AN
EMERGENCY NUMBER
Follow the instructions shown in the
previous paragraph to make an emer-
gency call (e.g.: # xxxxxx ) in ac-
cordo con la Norma ETSI GSM 02.03.
026-056 CONNECT ULISSE GB 20-10-2008 10:09 Pagina 30

31

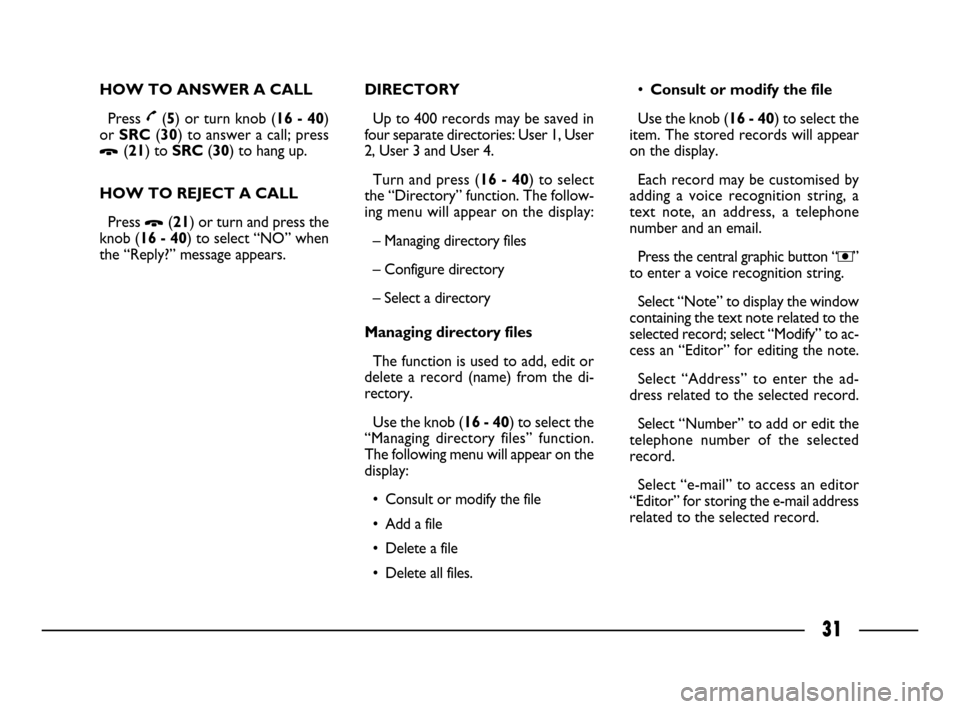

HOW TO ANSWER A CALL
Press £(5) or turn knob (16 - 40)
or SRC(30) to answer a call; press
Ô(21) to SRC(30) to hang up.
HOW TO REJECT A CALL
Press
Ô(21) or turn and press the
knob (16 - 40) to select “NO” when
the “Reply?” message appears.DIRECTORY
Up to 400 records may be saved in
four separate directories: User 1, User
2, User 3 and User 4.
Turn and press (16 - 40) to select
the “Directory” function. The follow-
ing menu will appear on the display:
– Managing directory files
– Configure directory
– Select a directory
Managing directory files
The function is used to add, edit or
delete a record (name) from the di-
rectory.
Use the knob (16 - 40) to select the
“Managing directory files” function.
The following menu will appear on the
display:
• Consult or modify the file
• Add a file
• Delete a file
• Delete all files.•Consult or modify the file
Use the knob (16 - 40) to select the
item. The stored records will appear
on the display.
Each record may be customised by
adding a voice recognition string, a
text note, an address, a telephone
number and an email.
Press the central graphic button “,”
to enter a voice recognition string.
Select “Note” to display the window
containing the text note related to the
selected record; select “Modify” to ac-
cess an “Editor” for editing the note.
Select “Address” to enter the ad-
dress related to the selected record.
Select “Number” to add or edit the
telephone number of the selected
record.
Select “e-mail” to access an editor
“Editor” for storing the e-mail address
related to the selected record.
026-056 CONNECT ULISSE GB 20-10-2008 10:09 Pagina 31

32

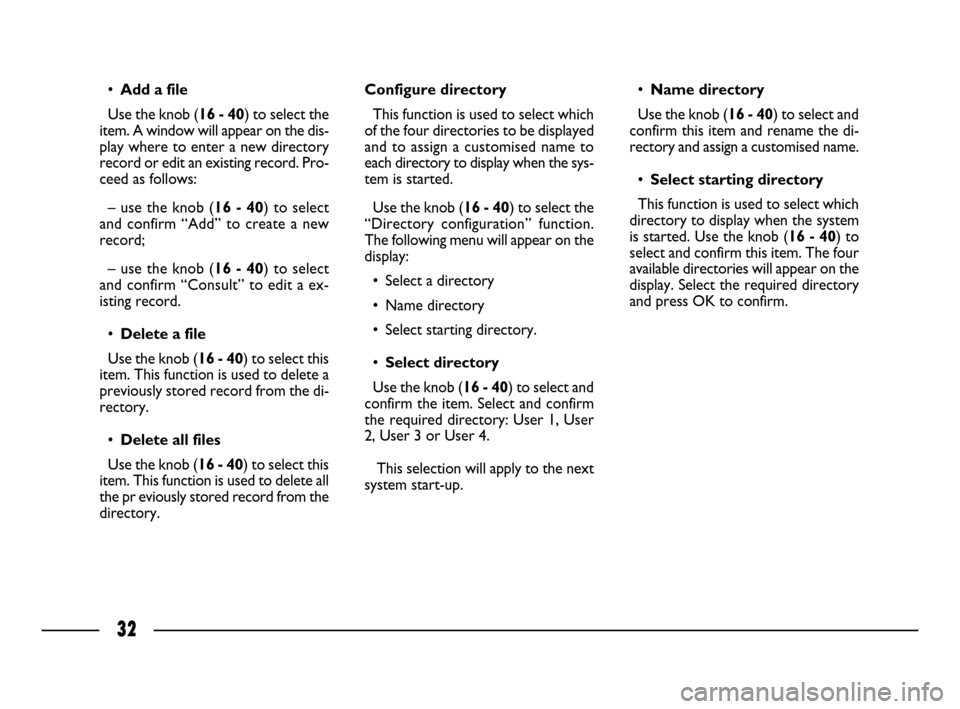

•Add a file
Use the knob (16 - 40) to select the
item. A window will appear on the dis-
play where to enter a new directory
record or edit an existing record. Pro-
ceed as follows:
– use the knob (16 - 40) to select
and confirm “Add” to create a new
record;
– use the knob (16 - 40) to select
and confirm “Consult” to edit a ex-
isting record.
•Delete a file
Use the knob (16 - 40) to select this
item. This function is used to delete a
previously stored record from the di-
rectory.
•Delete all files
Use the knob (16 - 40) to select this
item. This function is used to delete all
the pr eviously stored record from the
directory.Configure directory
This function is used to select which
of the four directories to be displayed
and to assign a customised name to
each directory to display when the sys-
tem is started.
Use the knob (16 - 40) to select the
“Directory configuration” function.
The following menu will appear on the
display:
• Select a directory
• Name directory
• Select starting directory.
•Select directory
Use the knob (16 - 40) to select and
confirm the item. Select and confirm
the required directory: User 1, User
2, User 3 or User 4.
This selection will apply to the next
system start-up.•Name directory
Use the knob (16 - 40) to select and
confirm this item and rename the di-
rectory and assign a customised name.
•Select starting directory
This function is used to select which
directory to display when the system
is started. Use the knob (16 - 40) to
select and confirm this item. The four
available directories will appear on the
display. Select the required directory
and press OK to confirm.
026-056 CONNECT ULISSE GB 20-10-2008 10:09 Pagina 32

33

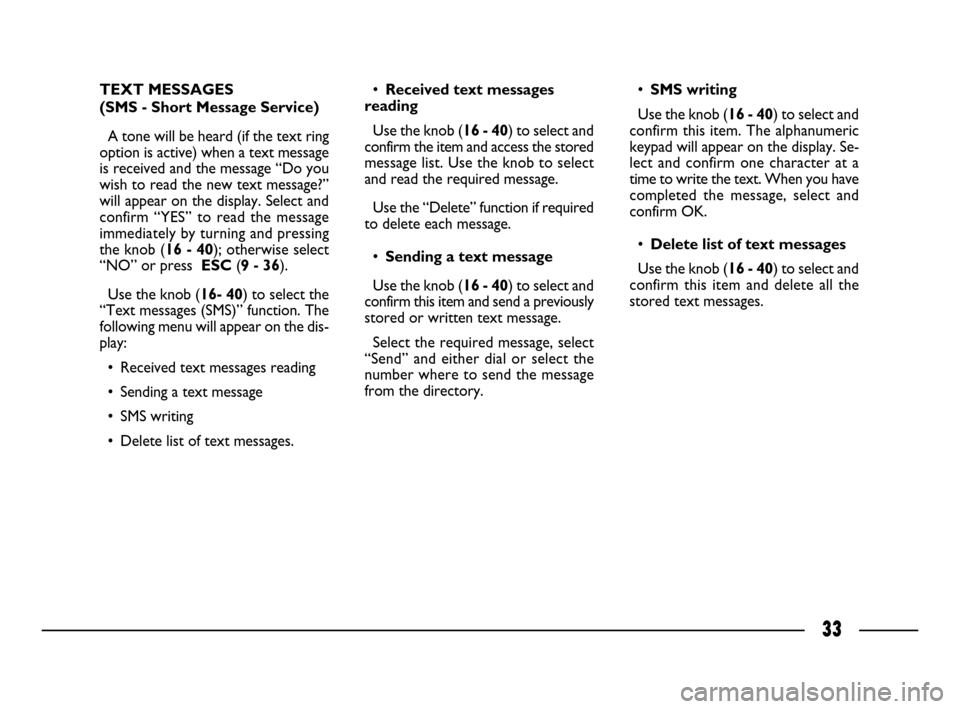

TEXT MESSAGES
(SMS - Short Message Service)
A tone will be heard (if the text ring
option is active) when a text message
is received and the message “Do you
wish to read the new text message?”
will appear on the display. Select and
confirm “YES” to read the message
immediately by turning and pressing
the knob (16 - 40); otherwise select
“NO” or press ESC (9 - 36).
Use the knob (16- 40) to select the
“Text messages (SMS)” function. The
following menu will appear on the dis-
play:
• Received text messages reading
• Sending a text message
• SMS writing
• Delete list of text messages.•Received text messages
reading
Use the knob (16 - 40) to select and
confirm the item and access the stored
message list. Use the knob to select
and read the required message.
Use the “Delete” function if required
to delete each message.
•Sending a text message
Use the knob (16 - 40) to select and
confirm this item and send a previously
stored or written text message.
Select the required message, select
“Send” and either dial or select the
number where to send the message
from the directory.•SMS writing
Use the knob (16 - 40) to select and
confirm this item. The alphanumeric
keypad will appear on the display. Se-
lect and confirm one character at a
time to write the text. When you have
completed the message, select and
confirm OK.
•Delete list of text messages
Use the knob (16 - 40) to select and
confirm this item and delete all the
stored text messages.
026-056 CONNECT ULISSE GB 20-10-2008 10:09 Pagina 33

34

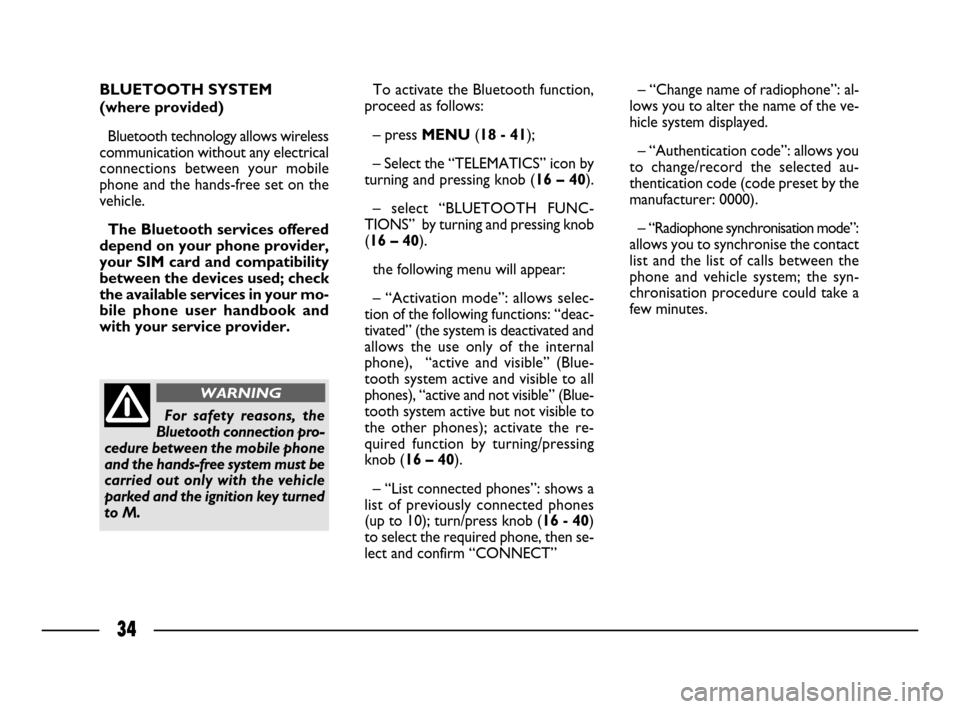

BLUETOOTH SYSTEM
(where provided)
Bluetooth technology allows wireless
communication without any electrical
connections between your mobile
phone and the hands-free set on the
vehicle.
The Bluetooth services offered
depend on your phone provider,
your SIM card and compatibility
between the devices used; check
the available services in your mo-
bile phone user handbook and
with your service provider.To activate the Bluetooth function,
proceed as follows:
– press MENU(18 - 41);
– Select the “TELEMATICS” icon by
turning and pressing knob (16 – 40).
– select “BLUETOOTH FUNC-
TIONS” by turning and pressing knob
(16 – 40).
the following menu will appear:
– “Activation mode”: allows selec-
tion of the following functions: “deac-
tivated” (the system is deactivated and
allows the use only of the internal
phone), “active and visible” (Blue-
tooth system active and visible to all
phones), “active and not visible” (Blue-
tooth system active but not visible to
the other phones); activate the re-
quired function by turning/pressing
knob (16 – 40).
– “List connected phones”: shows a
list of previously connected phones
(up to 10); turn/press knob (16 - 40)
to select the required phone, then se-
lect and confirm “CONNECT”– “Change name of radiophone”: al-
lows you to alter the name of the ve-
hicle system displayed.
– “Authentication code”: allows you
to change/record the selected au-
thentication code (code preset by the
manufacturer: 0000).
– “Radiophone synchronisation mode”:
allows you to synchronise the contact
list and the list of calls between the
phone and vehicle system; the syn-
chronisation procedure could take a
few minutes.
For safety reasons, the
Bluetooth connection pro-
cedure between the mobile phone
and the hands-free system must be
carried out only with the vehicle
parked and the ignition key turned
to M.
WARNING
026-056 CONNECT ULISSE GB 20-10-2008 10:09 Pagina 34

35

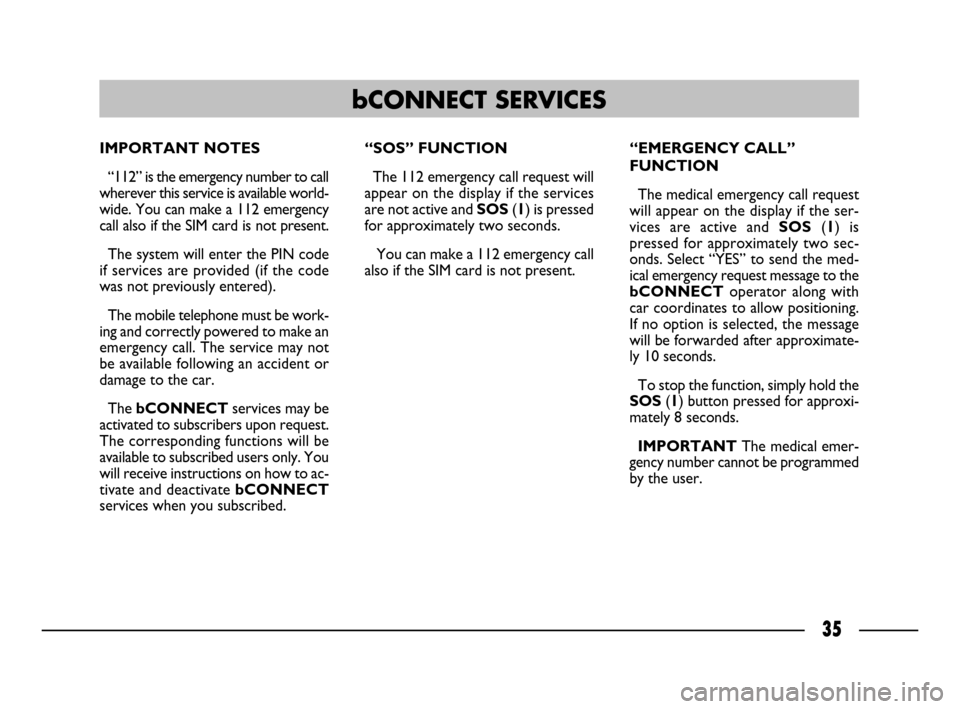

IMPORTANT NOTES
“112” is the emergency number to call
wherever this service is available world-
wide. You can make a 112 emergency
call also if the SIM card is not present.
The system will enter the PIN code
if services are provided (if the code
was not previously entered).
The mobile telephone must be work-
ing and correctly powered to make an
emergency call. The service may not
be available following an accident or
damage to the car.
The bCONNECTservices may be
activated to subscribers upon request.
The corresponding functions will be
available to subscribed users only. You
will receive instructions on how to ac-
tivate and deactivate bCONNECT
services when you subscribed.“SOS” FUNCTION
The 112 emergency call request will
appear on the display if the services
are not active and SOS(1) is pressed
for approximately two seconds.
You can make a 112 emergency call
also if the SIM card is not present. “EMERGENCY CALL”
FUNCTION
The medical emergency call request
will appear on the display if the ser-
vices are active and SOS(1) is
pressed for approximately two sec-
onds. Select “YES” to send the med-
ical emergency request message to the
bCONNECToperator along with
car coordinates to allow positioning.
If no option is selected, the message
will be forwarded after approximate-
ly 10 seconds.
To stop the function, simply hold the
SOS(1) button pressed for approxi-
mately 8 seconds.
IMPORTANTThe medical emer-
gency number cannot be programmed
by the user.
bCONNECT SERVICES
026-056 CONNECT ULISSE GB 20-10-2008 10:09 Pagina 35

36

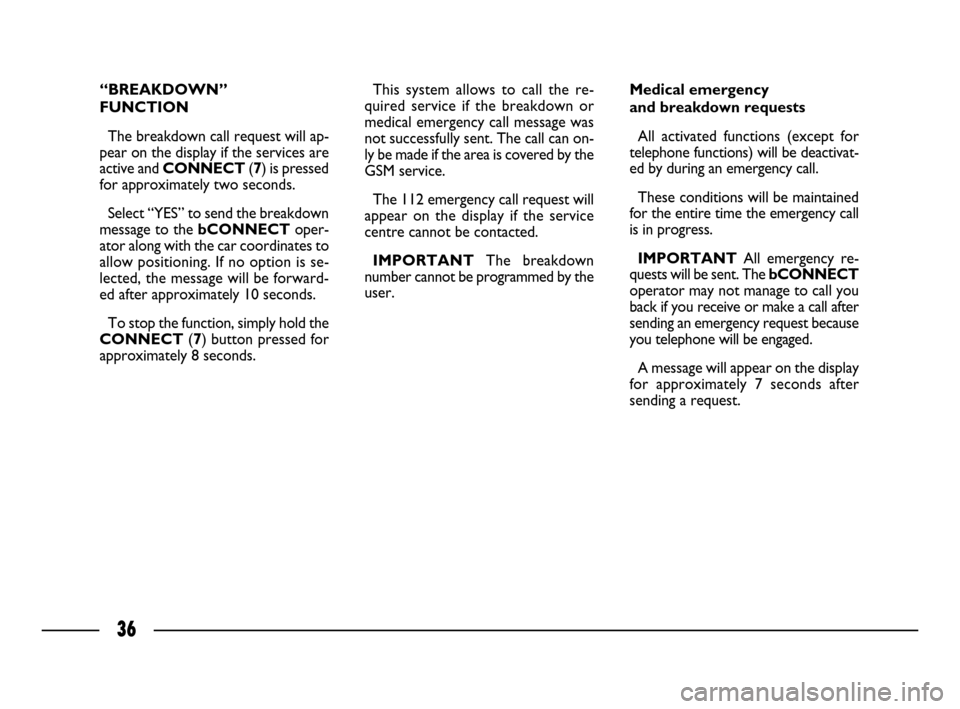

“BREAKDOWN”
FUNCTION
The breakdown call request will ap-
pear on the display if the services are
active and CONNECT (7) is pressed
for approximately two seconds.
Select “YES” to send the breakdown
message to the bCONNECToper-
ator along with the car coordinates to
allow positioning. If no option is se-
lected, the message will be forward-
ed after approximately 10 seconds.
To stop the function, simply hold the
CONNECT (7) button pressed for
approximately 8 seconds.This system allows to call the re-
quired service if the breakdown or
medical emergency call message was
not successfully sent. The call can on-
ly be made if the area is covered by the
GSM service.
The 112 emergency call request will
appear on the display if the service
centre cannot be contacted.
IMPORTANT The breakdown
number cannot be programmed by the
user.Medical emergency
and breakdown requests
All activated functions (except for
telephone functions) will be deactivat-
ed by during an emergency call.
These conditions will be maintained
for the entire time the emergency call
is in progress.
IMPORTANTAll emergency re-
quests will be sent. The bCONNECT
operator may not manage to call you
back if you receive or make a call after
sending an emergency request because
you telephone will be engaged.
A message will appear on the display
for approximately 7 seconds after
sending a request.
026-056 CONNECT ULISSE GB 20-10-2008 10:09 Pagina 36

37

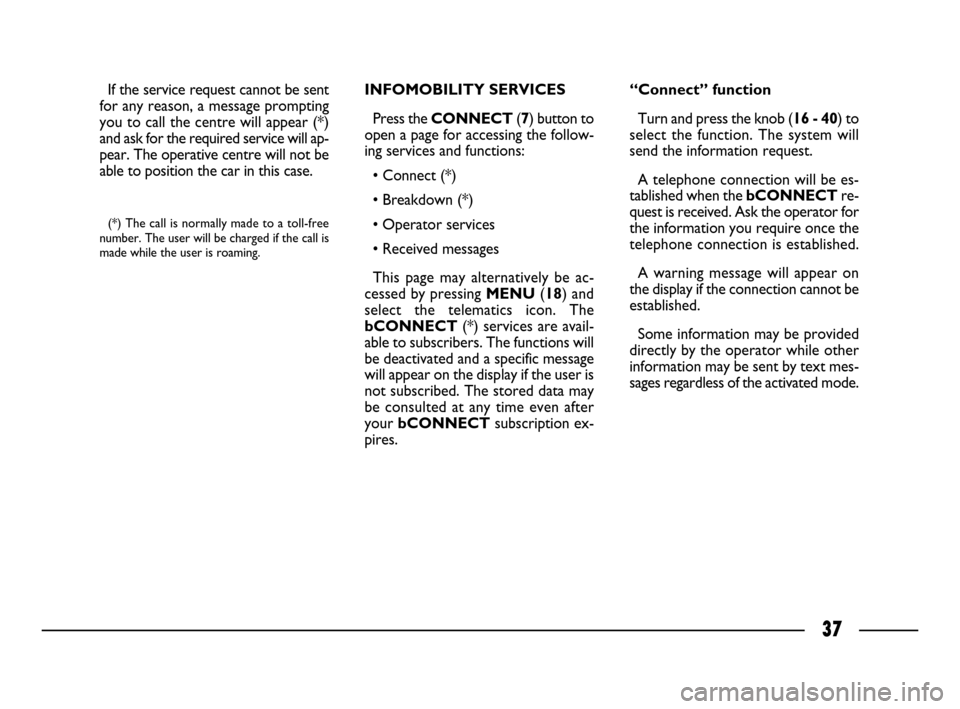

If the service request cannot be sent
for any reason, a message prompting
you to call the centre will appear (*)
and ask for the required service will ap-
pear. The operative centre will not be
able to position the car in this case.
(*) The call is normally made to a toll-free
number. The user will be charged if the call is
made while the user is roaming.
INFOMOBILITY SERVICES
Press the CONNECT(7) button to
open a page for accessing the follow-
ing services and functions:
• Connect (*)
• Breakdown (*)
• Operator services
• Received messages
This page may alternatively be ac-
cessed by pressing MENU (18) and
select the telematics icon. The
bCONNECT(*) services are avail-
able to subscribers. The functions will
be deactivated and a specific message
will appear on the display if the user is
not subscribed. The stored data may
be consulted at any time even after
your bCONNECT subscription ex-
pires.“Connect” function
Turn and press the knob (16 - 40) to
select the function. The system will
send the information request.
A telephone connection will be es-
tablished when thebCONNECTre-
quest is received. Ask the operator for
the information you require once the
telephone connection is established.
A warning message will appear on
the display if the connection cannot be
established.
Some information may be provided
directly by the operator while other
information may be sent by text mes-
sages regardless of the activated mode.
026-056 CONNECT ULISSE GB 20-10-2008 10:09 Pagina 37

38

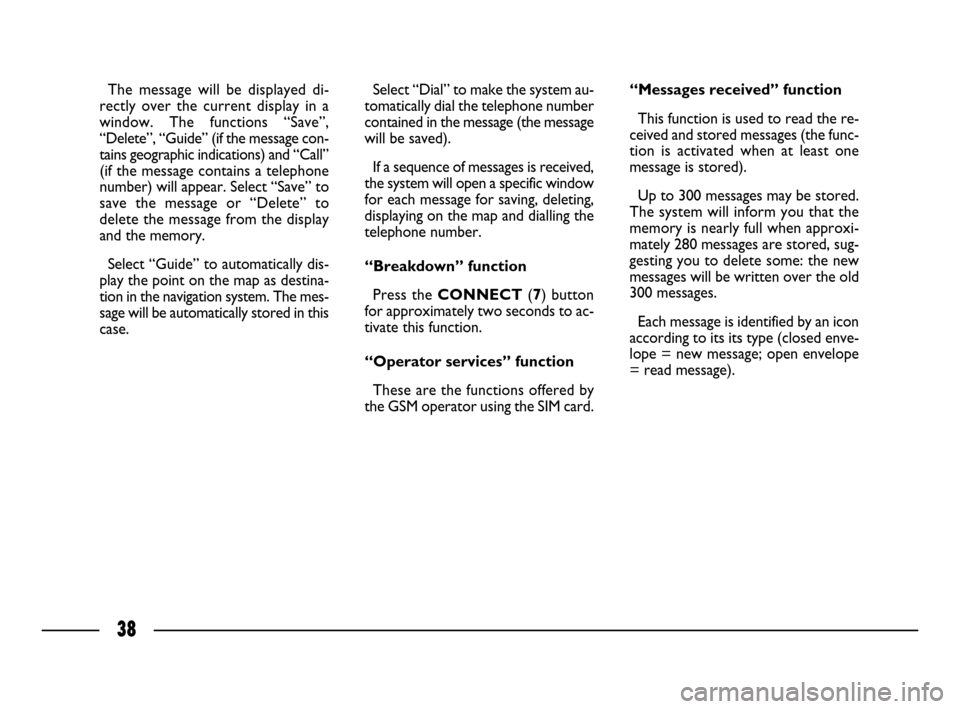

Select “Dial” to make the system au-
tomatically dial the telephone number
contained in the message (the message
will be saved).
If a sequence of messages is received,
the system will open a specific window
for each message for saving, deleting,
displaying on the map and dialling the
telephone number.
“Breakdown” function
Press the CONNECT(7) button
for approximately two seconds to ac-
tivate this function.
“Operator services” function
These are the functions offered by
the GSM operator using the SIM card.“Messages received” function
This function is used to read the re-
ceived and stored messages (the func-
tion is activated when at least one
message is stored).
Up to 300 messages may be stored.
The system will inform you that the
memory is nearly full when approxi-
mately 280 messages are stored, sug-
gesting you to delete some: the new
messages will be written over the old
300 messages.
Each message is identified by an icon
according to its its type (closed enve-
lope = new message; open envelope
= read message). The message will be displayed di-
rectly over the current display in a
window. The functions “Save”,
“Delete”, “Guide” (if the message con-
tains geographic indications) and “Call”
(if the message contains a telephone
number) will appear. Select “Save” to
save the message or “Delete” to
delete the message from the display
and the memory.
Select “Guide” to automatically dis-
play the point on the map as destina-
tion in the navigation system. The mes-
sage will be automatically stored in this
case.
026-056 CONNECT ULISSE GB 20-10-2008 10:09 Pagina 38

39

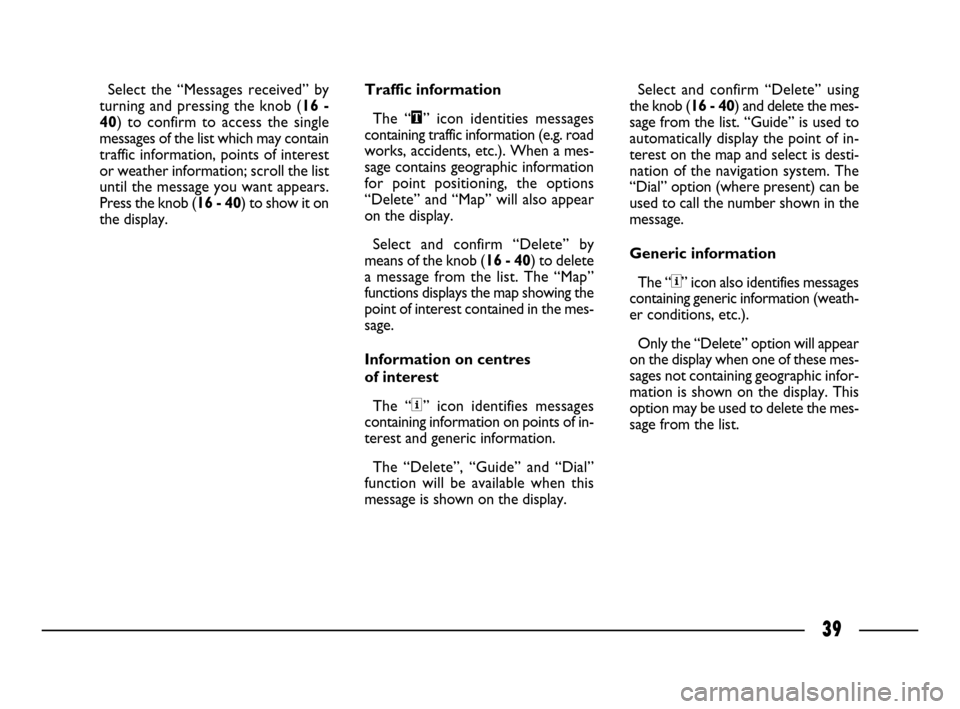

Select the “Messages received” by
turning and pressing the knob (16 -
40) to confirm to access the single
messages of the list which may contain
traffic information, points of interest
or weather information; scroll the list
until the message you want appears.
Press the knob (16 - 40) to show it on
the display.Traffic information
The “\” icon identities messages
containing traffic information (e.g. road
works, accidents, etc.). When a mes-
sage contains geographic information
for point positioning, the options
“Delete” and “Map” will also appear
on the display.
Select and confirm “Delete” by
means of the knob (16 - 40) to delete
a message from the list. The “Map”
functions displays the map showing the
point of interest contained in the mes-
sage.
Information on centres
of interest
The “<” icon identifies messages
containing information on points of in-
terest and generic information.
The “Delete”, “Guide” and “Dial”
function will be available when this
message is shown on the display.Select and confirm “Delete” using
the knob (16 - 40) and delete the mes-
sage from the list. “Guide” is used to
automatically display the point of in-
terest on the map and select is desti-
nation of the navigation system. The
“Dial” option (where present) can be
used to call the number shown in the
message.
Generic information
The “<” icon also identifies messages
containing generic information (weath-
er conditions, etc.).
Only the “Delete” option will appear
on the display when one of these mes-
sages not containing geographic infor-
mation is shown on the display. This
option may be used to delete the mes-
sage from the list.
026-056 CONNECT ULISSE GB 20-10-2008 10:09 Pagina 39
