GETTING TO KNOW YOUR CAR
70

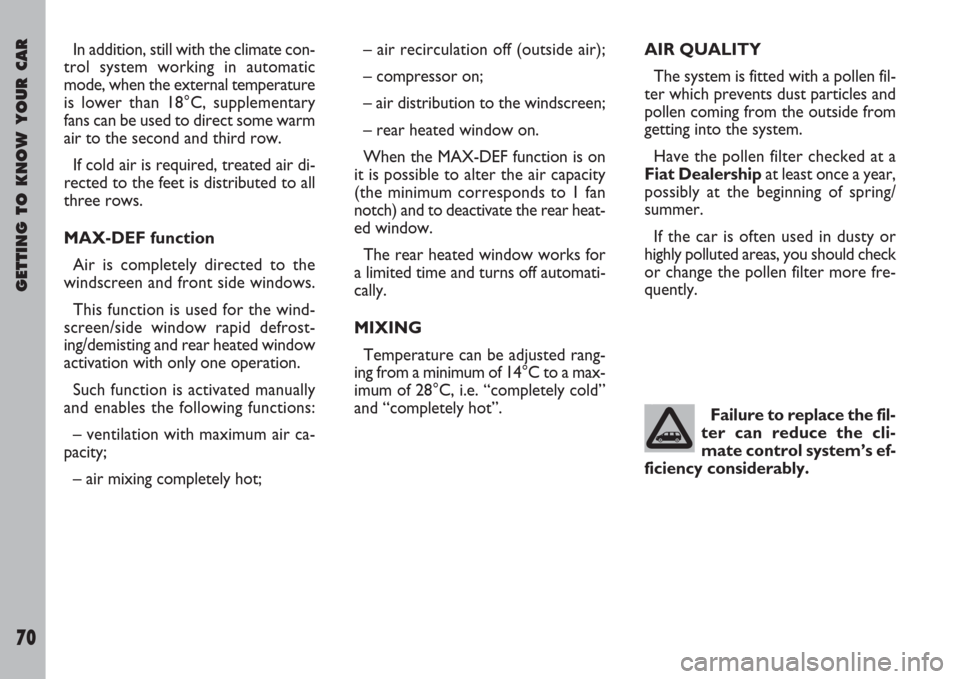

In addition, still with the climate con-
trol system working in automatic
mode, when the external temperature
is lower than 18°C, supplementary
fans can be used to direct some warm
air to the second and third row.
If cold air is required, treated air di-
rected to the feet is distributed to all
three rows.
MAX-DEF function
Air is completely directed to the
windscreen and front side windows.
This function is used for the wind-
screen/side window rapid defrost-
ing/demisting and rear heated window
activation with only one operation.
Such function is activated manually
and enables the following functions:
– ventilation with maximum air ca-
pacity;
– air mixing completely hot;– air recirculation off (outside air);
– compressor on;
– air distribution to the windscreen;
– rear heated window on.
When the MAX-DEF function is on
it is possible to alter the air capacity
(the minimum corresponds to 1 fan
notch) and to deactivate the rear heat-
ed window.
The rear heated window works for
a limited time and turns off automati-
cally.
MIXING
Temperature can be adjusted rang-
ing from a minimum of 14°C to a max-
imum of 28°C, i.e. “completely cold”
and “completely hot”. AIR QUALITY
The system is fitted with a pollen fil-
ter which prevents dust particles and
pollen coming from the outside from
getting into the system.
Have the pollen filter checked at a
Fiat Dealership at least once a year,
possibly at the beginning of spring/
summer.
If the car is often used in dusty or
highly polluted areas, you should check
or change the pollen filter more fre-
quently.
Failure to replace the fil-
ter can reduce the cli-
mate control system’s ef-
ficiency considerably.
Page 72 of 254
GETTING TO KNOW YOUR CAR
71

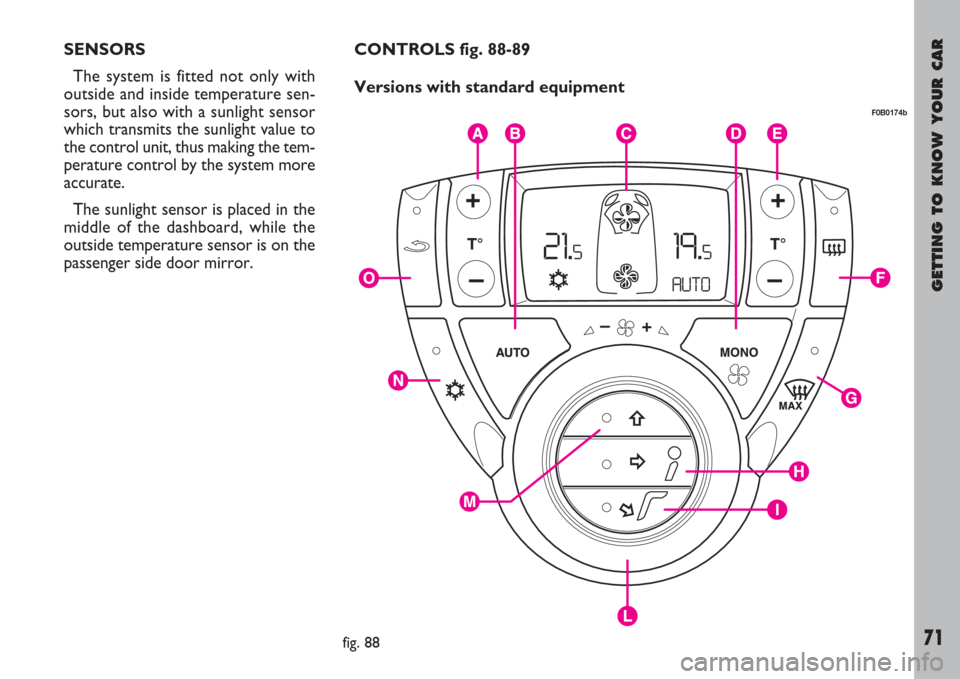

SENSORS
The system is fitted not only with
outside and inside temperature sen-
sors, but also with a sunlight sensor
which transmits the sunlight value to
the control unit, thus making the tem-
perature control by the system more
accurate.
The sunlight sensor is placed in the
middle of the dashboard, while the
outside temperature sensor is on the
passenger side door mirror. CONTROLS fig. 88-89
Versions with standard equipment
fig. 88
F0B0174b
Page 73 of 254
GETTING TO KNOW YOUR CAR
72

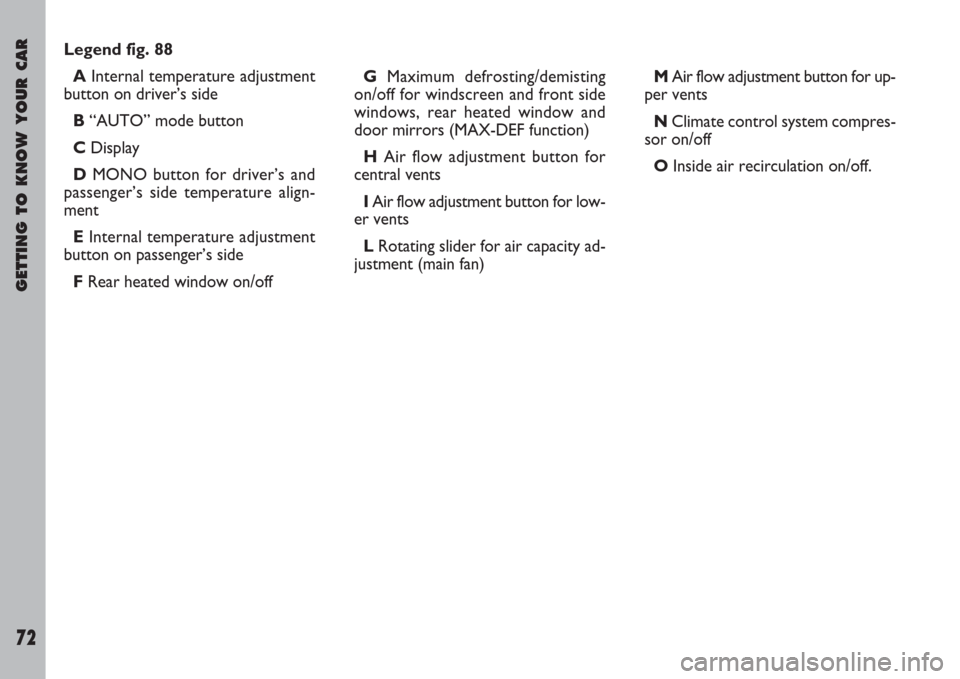

Legend fig. 88
AInternal temperature adjustment
button on driver’s side
B“AUTO” mode button
CDisplay
DMONO button for driver’s and
passenger’s side temperature align-
ment
EInternal temperature adjustment
button on passenger’s side
FRear heated window on/offGMaximum defrosting/demisting
on/off for windscreen and front side
windows, rear heated window and
door mirrors (MAX-DEF function)
HAir flow adjustment button for
central vents
IAir flow adjustment button for low-
er vents
LRotating slider for air capacity ad-
justment (main fan)MAir flow adjustment button for up-
per vents
NClimate control system compres-
sor on/off
OInside air recirculation on/off.
Page 74 of 254
GETTING TO KNOW YOUR CAR
73

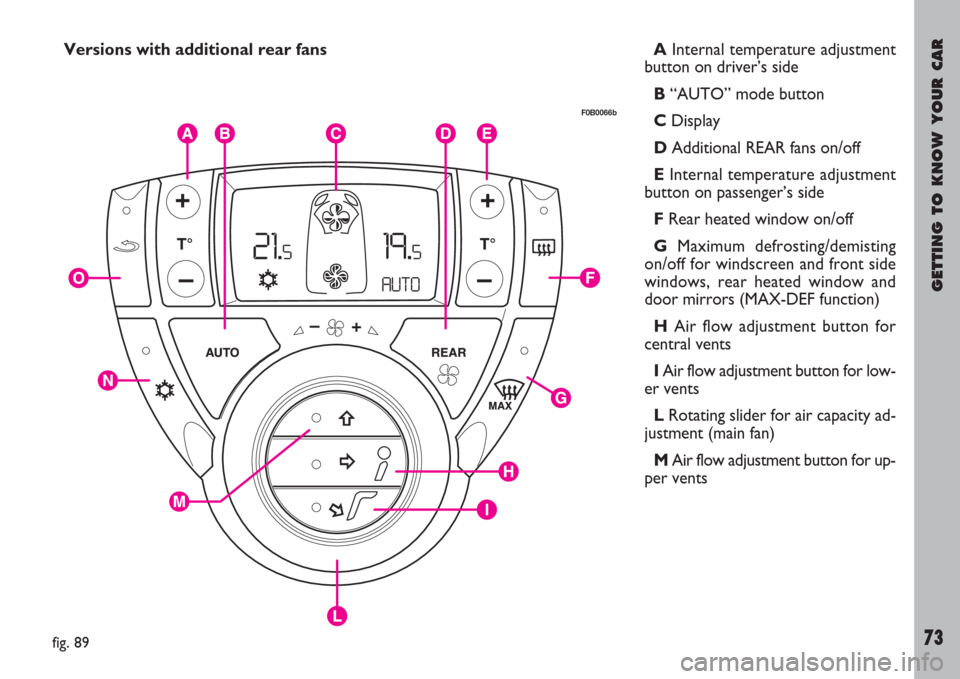

Versions with additional rear fans AInternal temperature adjustment
button on driver’s side
B“AUTO” mode button
CDisplay
DAdditional REAR fans on/off
EInternal temperature adjustment
button on passenger’s side
FRear heated window on/off
GMaximum defrosting/demisting
on/off for windscreen and front side
windows, rear heated window and
door mirrors (MAX-DEF function)
HAir flow adjustment button for
central vents
I Air flow adjustment button for low-
er vents
LRotating slider for air capacity ad-
justment (main fan)
MAir flow adjustment button for up-
per vents
fig. 89
F0B0066b

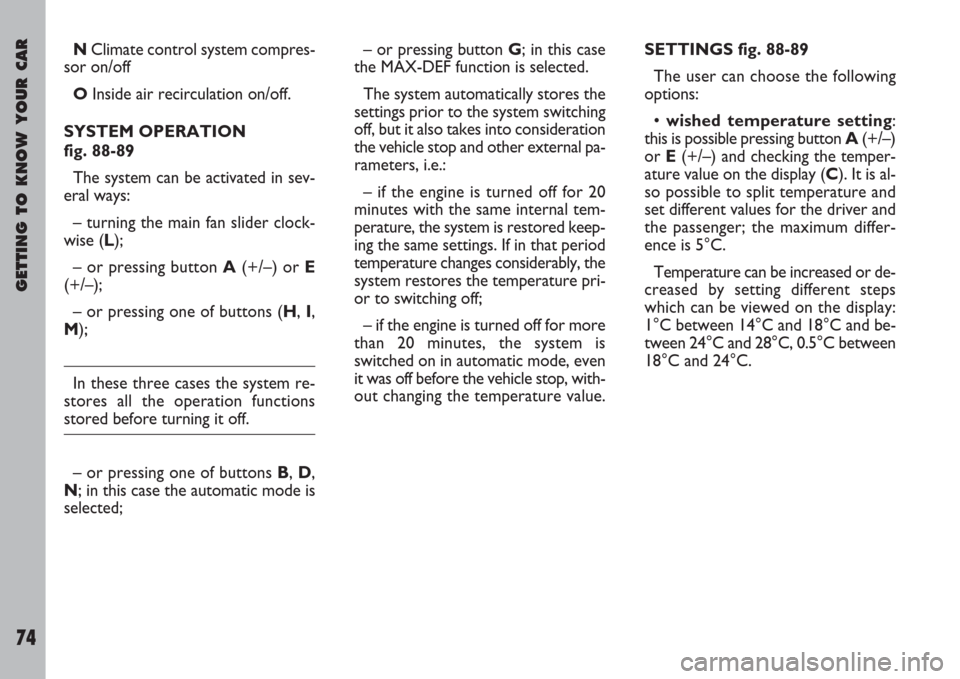

Page 75 of 254
GETTING TO KNOW YOUR CAR
74
NClimate control system compres-
sor on/off
OInside air recirculation on/off.
SYSTEM OPERATION
fig. 88-89
The system can be activated in sev-
eral ways:
– turning the main fan slider clock-
wise (L);
– or pressing button A(+/–) or E
(+/–);
– or pressing one of buttons (H, I,
M);
In these three cases the system re-
stores all the operation functions
stored before turning it off.
– or pressing one of buttons B, D,
N; in this case the automatic mode is
selected;– or pressing button G; in this case
the MAX-DEF function is selected.
The system automatically stores the
settings prior to the system switching
off, but it also takes into consideration
the vehicle stop and other external pa-
rameters, i.e.:
– if the engine is turned off for 20
minutes with the same internal tem-
perature, the system is restored keep-
ing the same settings. If in that period
temperature changes considerably, the
system restores the temperature pri-
or to switching off;
– if the engine is turned off for more
than 20 minutes, the system is
switched on in automatic mode, even
it was off before the vehicle stop, with-
out changing the temperature value.SETTINGS fig. 88-89
The user can choose the following
options:
• wished temperature setting:
this is possible pressing button A(+/–)
or E(+/–) and checking the temper-
ature value on the display (C). It is al-
so possible to split temperature and
set different values for the driver and
the passenger; the maximum differ-
ence is 5°C.
Temperature can be increased or de-
creased by setting different steps
which can be viewed on the display:
1°C between 14°C and 18°C and be-
tween 24°C and 28°C, 0.5°C between
18°C and 24°C.
Page 76 of 254
GETTING TO KNOW YOUR CAR
75
• “completely cold” setting: this
option can be selected automatically
by pressing and keeping button A(–)
or E(–) pressed until 14°C are
reached; in this case the system per-
formance is at the highest. With this
option the system works in mono
conditions and the following settings
are active:
– slider turned to “completely cold”;
– air distribution during ventilation;
– maximum air capacity value;
– compressor on;
– automatic recirculation off, even if
it is possible to activate it manually
without leaving the wished setting.• “completely hot” setting: this
option can be selected automatically
by pressing and keeping button A(+)
or E(+) pressed until 28°C are
reached; in this case the system per-
formance is at the highest. The fol-
lowing settings are active as well:
– slider turned to “completely hot”;
– air directed to windscreen/feet or
feet, according to the outside tem-
perature;
– maximum air capacity value;
– compressor controlled by the sys-
tem;
– automatic recirculation closed even
if it possible to activate manually the
open recirculation without leaving the
required setting.• fan speed setting: this is possi-
ble by turning slider L; the wished
speed value is displayed through the
front fan stake blackening C.
IMPORTANTWhen the engine is
started with the climate control sys-
tem in automatic mode (AUTO) and
the external temperature is very low,
the fan may not be activated. Do not
consider it a malfunction; the system
will restore the normal operation as
soon as the temperature threshold set
by the system is reached.
• air distribution selection: this is
possible by pressing altogether H, I,
Mon the central rotating slider L.
Air can be distributed in five
ways: ventilation (front), bilevel
(front/feet), feet, windscreen/feet,
windscreen (MAX-DEF).
Page 77 of 254
GETTING TO KNOW YOUR CAR
76
To select the wished air distribution
press the related button and turn off
other possible selections. The con-
nected led switching on and off con-
firm the selection.
When the automatic mode (AUTO)
is on, air distribution is controlled by
the system, thus the related leds are
all turned off.
• compressor on/off: if the com-
pressor is turned off by pressing but-
ton Nwhen the led is lit, the related
led will go off; if the same button is
pressed when the led is switched off,
the system will control the compres-
sor (on/off).
If the system is working in automat-
ic mode the compressor is controlled
by the system according to the outside
temperature.
When the compressor is turned off
with the related led off, air recircula-
tion keeps the conditions prior to
switching off (closed or open) and it is
still possible to activate the open re-
circulation. Even with recirculation
closed, there is still a given quantity
of not treated air depending on the fan
setting and the vehicle speed, so thatwindow misting is prevented in nor-
mal conditions (spring-summer).
• automatic mode (AUTO) set-
ting: this is possible by pressing but-
ton Band the system will be con-
trolled automatically. AUTO and sym-
bol ò(ice) are displayed. It means that
the system will control temperature,
air distribution and the main fan speed.
If button Nis pressed when the sys-
tem is in automatic mode, the com-
pressor and switchover to cold air are
deactivated, the related led and sym-
bol ò(ice) go off and the system
keeps working in automatic mode.
• MAX-DEF on: this is possible by
pressing button Gand window
demisting will be quickly reached.To exit this function press button G
again or one of the following buttons:
A, B, D, E, H, I, M, O.
• rear heated window on: this is
possible by pressing button F, and the
related led comes on. In this way the
rear window electrical resistances are
activated to heat and demist the rear
window. To stop it, press the button
again and the related led will go off.
Anyway, the rear heated window
works for a limited time and turns off
automatically.
Be careful not to dam-
age the rear heated win-
dow resistances when
cleaning it from inside.
Page 78 of 254
GETTING TO KNOW YOUR CAR
77
• recirculation on: when button O
is pressed it is possible to select the
following travelling conditions: closed
recirculation (relative led on), air com-
ing from outside (led off) recirculation
open, or having the system automatic
control on (led off even if activated).You are recommended
to use the inside air recir-
culation function in the
traffic jam (car lines inside or out-
side galleries) to prevent outside
polluted air from getting into the
vehicle. Anyway, do not use this
function when several people are
onboard, to prevent inside win-
dow misting.
• driver’s and passenger’s side
temperature alignment (MONO)
fig. 88 (for versions without ad-
ditional fans): this is possible by
pressing button D, so a single tem-
perature is reached inside the passen-
ger compartment.
• rear seat air capacity adjust-
ment (REAR) fig. 89 (for versions
without additional fans): this is pos-
sible by pressing button D, thus the
second row passengers can adjust air
capacity with the additional fan knobs
A-fig. 90. The rear fan symbol will be
viewed on the display C.The additional fan effect depends on
the position of knobs A:
0= additional fan with minimum ca-
pacity;
–= additional fan air capacity equal to
50% of the main fan current capacity;
AUTO = additional fan capacity
equal to the main fan capacity;
+= additional fan air capacity equal to
70% of the main fan current capacity.
It is easier to reach the
wished air temperature
conditions with inside air
recirculation. Anyway, it is better
not to use this function in
rainy/cold days because inside
window misting may increase, es-
pecially if the compressor is off.
fig. 90
F0B0102b
Page 79 of 254
GETTING TO KNOW YOUR CAR
78
TURNING THE SYSTEM OFF
The system can be switched off by
turning knurled knob Lanticlockwise
until the car shape is displayed with-
out the fan symbol.
When the system is turned off it
makes the following operations:
– storing of conditions prior to
switching off;
– the graphics on display Cgo off ex-
cept for the car shape;
– the air recirculation is taken to
open position (outside air intake);
– the compressor is excluded;
– the fan is excluded;
– the air is distributed to the wind-
screen;
– the air mixing is in “completely
cold” position.FAILURE INDICATION
If any failures are detected (locked
switches, sensor malfunction, electri-
cal failures, etc.) the system automat-
ically sets the “recovery” mode, which
is displayed by the flashing points sep-
arating the temperature decimals on
the display C. In this case contact a Fi-
at Dealership as soon as possible.
Recovery mode
The system will work in the follow-
ing way:
– driver’s and passenger’s tem-
peratures: aligned and evolving in the
same way;
if buttons Aor Eare locked tem-
perature is set at 21°C by the system;
– main fan, distribution, com-
pressor, recirculation: they work in
automatic mode (AUTO);
– AUTO function:main fan, air dis-
tribution, compressor and air recircu-
lation are automatically controlled by
the system and the impulses on the
relative switches have no effect;– MAX-DEF function: the system
directs air to the windscreen and the
air distribution, compressor, AUTO
and air recirculation switches are not
active, while the main fan and tem-
perature functions are still active;
– REAR function: additional fans
cannot be switched on;
– rear window: cannot be switched
on.
INDEPENDENT ADDITIONAL
HEATER
To improve your comfort, cars with
JTD engines, can be fitted with an in-
dependent additional heater.
After switching the engine off or with
engine idling, the additional heater
could stay on hissing and exhaling
smoke and smell.
Page 80 of 254
GETTING TO KNOW YOUR CAR
79
STEERING COLUMN
STALKS
LEFT-HAND STALK
The left-hand stalk controls most of
the outside lights. If you leave the lights
on when you take the key out of the
ignition an alarm will sound.
Outside lighting is possible with the
ignition key at M.
Side lights fig. 91
These lights turn on when you turn
the knurled knob Afrom åto
6.Dipped-beam headlights fig. 92
To switch on: turn the knurled knob
Afrom
6to 2/1.
Instrument panel indicator light 2
comes on.Follow me home (where fitted)
fig. 93
This function works for a set time
(45 seconds) and illuminates the area
in front of the vehicle. It is activated by
turning the ignition key to Sor, if the
ignition key has been removed, by
pushing the stalk towards the dash-
board. This function can be activated
by operating the stalk within 2 minutes
after the engine has been turned off.
If the vehicle is fitted with the side-
light and dipped-beam headlight auto-
matic switching on device, the “follow
me home” function is automatically ac-
tivated when the doors are opened.
fig. 91
F0B0416b
fig. 92
F0B0417b
fig. 93
F0B0418b
