Page 31 of 254

FIAT ULYSSE 2008 2.G Owners Guide GETTING TO KNOW YOUR CAR
30

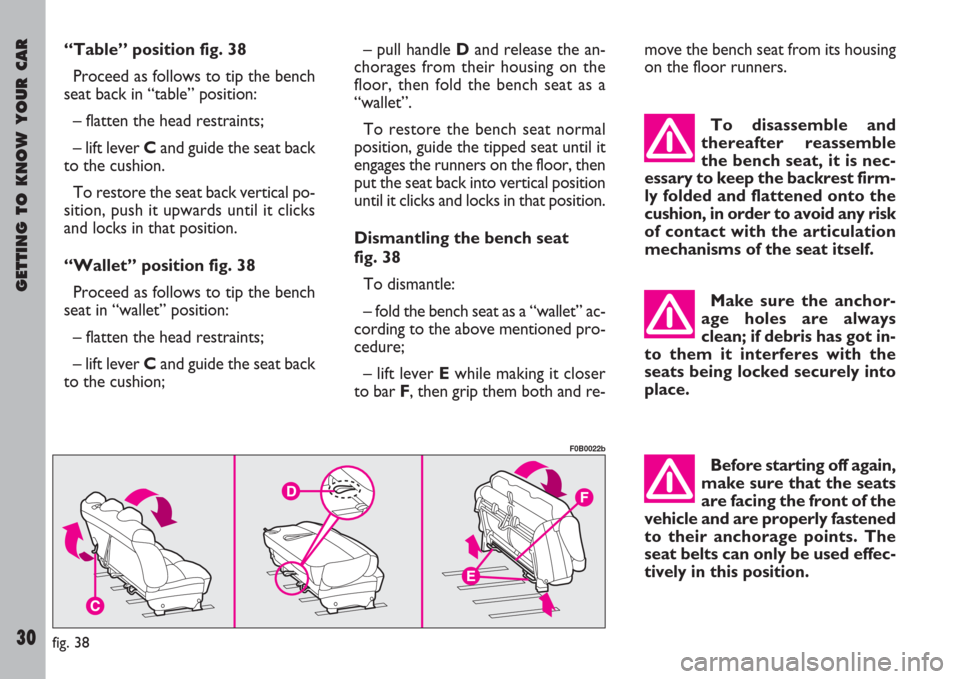

– pull handle Dand release the an-
chorages from their housing on the
floor, then fold the bench seat as a
“wallet”.
To restore the bench seat normal
position, guide

Page 32 of 254

FIAT ULYSSE 2008 2.G Owners Guide GETTING TO KNOW YOUR CAR
31

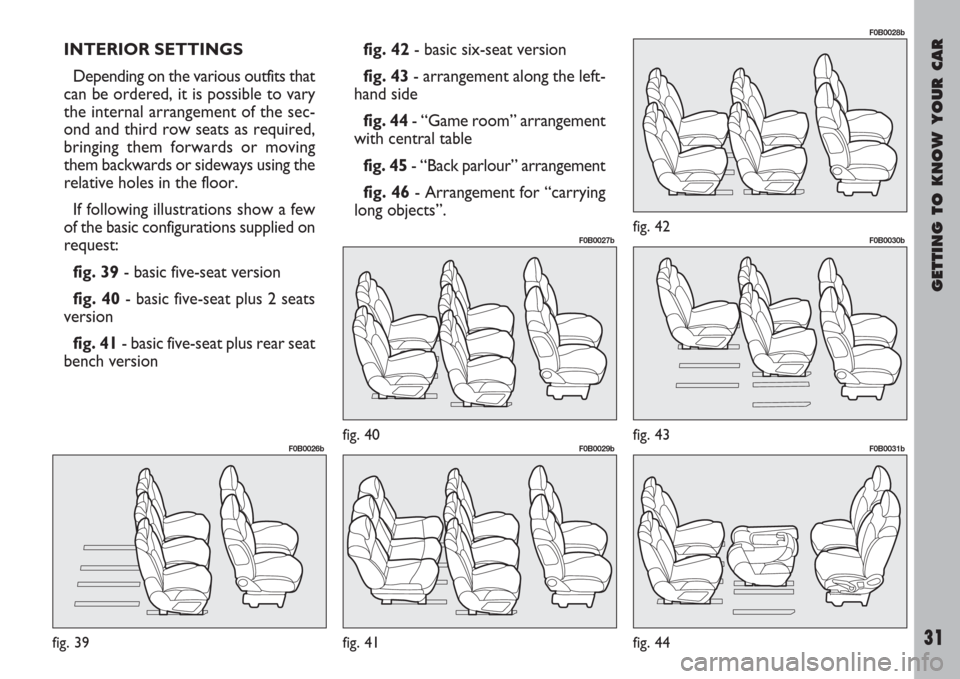

INTERIOR SETTINGS
Depending on the various outfits that
can be ordered, it is possible to vary
the internal arrangement of the sec-
ond and third row seats as required,
bri

Page 33 of 254

FIAT ULYSSE 2008 2.G Owners Guide GETTING TO KNOW YOUR CAR
32
Make sure the anchor-
age holes are always
clean; if debris has got in-
to them it interferes with the
seats being locked securely into
place.
Before starting off again,
ma

Page 34 of 254

FIAT ULYSSE 2008 2.G Owners Guide GETTING TO KNOW YOUR CAR
33
fig. 48
F0B0227b
fig. 49
F0B0024b
fig. 50
F0B0017b
Rear seats fig. 48-49
They can be adjusted for height. To
adjust it, lift or lower the head re-
straint to get the requir

Page 35 of 254

FIAT ULYSSE 2008 2.G Owners Guide GETTING TO KNOW YOUR CAR
34
INDIVIDUAL
SETTINGS
STEERING WHEEL fig. 51
DRIVING MIRROR fig. 52
You can adjust the mirror by moving
the lever:
A -anti-dazzle position;
B -normal position.ELECTRO-CHROMAT

Page 36 of 254

FIAT ULYSSE 2008 2.G Owners Guide GETTING TO KNOW YOUR CAR
35

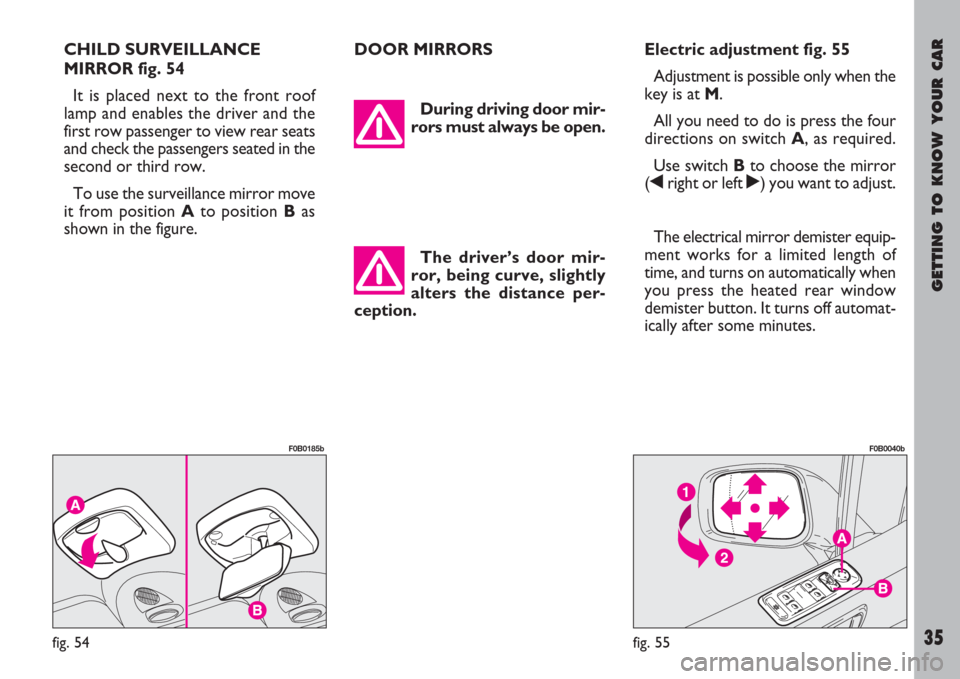

CHILD SURVEILLANCE
MIRROR fig. 54
It is placed next to the front roof
lamp and enables the driver and the
first row passenger to view rear seats
and check the passengers se

Page 37 of 254

FIAT ULYSSE 2008 2.G Owners Guide GETTING TO KNOW YOUR CAR
36

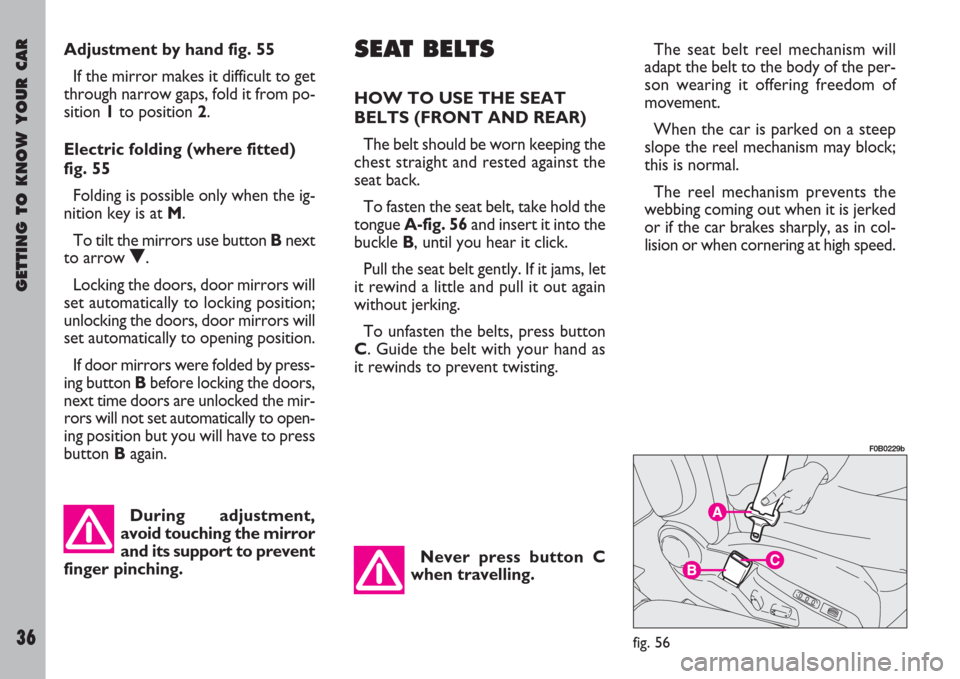

Adjustment by hand fig. 55
If the mirror makes it difficult to get
through narrow gaps, fold it from po-
sition 1to position 2.
Electric folding (where fitted)
fig. 55
Fold

Page 38 of 254

FIAT ULYSSE 2008 2.G Owners Guide GETTING TO KNOW YOUR CAR
37
Remember that in the
case of a violent collision,
back seat passengers not
wearing seat belts, in addition to
being personally exposed to se-
rious risk, also represent a s

Page 39 of 254

FIAT ULYSSE 2008 2.G Owners Guide GETTING TO KNOW YOUR CAR
38

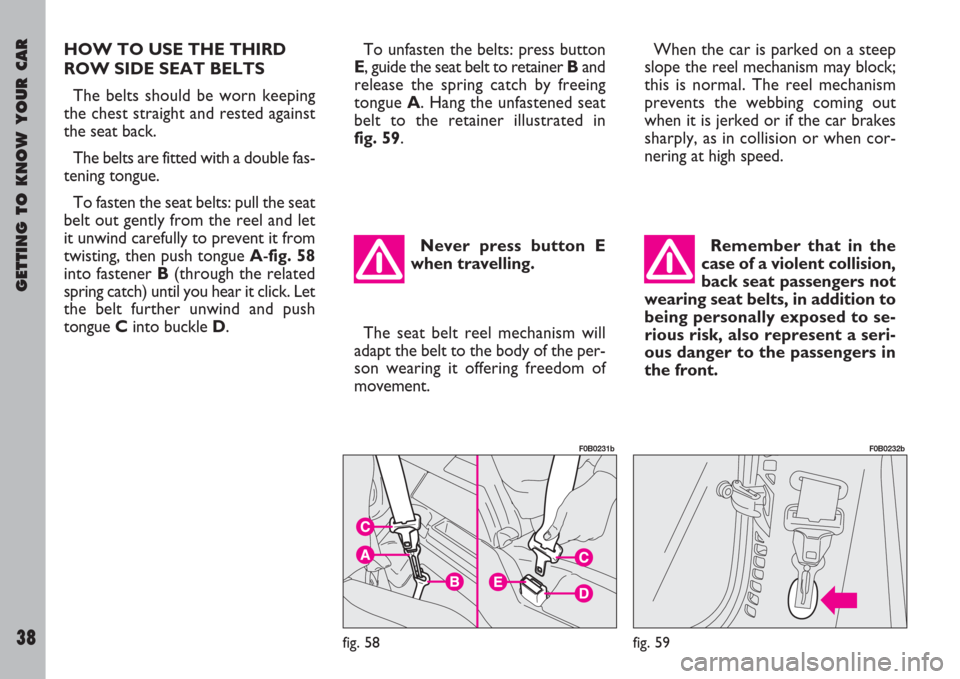

HOW TO USE THE THIRD
ROW SIDE SEAT BELTS
The belts should be worn keeping
the chest straight and rested against
the seat back.
The belts are fitted with a double fas-
teni

Page 40 of 254

FIAT ULYSSE 2008 2.G Owners Guide GETTING TO KNOW YOUR CAR
39
USE OF THE SEAT BELT
IN THE CENTRE POSITION
The three point centre seat belt is fit-
ted with reel A-fig. 60.
This seat belt is fastened as for the
front seat belts.Reme
