Page 61 of 254

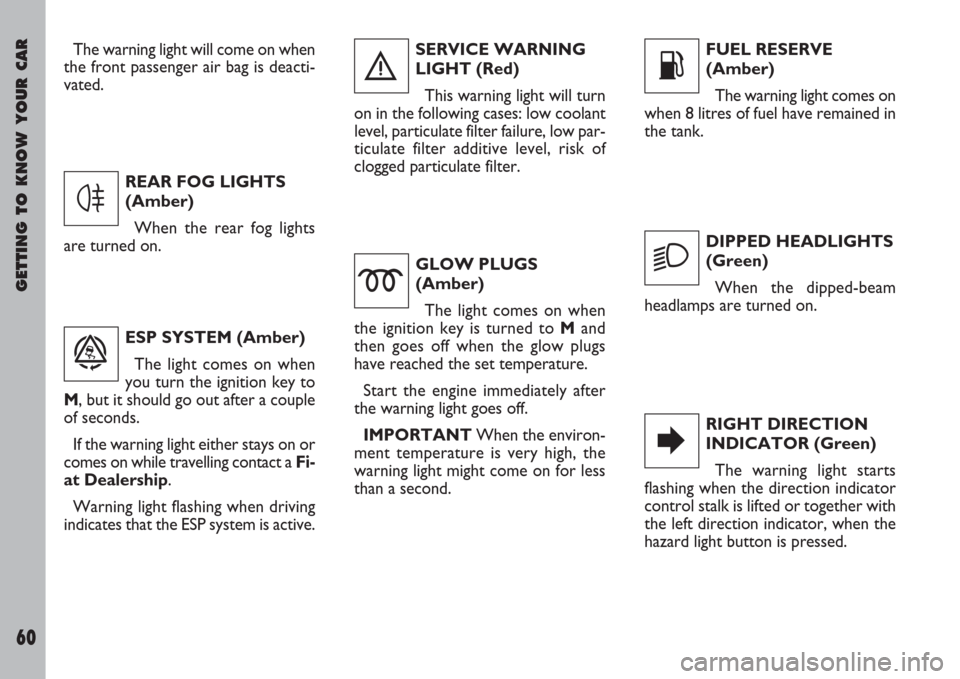

GETTING TO KNOW YOUR CAR
60
GLOW PLUGS
(Amber)
The light comes on when
the ignition key is turned to Mand
then goes off when the glow plugs
have reached the set temperature.
Start the engine immediately after
the warning light goes off.
IMPORTANTWhen the environ-
ment temperature is very high, the
warning light might come on for less
than a second.FUEL RESERVE
(Amber)
The warning light comes on
when 8 litres of fuel have remained in
the tank. SERVICE WARNING
LIGHT (Red)
This warning light will turn
on in the following cases: low coolant
level, particulate filter failure, low par-
ticulate filter additive level, risk of
clogged particulate filter.
DIPPED HEADLIGHTS
(Green)
When the dipped-beam
headlamps are turned on.
RIGHT DIRECTION
INDICATOR (Green)
The warning light starts
flashing when the direction indicator
control stalk is lifted or together with
the left direction indicator, when the
hazard light button is pressed.
K
2
E
m
The warning light will come on when
the front passenger air bag is deacti-
vated.
REAR FOG LIGHTS
(Amber)
When the rear fog lights
are turned on.
ESP SYSTEM (Amber)
The light comes on when
you turn the ignition key to
M, but it should go out after a couple
of seconds.
If the warning light either stays on or
comes on while travelling contact a Fi-
at Dealership.
Warning light flashing when driving
indicates that the ESP system is active.
4
ñ
è
Page 62 of 254

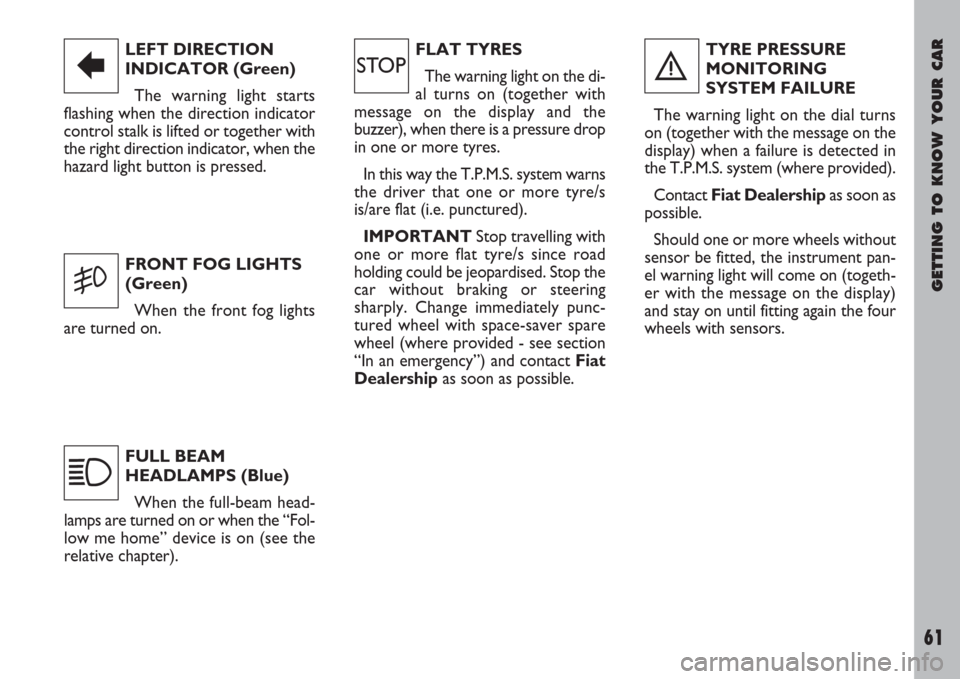

GETTING TO KNOW YOUR CAR
61
LEFT DIRECTION
INDICATOR (Green)
The warning light starts
flashing when the direction indicator
control stalk is lifted or together with
the right direction indicator, when the
hazard light button is pressed.
FRONT FOG LIGHTS
(Green)
When the front fog lights
are turned on.
FULL BEAM
HEADLAMPS (Blue)
When the full-beam head-
lamps are turned on or when the “Fol-
low me home” device is on (see the
relative chapter).
R
5
1
FLAT TYRES
The warning light on the di-
al turns on (together with
message on the display and the
buzzer), when there is a pressure drop
in one or more tyres.
In this way the T.P.M.S. system warns
the driver that one or more tyre/s
is/are flat (i.e. punctured).
IMPORTANTStop travelling with
one or more flat tyre/s since road
holding could be jeopardised. Stop the
car without braking or steering
sharply. Change immediately punc-
tured wheel with space-saver spare
wheel (where provided - see section
“In an emergency”) and contact Fiat
Dealershipas soon as possible.TYRE PRESSURE
MONITORING
SYSTEM FAILURE
The warning light on the dial turns
on (together with the message on the
display) when a failure is detected in
the T.P.M.S. system (where provided).
Contact Fiat Dealershipas soon as
possible.
Should one or more wheels without
sensor be fitted, the instrument pan-
el warning light will come on (togeth-
er with the message on the display)
and stay on until fitting again the four
wheels with sensors.
ìè
Page 63 of 254
GETTING TO KNOW YOUR CAR
62

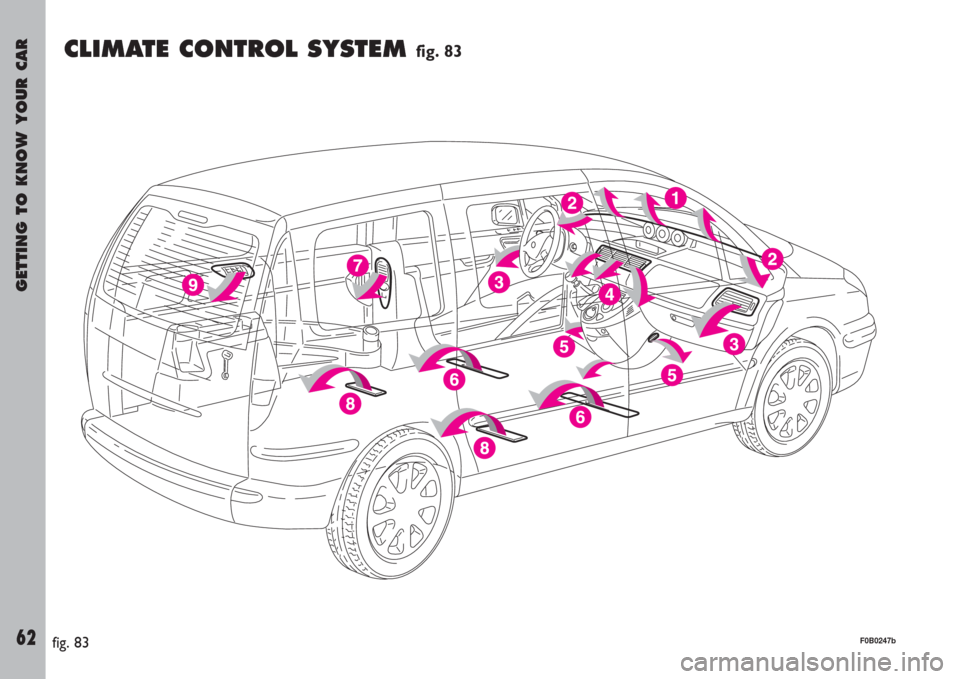

CLIMATE CONTROL SYSTEM fig. 83
fig. 83F0B0247b
Page 64 of 254
GETTING TO KNOW YOUR CAR
63

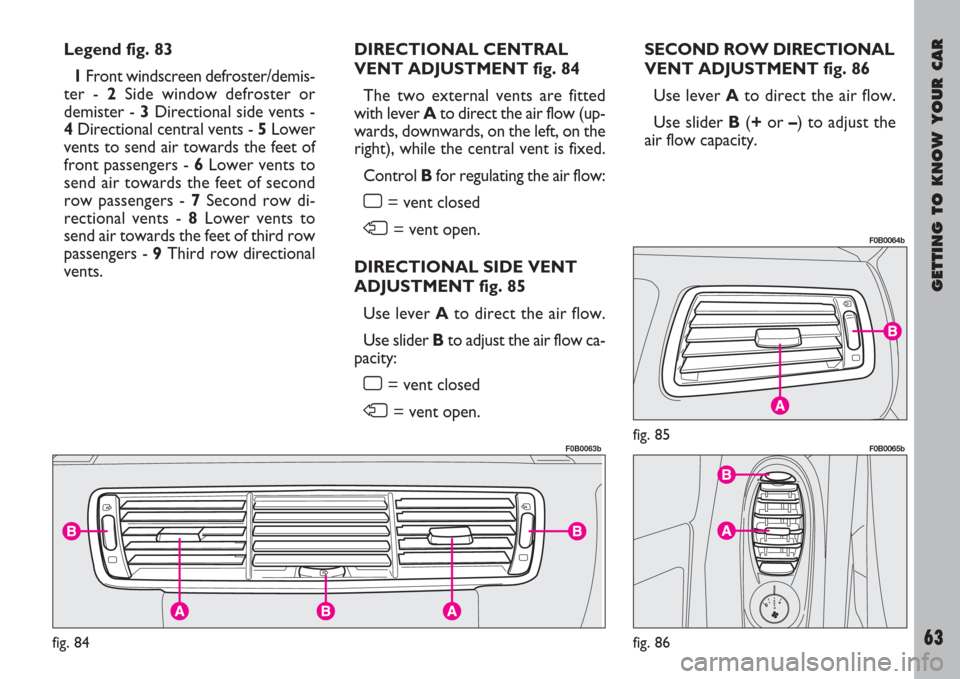

Legend fig. 83
1Front windscreen defroster/demis-
ter - 2Side window defroster or
demister - 3Directional side vents -
4Directional central vents - 5Lower
vents to send air towards the feet of
front passengers - 6Lower vents to
send air towards the feet of second
row passengers - 7Second row di-
rectional vents - 8Lower vents to
send air towards the feet of third row
passengers - 9Third row directional
vents.DIRECTIONAL CENTRAL
VENT ADJUSTMENT fig. 84
The two external vents are fitted
with lever Ato direct the air flow (up-
wards, downwards, on the left, on the
right), while the central vent is fixed.
Control B for regulating the air flow:
ô= vent closed
ö= vent open.
DIRECTIONAL SIDE VENT
ADJUSTMENT fig. 85
Use lever Ato direct the air flow.
Use slider Bto adjust the air flow ca-
pacity:
ô= vent closed
ö= vent open.SECOND ROW DIRECTIONAL
VENT ADJUSTMENT fig. 86
Use lever A to direct the air flow.
Use slider B(+or –) to adjust the
air flow capacity.
fig. 84
F0B0063bfig. 85
F0B0064b
fig. 86
F0B0065b
Page 65 of 254

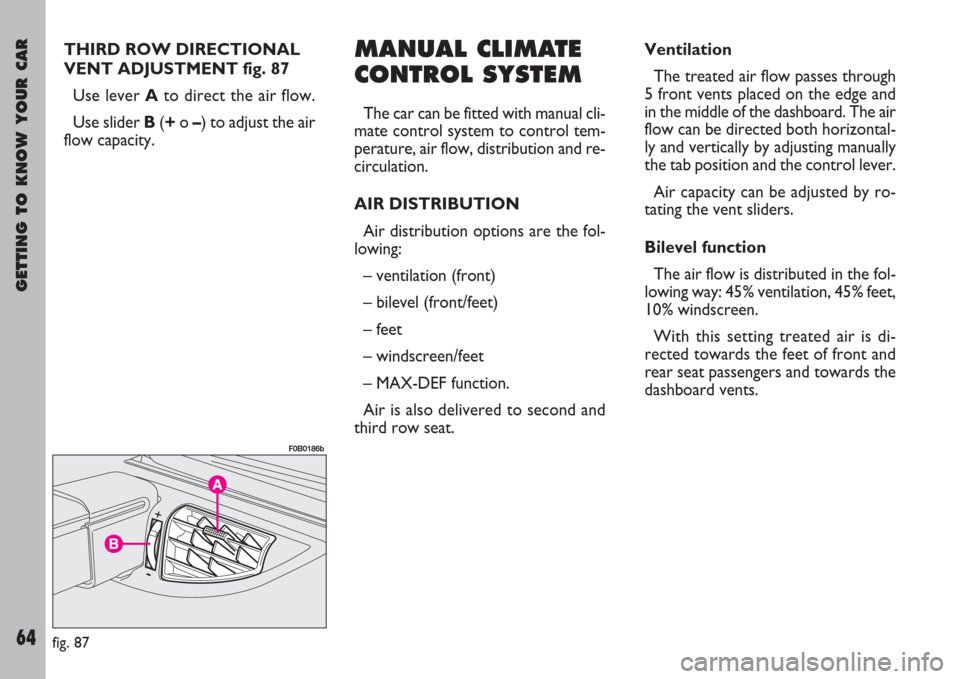

GETTING TO KNOW YOUR CAR
64
THIRD ROW DIRECTIONAL
VENT ADJUSTMENT fig. 87
Use lever A to direct the air flow.
Use sliderB(+o –) to adjust the air
flow capacity.MANUAL CLIMATE
CONTROL SYSTEM
The car can be fitted with manual cli-
mate control system to control tem-
perature, air flow, distribution and re-
circulation.

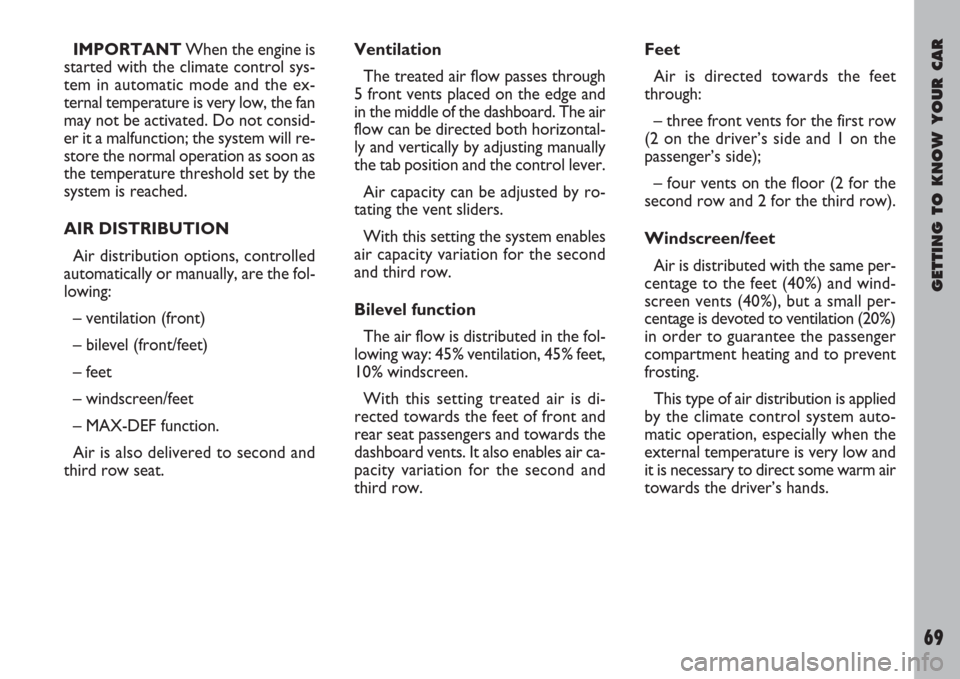

AIR DISTRIBUTION
Air distribution options are the fol-
lowing:
– ventilation (front)
– bilevel (front/feet)
– feet
– windscreen/feet
– MAX-DEF function.
Air is also delivered to second and
third row seat.Ventilation
The treated air flow passes through
5 front vents placed on the edge and
in the middle of the dashboard. The air
flow can be directed both horizontal-
ly and vertically by adjusting manually
the tab position and the control lever.
Air capacity can be adjusted by ro-
tating the vent sliders.
Bilevel function
The air flow is distributed in the fol-
lowing way: 45% ventilation, 45% feet,
10% windscreen.
With this setting treated air is di-
rected towards the feet of front and
rear seat passengers and towards the
dashboard vents.
fig. 87
F0B0186b
Page 66 of 254
Failure to replace the fil-
ter can reduce the cli-
mate control system’s ef-
ficiency considerably.
GETTING TO KNOW YOUR CAR
65
Feet
Air is directed towards the feet
through:
– three front vents for the first row
(2 on the driver’s side and 1 on the
passenger’s side);
– four vents on the floor (2 for the
second row and 2 for the third row).
Windscreen/feet
Air is distributed with the same per-
centage to the feet (40%) and wind-
screen vents (40%), but a small per-
centage is devoted to ventilation (20%)
in order to guarantee the passenger
compartment heating and to prevent
frosting.
This type of air distribution is applied
by the climate control system auto-
matic operation, especially when the
external temperature is very low and
it is necessary to direct some warm air
towards the driver’s hands.
MAX-DEF function
Air is completely directed to the
windscreen and front side windows.
This function is used for the wind-
screen/side window rapid defrost-ing/demisting and rear heated window
activation with only one operation.
Such function is activated manually
and enables the following functions:
– ventilation with maximum air ca-
pacity;
– air mixing completely hot;
– air recirculation off (outside air);
– compressor on;
– air distribution to the windscreen;
– rear heated window on.
When the MAX-DEF function is on
it is possible to alter the air capacity
and to deactivate the rear heated win-
dow.
The rear heated window works for
a limited time and turns off automati-
cally.AIR QUALITY
The system is fitted with a pollen fil-
ter which prevents dust particles and
pollen coming from the outside from
getting into the system.
Have the pollen filter checked at a
Fiat Dealership at least once a year,
possibly at the beginning of spring/
summer.
If the car is often used in dusty or
highly polluted areas, you should check
or change the pollen filter more fre-
quently.
Page 67 of 254
GETTING TO KNOW YOUR CAR
66
CONTROLSAAir flow slider
B Temperature control slider
C Heated rear window on/off but-
ton
DMAX – DEF function on/off but-
ton (max. defrosting/demisting for
windscreen, front side windows, rear
heated window and door mirrors)
EAir vent slider
FClimate control compressor on/off
button
GInside air recirculation on/off but-
ton
fig. 87a
F0B0300b
Page 68 of 254
GETTING TO KNOW YOUR CAR
67
CLIMATE CONTROL (cooling)
Proceed as follows:
- turn the slider pointer Bto the blue
section;
- press button Fto turn the climate
control compressor on and button G
to turn on inside air recirculation;
- turn the slider pointer Ato the re-
quired speed.
• fan speed setting: this is possi-
ble by turning slider A.
• air distribution selection: this is
possible by this is possible by turning
slider E.
Air can be distributed in five
ways: ventilation (front), bilevel
(front/feet), feet, windscreen/feet,
windscreen (MAX-DEF).
• compressor on/off: if the com-
pressor is turned off by pressing but-
ton Nwhen the led is lit, the related
led will go off; if the same button is
pressed when the led is switched off,
the compressor (on/off) is on.• MAX-DEF on: this is possible by
pressing button Dand window
demisting will be quickly reached.
• rear heated window on: this is
possible by pressing button C, and the
related led comes on. In this way the
rear window electrical resistances are
activated to heat and demist the rear
window. To stop it, press the button
again and the related led will go off.
Anyway, the rear heated window
works for a limited time and turns off
automatically.Be careful not to dam-
age the rear heated win-
dow resistances when
cleaning it from inside.
• recirculation on: when button G
is pressed it is possible to select the
following travelling conditions: closed
recirculation (relative led on), air com-
ing from outside (led off) recirculation
open, or having the system automatic
control on (led off even if activated).
Page 69 of 254
GETTING TO KNOW YOUR CAR
68
The system uses refrig-
erant R134a as it will not
pollute the environment
if it accidentally leaks. Under no
circumstance use other fluids
which are incompatible with the
system’s component parts.
AIR FLOW
The system manual operation has 8
different air capacity levels which are
displayed with half blackening of each
main fan symbol stake.
When the automatic function has
been enabled (AUTO) the air capaci-
ty varies and can be controlled by the
system. This is indicated on the display
by 4 half blackened stakes. It is easier to reach the
wished air temperature
conditions with inside air
recirculation. Anyway, it is better
not to use this function in
rainy/cold days because inside
window misting may increase, es-
pecially if the compressor is off.
You are recommended
to use the inside air recir-
culation function in the
traffic jam (car lines inside or out-
side galleries) to prevent outside
polluted air from getting into the
vehicle. Anyway, do not use this
function when several people are
onboard, to prevent inside win-
dow misting.AUTOMATIC
CLIMATE CONTROL
SYSTEM
The car is fitted with an automatic
climate control system to control tem-
perature, air capacity, distribution and
recirculation according to two defini-
tion levels:
• automatic system called multi-
zone, with split temperature (left/
right) for the first and second row;
• automatic system called three-
zonewith additional rear fans which
can be controlled by the second row
passengers to change the second and
third row vent air capacity.
IMPORTANTManual selections
prevail over automatic selections and
are stored in the memory until the
user activates the system automatic
mode (AUTO). Manual settings are
stored when the engine is turned off
and restored when the engine is start-
ed again.
Page 70 of 254
GETTING TO KNOW YOUR CAR
69
IMPORTANTWhen the engine is
started with the climate control sys-
tem in automatic mode and the ex-
ternal temperature is very low, the fan
may not be activated. Do not consid-
er it a malfunction; the system will re-
store the normal operation as soon as
the temperature threshold set by the
system is reached.
AIR DISTRIBUTION
Air distribution options, controlled
automatically or manually, are the fol-
lowing:
– ventilation (front)
– bilevel (front/feet)
– feet
– windscreen/feet
– MAX-DEF function.
Air is also delivered to second and
third row seat.Ventilation
The treated air flow passes through
5 front vents placed on the edge and
in the middle of the dashboard. The air
flow can be directed both horizontal-
ly and vertically by adjusting manually
the tab position and the control lever.
Air capacity can be adjusted by ro-
tating the vent sliders.
With this setting the system enables
air capacity variation for the second
and third row.
Bilevel function
The air flow is distributed in the fol-
lowing way: 45% ventilation, 45% feet,
10% windscreen.
With this setting treated air is di-
rected towards the feet of front and
rear seat passengers and towards the
dashboard vents. It also enables air ca-
pacity variation for the second and
third row.Feet
Air is directed towards the feet
through:
– three front vents for the first row
(2 on the driver’s side and 1 on the
passenger’s side);
– four vents on the floor (2 for the
second row and 2 for the third row).
Windscreen/feet
Air is distributed with the same per-
centage to the feet (40%) and wind-
screen vents (40%), but a small per-
centage is devoted to ventilation (20%)
in order to guarantee the passenger
compartment heating and to prevent
frosting.
This type of air distribution is applied
by the climate control system auto-
matic operation, especially when the
external temperature is very low and
it is necessary to direct some warm air
towards the driver’s hands.
