FORD AEROSTAR 1996 1.G Owners Manual

140 [FV36001(ALL)06/95]
half page art:0095041-AInstallation and removal of the second and third passenger
bed and bench seat
*
[FV38301(ALL)05/95]
RWARNING
Never adjust the driver's seat or seatback
when the vehicle is moving.
*
[FV38350(ALL)05/95]
RWARNING
Always latch the vehicle seat to the floor,
whether the seat is occupied or empty. If
not latched, the seat may cause injury
during a sudden stop.
*
[FV38401(ALL)05/93]
RWARNING
Before using the seat, make sure that the
latch hooks are securely locked around the
floor pins.
File:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

141 %
*
[FV42101(ALL)12/89]
Seat/bed conversion
[FV42200(ALL)01/89]
The seat/bed can be either a two passenger or
three passenger seat.
*
[FV42301(ALL)05/89]
To convert the seat/bed to a bed:
[FV42401(ALL)07/92]
1. Pull up the release lever located on right
hand side of the seat, and at the same time
push the seatback rearward.
[FV42601(ALL)08/95]
2. Push the top of the seatback down until it
latches.
[FV42701(ALL)05/91]
The two passenger seat cushion will move
forward when going from the seat to the bed
position.
*
[FV42900(ALL)01/89]
To convert the bed to a seat:
*
[FV43000(ALL)07/92]
1. While in front of the seat, pull the release
lever up and at the same time pull the
seatback up. Raise the seatback to the full
upright and locked position.
*
[FV43100(ALL)02/95]
2. Make sure the safety belts are free and
available for use.
*
[FV43300(ALL)05/95]
RWARNING
The seat/bed should not be occupied
while the vehicle is moving unless it is in
the upright, fully-latched position.
File:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

142 %
*
[FV47000(ALL)03/94]
Using the Power Lumbar Support and Side
Bolsters
[FV47100(ALL)12/91]
Inflating the Lumbar Support (If equipped)
[FV47300(ALL)06/95]
If your vehicle is equipped with this option, you
can inflate a lumbar support pad in the seatback.
To inflate the lumbar pad, push the INFLATE
side of the rocker switch. To deflate, push the
DEFLATE side of the switch.
[FV48100(ALL)02/92]

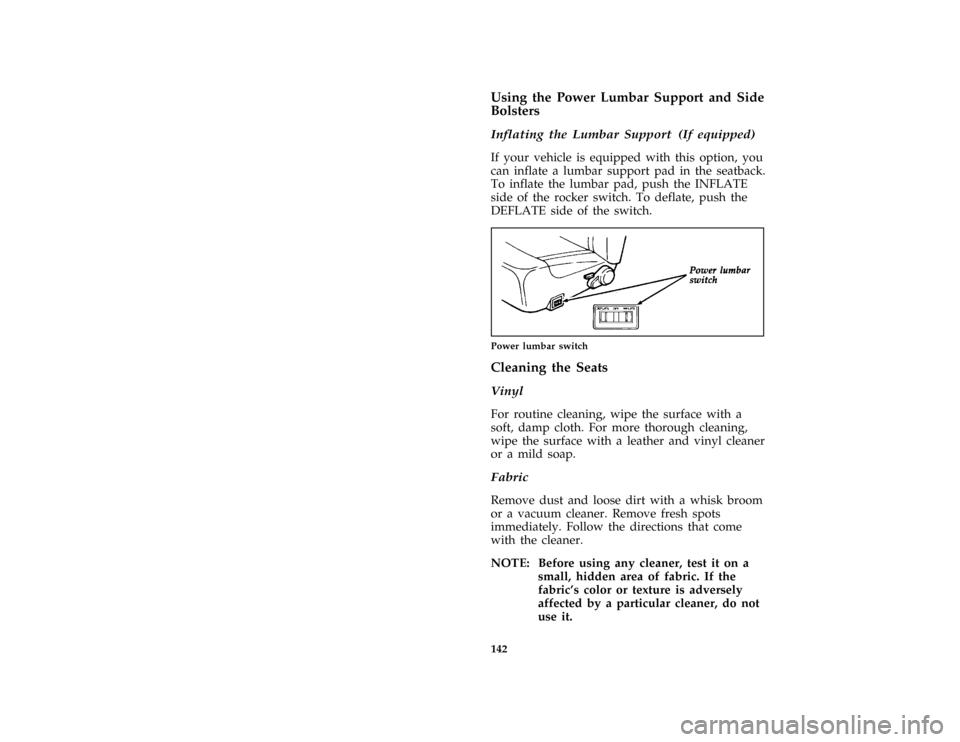

quarter page art:0020244-B
Power lumbar switch
%*
[FV49000(ALL)04/95]
Cleaning the Seats
*
[FV49050(ALL)05/95]
Vinyl
*
[FV49100(ALL)05/95]
For routine cleaning, wipe the surface with a
soft, damp cloth. For more thorough cleaning,
wipe the surface with a leather and vinyl cleaner
or a mild soap.
%*
[FV49150(ALL)04/95]
Fabric
*
[FV49200(ALL)05/95]
Remove dust and loose dirt with a whisk broom
or a vacuum cleaner. Remove fresh spots
immediately. Follow the directions that come
with the cleaner.
*
[FV49250(ALL)04/95]
NOTE: Before using any cleaner, test it on a
small, hidden area of fabric. If the
fabric's color or texture is adversely
affected by a particular cleaner, do not
use it.
File:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

143
%*
[FV49400(ALL)03/91]
Underseat Stowage Drawer
(If equipped)
[FV49500(ALL)03/95]
If your vehicle is equipped with the front
passenger seat drawer, open it by moving the
latch lever upward and pulling the drawer
toward the front of the vehicle. To remove the
drawer, pull past the stop tab on the back of the
drawer.
[FV49800(ALL)05/91]

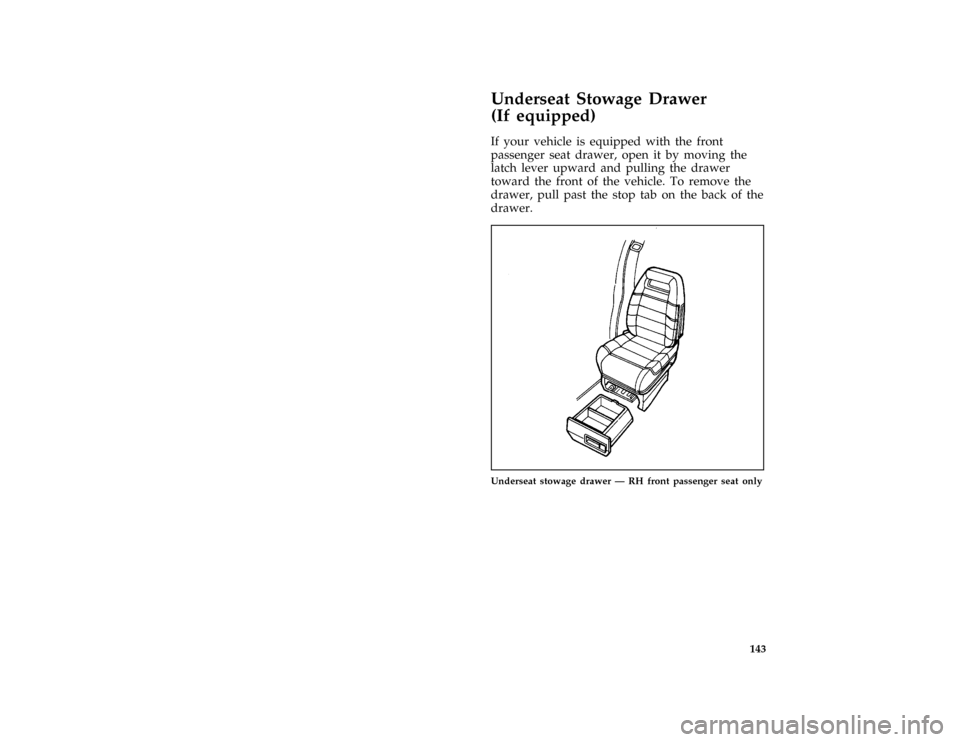

half page art:0020694-A
Underseat stowage drawer Ð RH front passenger seat only
File:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

144
%*
[FV50000(ALL)01/95]
Mirrors
[FV54100(ALL)08/95]
For vehicles without rear door windows, the
right-hand side mirror is a flat glass mirror. All
other vehicles have convex right-hand side view
mirrors. Convex mirrors have a curved surface
and will show a wider view of the lane next to
and behind your vehicle.
*
[FV54400(ALL)05/95]
RWARNING
The side view mirror on the right makes
objects appear smaller and farther away
than they actually are.
%*
[FV54500(ALL)08/91]
Dual Electric Remote Control Mirrors
(If equipped)
*
[FV54600(ALL)08/91]
To adjust the remote controlled side mirrors:
[FV54700(ALL)08/95]
1. Locate the switch in the driver's door trim
panel.
[FV54900(ALL)08/95]
2. Select the right or left mirror by moving the
center switch to the left-hand or right-hand
position. The midway position moves neither
the left-hand or right-hand mirror.
[FV55100(ALL)06/94]
3. Press the appropriate side of the square
marked by an arrow indicating the direction
of adjustment.
[FV55300(ALL)08/95]
4. Return the center switch to the middle
position to keep the mirror in place.
File:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

145 [FV55800(ALL)12/91]

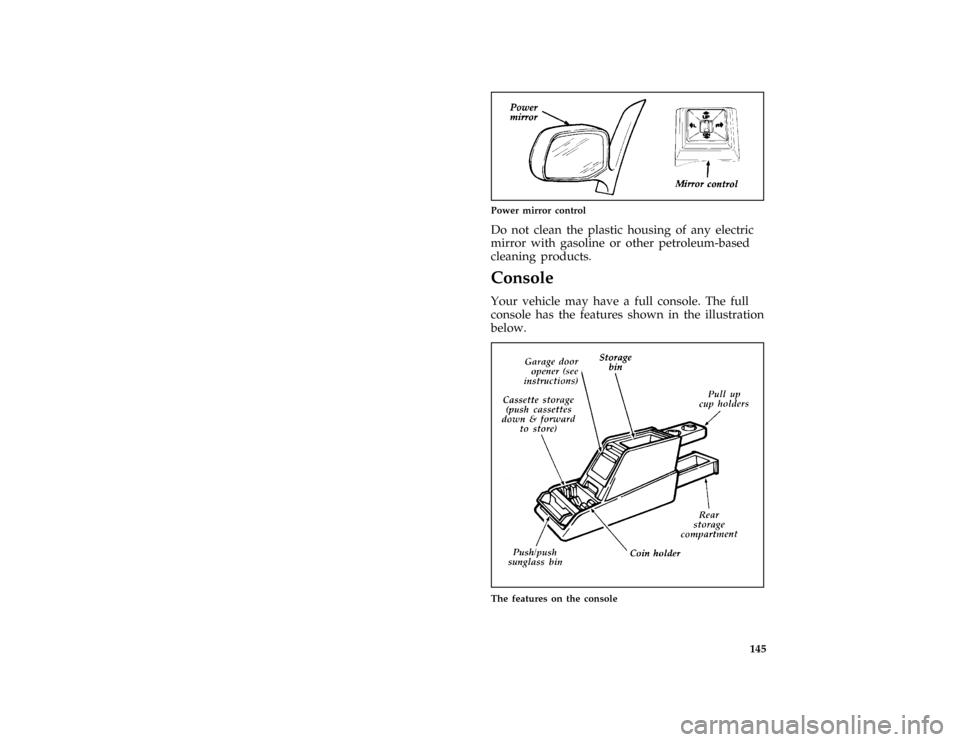

quarter page art:0020258-B
Power mirror control
*
[FV55900(ALL)12/91]
Do not clean the plastic housing of any electric
mirror with gasoline or other petroleum-based
cleaning products.
%
*
[FV59400(ALL)01/95]
Console
*
[FV59500(ALL)12/91]
Your vehicle may have a full console. The full
console has the features shown in the illustration
below.
[FV59900(ALL)06/95]
half page art:0095039-A
The features on the console
File:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

146 [FV65400(ALL)05/91]Garage Door Opener Storage
[FV65500(ALL)05/91]
At the center of the console, a compartment is
provided for storage of a garage door opener
transmitter. In its stored position, the transmitter
can be activated by pressing on the compartment
door.
[FV65600(ALL)05/91]
To install the transmitter:
[FV65700(ALL)05/91]
1. Push down on latch.
[FV65800(ALL)06/95]
2. Open door by moving hand towards front of
vehicle while maintaining pressure on latch
(Figure 1).
[FV65900(ALL)06/95]
one third page art:0020875-A[FV66000(ALL)06/95]
3. Remove the backing from the self-adhesive
side of the Velcro
TM
(supplied with the
console) and apply it to the back of your
transmitter.
File:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

147 [FV66100(ALL)03/95]

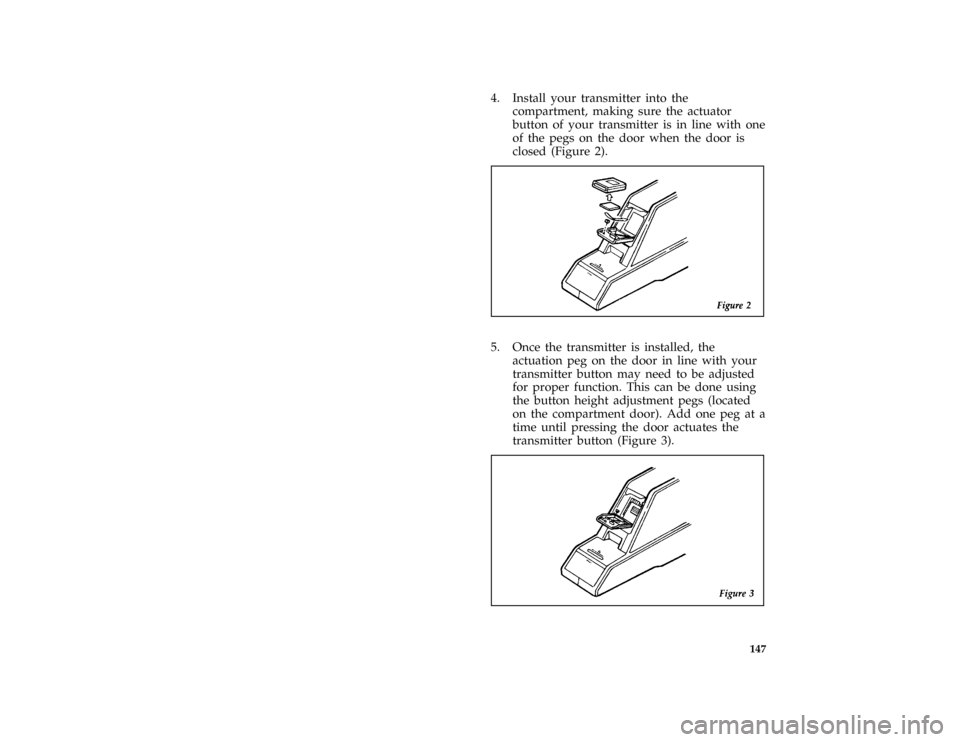

4. Install your transmitter into the
compartment, making sure the actuator
button of your transmitter is in line with one
of the pegs on the door when the door is
closed (Figure 2).
[FV66200(ALL)05/91]
one third page art:0020876-A[FV66300(ALL)05/91]
5. Once the transmitter is installed, the
actuation peg on the door in line with your
transmitter button may need to be adjusted
for proper function. This can be done using
the button height adjustment pegs (located
on the compartment door). Add one peg at a
time until pressing the door actuates the
transmitter button (Figure 3).
[FV66400(ALL)05/91]
one third page art:0020877-AFile:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

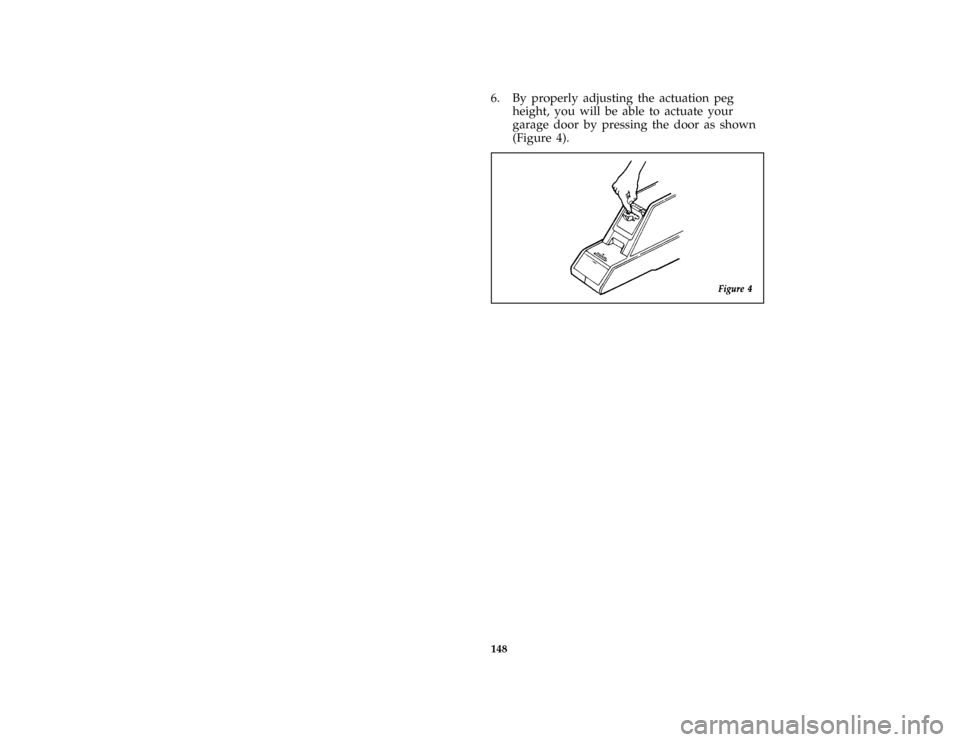

148 [FV66500(ALL)05/91]6. By properly adjusting the actuation peg
height, you will be able to actuate your
garage door by pressing the door as shown
(Figure 4).
[FV66600(ALL)05/91]
one third page art:0020878-AFile:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

149

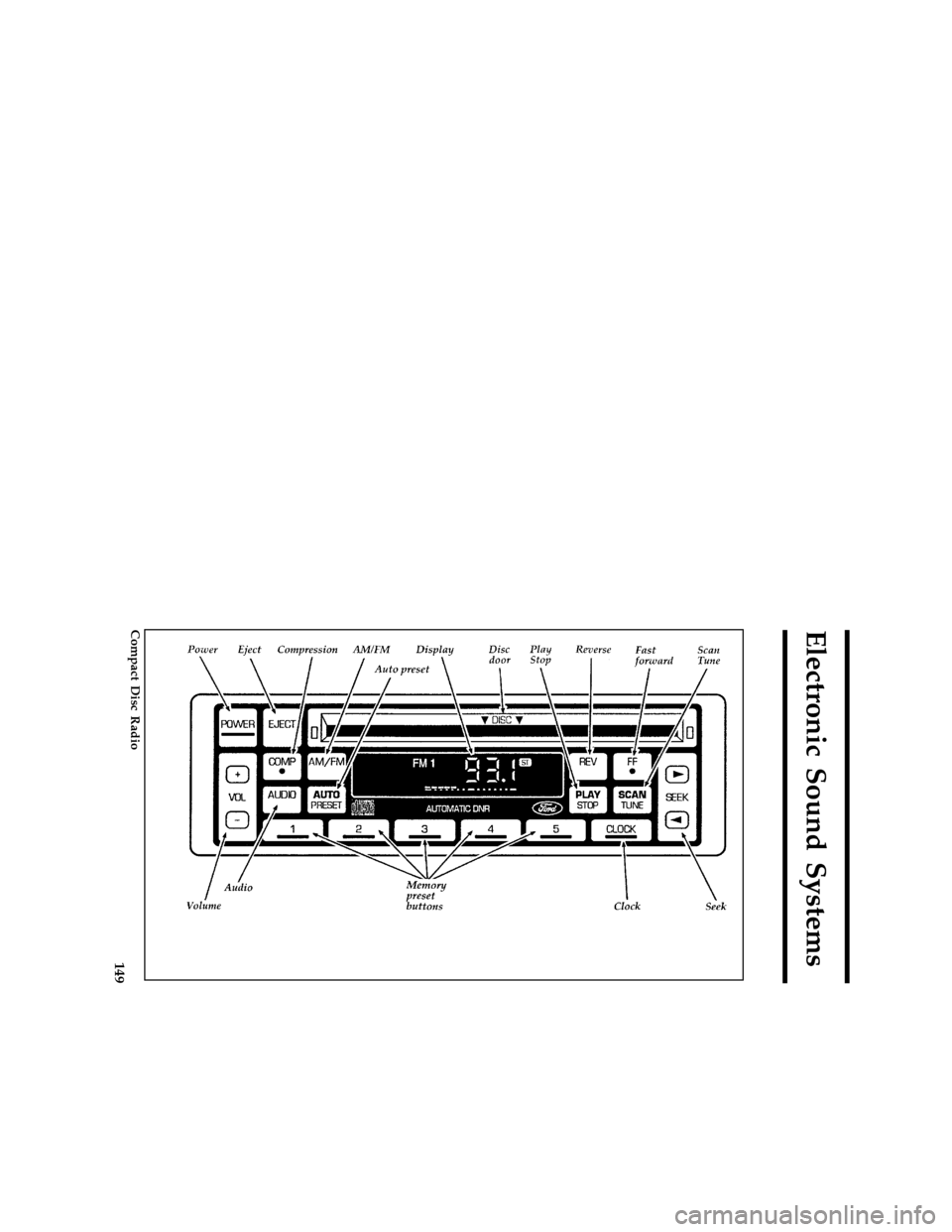

Electronic Sound Systems
*
[AS00200(ALL)08/95]
full page art:0060648-B
Compact Disc Radio
File:09cpasa.ex
Update:Tue Aug 29 17:42:51 1995
