FORD AEROSTAR 1996 1.G Owners Manual

160
*
[AS03150(ALL)08/95]
How to eject the disc
*
[AS03175(ALL)08/95]
Push the ªEJECTº button to stop play, eject the
disc and resume radio operation of your audio
system.
*
[AS03200(ALL)08/95]
NOTE: You can eject the disc while the radio
power and/or ignition is on or off.
%*
[AS03225(ALL)08/95]
How To Take Care of and Clean Your CD
Player and Discs
*
[AS03250(ALL)08/95]
To ensure the continued performance of your
Ford Compact Disc Player, carefully read the
following precautions:
*
[AS03275(ALL)08/95]
q
Always handle the disc by its edge. Never
touch the playing surface.
[AS03281(ALL)08/95]
q
Before playing, inspect the disc for any
contamination. If needed, clean the disc with
an approved disc cleaner, such as the
Discwasher Compact Disc Cleaner or the
Allsop 3 Compact Disc Cleaner, by wiping
from the center out to the edges.Do not use
a circular motion to clean.
[AS03286(ALL)08/95]
q
Do not clean discs with solvents such as
benzine, thinner, commercially available
cleaners or antistatic spray intended for
analog records.
[AS03291(ALL)08/95]
q
Do not expose the disc to direct sunlight or
heat sources such as defroster and floor
heating ducts. Do not leave any discs in a
parked car in direct sunlight where there may
be a considerable rise in temperature or
damage may result.
[AS03296(ALL)08/95]
q
After playing, store the disc in its case.
*
[AS03300(ALL)08/95]
q
If a disc has already been inserted, do not try
to insert another disc. Doing so may damage
the disc player.
*
[AS03325(ALL)08/95]
q
Do not insert anything other than a disc into
the disc player.
File:09cpasa.ex
Update:Tue Aug 29 17:42:51 1995

161
*
[AS03350(ALL)08/95]
CAUTION:The use of optical instruments with
this product will increase eye hazard as the laser
beam used in this compact disc player is
harmful to the eyes. Do not attempt to
disassemble the case. Refer servicing to qualified
personnel only.
*
[AS03375(ALL)08/95]
Common Operating Conditions of Your
CD Player
*
[AS03400(ALL)08/95]
The following information is designed to help
you recognize typical situations that could be
mistakenly interpreted as mechanical
malfunctions of the disc player.
*
[AS03425(ALL)08/95]
q
A disc is already loaded.
*
[AS03450(ALL)08/95]
q
The disc is inserted with the label surface
downward.
*
[AS03475(ALL)08/95]
q
The disc is dusty or defective.
*
[AS03500(ALL)08/95]
q
The player's internal temperature is above
140ÊF (60ÊC).Allow the player to cool off
before operating.
*
[AS03525(ALL)08/95]
q
Different manufacturers of compact discs may
produce discs with different dimensions or
tolerances, some of which may not be within
industry standards or in accordance with the
CD format. Because of this, a new disc that is
free of dust and scratches could be defective
and may not play on your Ford Compact
Disc Player.
File:09cpasa.ex
Update:Tue Aug 29 17:42:51 1995

162 [AS03550(ALL)08/95]If play does not begin once the disc has been
inserted:
*
[AS03575(ALL)08/95]
q
The radio is not on.
*
[AS03600(ALL)08/95]
q
The unit is in the stop mode.
*
[AS03625(ALL)08/95]
q
Moisture may have condensed on the lenses
within the unit. If this occurs, remove the
disc and wait approximately an hour until the
moisture evaporates.
*
[AS03650(ALL)08/95]
If the sound skips:
*
[AS03675(ALL)08/95]
q
Badly scratched discs or extremely rough
roads will cause the sound to skip. Skipping
will not damage the disc player or scratch the
discs.
File:09cpasa.ex
Update:Tue Aug 29 17:42:51 1995

163
%*
[AS03700(ALL)08/95]

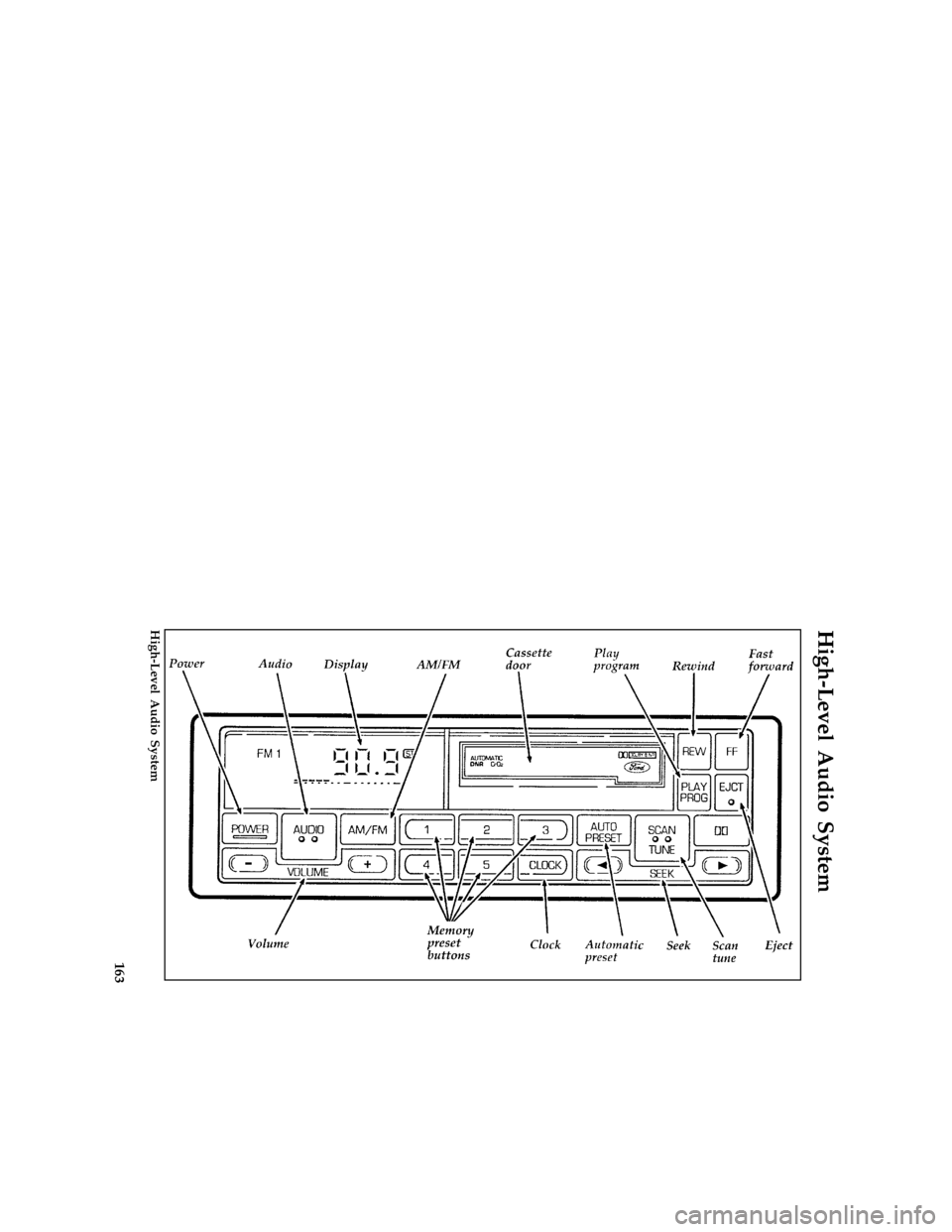

High-Level Audio System
*
[AS03725(ALL)08/95]
full page art:0060631-B
High-Level Audio System
File:09cpasa.ex
Update:Tue Aug 29 17:42:51 1995

164
*
[AS03750(ALL)08/95]
Using the Controls on Your New Radio
*
[AS03775(ALL)08/95]
How to turn the radio on and off
*
[AS03800(ALL)08/95]
Press the ªPOWERº button to turn the radio on.
Press it again to turn it off.
*
[AS03825(ALL)08/95]
How to adjust the volume
*
[AS03850(ALL)08/95]
Press the +/sside of the ªVOLº button to
increase/decrease the volume. Bars illuminate in
the display to show the relative volume level.
*
[AS03875(ALL)08/95]
NOTE: If the volume level is set above a
certain listening level when the
ignition switch is turned off, when the
ignition switch is turned back on, the
volume will come back to a ªnominalº
listening level. However, if the radio
power is turned off, the volume will
remain in the position it was set at
when radio power was switched off.
*
[AS03900(ALL)08/95]
Selecting the AM or FM frequency band
*
[AS03925(ALL)08/95]
Push the ªAM/FMº button to select the desired
frequency band. When in the radio mode,
pushing the button more than once will alternate
between AM, FM1 and FM2. These functions are
used with the station memory buttons described
underHow to Tune Radio Stations.
%*
[AS03950(ALL)08/95]
How to tune radio stations
*
[AS03975(ALL)08/95]
There are four ways for you to tune in a
particular station. You can manually locate the
station using the ªSCAN/TUNEº button,
ªSEEKº the station, ªSCANº to the station or
select the station by using the memory buttons,
which you can set to any desired frequency.
These four methods are described below.
File:09cpasa.ex
Update:Tue Aug 29 17:42:51 1995

165
*
[AS04000(ALL)08/95]
q
Using the ªTUNEº function
*
[AS04025(ALL)08/95]
You can change the frequency up or down
one increment at a time (FM changes in
increments of 200 kHz; AM changes in
increments of 10 kHz) by first pressing the
ªSCAN/TUNEº button twice (display shows
ªTUNEº), then Ðwithin approximately five
secondsÐ pressing and releasing either the
right (
a) or left (
b) side of the ªSEEKº
button. To change frequencies quickly, press
andhold downeither the right or left side of
the ªSEEKº button.
*
[AS04050(ALL)08/95]
Manual tuning adjusts your radio to any
allowable broadcast frequency, whether or not a
station is present on that frequency. (SeeAll
About Radio Frequenciesin this section.)
*
[AS04075(ALL)08/95]
q
Using the ªSEEKº function
[AS04100(ALL)08/95]
This feature on your radio allows you to
automatically select listenable stations up or
down the frequency band. Press the right
(
a) side of the ªSEEKº button to select the
next listenable station up the frequency band.
Press the left (
b) side of the button to select
the next listenable station down the
frequency band. By holding the button down,
listenable stations can be passed over to reach
the desired station.
[AS04125(ALL)08/95]
q
Using the ªSCANº function
[AS04150(ALL)08/95]
Pressing the ªSCAN/TUNEº button once
enters the scan mode (display will indicate
ªSCNº). Pushing the right (
a) side of the
ªSEEKº button will begin the scan mode up
the frequency band, stopping on each
listenable station for approximately a
five-second sampling. Pushing the left (
b)
side of the ªSEEKº button will begin the scan
mode down the frequency band, again
stopping on each listenable station for
approximately a five-second sampling.
File:09cpasa.ex
Update:Tue Aug 29 17:42:51 1995

166 [AS04175(ALL)08/95]
To stop the scan mode on the presently
sampled station press the ªSCAN/TUNEº
button again.
[AS04200(ALL)08/95]
q
Setting the Station Memory Preset buttons
[AS04225(ALL)08/95]
Your radio is equipped with 5 station
memory buttons. These buttons can be used
to select up to 5 preset AM stations and 10
FM stations (5 in FM1 and 5 in FM2).
[AS04250(ALL)08/95]
Follow the easy steps below to set these buttons
to the desired frequencies:
[AS04275(ALL)08/95]
1. Select a band, then select a frequency.
[AS04300(ALL)08/95]
2. Press one of the memory buttons and hold
the button until the sound returns. That
station is now held in memory on that
button.
[AS04325(ALL)08/95]
3. Follow the two steps above for each station
memory preset button you want to set.
[AS04350(ALL)08/95]
NOTE: If the vehicle's battery is disconnected,
the station memory preset buttons (if
programmed in auto mode) will need
to be reset.
*
[AS04375(ALL)08/95]
q
Using the Automatic Memory Load feature
*
[AS04400(ALL)08/95]
You can activate theAuto Memory Load
feature by pressing and holding the ªAUTO
PRESETº buttonfor approximately three
seconds. Auto Memory Load sets all memory
buttons in AM, FM1 and FM2 sequentially by
seeking out the first five strong stations for
the respective band and storing them in
memory buttons 1-5. (FM2 will store the
second set of strong stations from the FM
band.)
File:09cpasa.ex
Update:Tue Aug 29 17:42:51 1995

167
*
[AS04425(ALL)08/95]
With Auto Memory Store, you can
continually set strong stations into your
memory buttons without losing your existing
memory presets, which is especially handy
while traveling. Your radio will automatically
set your memory buttons to the strong local
stations so you don't have to continually
manually tune to existing stations.
*
[AS04450(ALL)08/95]
Activate Auto Memory Store by pushing the
ªAUTO PRESETº button once. Your radio
will set the first five strong stations of the
band you are in (AM, FM1 or FM2) into the
memory buttons. The display will show
ªAUTOº, then run through the frequencies,
stopping momentarily on the stations being
set into the memory buttons. The radio is
now in the ªAUTOº mode and this display
will show ªAUTOº each time a preset is
activated.
*
[AS04475(ALL)08/95]
NOTE: If there are fewer than five strong
stations in the frequency band, the
remaining unfilled buttons will store
the last strong station detected on the
band.
*
[AS04500(ALL)08/95]
After all stations have been filled, the radio
will begin playing the station stored on
memory button 1.
*
[AS04525(ALL)08/95]
To deactivate the Auto Memory Store mode
and return to the manually-set memory
button stations (or those stations set using
Auto Memory Load), simply push the
ªAUTO PRESETº button. Display will show
ªAUTOº then ªOFFº. The next time Auto
Memory Store is activated on that band, the
radio will store the next set of five strong
stations.
File:09cpasa.ex
Update:Tue Aug 29 17:42:51 1995

168
*
[AS04550(ALL)08/95]
Adjusting the tone balance and speaker
output of your radio
*
[AS04575(ALL)08/95]
q
Increasing or decreasing bass response
*
[AS04600(ALL)08/95]
Push the ªAUDIOº button repeatedly until
the display reads ªBASS.º Push the ª+º side
of the ªVOLº button to increase bass (more
ªlowsº), and push the ª-º side to decrease
bass (less ªlowsº).
*
[AS04625(ALL)08/95]
q
Increasing or decreasing treble response
*
[AS04650(ALL)08/95]
Push the ªAUDIOº button repeatedly until
the display reads ªTREB.º Push the ª+º side
of the ªVOLº button to increase treble (more
ªhighsº), and push the ª-º side to decrease
treble (less ªhighsº).
*
[AS04675(ALL)08/95]
q
Adjusting speaker balance
*
[AS04700(ALL)08/95]
Balance control allows you to adjust the
sound distribution between the right and left
speakers. Push the ªAUDIOº button
repeatedly until the display reads ªBAL.º
Push the ª+º side of the ªVOLº button to
shift the sound to the right speakers, and
push the ª-º side to shift the sound to the
left speakers.
*
[AS04725(ALL)08/95]
q
Adjusting speaker fader
*
[AS04750(ALL)08/95]
Fade control allows you to adjust the sound
distribution between the front and rear
speakers. Push the ªAUDIOº button
repeatedly until the display reads ªFADE.º
Push the ª+º side of the ªVOLº button to
shift the sound to the front speakers, and
push the ª-º side to shift the sound to the
rear speakers.
*
[AS04775(ALL)08/95]
NOTE: Illuminated bars in the display show
relative levels of bass and treble and
positions of speaker balance and fader
functions after adjustments are made,
then revert to volume level set.
File:09cpasa.ex
Update:Tue Aug 29 17:42:51 1995

169 %
*
[AS04800(ALL)08/95]
Using the Controls of Your Cassette Tape
Player
*
[AS04825(ALL)08/95]
How to insert a tape
*
[AS04850(ALL)08/95]
Your cassette tape player is equipped with
power loading. Once you insert a tape and push
slightly (with theopen edge to the right), the
loading mechanism draws the tape the rest of
the way in and play will begin after a
momentary tape tightening process. Display
indicates ªMº (for metal/CrO
2) while tape is
playing.
*
[AS04875(ALL)08/95]
NOTE: A cassette tape can be loaded with the
ignition on whether or not the radio
power is on.
*
[AS04900(ALL)08/95]
How to locate a desired track on the tape
*
[AS04925(ALL)08/95]
There are four ways to quickly locate a desired
selection on the tape. You can use the fast
forward, rewind, ªSEEKº or ªSCANº function.
Following are brief descriptions of each.
*
[AS04950(ALL)08/95]
q
Fast forwarding the tape
*
[AS04975(ALL)08/95]
To fast foward the tape, press the ªFFº
button. The radio will automatically begin
playing until fast forward is manually
stopped. At the end of the tape, the direction
automatically reverses and plays the other
side of the tape.
*
[AS05000(ALL)08/95]
q
Rewinding the tape
*
[AS05025(ALL)08/95]
To rewind the tape, press the ªREWº button.
*
[AS05050(ALL)08/95]
The radio will automatically begin playing
until rewind is manually stopped or the
beginning of the tape is reached.
File:09cpasa.ex
Update:Tue Aug 29 17:42:51 1995
