79 [IP22900(ALL)05/93]
quarter page art:0030053-A
Interior courtesy lamp
[IP22950(ALL)07/93]
Do not leave the dome light on for long periods
of time when the engine is not running, or the
battery may discharge.
*
[IP24200(ALL)05/95]
Radio
*
[IP24300(ALL)07/95]
For information about the radio in your vehicle,
refer to theAudio SystemsChapter in this owner
guide.
*
[IP24320(ALL)05/92]
Radio Antenna
[IP24340(ALL)05/91]
The radio antenna is mounted near the top of
the windshield on the driver's side of the
vehicle. The antenna can be extended by pulling
it upward away from its base. To retract the
antenna, push it in toward its base.
[IP24360(ALL)05/91]
NOTE: To receive the best reception, the
antenna must be fully extended. If the
antenna is not fully extended, the
result may be weak or noisy radio
reception.
[IP24380(ALL)03/94]
NOTE: The radio antenna must be pushed in
prior to entering a car wash. If you do
not push in the antenna before
entering a car wash it could result in
damage to the antenna, antenna base,
or vehicle.
File:06icipf.ex
Update:Wed Jan 24 14:47:07 1996

80
*
[IP24400(ALL)04/95]
Clock Controls on Electronic
Radios
*
[IP24500(ALL)07/95]
The electronic radios have a built-in clock. For
complete operating instructions, refer to the
Audio SystemsChapter in this owner guide.
[IP24525(ALL)04/95]
Cleaning the instrument panel lens
*
[IP24550(ALL)04/95]
Clean the instrument panel lens with a soft cloth
and a glass cleaner, such as Ford Ultra-Clear
Spray Glass Cleaner, or equivalent. Do not use
paper towel or an abrasive cleaner to clean the
lens as these may cause scratches.
File:06icipf.ex
Update:Wed Jan 24 14:47:07 1996

81
Steering Column Controls
*
[SC00300(ALL)01/95]
The controls on the steering column and wheel
are designed to give you easy access to the
controls while you are driving.
*
[SC00400(ALL)01/95]
The Turn Signal Lever
*
[SC00500(ALL)01/95]
You can use the turn signal lever on the left side
of the steering column to:
*
[SC00600(ALL)08/91]
q
operate the headlamps and parking lamps
*
[SC00700(ALL)03/95]
q
operate the turn signals and cornering lamps
*
[SC00800(ALL)01/95]
q
turn the high beams on/off
*
[SC00900(ALL)05/95]
q
flash the lamps
*
[SC00950(ALL)08/91]
Headlamps and Parking Lamps
*
[SC00975(ALL)01/92]
To turn the parking lamps or headlamps on,
twist the knob at the end of the turn signal
lever.
[SC01000(ALL)09/93]
FIRST STOP Ð Turning the knob to the first
stop will turn on the license plate lamps,
parking lamps, side marker lamps, tail lamps,
and instrument panel lamps.
[SC01050(ALL)09/93]
SECOND STOP Ð Turning the knob to the
second stop will turn on the headlamps, license
plate lamps, parking lamps, side marker lamps,
tail lamps, and instrument panel lamps.
File:07icscf.ex
Update:Wed Jan 24 14:50:00 1996

82 [SC01075(ALL)05/93]
quarter page art:0032172-AHeadlamp and parking lamp control
[SC01090(ALL)05/93]
Headlamps On Chime
[SC01100(ALL)05/93]
This chime will sound when a door is opened
while the headlamps or parking lamps are on.
[SC01104(ALL)04/95]
Cleaning the Exterior Lamps
[SC01106(ALL)04/95]
Do not use dry paper towel, chemical solvents
or abrasive cleaner to clean the lamps, as they
may cause scratches or crack the lights.
*
[SC01110(ALL)01/95]
Daytime Running Light System
*
[SC01115(ALL)03/95]
(Canadian vehicles only)
*
[SC01120(ALL)06/95]
In Canada, certain regulations require vehicles to
be driven with lights illuminated during daytime
operation. The Daytime Running Light system
(DRL) automatically illuminates when the
ignition switch is turned to the ON position. The
daytime running lights are switched off under
the following conditions:
*
[SC01130(ALL)05/95]
q
when the headlamps are switched on
*
[SC01140(ALL)01/92]
q
when the parking brake is applied
*
[SC01150(ALL)01/92]
q
when the flash-to-pass system is used
File:07icscf.ex
Update:Wed Jan 24 14:50:00 1996

83
*
[SC01175(ALL)05/95]
RWARNING
The Daytime Running Light (DRL) system
will not illuminate the tail lamps and
parking lamps. Turn on your headlamps
at dusk. Failure to do so may result in a
collision.
*
[SC02075(ALL)05/95]
High Beams and Flashing the Lamps
*
[SC02080(ALL)05/95]
To turn on the high beams, turn the headlamp
control knob to the headlamp ON position and
push the turn signal lever away from you until
it latches. When the high beams are ON, the
high beam indicator light on the instrument
panel comes on.
[SC02085(ALL)02/95]
To turn off the high beams, pull the lever
toward you until it latches. The high beam
indicator light turns off.
*
[SC02090(ALL)07/95]
Flashing the Lights
*
[SC02091(ALL)06/95]
To flash the headlamps, pull the lever toward
you for a moment and then release it. The
headlamps will flash whether the headlamp
knob is in the on or off position.
[SC02092(ALL)03/94]
quarter page art:0032173-B
High beam and flash-to-pass operation
File:07icscf.ex
Update:Wed Jan 24 14:50:00 1996

84
*
[SC02100(ALL)03/95]
Hazard Flasher
*
[SC02200(ALL)06/95]
To alert other drivers to hazardous situations,
press the hazard flasher switch on the top of the
steering column. All the turn signals will flash
on and off at the same time. The flashers will
also operate while the brake pedal is applied. To
turn the flashers off, press the switch again.
*
[SC02300(ALL)01/94]
The flashers work whether your vehicle is
running or not. The flashers will work for up to
two hours when the battery is fully charged and
in good condition. They will not drain the
battery excessively unless they are left on for an
extended period of time.
[SC02480(ALL)07/95]
quarter page art:0032174-B
Hazard flasher switch
*
[SC02600(ALL)01/95]
Turn Signals
[SC02650(ALL)02/95]
Move the lever up to signal a right turn. Move
it down to signal a left turn. The corresponding
indicator light in the instrument cluster will
flash.
[SC02775(ALL)07/95]
If the turn signal stays on after you turn, move
the lever back to the center off position.
[SC02825(ALL)02/95]
For lane changes, move the lever far enough to
signal but not to latch. The lever will return to
the OFF position when you release it.
File:07icscf.ex
Update:Wed Jan 24 14:50:00 1996

85 [SC02900(ALL)07/93]

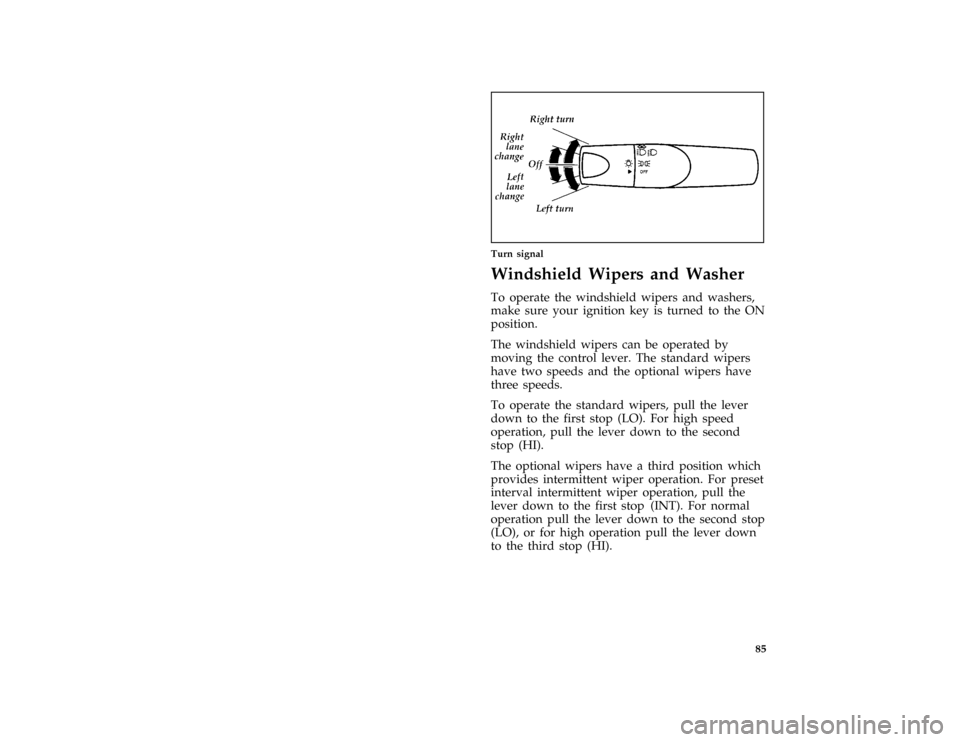

one third page art:0032175-A
Turn signal
*
[SC03100(ALL)03/95]
Windshield Wipers and Washer
*
[SC03200(ALL)08/91]
To operate the windshield wipers and washers,
make sure your ignition key is turned to the ON
position.
[SC03250(ALL)07/93]
The windshield wipers can be operated by
moving the control lever. The standard wipers
have two speeds and the optional wipers have
three speeds.
[SC03400(ALL)07/93]
To operate the standard wipers, pull the lever
down to the first stop (LO). For high speed
operation, pull the lever down to the second
stop (HI).
[SC03450(ALL)03/94]
The optional wipers have a third position which
provides intermittent wiper operation. For preset
interval intermittent wiper operation, pull the
lever down to the first stop (INT). For normal
operation pull the lever down to the second stop
(LO), or for high operation pull the lever down
to the third stop (HI).
File:07icscf.ex
Update:Wed Jan 24 14:50:00 1996

86 [SC04000(ALL)05/93]

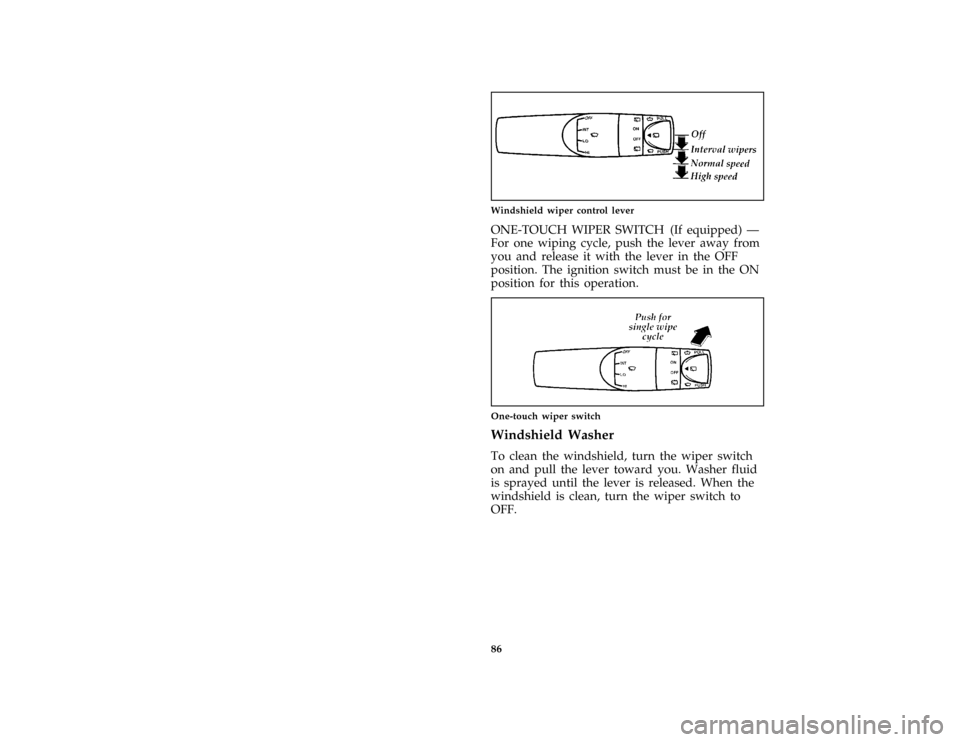

quarter page art:0032176-BWindshield wiper control lever
[SC04100(ALL)07/93]
ONE-TOUCH WIPER SWITCH (If equipped) Ð
For one wiping cycle, push the lever away from
you and release it with the lever in the OFF
position. The ignition switch must be in the ON
position for this operation.
[SC04200(ALL)03/94]
quarter page art:0032177-B
One-touch wiper switch
*
[SC04300(ALL)05/95]
Windshield Washer
[SC04400(ALL)11/91]
To clean the windshield, turn the wiper switch
on and pull the lever toward you. Washer fluid
is sprayed until the lever is released. When the
windshield is clean, turn the wiper switch to
OFF.
File:07icscf.ex
Update:Wed Jan 24 14:50:00 1996

87 [SC04500(ALL)05/93]

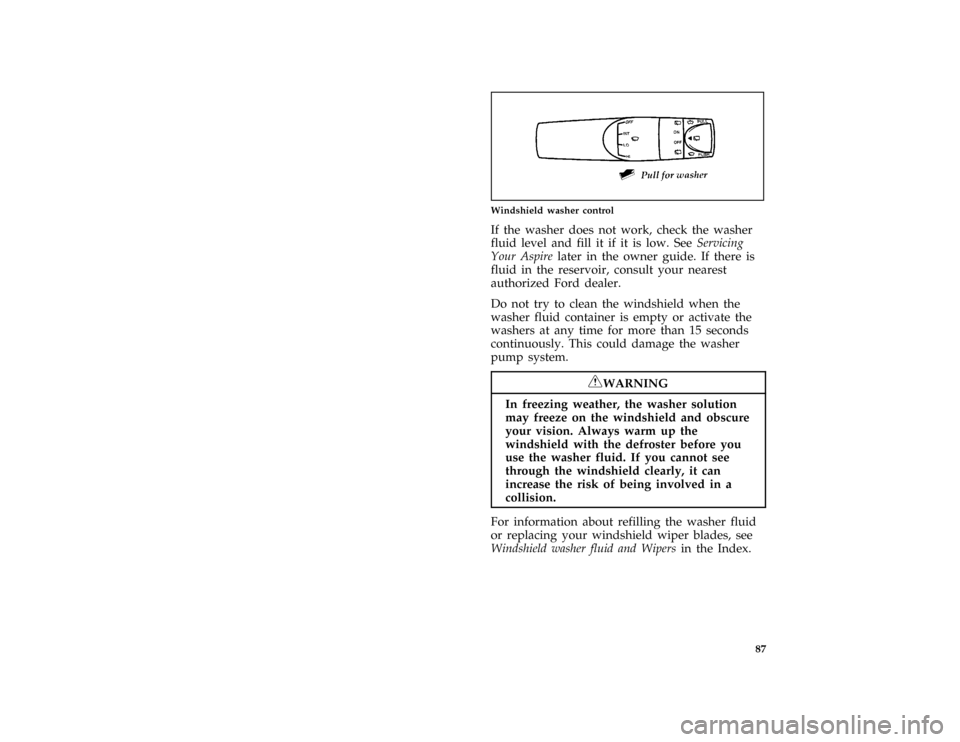

quarter page art:0032178-A
Windshield washer control
[SC04600(ALL)07/93]
If the washer does not work, check the washer
fluid level and fill it if it is low. SeeServicing
Your Aspirelater in the owner guide. If there is
fluid in the reservoir, consult your nearest
authorized Ford dealer.
*
[SC04700(ALL)01/95]
Do not try to clean the windshield when the
washer fluid container is empty or activate the
washers at any time for more than 15 seconds
continuously. This could damage the washer
pump system.
*
[SC04800(ALL)01/93]
RWARNING
In freezing weather, the washer solution
may freeze on the windshield and obscure
your vision. Always warm up the
windshield with the defroster before you
use the washer fluid. If you cannot see
through the windshield clearly, it can
increase the risk of being involved in a
collision.
*
[SC04900(ALL)04/95]
For information about refilling the washer fluid
or replacing your windshield wiper blades, see
Windshield washer fluid and Wipersin the Index.
File:07icscf.ex
Update:Wed Jan 24 14:50:00 1996

88
[SC04920(ALL)02/95]
Rear Windshield Wipers
(If equipped)
[SC04940(ALL)07/93]
The rear window wiper and washer can be
activated by turning the knob at the end of the
wiper/washer lever.
[SC04960(ALL)02/95]
To turn the rear wiper on, turn the knob up to
the ON position.
[SC04980(ALL)02/95]
To wash the rear window, turn the knob up to
thecposition. When you release it, the
washers will stop.
[SC05010(ALL)02/95]
For a single wash/wipe cycle, turn the knob
down to thedposition.
[SC05050(ALL)05/93]

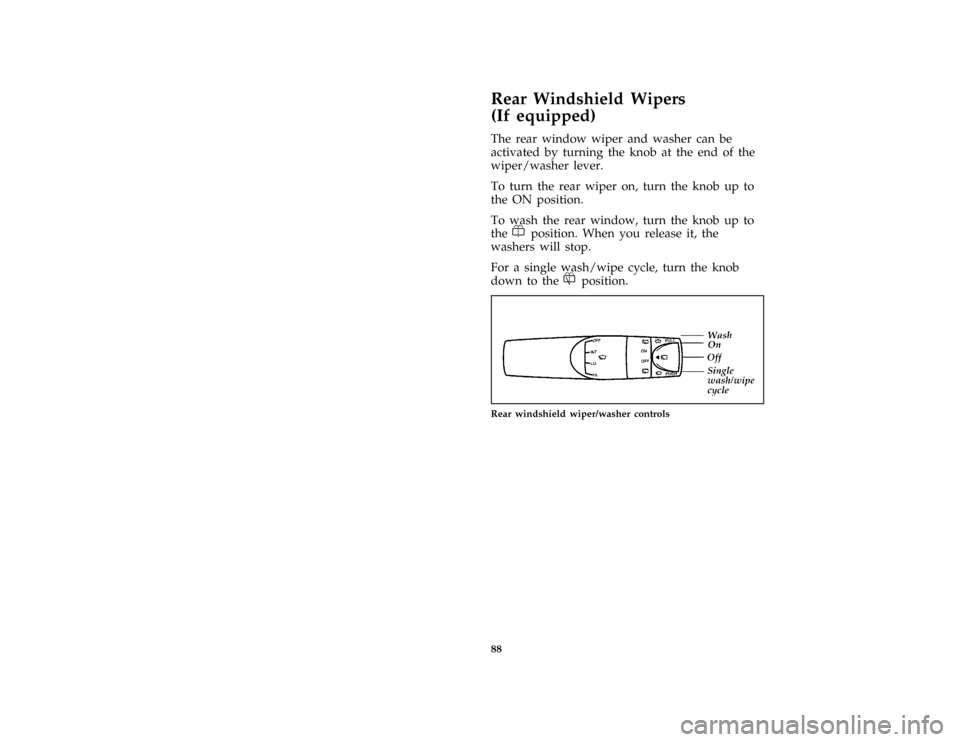

quarter page art:0032205-A
Rear windshield wiper/washer controls
File:07icscf.ex
Update:Wed Jan 24 14:50:00 1996
