Engine service FORD B MAX 2012 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Temporary Mobility Kit...............................155
Tyre Care..........................................................158
Using Winter Tyres.......................................159
Using Snow Chains......................................159
Tyre Pressure Monitoring System..........159
Changing a Road Wheel............................160
Technical Specifications...........................164
Capacities and Specific-ations
Vehicle Identification Plate.......................167
Vehicle Identification Number................168
Technical Specifications...........................168
Audio System
General Information......................................171
Audio unit - Vehicles With:AM/FM/CD..................................................172
Audio unit - Vehicles With:AM/FM/CD/Bluetooth............................177
Audio unit - Vehicles With: SonyAM/FM/CD..................................................182
Audio System Security...............................187
Compact Disc Player - Vehicles With:AM/FM/CD..................................................187
Compact Disc Player - Vehicles With:AM/FM/CD/Bluetooth/SonyAM/FM/CD.................................................190
Auxiliary Input Socket.................................194
Audio Troubleshooting...............................195
SYNC
General Information....................................196
Using Voice Recognition............................198
Using SYNC® With Your Phone............200
SYNC® Applications and Services..........211
Using SYNC® With Your MediaPlayer.............................................................213
SYNC® Troubleshooting...........................218
Appendices
Electromagnetic compatibility...............225
End User Licence Agreement..................226
4Table of Contents

Downloaded from www.Manualslib.com manuals search engine Engine air filter
Engine coolant
Engine coolant temperature
Engine oil
Explosive gas
Fan warning
Fasten seat belt
Front airbag
Front fog lamps
Fuel pump reset
Fuse compartment
Hazard warning flashers
Heated rear window
Heated windscreen
Interior luggage compartmentrelease
Jack
Lighting control
Low tyre pressure warning
Maintain correct fluid level
Panic alarm
Parking aid
Parking brake
Power steering fluid
Power windows front/rear
Power window lockout
Service engine soon
Side airbag
Stability control
Windscreen wash and wipe
6Introduction

Downloaded from www.Manualslib.com manuals search engine REPLACEMENT PARTS
RECOMMENDATION
Your vehicle has been built to the higheststandards using quality parts. Werecommend that you demand the use ofgenuine Ford and Motorcraft partswhenever your vehicle requires scheduledmaintenance or repair. You can clearlyidentify genuine Ford and Motorcraft partsby looking for the Ford, FoMoCo orMotorcraft branding on the parts or theirpackaging.
Scheduled Maintenance andMechanical Repairs
One of the best ways for you to make surethat your vehicle provides years of serviceis to have it maintained in line with ourrecommendations using parts thatconform to the specifications detailed inthis Owner’s Manual. Genuine Ford andMotorcraft parts meet or exceed thesespecifications.
Collision Repairs
We hope that you never experience acollision, but accidents do happen. GenuineFord replacement collision parts meet ourstringent requirements for fit, finish,structural integrity, corrosion protectionand dent resistance. During vehicledevelopment we validate these partsdeliver the intended level of protection asa whole system. A great way to know forsure you are getting this level of protectionis to use genuine Ford replacementcollision parts.
Warranty on Replacement Parts
Genuine Ford and Motorcraft replacementparts are the only replacement parts thatbenefit from a Ford Warranty. Damagecaused to your vehicle as a result of thefailure of non-Ford parts may not becovered by the Ford Warranty. Foradditional information, refer to the termsand conditions of the Ford Warranty.
MOBILE COMMUNICATIONS
EQUIPMENT
Using mobile communications equipmentis becoming increasingly important in theconduct of business and personal affairs.However, you must not compromise yourown or others’ safety when using suchequipment. Mobile communications canenhance personal safety and security whenappropriately used, particularly inemergency situations. Safety must beparamount when using mobilecommunications equipment to avoidnegating these benefits. Mobilecommunication equipment includes, butis not limited to, cellular phones, pagers,portable email devices, text messagingdevices and portable two-way radios.
WARNING
Driving while distracted can result inloss of vehicle control, accident andinjury. We strongly recommend thatyou use extreme caution when using anydevice or feature that may take your focusoff the road. Your primary responsibility isthe safe operation of your vehicle. Werecommend against the use of anyhandheld device while driving and that youcomply with all applicable laws.
7Introduction

Downloaded from www.Manualslib.com manuals search engine Menu
Ford EcoMode
Spd. Comp. Vol.Audio settings
Sound
Occupancy Mode
DSP Equaliser
News
Alt. Frequency
Regional Mode
DAB Servicelink
Bluetooth
Traction controlVehicle settings
Active City Stop
Deflation Detect
Hill Start Assist
Alarm
Powerfold Mirrors
Indicator
Ambient Light
Chimes
Set TimeClock Settings
Set Date
24H Mode
Units of MeasureDisplay Settings
Language
Dimming
System Check
60Information Displays

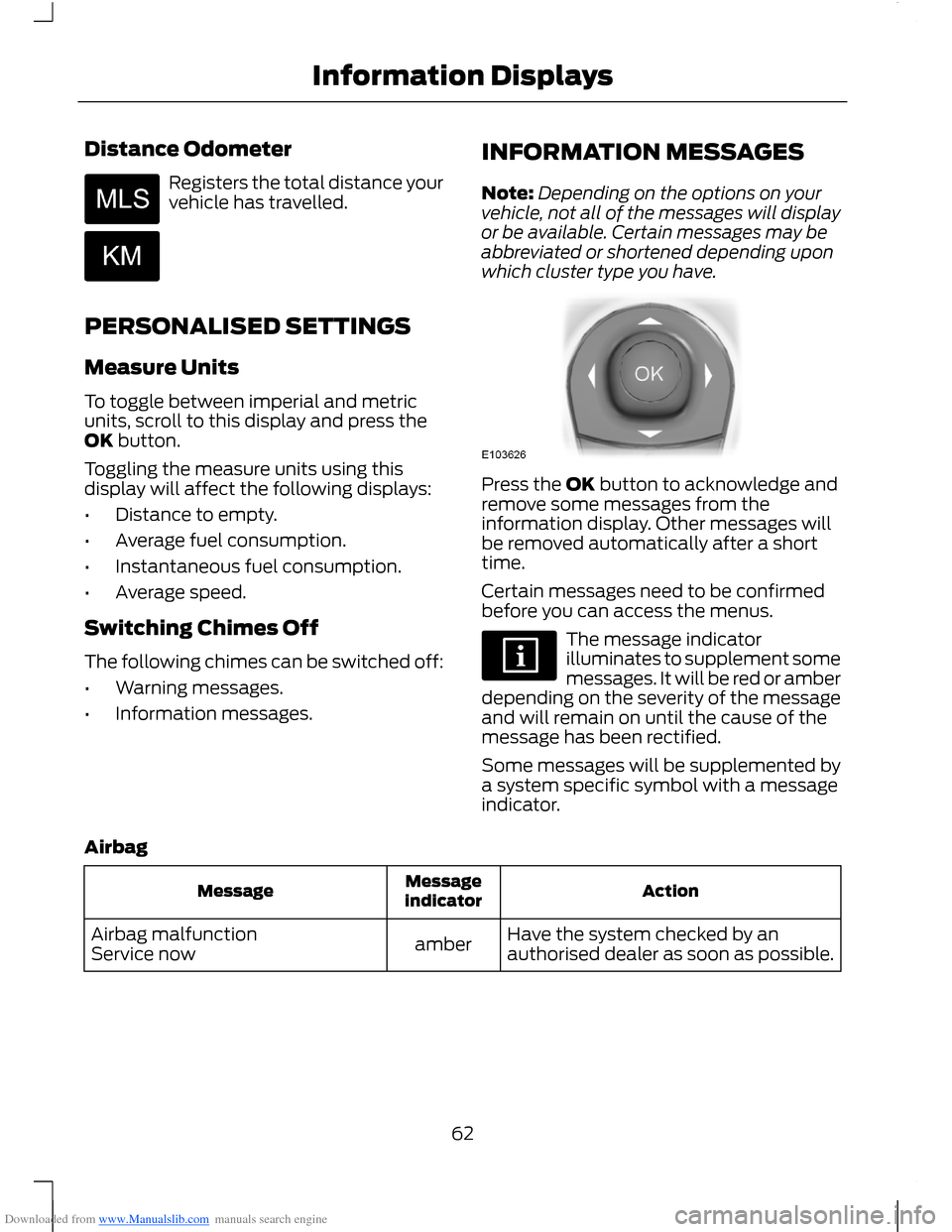

Downloaded from www.Manualslib.com manuals search engine Distance Odometer
Registers the total distance yourvehicle has travelled.
PERSONALISED SETTINGS
Measure Units
To toggle between imperial and metricunits, scroll to this display and press theOK button.
Toggling the measure units using thisdisplay will affect the following displays:
•Distance to empty.
•Average fuel consumption.
•Instantaneous fuel consumption.
•Average speed.
Switching Chimes Off
The following chimes can be switched off:
•Warning messages.
•Information messages.
INFORMATION MESSAGES
Note:Depending on the options on yourvehicle, not all of the messages will displayor be available. Certain messages may beabbreviated or shortened depending uponwhich cluster type you have.
Press the OK button to acknowledge andremove some messages from theinformation display. Other messages willbe removed automatically after a shorttime.
Certain messages need to be confirmedbefore you can access the menus.
The message indicatorilluminates to supplement somemessages. It will be red or amberdepending on the severity of the messageand will remain on until the cause of themessage has been rectified.
Some messages will be supplemented bya system specific symbol with a messageindicator.
Airbag
ActionMessageindicatorMessage
Have the system checked by anauthorised dealer as soon as possible.amberAirbag malfunctionService now
62Information Displays

Downloaded from www.Manualslib.com manuals search engine Alarm
ActionMessageindicatorMessage
See Security (page 35).amberAlarm triggeredCheck vehicle
See Security (page 35).amberInterior scan deactivated
Have the system checked by anauthorised dealer.-Alarm system malfunctionNext service
Doors Open
ActionMessageindicatorMessage
Vehicle is moving. Stop your vehicle assoon as safely possible and close.redDriver door open
Vehicle is moving. Stop your vehicle assoon as safely possible and close.redDriver's rear door open
Vehicle is moving. Stop your vehicle assoon as safely possible and close.redPassenger door open
Vehicle is moving. Stop your vehicle assoon as safely possible and close.redPassenger rear door open
Vehicle is moving. Stop your vehicle assoon as safely possible and close.redBoot open
Vehicle is moving. Stop your vehicle assoon as safely possible and close. SeeOpening and Closing the Bonnet(page 134).
redBonnet open
Vehicle not moving. Close.amberDriver door open
Vehicle not moving. Close.amberDriver's rear door open
Vehicle not moving. Close.amberPassenger door open
63Information Displays

Downloaded from www.Manualslib.com manuals search engine ActionMessageindicatorMessage
Vehicle not moving. Close.amberPassenger rear door open
Vehicle not moving. Close.amberBoot open
Vehicle not moving. Close. SeeOpening and Closing the Bonnet(page 134).amberBonnet open
Engine
ActionMessageindicatorMessage
See Starting a Diesel Engine (page86).amberEngine preheating
Engine Immobiliser
ActionMessageindicatorMessage
Have the system checked by anauthorised dealer as soon as possible.redImmobiliser malfunctionService now
Keyless System
ActionMessageindicatorMessage
See Keyless Entry (page 32).amberKey not detected
See Keyless Entry (page 32).amberKey outside car
See Remote Control (page 25).amberKeyBattery lowReplace battery
See Keyless Starting (page 83).amberTurn ignition offUse POWER button
See Keyless Starting (page 83).-To start press brake
64Information Displays

Downloaded from www.Manualslib.com manuals search engine ActionMessageindicatorMessage
See Keyless Starting (page 83).-To start press clutch
See Keyless Entry (page 32).-Close boot or use spare key
See Steering Wheel Lock (page 85).-Steering lock engagedTurn steering wheel
Lighting
ActionMessageindicatorMessage
See Changing a Bulb (page 143).-Left indicator malfunctionChange bulb
See Changing a Bulb (page 143).-Right indicator malfunctionChange bulb
Maintenance
ActionMessageindicatorMessage
See Brake and Clutch Fluid Check(page 141).redBrake fluidLevel lowService now
Have the system checked by anauthorised dealer immediately.redBrake system malfunctionStop safely
See Engine Oil Check (page 139).redEngine oil pressure lowStop safely
Have the system checked by anauthorised dealer as soon as possible.amberEngine malfunctionService now
Have the system checked by anauthorised dealer.amberAuto wiper/lights malfunctionNext service
Have the system checked by anauthorised dealer.-Engine oil change dueNext service
65Information Displays

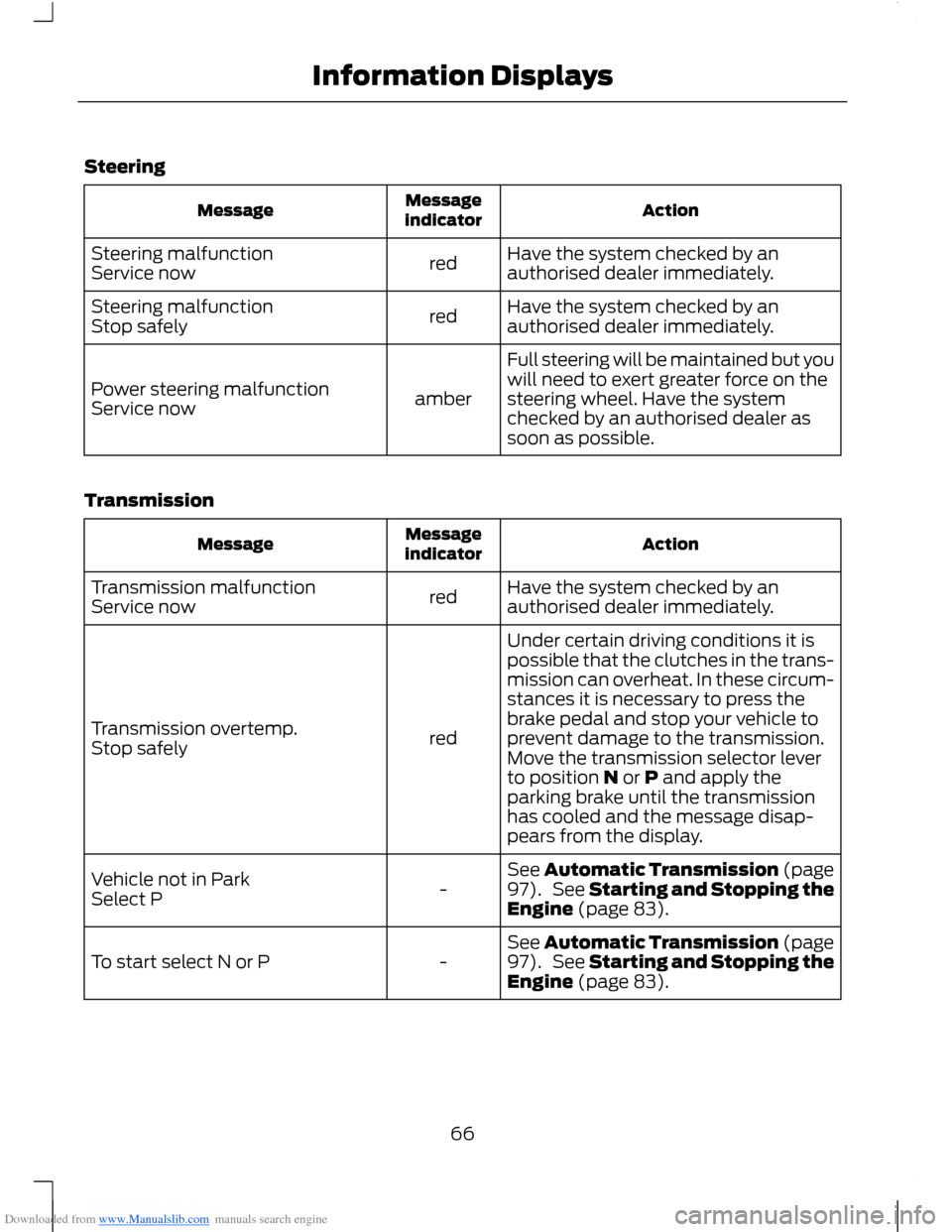

Downloaded from www.Manualslib.com manuals search engine Steering
ActionMessageindicatorMessage
Have the system checked by anauthorised dealer immediately.redSteering malfunctionService now
Have the system checked by anauthorised dealer immediately.redSteering malfunctionStop safely
Full steering will be maintained but youwill need to exert greater force on thesteering wheel. Have the systemchecked by an authorised dealer assoon as possible.
amberPower steering malfunctionService now
Transmission
ActionMessageindicatorMessage
Have the system checked by anauthorised dealer immediately.redTransmission malfunctionService now
Under certain driving conditions it ispossible that the clutches in the trans-mission can overheat. In these circum-stances it is necessary to press thebrake pedal and stop your vehicle toprevent damage to the transmission.Move the transmission selector leverto position N or P and apply theparking brake until the transmissionhas cooled and the message disap-pears from the display.
redTransmission overtemp.Stop safely
See Automatic Transmission (page97). See Starting and Stopping theEngine (page 83).-Vehicle not in ParkSelect P
See Automatic Transmission (page97). See Starting and Stopping theEngine (page 83).-To start select N or P
66Information Displays

Downloaded from www.Manualslib.com manuals search engine ActionMessageindicatorMessage
See Starting and Stopping theEngine (page 83).-To start press brake
See Automatic Transmission (page97). See Starting and Stopping theEngine (page 83).-To start select N
See Automatic Transmission (page97). See Starting and Stopping theEngine (page 83).-Door open apply brake
Stability Control
ActionMessageindicatorMessage
Have the system checked by anauthorised dealer as soon as possible.amberABS malfunctionService now
Have the system checked by anauthorised dealer.-ESP malfunctionNext service
See Using Stability Control (page103).-ESP off
Tyre Pressure Monitoring System
ActionMessageindicatorMessage
The pressure in one or more tyres hasdropped. Check as soon as possible.amberCheck Tyre pressures
Permanent malfunction. Have yourvehicle checked by an authoriseddealer.amberTyre pressure sys malfunctionservice required
67Information Displays
