FORD BRONCO 1988 Owners Manual

99
*
[IP17260(B FM)10/92]

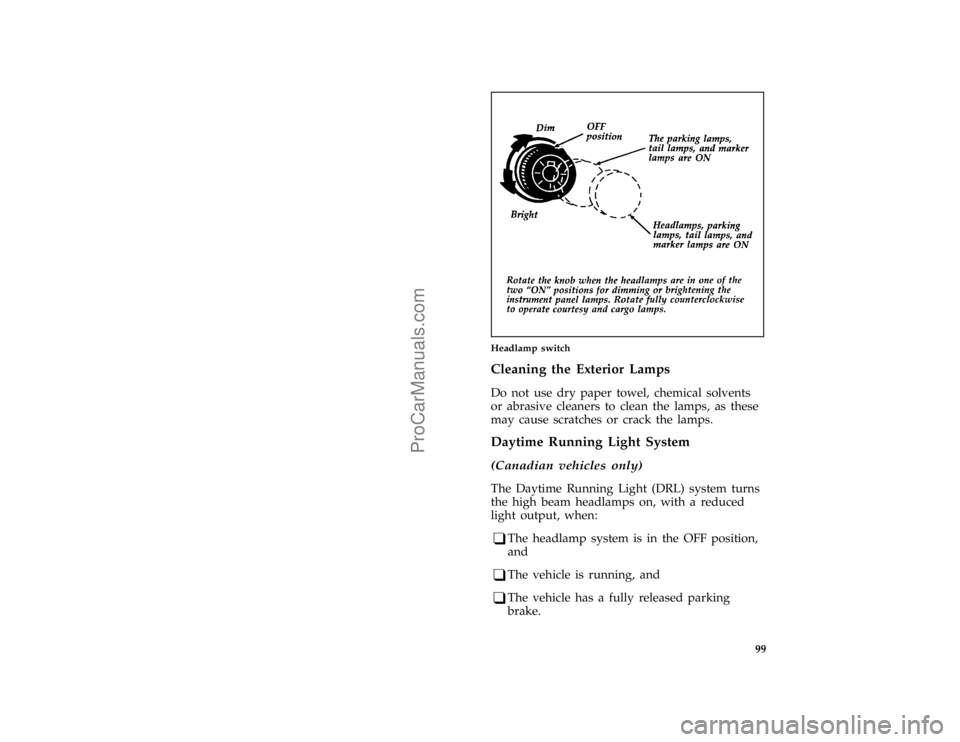

half page art:0020122-F
Headlamp switch
%*
[IP17400(BEF )05/95]
Cleaning the Exterior Lamps
*
[IP17500(BEF )05/95]
Do not use dry paper towel, chemical solvents
or abrasive cleaners to clean the lamps, as these
may cause scratches or crack the lamps.
*
[IP17815( ALL)01/95]
Daytime Running Light System
*
[IP17820( ALL)03/95]
(Canadian vehicles only)
*
[IP17830( ALL)03/95]
The Daytime Running Light (DRL) system turns
the high beam headlamps on, with a reduced
light output, when:
*
[IP17835( ALL)03/95]
q
The headlamp system is in the OFF position,
and
*
[IP17840( ALL)03/95]
q
The vehicle is running, and
*
[IP17850( ALL)01/95]
q
The vehicle has a fully released parking
brake.
File:ltipb.ex
Update:Fri Jun 9 15:29:43 1995
ProCarManuals.com

100
*
[IP17875( ALL)01/95]
NOTE: You may notice that the lights flicker
when the vehicle is turned on or off.
This is a normal condition.
*
[IP17890(BEF )05/95]
RWARNING
The Daytime Running Light (DRL) system
will not illuminate the tail lamps and
parking lamps. Turn on your headlamps
at dusk. Failure to do so may result in a
collision.
*
[IP17900(BEF )03/95]
Lighting Up the Instrument Panel and the
Interior of Your Vehicle
*
[IP18000(BEF )03/95]
The instrument panel lights can be turned on by
pulling the headlamp switch toward you to
either the first or outer position. You can
brighten or dim the instrument panel lights by
rotating the headlamp switch knob.
%*
[IP18400(BEF )03/95]
Cargo, Courtesy and Dome Lamps
*
[IP18700(BE )12/91]
Rear cargo lamps, equipped with an
ON/OFF/DOOR switch will light when the
doors are closed and the switch is in the ON
position.
*

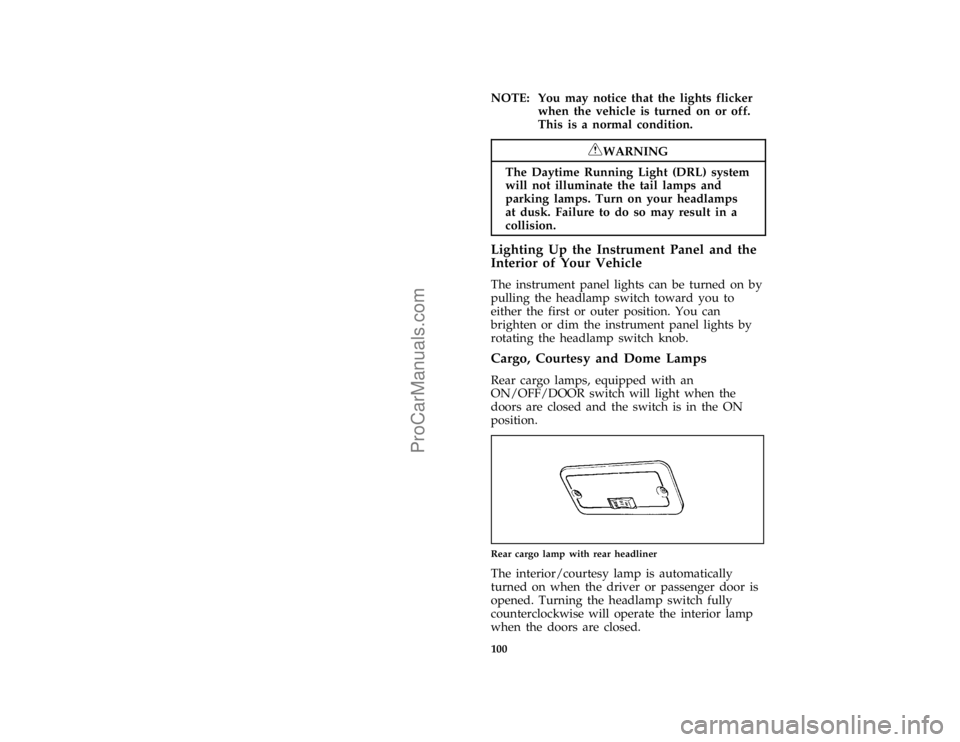

[IP19000(BE )05/95]
quarter page art:0020125-B
Rear cargo lamp with rear headliner
*
[IP19175(B F )05/90]
The interior/courtesy lamp is automatically
turned on when the driver or passenger door is
opened. Turning the headlamp switch fully
counterclockwise will operate the interior lamp
when the doors are closed.
File:ltipb.ex
Update:Fri Jun 9 15:29:43 1995
ProCarManuals.com

101
*

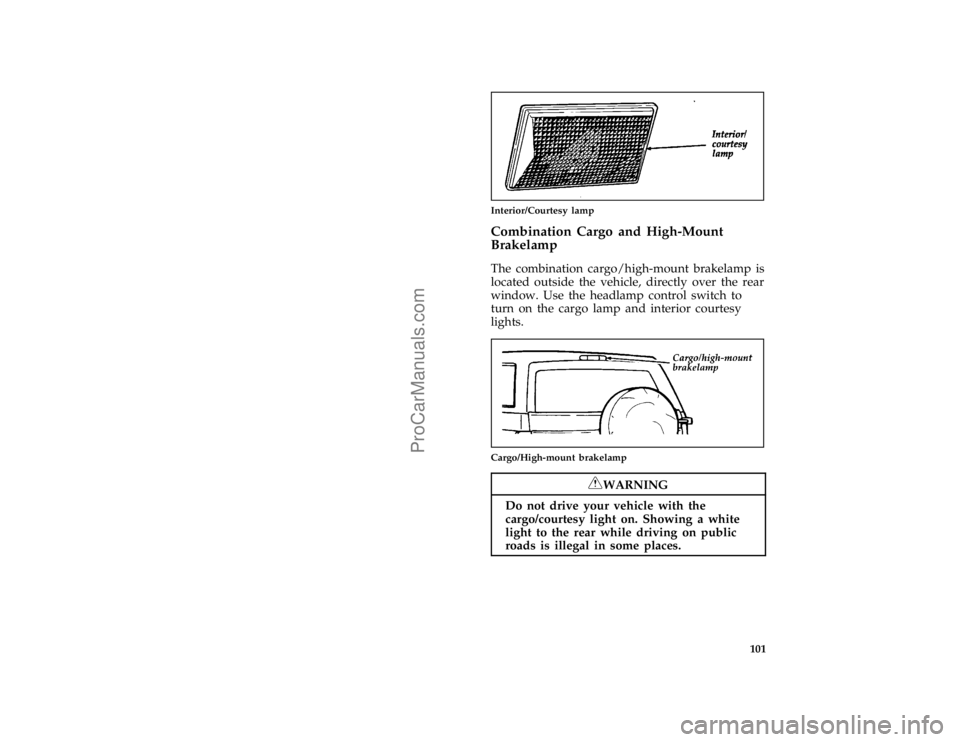

[IP19185(B F )05/95]
quarter page art:0020695-A
Interior/Courtesy lamp
*
[IP19190(B F )05/95]
Combination Cargo and High-Mount
Brakelamp
*
[IP19200(B F )05/95]
The combination cargo/high-mount brakelamp is
located outside the vehicle, directly over the rear
window. Use the headlamp control switch to
turn on the cargo lamp and interior courtesy
lights.
[IP19375(B )07/93]
quarter page art:0021013-B
Cargo/High-mount brakelamp
*
[IP19400(B F )05/91]
RWARNING
Do not drive your vehicle with the
cargo/courtesy light on. Showing a white
light to the rear while driving on public
roads is illegal in some places.
File:ltipb.ex
Update:Fri Jun 9 15:29:43 1995
ProCarManuals.com

102
*
[IP19705(B F )07/94]
Turning On the Dome/Map Reading
Lamps (If equipped)
*
[IP19805(B F )07/94]
The map lamps are located inside the dome light
assembly, on each side of the dome light. Each
lamp has its own switch.
[IP19820(B )03/93]
If you have the Bronco Eddie Bauer, the map
lamps are located in the overhead console. Each
lamp has its own switch.

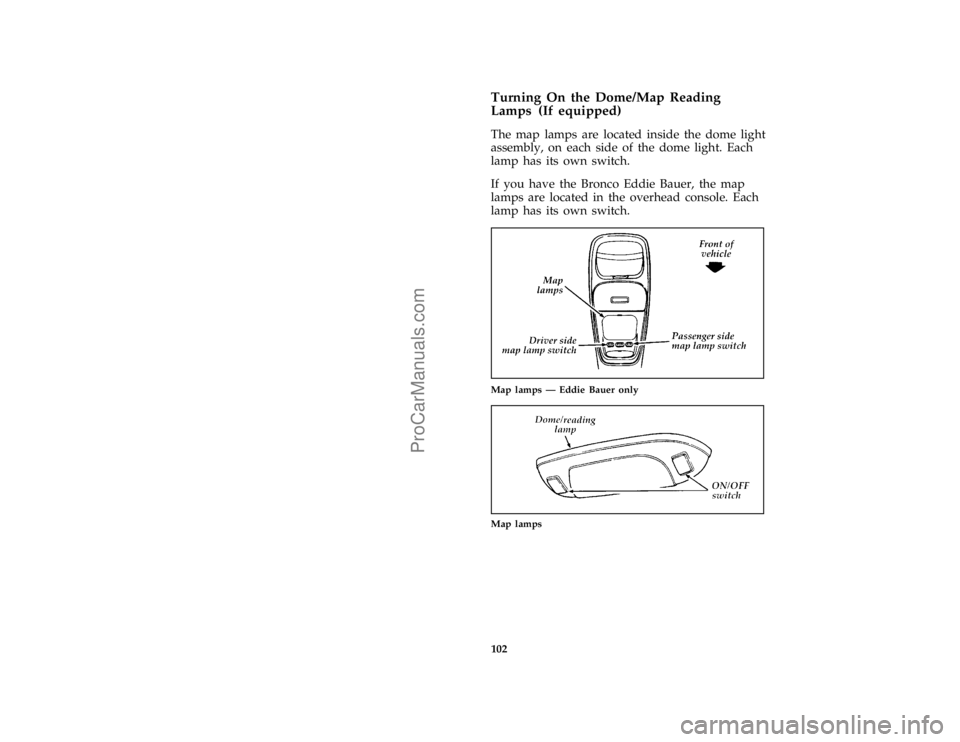

[IP19885(B )05/94]
one third page art:0021077-B
Map lamps Ð Eddie Bauer only
*
[IP19900(B F )05/94]
quarter page art:0020127-B
Map lamps
File:ltipb.ex
Update:Fri Jun 9 15:29:43 1995
ProCarManuals.com

103 %
*
[IP20060(BEF )04/95]
Cleaning the Instrument Panel Lens
*
[IP20070(BEF )04/95]
Clean the instrument panel lens with a soft cloth
and a glass cleaner, such as Ford Ultra-Clear
Spray Glass Cleaner, or equivalent. Do not use
paper towel or an abrasive cleaner to clean the
lens as these may cause scratches.
%*
[IP20075(BEF )04/95]
Cleaning the Interior Lamps
*
[IP20080(BEF )04/95]
Your interior dome lamps and map lamps are
plastic and should be cleaned with a mild
detergent diluted in water. Rinse them with clear
water.
File:ltipb.ex
Update:Fri Jun 9 15:29:43 1995
ProCarManuals.com

105
Steering Column Controls
*
[SC00400( ALL)01/95]
The controls on the steering column and wheel
are designed to give you easy access to the
controls while you are driving.
*
[SC00500( ALL)01/95]
The Turn Signal Lever
*
[SC00600( ALL)01/95]
You can use the turn signal lever on the left side
of the steering column to:
*
[SC00700( ALL)03/95]
q
operate the turn signals and cornering lamps
*
[SC00800(BEF )01/95]
q
turn the high beams on/off
*
[SC00900(BEF )01/95]
q
flash the lights
*
[SC01000(BEF )01/95]
q
turn the windshield wipers and washer
on/off
*
[SC01100( ALL)01/95]
Turn Signals
*
[SC01200( ALL)03/95]
Move the lever up to signal a right turn. Move
it down to signal a left turn. The corresponding
indicator light in the instrument cluster will
flash.
*
[SC01400( ALL)03/95]
If the turn signal stays on after you turn, move
the lever back to the center (off) position.
File:ltscb.ex
Update:Fri Jun 9 15:29:08 1995
ProCarManuals.com

106
*

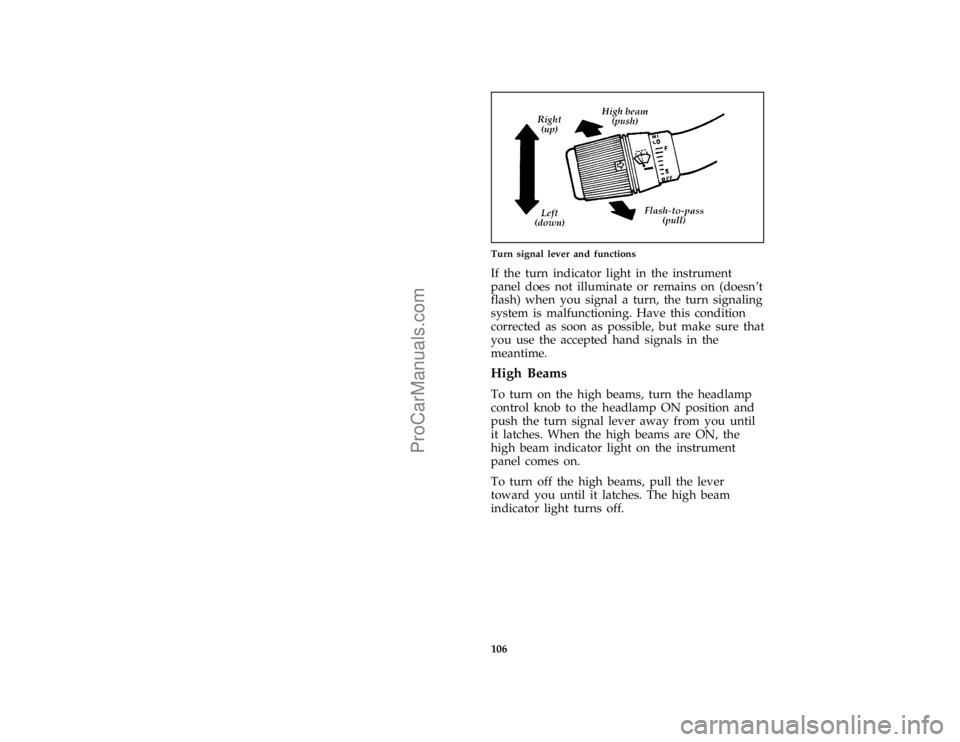

[SC01700( ALL)01/94]
one third page art:0020081-C
Turn signal lever and functions
*
[SC01800( ALL)11/89]
If the turn indicator light in the instrument
panel does not illuminate or remains on (doesn't
flash) when you signal a turn, the turn signaling
system is malfunctioning. Have this condition
corrected as soon as possible, but make sure that
you use the accepted hand signals in the
meantime.
*
[SC03200( ALL)03/95]
High Beams
*
[SC03300( ALL)05/95]
To turn on the high beams, turn the headlamp
control knob to the headlamp ON position and
push the turn signal lever away from you until
it latches. When the high beams are ON, the
high beam indicator light on the instrument
panel comes on.
*
[SC03400( ALL)03/95]
To turn off the high beams, pull the lever
toward you until it latches. The high beam
indicator light turns off.
File:ltscb.ex
Update:Fri Jun 9 15:29:08 1995
ProCarManuals.com

107
*
[SC03800( ALL)03/95]
one third page art:0020074-B
Headlamp high beam switch and turn signal lever
*
[SC04200( ALL)05/95]
Flashing the Lights
*
[SC04300( ALL)05/95]
To flash the headlamps, pull the lever toward
you for a moment and then release it. The
headlamps will flash whether the headlamp
knob is on or off.
*
[SC04400( ALL)03/95]
Windshield Wipers and Washer
*
[SC04500( ALL)03/95]
To turn on the windshield wipers, the ignition
key must be turned to the ON or ACC position.
*
[SC04600( ALL)03/95]
Turn the knob on the end of the turn signal
lever toward the front of the vehicle. You can
turn it to either the LO or HI speed position.
*
[SC04700( ALL)03/95]
Variable Interval Wipers
*
[SC04800( ALL)03/95]
In addition to two speed wipers, your vehicle is
equipped with wipers that you can set to
operate at varying intervals. For example, you
can set the interval so they wipe less often when
it drizzles or more often in heavier rain.
File:ltscb.ex
Update:Fri Jun 9 15:29:08 1995
ProCarManuals.com

108
*
[SC04950( ALL)10/92]
one third page art:0020831-A
Interval wiper on turn signal lever
*
[SC05000( ALL)02/95]
To set the interval wipers, rotate the knob at the
end of the turn signal lever toward or away
from the instrument panel to the interval
operation you desire.
*
[SC05100( ALL)04/95]
Windshield Washer
*
[SC05200( ALL)03/95]
To clean the windshield, push in the end of the
wiper knob. For a constant spray, keep the knob
pushed in. After you release the knob, the
wipers operate for two to three cycles before
turning off (if wipers were off) or returning to
HI, LO, or the interval setting selected.
*
[SC05300( ALL)01/95]
Do not try to clean the windshield when the
washer fluid container is empty or activate the
washers at any time for more than 15 seconds
continuously. This could damage the washer
pump system.
File:ltscb.ex
Update:Fri Jun 9 15:29:08 1995
ProCarManuals.com

109
*
[SC05400( ALL)01/93]
RWARNING
In freezing weather, the washer solution
may freeze on the windshield and obscure
your vision. Always warm up the
windshield with the defroster before you
use the washer fluid. If you cannot see
through the windshield clearly, it can
increase the risk of being involved in a
collision.
*
[SC05500(BEF )04/95]
For information about refilling the washer fluid
or replacing your windshield wiper blades, see
Windshield washer fluid and Wipersin the Index.
%
*
[SC05510( ALL)03/95]
Hazard Flasher
*
[SC05520( ALL)04/95]
The hazard flasher is used to alert other drivers
to hazardous situations.
*
[SC05527(BE )10/94]
The flashers will flash and the high-mount
brakelamp will stay on steadily (not flash) with
the brake pedal depressed.
*
[SC05530( ALL)03/95]
The flashers work whether your vehicle is
running or not. The flashers work for up to two
hours when the battery is fully charged and in
good condition without draining the battery
excessively. If the flashers run for longer than
two hours or if the battery is not fully charged,
the battery can be drained.
*
[SC05540( ALL)09/93]
To use the hazard flasher:
*
[SC05550( ALL)10/92]
1. Push in the flasher button; it will pop out
and the lamps will begin to flash.
*
[SC05560( ALL)10/92]
2. To stop the flashers, push in the flasher
button again.
*
[SC05562( ALL)10/92]
NOTE: The flasher button will be sticking up
slightly higher when ON than when
OFF.
