FORD BRONCO 1988 Owners Manual
Manufacturer: FORD, Model Year: 1988, Model line: BRONCO, Model: FORD BRONCO 1988Pages: 376, PDF Size: 3.33 MB
Page 141 of 376
![FORD BRONCO 1988 Owners Manual 141
*
[FV60200(B F )12/91]
three fourths page art:0020909-A

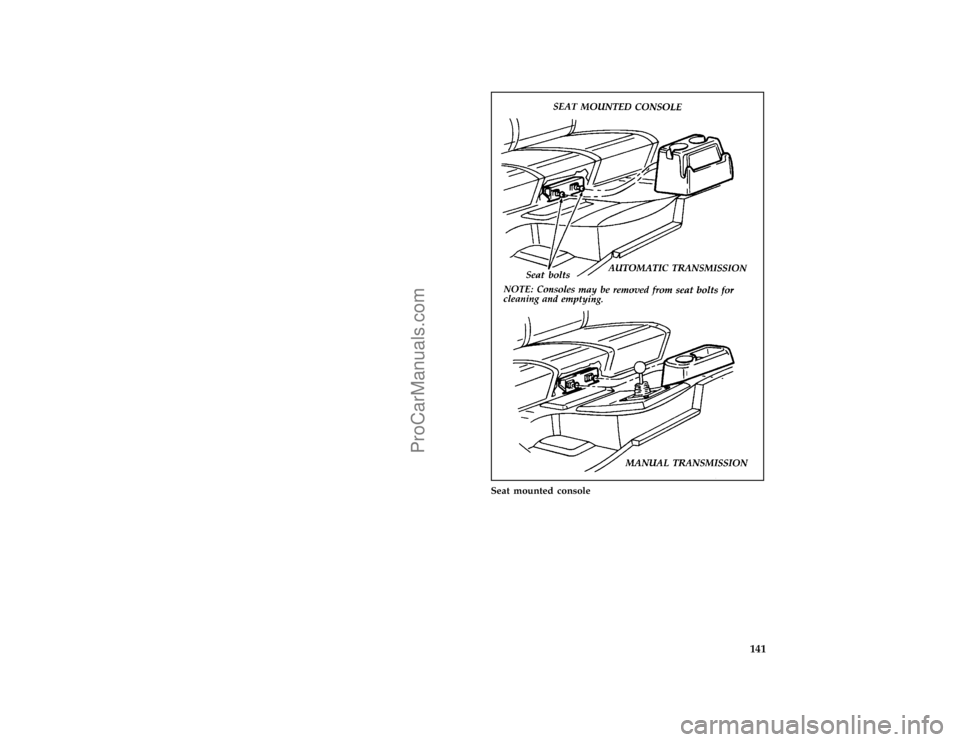

Seat mounted console
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com FORD BRONCO 1988 Owners Manual 141
*
[FV60200(B F )12/91]
three fourths page art:0020909-A
Seat mounted console
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com](/img/11/57754/w960_57754-140.png)
141
*
[FV60200(B F )12/91]
three fourths page art:0020909-A
Seat mounted console
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com
Page 142 of 376
![FORD BRONCO 1988 Owners Manual 142
[FV60350(B )03/93]
Overhead Console (Eddie Bauer
only)
[FV60450(B )05/95]
Your Eddie Bauer Bronco comes with an
overhead console located between the sun visors.
The console includes:
*
[FV60500(B FORD BRONCO 1988 Owners Manual 142
[FV60350(B )03/93]
Overhead Console (Eddie Bauer
only)
[FV60450(B )05/95]
Your Eddie Bauer Bronco comes with an
overhead console located between the sun visors.
The console includes:
*
[FV60500(B](/img/11/57754/w960_57754-141.png)
142
[FV60350(B )03/93]
Overhead Console (Eddie Bauer
only)
[FV60450(B )05/95]
Your Eddie Bauer Bronco comes with an
overhead console located between the sun visors.
The console includes:
*
[FV60500(B )03/93]
q
Compass/temperature display
*
[FV60600(B )03/93]
q
Map lamps
*
[FV60700(B )03/93]
q
Storage compartment
*
[FV60800(B )03/93]
Compass/Temperature display
*
[FV60900(B )05/95]
This display provides the outside temperature
and the compass direction of the vehicle.
*
[FV60920(B )03/93]
The MODE button is used to select one of the
following features:
*
[FV60940(B )03/93]
q
Display Off
*
[FV60960(B )03/93]
q
Temp in ÊF and Compass
*
[FV60980(B )03/93]
q
Temp in ÊC and Compass
[FV61001(B )05/95]

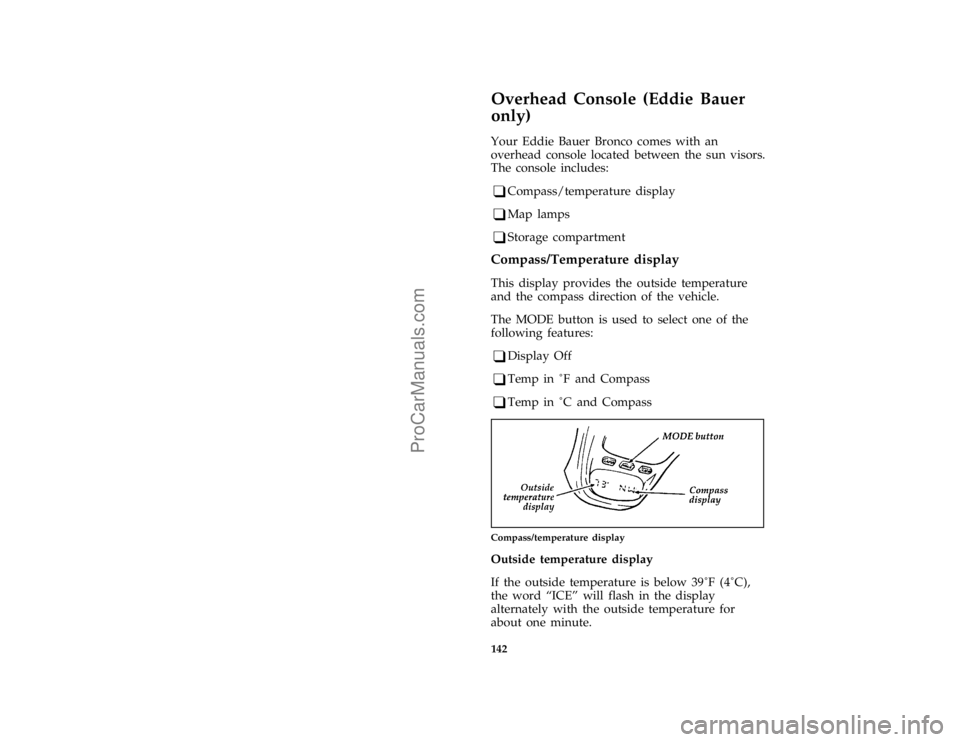

quarter page art:0020980-B
Compass/temperature display
[FV61100(B )03/93]
Outside temperature display
*
[FV61150(B )05/95]
If the outside temperature is below39ÊF (4ÊC),
the word ªICEº will flash in the display
alternately with the outside temperature for
about one minute.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com
Page 143 of 376
![FORD BRONCO 1988 Owners Manual 143 [FV61400(B )05/95]
Electronic Compass
[FV61500(B )03/93]
Factors affecting compass accuracy
*
[FV61600(B )01/95]
The compass reading can be affected when you
drive near a number of things Ð such FORD BRONCO 1988 Owners Manual 143 [FV61400(B )05/95]
Electronic Compass
[FV61500(B )03/93]
Factors affecting compass accuracy
*
[FV61600(B )01/95]
The compass reading can be affected when you
drive near a number of things Ð such](/img/11/57754/w960_57754-142.png)
143 [FV61400(B )05/95]
Electronic Compass
[FV61500(B )03/93]
Factors affecting compass accuracy
*
[FV61600(B )01/95]
The compass reading can be affected when you
drive near a number of things Ð such as large
buildings, bridges, power lines, and powerful
antennas.
*
[FV61700(B )05/95]
Your compass can also be affected by magnetic
or metallic objects placed in or on the vehicle. If
the compass is giving inaccurate readings,
perform the following compass adjustments.
[FV61800(B )03/93]
Compass adjustments
*
[FV61900(B )05/95]
There are two possible adjustments to the
compass: Zone and Calibration.
[FV62050(B )05/95]
Zone adjustment
*
[FV62100(B )03/93]
1. Determine which zone of the country you
are in by referring to the following zone
map.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com
Page 144 of 376
![FORD BRONCO 1988 Owners Manual 144 [FV62200(B )03/93]
half page art:0080142-CZone map
*
[FV62300(B )03/93]
2. Press and hold the ªMODEº button until the
ªVARº indicator appears in the display
(approximately 4 seconds).
*
[FV624 FORD BRONCO 1988 Owners Manual 144 [FV62200(B )03/93]
half page art:0080142-CZone map
*
[FV62300(B )03/93]
2. Press and hold the ªMODEº button until the
ªVARº indicator appears in the display
(approximately 4 seconds).
*
[FV624](/img/11/57754/w960_57754-143.png)
144 [FV62200(B )03/93]
half page art:0080142-CZone map
*
[FV62300(B )03/93]
2. Press and hold the ªMODEº button until the
ªVARº indicator appears in the display
(approximately 4 seconds).
*
[FV62400(B )03/93]
3. Release the ªMODEº button. The display
will now show the current zone number that
is stored in the compass.
*
[FV62500(B )03/93]
4. Press the ªMODEº button repeatedly (or
press and hold in) until the desired zone
number appears in the display (once it
reaches 15, the next press of the button will
set it to 1).
*
[FV62600(B )03/93]
5. Release the ªMODEº button when the
desired zone number is displayed.
*
[FV62700(B )05/95]
After approximately three seconds the display
will flash all segments and then return to normal
operation. Zone is now updated.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com
Page 145 of 376
![FORD BRONCO 1988 Owners Manual 145 [FV62850(B )05/95]
Calibration adjustment
*
[FV62900(B )03/93]
1. Find an open area that is free from steel
structures and high voltage lines. An open
parking lot is a good example.
*
[FV63000(B ) FORD BRONCO 1988 Owners Manual 145 [FV62850(B )05/95]
Calibration adjustment
*
[FV62900(B )03/93]
1. Find an open area that is free from steel
structures and high voltage lines. An open
parking lot is a good example.
*
[FV63000(B )](/img/11/57754/w960_57754-144.png)
145 [FV62850(B )05/95]
Calibration adjustment
*
[FV62900(B )03/93]
1. Find an open area that is free from steel
structures and high voltage lines. An open
parking lot is a good example.
*
[FV63000(B )03/93]
2. Press and hold the ªMODEº button until the
ªCALº indicator appears in the display
(approximately 8 seconds).
*
[FV63050(B )05/95]
NOTE: You cannot perform calibration unless
the display reads ªCAL.º
*
[FV63100(B )03/93]
3. Release the ªMODEº button.
*
[FV63300(B )03/93]
4. Once the ªCALº indicator has appeared,
drive the vehicle slowly (less than 3 mph /
5 km/h) in360Êcircles until the ªCALº
indicator turns off. This will happen within 2
to 3 complete circles.
*
[FV63800(B )03/93]
Map lamps
*
[FV63900(B )03/93]
The map lamps are located in the overhead
console. The driver and passenger side each has
its own switch.
[FV64050(B )05/94]
one third page art:0021077-B

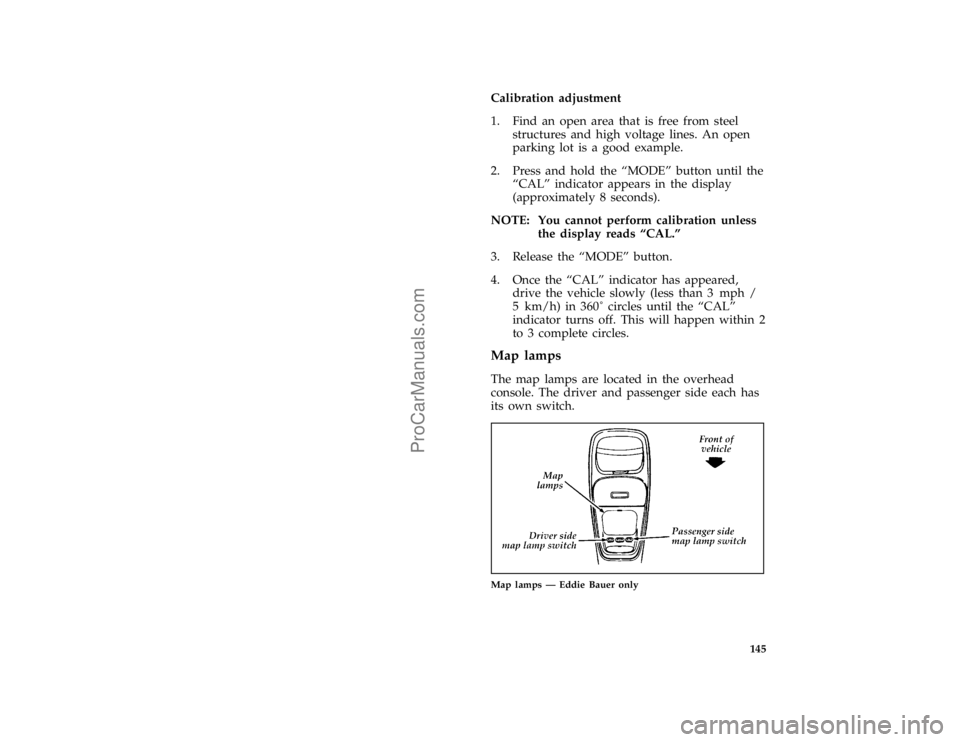

Map lamps Ð Eddie Bauer only
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com
Page 146 of 376
![FORD BRONCO 1988 Owners Manual 146
*
[FV64100(B )03/93]
Storage Compartment
*
[FV64200(B )03/93]
The storage compartment can be accessed by
pushing the ªOPENº button. The door will open
approximately one inch then it can be manua FORD BRONCO 1988 Owners Manual 146
*
[FV64100(B )03/93]
Storage Compartment
*
[FV64200(B )03/93]
The storage compartment can be accessed by
pushing the ªOPENº button. The door will open
approximately one inch then it can be manua](/img/11/57754/w960_57754-145.png)
146
*
[FV64100(B )03/93]
Storage Compartment
*
[FV64200(B )03/93]
The storage compartment can be accessed by
pushing the ªOPENº button. The door will open
approximately one inch then it can be manually
moved to the full open position.
*
[FV64300(B )03/93]
The compartment can be used to store a variety
of items such as: tissues, parking pass, cigarettes
or sunglasses.
*
[FV64400(B )03/93]
Use as Garage Door Opener
*
[FV64500(B )03/93]
The door can be converted from ªUtilityº
storage to a housing and means of actuating a
variety of ªaftermarketº garage door opener
transmitters.
*
[FV64600(B )03/93]
Removal of storage clip
*
[FV64700(B )03/93]
In order to convert the door, simply remove the
utility storage clip from the back side of the
door as shown in the following illustration.

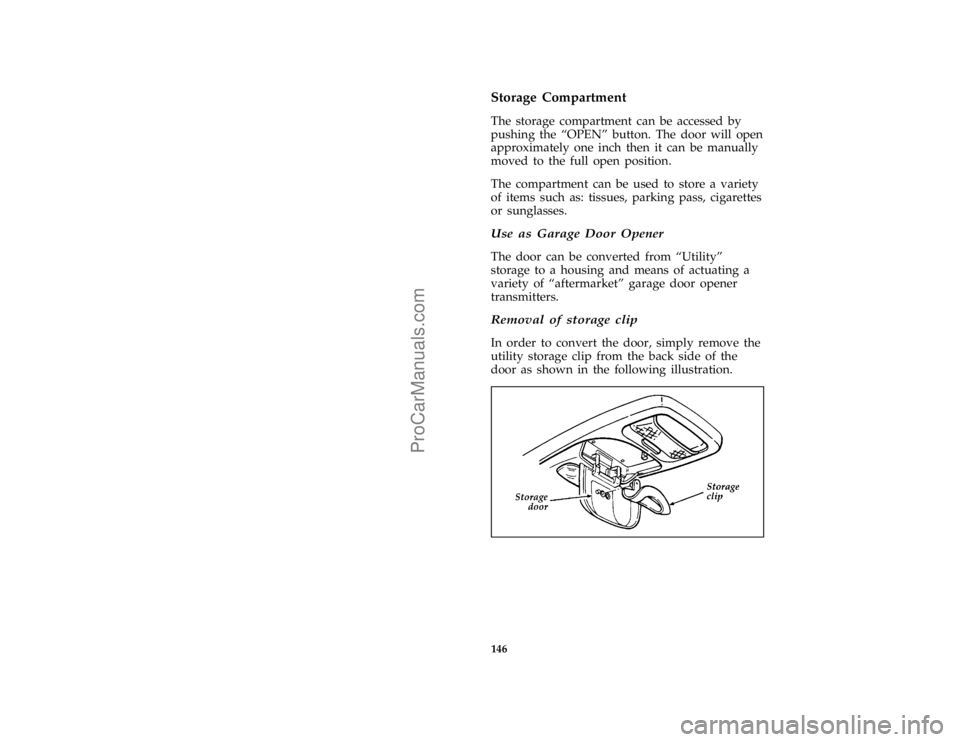

[FV64850(B )05/93]
one third page art:0021079-AFile:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com
Page 147 of 376
![FORD BRONCO 1988 Owners Manual 147
*
[FV64900(B )03/93]
Installing ªaftermarketº transmitter
*
[FV65000(B )03/93]
Place the piece of Velcro hook onto your
aftermarket transmitter, opposite side as that of
the actuator button.
*
[ FORD BRONCO 1988 Owners Manual 147
*
[FV64900(B )03/93]
Installing ªaftermarketº transmitter
*
[FV65000(B )03/93]
Place the piece of Velcro hook onto your
aftermarket transmitter, opposite side as that of
the actuator button.
*
[](/img/11/57754/w960_57754-146.png)
147
*
[FV64900(B )03/93]
Installing ªaftermarketº transmitter
*
[FV65000(B )03/93]
Place the piece of Velcro hook onto your
aftermarket transmitter, opposite side as that of
the actuator button.
*
[FV65100(B )03/93]
Place the transmitter into the console housing,
button down, as shown. Place the height
adapters provided into the back side of the
ªGARAGEº button as needed. Some larger
transmitters will not need the adapters, and
some smaller ones may need two adapters.
*
[FV65200(B )03/93]
The transmitter can now be activated without
opening the door. Simply depress the
ªGARAGEº button.
[FV65350(B )05/93]

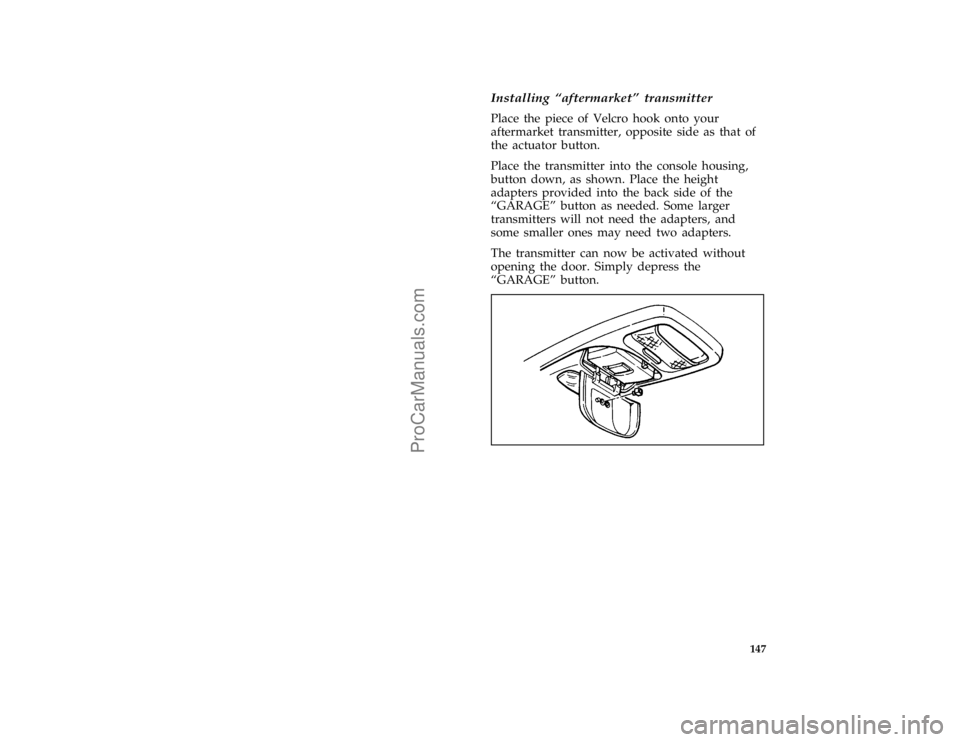

one third page art:0021080-AFile:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com
Page 148 of 376
![FORD BRONCO 1988 Owners Manual 148
*
[FV69900(BEF )03/95]
Power Point Electrical Outlet
*
[FV70000(B F )05/94]
The power point outlet is located on the
instrument panel to the right of the shift lever.
This outlet should be used in FORD BRONCO 1988 Owners Manual 148
*
[FV69900(BEF )03/95]
Power Point Electrical Outlet
*
[FV70000(B F )05/94]
The power point outlet is located on the
instrument panel to the right of the shift lever.
This outlet should be used in](/img/11/57754/w960_57754-147.png)
148
*
[FV69900(BEF )03/95]
Power Point Electrical Outlet
*
[FV70000(B F )05/94]
The power point outlet is located on the
instrument panel to the right of the shift lever.
This outlet should be used in place of the
cigarette lighter for optional electrical accessories.
*
[FV70200(BEF )06/92]
NOTE: Do not use the cigarette lighter in
place of the power point.
*
[FV70300(B F )06/92]
quarter page art:0020929-A
Power point electrical outlet
*
[FV70500(B F )07/92]
To access the outlet, lift up the hinged cover.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com
Page 149 of 376
![FORD BRONCO 1988 Owners Manual 149
Electronic Sound Systems
*
[AS01100(BEF )04/95]
full page art:0060648-B

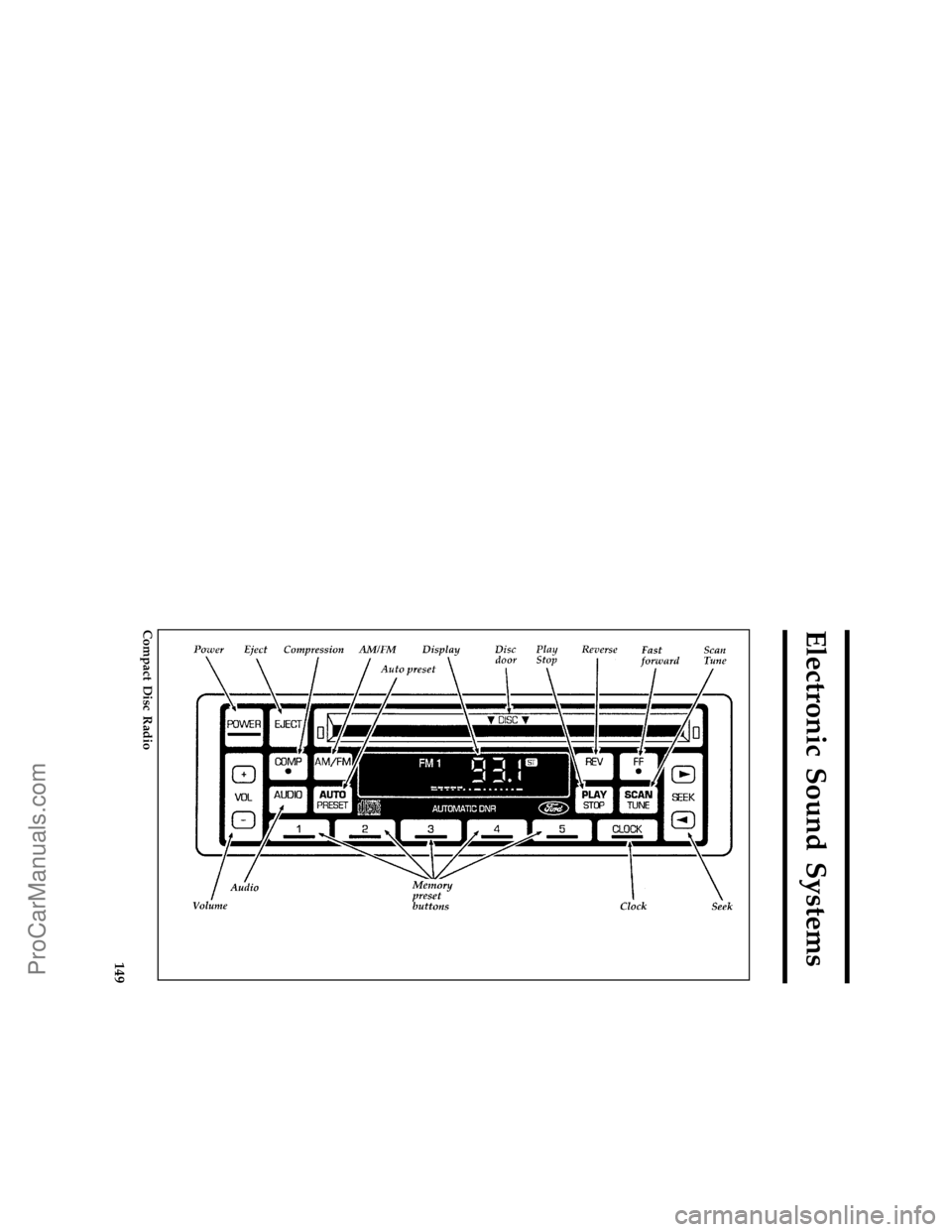

Compact Disc Radio
File:ltasb.ex
Update:Fri Jun 9 15:27:22 1995
ProCarManuals.com FORD BRONCO 1988 Owners Manual 149
Electronic Sound Systems
*
[AS01100(BEF )04/95]
full page art:0060648-B
Compact Disc Radio
File:ltasb.ex
Update:Fri Jun 9 15:27:22 1995
ProCarManuals.com](/img/11/57754/w960_57754-148.png)
149
Electronic Sound Systems
*
[AS01100(BEF )04/95]
full page art:0060648-B
Compact Disc Radio
File:ltasb.ex
Update:Fri Jun 9 15:27:22 1995
ProCarManuals.com
Page 150 of 376
![FORD BRONCO 1988 Owners Manual 150
*
[AS01200(BEF )04/95]
Compact Disc Radio
*
[AS01250(BEF )05/95]
The Compact Disc Radio combines the Electronic
Stereo Radio with the Ford Compact Disc Player.
*
[AS01300(BEF )04/95]
Using the Con FORD BRONCO 1988 Owners Manual 150
*
[AS01200(BEF )04/95]
Compact Disc Radio
*
[AS01250(BEF )05/95]
The Compact Disc Radio combines the Electronic
Stereo Radio with the Ford Compact Disc Player.
*
[AS01300(BEF )04/95]
Using the Con](/img/11/57754/w960_57754-149.png)
150
*
[AS01200(BEF )04/95]
Compact Disc Radio
*
[AS01250(BEF )05/95]
The Compact Disc Radio combines the Electronic
Stereo Radio with the Ford Compact Disc Player.
*
[AS01300(BEF )04/95]
Using the Controls on Your New Radio/CD
Player
*
[AS01400(BEF )04/95]
Most of the features of this unit work for both
radio and CD operation. Also, some of the knobs
and buttons control several different functions,
so be sure to read all of the operating
instructions carefully.
*
[AS01500(BEF )04/95]
How to turn the radio on and off
*
[AS01600(BEF )04/95]
Press the ªPOWERº button to turn the radio on.
Press it again to turn it off.
*
[AS01625(BEF )04/95]
How to adjust the volume
*
[AS01650(BEF )05/95]
Press the (+/±) side of the ªVOLº button to
increase/decrease the volume. Bars illuminate in
the display to show the relative volume level.
*
[AS01675(BEF )04/95]
NOTE: If the volume level is set above a
certain listening level when the
ignition switch is turned off, when the
ignition switch is turned back on, the
volume will come back to a ªnominalº
listening level. However, if the radio
power is turned off (with the
ªPOWERº button), the volume will
remain in the position it was set at
when radio power is switched back on.
*
[AS01700(BEF )04/95]
Selecting the AM or FM frequency band
*
[AS01800(BEF )04/95]
Push the ªAM/FMº button to select the desired
frequency band. When in the radio mode,
pushing the button more than once will alternate
between AM, FM1 and FM2. These functions are
used with the station memory buttons described
underHow to tune radio stations.
File:ltasb.ex
Update:Fri Jun 9 15:27:22 1995
ProCarManuals.com
