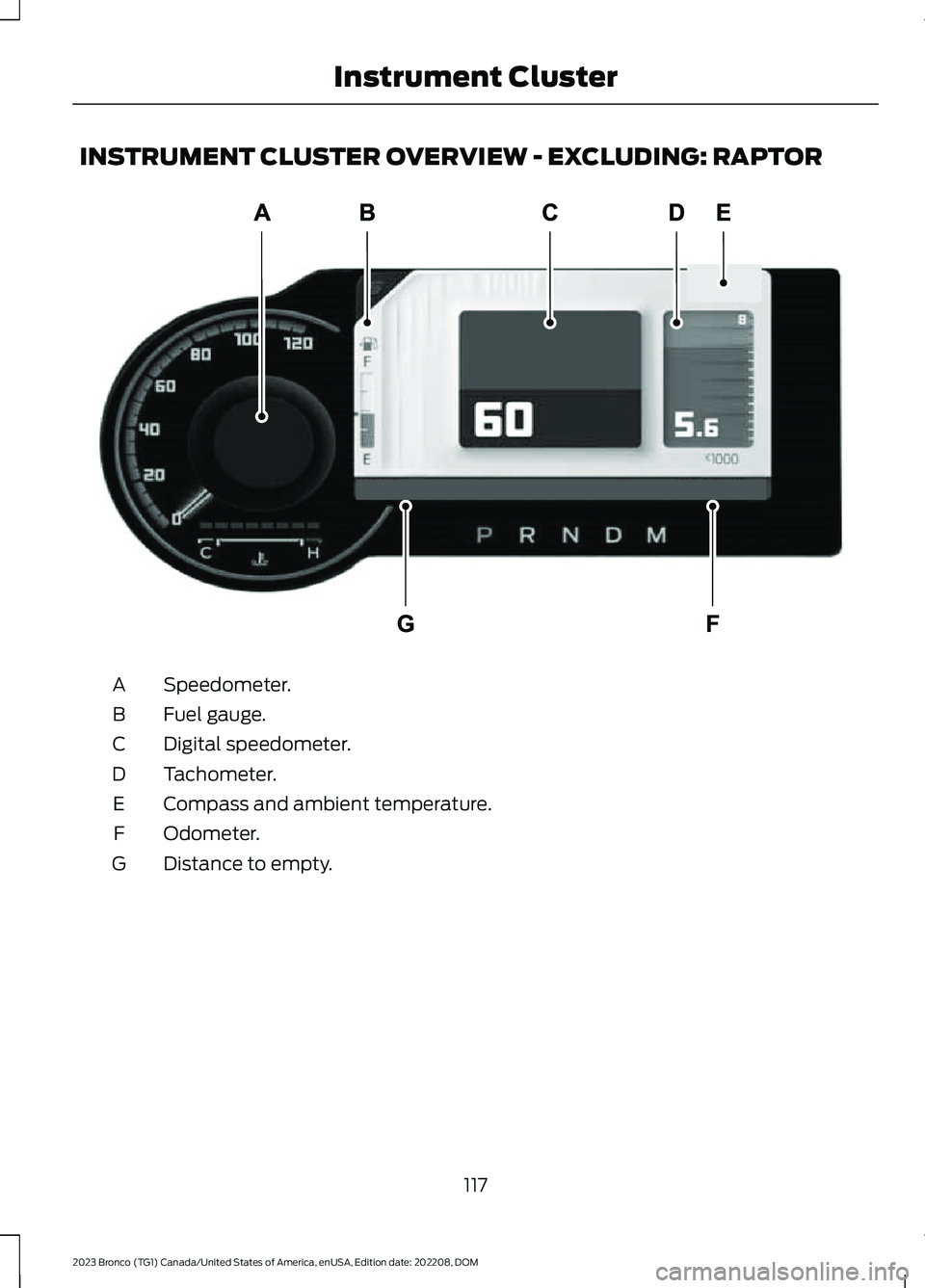

INSTRUMENT CLUSTER OVERVIEW - EXCLUDING: RAPTOR
Speedometer.A
Fuel gauge.B
Digital speedometer.C
Tachometer.D
Compass and ambient temperature.E
Odometer.F
Distance to empty.G
117
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMInstrument ClusterE328319

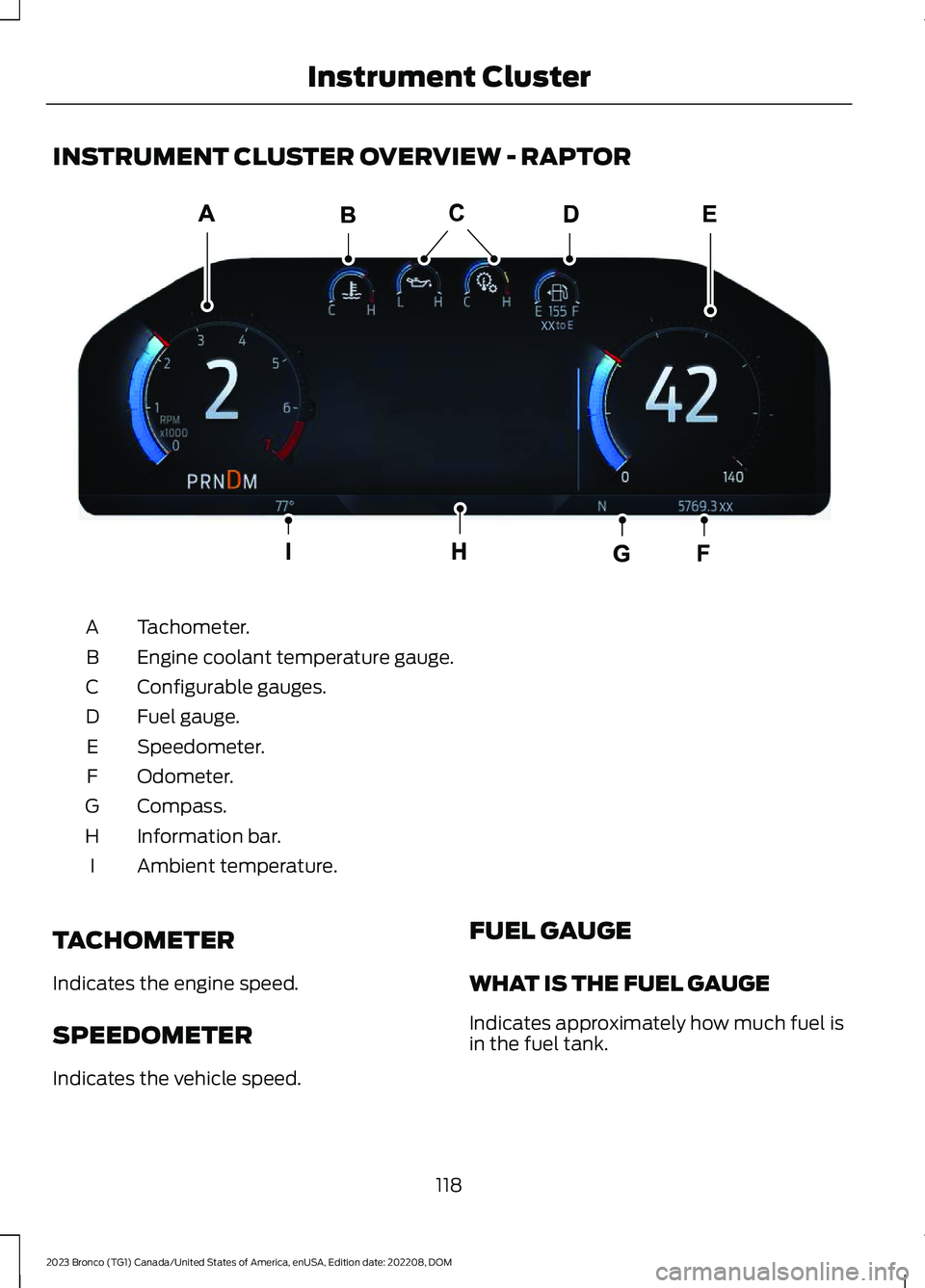

INSTRUMENT CLUSTER OVERVIEW - RAPTOR
Tachometer.A
Engine coolant temperature gauge.B
Configurable gauges.C
Fuel gauge.D
Speedometer.E
Odometer.F
Compass.G
Information bar.H
Ambient temperature.I
TACHOMETER
Indicates the engine speed.
SPEEDOMETER
Indicates the vehicle speed.
FUEL GAUGE
WHAT IS THE FUEL GAUGE
Indicates approximately how much fuel isin the fuel tank.
118
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMInstrument ClusterE367073

FUEL GAUGE LIMITATIONS
The fuel gauge may not provide anaccurate reading when your vehicle is onan incline.
LOCATING THE FUEL FILLERDOOR
The arrow adjacent to the fuel pumpsymbol indicates on which side of yourvehicle the fuel filler door is located.
WHAT IS THE LOW FUELREMINDER
A low fuel level reminder displays andsounds when the distance to emptyreaches 75 mi (120 km) to empty forMyKey, and at 50 mi (80 km),25 mi(40 km),12 mi (20 km) and 0 mi (0 km)for all vehicle keys.
Note:The low fuel reminder can appear atdifferent fuel gauge positions depending onfuel economy conditions. This variation isnormal.
WHAT IS DISTANCE TO EMPTY
Indicates the approximate distance yourvehicle can travel on the fuel remaining inthe tank. Changes in driving pattern cancause the value to not only decrease butalso increase or stay constant for periodsof time.
ENGINE COOLANT
TEMPERATURE GAUGE
Indicates the engine coolant temperature.
TRANSMISSION FLUID
TEMPERATURE GAUGE
Indicates the transmission fluidtemperature.
Special operating conditions can causehigher than normal operatingtemperatures. See Special OperatingConditions Scheduled Maintenance(page 533).
Note:This is a configurable gauge.
TURBO BOOST GAUGE - 2.3L
ECOBOOST™
Indicates the amount of manifold airpressure in the engine.
Note:This is a configurable gauge.
WHAT IS THE INFORMATION
BAR
Displays information for navigation, outsideair temperature, odometer and distanceto empty.
WHAT ARE THE INSTRUMENT
CLUSTER WARNING LAMPS
Warning lamps alert you to a vehiclecondition that could become serious.Some lamps illuminate when you startyour vehicle to make sure they work. If anylamps remain on after starting your vehicle,refer to the respective system warninglamp for further information.
119
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMInstrument Cluster

INSTRUMENT CLUSTER
WARNING LAMPS
Anti-Lock Brake System
If it illuminates when you aredriving, this indicates amalfunction. Your vehiclecontinues to have normal braking withoutthe anti-lock brake system function. Haveyour vehicle checked as soon as possible.
Battery
It illuminates when you switchthe ignition on.
If it illuminates when the engineis running this indicates a malfunction.Have your vehicle checked as soon aspossible.
Brake System Warning Lamp
It illuminates when you apply theparking brake and the ignition ison. If it illuminates when yourvehicle is moving, make sure theparking brake is released. If theparking brake is released, thisindicates low brake fluid level or the brakesystem requires service. Have your vehiclechecked as soon as possible.
Note:Indicators may vary depending onregion.
Door Ajar
It illuminates when you switchthe ignition on and remains on ifany door is open.
Electric Park Brake
It illuminates or flashes when theelectric parking brake requiresservice.
Note:Indicators may vary depending onregion.
Engine Coolant Temperature
If it illuminates, safely stop yourvehicle and switch your vehicleoff.
Fasten Seatbelt
It illuminates and a tone soundsuntil you fasten the seatbelts.
Hood Ajar
It illuminates when the ignitionis on and the hood is notcompletely closed.
Low Beam Warning
Illuminates when the low beamheadlamp bulb requires service.Have the system checked assoon as possible.
Low Fuel Level
It illuminates when the fuel levelis low.
Low Tire Pressure
It illuminates when your tirepressure is low. If illuminated,check your tire pressure as soonas possible. If it begins to flash at anytime,have the system checked as soon aspossible.
120
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMInstrument ClusterE67020 E67021 E270480 E67024 E340898 E325775 E103308 E71880 E324249 E325579 E139232

Low Washer Fluid Level
It illuminates when the washerfluid is low.
Malfunction Indicator Lamp
It illuminates when the ignitionis on and the engine is off, this isnormal operation. If it illuminateswhen the engine is on this indicates thatthe emission control system requiresservice. If it flashes, have your vehiclechecked immediately. See Emission Law(page 609).
Oil Pressure
It illuminates when the engineoil pressure is low.
Powertrain Malfunction
Illuminates when the powertrainrequires service. Have thesystem checked as soon aspossible.
Tailgate Ajar
It illuminates when the ignitionis on and the tailgate is notcompletely closed.
WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS
Indicators notify you of various featuresthat are active on your vehicle.
INSTRUMENT CLUSTER
INDICATORS - EXCLUDING:
RAPTOR
Adaptive Cruise Control
See Adaptive Cruise Control(page 252).
Automatic Headlamp High Beam
See Automatic High BeamControl (page 108).
Auto-Start-Stop
See Auto-Start-Stop (page174).
Blind Spot Monitor
See Blind Spot InformationSystem (page 279).
Cruise Control
See Cruise Control (page 250).
Differential Lock
See Electronic LockingDifferential (page 203).
121
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMInstrument ClusterE132353 E67028 E67022 E340897 E144524 E146105 E121377 E323542 E71340 E328595 E325779

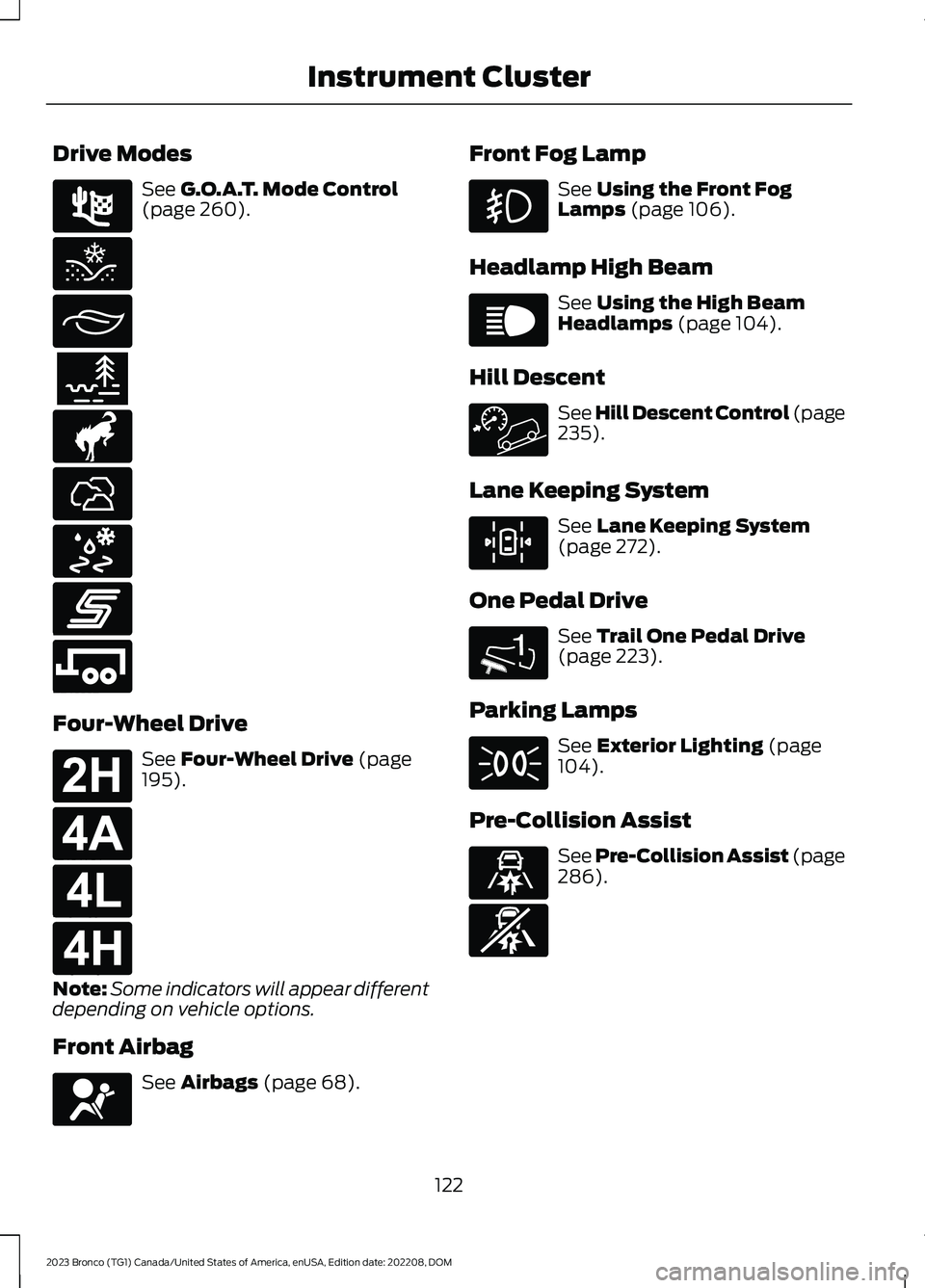

Drive Modes
See G.O.A.T. Mode Control(page 260).
Four-Wheel Drive
See Four-Wheel Drive (page195).
Note:Some indicators will appear differentdepending on vehicle options.
Front Airbag
See Airbags (page 68).
Front Fog Lamp
See Using the Front FogLamps (page 106).
Headlamp High Beam
See Using the High BeamHeadlamps (page 104).
Hill Descent
See Hill Descent Control (page235).
Lane Keeping System
See Lane Keeping System(page 272).
One Pedal Drive
See Trail One Pedal Drive(page 223).
Parking Lamps
See Exterior Lighting (page104).
Pre-Collision Assist
See Pre-Collision Assist (page286).
122
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMInstrument ClusterE225314 E295420 E295413 E296606 E317283 E322413 E295414 E246593 E246592 E181778 E181781 E181780 E181779 E67017 E67019 E308131 1E328584 E71341 E329466 E329467

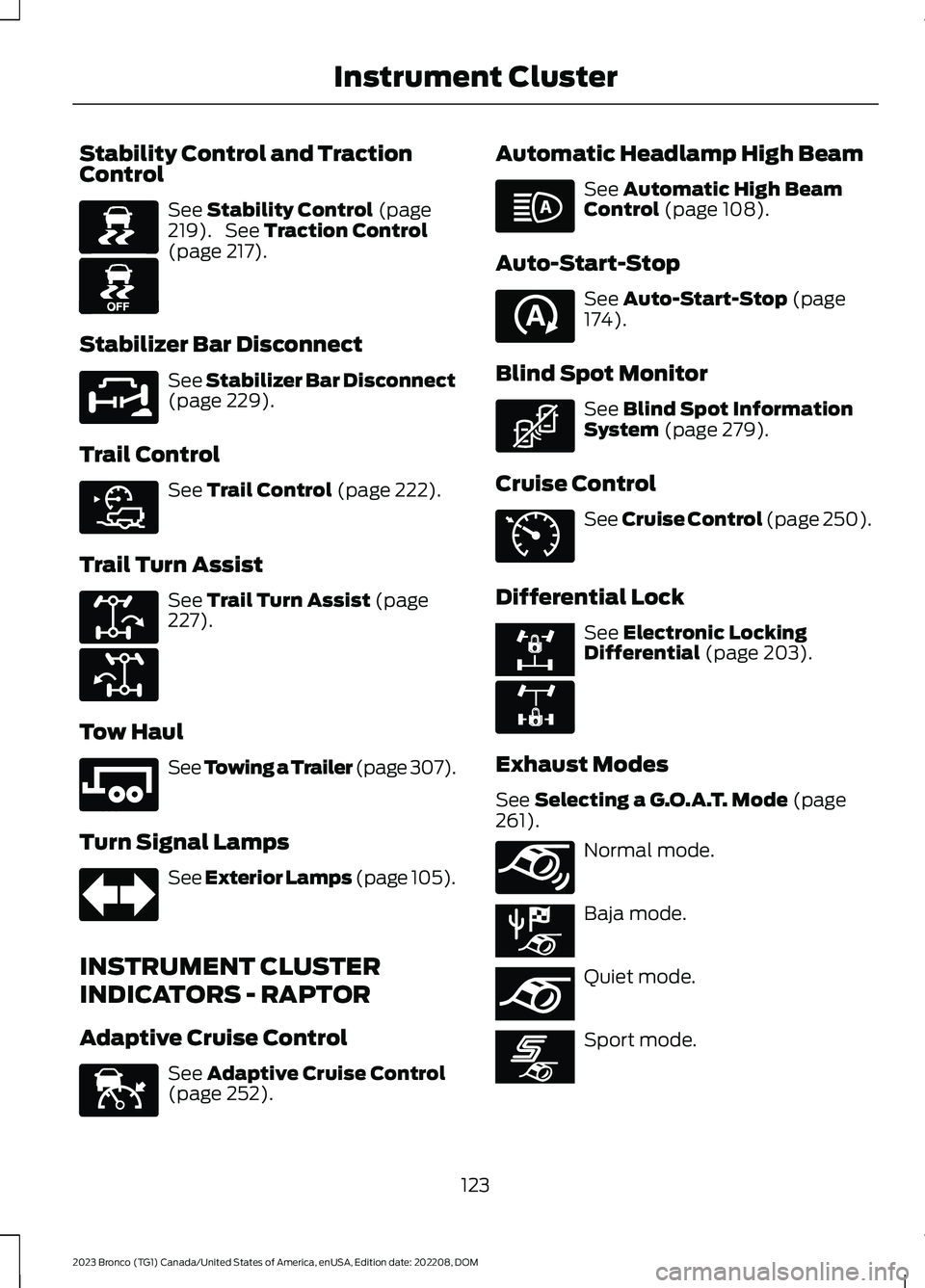

Stability Control and TractionControl
See Stability Control (page219). See Traction Control(page 217).
Stabilizer Bar Disconnect
See Stabilizer Bar Disconnect(page 229).
Trail Control
See Trail Control (page 222).
Trail Turn Assist
See Trail Turn Assist (page227).
Tow Haul
See Towing a Trailer (page 307).
Turn Signal Lamps
See Exterior Lamps (page 105).
INSTRUMENT CLUSTER
INDICATORS - RAPTOR
Adaptive Cruise Control
See Adaptive Cruise Control(page 252).
Automatic Headlamp High Beam
See Automatic High BeamControl (page 108).
Auto-Start-Stop
See Auto-Start-Stop (page174).
Blind Spot Monitor
See Blind Spot InformationSystem (page 279).
Cruise Control
See Cruise Control (page 250).
Differential Lock
See Electronic LockingDifferential (page 203).
Exhaust Modes
See Selecting a G.O.A.T. Mode (page261).
Normal mode.
Baja mode.
Quiet mode.
Sport mode.
123
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMInstrument ClusterE138639 E130458 E329476 E318506 E329474 E329475 E246592 E67018 E144524 E146105 E121377 E323542 E71340 E328595 E325779 E347131 E367612 E367613 E367609

Four-Wheel Drive
See Four-Wheel Drive (page195).
Note:Some indicators appear differentdepending on vehicle options.
Front Airbag
See Airbags (page 68).
Front Fog Lamp
See Using the Front FogLamps (page 106).
G.O.A.T Modes
See G.O.A.T. Mode Control (page 260).
Baja mode.
Normal mode.
Off-road mode.
Rock crawl mode.
Slippery mode.
Sport mode.
Tow/Haul mode.
Headlamp High Beam
See Using the High BeamHeadlamps (page 104).
Lane Keeping System
See Lane Keeping System(page 272).
MyMode
See Selecting a G.O.A.T. Mode(page 261).
One Pedal Drive
See Trail One Pedal Drive(page 223).
Parking Lamps
See Exterior Lighting (page104).
Pre-Collision Assist
See Pre-Collision Assist (page286).
Stability Control and TractionControl
See Stability Control (page219). See Traction Control(page 217).
124
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMInstrument ClusterE181778 E181781 E181780 E181779 E67017 E225314 E366490 E366491 E366492 E347004 E246593 E347108 E67019 E308131 E359278 1E328584 E71341 E329466 E329467 E138639 E130458

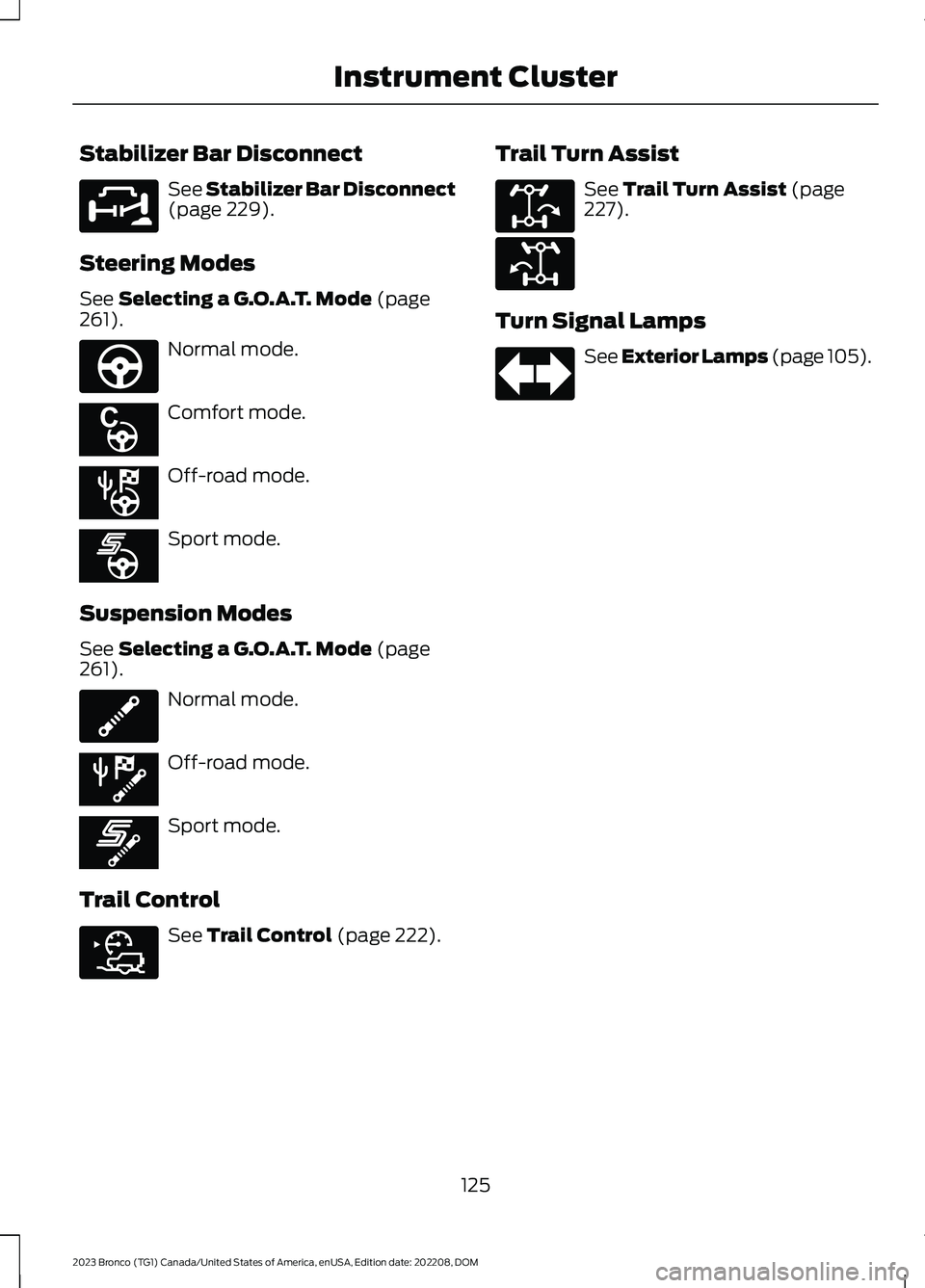

Stabilizer Bar Disconnect
See Stabilizer Bar Disconnect(page 229).
Steering Modes
See Selecting a G.O.A.T. Mode (page261).
Normal mode.
Comfort mode.
Off-road mode.
Sport mode.
Suspension Modes
See Selecting a G.O.A.T. Mode (page261).
Normal mode.
Off-road mode.
Sport mode.
Trail Control
See Trail Control (page 222).
Trail Turn Assist
See Trail Turn Assist (page227).
Turn Signal Lamps
See Exterior Lamps (page 105).
125
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMInstrument ClusterE329476 E347142 E367614 E367611 E367608 E347107 E367610 E367607 E318506 E329474 E329475 E67018

USING THE INSTRUMENT
CLUSTER DISPLAY CONTROLS
WARNING: Driving while distractedcan result in loss of vehicle control, crashand injury. We strongly recommend thatyou use extreme caution when using anydevice that may take your focus off theroad. Your primary responsibility is thesafe operation of your vehicle. Werecommend against the use of anyhand-held device while driving andencourage the use of voice-operatedsystems when possible. Make sure youare aware of all applicable local lawsthat may affect the use of electronicdevices while driving.
The controls are on the steering wheel.
Menu button.A
Return button.B
Up button.C
OK toggle button.D
Down toggle buttonE
Return Button
Press to go back or to exit a menu.
OK Button
Press to make a selection. Press the togglebutton up or down to scroll through menuitems.
Menu Button
Press to display the submenus.
Toggle Buttons
Used to navigate the menus.
Status Indicator
Menu items with a check boxindicates a feature's status. Acheck in the box indicates thefeature is on, and unchecked indicates thefeature is off.
INSTRUMENT CLUSTER
DISPLAY MAIN MENU -
EXCLUDING: RAPTOR
Depending on your vehicle options, somemenu items may appear different or notat all.
Note:For your safety, some features arespeed-dependent and could be unavailablewhen your vehicle is above a certain speed.
Menu Item
MyView
Trip/Fuel
Off-Road
Navigation
Phone
Audio
Settings
126
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMInstrument Cluster DisplayE326969 E204495
