EXTERIOR BULBS

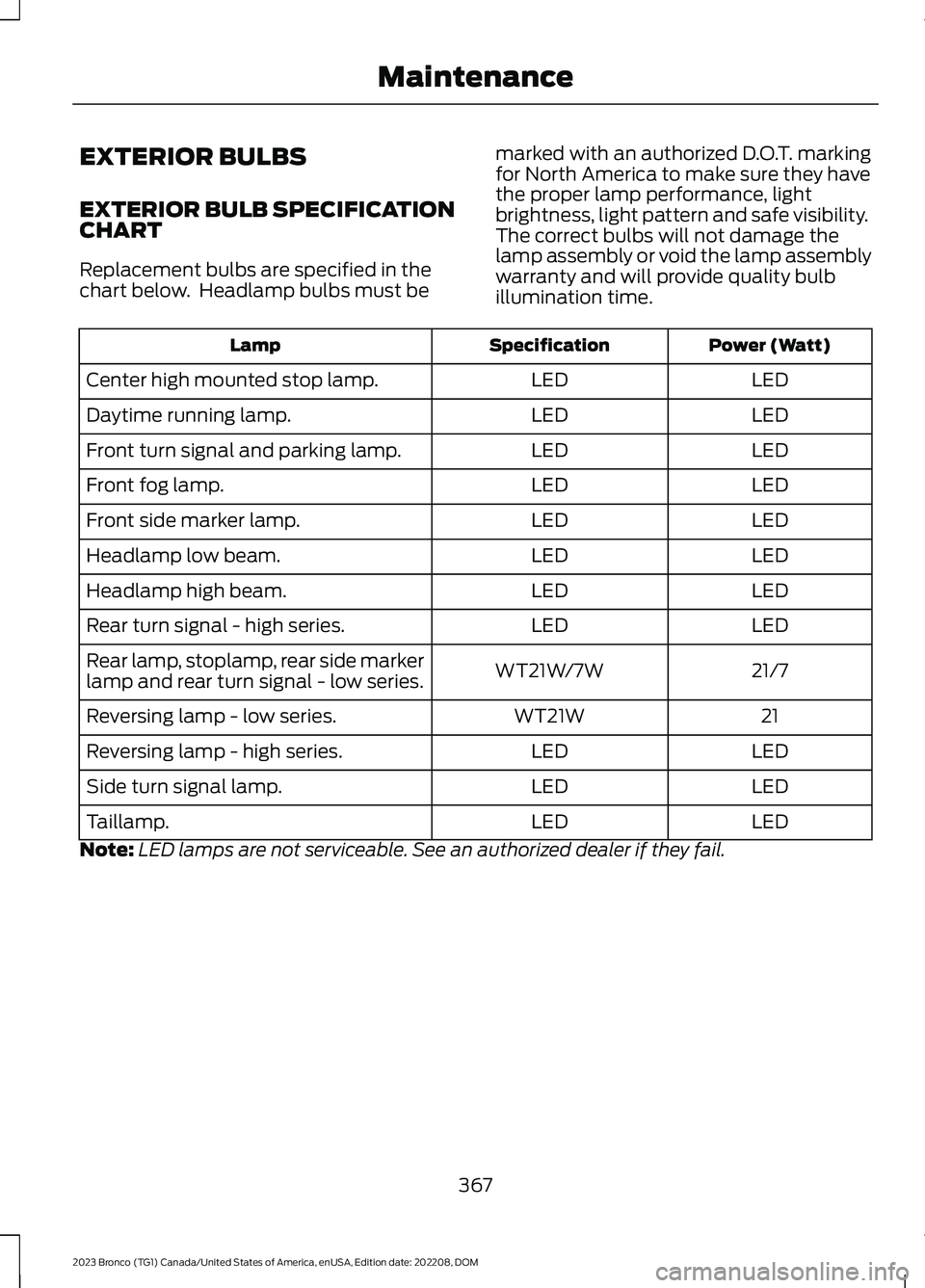

EXTERIOR BULB SPECIFICATIONCHART
Replacement bulbs are specified in thechart below. Headlamp bulbs must be
marked with an authorized D.O.T. markingfor North America to make sure they havethe proper lamp performance, lightbrightness, light pattern and safe visibility.The correct bulbs will not damage thelamp assembly or void the lamp assemblywarranty and will provide quality bulbillumination time.
Power (Watt)SpecificationLamp
LEDLEDCenter high mounted stop lamp.
LEDLEDDaytime running lamp.
LEDLEDFront turn signal and parking lamp.
LEDLEDFront fog lamp.
LEDLEDFront side marker lamp.
LEDLEDHeadlamp low beam.
LEDLEDHeadlamp high beam.
LEDLEDRear turn signal - high series.
21/7WT21W/7WRear lamp, stoplamp, rear side markerlamp and rear turn signal - low series.
21WT21WReversing lamp - low series.
LEDLEDReversing lamp - high series.
LEDLEDSide turn signal lamp.
LEDLEDTaillamp.
Note:LED lamps are not serviceable. See an authorized dealer if they fail.
367
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMMaintenance

REMOVING A REAR LAMPASSEMBLY
1.Make sure the headlamps are off.
2.Loosen the quarter-turn fastener onthe rearmost fender flare.
3.Fully open the tailgate. See Openingthe Tailgate From Outside YourVehicle (page 93).
4.Remove the three pushpins from insidethe trim panel.
5.Remove the lower trim piece bydisengaging the retaining tabs. Pullfrom the inside edge first, then pullfrom the outside edge.
6.Remove the lower retaining bolt fromthe inside trim piece. Pull on the lowerpart of the trim piece to disengage theupper retaining clips.
368
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMMaintenanceE334894 E334848 E334849 E334850 E339584

7.Remove the three retaining boltssecuring the rear lamp to the body.
Note:Remove and install the retaining boltnear the wheel well before the retainingbolts near the luggage compartment.
8.Pull the rear lamp away from thevehicle and disconnect the electricalconnectors as needed.
9.To install, reverse the removalprocedure.
CHANGING A REAR LAMP BULB
Stoplamp, rear and turn signalbulb.A.
Reversing lamp bulb.B.
1.Remove the rear lamp assembly. SeeRemoving a Rear Lamp Assembly(page 368).
2.Rotate the bulb socketcounterclockwise and remove it fromthe rear lamp assembly.
3.To install, reverse the removalprocedure.
INTERIOR BULBS
INTERIOR BULB SPECIFICATIONCHART
Your vehicle has LED lamps. These are notserviceable items. See an authorized dealerif they fail.
DRIVE BELT ROUTING - 2.3L
ECOBOOST™
Short drive belt is on the secondpulley groove farthest fromengine.
A.
Long drive belt is on the firstpulley groove closest to engine.B.
369
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMMaintenanceABE339583 BAE357477

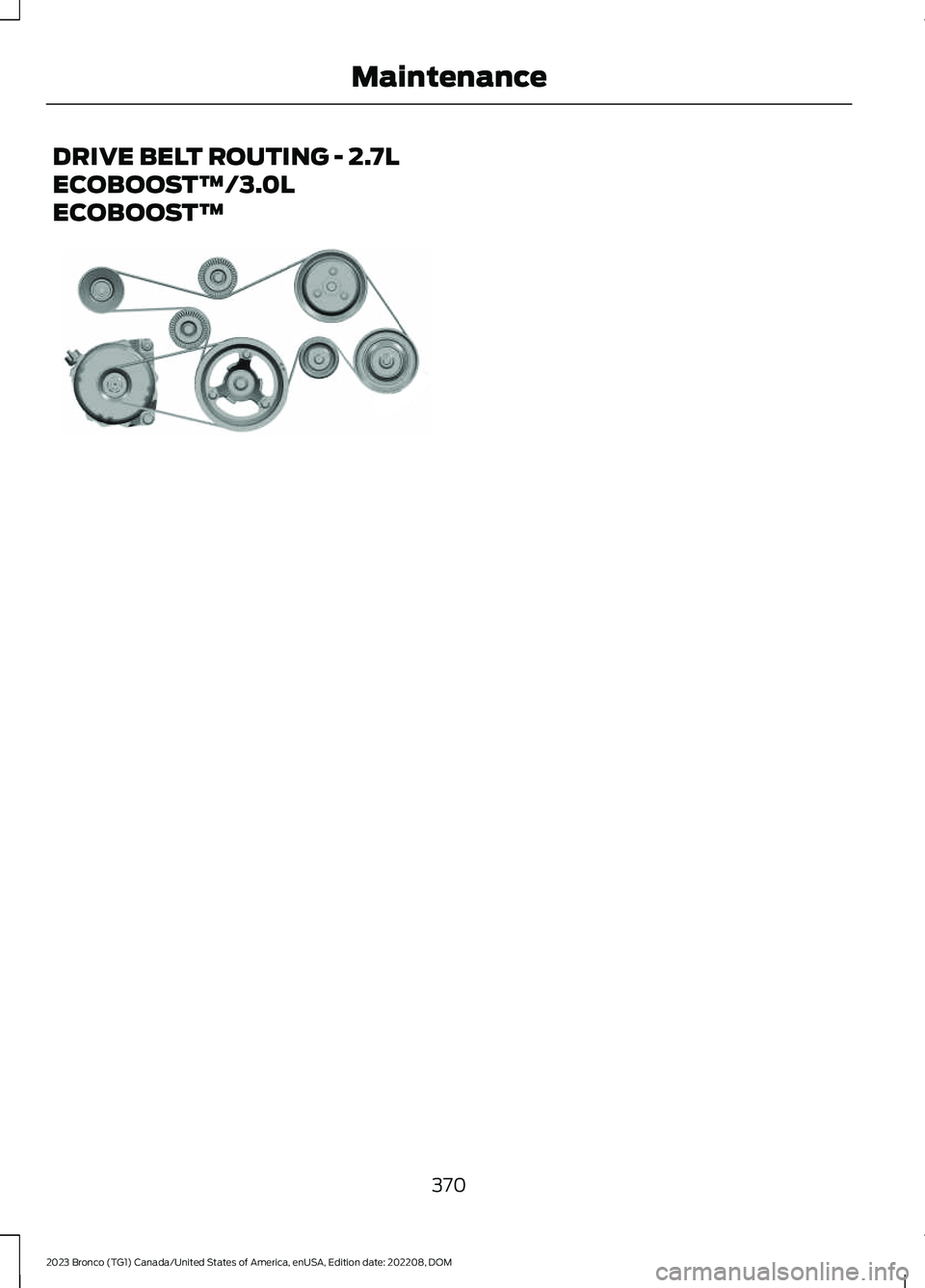

DRIVE BELT ROUTING - 2.7L
ECOBOOST™/3.0L
ECOBOOST™
370
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMMaintenanceE340713

REMOVABLE WINDOWS (IF
EQUIPPED)
REMOVABLE WINDOWSPRECAUTIONS
WARNING: Do not drive unless allrear windows are removed or securelyinstalled. Failure to follow theseinstructions could result in personalinjury.
Note:Use caution when moving or handlingthe windows. Do not drop the windows.
Note:Do not place the windows directly onhard or sharp surfaces. This could causedamage to the window.
REMOVING AND INSTALLING THEREAR QUARTER WINDOWS -VEHICLES WITH: HARD TOP

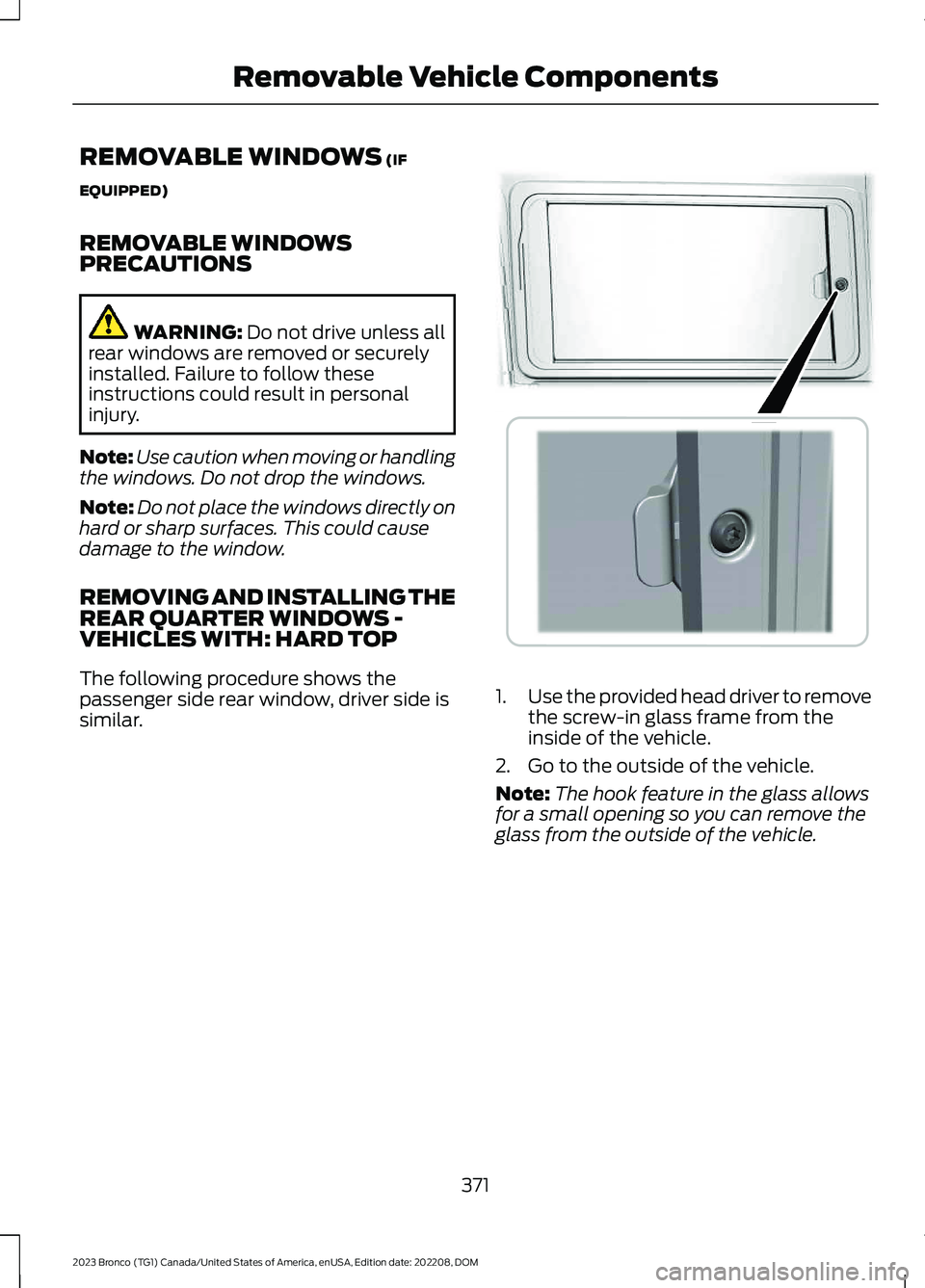

The following procedure shows thepassenger side rear window, driver side issimilar.1.Use the provided head driver to removethe screw-in glass frame from theinside of the vehicle.
2.Go to the outside of the vehicle.
Note:The hook feature in the glass allowsfor a small opening so you can remove theglass from the outside of the vehicle.
371
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle Components E385078

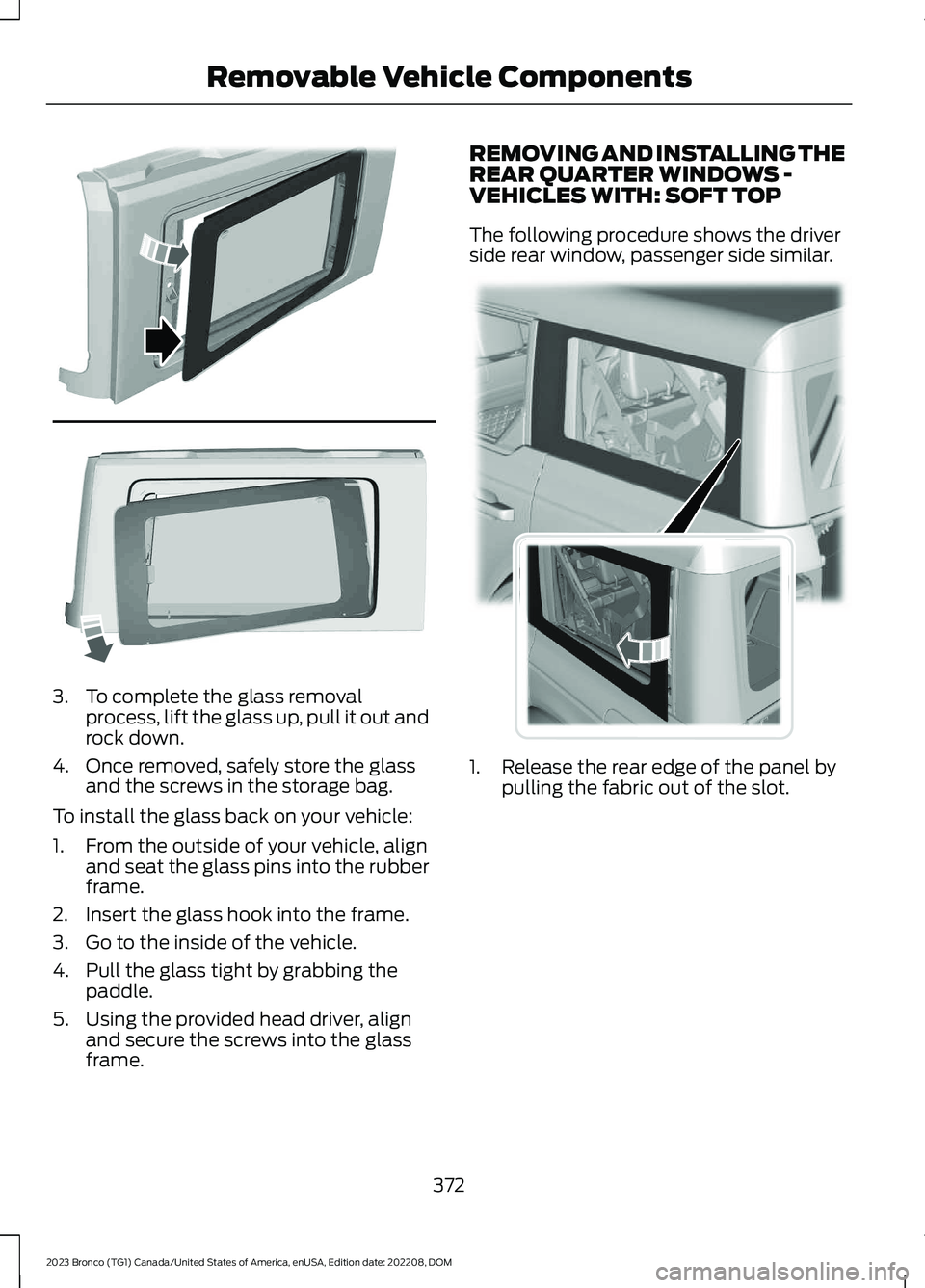

3.To complete the glass removalprocess, lift the glass up, pull it out androck down.
4.Once removed, safely store the glassand the screws in the storage bag.
To install the glass back on your vehicle:
1.From the outside of your vehicle, alignand seat the glass pins into the rubberframe.
2.Insert the glass hook into the frame.
3.Go to the inside of the vehicle.
4.Pull the glass tight by grabbing thepaddle.
5.Using the provided head driver, alignand secure the screws into the glassframe.
REMOVING AND INSTALLING THEREAR QUARTER WINDOWS -VEHICLES WITH: SOFT TOP
The following procedure shows the driverside rear window, passenger side similar.
1.Release the rear edge of the panel bypulling the fabric out of the slot.
372
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE385079 E347134

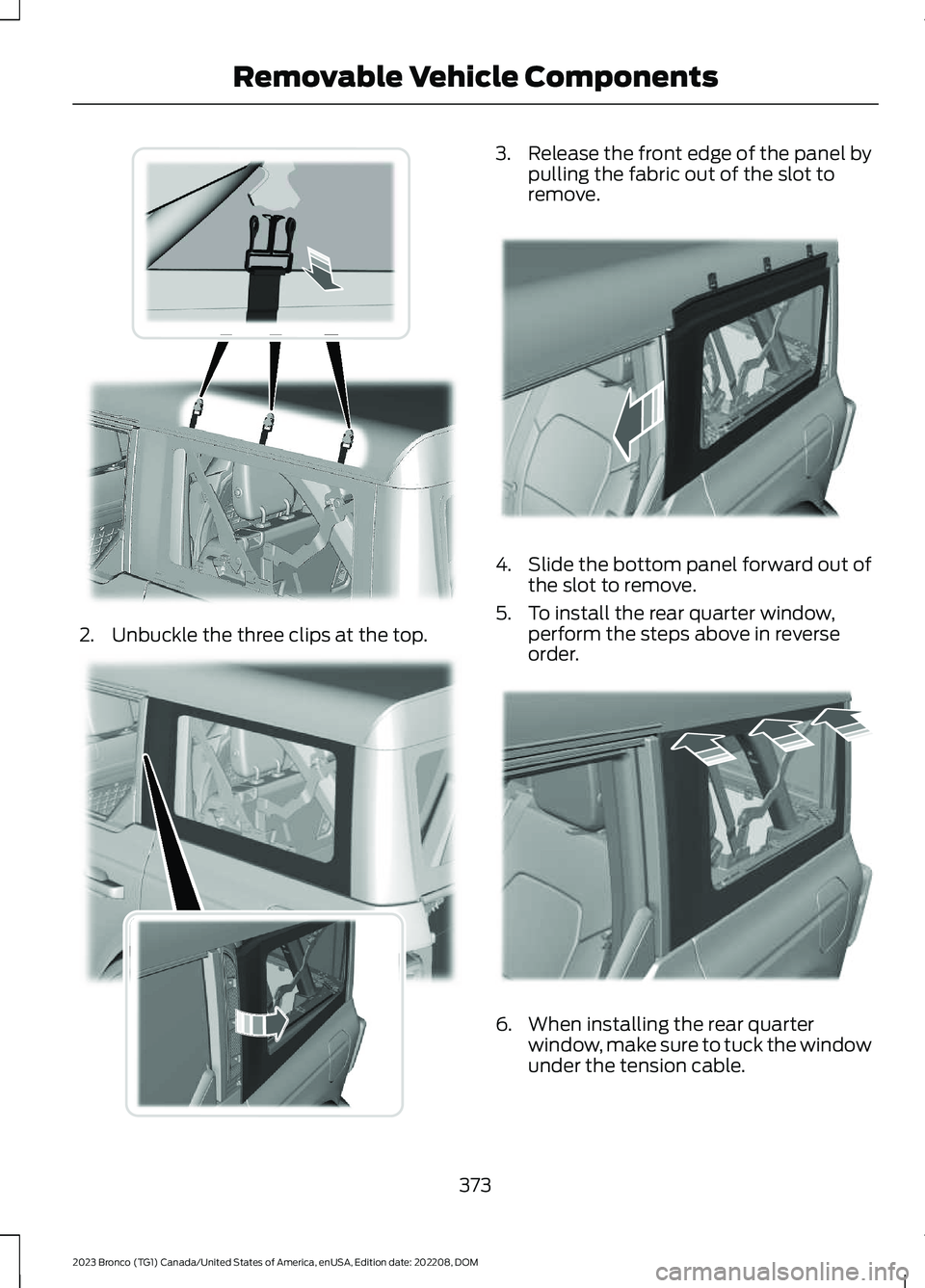

2.Unbuckle the three clips at the top.
3.Release the front edge of the panel bypulling the fabric out of the slot toremove.
4.Slide the bottom panel forward out ofthe slot to remove.
5.To install the rear quarter window,perform the steps above in reverseorder.
6.When installing the rear quarterwindow, make sure to tuck the windowunder the tension cable.
373
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE347135 E347136 E347137 E347138

Note:When installing the rear edge of therear quarter window into the slot, unlatchthe soft top for easier installation. SeeOpening and Closing the Soft Top (page393).
7.When sliding the rear quarter windowsback into the window slot, make sureto slide the window all the way in sothat the window securely fits into bothslots.
8.After installing the rear quarterwindows, press along the top of thewindow to secure the hook and loopfastener strips.
Note:The buckles snap together and thewindows are flush when correctly installed.If the parts have visible gaps or stick out,they are not correctly secured.
REMOVING AND INSTALLING THEREAR WINDOW - VEHICLES WITH:SOFT TOP
1.If not already removed, remove the rearquarter windows. See Removing andInstalling the Rear QuarterWindows (page 372).
2.Open the tailgate.
3.Release the hook and loop fastenerstrip along the top of the rear windowand flip the fabric upward.
4.Tap both bottom corners of the rearwindow rearward to disengage theclips.
Note:Do not pull on fabric from the top orbottom corners.
374
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE385272 E347139 E374615

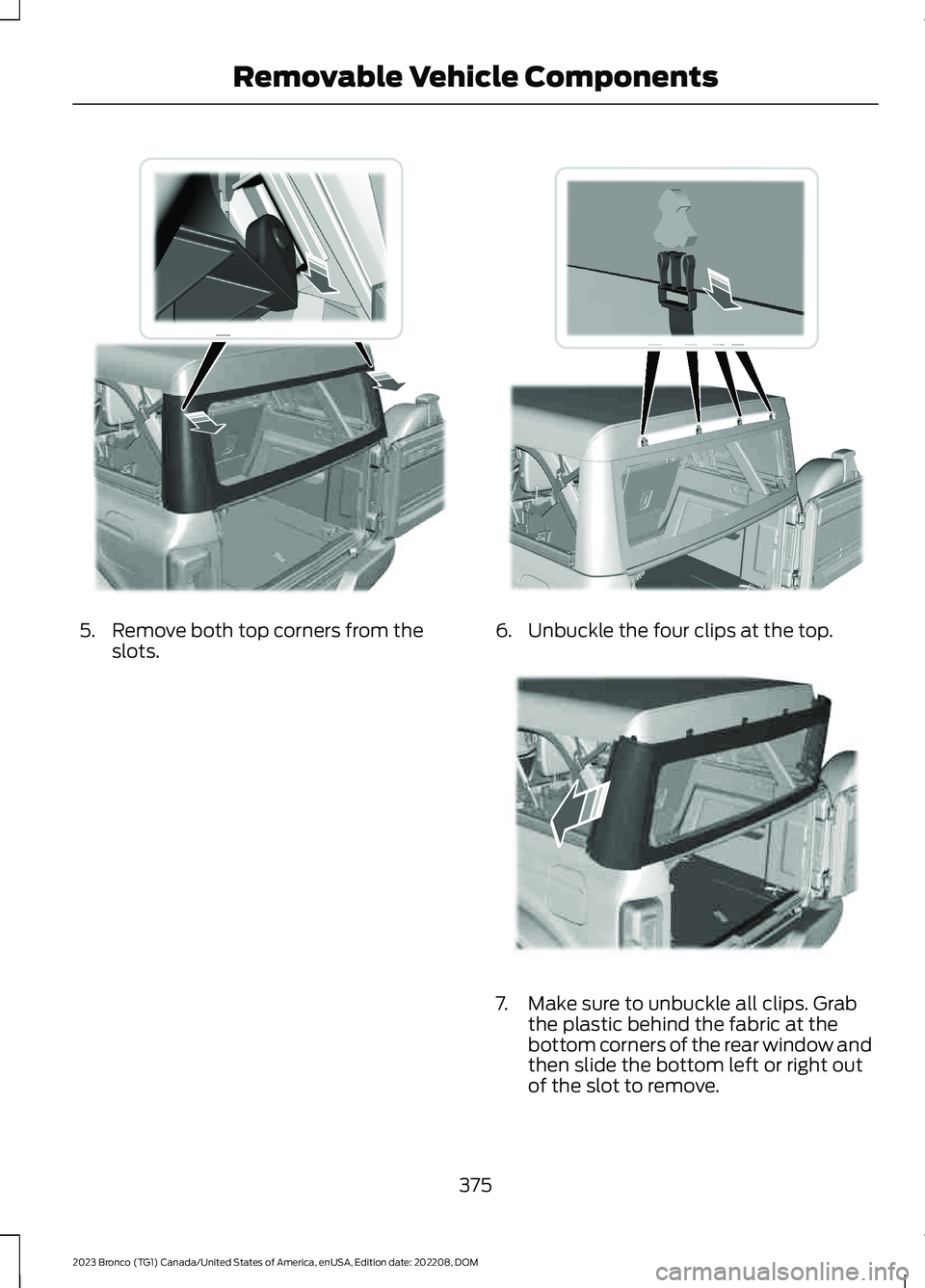

5.Remove both top corners from theslots.6.Unbuckle the four clips at the top.
7.Make sure to unbuckle all clips. Grabthe plastic behind the fabric at thebottom corners of the rear window andthen slide the bottom left or right outof the slot to remove.
375
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE347144 E347145 E347146

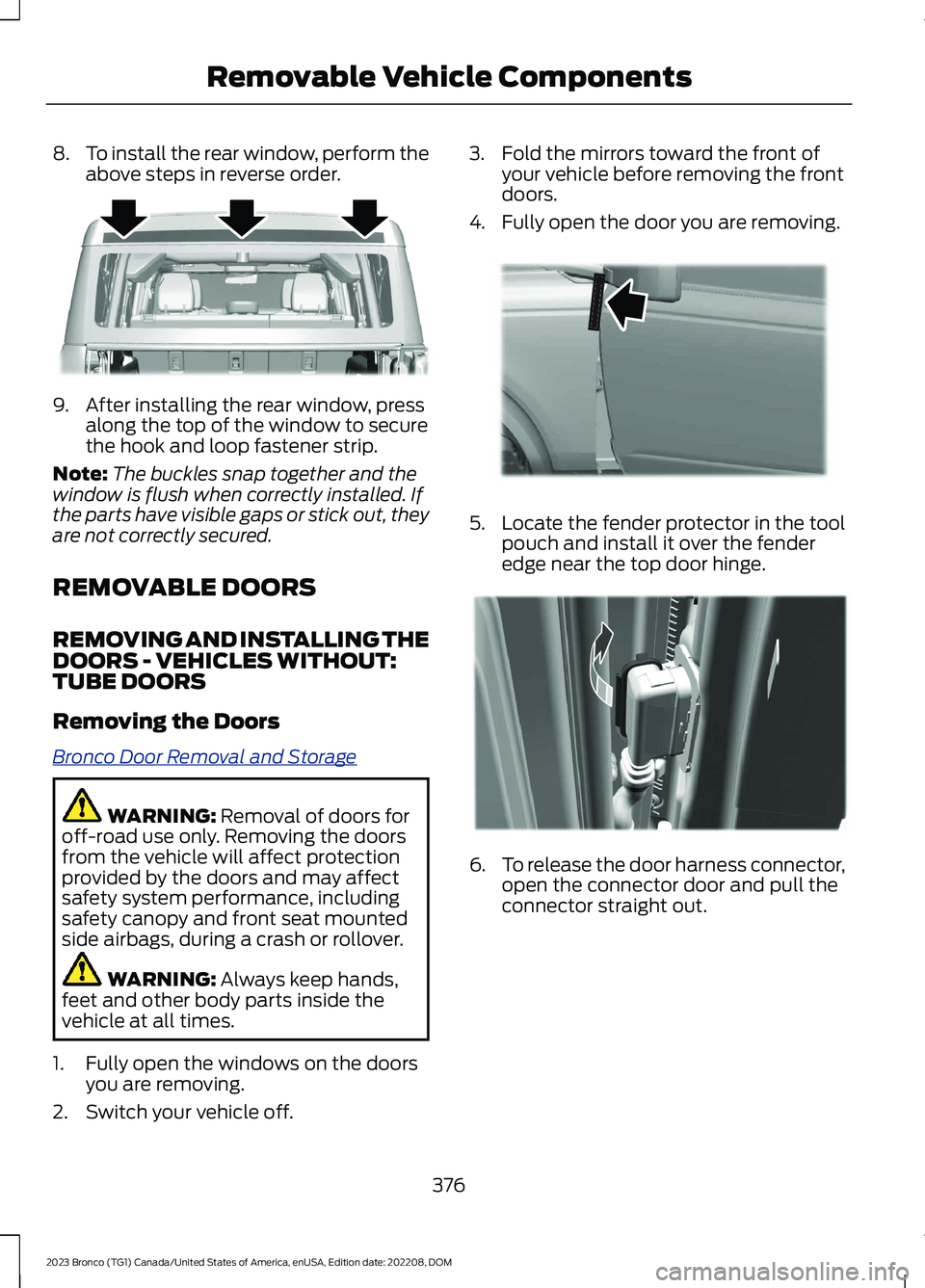

8.To install the rear window, perform theabove steps in reverse order.
9.After installing the rear window, pressalong the top of the window to securethe hook and loop fastener strip.
Note:The buckles snap together and thewindow is flush when correctly installed. Ifthe parts have visible gaps or stick out, theyare not correctly secured.
REMOVABLE DOORS
REMOVING AND INSTALLING THEDOORS - VEHICLES WITHOUT:TUBE DOORS
Removing the Doors
Bronco Door Removal and Storage
WARNING: Removal of doors foroff-road use only. Removing the doorsfrom the vehicle will affect protectionprovided by the doors and may affectsafety system performance, includingsafety canopy and front seat mountedside airbags, during a crash or rollover.
WARNING: Always keep hands,feet and other body parts inside thevehicle at all times.
1.Fully open the windows on the doorsyou are removing.
2.Switch your vehicle off.
3.Fold the mirrors toward the front ofyour vehicle before removing the frontdoors.
4.Fully open the door you are removing.
5.Locate the fender protector in the toolpouch and install it over the fenderedge near the top door hinge.
6.To release the door harness connector,open the connector door and pull theconnector straight out.
376
