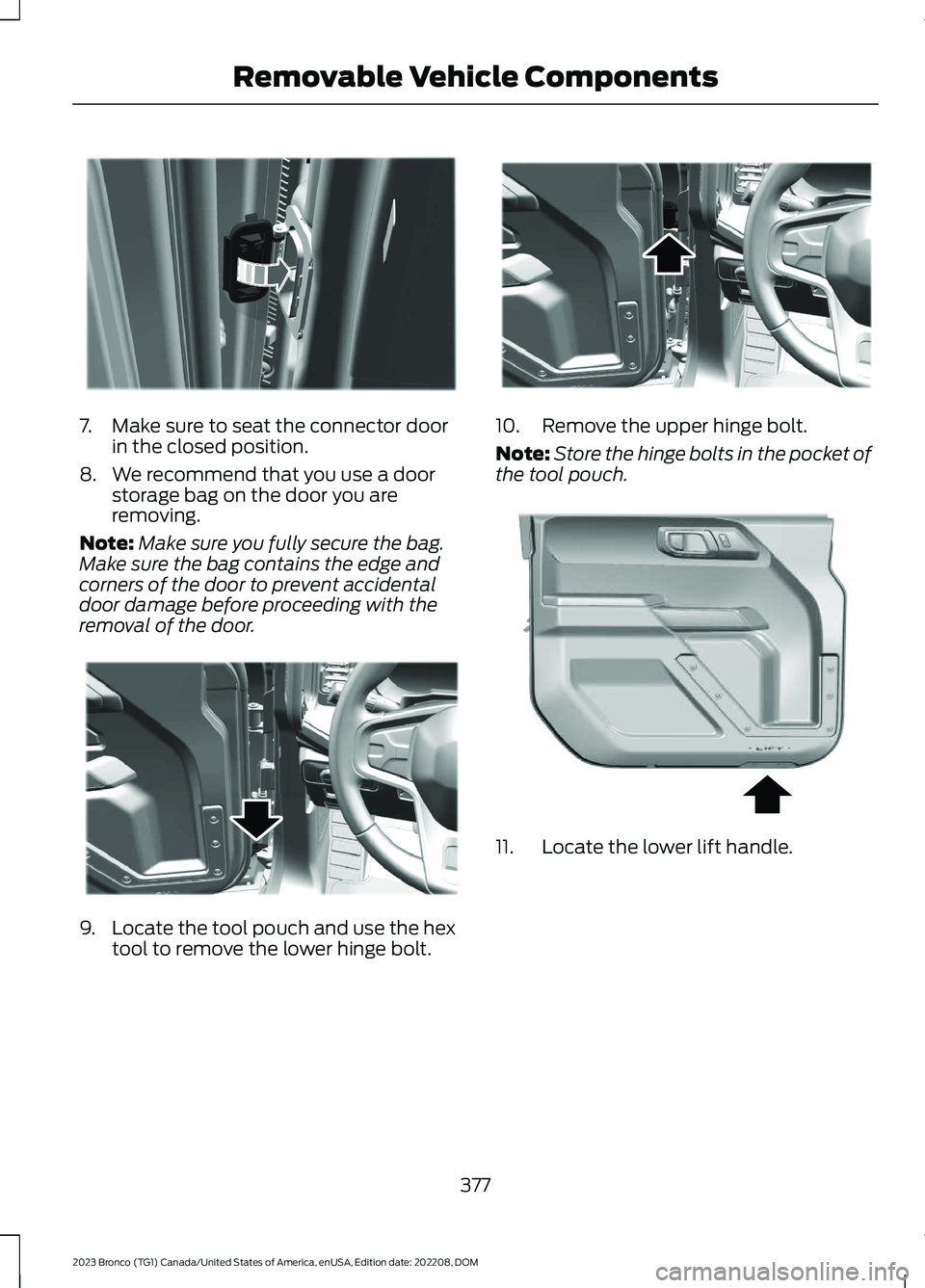

7.Make sure to seat the connector doorin the closed position.
8.We recommend that you use a doorstorage bag on the door you areremoving.
Note:Make sure you fully secure the bag.Make sure the bag contains the edge andcorners of the door to prevent accidentaldoor damage before proceeding with theremoval of the door.
9.Locate the tool pouch and use the hextool to remove the lower hinge bolt.
10.Remove the upper hinge bolt.
Note:Store the hinge bolts in the pocket ofthe tool pouch.
11.Locate the lower lift handle.
377
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE328724 E328730 E328731 E346853

12.Use the door handle as the upper lifthandle.
13.With the help of another person, liftthe door vertically to separate it fromthe vehicle.
Note:Use caution when removing the doorsas they are heavy.
Note:Store the doors out of the elementsto prevent damage.
14.To remove additional doors, repeatSteps 4–13.
15.Return the hex tool to the tool pouchand secure it in the vehicle.
16.Return mirrors to the driving position.
Note:When you remove the doors, the rearseat occupant alert no longer functions.
Note:When you remove the doors or whenyou have tube doors installed on the vehicle,a warning message related to the electricalsystem appears on the instrument clusterdisplay with each ignition cycle. Themessage no longer displays when all factorydoors are re-installed. If the messagepersists after you install all factory doors,check the wiring connectors on all the doorsto confirm that you properly connectedthem.
Installing the Doors
WARNING: Vehicle needs to beturned off before reconnecting doors toverify all electrical connections havebeen properly connected. Failure tofollow these instructions may affectsafety system performance, includingsafety canopy and front seat mountedside airbags, during a crash or rollover.
1.Switch your vehicle off.
2.Fold the mirrors toward the front of thevehicle before installing the front doors.
3.Inspect and clean debris from thebodyside and door hinges.
4.If you are using a storage bag, unzip itfar enough to allow access to thehinges.
5.Locate the fender and door protectorsin the tool pouch. Install one over thefender edge near the upper door hingeand the other on the door edge nearthe bottom door hinge.
378
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE346854 E347604

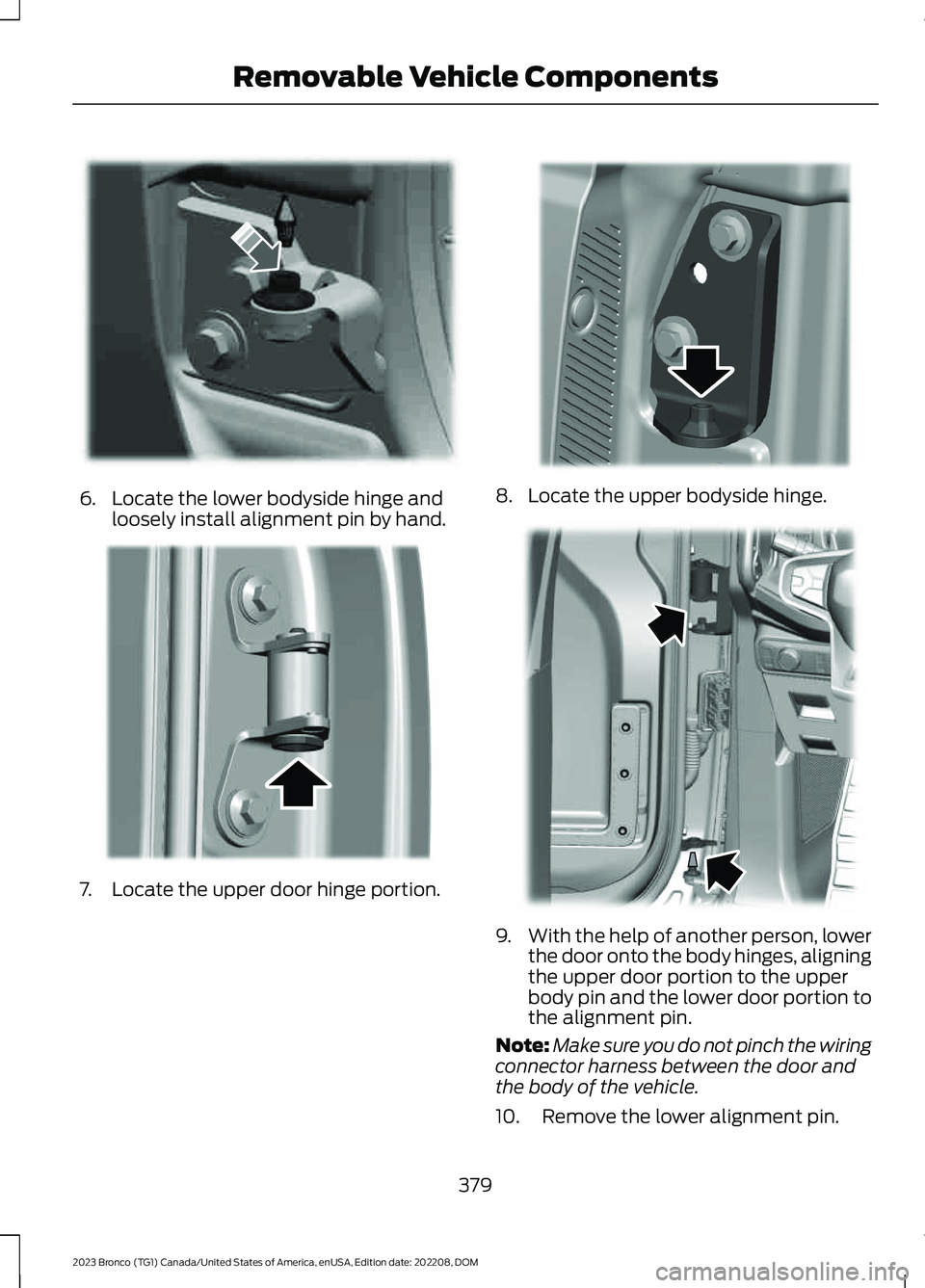

6.Locate the lower bodyside hinge andloosely install alignment pin by hand.
7.Locate the upper door hinge portion.
8.Locate the upper bodyside hinge.
9.With the help of another person, lowerthe door onto the body hinges, aligningthe upper door portion to the upperbody pin and the lower door portion tothe alignment pin.
Note:Make sure you do not pinch the wiringconnector harness between the door andthe body of the vehicle.
10.Remove the lower alignment pin.
379
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE347537 E347540 E347538 E347242

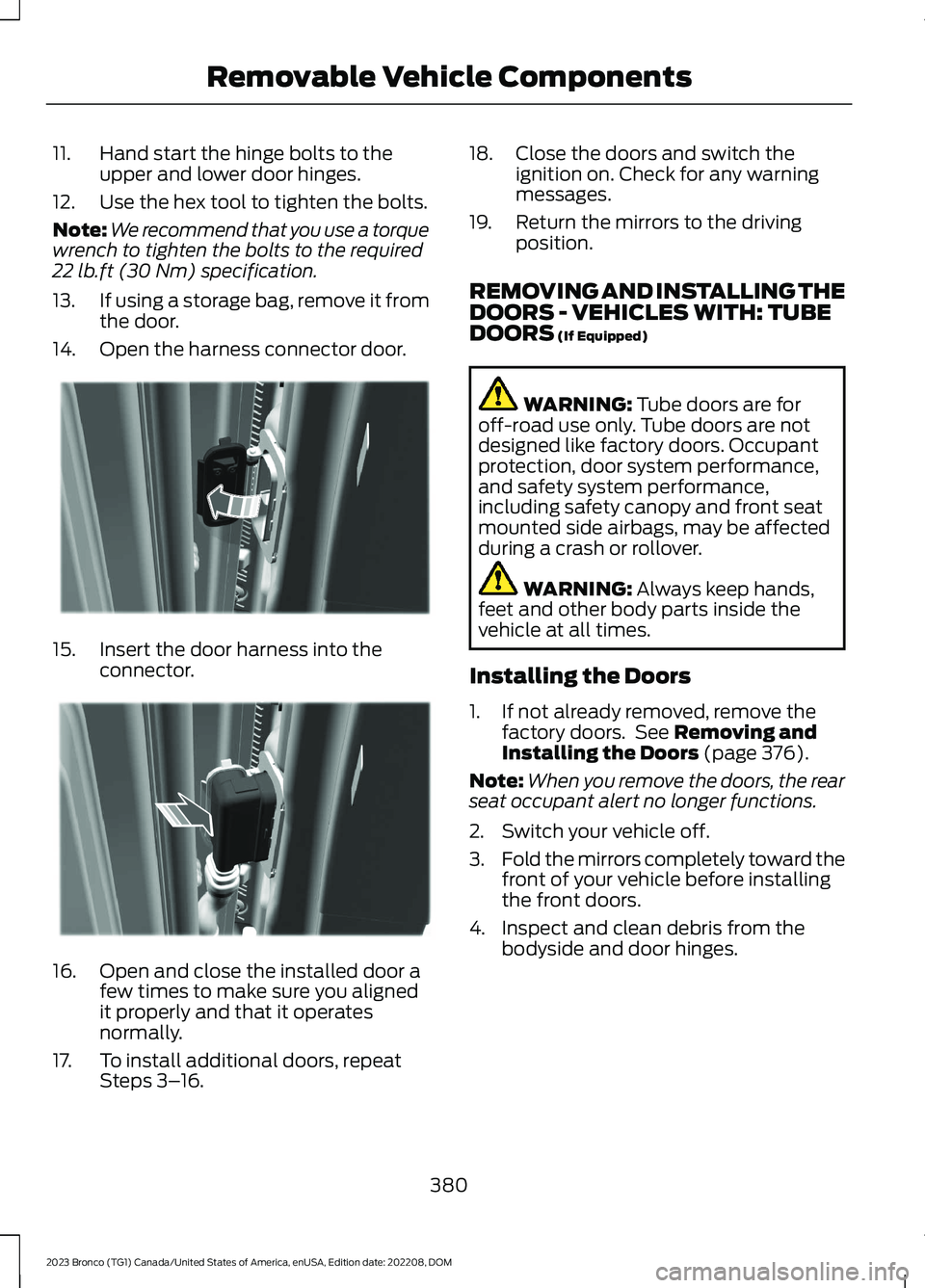

11.Hand start the hinge bolts to theupper and lower door hinges.
12.Use the hex tool to tighten the bolts.
Note:We recommend that you use a torquewrench to tighten the bolts to the required22 lb.ft (30 Nm) specification.
13.If using a storage bag, remove it fromthe door.
14.Open the harness connector door.
15.Insert the door harness into theconnector.
16.Open and close the installed door afew times to make sure you alignedit properly and that it operatesnormally.
17.To install additional doors, repeatSteps 3–16.
18.Close the doors and switch theignition on. Check for any warningmessages.
19.Return the mirrors to the drivingposition.
REMOVING AND INSTALLING THEDOORS - VEHICLES WITH: TUBEDOORS (If Equipped)
WARNING: Tube doors are foroff-road use only. Tube doors are notdesigned like factory doors. Occupantprotection, door system performance,and safety system performance,including safety canopy and front seatmounted side airbags, may be affectedduring a crash or rollover.
WARNING: Always keep hands,feet and other body parts inside thevehicle at all times.
Installing the Doors
1.If not already removed, remove thefactory doors. See Removing andInstalling the Doors (page 376).
Note:When you remove the doors, the rearseat occupant alert no longer functions.
2.Switch your vehicle off.
3.Fold the mirrors completely toward thefront of your vehicle before installingthe front doors.
4.Inspect and clean debris from thebodyside and door hinges.
380
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE328723 E328726

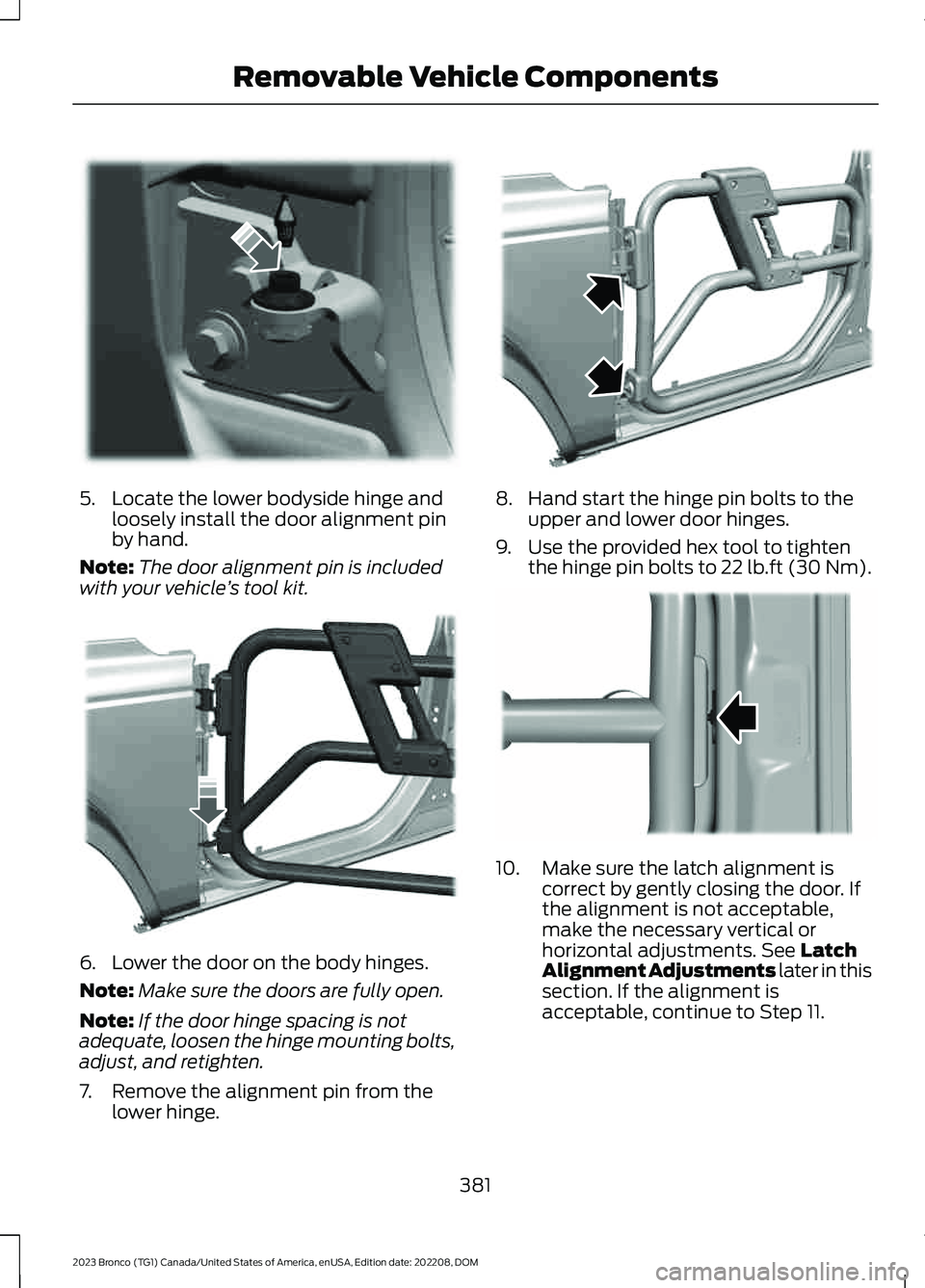

5.Locate the lower bodyside hinge andloosely install the door alignment pinby hand.
Note:The door alignment pin is includedwith your vehicle’s tool kit.
6.Lower the door on the body hinges.
Note:Make sure the doors are fully open.
Note:If the door hinge spacing is notadequate, loosen the hinge mounting bolts,adjust, and retighten.
7.Remove the alignment pin from thelower hinge.
8.Hand start the hinge pin bolts to theupper and lower door hinges.
9.Use the provided hex tool to tightenthe hinge pin bolts to 22 lb.ft (30 Nm).
10.Make sure the latch alignment iscorrect by gently closing the door. Ifthe alignment is not acceptable,make the necessary vertical orhorizontal adjustments. See LatchAlignment Adjustments later in thissection. If the alignment isacceptable, continue to Step 11.
381
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE347537 E344795 E366570 E344778

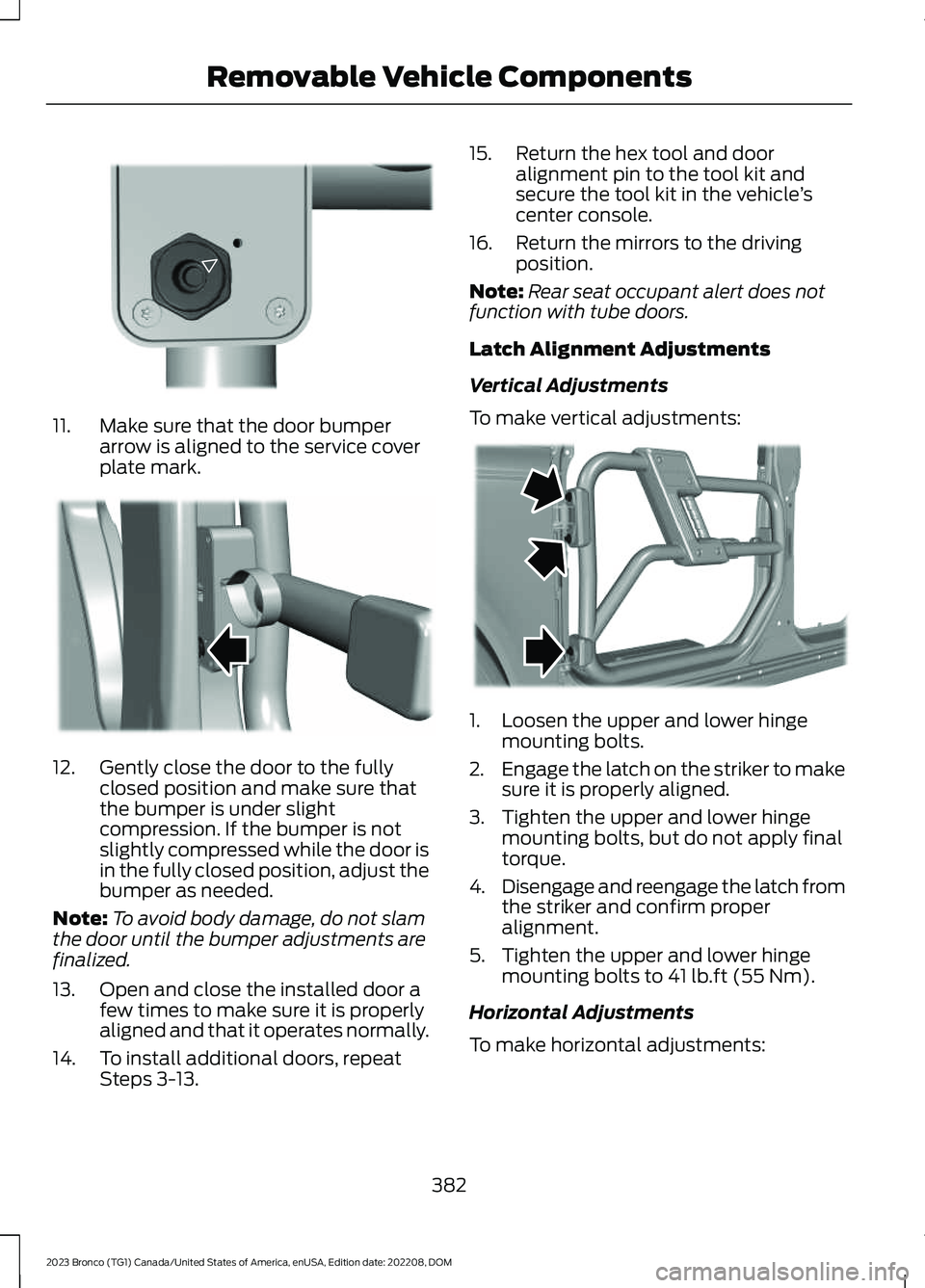

11.Make sure that the door bumperarrow is aligned to the service coverplate mark.
12.Gently close the door to the fullyclosed position and make sure thatthe bumper is under slightcompression. If the bumper is notslightly compressed while the door isin the fully closed position, adjust thebumper as needed.
Note:To avoid body damage, do not slamthe door until the bumper adjustments arefinalized.
13.Open and close the installed door afew times to make sure it is properlyaligned and that it operates normally.
14.To install additional doors, repeatSteps 3-13.
15.Return the hex tool and dooralignment pin to the tool kit andsecure the tool kit in the vehicle’scenter console.
16.Return the mirrors to the drivingposition.
Note:Rear seat occupant alert does notfunction with tube doors.
Latch Alignment Adjustments
Vertical Adjustments
To make vertical adjustments:
1.Loosen the upper and lower hingemounting bolts.
2.Engage the latch on the striker to makesure it is properly aligned.
3.Tighten the upper and lower hingemounting bolts, but do not apply finaltorque.
4.Disengage and reengage the latch fromthe striker and confirm properalignment.
5.Tighten the upper and lower hingemounting bolts to 41 lb.ft (55 Nm).
Horizontal Adjustments
To make horizontal adjustments:
382
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE344794 E344855 E344781

1.Loosen the upper and lower hingemounting bolts.
2.Add or remove shims as necessary toattain proper latch alignment, startwith no shims.
3.Tighten the upper and lower hingemounting bolts, but do not apply finaltorque.
4.Disengage the latch from the strikerand confirm proper alignment.
5.Tighten the upper and lower hingemounting bolts to 41 lb.ft (55 Nm).
Removing the Doors
WARNING: Removal of doors foroff-road use only. Removing the doorsfrom the vehicle will affect protectionprovided by the doors and may affectsafety system performance, includingsafety canopy and front seat mountedside airbags, during a crash or rollover.
1.Switch your vehicle off.
2.Fold the mirrors completely toward thefront of your vehicle before removingthe front doors.
3.Fully open the door you are removing.
4.Use the provided hex tool to loosenand remove the lower hinge bolt.
5.Loosen and remove the upper hingebolt.
Note:You can store the hinge bolts in thetool pouch zipped pocket, if needed.
6.Lift the door vertically to separate itfrom the vehicle.
Note:Use caution when removing the doorsas they are heavy.
Note:Store the doors in a secure area.
Note:Store the doors out of the elementsto prevent damage.
7.To remove additional doors, repeatSteps 3-6.
8.Return the hex tool to the tool kit andsecure the tool kit in the vehicle’scenter console.
9.Return the mirrors to the drivingposition.
Note:When you remove the doors, the rearseat occupant alert no longer functions.
Note:When you remove the doors or whenyou have tube doors installed on the vehicle,a warning message related to the electricalsystem appears on the instrument clusterdisplay with each ignition cycle. Themessage no longer displays when all factorydoors are re-installed. If the messagepersists after you install all factory doors,check the wiring connectors on all the doorsto confirm that you properly connectedthem.
Cleaning the Tube Doors
We recommend that you wash the tubedoors with mild soap and rinse with astandard pressure water hose. Whilerinsing, avoid spraying water directly ontothe latch mechanism. Dry with a microfibercloth or leave to air dry.
383
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE344781

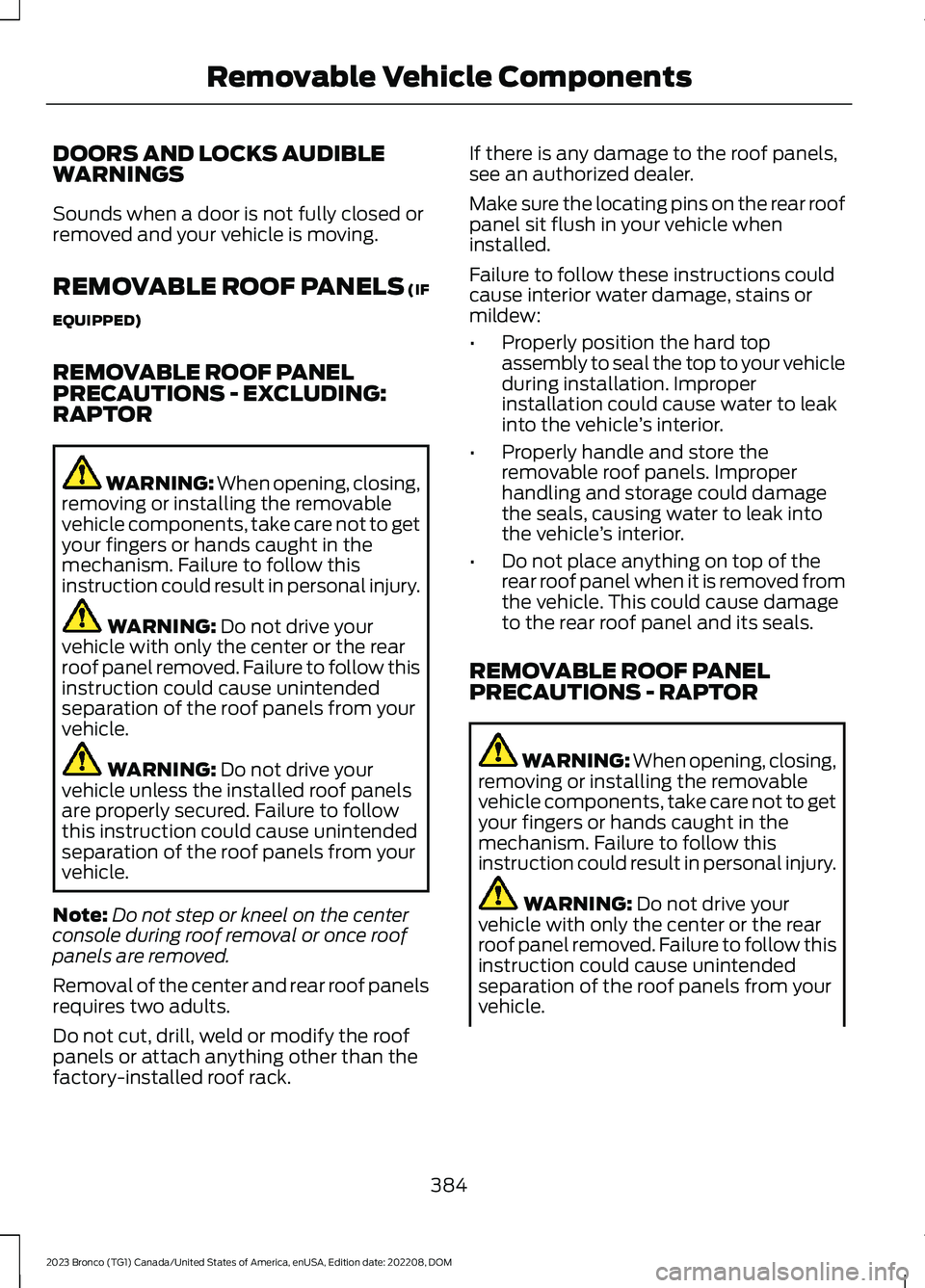

DOORS AND LOCKS AUDIBLEWARNINGS
Sounds when a door is not fully closed orremoved and your vehicle is moving.
REMOVABLE ROOF PANELS (IF
EQUIPPED)
REMOVABLE ROOF PANELPRECAUTIONS - EXCLUDING:RAPTOR
WARNING: When opening, closing,removing or installing the removablevehicle components, take care not to getyour fingers or hands caught in themechanism. Failure to follow thisinstruction could result in personal injury.
WARNING: Do not drive yourvehicle with only the center or the rearroof panel removed. Failure to follow thisinstruction could cause unintendedseparation of the roof panels from yourvehicle.
WARNING: Do not drive yourvehicle unless the installed roof panelsare properly secured. Failure to followthis instruction could cause unintendedseparation of the roof panels from yourvehicle.
Note:Do not step or kneel on the centerconsole during roof removal or once roofpanels are removed.
Removal of the center and rear roof panelsrequires two adults.
Do not cut, drill, weld or modify the roofpanels or attach anything other than thefactory-installed roof rack.
If there is any damage to the roof panels,see an authorized dealer.
Make sure the locating pins on the rear roofpanel sit flush in your vehicle wheninstalled.
Failure to follow these instructions couldcause interior water damage, stains ormildew:
•Properly position the hard topassembly to seal the top to your vehicleduring installation. Improperinstallation could cause water to leakinto the vehicle’s interior.
•Properly handle and store theremovable roof panels. Improperhandling and storage could damagethe seals, causing water to leak intothe vehicle’s interior.
•Do not place anything on top of therear roof panel when it is removed fromthe vehicle. This could cause damageto the rear roof panel and its seals.
REMOVABLE ROOF PANELPRECAUTIONS - RAPTOR
WARNING: When opening, closing,removing or installing the removablevehicle components, take care not to getyour fingers or hands caught in themechanism. Failure to follow thisinstruction could result in personal injury.
WARNING: Do not drive yourvehicle with only the center or the rearroof panel removed. Failure to follow thisinstruction could cause unintendedseparation of the roof panels from yourvehicle.
384
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle Components

WARNING: Do not drive yourvehicle unless the installed roof panelsare properly secured. Failure to followthis instruction could cause unintendedseparation of the roof panels from yourvehicle.
WARNING: Do not remove ormodify the B-Pillar brace or trim. Doingso could affect safety systemperformance, including safety canopyand front seat mounted side airbags,during a crash or rollover.
Do not remove or modify the C-pillar brace.
Removal of the center and rear roof panelsrequires two adults.
Do not cut, drill, weld or modify the roofpanels or attach anything other than thefactory-installed roof rack.
If there is any damage to the roof panels,see an authorized dealer.
Make sure the locating pins on the rear roofpanel sit flush in your vehicle wheninstalled.
Note:Do not step or kneel on the centerconsole during roof removal or once roofpanels are removed.
Failure to follow these instructions couldcause interior water damage, stains ormildew:
•Properly position the hard topassembly to seal the top to your vehicleduring installation. Improperinstallation could cause water to leakinto the vehicle’s interior.
•Properly handle and store theremovable roof panels. Improperhandling and storage could damagethe seals, causing water to leak intothe vehicle’s interior.
•Do not place anything on top of therear roof panel when it is removed fromthe vehicle. This could cause damageto the rear roof panel and its seals.
REMOVING AND INSTALLING THEFRONT ROOF PANEL -EXCLUDING: RAPTOR
Remove the driver side front roof panelbefore removing the passenger side frontroof panel.
1.Fold down the sun visor against thewindshield.
2.Turn the three L-shaped latches on thedriver side front roof panel, unlockingthem from the roof.
3.Unlatch the driver side header panellatch at the top of the windshield.
385
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE333995

4.Remove the driver side front roof panel.
5.Repeat the steps to remove thepassenger side panel front roof panel.
6.Store the front roof panels in thestorage bag. See Storing the RoofPanels (page 419). See Storing theDoors and the Roof Panels (page407).
7.To install, reverse the removalprocedure.
REMOVING AND INSTALLING THEFRONT ROOF PANEL - RAPTOR
WARNING: Do not remove ormodify the B-Pillar brace or trim. Doingso could affect safety systemperformance, including safety canopyand front seat mounted side airbags,during a crash or rollover.
Do not remove or modify the C-pillar brace.
Remove the driver side front roof panelbefore removing the passenger side frontroof panel.
1.Fold down the sun visor against thewindshield.
2.Turn the three L-shaped latches on thedriver side front roof panel, unlockingthem from the roof.
3.Unlatch the driver side header panellatch at the top of the windshield.

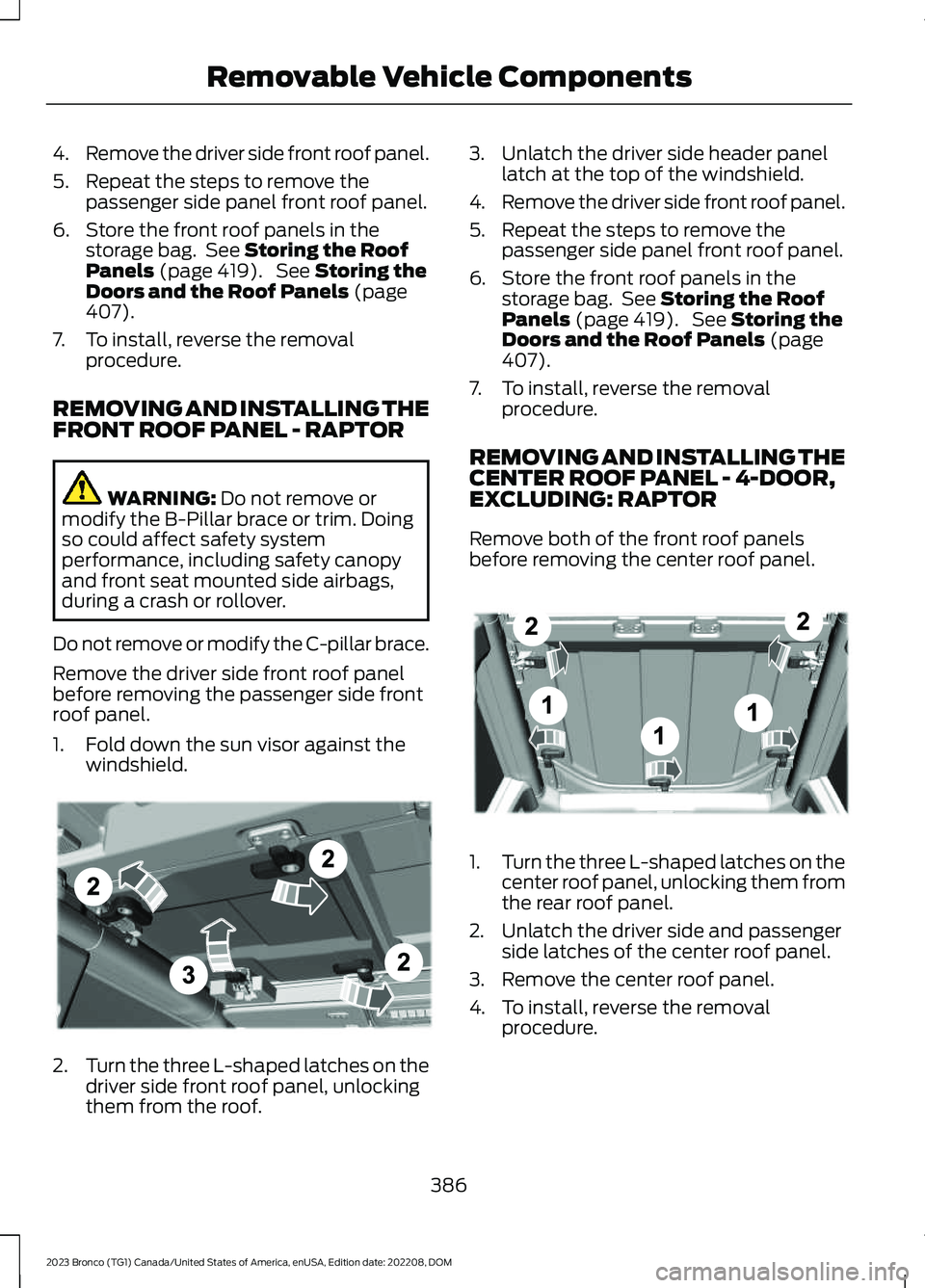

4.Remove the driver side front roof panel.
5.Repeat the steps to remove thepassenger side panel front roof panel.
6.Store the front roof panels in thestorage bag. See Storing the RoofPanels (page 419). See Storing theDoors and the Roof Panels (page407).
7.To install, reverse the removalprocedure.
REMOVING AND INSTALLING THECENTER ROOF PANEL - 4-DOOR,EXCLUDING: RAPTOR
Remove both of the front roof panelsbefore removing the center roof panel.
1.Turn the three L-shaped latches on thecenter roof panel, unlocking them fromthe rear roof panel.
2.Unlatch the driver side and passengerside latches of the center roof panel.
3.Remove the center roof panel.
4.To install, reverse the removalprocedure.
