fuse FORD BRONCO 2023 Owners Manual

Crash and BreakdownInformation
Roadside Assistance.................................328
Switching the Hazard Flashers On andOff................................................................329
Jump Starting the Vehicle.......................329
Post-Crash Alert System..........................331
Post Impact Braking...................................331
Automatic Crash Shutoff.........................332
Recovery Towing.........................................332
Transporting the Vehicle..........................335
Towing Your Vehicle
Towing Your Vehicle Precautions..........337
Recreationally Towing Your Vehicle -Manual Transmission............................337
Recreationally Towing Your Vehicle -Automatic Transmission.....................338
Emergency Towing....................................340
Towing Your Vehicle – Troubleshooting.......................................................................340
Fuses
Fuse Precautions.........................................341
Under Hood Fuse Box................................341
Body Control Module Fuse Box.............345
Identifying Fuse Types.............................348
Fuses – Troubleshooting.........................348
Maintenance
Maintenance Precautions.......................349
Opening and Closing the Hood.............349
Opening and Closing the Hood - Raptor........................................................................350
Under Hood Overview - 2.3L EcoBoost™.........................................................................351
Under Hood Overview - 2.7L EcoBoost™........................................................................352
Under Hood Overview - 3.0L EcoBoost™........................................................................353
Engine Oil......................................................354
Checking the Coolant...............................355
Changing the Engine Air Filter - 2.3LEcoBoost™/2.7L EcoBoost™...........359
Changing the Engine Air Filter - 3.0LEcoBoost™..............................................360
Changing the Fuel Filter............................361
12V Battery.....................................................361
12V Battery – Troubleshooting..............364
Adjusting the Headlamps.......................365
Exterior Bulbs...............................................367
Interior Bulbs................................................369
Drive Belt Routing - 2.3L EcoBoost™.......................................................................369
Drive Belt Routing - 2.7L EcoBoost™/3.0L EcoBoost™.....................................370
Removable VehicleComponents
Removable Windows.................................371
Removable Doors.......................................376
Removable Roof Panels..........................384
Removable Hard Top................................392
Removable Soft Top.................................393
Removable Fenders...................................397
Removable Running Boards - Raptor.......................................................................399
Removable Front Bumper End Caps -Raptor.........................................................401
Storing the Doors and the Roof Panels -4-Door, Excluding: Raptor...................407
Storing the Doors and the Roof Panels -Raptor..........................................................414
Storing the Roof Panels - 2-Door..........419
Vehicle Care
Cleaning Products.......................................421
Cleaning the Exterior.................................422
Cleaning the Interior..................................424
Repairing Minor Paint Damage..............427
Waxing Your Vehicle..................................427
11
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMTable of Contents

Fuel pump reset
Fuse compartment
Hazard flashers
Headlamp high beams
Headlamps on
Heated rear window
Hill descent control
Horn control
Interior luggage compartmentrelease
Jack
Keep out of reach of children
Lighting control
Low fuel level
Low tire pressure warning
Maintain correct fluid level
Malfunction Indicator Lamp(MIL)
Note operating instructions
Panic alarm
Parking aid
Parking lamps
Passenger airbag activated
Passenger airbag deactivated
Power steering fluid
Power windows front/rear
Power window lockout
Requires registered technician
Safety alert
See Owner's Manual
See Service Manual
Side airbag
21
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMSymbols Glossary E139214 E75790 E67019 E270968 E163171 E270945 E139231 E161353 E139232 E139229 E67028 E72343 E139213 E71341 E270849 E270850 E139216 E139225 E231159 E65963 E72021 E231158

WHAT IS THE POWER OUTLET
The power outlet can power devices usinga 12 V outlet adapter.
POWER OUTLET
PRECAUTIONS
WARNING: Do not plug optionalelectrical accessories into the cigarlighter socket. Incorrect use of the cigarlighter can cause damage not coveredby the vehicle warranty, and can resultin fire or serious injury.
When you switch the vehicle on, you canuse the socket to power 12 V applianceswith a maximum current rating of 20 A. Donot use the power point over the vehiclecapacity of 12 V DC 240 W or a fuse couldblow. Do not plug in any device thatsupplies power to the vehicle through thepower points. This could result in damageto vehicle systems. Do not hang anyaccessory from the accessory plug. Alwayskeep the power point caps closed whennot in use. Do not insert objects other thanan accessory plug into the power point.
To prevent the battery from running out ofcharge:
•Do not use the power point longer thannecessary when the vehicle is off.
•Do not leave devices plugged inovernight or when you park your vehiclefor extended periods.
LOCATING THE POWER
OUTLETS
Power outlets may be in the followinglocations:
•On the lower instrument panel.
•Inside the center console.
•On the front of the center console.
•On the rear of the center console.
•In the cargo area.
•On the passenger side floor panel.
•3rd row on the quarter trim panels.
160
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMPower Outlet - Vehicles With: 12V Power Outlet

RUNNING OUT OF FUEL
FILLING A PORTABLE FUELCONTAINER
WARNING: Flow of fuel through afuel pump nozzle can produce staticelectricity. This can cause a fire if you arefilling an ungrounded fuel container.
Use the following guidelines to avoidelectrostatic charge build-up, which canproduce a spark, when filling anungrounded fuel container:
•Only use an approved fuel container totransfer fuel to your vehicle. Place thecontainer on the ground when filling it.
•Do not fill a fuel container when it isinside your vehicle (including the cargoarea).
•Keep the fuel pump nozzle in contactwith the fuel container when filling it.
•Do not use a device that holds the fuelpump nozzle lever in the fill position.
ADDING FUEL FROM A PORTABLEFUEL CONTAINER
WARNING: Do not insert the nozzleof a fuel container or an aftermarketfunnel into the fuel filler neck. This maydamage the fuel system filler neck or itsseal and cause fuel to run onto theground.
WARNING: Do not pry open thefuel tank filler valve. This could damagethe fuel system. Failure to follow thisinstruction could result in fire, personalinjury or death.
WARNING: Do not dispose of fuelin the household refuse or the publicsewage system. Use an authorized wastedisposal facility.
When refueling the vehicle fuel tank froma fuel container, use the fuel filler funnelincluded with your vehicle. See Locatingthe Fuel Filler Funnel (page 180).
Note:Do not use aftermarket funnels asthey may not work with the capless fuelsystem and can damage it.
When refueling the vehicle fuel tank froma fuel container, do the following:
1.Fully open the fuel filler door.
2.Fully insert the fuel filler funnel into thefuel filler inlet.
3.Add fuel to your vehicle from the fuelcontainer.
4.Remove the fuel filler funnel.
5.Fully close the fuel filler door.
6.Clean the fuel filler funnel and place itback in your vehicle or correctly disposeof it.
181
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMFuel and RefuelingE157452

AUTOMATIC TRANSMISSION
PRECAUTIONS
WARNING: Apply the parkingbrake, shift into park (P), switch theignition off and remove the key beforeyou leave your vehicle. Failure to followthis instruction could result in personalinjury or death.
WARNING: When your vehicle isstationary, keep the brake pedal fullypressed when shifting gears. Failure tofollow this instruction could result inpersonal injury, death or propertydamage.
WARNING: Do not apply the brakepedal and accelerator pedalsimultaneously. Applying both pedalssimultaneously for more than a fewseconds will limit engine performance,which may result in difficulty maintainingspeed in traffic and could lead to seriousinjury.
AUTOMATIC TRANSMISSION
POSITIONS
PARK (P)
WARNING: Shift into park (P) onlywhen your vehicle is stationary.
In park (P) power is not transmitted to thedriven wheels.
Note:A tone sounds if you attempt to exityour vehicle without the vehicle in park (P).
Note:Your vehicle may not shift out of park(P) if the 12 V battery has run out of charge.
Note:Your vehicle may not shift out of park(P) if a fuse is blown.
Note:Your vehicle may not shift out of park(P) unless the key or remote control is insideyour vehicle.
Note:The electronic parking brake couldapply when you power your vehicle on withthe selector in park (P).
Note:The electronic parking brake couldapply if you shift to park (P) without fullypressing the brake pedal.
Note:The electronic parking brake couldapply if you shift to park (P) on a slope.
Note:Do not manually release the parkingbrake when the selector is in park (P). SeeAutomatically Releasing the ElectricParking Brake (page 213).
REVERSE (R)
WARNING: Shift into reverse (R)only when your vehicle is stationary.
In reverse (R) power is transmitted to thedriven wheels.
NEUTRAL (N)
WARNING: In neutral (N) yourvehicle is free to roll.
In neutral (N) power is not transmitted tothe driven wheels.
DRIVE (D)
In drive (D) power is transmitted to thedriven wheels.
190
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMAutomatic Transmission (If Equipped)

FUSE PRECAUTIONS
WARNING: Always disconnect thebattery before servicing high currentfuses.
WARNING: To reduce risk ofelectrical shock, always replace thecover to the power distribution boxbefore reconnecting the battery orrefilling fluid reservoirs.
WARNING: Always replace a fusewith one that has the specifiedamperage rating. Using a fuse with ahigher amperage rating can cause severewire damage and could start a fire.
UNDER HOOD FUSE BOX
LOCATING THE UNDER HOODFUSE BOX
ACCESSING THE UNDER HOODFUSE BOX
341
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMFusesE329461 E329462

IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
Protected ComponentRatingItem
Body control module -battery power in feed 1.30 A1
Body control module -battery power in feed 2.30 A3
Fuel pump.30 A4
Powertrain control modulepower.25 A6
Powertrain components.30 A7
Powertrain components.20 A8
Ignition coils.20 A9
Blower motor.40 A13
Rear windshield washer.10 A16
Starter motor.30 A18
342
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMFusesE386390

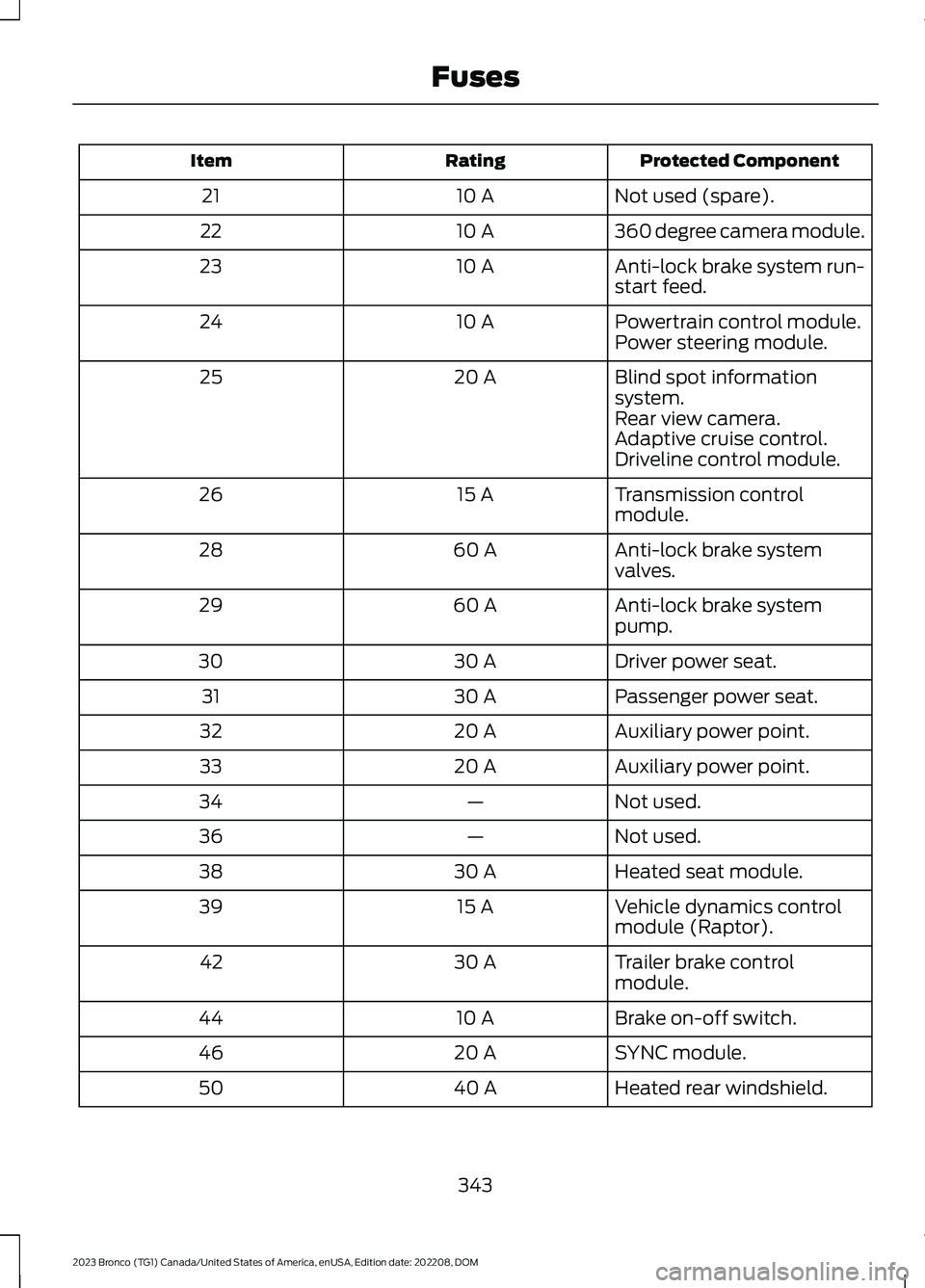

Protected ComponentRatingItem
Not used (spare).10 A21
360 degree camera module.10 A22
Anti-lock brake system run-start feed.10 A23
Powertrain control module.10 A24Power steering module.
Blind spot informationsystem.20 A25
Rear view camera.Adaptive cruise control.Driveline control module.
Transmission controlmodule.15 A26
Anti-lock brake systemvalves.60 A28
Anti-lock brake systempump.60 A29
Driver power seat.30 A30
Passenger power seat.30 A31
Auxiliary power point.20 A32
Auxiliary power point.20 A33
Not used.—34
Not used.—36
Heated seat module.30 A38
Vehicle dynamics controlmodule (Raptor).15 A39
Trailer brake controlmodule.30 A42
Brake on-off switch.10 A44
SYNC module.20 A46
Heated rear windshield.40 A50
343
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMFuses

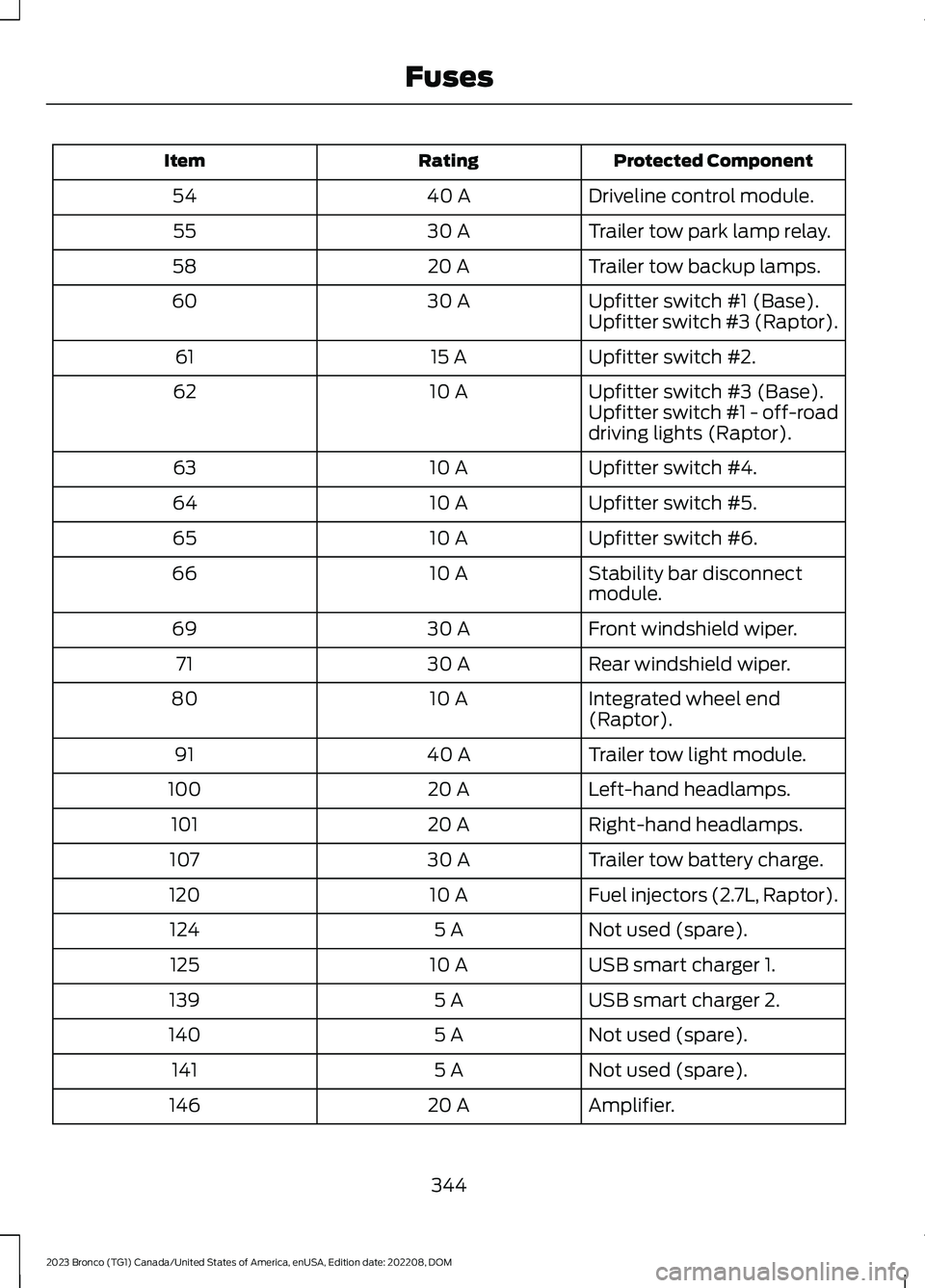

Protected ComponentRatingItem
Driveline control module.40 A54
Trailer tow park lamp relay.30 A55
Trailer tow backup lamps.20 A58
Upfitter switch #1 (Base).30 A60Upfitter switch #3 (Raptor).
Upfitter switch #2.15 A61
Upfitter switch #3 (Base).10 A62Upfitter switch #1 - off-roaddriving lights (Raptor).
Upfitter switch #4.10 A63
Upfitter switch #5.10 A64
Upfitter switch #6.10 A65
Stability bar disconnectmodule.10 A66
Front windshield wiper.30 A69
Rear windshield wiper.30 A71
Integrated wheel end(Raptor).10 A80
Trailer tow light module.40 A91
Left-hand headlamps.20 A100
Right-hand headlamps.20 A101
Trailer tow battery charge.30 A107
Fuel injectors (2.7L, Raptor).10 A120
Not used (spare).5 A124
USB smart charger 1.10 A125
USB smart charger 2.5 A139
Not used (spare).5 A140
Not used (spare).5 A141
Amplifier.20 A146
344
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMFuses

Protected ComponentRatingItem
Stability bar disconnectmodule run/start.10 A158
Smart data link control.10 A160
Driver door module.60 A182
Passenger door module.60 A183
Body control module B+.60 A202
Body control module startstop.30 A210
BODY CONTROL MODULE
FUSE BOX
LOCATING THE BODY CONTROLMODULE FUSE BOX
ACCESSING THE BODY CONTROLMODULE FUSE BOX
345
