fuse box FORD BRONCO 2023 Owners Manual

FORD BRONCO 2023 Owners Manual BRONCO 2023 FORD FORD https://www.carmanualsonline.info/img/11/58723/w960_58723-0.png FORD BRONCO 2023 Owners Manual

Page 15 of 642

FORD BRONCO 2023  Owners Manual Crash and BreakdownInformation
Roadside Assistance.................................328
Switching the Hazard Flashers On andOff................................................................329
Jump S

Page 345 of 642

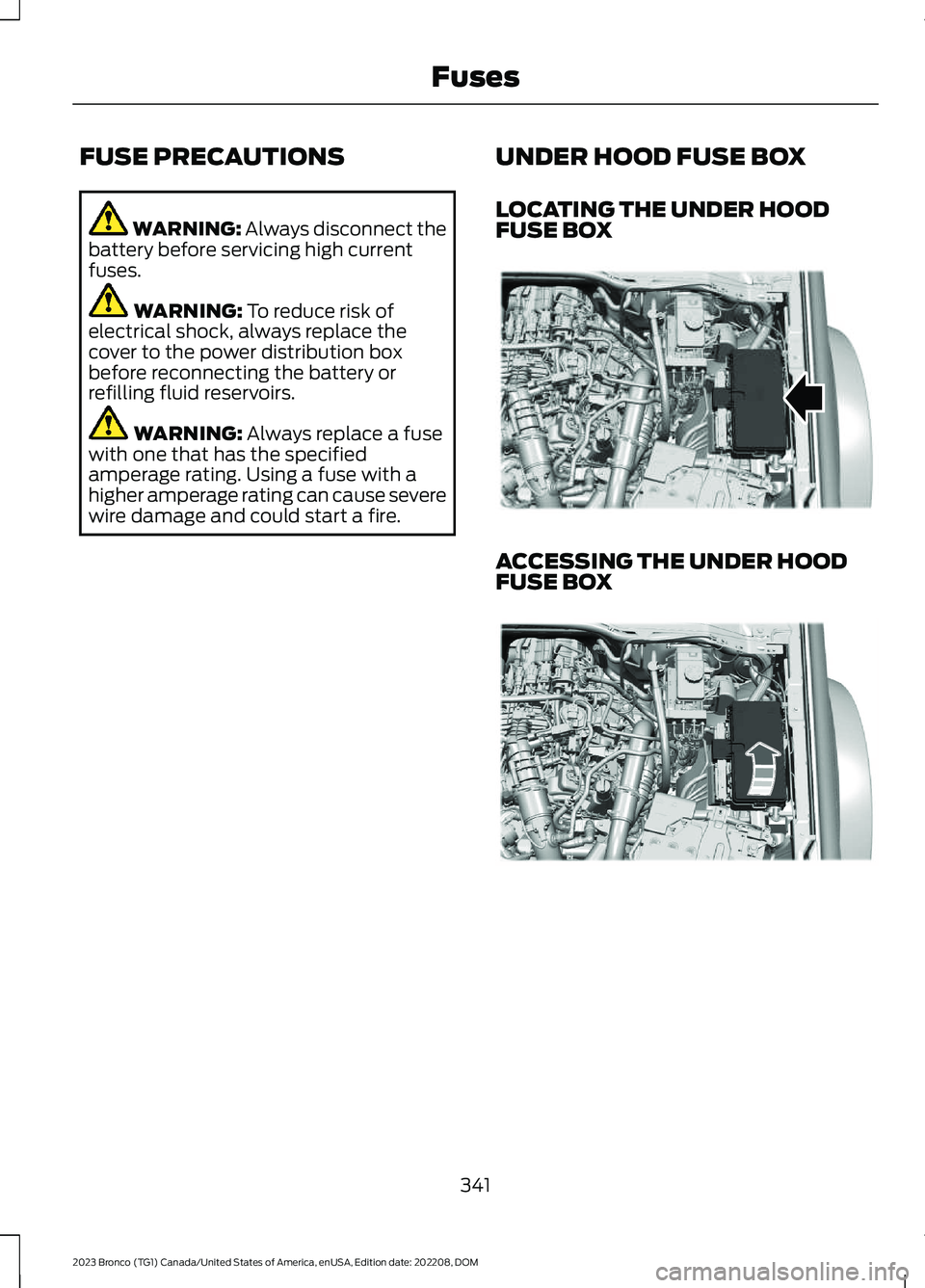

FORD BRONCO 2023  Owners Manual FUSE PRECAUTIONS
WARNING: Always disconnect thebattery before servicing high currentfuses.
WARNING: To reduce risk ofelectrical shock, always replace thecover to the power distribution boxbefore recon

Page 346 of 642

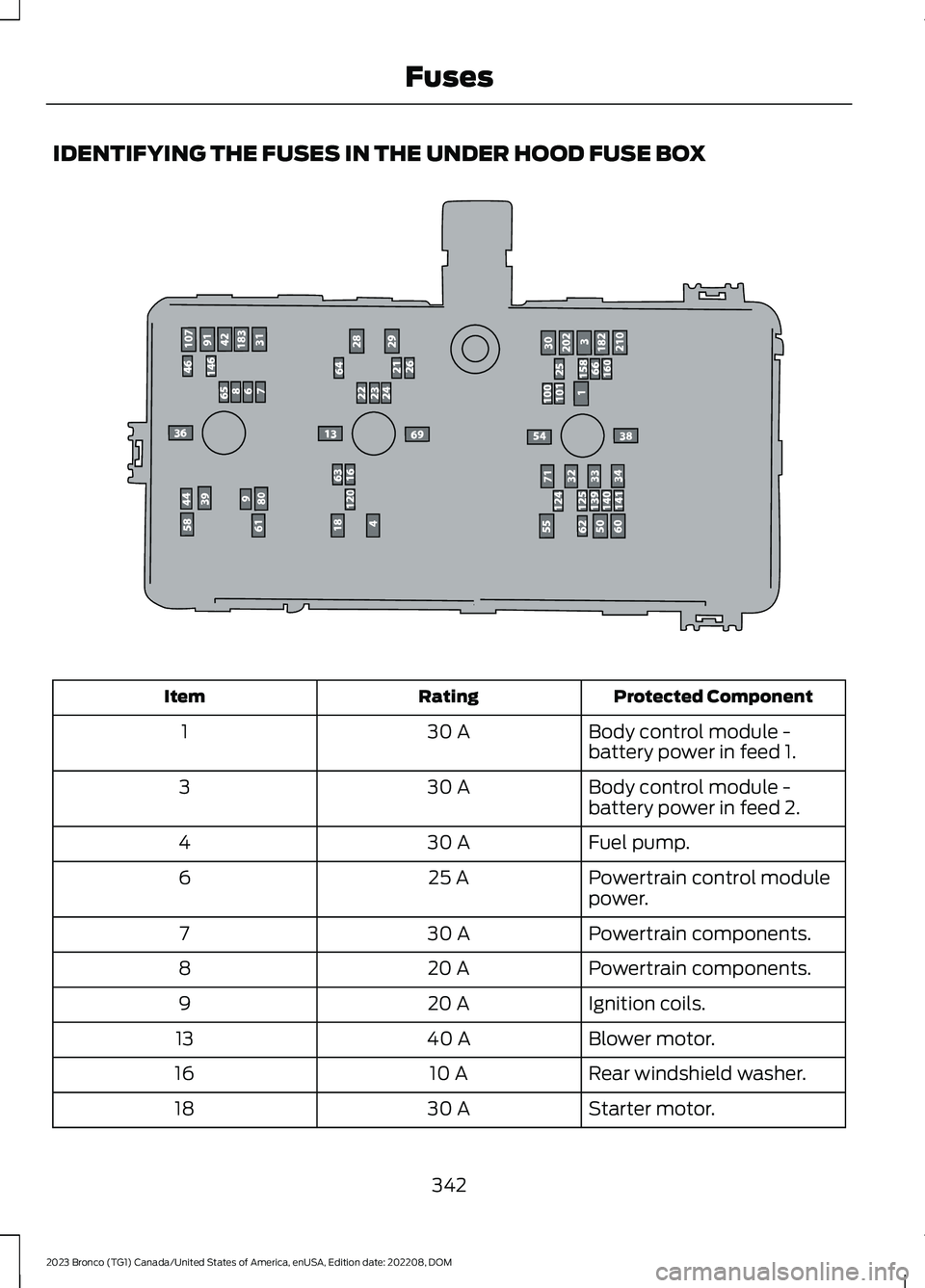

FORD BRONCO 2023  Owners Manual IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
Protected ComponentRatingItem
Body control module -battery power in feed 1.30 A1
Body control module -battery power in feed 2.30 A3
Fuel pump.30 A4
Pow

Page 349 of 642

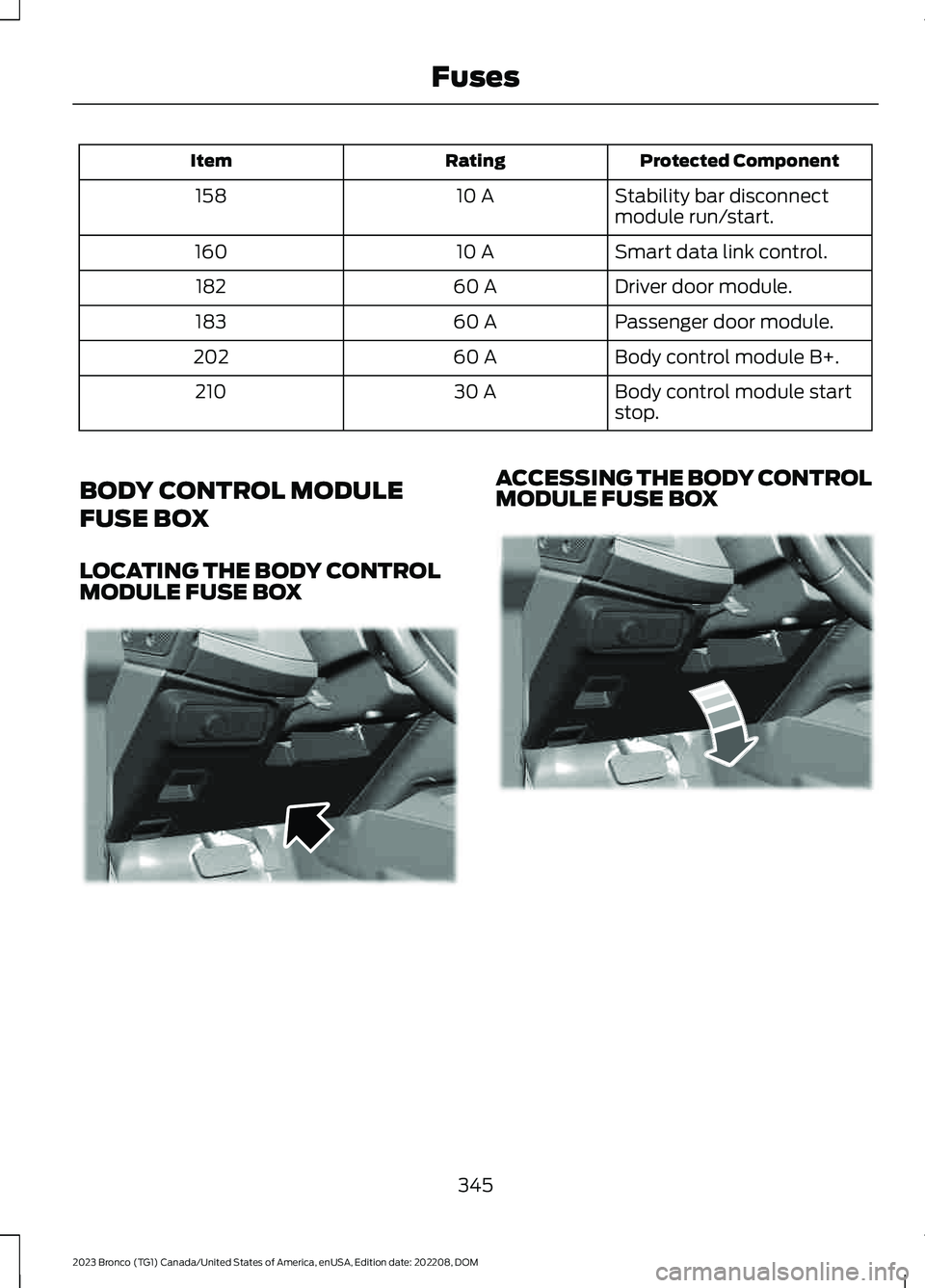

FORD BRONCO 2023  Owners Manual Protected ComponentRatingItem
Stability bar disconnectmodule run/start.10 A158
Smart data link control.10 A160
Driver door module.60 A182
Passenger door module.60 A183
Body control module B+.60 A202
B

Page 350 of 642

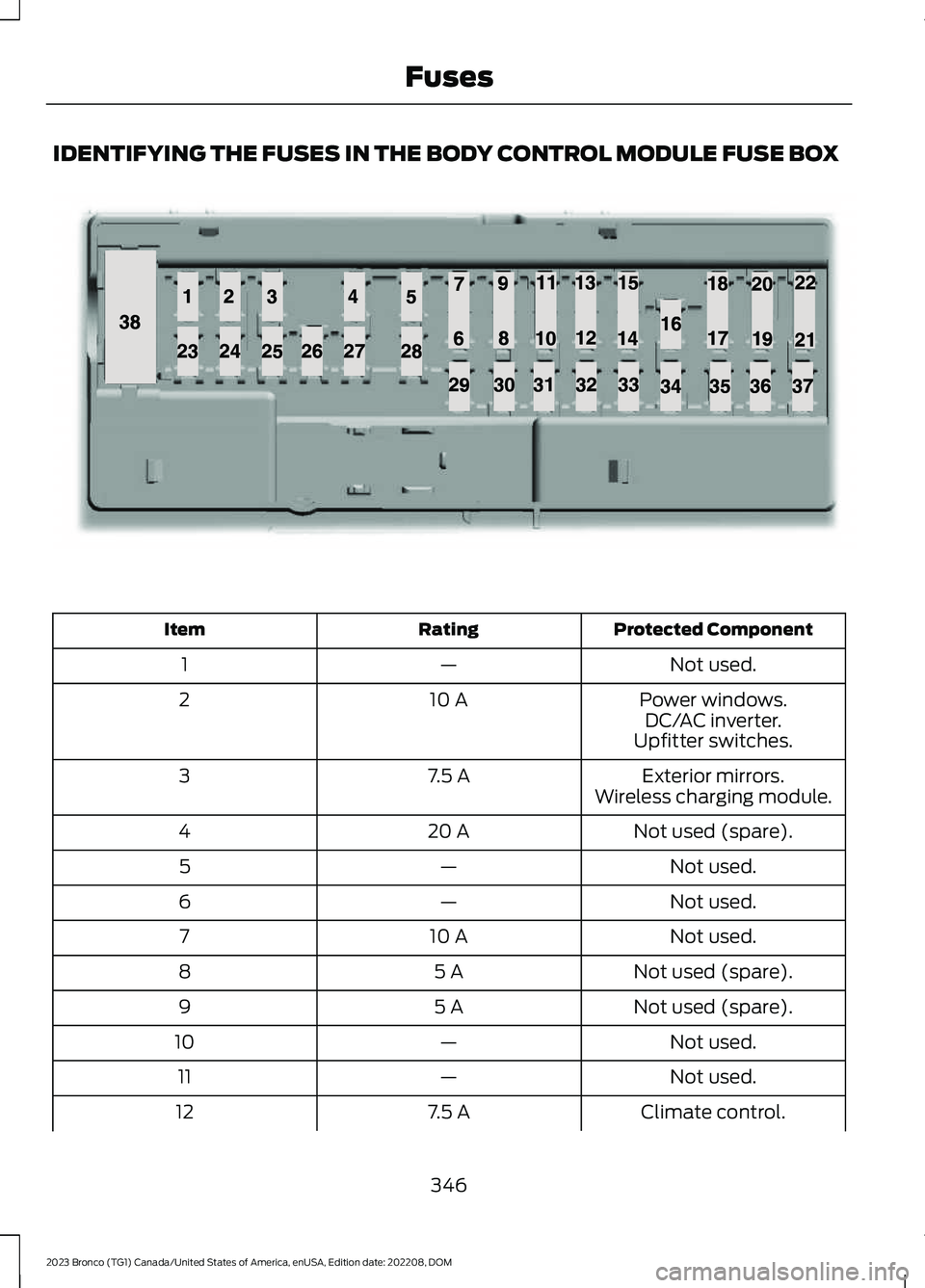

FORD BRONCO 2023  Owners Manual IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
Protected ComponentRatingItem
Not used.—1
Power windows.10 A2DC/AC inverter.Upfitter switches.
Exterior mirrors.7.5 A3Wireless charging modu

Page 356 of 642

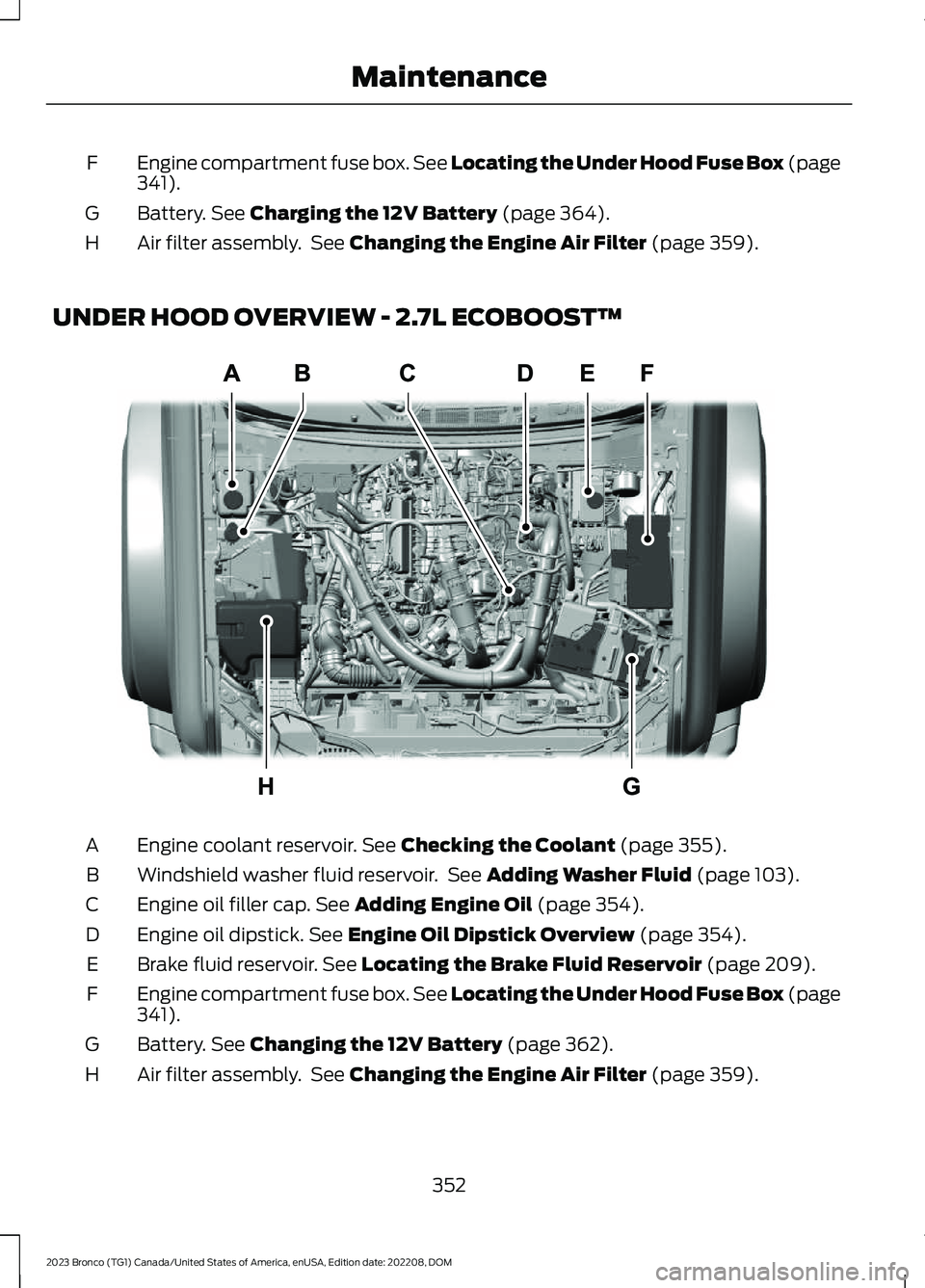

FORD BRONCO 2023  Owners Manual Engine compartment fuse box. See Locating the Under Hood Fuse Box (page341).F
Battery. See Charging the 12V Battery (page 364).G
Air filter assembly. See Changing the Engine Air Filter (page 359).H
UN

Page 357 of 642

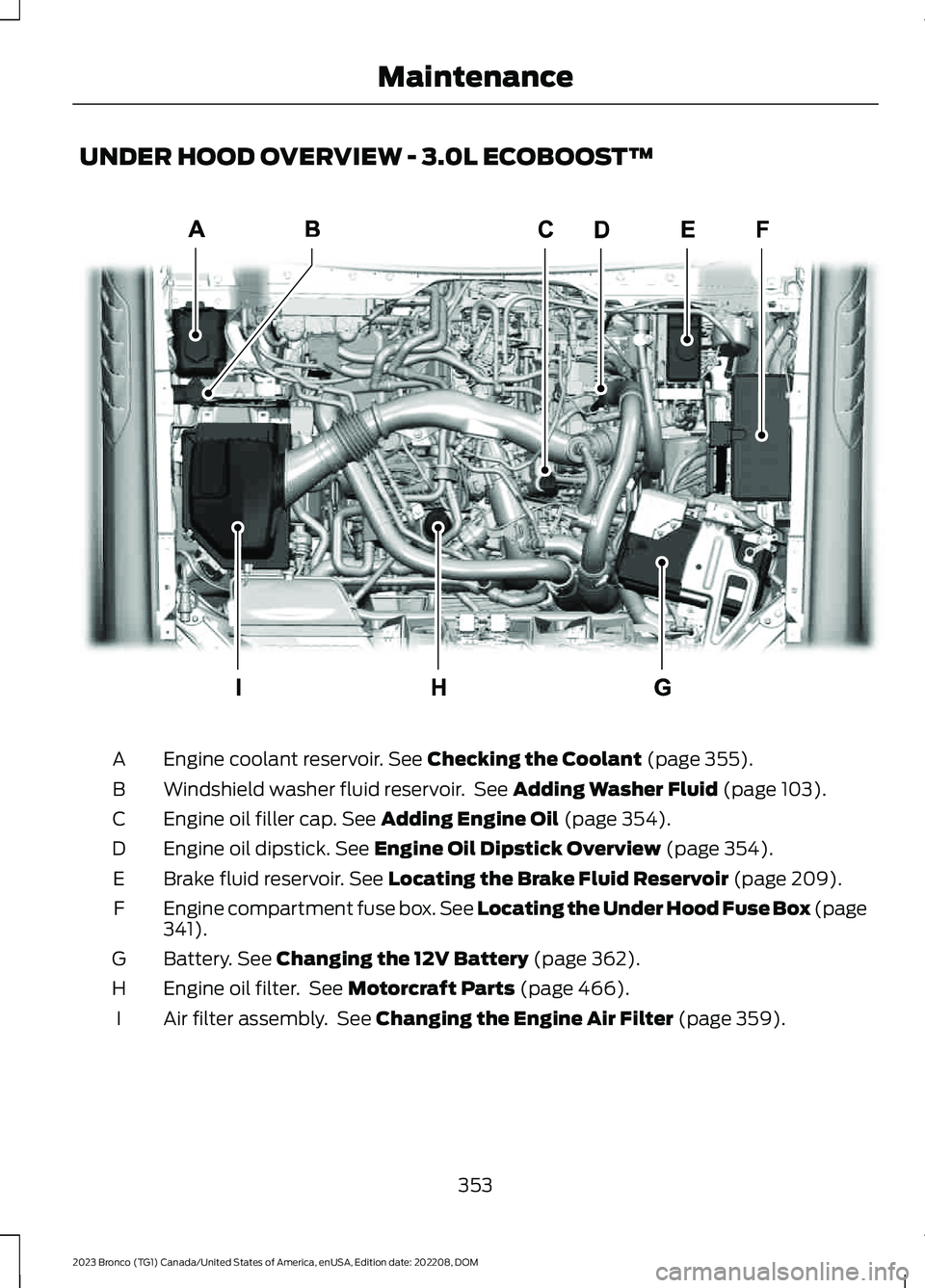

FORD BRONCO 2023  Owners Manual UNDER HOOD OVERVIEW - 3.0L ECOBOOST™
Engine coolant reservoir. See Checking the Coolant (page 355).A
Windshield washer fluid reservoir. See Adding Washer Fluid (page 103).B
Engine oil filler cap. Se

Page 526 of 642

FORD BRONCO 2023  Owners Manual WHAT ARE THE AUXILIARY
SWITCHES
The auxiliary switchboard on the overheadconsole makes aftermarket customizationeasier with six prewired switchesconnected to the power distribution box.Each circuit is

Page 527 of 642

FORD BRONCO 2023  Owners Manual Circuits from under hood fuse box. See Locating the Under Hood Fuse Box(page 341).A
Circuits to interior right-hand cowl side.B
Circuit to front grille.C
Circuit to right-hand visor.D
Circuit to right

Page 528 of 642

FORD BRONCO 2023  Owners Manual IDENTIFYING THE AUXILIARY SWITCH WIRING - EXCLUDING:
RAPTOR
The switches are coded as follows:
FuseWire SizeWire ColorPower DistributionBox
30A1.5 mm²YellowAUX 1
15A1.5 mm²Green/BrownAUX 2
10A0.75 m
