Downloaded from www.Manualslib.com manuals search engine •Squeeze the clips on either sideof the bulb holder and pull it out.
•Carefully remove the bulb fromthe holder.
Install in the reverse order.
Side repeaters
5 watt spherical bulb
1.Carefully remove the siderepeater.
2.Hold the bulb holder, turn thehousing anti-clockwise andremove it.
3.Remove the bulb.
Side repeater indicator onexterior mirrors
WY5 watt wedge base bulb, orange
WARNING
The retainer tabs on the edgeof the scull cap are verydelicate. When removing andreinstalling the scull cap, take carenot to break them off.
Remove the scull cap by prising it outat the lower edge.
Insert your finger (or a screwdriver)into the hole and unhook theretaining clip. Remove the lampassembly.
77
LightingE78112 213E78869 E78114 E78115

Downloaded from www.Manualslib.com manuals search engine ELECTRIC WINDOWS
WARNING
Do not operate the electricwindows unless they are freefrom obstruction.
Note:If you operate the switchesoften during a short period of time,the system might become inoperablefor a certain time to prevent damagedue to overheating.
Switch on the ignition to operate theelectric windows.
Global opening and closing
You can also operate the electricwindows with the ignition off via theglobal opening and closing function.See Locks (page 40).
Driver's door switches
You can operate all the windows withthe switches on the door trim panelof the driver’s door.
Opening and closing thewindows automatically
Press or lift the switch to the secondaction point and release itcompletely. Press or lift it again tostop the windows.
Safety switch for rearwindows
Note:You can always operate therear windows from the driver’s door.
A switch in the driver’s door disablesthe rear electric window switches.
The light in the switch comes on andthe lights in the rear window switchesgo off when the rear windows aredisabled.
Anti-trap function
WARNING
Careless closing of the windowscan override the protectionfunction and cause injuries.
84
Windows and mirrorsE70848 E70850

Downloaded from www.Manualslib.com manuals search engine AUDIBLE WARNINGS
AND INDICATORS
Automatic transmission
If position P is not selected, a warningchime will sound when the driver’sdoor is opened.
Electronic parking brake(EPB)
A warning chime will sound if:
•the driver’s door is opened beforethe EPB is applied.
•the EPB is still applied when thevehicle moves off.
•there is a cut in the power supply.
Frost
WARNING
Even if the temperature rises toabove +4ºC there is noguarantee that the road is free ofhazards caused by inclementweather.
A warning chime will sound in thefollowing conditions:
•+4ºC or lower: frost warning
•0ºC or lower: danger of icy roads
Key outside car
Vehicles with the key freesystem
If the engine is running and a passivekey is no longer detected within thevehicle interior, a chime will sound assoon as the door is closed.
Key-in-ignition
Except vehicles with the keyfree system
A warning tone will sound when thedriver’s door is opened if:
•the key is in the ignition.
Vehicles with the key freesystem
A warning tone will sound when thedriver’s door is opened if:
•the ignition switch is not pulledout.
•the spare key is in the ignition.
Lights on
A warning chime will sound if thedriver’s door is opened with theexterior lights switched on and theignition switched off.
Low fuel
A warning chime will sound at thefollowing ranges: 80 km (50 miles),40 km (25 miles), 20 km (12 miles), 0km (0 miles).
94
Instruments

Downloaded from www.Manualslib.com manuals search engine SystemWarninglampMessage
Key free system.-Close boot or use spare key
Lighting
SystemWarninglampMessage
Brake lamp switch. Thevehicle can be driven asnormal. However, cruisecontrol cannot be switchedon. Have the system checkedby an expert as soon aspossible.
redBrake light fault
Adaptive front lighting system(AFS).amberAdaptive front light failure
Maintenance
SystemWarninglampMessage
Cooling system.redHigh engine temperature
Brakes.redLow brake fluid level
Engine. Stop the vehicle assoon as safely possible andswitch off the engine immedi-ately. Have the enginechecked by an expert imme-diately.
redEngine malfunction
104
Information displays

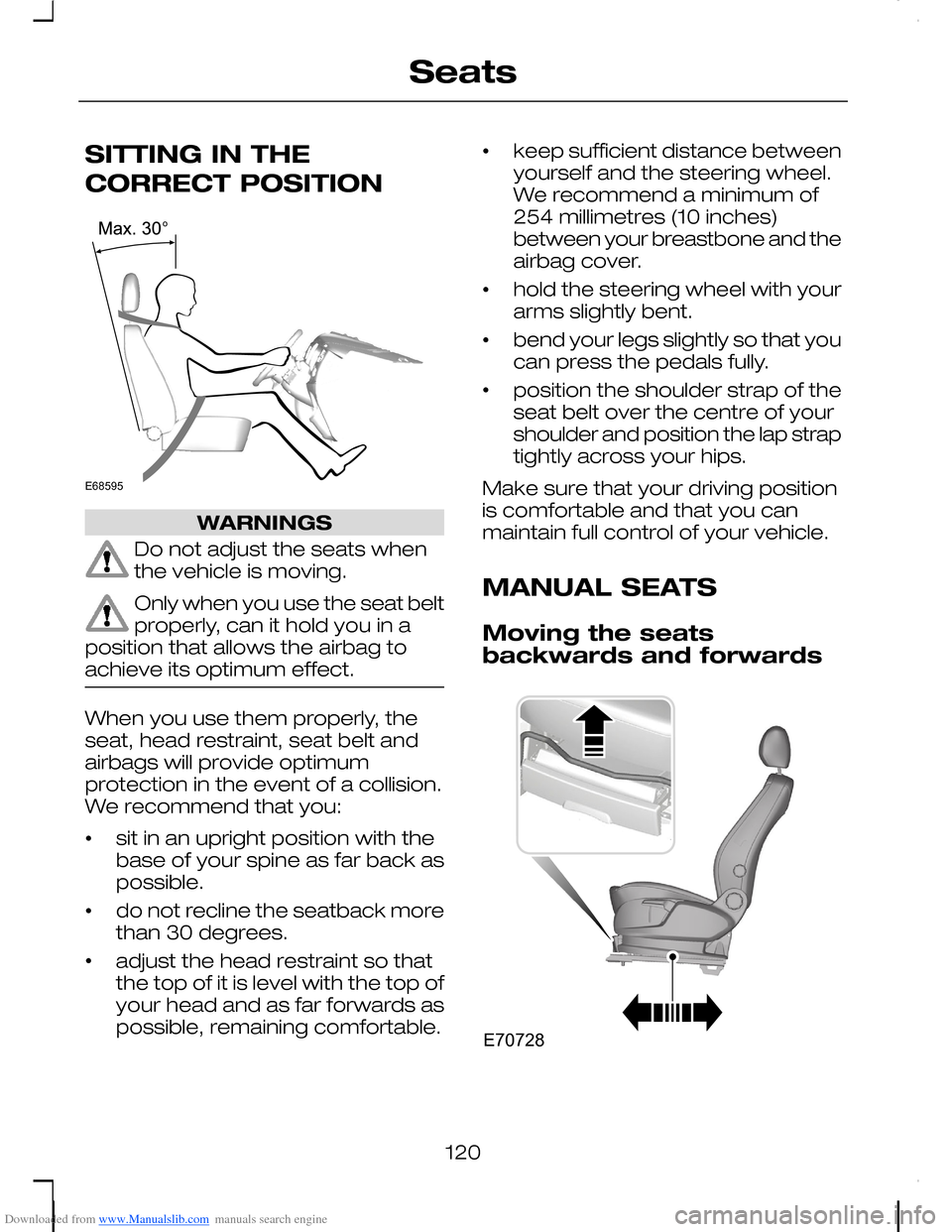

Downloaded from www.Manualslib.com manuals search engine SITTING IN THE
CORRECT POSITION
WARNINGS
Do not adjust the seats whenthe vehicle is moving.
Only when you use the seat beltproperly, can it hold you in aposition that allows the airbag toachieve its optimum effect.
When you use them properly, theseat, head restraint, seat belt andairbags will provide optimumprotection in the event of a collision.We recommend that you:
•sit in an upright position with thebase of your spine as far back aspossible.
•do not recline the seatback morethan 30 degrees.
•adjust the head restraint so thatthe top of it is level with the top ofyour head and as far forwards aspossible, remaining comfortable.
•keep sufficient distance betweenyourself and the steering wheel.We recommend a minimum of254 millimetres (10 inches)between your breastbone and theairbag cover.
•hold the steering wheel with yourarms slightly bent.
•bend your legs slightly so that youcan press the pedals fully.
•position the shoulder strap of theseat belt over the centre of yourshoulder and position the lap straptightly across your hips.
Make sure that your driving positionis comfortable and that you canmaintain full control of your vehicle.
MANUAL SEATS
Moving the seatsbackwards and forwards
120
SeatsE68595 E70728

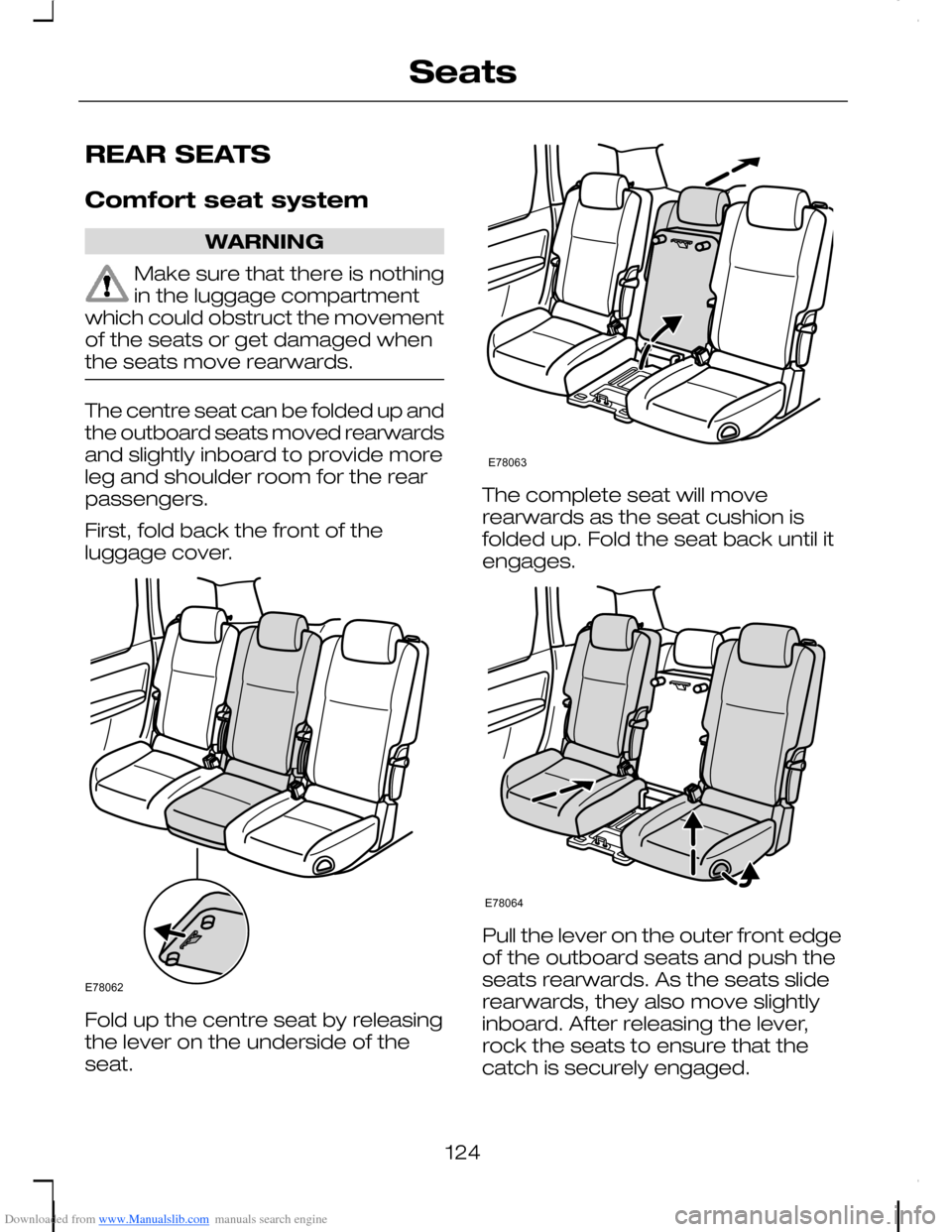

Downloaded from www.Manualslib.com manuals search engine REAR SEATS
Comfort seat system
WARNING
Make sure that there is nothingin the luggage compartmentwhich could obstruct the movementof the seats or get damaged whenthe seats move rearwards.
The centre seat can be folded up andthe outboard seats moved rearwardsand slightly inboard to provide moreleg and shoulder room for the rearpassengers.
First, fold back the front of theluggage cover.
Fold up the centre seat by releasingthe lever on the underside of theseat.
The complete seat will moverearwards as the seat cushion isfolded up. Fold the seat back until itengages.
Pull the lever on the outer front edgeof the outboard seats and push theseats rearwards. As the seats sliderearwards, they also move slightlyinboard. After releasing the lever,rock the seats to ensure that thecatch is securely engaged.
124
SeatsE78062 E78063 E78064

Downloaded from www.Manualslib.com manuals search engine INSTRUMENT LIGHTING
DIMMER
CIGAR LIGHTER
WARNING
Never hold the lighter in as thiswill result in damage. Alwaysremove the lighter as a precautionwhen children are left alone in thevehicle.
To use the lighter, press it in and waituntil it pops out automatically. Thelighter will also operate when theignition is switched off.
Other appliances can be connectedto the cigar lighter power point.
When connecting appliances, useonly specified connectors from theFord Accessory range or connectorsfor use with SAE standard sockets.
AUXILIARY POWER
SOCKETS
CAUTION
If you use the socket when theengine is not running, the batterymay discharge.
Note:You can use the socket topower 12 volt appliances that have amaximum current rating of 10Amperes. Use only Ford accessoryconnectors or connectors specifiedfor use with SAE standard sockets.
Auxiliary power sockets are locatedin the centre console and in theluggage compartment.
Power inverter
CAUTIONS
If you use the socket when theengine is not running, the batterymay discharge.
If the LED flashes continuously,re-insert the plug or switch theignition off and then on again.
It will switch off if the temperatureis above 85°C (185°F). The LEDwill flash once. When it has cooleddown it will switch back onautomatically.
134
Convenience featuresE70454 E78055 E78056

Downloaded from www.Manualslib.com manuals search engine CAUTIONS
Do not exceed the maximumpower output. If you do, the LEDwill flash twice. Remove the plug andre-insert it.
If the LED flashes 3 or 4 times,have the system checked by aproperly trained technician.
CENTRE CONSOLE
Front seat centre console
WARNINGS
Do not place hot drinks in thecup holders when the vehicle ismoving.
Do not use the rear storagecompartment as an ashtray.
The following features areincorporated into the centre console:
•Front and rear storagecompartments.
•Ashtray. To empty, pull out thecomplete ashtray.
•Cigar lighter. See Cigar lighter(page 134).
•Cup holders.
•Auxiliary input (AUX IN) socket.See Auxiliary input (AUX IN)socket (page 140).
•Storage box.
Storage box
135
Convenience featuresE98199 E73704

Downloaded from www.Manualslib.com manuals search engine WARNINGS
Always check that the steeringwheel lock is deactivated beforeattempting to move your vehicle.See Cigar lighter (page 134).
Note:A valid passive key must belocated inside the vehicle to switchthe ignition on and start the engine.
Note:To start your engine you mustalso fully depress the brake or clutchpedal, depending on the transmissionfitted.
Ignition on
Press the start button once. Allelectrical circuits are operational,warning lamps and indicatorsilluminate.
Starting with automatictransmission
CAUTION
Release the start button as soonas the engine starts.
Note:Releasing the start button orthe brake pedal during engine startwill stop the engine cranking andreturn to ignition on.
1.Make sure the transmission is inP or N.
2.Fully depress the brake pedal.
3.Press the start button.
Starting with manualtransmission
CAUTION
Release the start button as soonas the engine starts.
Note:Releasing the start button orthe clutch pedal during engine startwill stop the engine cranking andreturn to ignition on.
1.Fully depress the clutch pedal.
2.Press the start button.
Starting a diesel engine
Note:Engine cranking will notcommence until the engine glow plugcycle has been completed. This maytake several seconds in extremelycold conditions.
Note:Continue to press the startbutton and the clutch or brake pedaluntil engine cranking begins.
146
Starting the engineE85766

Downloaded from www.Manualslib.com manuals search engine The ABS will not eliminate thedangers inherent when:
•you drive too close to the vehiclein front of you.
•the vehicle is aquaplaning.
•you take corners too fast.
•the road surface is poor.
PARKING BRAKE
All vehicles
WARNING
Vehicles with an automatictransmission should always beleft with the selector lever in positionP.
•Press the foot brake pedal firmly.
•Pull the parking brake lever upsmartly to its fullest extent.
•Do not press the release buttonwhile pulling the lever up.
•If your vehicle is parked on a hilland facing uphill, select first gearand turn the steering wheel awayfrom the kerb.
•If your vehicle is parked on a hilland facing downhill, select reversegear and turn the steering wheeltowards the kerb.
To release the parking brake, pressthe brake pedal firmly, pull the leverup slightly, depress the releasebutton and push the lever down.
159
BrakesE70430
