Downloaded from www.Manualslib.com manuals search engine A message will appear in theinformation display and the headlampindicator flashes if the systemmalfunctions. See Informationmessages (page 103). Theheadlamps will move to a fixedcentral or dipped position. Have thesystem checked as soon as possible.
69
Lighting

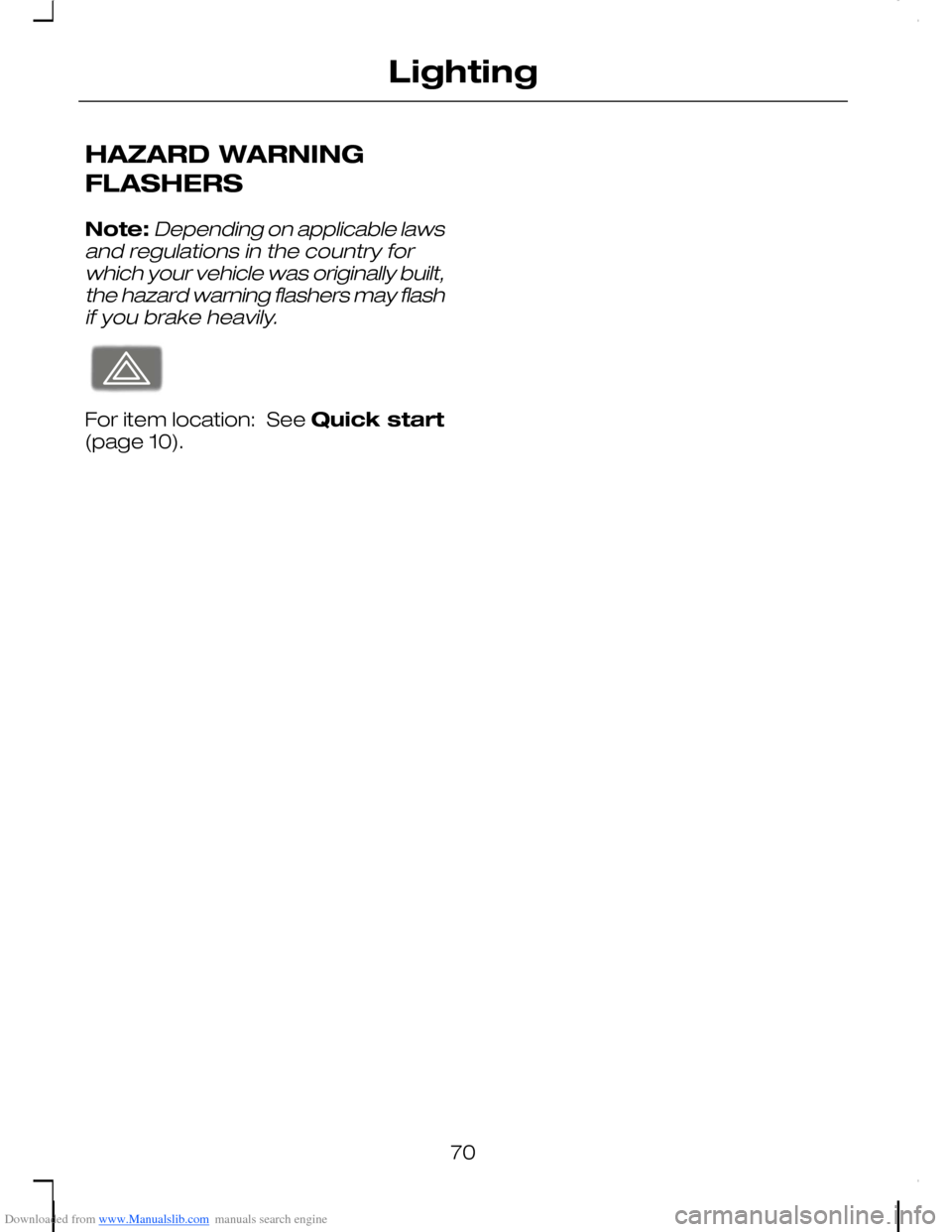

Downloaded from www.Manualslib.com manuals search engine HAZARD WARNING
FLASHERS
Note:Depending on applicable lawsand regulations in the country forwhich your vehicle was originally built,the hazard warning flashers may flashif you brake heavily.
For item location: See Quick start(page 10).
70
LightingE71943

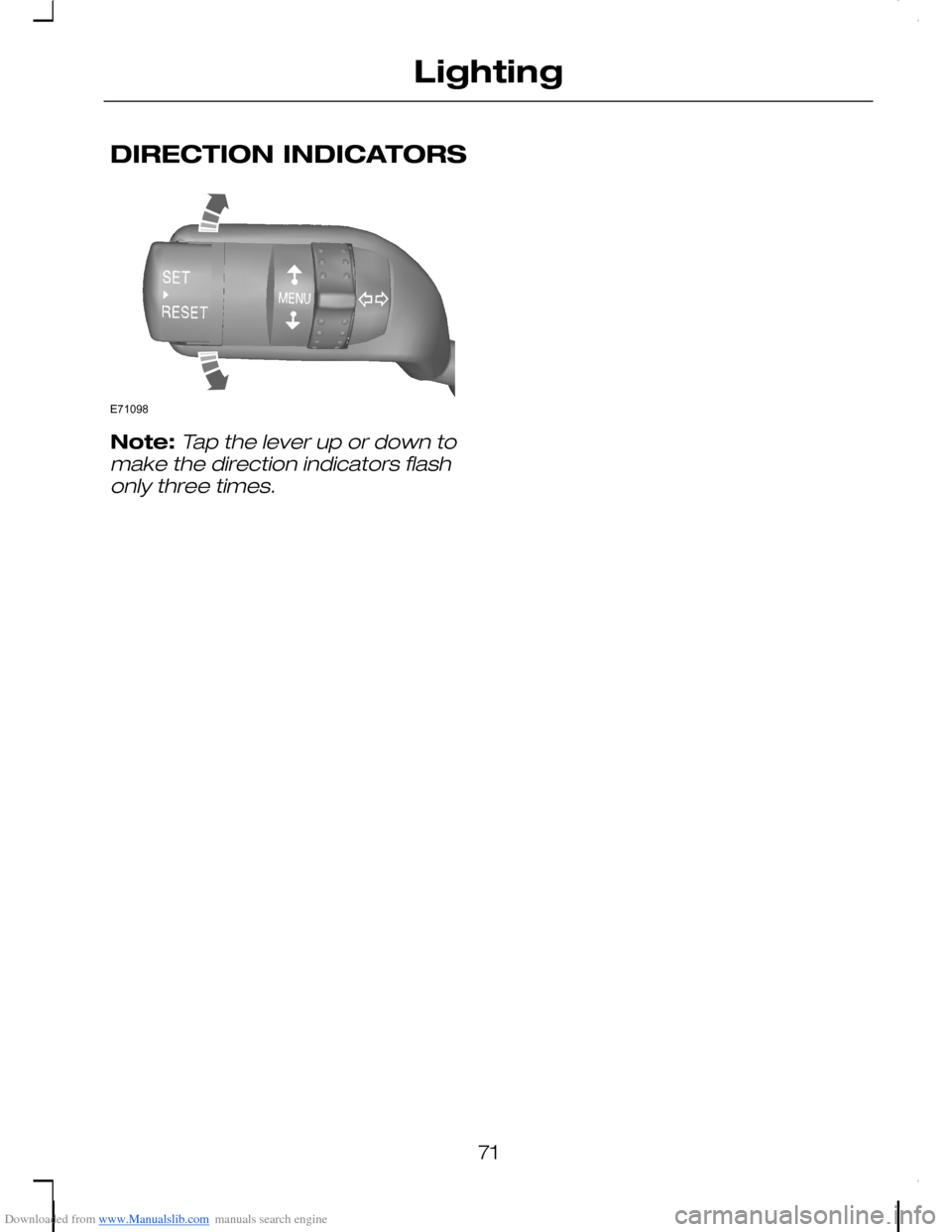

Downloaded from www.Manualslib.com manuals search engine DIRECTION INDICATORS
Note:Tap the lever up or down tomake the direction indicators flashonly three times.
71
LightingE71098

Downloaded from www.Manualslib.com manuals search engine INTERIOR LAMPS
Courtesy lamp
OffA
Door contactB
OnC
If you set the switch to position B, thecourtesy lamp will come on when youunlock or open a door or the luggagecompartment lid. If you leave a dooropen with the ignition switch off, thecourtesy lamp will go offautomatically after some time toprevent the vehicle battery fromdischarging. To switch it back on,switch on the ignition for a short time.
The courtesy lamp will also come onwhen you switch off the ignition. It willgo off automatically after a short timeor when you start or restart theengine.
If you set the switch to position Cwith the ignition switch off, thecourtesy lamp will come on. It will gooff automatically after a short time toprevent the vehicle battery fromdischarging. To switch it back on,switch on the ignition for a short time.
Reading lamps
If you switch off the ignition, thereading lamps will go off automaticallyafter some time to prevent thevehicle battery from discharging. Toswitch them back on, switch on theignition for a short time.
Vanity mirror lamps
OffA
OnB
72
LightingCBAE71945 E71946 ABE72900

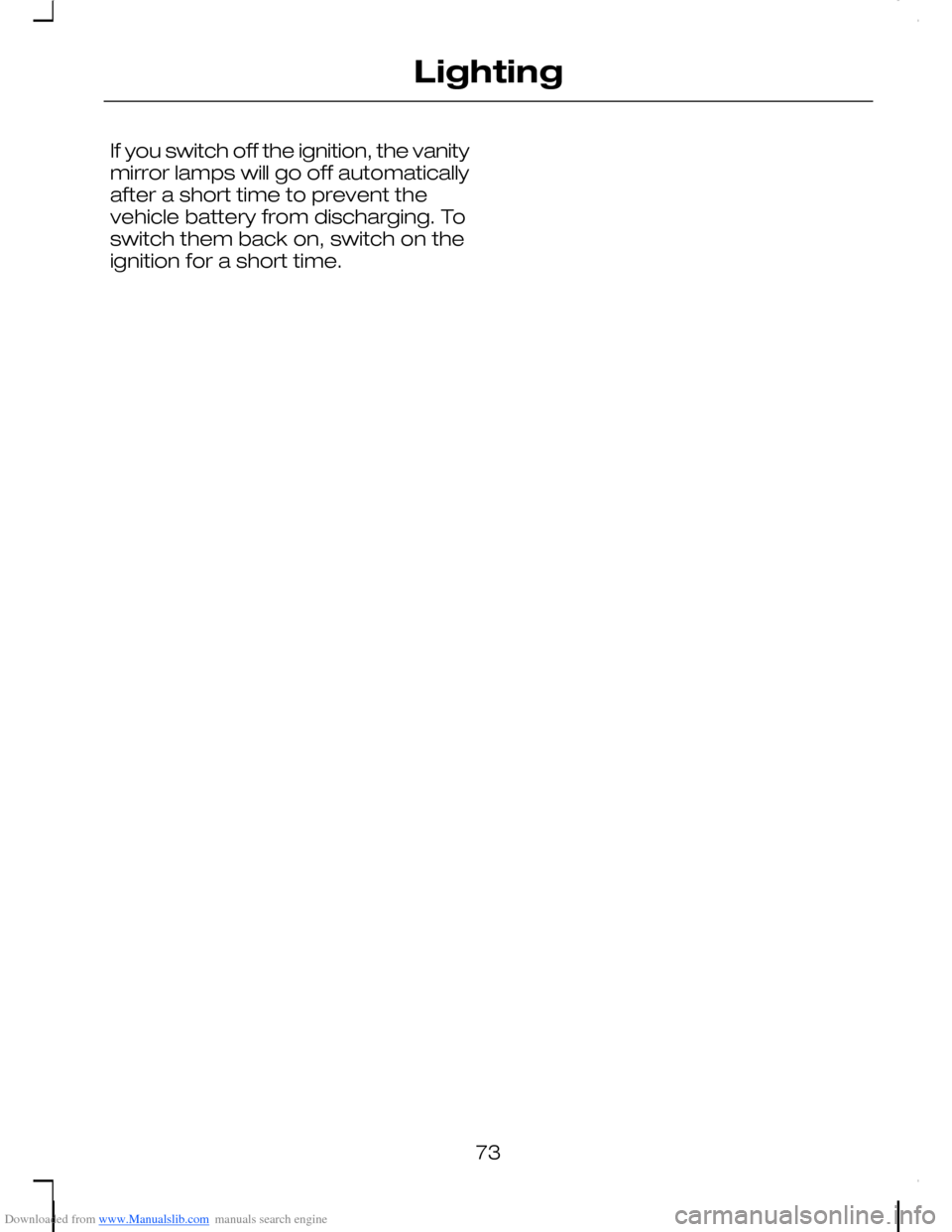

Downloaded from www.Manualslib.com manuals search engine If you switch off the ignition, the vanitymirror lamps will go off automaticallyafter a short time to prevent thevehicle battery from discharging. Toswitch them back on, switch on theignition for a short time.
73
Lighting

Downloaded from www.Manualslib.com manuals search engine CHANGING A BULB
WARNINGS
On vehicles fitted with Xenonheadlamps, have the headlampbulbs changed by an expert. Thereis a risk of injury due to high voltage.
During operation, the bulbs andtheir surroundings get hot.Switch off the lights and let the bulbscool down before replacing them.
Always switch off lights and ignitionbefore replacing any bulb.
Never touch the glass of the bulbs.Fit only bulbs having a UV filter.Always replace a faulty bulb with anew one of the same type. Afterreplacing a bulb, check that the lightsoperate correctly.
Headlamps, side lamps,direction indicators
Note:It is necessary to remove theheadlamp assembly to remove anyof the bulbs.
Removing the headlampassembly
Open the bonnet.
Remove the screw.
WARNING
When re-installing the lampassembly, make sure that thewiring connectors and retaining clipsare engaged properly.
Press down the retaining clips at therear of the lamp assembly using ascrewdriver and carefully pull out thelamp assembly.
74
LightingE78106 E78107

Downloaded from www.Manualslib.com manuals search engine Disconnect the wiring connector.
Install in the reverse order.
Front direction indicators
PY21 watt spherical bulb, orange
•Turn the bulb holder anticlockwiseand pull out.
•Turn the bulb under slightpressure anticlockwise andremove it.
•Replace the bulb.
When installing, pay attention to theguide tabs.
Opening the headlampassembly (Type 1)
Note:When replacing the cover,ensure that no wires are trapped atthe seals and that the clips engagewith a distinct click.
Release the clips and remove thecover.
Opening the headlampassembly (Type 2)
Remove the rubber caps.
Headlamps – dipped beam(Type 1)
H7, 55 watt halogen bulb
75
LightingE78108 E78109 E91732

Downloaded from www.Manualslib.com manuals search engine •Disconnect the wiring connector.
•Release the wire clip, swivel it tothe side and pull out the bulb.
Install in the reverse order.
Headlamps – dipped beam(Type 2)
H7, 55 watt halogen bulb
•Turn the bulb holder anticlockwiseand pull it out.
•Pull out the bulb and replace it.
Install in the reverse order.
Headlamps – main beam
H1, 55 watt halogen bulb
•Disconnect the wiring connector.
•Release the wire clip, swivel itdown and pull out the bulb.
Install in the reverse order.
Side lamps
5 watt wedge base bulb
76
LightingE78110 E91734 E78111

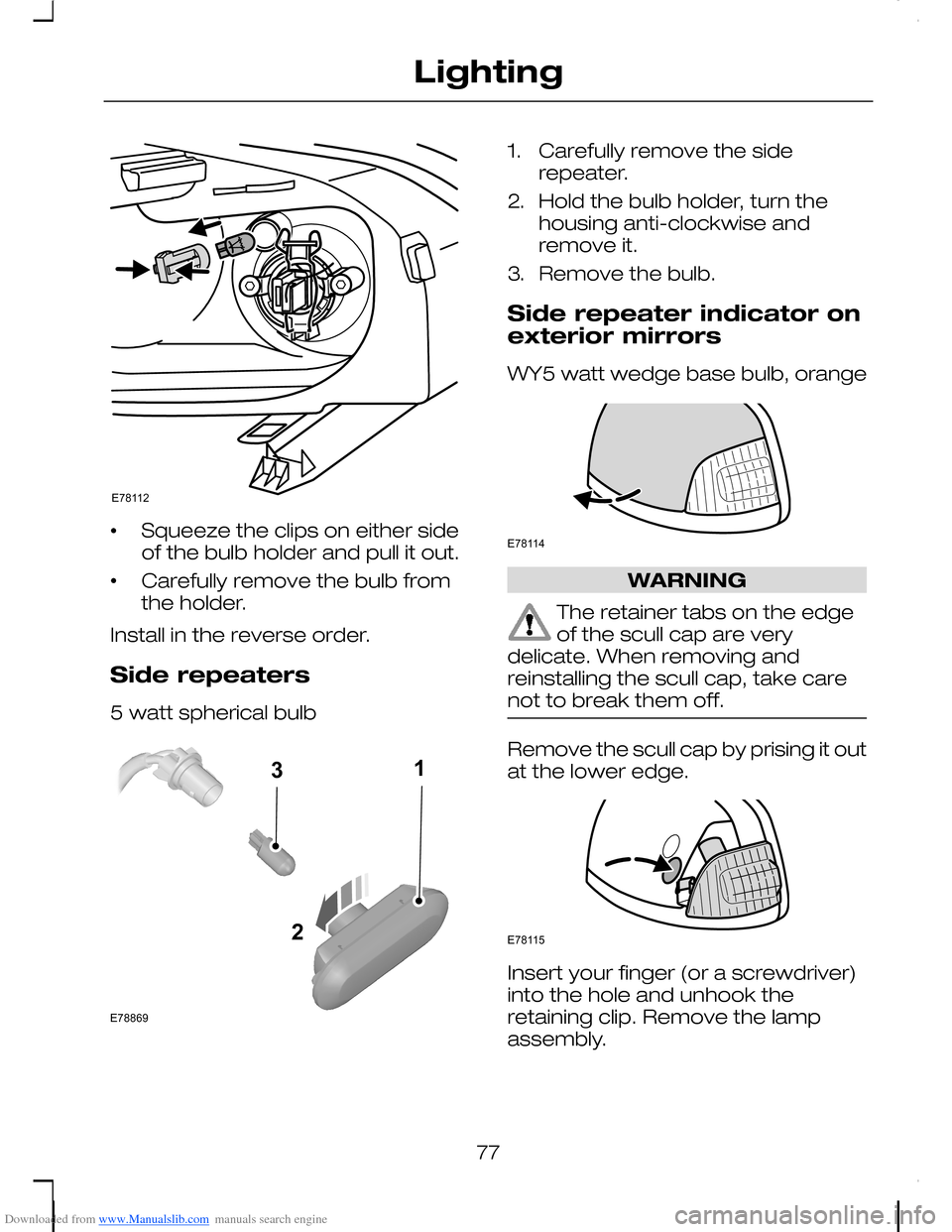

Downloaded from www.Manualslib.com manuals search engine •Squeeze the clips on either sideof the bulb holder and pull it out.
•Carefully remove the bulb fromthe holder.
Install in the reverse order.
Side repeaters
5 watt spherical bulb
1.Carefully remove the siderepeater.
2.Hold the bulb holder, turn thehousing anti-clockwise andremove it.
3.Remove the bulb.
Side repeater indicator onexterior mirrors
WY5 watt wedge base bulb, orange
WARNING
The retainer tabs on the edgeof the scull cap are verydelicate. When removing andreinstalling the scull cap, take carenot to break them off.
Remove the scull cap by prising it outat the lower edge.
Insert your finger (or a screwdriver)into the hole and unhook theretaining clip. Remove the lampassembly.
77
LightingE78112 213E78869 E78114 E78115

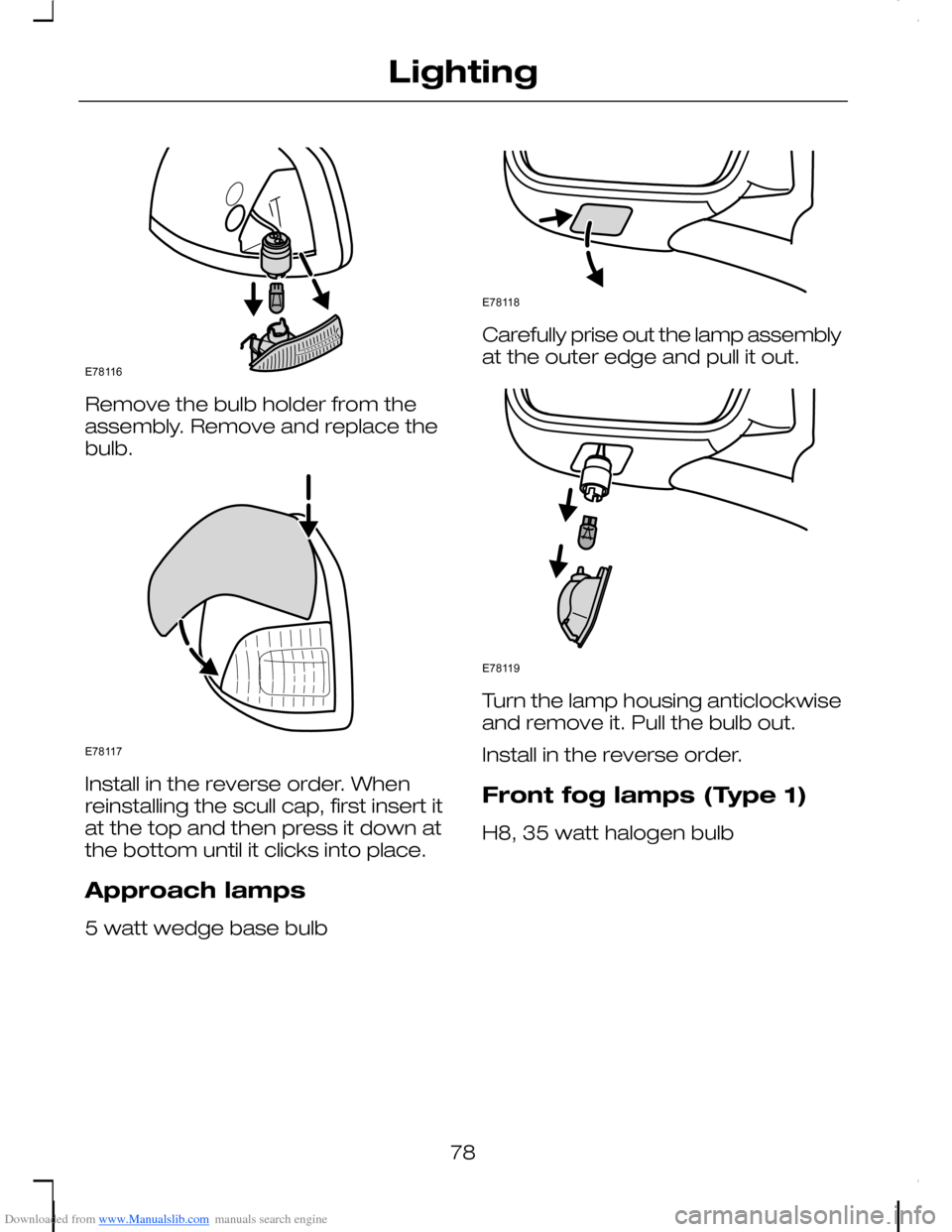

Downloaded from www.Manualslib.com manuals search engine Remove the bulb holder from theassembly. Remove and replace thebulb.
Install in the reverse order. Whenreinstalling the scull cap, first insert itat the top and then press it down atthe bottom until it clicks into place.
Approach lamps
5 watt wedge base bulb
Carefully prise out the lamp assemblyat the outer edge and pull it out.
Turn the lamp housing anticlockwiseand remove it. Pull the bulb out.
Install in the reverse order.
Front fog lamps (Type 1)
H8, 35 watt halogen bulb
78
