FORD C MAX 2011 2.G Owners Manual

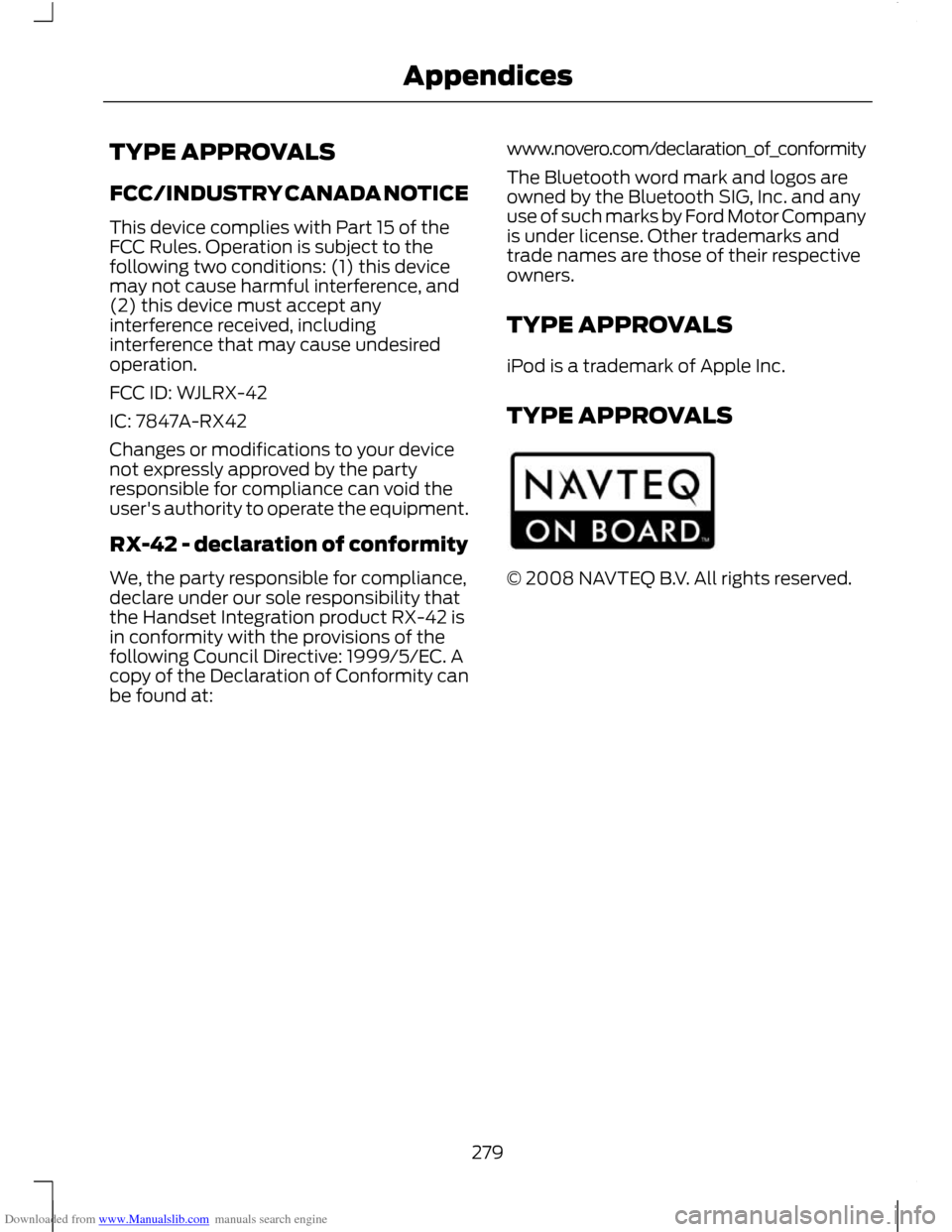

Downloaded from www.Manualslib.com manuals search engine TYPE APPROVALS
FCC/INDUSTRY CANADA NOTICE
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
FCC ID: WJLRX-42
IC: 7847A-RX42
Changes or modifications to your device
not expressly approved by the party
responsible for compliance can void the
user's authority to operate the equipment.
RX-42 - declaration of conformity
We, the party responsible for compliance,
declare under our sole responsibility that
the Handset Integration product RX-42 is
in conformity with the provisions of the
following Council Directive: 1999/5/EC. A
copy of the Declaration of Conformity can
be found at:
www.novero.com/declaration_of_conformity
The Bluetooth word mark and logos are
owned by the Bluetooth SIG, Inc. and any
use of such marks by Ford Motor Company
is under license. Other trademarks and
trade names are those of their respective
owners.
TYPE APPROVALS
iPod is a trademark of Apple Inc.
TYPE APPROVALS © 2008 NAVTEQ B.V. All rights reserved.
279
AppendicesE114214

Downloaded from www.Manualslib.com manuals search engine TYPE APPROVALS
SD Logo is a trademark. TYPE APPROVALS
EU Declaration
Hereby, Valeo declares that this short
range device is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC.
280
AppendicesE114220 E97713 E97714

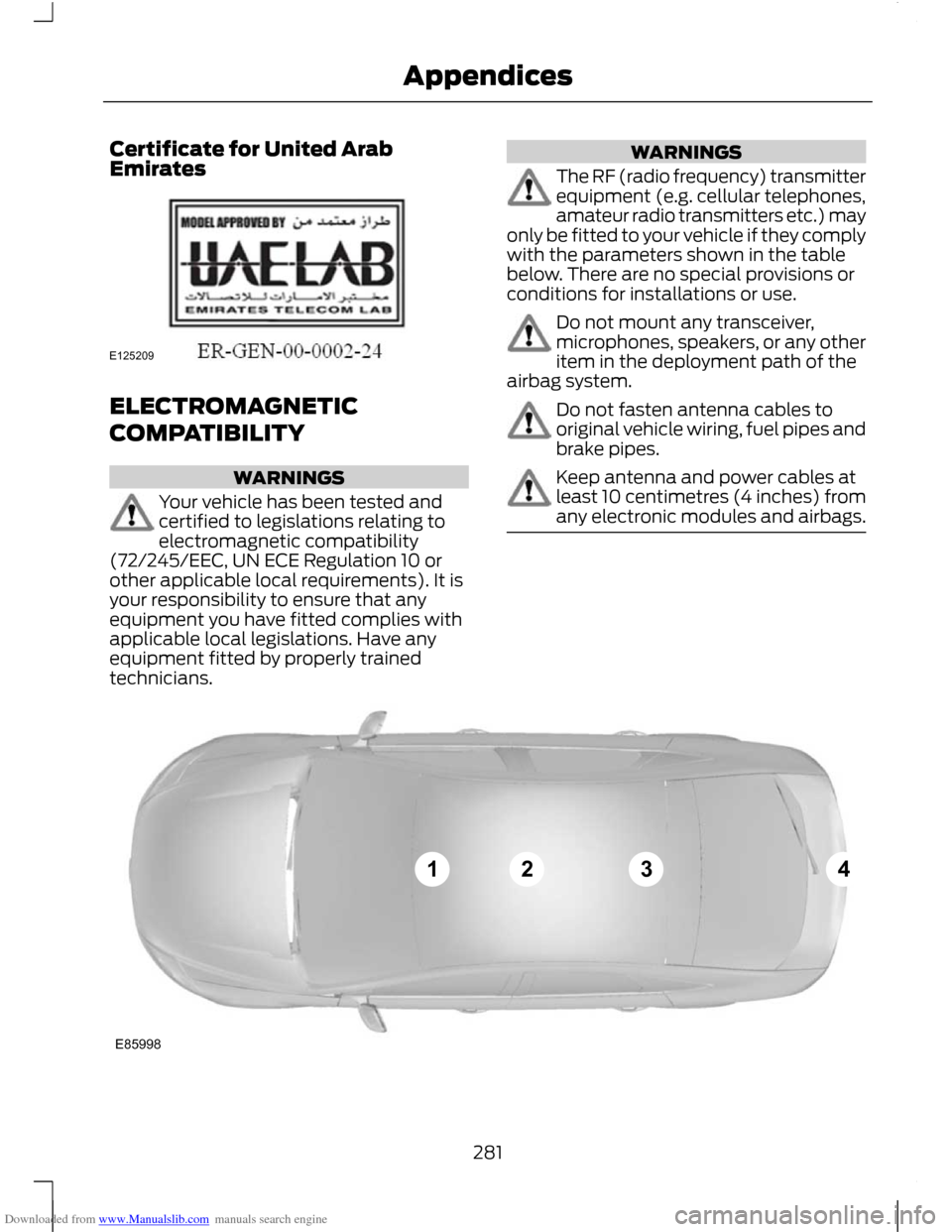

Downloaded from www.Manualslib.com manuals search engine Certificate for United Arab
Emirates
ELECTROMAGNETIC
COMPATIBILITY
WARNINGS
Your vehicle has been tested and
certified to legislations relating to
electromagnetic compatibility
(72/245/EEC, UN ECE Regulation 10 or
other applicable local requirements). It is
your responsibility to ensure that any
equipment you have fitted complies with
applicable local legislations. Have any
equipment fitted by properly trained
technicians. WARNINGS
The RF (radio frequency) transmitter
equipment (e.g. cellular telephones,
amateur radio transmitters etc.) may
only be fitted to your vehicle if they comply
with the parameters shown in the table
below. There are no special provisions or
conditions for installations or use. Do not mount any transceiver,
microphones, speakers, or any other
item in the deployment path of the
airbag system. Do not fasten antenna cables to
original vehicle wiring, fuel pipes and
brake pipes.
Keep antenna and power cables at
least 10 centimetres (4 inches) from
any electronic modules and airbags.
281
AppendicesE125209 E859981234

Downloaded from www.Manualslib.com manuals search engine Antenna Positions
Maximum output power Watt (Peak
RMS)
Frequency Band
MHz
3, 4
50 W
1 – 30
1, 2, 3
50 W
30 – 54
1, 2, 3
50 W
68 – 87.5
1, 2, 3
50 W
142 – 176
1, 2, 3
50 W
380 – 512
1, 2, 3
10 W
806 – 940
1, 2, 3
10 W
1200 – 1400
1, 2, 3
10 W
1710 – 1885
1, 2, 3
10 W
1885 – 2025
Note: After the installation of RF
transmitters, check for disturbances from
and to all electrical equipment in the
vehicle, both in the standby and transmit
modes.
Check all electrical equipment:
• with the ignition ON
• with the engine running
• during a road test at various speeds.
Check that electromagnetic fields
generated inside the vehicle cabin by the
transmitter installed do not exceed
applicable human exposure requirements.
282
Appendices

Downloaded from www.Manualslib.com manuals search engine A
A/C
See: Climate Control........................................ 100
About This Manual...........................................7
ABS See: Brakes........................................................... 144
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................ 144
Accessories See: Parts and Accessories................................. 7
Active Park Assist.........................................152 Principle of Operation....................................... 152
Adjusting the Headlamps - Vehicles With: Adaptive Front Lighting/Xenon
Headlamps....................................................59
Adjusting the Steering Wheel...................50
Air Conditioning See: Climate Control........................................ 100
Air Vents..........................................................100 Centre air vents................................................... 100
Second row air vents.......................................... 101
Side air vent........................................................... 101
Alarm..................................................................48 Principle of Operation........................................ 48
Alternative frequencies.............................230
Appendices....................................................279
Arming the alarm...........................................49
Arming the engine immobiliser.................47 At a Glance........................................................10
........................................................................\
.............. 16
Adjusting the steering wheel............................ 13
Autolamps............................................................... 14
Automatic climate control................................. 15
Automatic transmission...................................... 17
Autowipers............................................................... 14
Diesel particulate filter (DPF).......................... 16
Electric folding mirrors........................................ 15
Electric windows................................................... 14
Fuel filler flap.......................................................... 16
Information displays............................................ 15
Instrument panel overview............................... 10
Keyless entry........................................................... 13
Keyless starting...................................................... 16
Locking the vehicle............................................... 13
Manual climate control....................................... 15
Manual transmission............................................ 17
Power liftgate.......................................................... 13
Speed limiter........................................................... 17
Towing the vehicle on four wheels.................18
Unlocking the vehicle........................................... 13
Audible Warnings and Indicators..............81 Automatic transmission..................................... 81
Frost........................................................................\
... 81
Key-in-ignition........................................................ 81
Key outside car....................................................... 81
Lights on................................................................... 81
Low fuel................................................................... 82
Luggage compartment lid - power liftgate................................................................. 82
Seat belt reminder............................................... 82
Switching the chimes on and off.................... 81
Audio Control..................................................50 Type 1........................................................................\
50
Type 2........................................................................\
51
Audio introduction.......................................219
Audio system security................................226
Audio troubleshooting...............................236
Audio unit commands...............................242 Auxiliary input..................................................... 246
CD Player............................................................... 242
External devices - iPod.................................... 248
External devices - USB.................................... 246
Radio ....................................................................... 243
Audio unit menus........................................230
Audio unit operation...................................227
Audio unit overview....................................220
283
Index

Downloaded from www.Manualslib.com manuals search engine Auto-Dimming Mirror....................................74
Autolamps........................................................58
Automatic Climate Control......................103
Air distribution..................................................... 104
Blower..................................................................... 104
Mono mode.......................................................... 104
Recirculated air................................................... 105
Setting the temperature.................................. 104
Switching off the automatic climate control............................................................... 105
Switching the air conditioning on and off........................................................................\
105
To switch mono mode back on.................... 104
To switch mono mode off............................... 104
Windscreen defrosting and demisting.......................................................... 105
Automatic Transmission.............................141 Emergency park position release
lever..................................................................... 143
Hints on driving with an automatic transmission.................................................... 143
Manual shifting - Vehicles with a 5 speed transmission.................................................... 142
Selector lever positions..................................... 141
Sport mode and manual shifting - Vehicles with a 6 speed transmission..................... 142
Automatic volume control.......................230
Autostore control.........................................228
Autowipers........................................................52
Auxiliary Heater............................................106 Diesel auxiliary heater (depending on
country)............................................................ 108
Fuel operated heater (depending on country)............................................................ 108
Parking heater..................................................... 106
Auxiliary input (AUX IN) socket...............125
Auxiliary Power Points................................123 Power inverter...................................................... 123
B
Battery connection points........................198
Blind Spot Monitor.........................................74 Blind spot information system (BLIS)..........74
Detection errors..................................................... 76
System detection and alerts............................ 75
Turning the system on and off......................... 75
Using the system.................................................. 74Bluetooth setup............................................237
Handling of phones........................................... 237
Requirements for Bluetooth connection....................................................... 237
Bonnet Lock See: Opening and Closing the Bonnet.......185
Booster cables See: Jump-Starting the Vehicle..................... 197
Booster Seats..................................................20 Booster cushion (Group 3)................................ 21
Booster seat (Group 2)...................................... 20
Brake and Clutch Fluid Check...................191
Brakes...............................................................144 Principle of Operation....................................... 144
Bulb changing See: Changing a Bulb......................................... 62
Bulb Specification Chart.............................69
C
Capacities and Specifications.................216 Technical Specifications.................................. 216
Cargo Nets......................................................163 C-MAX.................................................................... 163
Grand C-MAX....................................................... 164
Luggage retention net...................................... 164
Car Wash See: Cleaning the Exterior............................... 195
Catalytic Converter......................................136 Driving with a catalytic converter.................136
Changing a Bulb.............................................62 Approach lamp..................................................... 65
Central high mounted brake lamp................68
Front fog lamps.................................................... 66
Headlamp............................................................... 63
Interior lamps........................................................ 69
Luggage compartment lamp, footwell lamp and tailgate lamp............................................ 69
Number plate lamp............................................. 69
Rear lamps............................................................. 66
Side lamp................................................................ 64
Side repeater......................................................... 65
Changing a Fuse............................................174
284
Index

Downloaded from www.Manualslib.com manuals search engine Changing a Road Wheel............................199
Assembling the wheel brace......................... 201
Installing a road wheel.................................... 203
Jacking and lifting points............................... 200
Locking wheel nuts............................................ 199
Removing a road wheel.................................. 202
Removing the wheel trim............................... 202
Vehicle jack........................................................... 199
Vehicles with a spare wheel........................... 199
Changing the remote control battery.............................................................36
Remote control with a folding key blade.................................................................... 36
Remote control without a folding key blade..................................................................... 37
Changing the Vehicle Battery..................198
Changing the Wiper Blades.......................54 Rear window wiper blade................................. 55
Windscreen wiper blades................................. 54
Checking the Wiper Blades........................54
Childminder Mirror........................................125
Child Safety.......................................................19
Child Safety Locks..........................................25
Child Seat Positioning...................................21
Child Seats.........................................................19 Child restraints for different mass
groups................................................................... 19
Cigar Lighter....................................................122
Cleaning the Exterior...................................195 Body paintwork preservation......................... 195
Cleaning the chrome trim............................... 195
Cleaning the headlamps................................. 195
Cleaning the rear window............................... 195
Cleaning the Interior....................................195 Instrument cluster screens, LCD screens,
radio screens................................................... 196
Rear windows...................................................... 196
Seat belts.............................................................. 195
Climate Control............................................100 Principle of Operation...................................... 100
Climate control commands....................254 Climate.................................................................. 254
Clock..................................................................122
Coded keys........................................................47
Cold Weather Precautions.........................172
Compact disc playback.............................232
Compact disc player...................................232 Compact disc track scanning..................233
Type 1...................................................................... 233
Type 2 and 3......................................................... 233
Connecting an external device...............258 Connection........................................................... 258
Connecting an external device - Vehicles With: Bluetooth.........................................258
Connecting a Bluetooth audio device................................................................ 258
Connectivity...................................................257 General Information.......................................... 257
Convenience features..................................121
Coolant Check See: Engine Coolant Check.............................. 191
Cornering Lamps...........................................60
Cruise Control................................................158 Principle of Operation....................................... 158
Cruise control See: Using Cruise Control................................ 158
Cup Holders....................................................123 Seat back trays.................................................... 124
D
Diesel Particulate Filter..............................130 Regeneration......................................................... 131
Digital signal processing (DSP).............230 Changing the DSP settings............................ 230
DSP equaliser..................................................... 230
DSP occupancy.................................................. 230
Direction Indicators.......................................60
Disabling the passenger airbag................34 Disabling the passenger airbag...................... 34
Enabling the passenger airbag....................... 35
Fitting the passenger airbag deactivation switch.................................................................. 34
Disarming the alarm.....................................49 Vehicles with keyless entry.............................. 49
Vehicles without keyless entry........................ 49
Disarming the engine immobiliser...........47
DPF See: Diesel Particulate Filter.......................... 130
Driving Hints....................................................172
Driving Through Water................................172 Driving through water ....................................... 172
285
Index

Downloaded from www.Manualslib.com manuals search engine E
Eco Mode.........................................................135
Principle of Operation....................................... 135
Electric exterior mirrors................................73 Electric folding mirrors........................................ 73
Mirror tilting positions......................................... 73
Electromagnetic compatibility................281
Emergency Exit..............................................173
Ending compact disc playback..............234
Engine Block Heater.....................................131
Engine Coolant Check.................................191 Checking the coolant level............................... 191
Topping up............................................................. 191
Engine immobiliser........................................47 Principle of Operation......................................... 47
Engine Oil Check..........................................190 Checking the oil level........................................ 190
Topping up............................................................ 190
Engine Oil Dipstick - 1.6L Duratec-16V Ti-VCT (Sigma).........................................190
Engine Oil Dipstick - 1.6L Duratorq-TDCi (DV) Diesel/2.0L Duratorq-TDCi (DW)
Diesel.............................................................190
Exterior Mirrors.................................................72 Manual folding mirrors........................................ 72
F
Fastening the seat belts..............................29 C-MAX...................................................................... 29
Grand C-MAX.......................................................... 31
Fast forward/reverse..................................232
First Aid Kit.......................................................173
Floor Mats........................................................126
Fog Lamps - Front See: Front Fog Lamps........................................ 58
Fog Lamps - Rear See: Rear Fog Lamps.......................................... 58
Front Fog Lamps............................................58
Fuel and Refuelling......................................136 Technical Specifications.................................. 139
Fuel Burning Heater See: Auxiliary Heater......................................... 106
Fuel Consumption........................................138
Fuel Consumption See: Technical Specifications........................ 139Fuel filler flap..................................................137
Refuelling with a fuel can................................ 138
Fuel Quality - Diesel....................................136 Long-term storage............................................. 136
Fuel Quality - Petrol....................................136
Fuse Box Locations......................................174 Engine compartment fuse box...................... 174
Load compartment fuse box.......................... 174
Passenger compartment fuse box...............174
Fuses..................................................................174
Fuse Specification Chart............................175 Engine compartment fuse box...................... 175
Load compartment fuse box......................... 180
Passenger compartment fuse box...............178
G
Gauges................................................................77 Engine coolant temperature gauge...............78
Fuel gauge............................................................... 78
Gearbox See: Transmission............................................... 141
General Information on Radio Frequencies...................................................36
Glasses Holder...............................................124
Global Opening and Closing......................45 Global closing........................................................ 46
Global opening..................................................... 46
H
Handbrake See: Parking Brake............................................. 144
Hazard Warning Flashers............................59
Headlamp adjustment See: Adjusting the Headlamps - Vehicles With:
Adaptive Front Lighting/Xenon
Headlamps........................................................ 59
Headlamp Levelling......................................59 Recommended headlamp levelling switch
positions............................................................. 59
Headlamp Washers......................................54
Head Restraints.............................................110 Adjusting the head restraint............................ 110
Removing the head restraint............................ 111
Heated Seats.................................................120
286
Index

Downloaded from www.Manualslib.com manuals search engine Heated Windows and Mirrors..................105
Heated exterior mirrors.................................... 105
Heated windows................................................. 105
Heating See: Climate Control........................................ 100
Hill launch assist (HLA) See: Using hill start assist............................... 146
Hill Start Assist..............................................146 Principle of Operation....................................... 146
Hints on Driving With Anti-Lock Brakes............................................................144
HLA See: Hill Start Assist.......................................... 146
See: Using hill start assist............................... 146
I
Ignition Switch................................................127
Immobiliser See: Engine immobiliser.................................... 47
Important audio information...................219 Audio unit labels................................................. 219
Disc labels............................................................. 219
Information Displays.....................................83 General Information............................................ 83
Information Messages.................................90 Airbag....................................................................... 90
Alarm........................................................................\
. 91
Battery and charging system............................ 91
Blind spot monitor................................................ 91
Child power lock................................................... 92
Doors open............................................................. 92
Engine immobiliser.............................................. 93
Hill start assist....................................................... 93
Keyless entry.......................................................... 93
Lighting.................................................................... 94
Maintenance.......................................................... 95
Message indicator............................................... 90
Power steering...................................................... 96
Stability control (ESP)...................................... 96
Starting the engine.............................................. 96
Start-stop................................................................ 97
Transmission.......................................................... 97
Tyre pressure monitoring system.................. 99
Instrument Cluster.........................................77
Instrument Lighting Dimmer....................122 Interior Lamps..................................................61
Ambient lighting.................................................... 61
Interior lighting....................................................... 61
Introduction.........................................................7
iPod connection See: Connecting an external device...........258
See: Connecting an external device - Vehicles
With: Bluetooth............................................. 258
iPod See: Using an iPod............................................ 260
ISOFIX Anchor Points...................................24 Attaching a child seat with top
tethers.................................................................. 25
Top tether anchor points - All vehicles........24
Top tether anchor points - C-MAX................24
Top tether anchor points - Grand C-MAX................................................................. 25
J
Jump starting See: Jump-Starting the Vehicle..................... 197
Jump-Starting the Vehicle.........................197 To connect the booster cables...................... 197
To start the engine............................................. 198
K
Keyless Entry....................................................43 Disabled keys......................................................... 45
General information............................................ 43
Locking and unlocking the doors with the key blade............................................................ 45
Locking the vehicle.............................................. 43
Passive key.............................................................. 43
Unlocking the vehicle......................................... 44
Keyless Starting............................................129 Failure to start..................................................... 130
Ignition on.............................................................. 129
Starting a diesel engine.................................... 129
Starting with automatic transmission.................................................... 129
Starting with manual transmission.............129
Stopping the engine when the vehicle is moving............................................................... 130
Stopping the engine with the vehicle stationary......................................................... 130
Keys and Remote Controls.........................36
287
Index

Downloaded from www.Manualslib.com manuals search engine L
Lighting Control...............................................57
Headlamp flasher................................................. 57
Home safe lighting.............................................. 58
Lighting control positions.................................. 57
Main and dipped beam...................................... 57
Parking lamps........................................................ 57
Lighting...............................................................57
Load Carriers See: Roof Racks and Load Carriers.............165
Load Carrying..................................................161 General Information........................................... 161
Loading the navigation data.....................271 Loading the navigation data........................... 271
Locking and Unlocking.................................39 Double locking....................................................... 39
Locking..................................................................... 39
Locking and unlocking confirmation............40
Locking and unlocking the doors from inside................................................................... 40
Locking the doors individually with the key........................................................................\
. 42
Luggage compartment lid................................ 40
Sliding door............................................................ 40
Unlocking................................................................ 39
Locks...................................................................39
Luggage Anchor Points...............................161
Luggage Covers.............................................163
M
Maintenance..................................................185 General Information.......................................... 185
Technical Specifications.................................. 192
Manual Climate Control.............................101 Air conditioning................................................... 102
Air distribution control....................................... 101
Blower..................................................................... 102
Heating the interior quickly............................. 102
Recirculated air.................................................... 102
Ventilation............................................................. 102Manual Seats.................................................109
Adjusting the angle of the seatback............110
Adjusting the height of the driver ’s
seat...................................................................... 110
Adjusting the lumbar support........................ 110
Moving the seats backwards and forwards............................................................ 109
Manual Transmission...................................141
Map updates..................................................278
Message Centre See: Information Displays................................. 83
Mirrors See: Heated Windows and Mirrors..............105
See: Windows and Mirrors................................. 71
MP3 connection See: Connecting an external device...........258
See: Connecting an external device - Vehicles
With: Bluetooth............................................. 258
MP3 display options...................................233 CD text display options................................... 234
MP3 file playback........................................233 Playing a multi session disc........................... 233
N
Navigation introduction............................262 General Information......................................... 262
Navigation Quick start...............................264 Vehicles with CD-SD navigation system or
Sony CD-SD navigation system..............265
Vehicles with mobile navigation system.............................................................. 264
Navigation system.......................................275
Navigation unit overview...........................267 Vehicles with CD-SD navigation
system.............................................................. 268
Vehicles with Sony CD-SD navigation system............................................................... 270
News broadcasts.........................................230
O
Occupant protection.....................................27 Principle of Operation......................................... 27
Oil Check See: Engine Oil Check....................................... 190
On/off control................................................227
288
Index
