Page 3 of 296
Downloaded from www.Manualslib.com manuals search engine Introduction
About This Manual...........................................7
Symbols Glossary.............................................7
Parts and Accessories.....................................7
At a Glance
At a Glance........................................................10
Child Safety
Child Seats.........................................................19
Booster Seats..................................................20
Child Seat Positioning...................................21
ISOFIX Anchor Points...................................24
Child Safety Locks..........................................25
Occupant protection
Principle of Operation...................................27
Fastening the seat belts..............................29
Seat belt height adjustment......................33
Seat belt reminder.........................................33
Using seat belts during pregnancy..........33
Disabling the passenger airbag................34
Keys and Remote Controls
General Information on Radio
Frequencies..................................................36
Programming the remote control............36
Changing the remote control battery............................................................36
Locks
Locking and Unlocking.................................39
Keyless Entry....................................................43
Global Opening and Closing......................45
Engine immobiliser
Principle of Operation...................................47
Coded keys........................................................47
Arming the engine immobiliser.................47
Disarming the engine immobiliser...........47 Alarm
Principle of Operation..................................48
Arming the alarm...........................................49
Disarming the alarm.....................................49
Steering Wheel
Adjusting the Steering Wheel...................50
Audio Control..................................................50
Voice Control.....................................................51
Wipers and Washers
Windscreen Wipers.......................................52
Autowipers........................................................52
Windscreen Washers....................................53
Rear Window Wiper and Washers...........53
Headlamp Washers......................................54
Checking the Wiper Blades........................54
Changing the Wiper Blades.......................54
Technical Specifications.............................56
Lighting
Lighting Control...............................................57
Autolamps........................................................58
Front Fog Lamps............................................58
Rear Fog Lamps.............................................58
Adjusting the Headlamps - Vehicles
With: Adaptive Front Lighting/Xenon
Headlamps...................................................59
Headlamp Levelling......................................59
Hazard Warning Flashers............................59
Direction Indicators.......................................60
Cornering Lamps...........................................60
Interior Lamps..................................................61
Removing a Headlamp................................62
Changing a Bulb.............................................62
Bulb Specification Chart.............................69
Windows and Mirrors
Power Windows...............................................71
1
Table of Contents
Page 5 of 296
Downloaded from www.Manualslib.com manuals search engine Transmission
Manual Transmission...................................141
Automatic Transmission.............................141
Brakes
Principle of Operation.................................144
Hints on Driving With Anti-Lock
Brakes...........................................................144
Parking Brake.................................................144
Stability Control
Principle of Operation.................................145
Using Stability Control...............................145
Hill Start Assist
Principle of Operation................................146
Using hill start assist...................................146
Parking Aids
Principle of Operation................................148
Using the Parking Aid - Vehicles With: Rear Parking Aid.......................................148
Using the Parking Aid - Vehicles With: Front and Rear Parking Aid...................149
Active Park Assist
Principle of Operation.................................152
Using active park assist..............................152
Rear view camera
Principle of Operation.................................155
Using the Rear View Camera...................155
Cruise Control
Principle of Operation.................................158
Using Cruise Control....................................158
Speed Limiter
Principle of Operation................................160
Using the speed limiter..............................160 Load Carrying
General Information.....................................161
Luggage Anchor Points...............................161
Luggage Covers.............................................163
Rear Under Floor Storage..........................163
Cargo Nets......................................................163
Roof Racks and Load Carriers.................165
Towing
Towing a Trailer.............................................168
Retractable tow ball...................................168
Driving Hints
Running-In.......................................................172
Cold Weather Precautions.........................172
Driving Through Water................................172
Roadside Emergencies
First Aid Kit.......................................................173
Warning Triangle...........................................173
Emergency Exit..............................................173
Fuses
Fuse Box Locations......................................174
Changing a Fuse............................................174
Fuse Specification Chart............................175
Vehicle recovery
Towing Points................................................183
Towing the Vehicle on Four Wheels......183
Maintenance
General Information....................................185
Opening and Closing the Bonnet...........185
Under Bonnet Overview - 1.6L
Duratec-16V Ti-VCT (Sigma)..............187
Under Bonnet Overview - 1.6L Duratorq-TDCi (DV) Diesel..................188
Under Bonnet Overview - 2.0L Duratorq-TDCi (DW) Diesel................189
3
Table of Contents
Page 16 of 296
Downloaded from www.Manualslib.com manuals search engine See Adjusting the Steering Wheel
(page 50). Autowipers High sensitivity
A
OnB
Low sensitivity
C
Autolamps The headlamps will come on and go off
automatically depending on the ambient
light.
See Autolamps (page 58).
Electric windows
Note: To reduce wind noise or buffeting
when just one window is open, open the
opposite window slightly.
14 At a Glance122E95178 3E95179 CABE128445 E70719
Page 20 of 296
Downloaded from www.Manualslib.com manuals search engine Towing the vehicle on four wheels
CAUTION
For certain engine and transmission
combinations, it is recommended not
to tow the vehicle with the drive
wheels on the ground. See Towing the Vehicle on Four
Wheels (page 183).
18At a Glance
Page 22 of 296
Downloaded from www.Manualslib.com manuals search engine Child safety seat
Secure children that weigh between 13 and
18 kilograms (29 and 40 pounds) in a child
safety seat (Group 1) in the rear seat.
BOOSTER SEATS
WARNINGS
Do not install a booster seat or a
booster cushion with only the lap
strap of the seat belt.
Do not install a booster seat or a
booster cushion with a seat belt that
is slack or twisted.
Do not put the seat belt under your
child
’s arm or behind its back. Do not use pillows, books or towels
to boost your child
’s height. Make sure that your children sit in an
upright position.
Secure children that weigh more
than 15 kilograms (33 pounds) but
are less than 150 centimetres (59
inches) tall in a booster seat or a booster
cushion. CAUTION
When using a child seat on a rear seat,
make sure that the child seat rests
tightly against the vehicle seat. It may
be necessary to lift or remove the head
restraint. See Head Restraints (page 110). Booster seat (Group 2)
We recommend that you use a booster
seat that combines a cushion with a
backrest instead of a booster cushion only.
The raised seating position will allow you
to position the shoulder strap of the adult
seat belt over the centre of your child
’s
shoulder and the lap strap tightly across
its hips.
20
Child SafetyE68920 E70710
Page 32 of 296
Downloaded from www.Manualslib.com manuals search engine When in use, the rear seat belts should be
placed in the belt guides on the outboard
seatbacks.

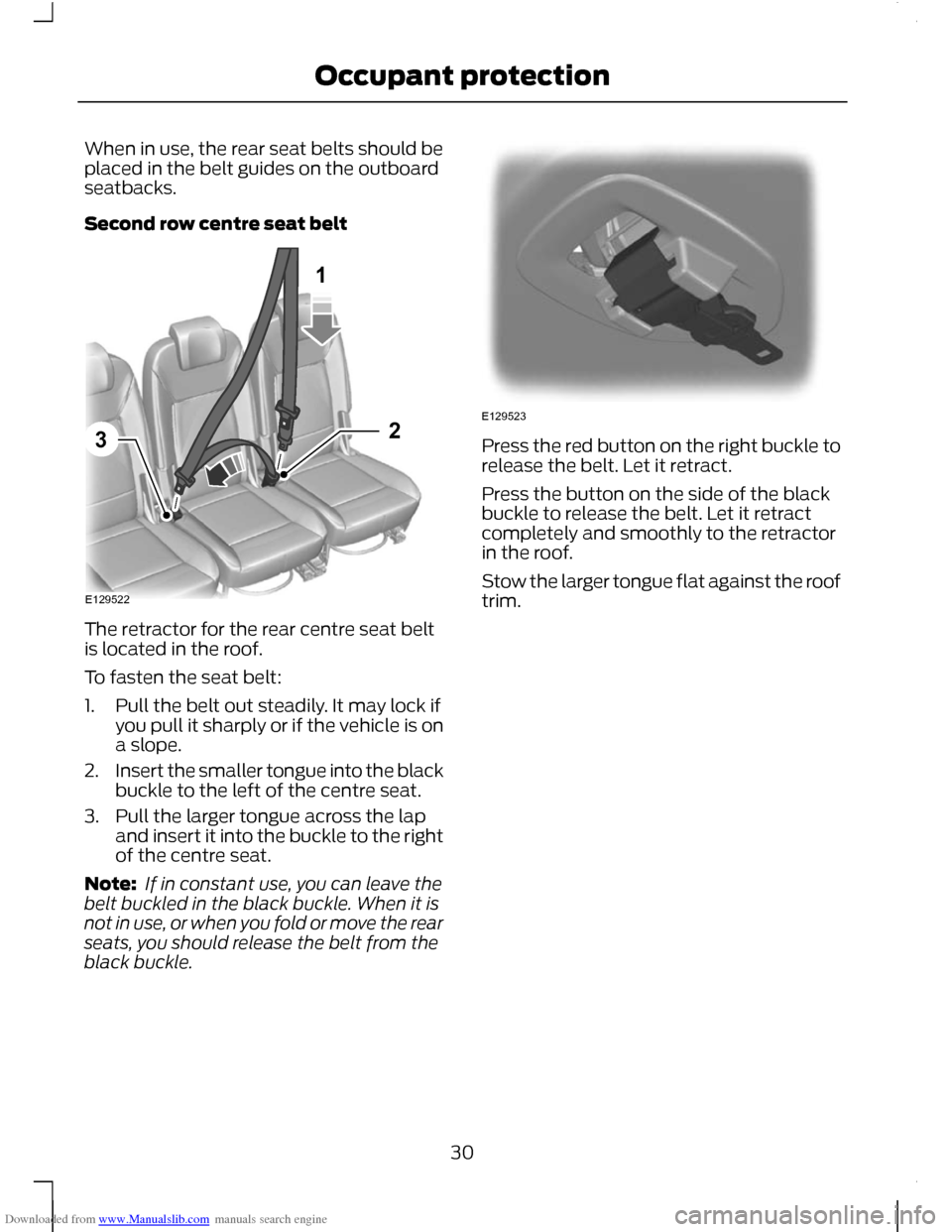

Second row centre seat belt
The retractor for the rear centre seat belt
is located in the roof.
To fasten the seat belt:
1. Pull the belt out steadily. It may lock if
you pull it sharply or if the vehicle is on
a slope.
2. Insert the smaller tongue into the black
buckle to the left of the centre seat.
3. Pull the larger tongue across the lap and insert it into the buckle to the right
of the centre seat.
Note: If in constant use, you can leave the
belt buckled in the black buckle. When it is
not in use, or when you fold or move the rear
seats, you should release the belt from the
black buckle. Press the red button on the right buckle to
release the belt. Let it retract.
Press the button on the side of the black
buckle to release the belt. Let it retract
completely and smoothly to the retractor
in the roof.
Stow the larger tongue flat against the roof
trim.
30
Occupant protectionE129522213 E129523
Page 34 of 296

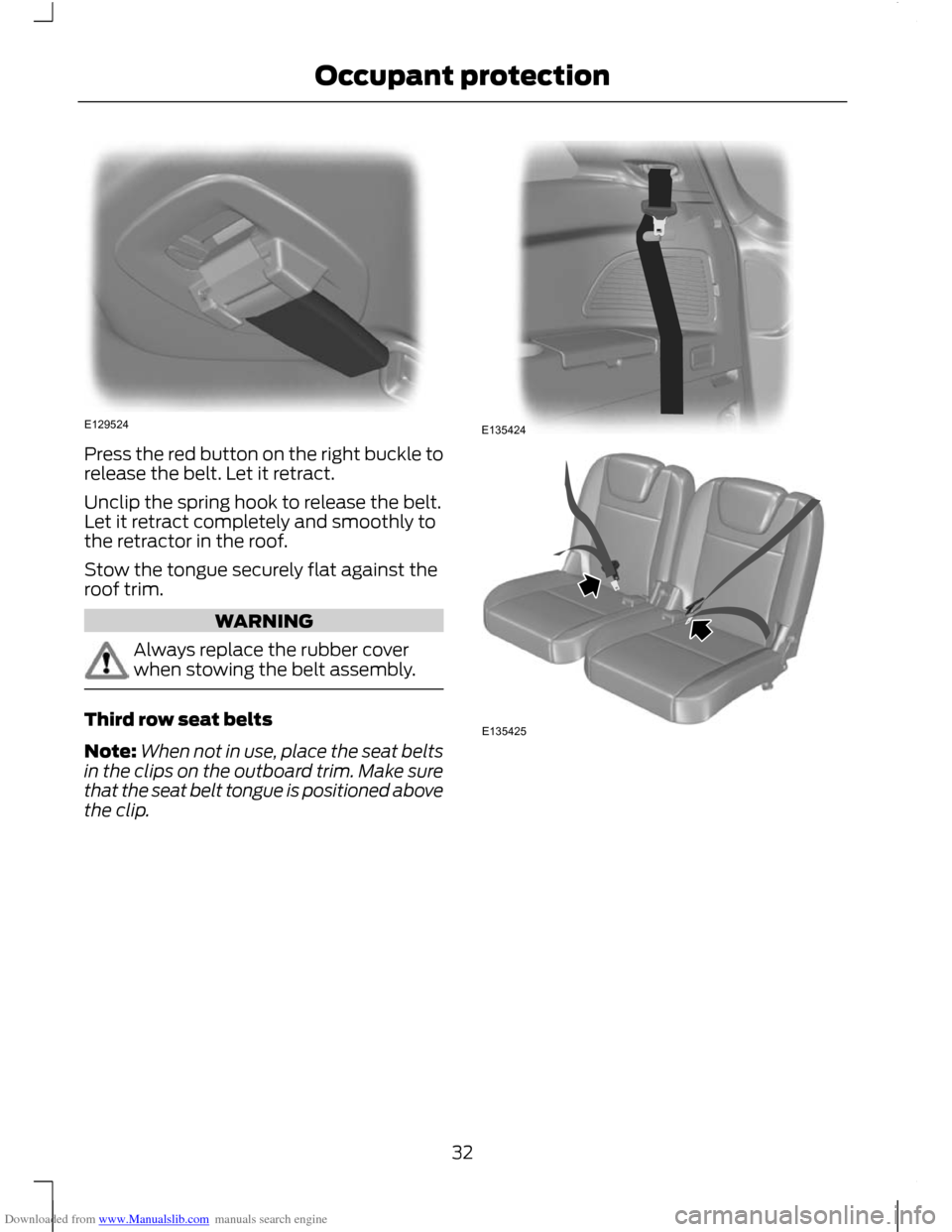

Downloaded from www.Manualslib.com manuals search engine Press the red button on the right buckle to
release the belt. Let it retract.
Unclip the spring hook to release the belt.
Let it retract completely and smoothly to
the retractor in the roof.
Stow the tongue securely flat against the
roof trim.
WARNING
Always replace the rubber cover
when stowing the belt assembly.
Third row seat belts
Note:
When not in use, place the seat belts
in the clips on the outboard trim. Make sure
that the seat belt tongue is positioned above
the clip. 32
Occupant protectionE129524 E135424 E135425
Page 41 of 296
Downloaded from www.Manualslib.com manuals search engine LOCKING AND UNLOCKING
CAUTION
Check your vehicle is locked before
leaving it unattended.
Note:
Do not leave your keys in the vehicle.
Locking
Locking with the key
Turn the top of the key towards the front
of the vehicle.
Locking with the remote control
Note: The driver ’s door can be locked with
the key. This needs to be used if the remote
control is not functioning.
Note: Your vehicle can be locked with a rear
door open. The door will be locked when it
is closed. Press the button.
Double locking WARNING
Do not activate double locking when
persons or animals are inside the
vehicle. You will not be able to
unlock the doors from the inside if you have
double locked them. Note:
If you double lock your vehicle whilst
inside, switch the ignition on to return the
door locks to a single locked state.
Note: Your vehicle can be double locked
with a rear door open. The door will be
double locked when it is closed.
Double locking is a theft protection feature
that prevents someone from opening the
doors from the inside. Double locking with the key
Turn the key to the lock position twice
within three seconds.
Double locking with the remote control
Press the button twice within
three seconds.
Unlocking
Unlocking with the key
Turn the top of the key towards the rear of
the vehicle.
Unlocking with the remote control
Note: The driver ’s door can be unlocked
with the key. This needs to be used if the
remote control is not functioning.
Note: If the vehicle remains locked for
several weeks, the remote control will be
disabled. The vehicle must be unlocked and
the engine started using the key. Unlocking
and starting the vehicle once will enable the
remote control. Press the button.
Automatic relocking
The doors will relock automatically if you
do not open a door within 45 seconds of
unlocking the doors with the remote
control. The door locks and the alarm will
return to their previous state.
Reprogramming the unlocking function
The unlocking function may be
reprogrammed so that only the driver ’s
door is unlocked ( See Programming the
remote control (page 36). ).
39
Locks
Page 51 of 296
Downloaded from www.Manualslib.com manuals search engine Note:
False alarms can also be triggered
by the auxiliary heater See Auxiliary Heater
(page 106). If you are using the auxiliary
heater, direct the air flow towards the
footwell.
Reduced guard
In reduced guard, the interior sensors are
deactivated when you arm the alarm.
Note: You can set the alarm to reduced
guard for the current ignition cycle only. The
next time you switch on the ignition, the
alarm will be reset to full guard.
Ask on Exit
You can set the information display to ask
you each time which level of guard you
wish to set.
If you select Ask on Exit, the message
Reduced guard? appears in the
instrument cluster display each time you
switch the ignition off.
If you wish to arm the alarm with reduced
guard, press the OK button when this
message appears.
If you wish to arm the alarm with full guard,
leave the vehicle without pressing the OK
button.
Selecting full or reduced guard
Note: Selecting Reduced does not set the
alarm permanently to reduced guard. It sets
it to reduced guard only for the current
ignition cycle. If you regularly set the alarm
to reduced guard, select Ask on Exit.
You can select full or reduced guard using
the information display. See General
Information (page 83).
Information messages
See Information Messages (page 90). ARMING THE ALARM
To arm the alarm, lock the vehicle. See
Locks (page 39).
DISARMING THE ALARM
Vehicles without keyless entry
Perimeter alarm
Disarm and silence the alarm by unlocking
the doors with the key and switching the
ignition on with a correctly coded key, or
unlocking the doors or the luggage
compartment lid with the remote control.
Category one alarm
Disarm and silence the alarm by unlocking
the doors with the key and switching the
ignition on with a correctly coded key
within 12 seconds, or unlocking the doors
or the luggage compartment lid with the
remote control.
Vehicles with keyless entry
Note:
A valid passive key must be located
within the detection range of that door for
keyless entry. See Keyless Entry (page 43).
Perimeter alarm
Disarm and silence the alarm by unlocking
the doors and switching the ignition on, or
unlocking the doors or the luggage
compartment lid with the remote control.
Category one alarm
Disarm and silence the alarm by unlocking
the doors and switching the ignition on
within 12 seconds, or unlocking the doors
or the luggage compartment lid with the
remote control.
49
Alarm
Page 54 of 296
Downloaded from www.Manualslib.com manuals search engine WINDSCREEN WIPERS
Single wipe
A
Intermittent wipe or autowipers
B
Normal wipe
C
High speed wipe
D
Intermittent wipe Short wipe interval
A
Intermittent wipe
B
Long wipe interval
C
The rotary control can be used to adjust
the intermittent wipe interval. Automatic wiper system
Some models without autowipers are
fitted with a speed-dependent front screen
wiper system.
When the vehicle is slowed to walking
speed or is brought to a standstill, the
wiper speed will automatically switch to
the next lower wiper speed setting.
When the vehicle speed is increased, the
wiper speed will return to the
manually-chosen setting.
Moving the wiper lever when the system is
operating will switch off the system.
If the vehicle is again slowed to walking
speed or is brought to a standstill, the
system is reactivated.
AUTOWIPERS
CAUTIONS
Do not switch autowipers on in dry
weather conditions. The rain sensor
is very sensitive and the wipers may
operate if dirt, mist or flies hit the
windscreen. Replace the wiper blades as soon as
they begin to leave bands of water
and smears. If you do not replace
them, the rain sensor will continue to
detect water on the windscreen and the
wipers will operate, even though the
majority of the windscreen is dry. Fully defrost the windscreen in icy
conditions before you switch
autowipers on.
Switch autowipers off before you
enter a car wash.
Note:
If autolamps have been switched on
in conjunction with autowipers, dipped
headlamps will illuminate automatically
when the rain sensor activates the
windscreen wipers continuously.
52
Wipers and WashersE128444ACDB CABE128445
