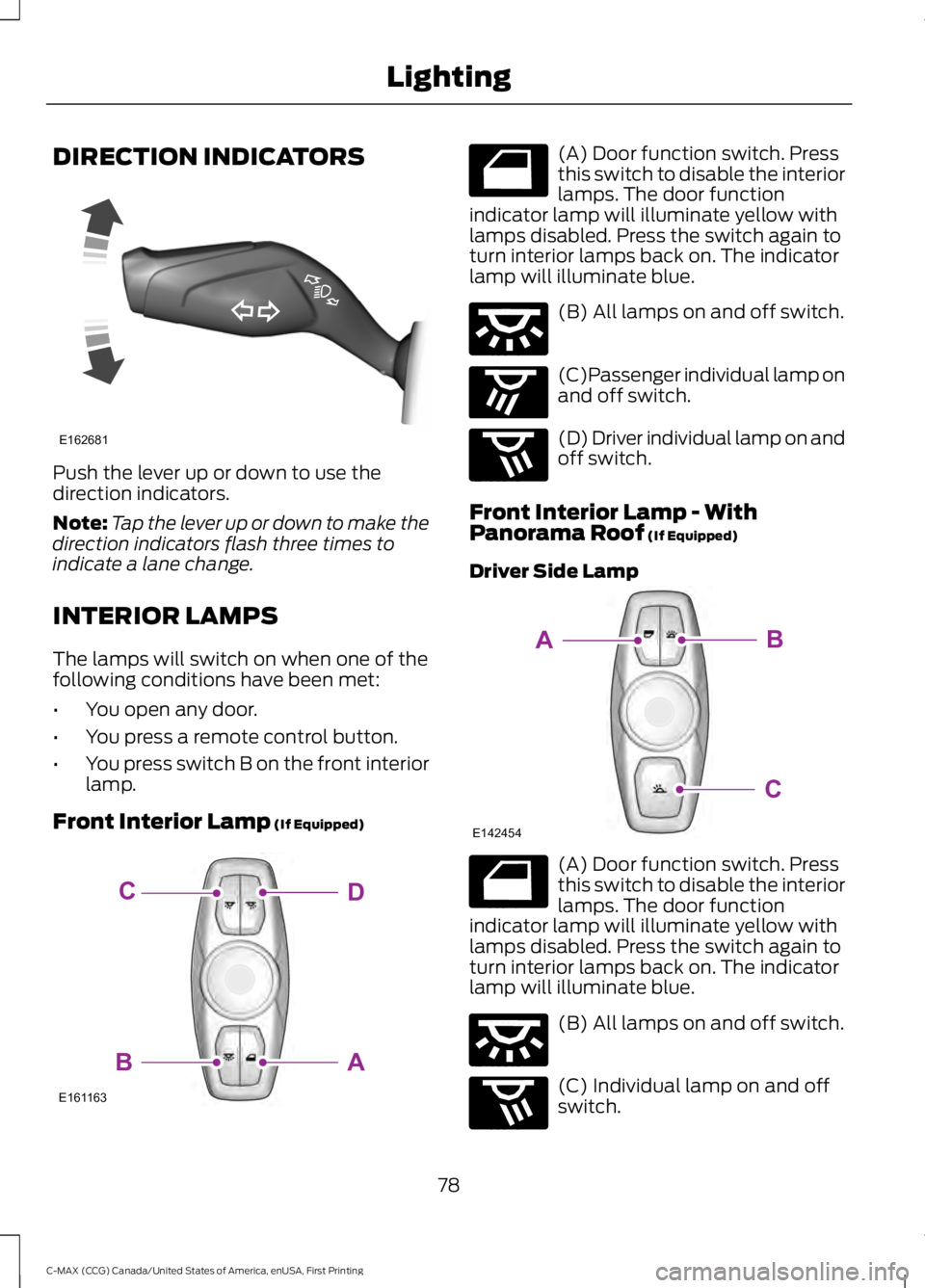

DIRECTION INDICATORS
Push the lever up or down to use thedirection indicators.
Note:Tap the lever up or down to make thedirection indicators flash three times toindicate a lane change.
INTERIOR LAMPS
The lamps will switch on when one of thefollowing conditions have been met:
•You open any door.
•You press a remote control button.
•You press switch B on the front interiorlamp.
Front Interior Lamp (If Equipped)
(A) Door function switch. Pressthis switch to disable the interiorlamps. The door functionindicator lamp will illuminate yellow withlamps disabled. Press the switch again toturn interior lamps back on. The indicatorlamp will illuminate blue.
(B) All lamps on and off switch.
(C)Passenger individual lamp onand off switch.
(D) Driver individual lamp on andoff switch.
Front Interior Lamp - WithPanorama Roof (If Equipped)
Driver Side Lamp
(A) Door function switch. Pressthis switch to disable the interiorlamps. The door functionindicator lamp will illuminate yellow withlamps disabled. Press the switch again toturn interior lamps back on. The indicatorlamp will illuminate blue.
(B) All lamps on and off switch.
(C) Individual lamp on and offswitch.
78
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
LightingE162681 E161163
DC
AB E160819 E160816 E160817 E160818 E142454
BA
C E160819 E160816 E160818

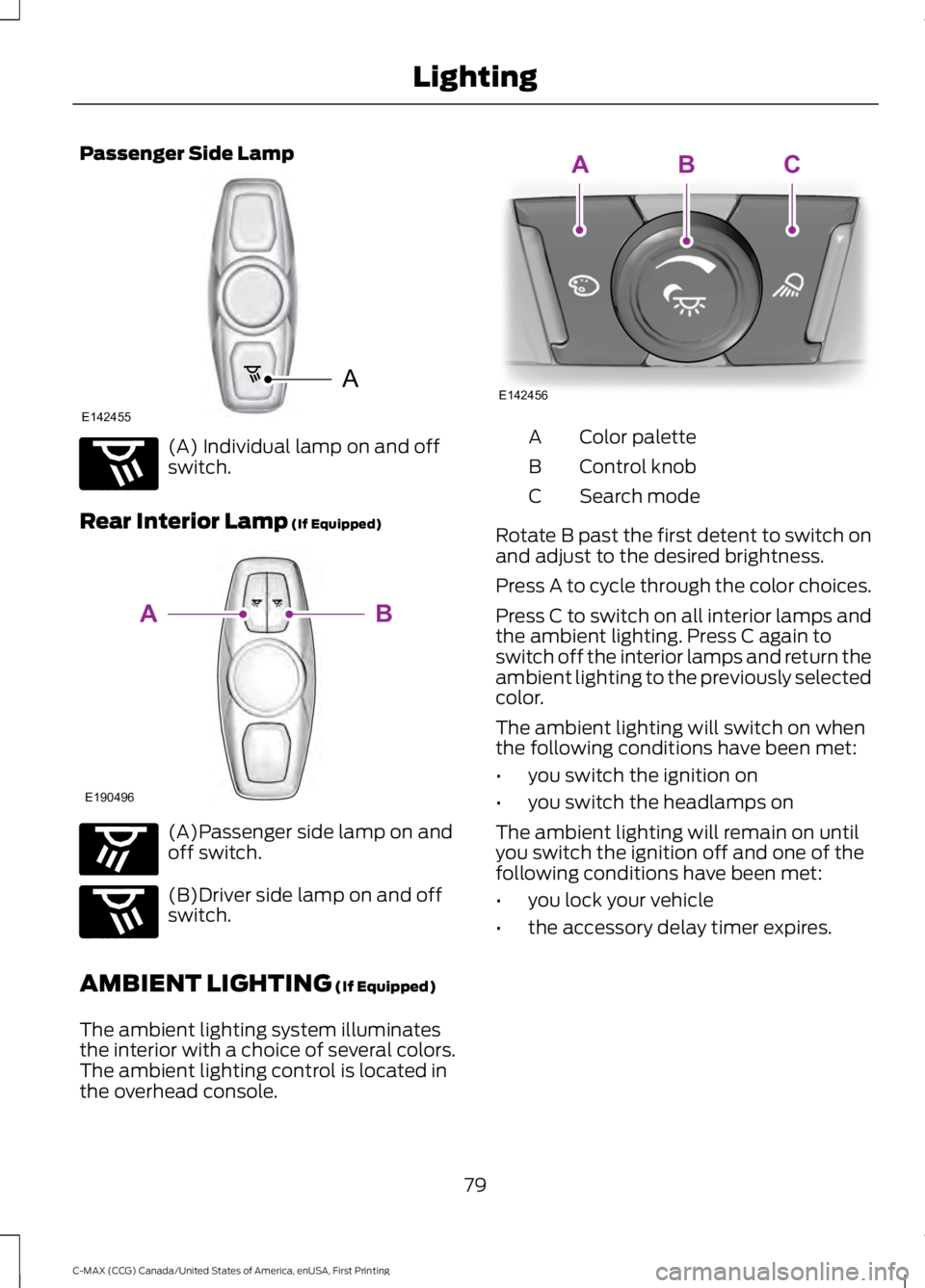

Passenger Side Lamp
(A) Individual lamp on and offswitch.
Rear Interior Lamp (If Equipped)
(A)Passenger side lamp on andoff switch.
(B)Driver side lamp on and offswitch.
AMBIENT LIGHTING (If Equipped)
The ambient lighting system illuminatesthe interior with a choice of several colors.The ambient lighting control is located inthe overhead console.
Color paletteA
Control knobB
Search modeC
Rotate B past the first detent to switch onand adjust to the desired brightness.
Press A to cycle through the color choices.
Press C to switch on all interior lamps andthe ambient lighting. Press C again toswitch off the interior lamps and return theambient lighting to the previously selectedcolor.
The ambient lighting will switch on whenthe following conditions have been met:
•you switch the ignition on
•you switch the headlamps on
The ambient lighting will remain on untilyou switch the ignition off and one of thefollowing conditions have been met:
•you lock your vehicle
•the accessory delay timer expires.
79
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
LightingA
E142455 E160818 E190496
B
A E160817 E160818 E142456
ABC

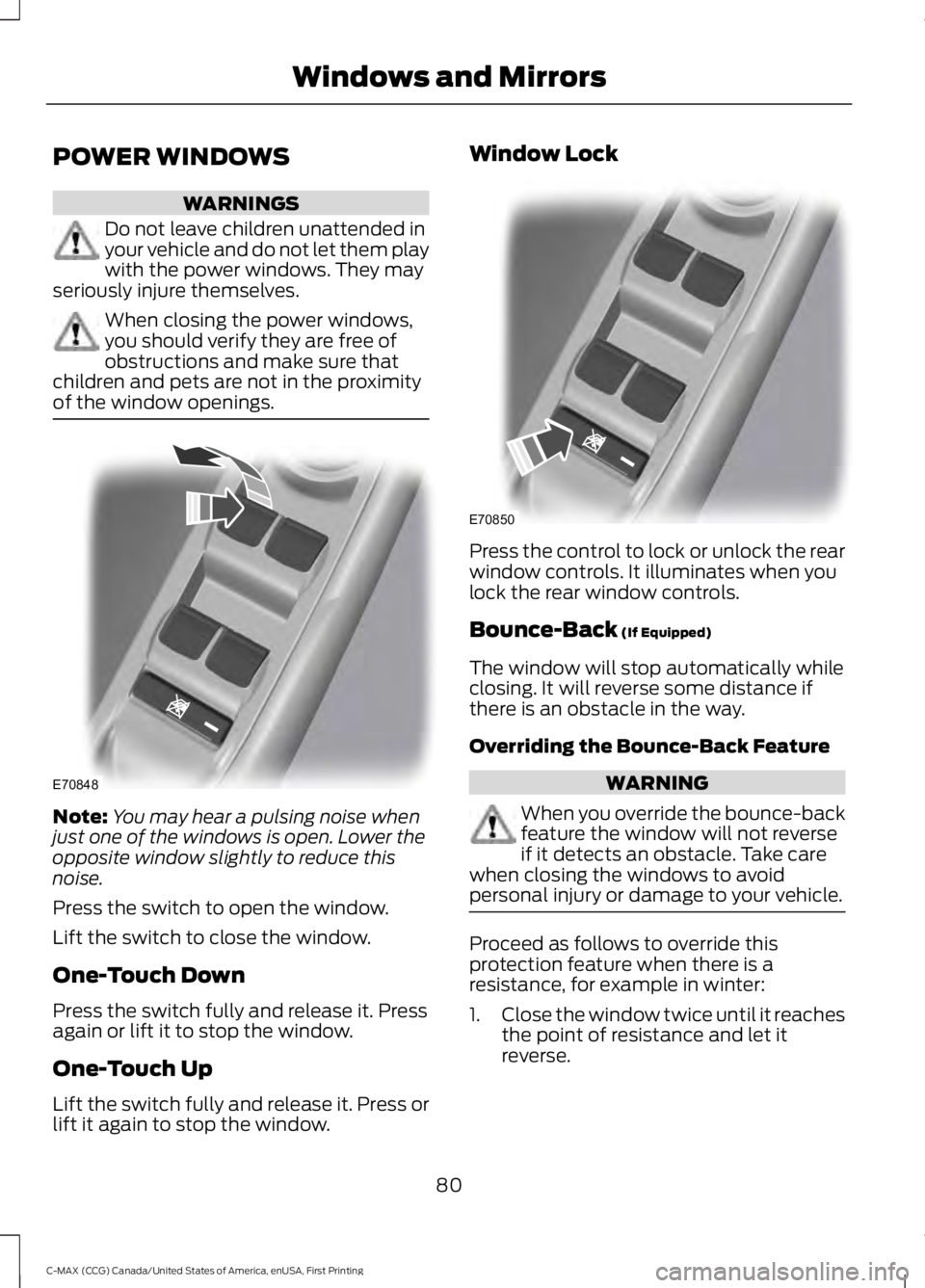

POWER WINDOWS
WARNINGS
Do not leave children unattended inyour vehicle and do not let them playwith the power windows. They mayseriously injure themselves.
When closing the power windows,you should verify they are free ofobstructions and make sure thatchildren and pets are not in the proximityof the window openings.
Note:You may hear a pulsing noise whenjust one of the windows is open. Lower theopposite window slightly to reduce thisnoise.
Press the switch to open the window.
Lift the switch to close the window.
One-Touch Down
Press the switch fully and release it. Pressagain or lift it to stop the window.
One-Touch Up
Lift the switch fully and release it. Press orlift it again to stop the window.
Window Lock
Press the control to lock or unlock the rearwindow controls. It illuminates when youlock the rear window controls.
Bounce-Back (If Equipped)
The window will stop automatically whileclosing. It will reverse some distance ifthere is an obstacle in the way.
Overriding the Bounce-Back Feature
WARNING
When you override the bounce-backfeature the window will not reverseif it detects an obstacle. Take carewhen closing the windows to avoidpersonal injury or damage to your vehicle.
Proceed as follows to override thisprotection feature when there is aresistance, for example in winter:
1.Close the window twice until it reachesthe point of resistance and let itreverse.
80
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Windows and MirrorsE70848 E70850

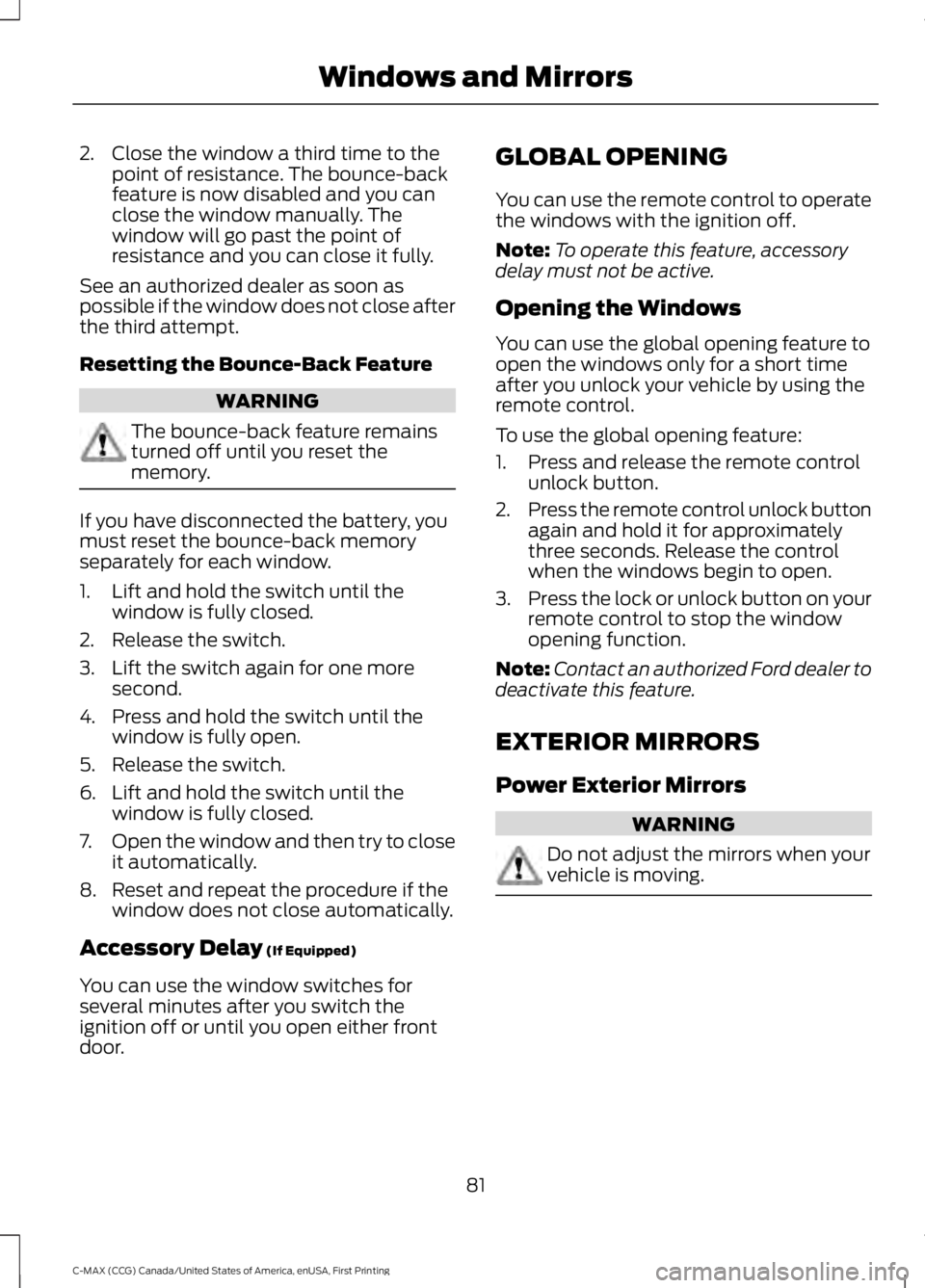

2. Close the window a third time to thepoint of resistance. The bounce-backfeature is now disabled and you canclose the window manually. Thewindow will go past the point ofresistance and you can close it fully.
See an authorized dealer as soon aspossible if the window does not close afterthe third attempt.
Resetting the Bounce-Back Feature
WARNING
The bounce-back feature remainsturned off until you reset thememory.
If you have disconnected the battery, youmust reset the bounce-back memoryseparately for each window.
1. Lift and hold the switch until thewindow is fully closed.
2. Release the switch.
3. Lift the switch again for one moresecond.
4. Press and hold the switch until thewindow is fully open.
5. Release the switch.
6. Lift and hold the switch until thewindow is fully closed.
7.Open the window and then try to closeit automatically.
8. Reset and repeat the procedure if thewindow does not close automatically.
Accessory Delay (If Equipped)
You can use the window switches forseveral minutes after you switch theignition off or until you open either frontdoor.
GLOBAL OPENING
You can use the remote control to operatethe windows with the ignition off.
Note:To operate this feature, accessorydelay must not be active.
Opening the Windows
You can use the global opening feature toopen the windows only for a short timeafter you unlock your vehicle by using theremote control.
To use the global opening feature:
1. Press and release the remote controlunlock button.
2.Press the remote control unlock buttonagain and hold it for approximatelythree seconds. Release the controlwhen the windows begin to open.
3.Press the lock or unlock button on yourremote control to stop the windowopening function.
Note:Contact an authorized Ford dealer todeactivate this feature.

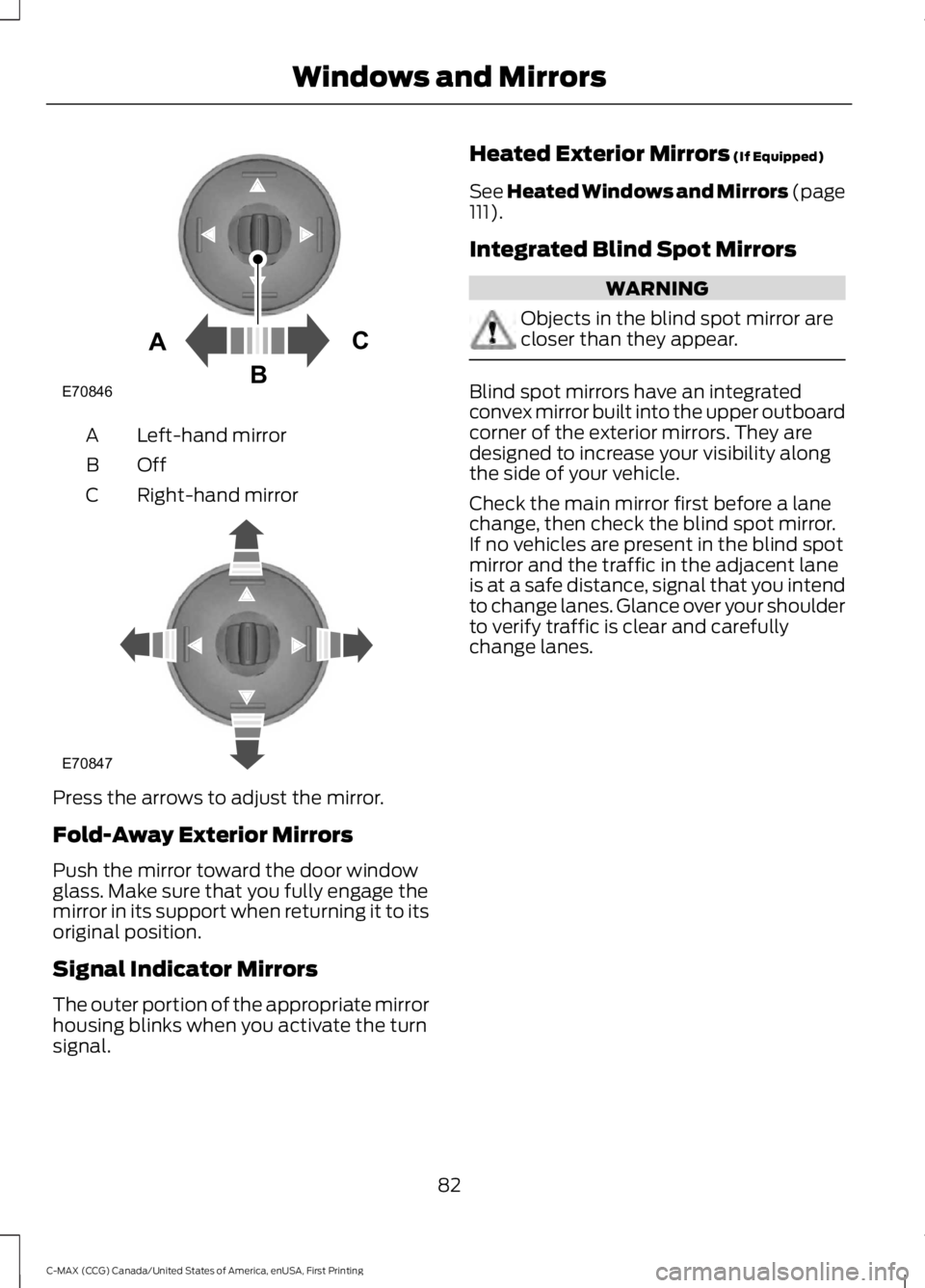

EXTERIOR MIRRORS
Power Exterior Mirrors
WARNING
Do not adjust the mirrors when yourvehicle is moving.
81
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Windows and Mirrors

Left-hand mirrorA
OffB
Right-hand mirrorC
Press the arrows to adjust the mirror.
Fold-Away Exterior Mirrors
Push the mirror toward the door windowglass. Make sure that you fully engage themirror in its support when returning it to itsoriginal position.
Signal Indicator Mirrors
The outer portion of the appropriate mirrorhousing blinks when you activate the turnsignal.
Heated Exterior Mirrors (If Equipped)
See Heated Windows and Mirrors (page111).
Integrated Blind Spot Mirrors
WARNING
Objects in the blind spot mirror arecloser than they appear.
Blind spot mirrors have an integratedconvex mirror built into the upper outboardcorner of the exterior mirrors. They aredesigned to increase your visibility alongthe side of your vehicle.
Check the main mirror first before a lanechange, then check the blind spot mirror.If no vehicles are present in the blind spotmirror and the traffic in the adjacent laneis at a safe distance, signal that you intendto change lanes. Glance over your shoulderto verify traffic is clear and carefullychange lanes.
82
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Windows and MirrorsE70846A
C
B E70847

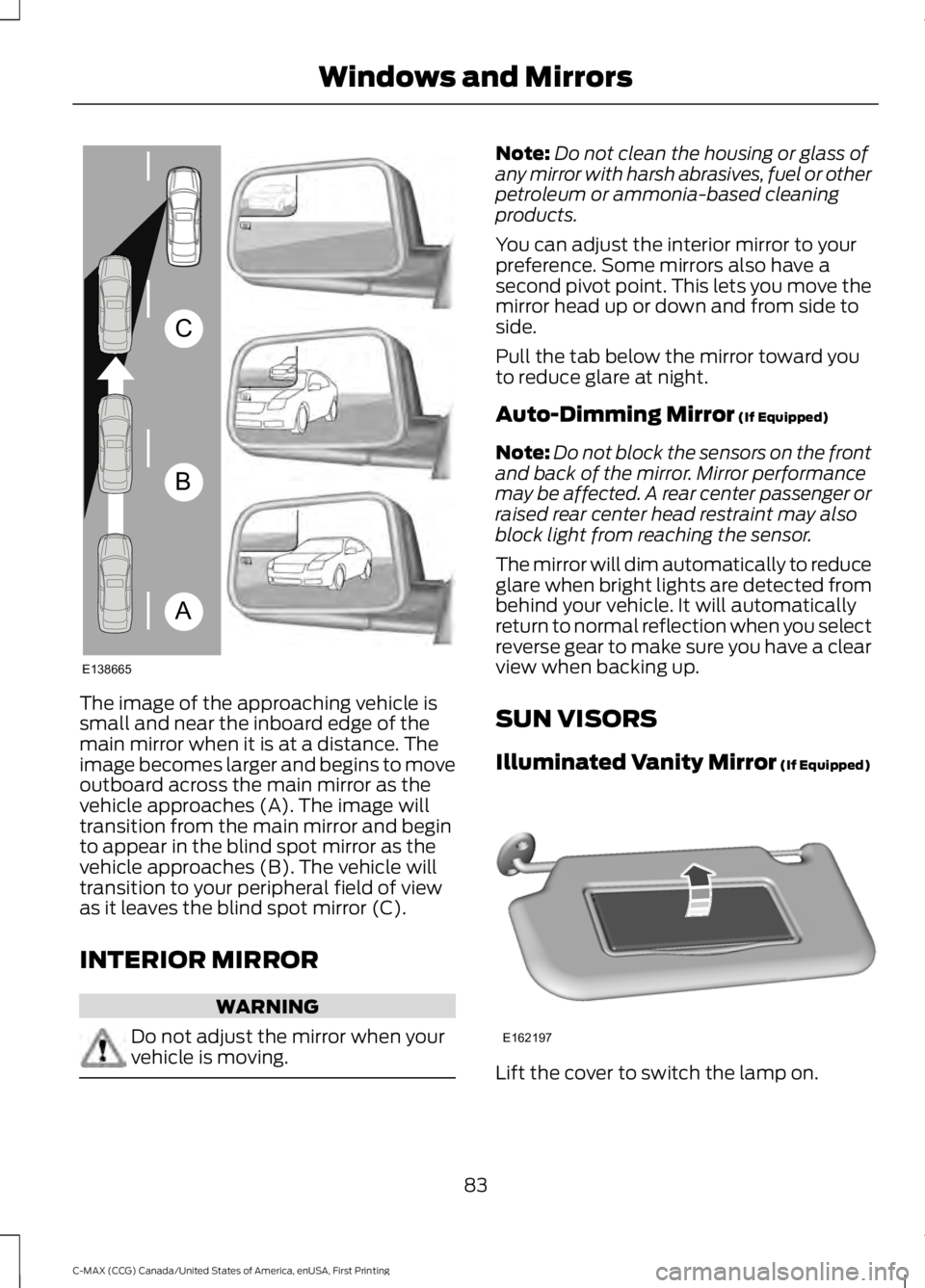

The image of the approaching vehicle issmall and near the inboard edge of themain mirror when it is at a distance. Theimage becomes larger and begins to moveoutboard across the main mirror as thevehicle approaches (A). The image willtransition from the main mirror and beginto appear in the blind spot mirror as thevehicle approaches (B). The vehicle willtransition to your peripheral field of viewas it leaves the blind spot mirror (C).
INTERIOR MIRROR
WARNING
Do not adjust the mirror when yourvehicle is moving.
Note:Do not clean the housing or glass ofany mirror with harsh abrasives, fuel or otherpetroleum or ammonia-based cleaningproducts.
You can adjust the interior mirror to yourpreference. Some mirrors also have asecond pivot point. This lets you move themirror head up or down and from side toside.
Pull the tab below the mirror toward youto reduce glare at night.
Auto-Dimming Mirror (If Equipped)
Note:Do not block the sensors on the frontand back of the mirror. Mirror performancemay be affected. A rear center passenger orraised rear center head restraint may alsoblock light from reaching the sensor.
The mirror will dim automatically to reduceglare when bright lights are detected frombehind your vehicle. It will automaticallyreturn to normal reflection when you selectreverse gear to make sure you have a clearview when backing up.
SUN VISORS
Illuminated Vanity Mirror (If Equipped)
Lift the cover to switch the lamp on.
83
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Windows and MirrorsA
B
C
E138665 E162197

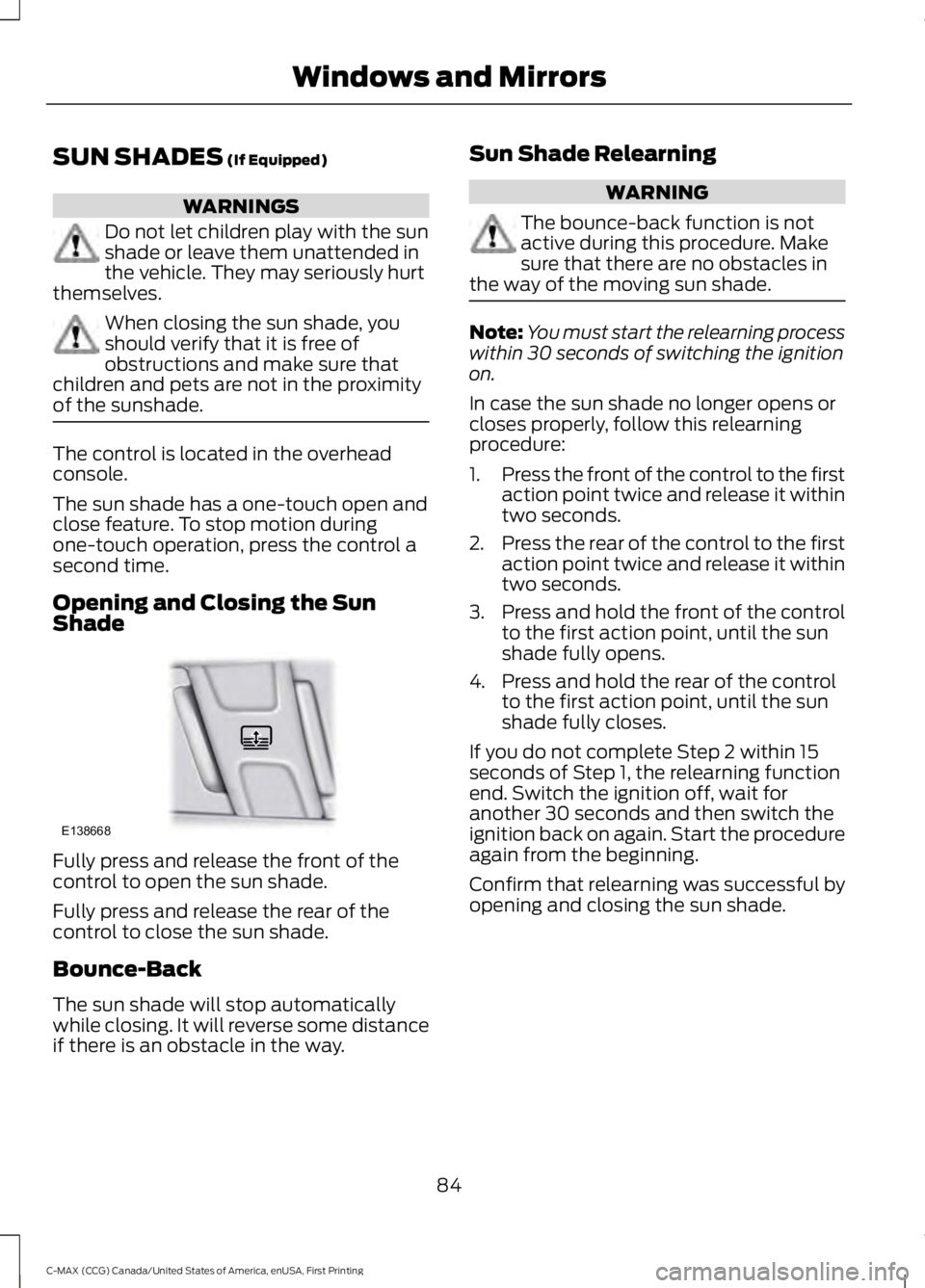

SUN SHADES (If Equipped)
WARNINGS
Do not let children play with the sunshade or leave them unattended inthe vehicle. They may seriously hurtthemselves.
When closing the sun shade, youshould verify that it is free ofobstructions and make sure thatchildren and pets are not in the proximityof the sunshade.
The control is located in the overheadconsole.
The sun shade has a one-touch open andclose feature. To stop motion duringone-touch operation, press the control asecond time.
Opening and Closing the SunShade
Fully press and release the front of thecontrol to open the sun shade.
Fully press and release the rear of thecontrol to close the sun shade.
Bounce-Back
The sun shade will stop automaticallywhile closing. It will reverse some distanceif there is an obstacle in the way.
Sun Shade Relearning
WARNING
The bounce-back function is notactive during this procedure. Makesure that there are no obstacles inthe way of the moving sun shade.
Note:You must start the relearning processwithin 30 seconds of switching the ignitionon.
In case the sun shade no longer opens orcloses properly, follow this relearningprocedure:
1.Press the front of the control to the firstaction point twice and release it withintwo seconds.
2.Press the rear of the control to the firstaction point twice and release it withintwo seconds.
3.Press and hold the front of the controlto the first action point, until the sunshade fully opens.
4. Press and hold the rear of the controlto the first action point, until the sunshade fully closes.
If you do not complete Step 2 within 15seconds of Step 1, the relearning functionend. Switch the ignition off, wait foranother 30 seconds and then switch theignition back on again. Start the procedureagain from the beginning.
Confirm that relearning was successful byopening and closing the sun shade.
84
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Windows and MirrorsE138668

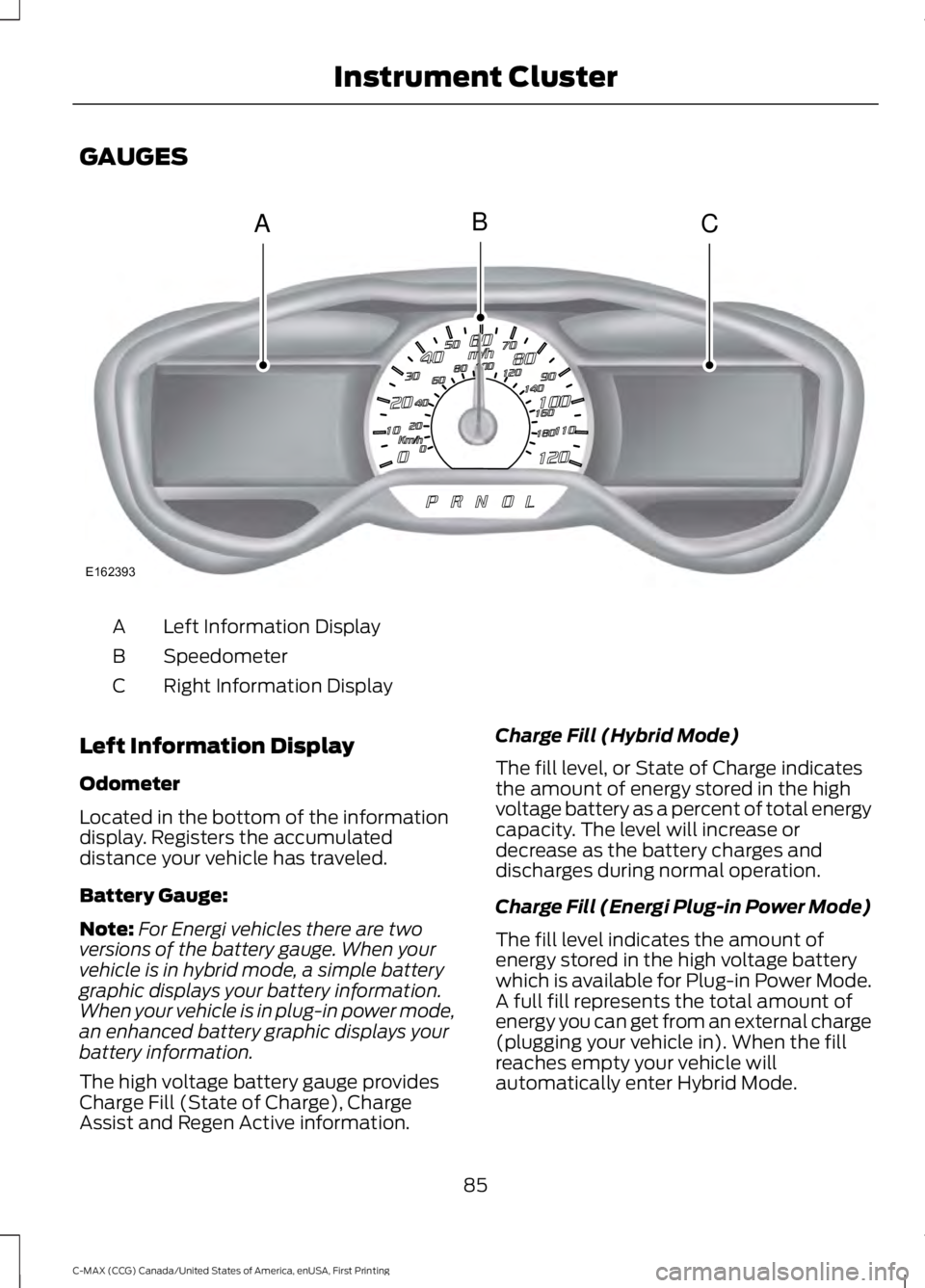

GAUGES
Left Information DisplayA
SpeedometerB
Right Information DisplayC
Left Information Display
Odometer
Located in the bottom of the informationdisplay. Registers the accumulateddistance your vehicle has traveled.
Battery Gauge:
Note:For Energi vehicles there are twoversions of the battery gauge. When yourvehicle is in hybrid mode, a simple batterygraphic displays your battery information.When your vehicle is in plug-in power mode,an enhanced battery graphic displays yourbattery information.
The high voltage battery gauge providesCharge Fill (State of Charge), ChargeAssist and Regen Active information.
Charge Fill (Hybrid Mode)
The fill level, or State of Charge indicatesthe amount of energy stored in the highvoltage battery as a percent of total energycapacity. The level will increase ordecrease as the battery charges anddischarges during normal operation.
Charge Fill (Energi Plug-in Power Mode)
The fill level indicates the amount ofenergy stored in the high voltage batterywhich is available for Plug-in Power Mode.A full fill represents the total amount ofenergy you can get from an external charge(plugging your vehicle in). When the fillreaches empty your vehicle willautomatically enter Hybrid Mode.
85
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Instrument ClusterACB
E162393

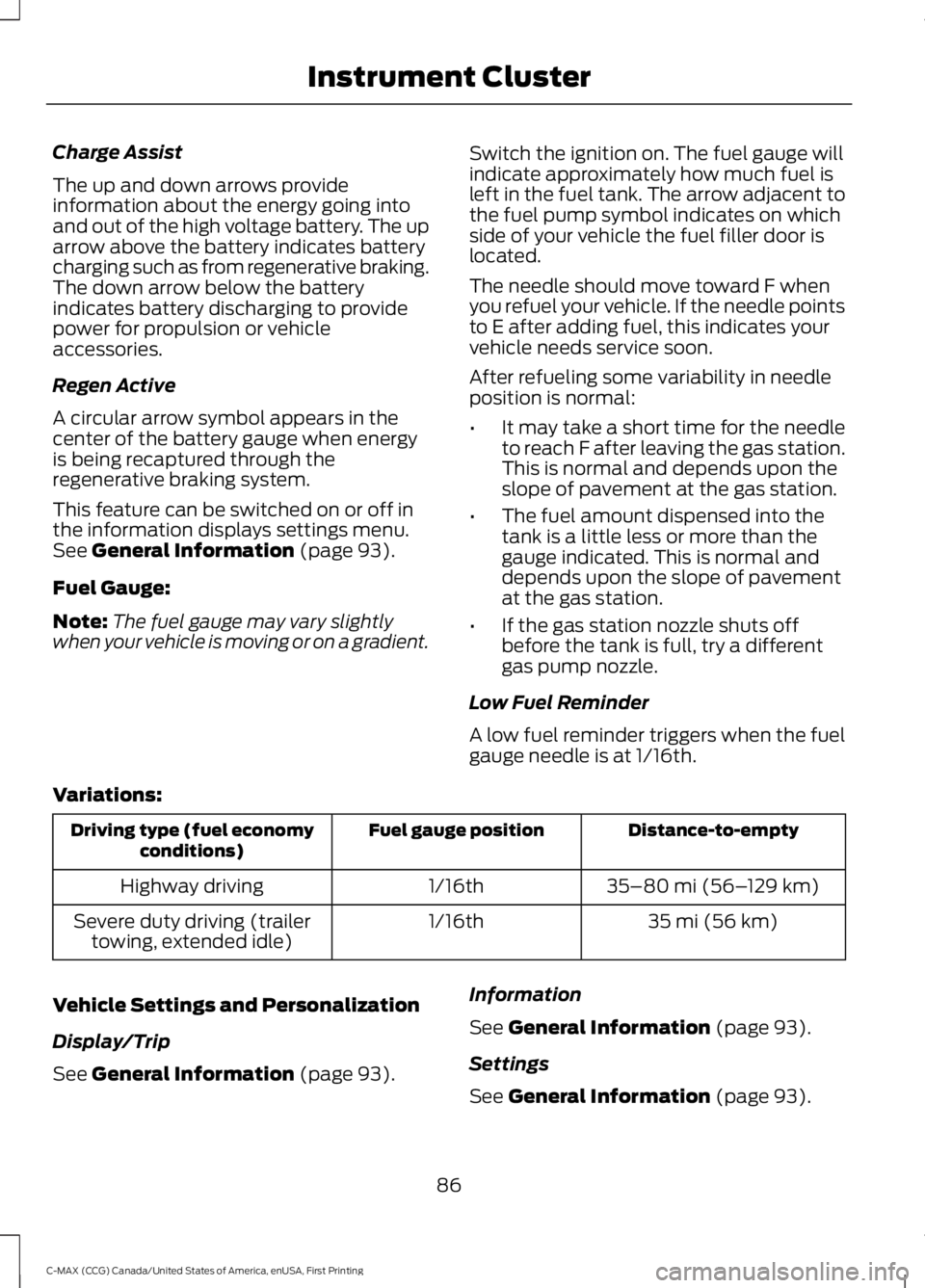

Charge Assist
The up and down arrows provideinformation about the energy going intoand out of the high voltage battery. The uparrow above the battery indicates batterycharging such as from regenerative braking.The down arrow below the batteryindicates battery discharging to providepower for propulsion or vehicleaccessories.
Regen Active
A circular arrow symbol appears in thecenter of the battery gauge when energyis being recaptured through theregenerative braking system.
This feature can be switched on or off inthe information displays settings menu.See General Information (page 93).
Fuel Gauge:
Note:The fuel gauge may vary slightlywhen your vehicle is moving or on a gradient.
Switch the ignition on. The fuel gauge willindicate approximately how much fuel isleft in the fuel tank. The arrow adjacent tothe fuel pump symbol indicates on whichside of your vehicle the fuel filler door islocated.
The needle should move toward F whenyou refuel your vehicle. If the needle pointsto E after adding fuel, this indicates yourvehicle needs service soon.
After refueling some variability in needleposition is normal:
•It may take a short time for the needleto reach F after leaving the gas station.This is normal and depends upon theslope of pavement at the gas station.
•The fuel amount dispensed into thetank is a little less or more than thegauge indicated. This is normal anddepends upon the slope of pavementat the gas station.
•If the gas station nozzle shuts offbefore the tank is full, try a differentgas pump nozzle.
Low Fuel Reminder
A low fuel reminder triggers when the fuelgauge needle is at 1/16th.
Variations:
Distance-to-emptyFuel gauge positionDriving type (fuel economyconditions)
35–80 mi (56–129 km)1/16thHighway driving
35 mi (56 km)1/16thSevere duty driving (trailertowing, extended idle)
Vehicle Settings and Personalization
Display/Trip
See General Information (page 93).
Information
See General Information (page 93).
Settings
See General Information (page 93).
86
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Instrument Cluster

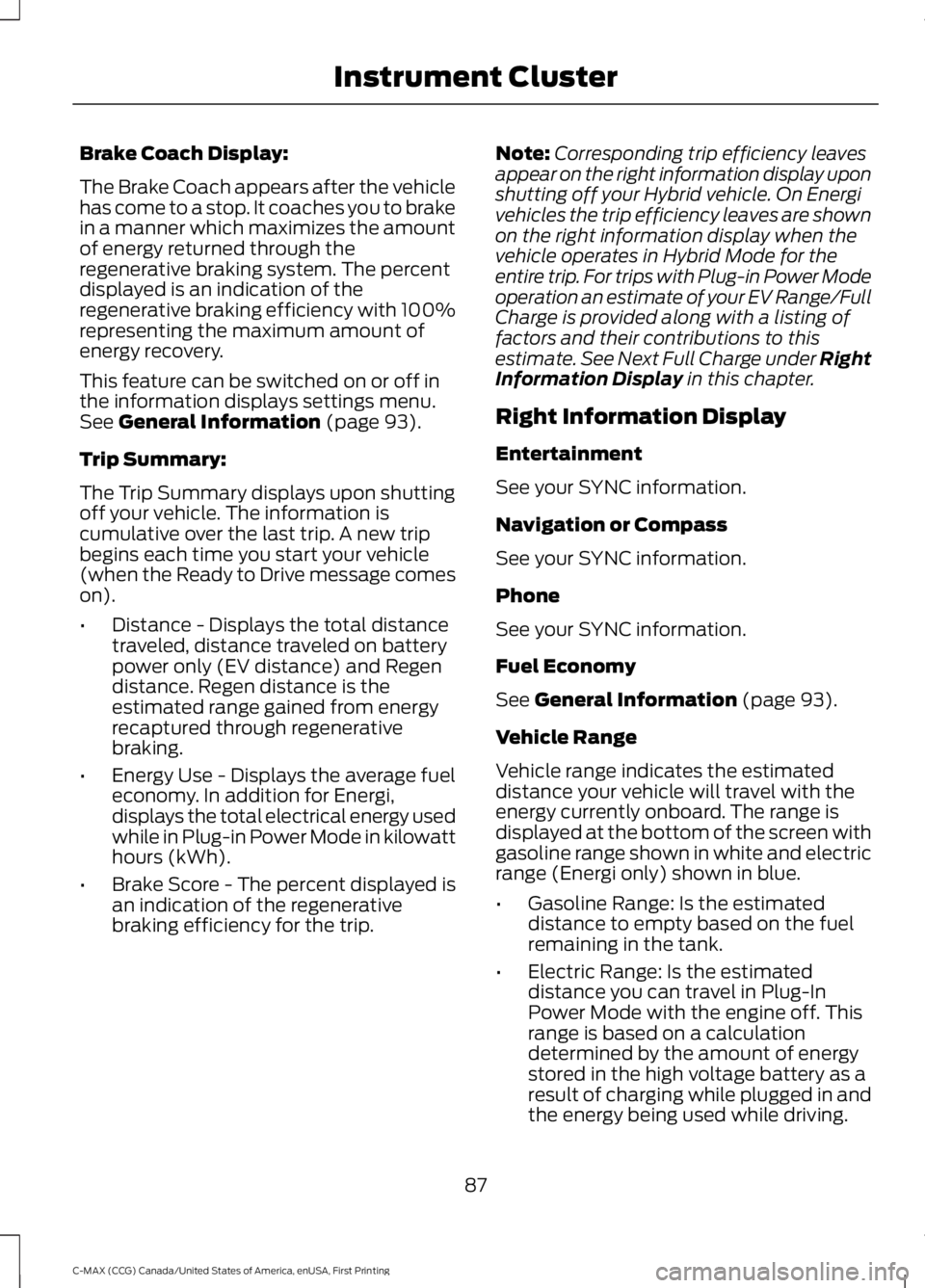

Brake Coach Display:
The Brake Coach appears after the vehiclehas come to a stop. It coaches you to brakein a manner which maximizes the amountof energy returned through theregenerative braking system. The percentdisplayed is an indication of theregenerative braking efficiency with 100%representing the maximum amount ofenergy recovery.
This feature can be switched on or off inthe information displays settings menu.See General Information (page 93).
Trip Summary:
The Trip Summary displays upon shuttingoff your vehicle. The information iscumulative over the last trip. A new tripbegins each time you start your vehicle(when the Ready to Drive message comeson).
•Distance - Displays the total distancetraveled, distance traveled on batterypower only (EV distance) and Regendistance. Regen distance is theestimated range gained from energyrecaptured through regenerativebraking.
•Energy Use - Displays the average fueleconomy. In addition for Energi,displays the total electrical energy usedwhile in Plug-in Power Mode in kilowatthours (kWh).
•Brake Score - The percent displayed isan indication of the regenerativebraking efficiency for the trip.
Note:Corresponding trip efficiency leavesappear on the right information display uponshutting off your Hybrid vehicle. On Energivehicles the trip efficiency leaves are shownon the right information display when thevehicle operates in Hybrid Mode for theentire trip. For trips with Plug-in Power Modeoperation an estimate of your EV Range/FullCharge is provided along with a listing offactors and their contributions to thisestimate. See Next Full Charge under RightInformation Display in this chapter.
Right Information Display
Entertainment
See your SYNC information.
Navigation or Compass
See your SYNC information.
Phone
See your SYNC information.
Fuel Economy
See General Information (page 93).
Vehicle Range
Vehicle range indicates the estimateddistance your vehicle will travel with theenergy currently onboard. The range isdisplayed at the bottom of the screen withgasoline range shown in white and electricrange (Energi only) shown in blue.
•Gasoline Range: Is the estimateddistance to empty based on the fuelremaining in the tank.
•Electric Range: Is the estimateddistance you can travel in Plug-InPower Mode with the engine off. Thisrange is based on a calculationdetermined by the amount of energystored in the high voltage battery as aresult of charging while plugged in andthe energy being used while driving.
87
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
